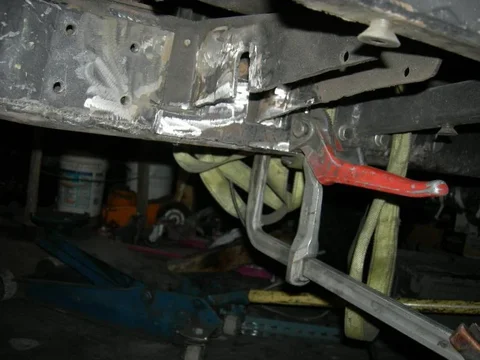

Looks like it clamps the whole thing down to the table.
After reading your post and looking at it again, yep part of the clamp.
- Thread starter
- #264
Quote:
Originally Posted by D'Animal
So what is that little red handled thing in post #256?
Yep its a wazoo german clamp.. Its a crappy picture
Originally Posted by D'Animal
So what is that little red handled thing in post #256?
Yep its a wazoo german clamp.. Its a crappy picture
- Thread starter
- #265

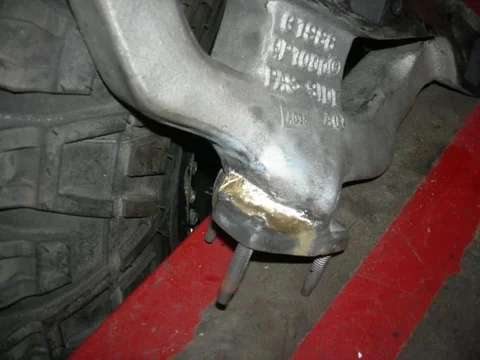

rather then putting on other exhaust manifolds I had a machinist braze the header together.
more pics
I hope it holds.. The machinist said that it was as strong or stronger. hummm
more pics
I hope it holds.. The machinist said that it was as strong or stronger. hummm
Last edited:
- Thread starter
- #266

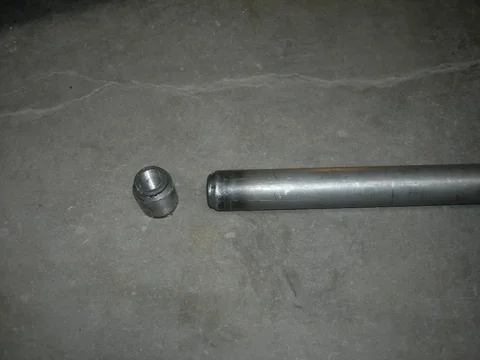

When I originally sleeved the tie rid made it too long. Cut it off and retapped. Had access to right hand tap 7/8 18 thread tap
one more pic

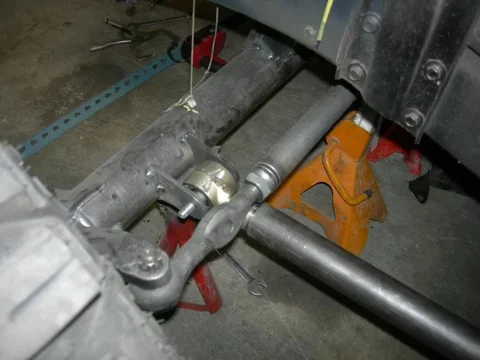

Had to bore out the tie rod end I had the reamer from the original build
one more pic
Had to bore out the tie rod end I had the reamer from the original build
Last edited:
- Thread starter
- #267
being paranoid I decided to beef up the pitman arm. Most likely not neccesary but I couldn't stop

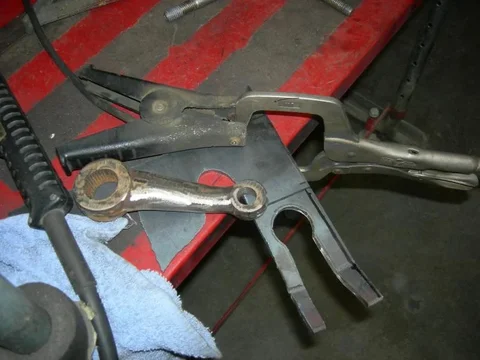

clamped and ready to weld

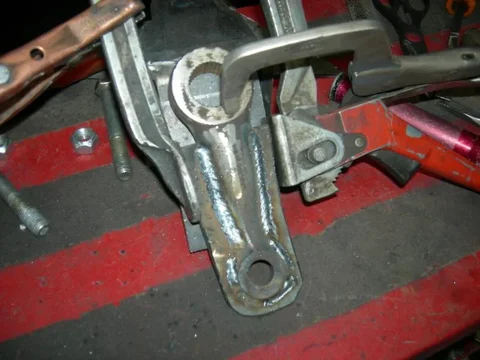

welded up
clamped and ready to weld
welded up
Last edited:
Why the beefy pitman arm if you are going hydro assist?
- Thread starter
- #269

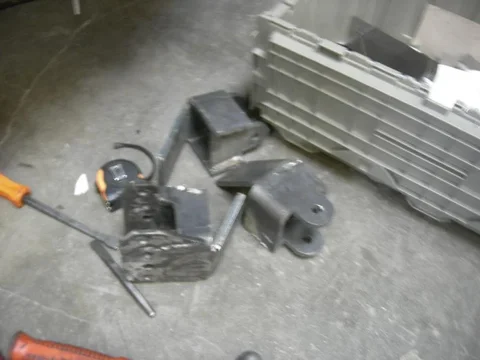

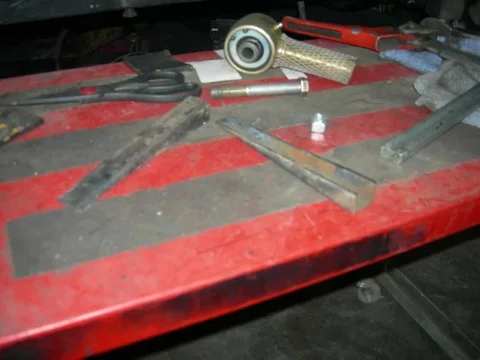

I fabbed some link mounts a couple of weeks ago and I thought I was clever in outboarding them and integrating them into the body mount
- Thread starter
- #270

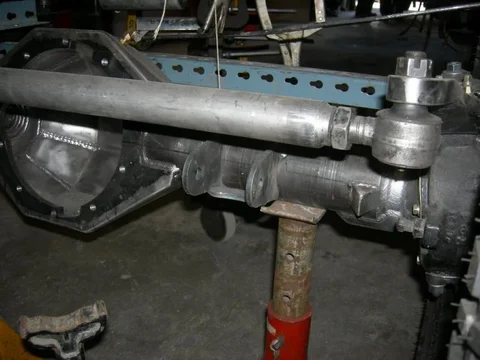

more pics of frame side mount
Axle mount
Axle mount
- Thread starter
- #271
Of course the frame mounts are way too high and I had to lower them. So off they came.
work and rework
work and rework
Last edited:
- Thread starter
- #272

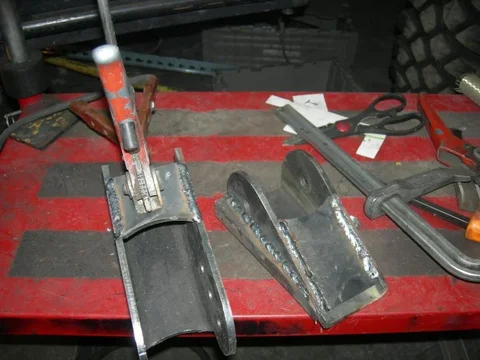

scab plate party
- Thread starter
- #273
clamped scab plates and ready to burn in
- Thread starter
- #274
I did not want to put the links directly under the frame all though I should have.
decided to outboard the frame mounts but lower them 5 inches so I had to angle them a bit.

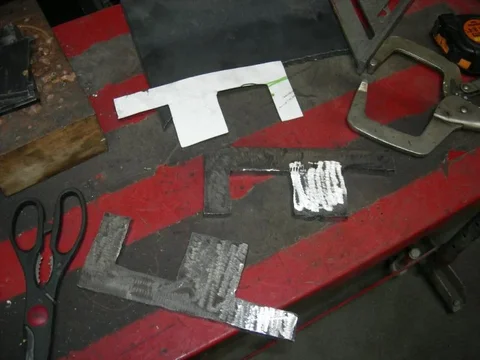

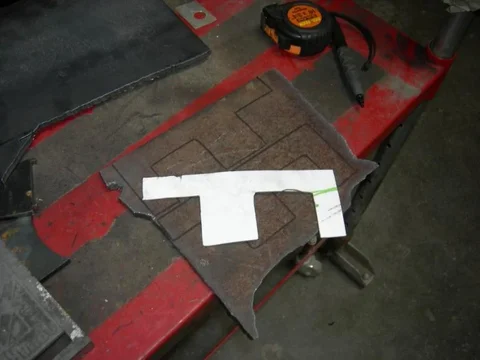

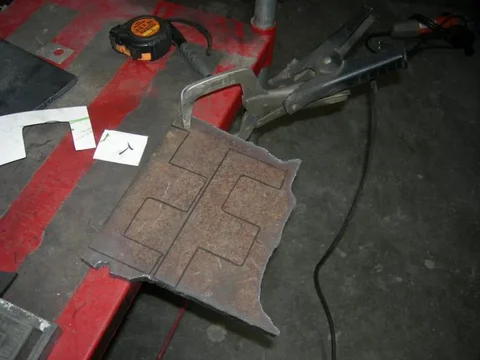

Make shift plazma jig
final cut
decided to outboard the frame mounts but lower them 5 inches so I had to angle them a bit.
Make shift plazma jig
final cut
- Thread starter
- #275
clamped and ready for the burn

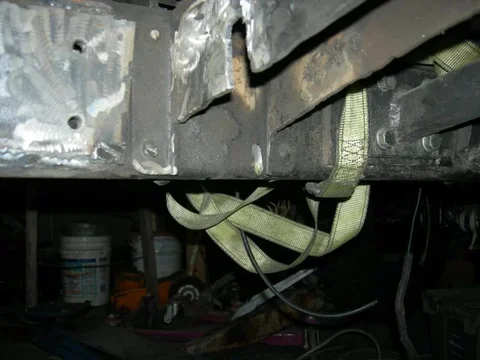

welded
Don't laugh about the welds, I can't seem to manage welding on my back because the slag hurts hurts hurts and there is crap for light
welded
Don't laugh about the welds, I can't seem to manage welding on my back because the slag hurts hurts hurts and there is crap for light
Last edited:
- Thread starter
- #276

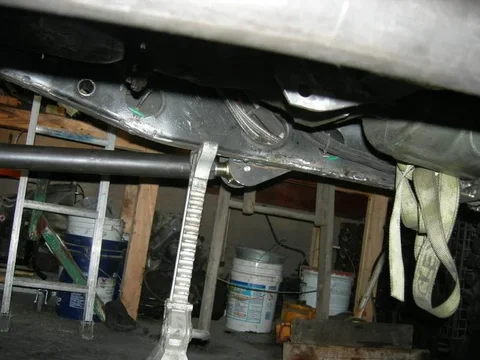

tached in
outboard
outboard
- Thread starter
- #277
Because I am an idiot and often overdue things. After running the reamer the bell looked pretty thin, but the pitman arm is the length I needed. If I would have had a second opinion I wouldnt have done it. It sucks working alone because there is no end to my bad ideas.
I still have lots of trimming to do
Last edited:
- Thread starter
- #278
tacked in links

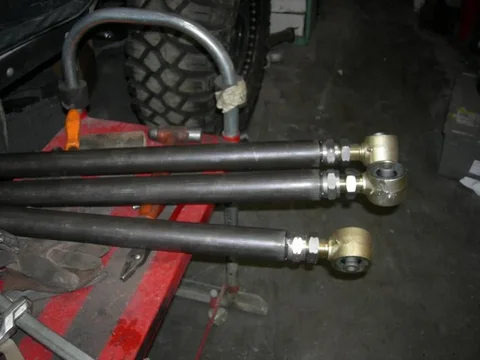

each links weighs a little over 25 pounds. DOM is heavy
each links weighs a little over 25 pounds. DOM is heavy
- Thread starter
- #279

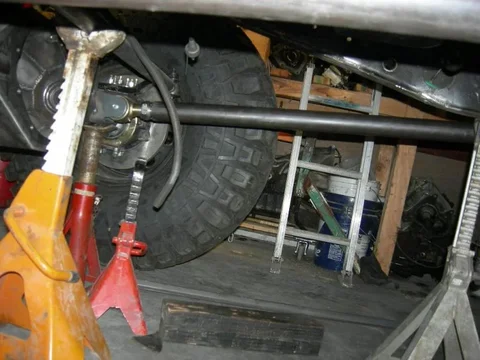

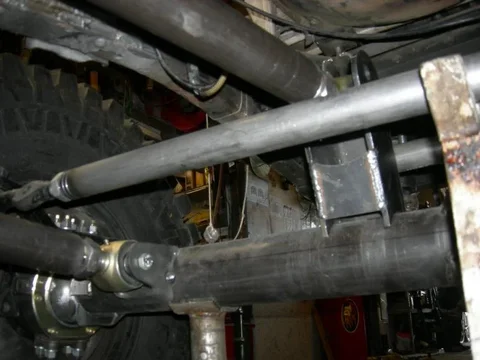

Lowers axle link
Lower link frame side

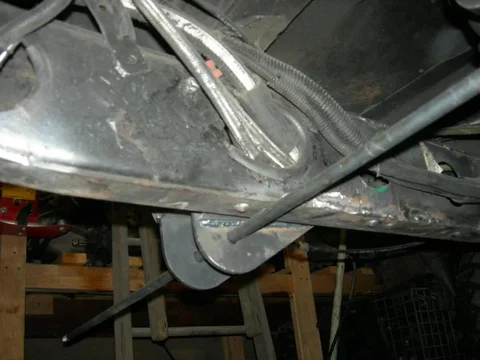

lower link passenger side
Lower link frame side
lower link passenger side
Last edited:
- Thread starter
- #280

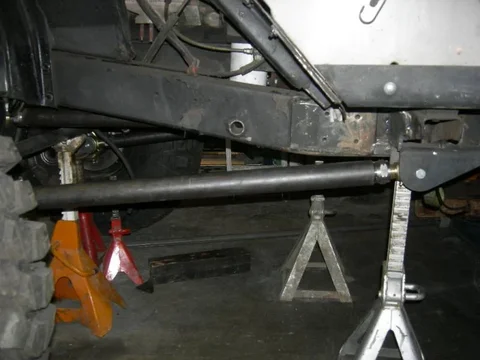

lower frame side
uppers 3rd link
upper 3rd link, getting tight
uppers 3rd link
upper 3rd link, getting tight
