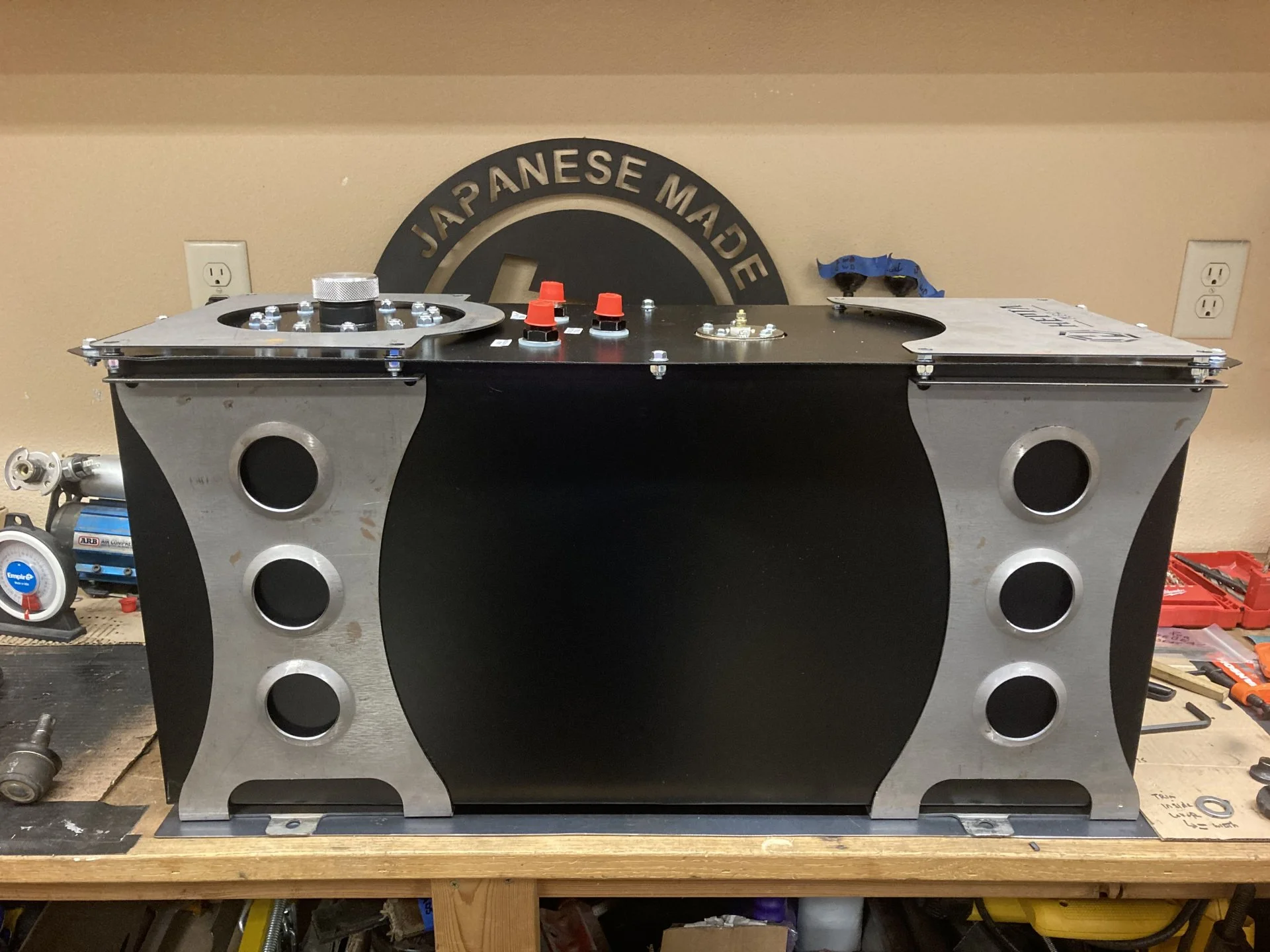

Here is a pic of the RCI rock crawler fuel cell Not bad quality, has a bladder as well. I will run it with in cell fuel pump. I will most likely use this cell as a template and build a stronger cell of thicker gauge. So overall a win. I did speak to about 5 guys running it and they are happy with it. Anyone out there looking at building their own hit me up for a template.



[bluehawk]

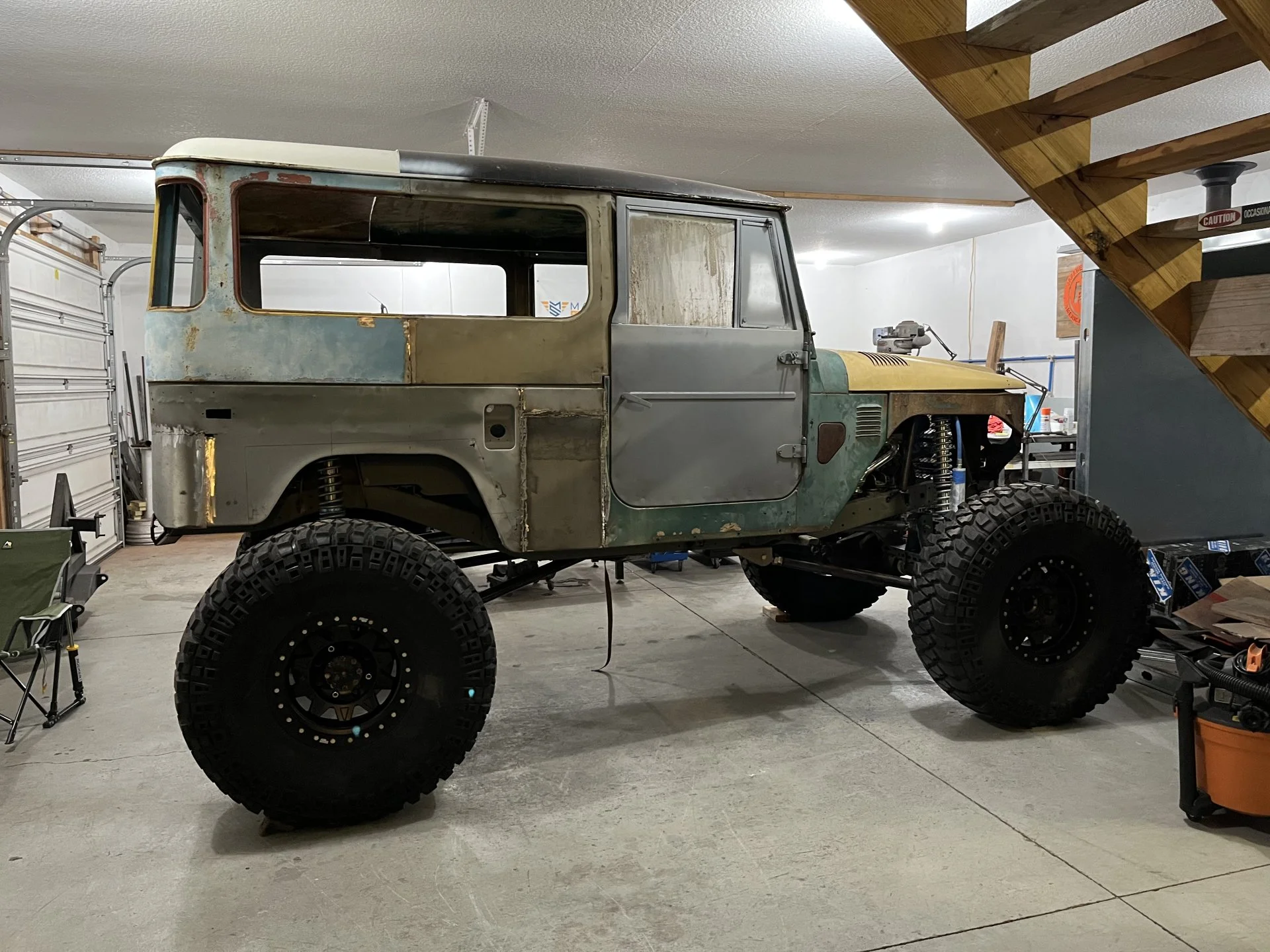

Well I got Lockjaw off of the lift and on all fours finally. Had a few issues but not to bad.



[Paul]

Love the look!! Nice work. You’ve got me thinking hard about linking the front and running some Fj80 or 1 ton axles. Inspiring!!



[bluehawk]

Need to open up the rear wheel wells and finish up some body work. Got a ton of stuff to finish up. More to come



[Paul]

Keep it coming as life allows. Linking the front has me a bit spooked. No experience. Maybe I can recruit Danger noodle to come out Montana and give me a hand.



[Mike Shull]

This thing looks amazing! Post more pictures. I am excited to get my tub back on.



[Mike Shull]

Keep it coming as life allows. Linking the front has me a bit spooked. No experience. Maybe I can recruit Danger noodle to come out Montana and give me a hand.

Linking my Cruiser was easier then I thought that it was going to be. Next time I’d spend less time worrying about lower link placement to the frame on the front end. I got pretty good geometry by changing the axle mount and upper link placement.



[Paul]

Can you guys give me a reference to read on the technical aspect of geometry for 3 link front? MS I will check out your build tread. Thanks.



[Mike Shull]

Can you guys give me a reference to read on the technical aspect of geometry for 3 link front? MS I will check out your build tread. Thanks.

This is a good place to start. I would agree with many to not over think it. 4-Link Suspension Guide | Anti -Squat, Anti-Dirve, and Roll Center Basics - https://www.crawlpedia.com/4_link_suspension.htm



[bluehawk]

There is a four link and three link calculator on the web site Crawlpedia



[bluehawk]

You beat me to it Mike



[Paul]

Thanks you guys. I will start the process. I have my Mini to wheel so the 40 build can take and turn. Appreciate it.



[Mike Shull]

You beat me to it Mike

I was hoping that would give you more time to post pictures. Ha!



[bluehawk]

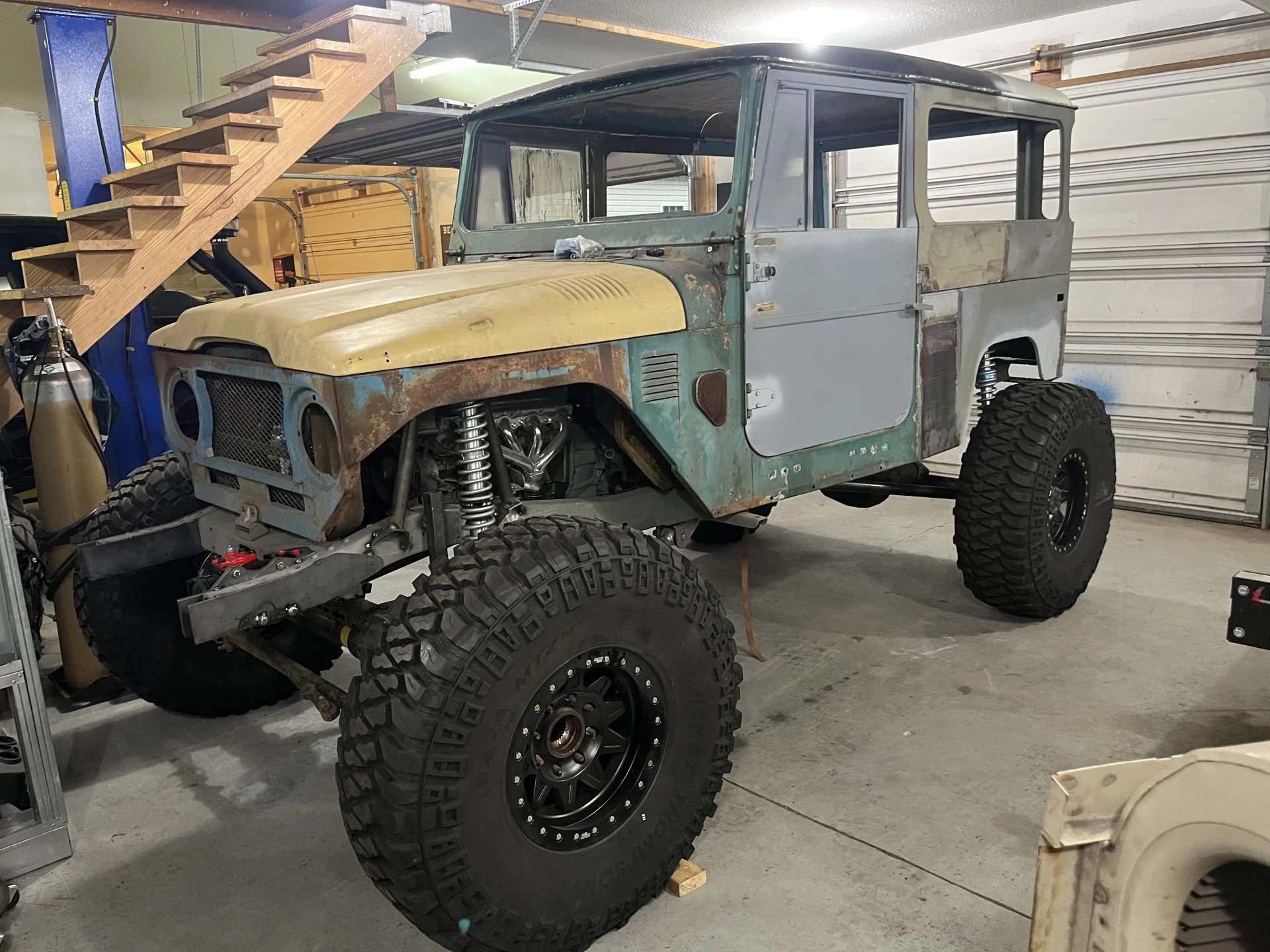

Another angle of my 40 as she sits



[Paul]

Cool. Been waiting for some updates.



[bluehawk]

Working on roll-bar design. Think I’ve got a good idea of what I want it to look like. Now just need to pull some dimensions and stick them in bend-tech



[Paul]

What bender set up do you own? Happy with it.



[Paul]

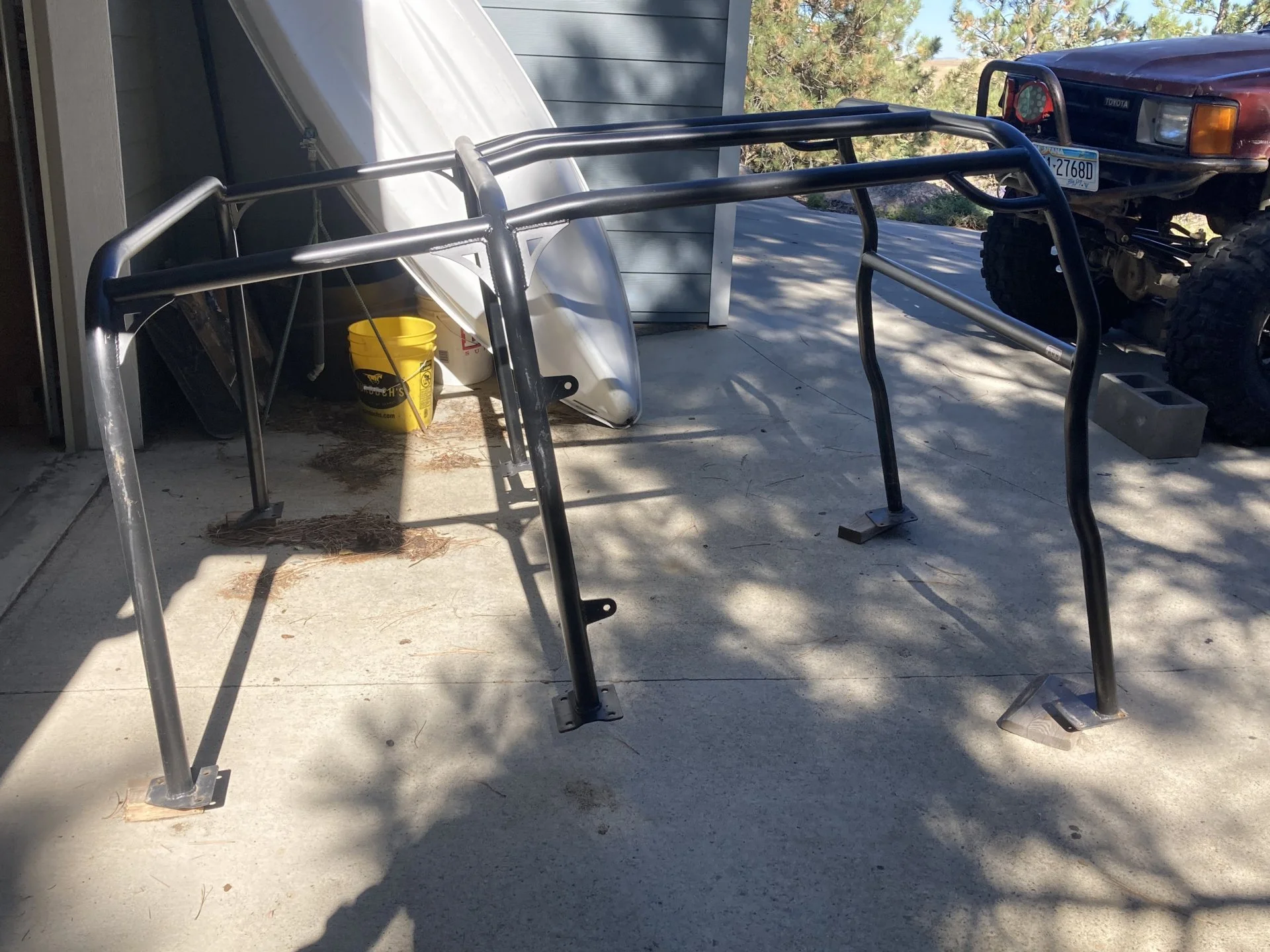

Here is my 40 cage. By PC back in the day. Family cage. Still really like it.



[Mike Shull]

Working on roll-bar design. Think I’ve got a good idea of what I want it to look like. Now just need to pull some dimensions and stick them in bend-tech

I’m excited to see what you do so that I can borrow ideas for mine With the extra length, I was thinking of a family cage that has sort of a fastback look with the top off. Those are dreams for me. I need to get my tub on before I can worry about the cage.

Here is my 40 cage. By PC back in the day. Family cage. Still really like it.

View attachment 3124690

This cage looks clean! Let’s see it on your Cruiser.



[bluehawk]

What bender set up do you own? Happy with it.

I just bought a JD Squared model 32. I also purchased Bend-tech Pro with the roll cage template software. I’m excited to use it
