Just bought my 2001 LX470, 127k miles, over the weekend knowing it had a possible transmision issue. The low mileage makes me think it's not necessarily the transmission. Here's a description of my issue. When put into R or D, the engine will rev pretty high, and then with a slight delay it will move a little bit.

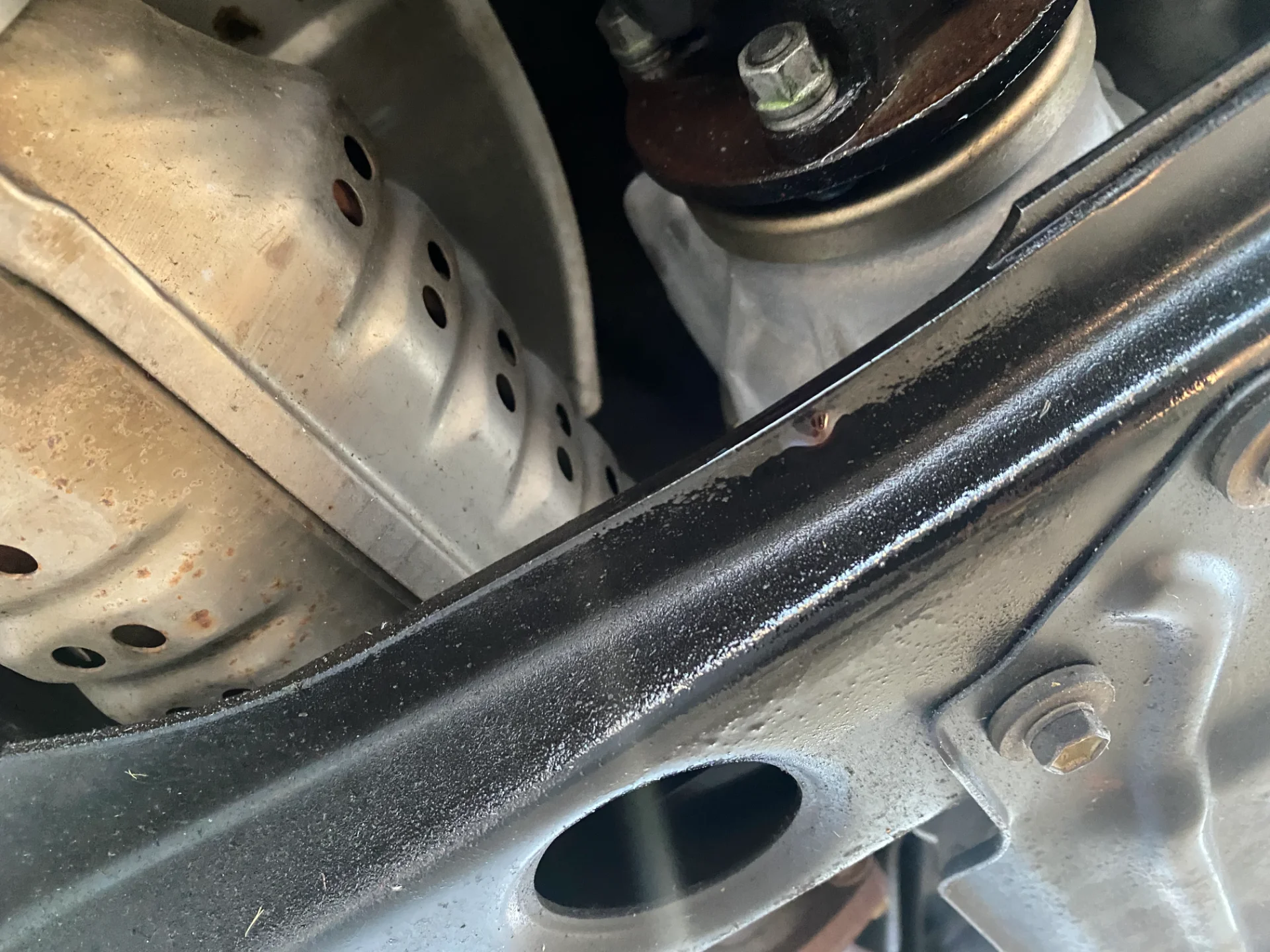

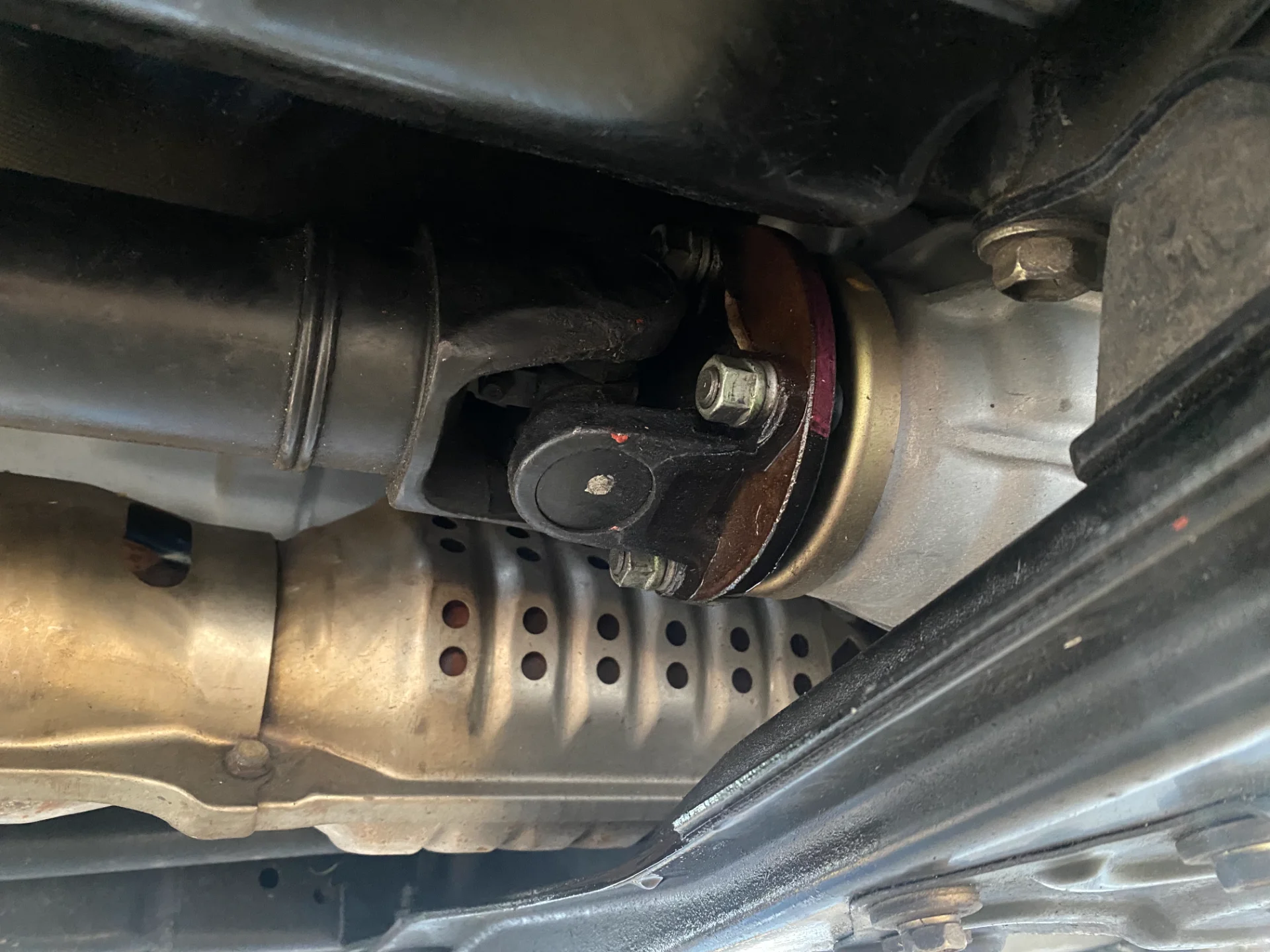

I tried adding ATF, and then found it leaking from the the transfer case output shaft (I only know this because I text pics and a video to a knowledgeable friend).

I found this on an old thread, "From a stop it won't engage drive at all, or engages but then revs and barely moves/revving when you accelerate = torque converter low on fluid, can't build pressure. Likely will slip under loads."

Any input or advice from the community is greatly appreciated!






I tried adding ATF, and then found it leaking from the the transfer case output shaft (I only know this because I text pics and a video to a knowledgeable friend).
A little confused here - you tried adding ATF where? To the transmission or the transfer case? There's ATF leaking from the transfer case?

Trans and TC are two different things that use different fluids.

A little confused here - you tried adding ATF where? To the transmission or the transfer case? There's ATF leaking from the transfer case?

Trans and TC are two different things that use different fluids.
I'm also a little confused 😂. This is my first rodeo with a 4wd and drive train issues after the engine.
I added ATF where the dipstick is for the transmission. I then found it leaking where the output shaft mates with the transfer case. After doing some online research, ATF goes into the output shaft in '01 LX470s and there appears to be a broken seal. Looks like I first need to replace the output shaft seal and the input shaft seal to the tranfer case, then seen if the transmission is okay.

I'm also a little confused 😂. This is my first rodeo with a 4wd and drive train issues after the engine.
I added ATF where the dipstick is for the transmission. I then found it leaking where the output shaft mates with the transfer case. After doing some online research, ATF goes into the output shaft in '01 LX470s and there appears to be a broken seal. Looks like I first need to replace the output shaft seal and the input shaft seal to the tranfer case, then seen if the transmission is okay.
The trans dipstick fill tube is the correct spot to add ATF. The TC gets filled through the upper of the two threaded plugs in its case, accessed from under the vehicle. The lower plug is for draining.

If you have ATF leaking from your TC, that's a problem. What does the leak look/smell like? TC gear oil has a pronounced sulfur smell (rotten eggs), while ATF is typically a reddish color. There is a seal between the TC and the trans that could potentially fail but I have never heard of enough ATF getting into the TC to leak out of it.

I'd carefully trace that leak, be certain where it originates. And you want to be certain of what is actually in your TC. Drain and refill if you can't be sure, it's only about 2qt of gear oil, IIRC. Not expensive. Always break the seal on the FILL plug before you unscrew the drain plug.

Also, I thought my Pacific Northwest rig underside was clean - yours looks surgically sterile! Our rust belt friends here can only dream of one like that. Should be easy for you to trace that leak.

Last edited:
The trans dipstick fill tube is the correct spot to add ATF. The TC gets filled through the upper of the two threaded plugs in its case, accessed from under the vehicle. The lower plug is for draining.

If you have ATF leaking from your TC, that's a problem. What does the leak look/smell like? TC gear oil has a pronounced sulfur smell (rotten eggs), while ATF is typically a reddish color. There is a seal between the TC and the trans that could potentially fail but I have never heard of enough ATF getting into the TC to leak out of it.

I'd carefully trace that leak, be certain where it originates. And you want to be certain of what is actually in your TC. Drain and refill if you can't be sure, it's only about 2qt of gear oil, IIRC. Not expensive. Always break the seal on the FILL plug before you unscrew the drain plug.

Also, I thought my Pacific Northwest rig underside was clean - yours looks surgically sterile! Our rust belt friends here can only dream of one like that. Should be easy for you to trace that leak.
Thanks for the input. Looks I need to make sure I give it a good fill and see if the transmission works. My assumption is the previous owner did not realize there was a leak and drove it. The trans is definitely starved of fluid, but if he didn't drive too much while it was starved of fluid there could be hope (most likely he did). It's just a pain trying to read the dipstick after pouring ATF down the tube, there's so much residual fluid on the walls of the tube it gets all over the dipstick. I'll try that this afternoon and report back. I'm almost positive the leak is at the output shaft seal because when I put in some fresh fluid, it immediately came out at the point in the photos (hopefully not in the TC).

I'm familiar with the whoas of the rust belt. I'm in a 1st Gen Tundra FB group and they love a good clean coastal Gen 1 :).

I'm almost positive the leak is at the output shaft seal because when I put in some fresh fluid, it immediately came out at the point in the photos (hopefully not in the TC).

if fluid is coming out of an outputshaft going to 1 of the driveshafts, that is coming from the transfer case
the transfer case is totally separate from the transmission, even tho they are bolted together.
the 2 fluids do not mix there are seals on the output of the transmission and the input of the transfer case.
if you are adding ATF to the transmission and it is coming out of the output shaft of the transfer case, something is majorly wrong

your trans takes 12 quarts of basic Dexron II ATF on a dry fill. About 8 quarts of that lives in the torque converter and cannot be drained directly - only flushed through - so you never really know how much you have on board other than what the dipstick says. Let it settle after a fill, it's easier to read.

Baselining fluids is typical for new ownership and if you're reasonably competent and willing to get your hands oily, you can do it all yourself. Engine oil, ATF, transfer case, differentials (F+R), coolant. Power steering, brake fluids, and driveshaft/u-joint grease for extra credit. I never trust what a PO put in and/or ignored.

For a proper DIY flush, search 'Rodney flush' over in the 60-series forum. The process for an early 100 like yours is basically the same: you disconnect the transmission output (cooler input) line at the radiator-mounted cooler and let the engine push all 3 gallons of ATF out as you simultaneously refill. Toss a bottle of UV dye in the ATF at the end - that might help you determine what's actually showing up at the TC output shaft plus you'll see some of the dye in the TC if it is ATF-contaminated. Or hold back a few tablespoons of existing TC gear oil for a Blackstone Lab analysis if you want to know for sure.

A small leak alone won't hurt your trans or TC, but a low fill or cross-contamination could. A full driveline fluid replacement + a good underside power wash will stall any future issues while you sort out the leaks.

Last edited:
your trans takes 12 quarts of basic Dexron II ATF on a dry fill. About 8 quarts of that lives in the torque converter and cannot be drained directly - only flushed through - so you never really know how much you have on board other than what the dipstick says. Let it settle after a fill, it's easier to read.

Baselining fluids is typical for new ownership and if you're reasonably competent and willing to get your hands oily, you can do it all yourself. Engine oil, ATF, transfer case, differentials (F+R), coolant. Power steering, brake fluids, and driveshaft/u-joint grease for extra credit. I never trust what a PO put in and/or ignored.

For a proper DIY flush, search 'Rodney flush' over in the 60-series forum. The process for an early 100 like yours is basically the same: you disconnect the transmission output (cooler input) line at the radiator-mounted cooler and let the engine push all 3 gallons of ATF out as you simultaneously refill. Toss a bottle of UV dye in the ATF at the end - that might help you determine what's actually showing up at the TC output shaft plus you'll see some of the dye in the TC if it is ATF-contaminated. Or hold back a few tablespoons of existing TC gear oil for a Blackstone Lab analysis if you want to know for sure.

A small leak alone won't hurt your trans or TC, but a low fill or cross-contamination could. A full driveline fluid replacement + a good underside power wash will stall any future issues while you sort out the leaks.
Definitely competent, did my timing belt, water pump, alternator, suspension, etc. on the Tundra. Just need knowledge and guidance.

Definitely competent, did my timing belt, water pump, alternator, suspension, etc. on the Tundra. Just need knowledge and guidance.
your trans takes 12 quarts of basic Dexron II ATF on a dry fill. About 8 quarts of that lives in the torque converter and cannot be drained directly - only flushed through - so you never really know how much you have on board other than what the dipstick says. Let it settle after a fill, it's easier to read.

Baselining fluids is typical for new ownership and if you're reasonably competent and willing to get your hands oily, you can do it all yourself. Engine oil, ATF, transfer case, differentials (F+R), coolant. Power steering, brake fluids, and driveshaft/u-joint grease for extra credit. I never trust what a PO put in and/or ignored.

For a proper DIY flush, search 'Rodney flush' over in the 60-series forum. The process for an early 100 like yours is basically the same: you disconnect the transmission output (cooler input) line at the radiator-mounted cooler and let the engine push all 3 gallons of ATF out as you simultaneously refill. Toss a bottle of UV dye in the ATF at the end - that might help you determine what's actually showing up at the TC output shaft plus you'll see some of the dye in the TC if it is ATF-contaminated. Or hold back a few tablespoons of existing TC gear oil for a Blackstone Lab analysis if you want to know for sure.

A small leak alone won't hurt your trans or TC, but a low fill or cross-contamination could. A full driveline fluid replacement + a good underside power wash will stall any future issues while you sort out the leaks.
Ok, got the proper amount of ATF in, it was definitely starved, almost put in a whole gallon. Here are the symptoms:
When the engine is hot, it will immediately choke when put into any gear.
When the engine is cold, it will idle when put into gear and not move. If the engine is then revved it will eventually creep slowly.

STOP! You may be overfilling your AT.
First, make sure you are checking the AT fluid level correctly:
  • Park on level ground with the engine idling.
  • Get the AT fluid temp up to ~160°F.
  • Shift through all gears, pausing in each, before checking.
  • Note on shifting: While warming up the fluid and shifting through the gears, push your Center Differential Lock (CDL) button. Does shifting into gear feel normal, or is it still slipping? If it's slipping, your RPMs will flare up instead of holding steady or dropping as you engage the gear. If shifting feels normal, pull grease caps off front wheel hubs to inspect hub flange snap rings.
  • Pull the AT dipstick (near the firewall at the back of the engine), wipe it clean, and reinsert it.
  • Use two hands to guide and feed it so it doesn't bend. If your dipstick is already bent, straighten it out first.
  • The level should be at the "High Hot" mark—no lower than "Low Hot," though up to 1/16" over "High Hot" is acceptable.
Next, check your Transfer Case (TC) level:
  • Park on level ground and remove the 30mm fill plug from the upper rear of the TC.
  • Check the level by sticking your pinky finger in. It should be right at the bottom of the fill hole or up to 5mm below it.
  • If the TC is overfilled, fluid will pour out as soon as you remove the plug.
Make sure to catch any escaping fluid in a clean catch can. You will want to measure the exact volume that comes out and save a sample to send to Blackstone Labs for analysis. It is highly recommended to grab a sample from the AT to send to them as well.
Personally, I would completely flush both systems. Baselining all fluids is always a smart move when taking possession of any used vehicle.
  • For the TC: I use Mobil 1 75-90 gear lube.
  • For the AT: I do a full 12-quart flush with Mobil 1 MV ATF.
Keep in mind that the AT and TC share a breather tube at a "Y" fitting on top of the AT/TC assembly near the rear. If the AT is overfilled, ATF may have pushed through into the TC. Fluid mixing or improper additives will increase foaming in either unit and lead to cross-contamination.
I would also pull the longer breather hose—the one that connects to the "Y" at the top rear of the AT and runs to the front AT breather on the bellhousing/engine area. Pull that long hose off the "Y" fitting and let it hang down into a clean catch can for a few hours to see what drains out.

Update with normal ATF level. Now that the transmission is not starved, the car choke/stalls abruptly when cold and hot. Possible solenoid issue in the torque converter. Going to pull the pan to see if there was catostrophic failure. If not, I'll check the solenoid, replace filter, and fix the leak. I'll keep this thread updated, might not be fast, this is a project car and I'm going to work on it when it's convienent.

Update with normal ATF level. Now that the transmission is not starved,
Are you saying it WAS LOW on ATF? You added how much ATF to bring to high hot mark while idling at what ATF #1 temp?
the car choke/stalls abruptly when cold and hot.
So no longer is there a delay where RPM jump?
Possible solenoid issue in the torque converter.
One test of solenoids and or shorts in electric circuit. Manual shifting with fluid correct type & level, then shifting feels normal. Is indication of electrical issue. It can also be indication of valve body wear resulting in pressure loss.
Going to pull the pan to see if there was catostrophic failure. If not, I'll check the solenoid, replace filter, and fix the leak. I'll keep this thread updated, might not be fast, this is a project car and I'm going to work on it when it's convienent.
I'd for sure get sample of ATF from mid flow of pan draining, sent to Blackstone Labs.

Update.
I drained the ATF, and the fluid was maroon (pics attached). I just drained the transfer case and there was no ATF in it, looked like normal used oil.

There’s definitely a leak at the output shaft seal, or somewhere above it I don’t see. It’s also seeping out around the pan, which tells me someone dropped it and didn’t put it back right.

A good friend is recommending I just swap a used transmission in there and cal it a day. Instead of chasing a “possible” issue.

For the record, this is what it does when the fluid is at the correct level. As soon as I put it into any gear, it automatically chokes. Very similar to pulling your foot off the clutch in a manual trans, just not as violent :).




Too much mixed information here to make sense of what's happening but I would not think you are near the point of removing and replacing with a used transmission..

First you mentioned TC ( toque converter attached to transmission with ATF fluid ) then you mentioned you drained transfer case ( uses barely a quart of gear oil )

Previous post by 2001lc is your best means for troubleshooting
>> Possible Transmission Issue - https://forum.ih8mud.com/threads/possible-transmission-issue.1386146/post-16456349

Too much mixed information here to make sense of what's happening but I would not think you are near the point of removing and replacing with a used transmission..

First you mentioned TC ( toque converter attached to transmission with ATF fluid ) then you mentioned you drained transfer case ( uses barely a quart of gear oil )

Previous post by 2001lc is your best means for troubleshooting
>> Possible Transmission Issue - https://forum.ih8mud.com/threads/possible-transmission-issue.1386146/post-16456349
I drained the transfer case because there was ATF leaking at the output shaft seal. Someone said the ATF was possibly going into the transfer case from the transmission. So I drained, there was not any ATF, just transfer case gear oil.

I’m a little confused on the cycling through gears because as soon as I paused at D or R, it would stall.

*I don’t know for sure it’s leaking from the seal, but ATF is leaking at the output shaft. So possibly coming from above it?

Last edited:
Sounds like your torque converter is staying locked (or is locked accidentally) when you are putting it in gear, or you have other solenoid issues. Do you have Techstream? You may have to find a Toyota-savvy transmission shop (good luck on that...) and talk to them.

Too much mixed information here to make sense of what's happening but I would not think you are near the point of removing and replacing with a used transmission..

First you mentioned TC ( toque converter attached to transmission with ATF fluid ) then you mentioned you drained transfer case ( uses barely a quart of gear oil )

Previous post by 2001lc is your best means for troubleshooting
>> Possible Transmission Issue - https://forum.ih8mud.com/threads/possible-transmission-issue.1386146/post-16456349
Also, I will heed your advice and not jump into swapping a transmission. I was discouraged from dropping the pan when my friend who knows a lot about 100 series, said he wouldn’t waste time and would just swap in a used trans. Thanks for the response.
