I get the time constraints man. I think as they get older it may get a little easier.
Think the Tundy Badger needs a build thread on Mud.
Think the Tundy Badger needs a build thread on Mud.
- Thread starter
- #203
It would be pretty dull, right up to the point where it meets its likely demise following an encounter with a deer or cow at warp speed on a dirt road. Updates would consist of the following:
- frequent wallet bleedings at the gas pump
- quarterly oil changes where I cuss the $50 worth of hot watery 0w20 splashing all over
- overdue vaccum sessions to collect cheerios and goldfish from the floorboards
- the occasional wash when the frequency of complaints from brushing agianst it and "ruining" clothes becomes annoying
my 3 are teenagers and sometimes I think they are more work now than when they were little. We all understand the Work life balance and time constraints.. good luck
- Thread starter
- #206
Over 3 years and no update! I haven't given up, and Patches is very much alive.
I haven't done much to the old 40...I do drive it to work sometimes and around on weekend errands. It drives really nice (aside from the fuel pump/RPM thing) and has been getting about 25 mpg.
Since the last update I picked up an LX off the side of the road on a work trip, and a rusty 80 with a blown HG that I got back in fighting shape and took to Solid Axle Summit this year. I would probably have a nice FJ40 if I could ever focus my efforts to one rig at a time
.
I suppose I did rattle can over the mix-match exterior so it was all the same color, and added a leaf in the rear after smacking the shackles on the frame at Solid Axle Summit a few years back. There's probably a few other things I've done in the past few years but nothing major.
I've been thinking a lot lately about blowing it apart for real paint, including lizard skin to keep the diesel racket down and some kind of liner underneath to keep the rock chips at a minimum. A/C is on the list too. I can't get past the round vents on the Vintage Air units, so I've been eyeballing the Nostalgic air unit (that looks the same as Speedways "slim line" universal unit. Whatever I do will require some accessory re-shuffling on the front of the engine, unless I did an electric compressor maybe?
I haven't done much to the old 40...I do drive it to work sometimes and around on weekend errands. It drives really nice (aside from the fuel pump/RPM thing) and has been getting about 25 mpg.
Since the last update I picked up an LX off the side of the road on a work trip, and a rusty 80 with a blown HG that I got back in fighting shape and took to Solid Axle Summit this year. I would probably have a nice FJ40 if I could ever focus my efforts to one rig at a time
.I suppose I did rattle can over the mix-match exterior so it was all the same color, and added a leaf in the rear after smacking the shackles on the frame at Solid Axle Summit a few years back. There's probably a few other things I've done in the past few years but nothing major.
I've been thinking a lot lately about blowing it apart for real paint, including lizard skin to keep the diesel racket down and some kind of liner underneath to keep the rock chips at a minimum. A/C is on the list too. I can't get past the round vents on the Vintage Air units, so I've been eyeballing the Nostalgic air unit (that looks the same as Speedways "slim line" universal unit. Whatever I do will require some accessory re-shuffling on the front of the engine, unless I did an electric compressor maybe?
Last edited:

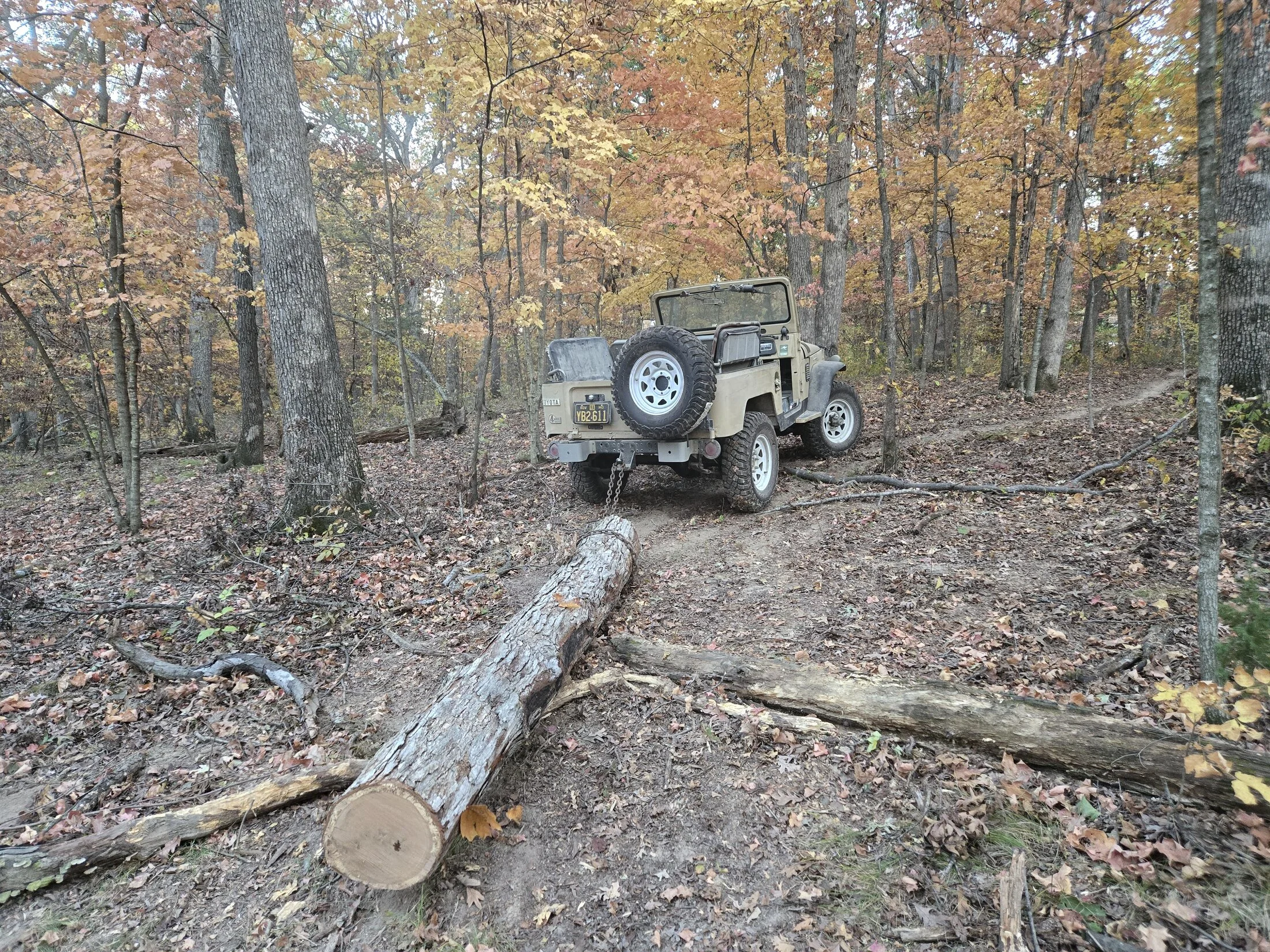

Glad to see Patches is still with us. I put the 40 to work for the first time in probably 9 months yesterday to drag a pine tree that blew down out of the yard and to the curb.
- Thread starter
- #208
Very much so! Although the other 40 gets the tree dragging duties around here, the midwest woods are hard on a rig!
- Thread starter
- #210

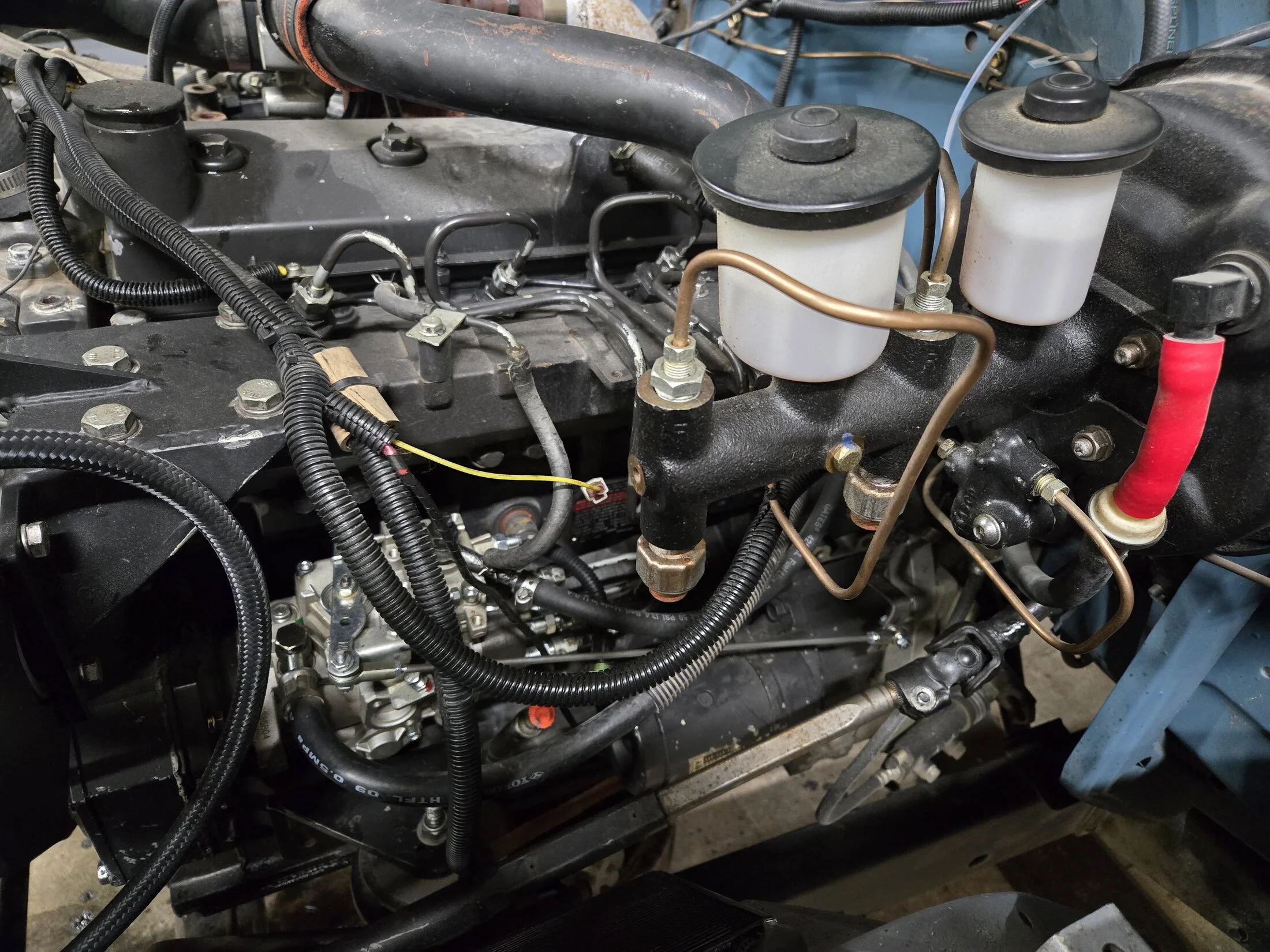

The above part is what allowed me to mount a "regular" VE pump (2 bolt, "long snout") to my engine, to replace the Stanadyne DB pump (3 bolt mount, short "snout.")
New pump

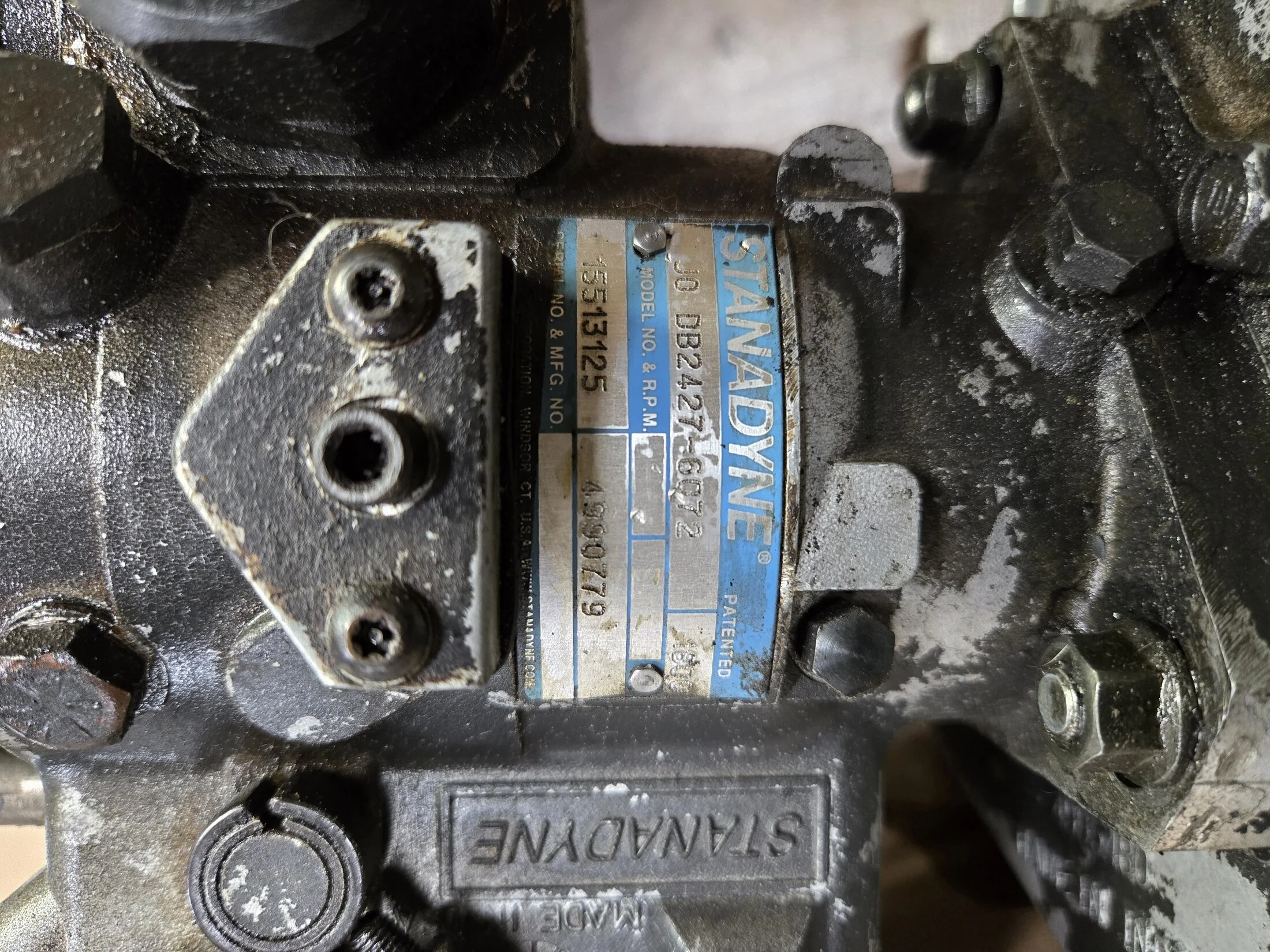

Old pump

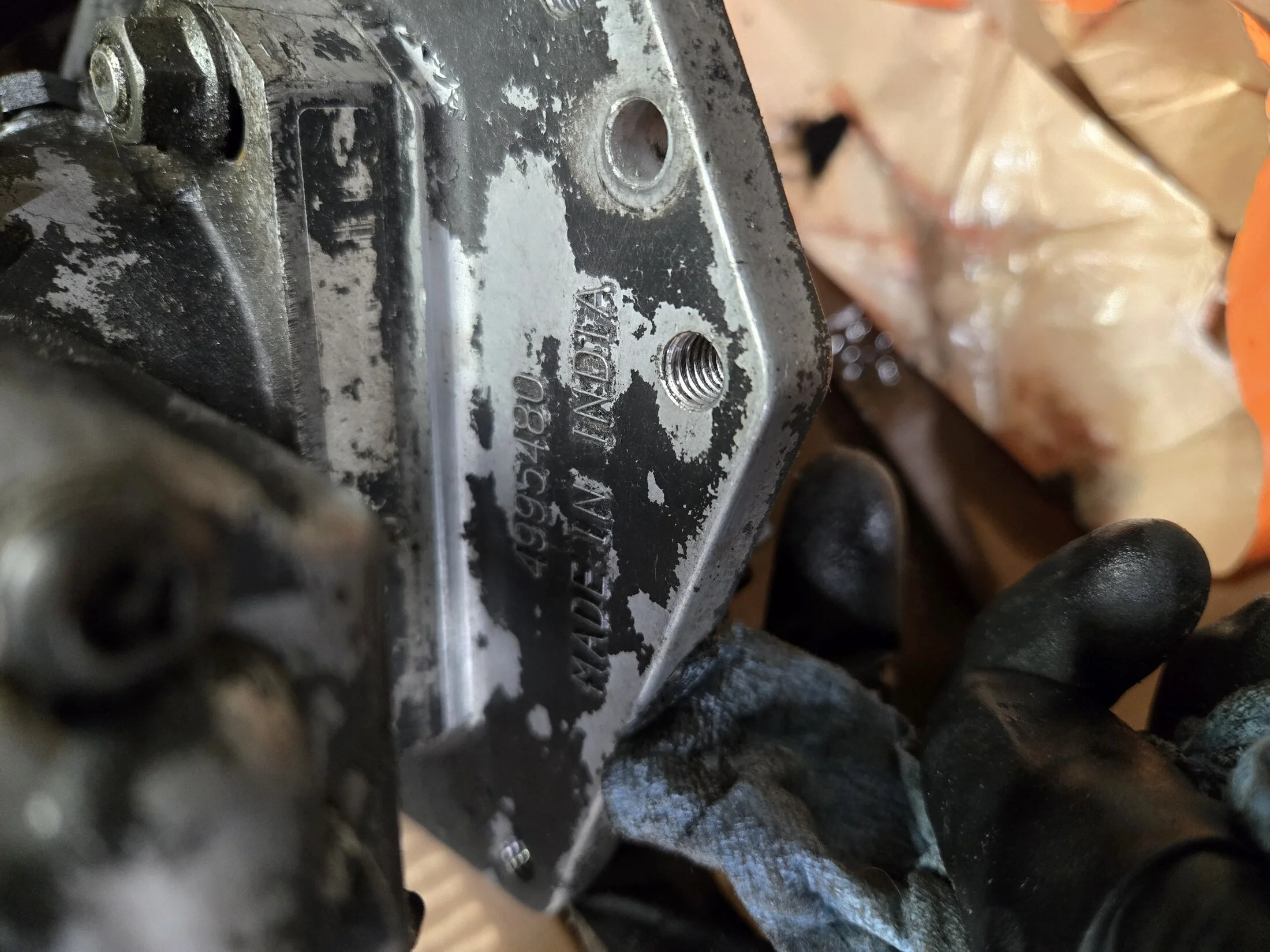

Old pump bracket (since finding part numbers for these exercises is painful at best..)

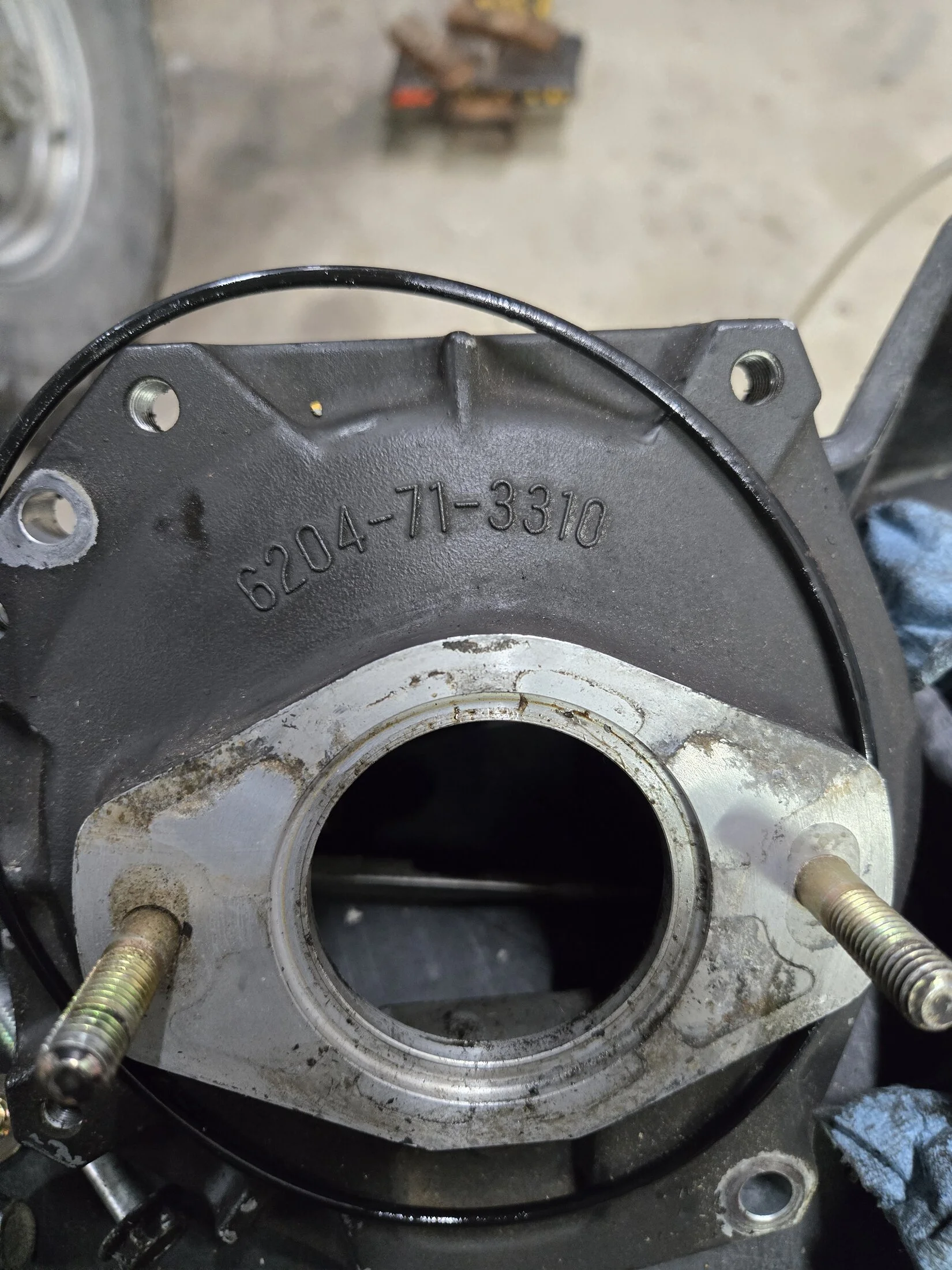

New pump bracket
New pump
Old pump
Old pump bracket (since finding part numbers for these exercises is painful at best..)
New pump bracket
- Thread starter
- #211

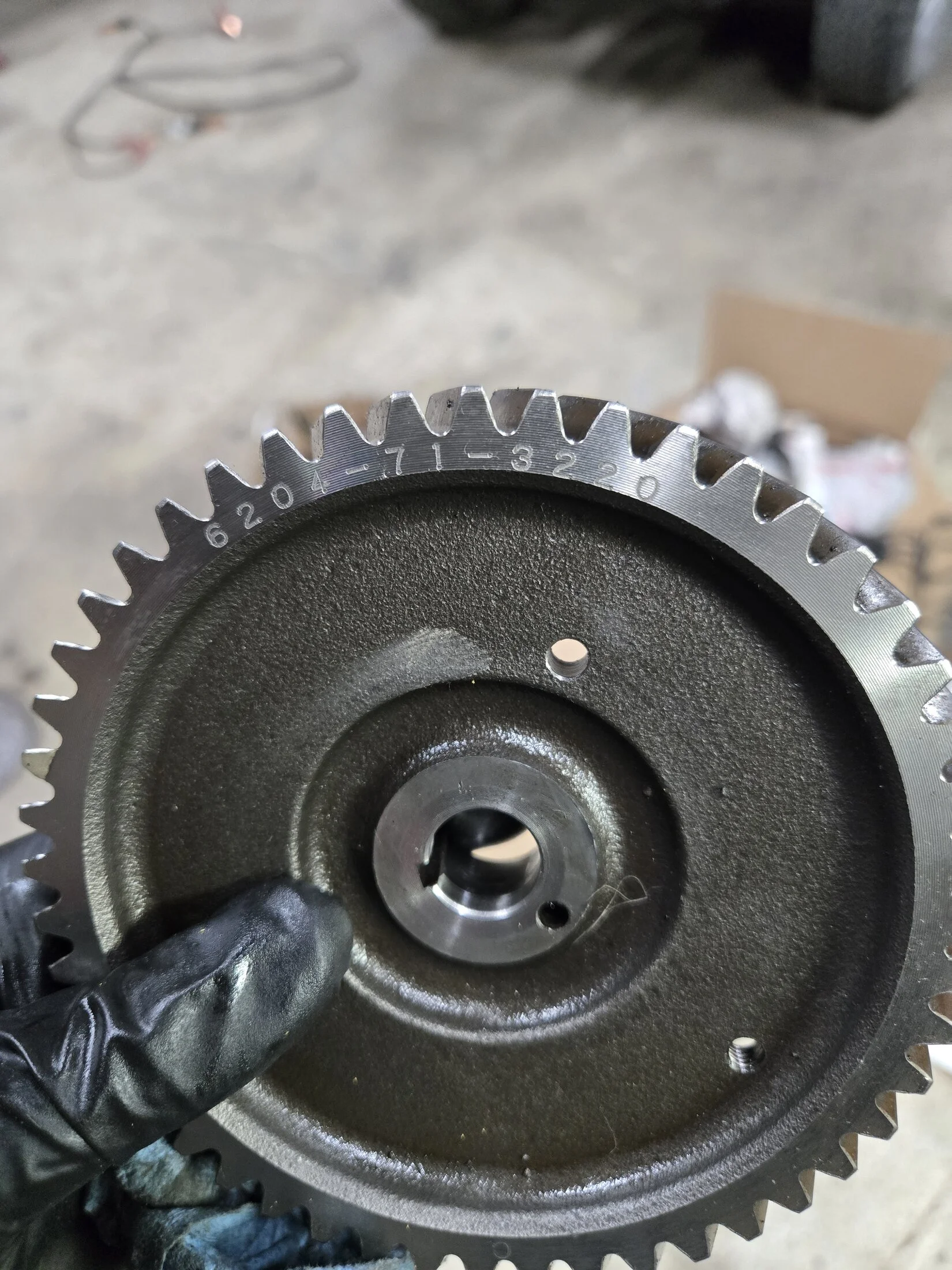

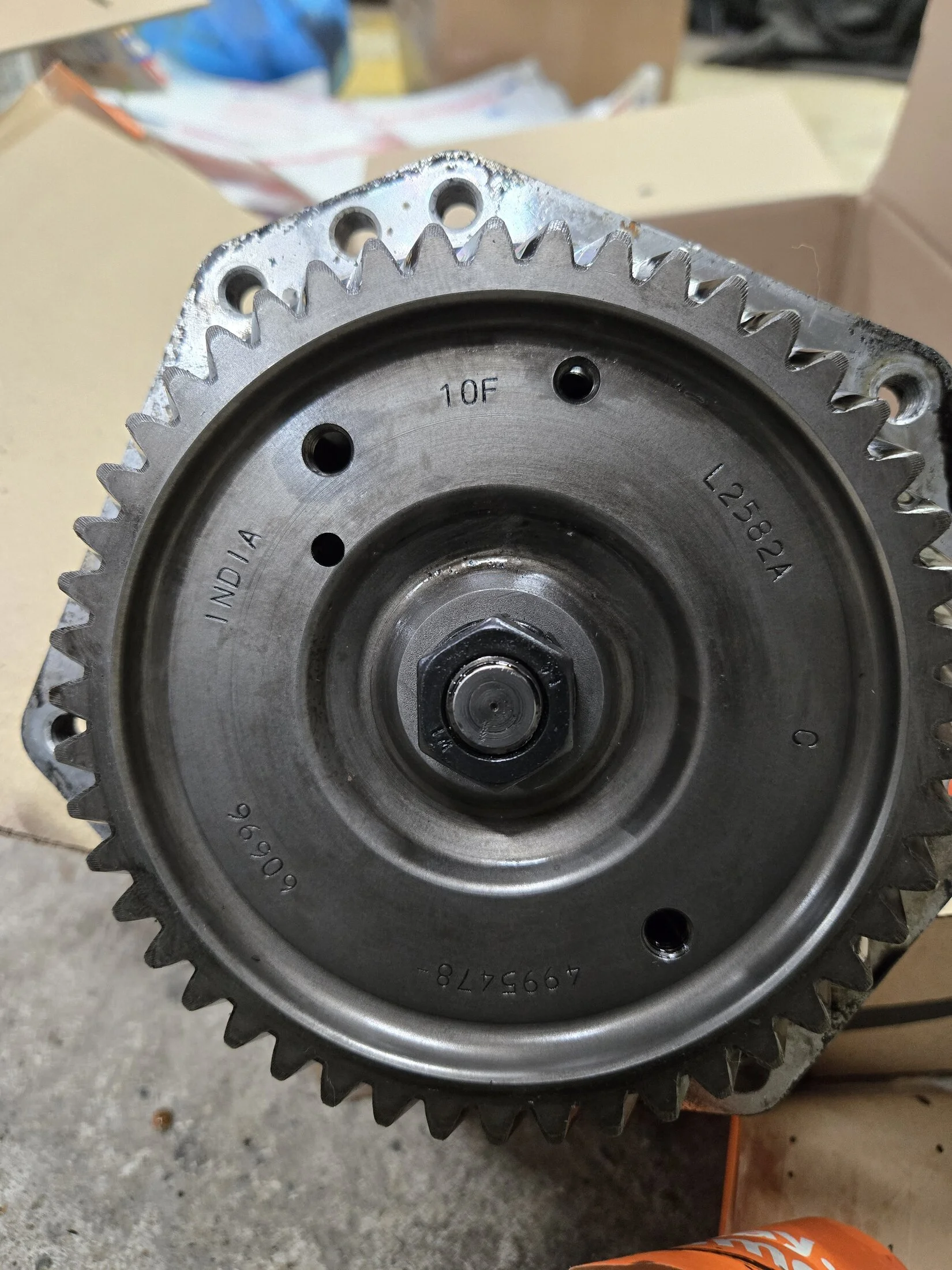

The drive gears are also different...
The VE pump gear has a 5/32" or 4mm half moon key aligning the pump to the shaft.
The drive gear on the Stanadyne pump has no keyway, so setting timing is not as straightforward as installing the pump to the bracket, mating the gear with the key, and matching up the "C" stamp in the idler gear with the "C" stamp in the drive gear.
The new pump is in and running.
I was supposed to receive a new turbo Saturday, but no luck..

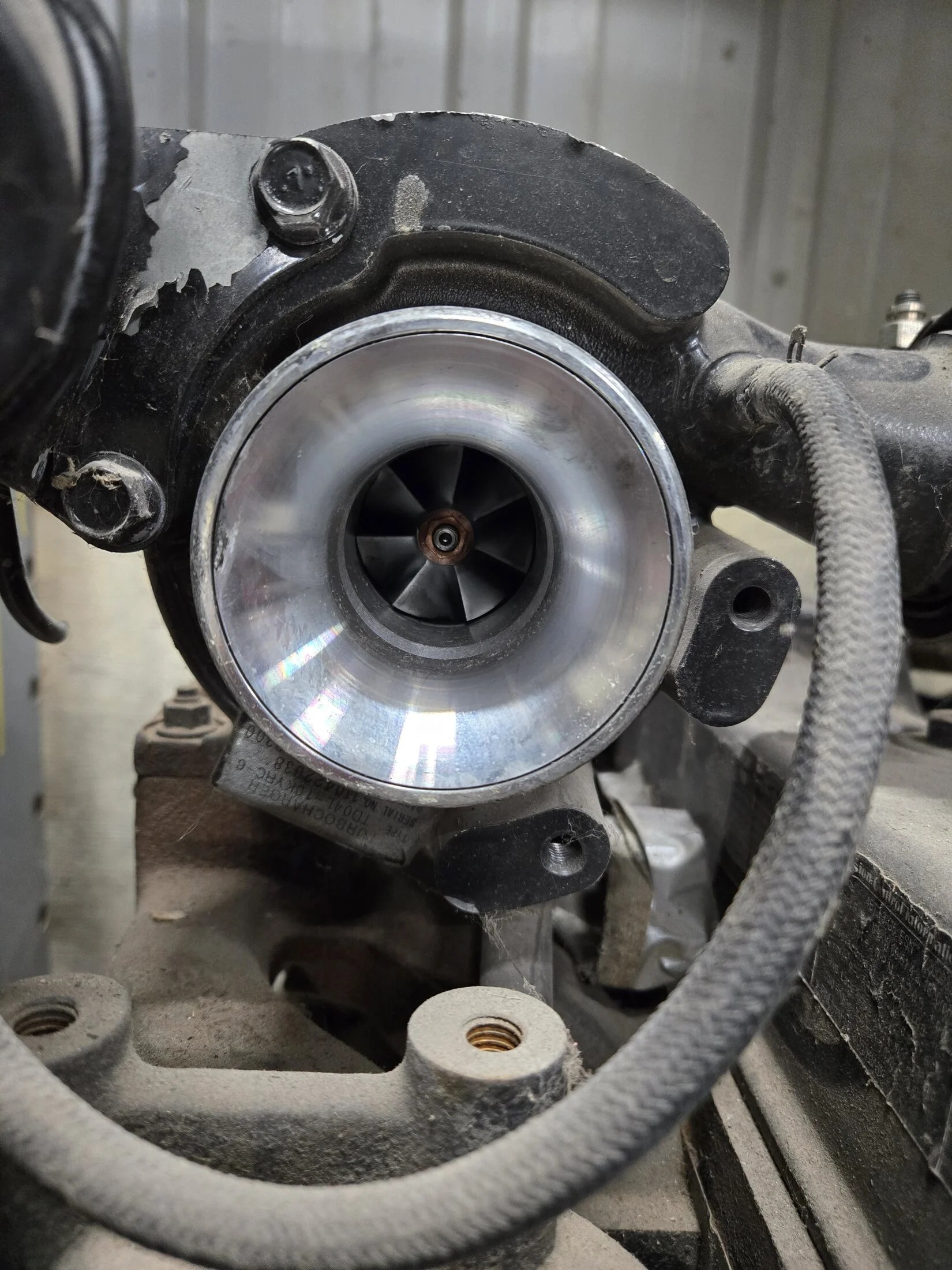

This thing is tiny.
I took it for a ride up the highway this morning. With the new pump (and no real adjustment or fine tuning of it) I have a puff of black smoke when coming under load where I didn't before. I can also make 15 psi with little to no lag in the mid rpm range. It's definately delivering more fuel. It isn't hamstrung to 1,900 rpm anymore either, as I can easily exceed 60 mph in 4th and 80 is readily attainable in 5th. Shifting between gears is more "normal" now, with the extra 700 rpm I have now.
This little turbo makes great boost at low speed, but I think it's just choking out at higher RPM's/load, as the EGT's are higher than I think they should be, say 8-900 cruising 70 mph.
The VE pump gear has a 5/32" or 4mm half moon key aligning the pump to the shaft.
The drive gear on the Stanadyne pump has no keyway, so setting timing is not as straightforward as installing the pump to the bracket, mating the gear with the key, and matching up the "C" stamp in the idler gear with the "C" stamp in the drive gear.
The new pump is in and running.
I was supposed to receive a new turbo Saturday, but no luck..
This thing is tiny.
I took it for a ride up the highway this morning. With the new pump (and no real adjustment or fine tuning of it) I have a puff of black smoke when coming under load where I didn't before. I can also make 15 psi with little to no lag in the mid rpm range. It's definately delivering more fuel. It isn't hamstrung to 1,900 rpm anymore either, as I can easily exceed 60 mph in 4th and 80 is readily attainable in 5th. Shifting between gears is more "normal" now, with the extra 700 rpm I have now.
This little turbo makes great boost at low speed, but I think it's just choking out at higher RPM's/load, as the EGT's are higher than I think they should be, say 8-900 cruising 70 mph.
- Thread starter
- #212

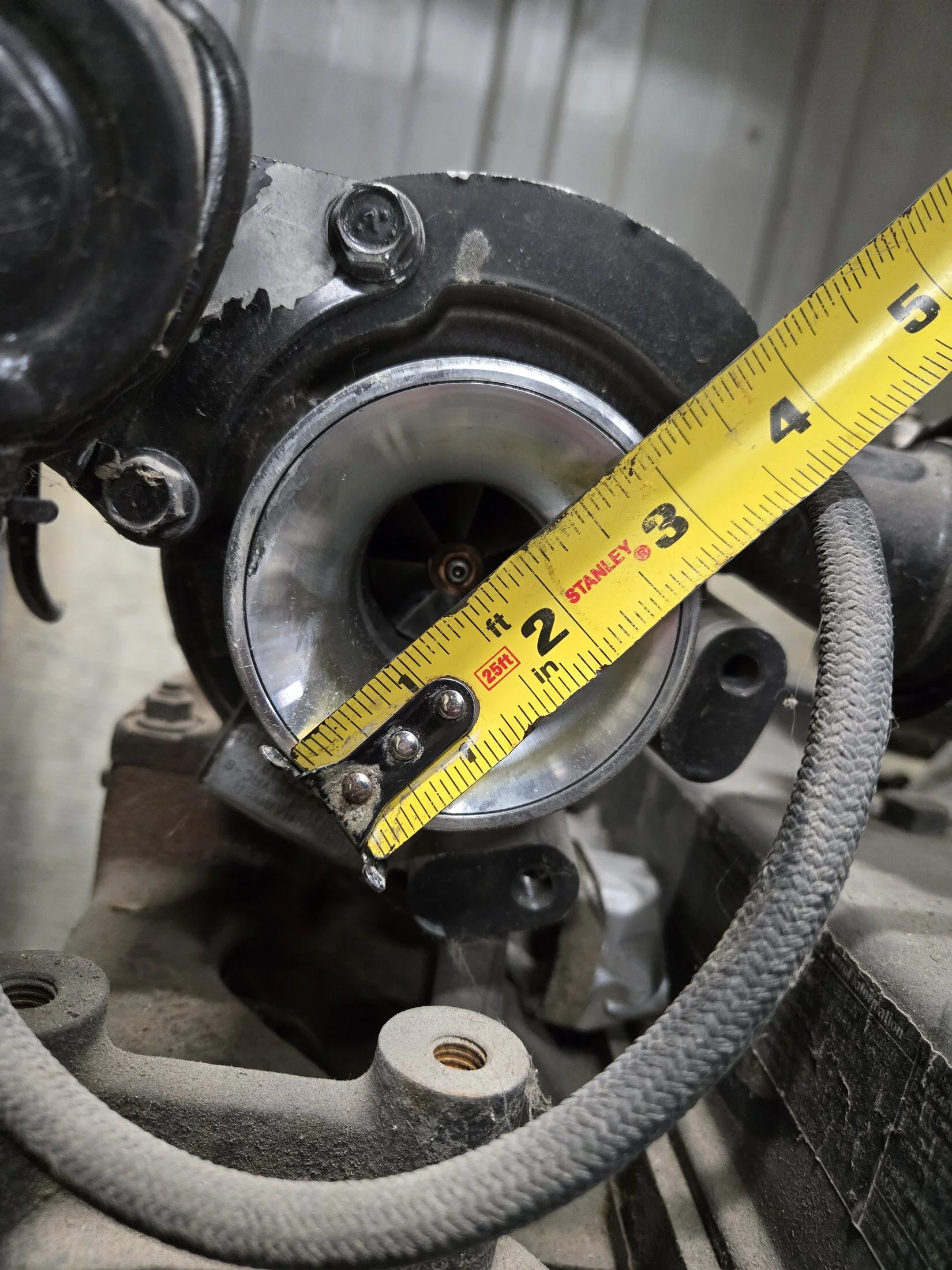

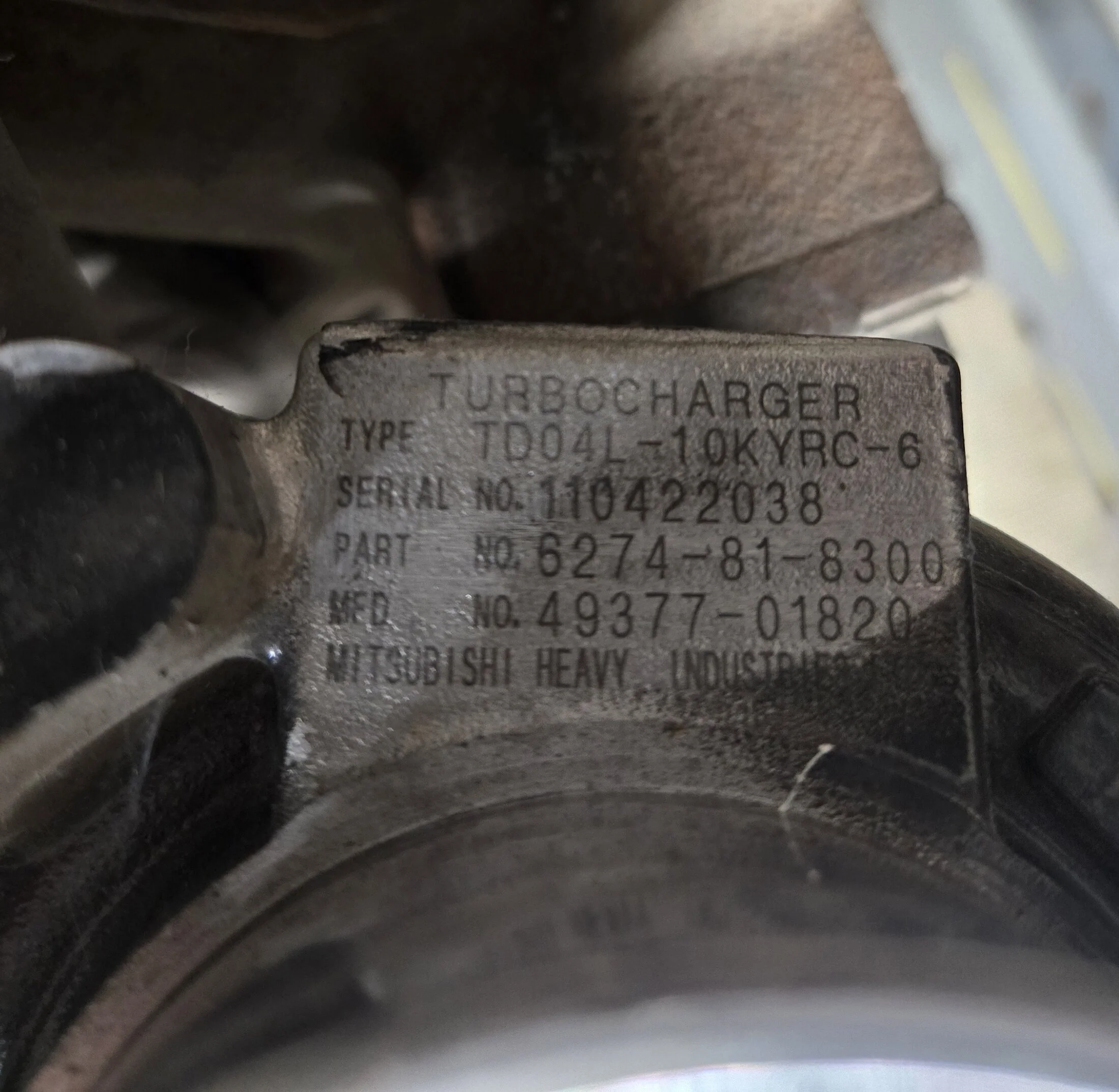

Here are the details of the little turbo... I can't find a map for this specific one.. I have seen some literature indicating that the "KYRC" after the 10 indicates a more modern, more efficient wheel design than just a "T" or "G" etc, but hard info on this industrial stuff is sometimes tough to pin down. Suffice to say it is small!
- Thread starter
- #213
New pump has been for a while, pretty happy with it. I haven't played with the speed limit on it, being able to run it up to 2500 RPM has been a total gamechanger for driveability, and I'm not sure I need much more. It feels like torque is already falling off at that speed, and it just sounds angrier. I've put about 2 tanks through it deiving to work and back, which is ~10 miles of gravel at 35 mph, 15 miles on the highway at 70 mph, and another 15 miles of 2 lane at 55-60. I've been using the newfound power more than I need to and have averaged 25 mpg since the pump swap, which seems pretty good.
I did try a larger turbo, (a 2252 clone) and found it too big. Very laggy at lower speeds. I've got a 2052 I may try, on paper it seems alright.. but after driving it with a bigger laggy turbo I really appreciate the response of the little guy it came with, and will focus elsewhere for now.
I've been collecting materials to do some insulating and interior decorating. I've got Raptor liner + tint, Kilmat, Siles Hybrid mat (foam sandwiched between butyl rubber and mass loaded vinyl), foil backed foam, fiberglass cloth sheets, etc.
As I intent to add A/C in the near future (leaning towards the Nostalgic Air unit), I've made some DIY insulating coating, using elastomeric flat roof coating and microballoons. I mixed some 50/50 (took some mixing!) It is too thick to spray, but can be brushed on pretty easily. Initial testing seems positive; I painted some (plain and mixed with the balloons) on a piece of painted 16ga sheetmetal and poked and pried on it as well as hitting the backside with a torch to see if the balloons made a difference. It's definately lighter, a little more "squishy" and easier to scrap or tear with a screwdriver with the balloons in it. With a torch to the backside of the steel, the difference in heat getting through to the front of the coating was very noticeable. The side of the steel with the balloons in the coating I could hold my hand on easily vs. the other side being burning hot. I kept going until the unaltered coating began to bubble up and lose adherance.
I'm very interested in how durable this stuff might be under raptor liner on interior wheel wells, floors, etc. Too thick and I think point loads would crack the raptor over it.
I think I'll take an old hood or something and do some experimenting. I'll put some epoxy down, do an area with the coating at ~1/16" thick, another at ~1/8", and try some strips of kilmat (roughly the width of the floor ribbing) and then coat everything in raptor liner. This will allow some experimenting to see if either the coating or the kilmat might hold up under raptor liner. I intend to drag the hood down the gravel road, beat on it, pepper it with some #7.5's, etc. If all goes well, I'll have a coating I can put under the raptor to help insulate the rig and be able to keep sound down. If it doesn't hold up as well, I'll probably just confne the coating to the underside of the roof cap (to be covered in headliner anyway.)

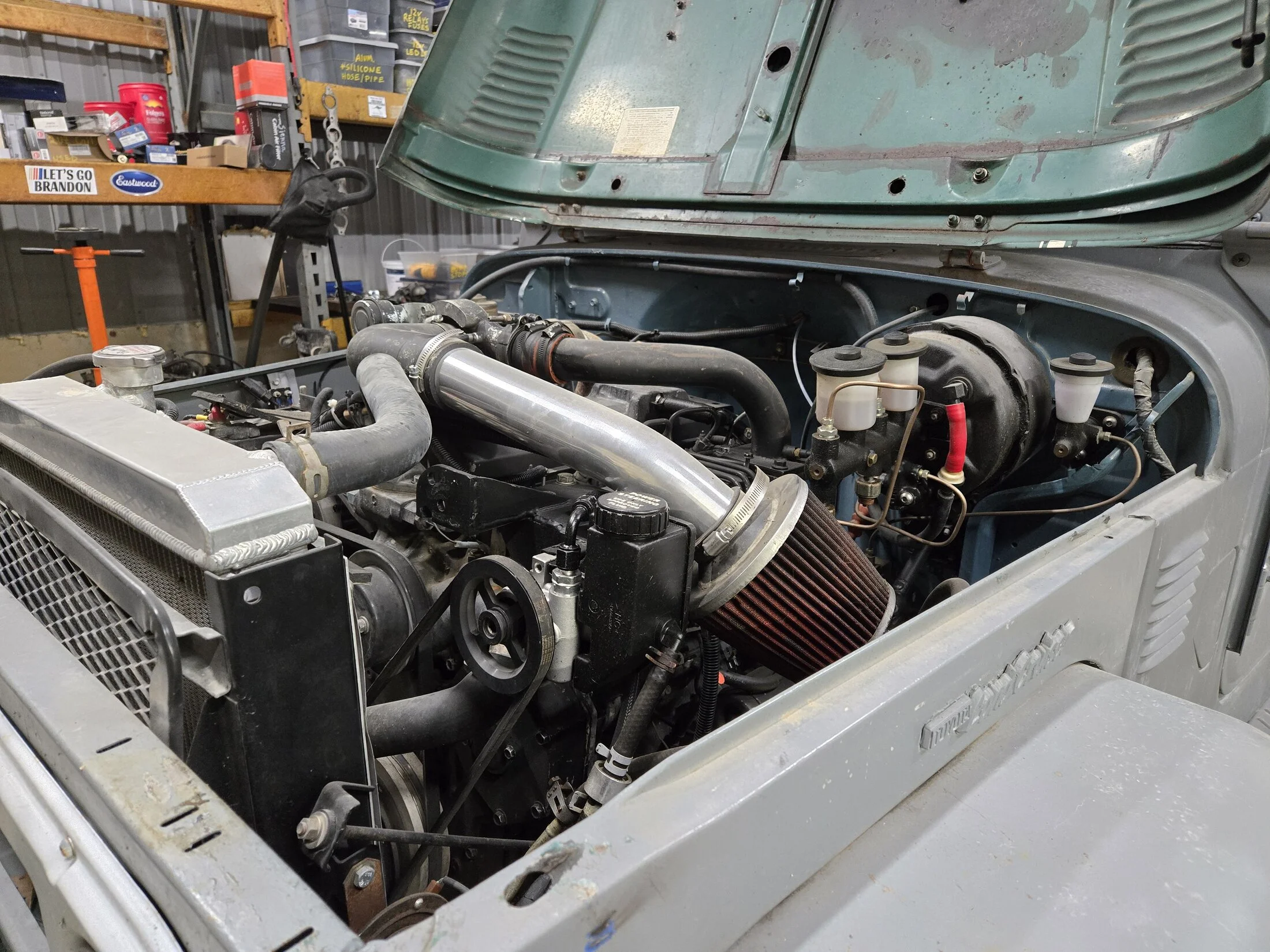

I've also got an MR2 intercooler I'm going to get plumbed in, and need to rework the intake side to use a real aircleaner vs. this cone filter I've been running.. that's after I've removed the heater box and made a battery tray to sit close to the firewall on the passenger side to free up some room for the AC compressor and filter housing.
At the least, I'd like to have the A/C done and interior surfaces coated/lined/sound insulated before August so we can take this thing to Solid Axle Summit. Best case, I'll have some time to get the doors and hardtop off and blown apart (some minor rust repair work is needed on doors and some hardtop pieces) and get the whole thing painted... we'll see!

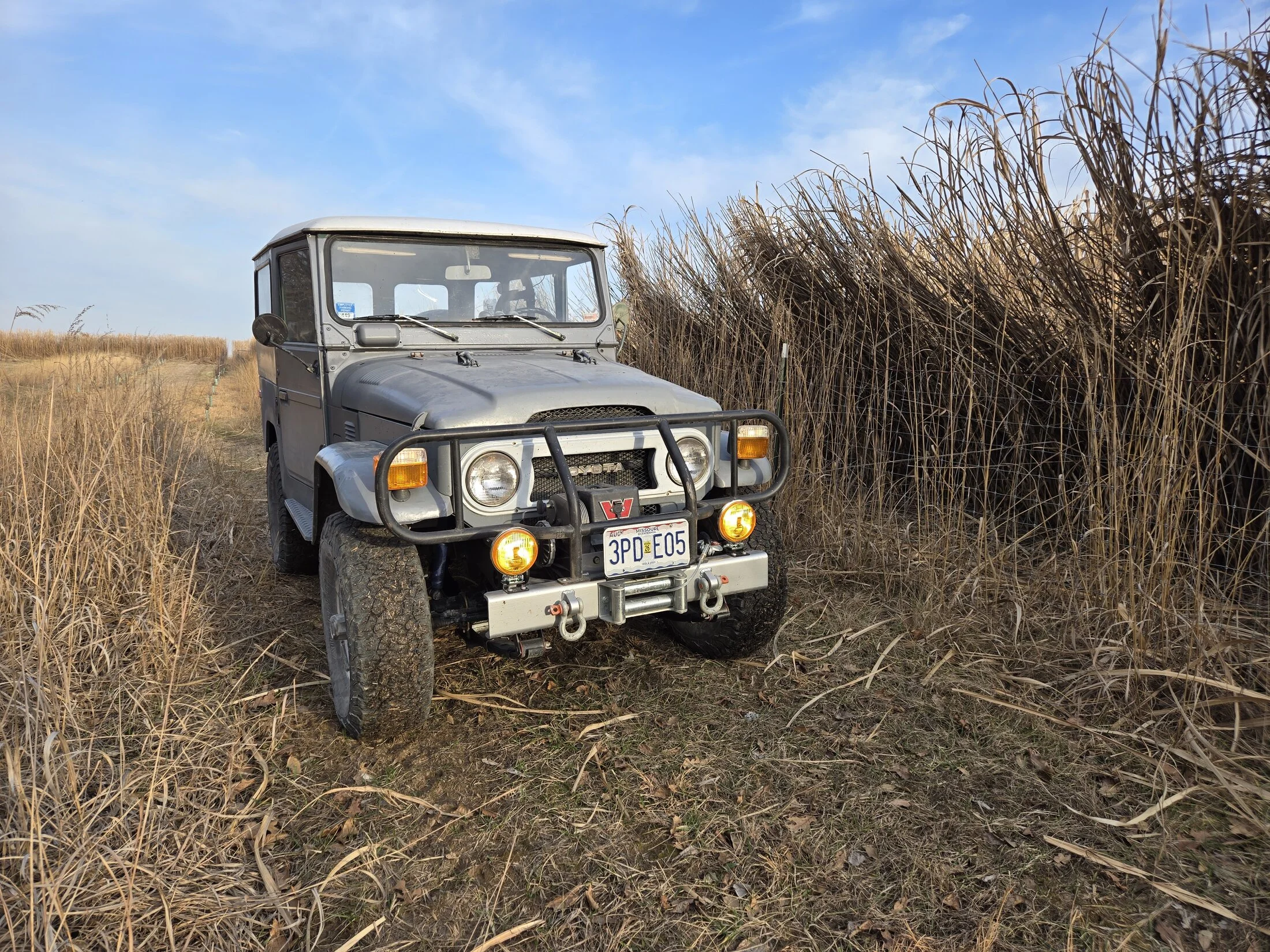

I also finally installed the grille guard that @NookShneer nabbed for me in Seattle and delivered to SAS a few years ago, along with some Kioto fogs from CruiserCult.
I did try a larger turbo, (a 2252 clone) and found it too big. Very laggy at lower speeds. I've got a 2052 I may try, on paper it seems alright.. but after driving it with a bigger laggy turbo I really appreciate the response of the little guy it came with, and will focus elsewhere for now.
I've been collecting materials to do some insulating and interior decorating. I've got Raptor liner + tint, Kilmat, Siles Hybrid mat (foam sandwiched between butyl rubber and mass loaded vinyl), foil backed foam, fiberglass cloth sheets, etc.
As I intent to add A/C in the near future (leaning towards the Nostalgic Air unit), I've made some DIY insulating coating, using elastomeric flat roof coating and microballoons. I mixed some 50/50 (took some mixing!) It is too thick to spray, but can be brushed on pretty easily. Initial testing seems positive; I painted some (plain and mixed with the balloons) on a piece of painted 16ga sheetmetal and poked and pried on it as well as hitting the backside with a torch to see if the balloons made a difference. It's definately lighter, a little more "squishy" and easier to scrap or tear with a screwdriver with the balloons in it. With a torch to the backside of the steel, the difference in heat getting through to the front of the coating was very noticeable. The side of the steel with the balloons in the coating I could hold my hand on easily vs. the other side being burning hot. I kept going until the unaltered coating began to bubble up and lose adherance.
I'm very interested in how durable this stuff might be under raptor liner on interior wheel wells, floors, etc. Too thick and I think point loads would crack the raptor over it.
I think I'll take an old hood or something and do some experimenting. I'll put some epoxy down, do an area with the coating at ~1/16" thick, another at ~1/8", and try some strips of kilmat (roughly the width of the floor ribbing) and then coat everything in raptor liner. This will allow some experimenting to see if either the coating or the kilmat might hold up under raptor liner. I intend to drag the hood down the gravel road, beat on it, pepper it with some #7.5's, etc. If all goes well, I'll have a coating I can put under the raptor to help insulate the rig and be able to keep sound down. If it doesn't hold up as well, I'll probably just confne the coating to the underside of the roof cap (to be covered in headliner anyway.)
I've also got an MR2 intercooler I'm going to get plumbed in, and need to rework the intake side to use a real aircleaner vs. this cone filter I've been running.. that's after I've removed the heater box and made a battery tray to sit close to the firewall on the passenger side to free up some room for the AC compressor and filter housing.
At the least, I'd like to have the A/C done and interior surfaces coated/lined/sound insulated before August so we can take this thing to Solid Axle Summit. Best case, I'll have some time to get the doors and hardtop off and blown apart (some minor rust repair work is needed on doors and some hardtop pieces) and get the whole thing painted... we'll see!
I also finally installed the grille guard that @NookShneer nabbed for me in Seattle and delivered to SAS a few years ago, along with some Kioto fogs from CruiserCult.
Sounds like it's time for compounds lol
- Thread starter
- #215
Wanted to tinker a bit- put some 5100's on it. If it dries out tomorrow I'll get it out to the highway and see how it rides. It was not bad before by any stretch, pretty soft really - I wanted to get a little less wallow and lean in turns. We'll see..
Disappointing to see how much rust is under here from rock chips after the work I put into the body. No paint survives it though... I've not driven it in the winter at all and its stored in the barn, but everything sweats here (as you can see)... really need to do the raptor under here.
- Thread starter
- #216
I have some work to do.
I have been collecting (and testing) materials for insulation (noise and heat).
Fiddled with making an overhead console (to be covered eventually) for some speaker mounting and extra storage.
I've cut out some 1/4" aluminum panels to mount in the rear corners to hold another pair of 5.25" speakers.
Worked on a double gauge plate to replace the ashtray which I don't use anyway. Will put EGT and Pyro in there, and tach to the left of cluster like the factory tach. (They are all 3 screwed down to my busted dash pad in a cheap 3 gauge pod now). I will bevel the edge to match the ashtray contour and paint it pewter.
I have been collecting (and testing) materials for insulation (noise and heat).
Fiddled with making an overhead console (to be covered eventually) for some speaker mounting and extra storage.
I've cut out some 1/4" aluminum panels to mount in the rear corners to hold another pair of 5.25" speakers.
Worked on a double gauge plate to replace the ashtray which I don't use anyway. Will put EGT and Pyro in there, and tach to the left of cluster like the factory tach. (They are all 3 screwed down to my busted dash pad in a cheap 3 gauge pod now). I will bevel the edge to match the ashtray contour and paint it pewter.
- Thread starter
- #217
Had to do some trimming for the condensor fittings, was able to bolt it in with some brackets made of aluminum - I might have went overboard on the rivets though..
Got a couple of PWM fans to play with. This is a J**p JL (2021) fan on top, and a 2016 Malibu fan on bottom. The JL fan would fit, but with more work. It is an absolute beast - 850 watts, I measured 71 amp draw at full duty cycle! Sounded and felt like an airplane taking off in the shop. Could be a good for those needing the nuclear cooling option? If road testing proves the Malibu fan inadequate I may revert back to it..
The Malibu fan shroud fits perfectly height wise, right at the tank seam. Side to side it required trimming, which facilitated riveting on of some brackets to mount it using the radiator bolts. This is a 600w fan, and should do fine. I have a controller from WidgetMan - it will be connected to the stock 40 series temp sender that's feeding the original gauge, and has user definable high and low set points, which it ramps duty cycle between. It also had a +50% input that is activated with the AC.
Got a couple of PWM fans to play with. This is a J**p JL (2021) fan on top, and a 2016 Malibu fan on bottom. The JL fan would fit, but with more work. It is an absolute beast - 850 watts, I measured 71 amp draw at full duty cycle! Sounded and felt like an airplane taking off in the shop. Could be a good for those needing the nuclear cooling option? If road testing proves the Malibu fan inadequate I may revert back to it..
The Malibu fan shroud fits perfectly height wise, right at the tank seam. Side to side it required trimming, which facilitated riveting on of some brackets to mount it using the radiator bolts. This is a 600w fan, and should do fine. I have a controller from WidgetMan - it will be connected to the stock 40 series temp sender that's feeding the original gauge, and has user definable high and low set points, which it ramps duty cycle between. It also had a +50% input that is activated with the AC.
I might have to give that fan a try. I'm in need of some more cooling capacity.
- Thread starter
- #219
I think this one came from a 4 door with the turbo 4 and towing package. I don't think they're all 850w. I was "blown away" when I powered this thing up, it's absolutely amazing the air it moves. There are also 850w BMW and Camaro fans (and $pal aftermarket) but I'm not sure the dimensions on those. The JL ones are easy to find anywhere. It was about $100 at the local salvage yard and they had many of them on the shelf from low mile very new JL's.
- Thread starter
- #220
Cleaned up the cap and put on (very!) Sticky 10mm closed cell foam backed foam and taped the seams. Should help with heat and noise. Generic headliner fabric will go under that. Got a new water pump (because the cooling system looked pretty nasty..), poured evaporust in the engine and let it sit overnight, lots of gunk came out. Got the AC compressor mounted and fit a belt. Scratched my head about intercooler and PS cooler mounting. The intercooler may need to wait until after SAS - more of a highway/higher load EGT reduction thing, probably won't see much benefit on the trail. We'll see if I get to it..
Next up is pulling the seats/roll bar/console to clean up and shoot some more epoxy then raptor the inside.
Next up is pulling the seats/roll bar/console to clean up and shoot some more epoxy then raptor the inside.
