If you need the part number for the TPS plug send me a PM. I purchased a brand new one when i was installing the supercharger and had to lengthen the wires. IIRC it was around $10 from my local dealer.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

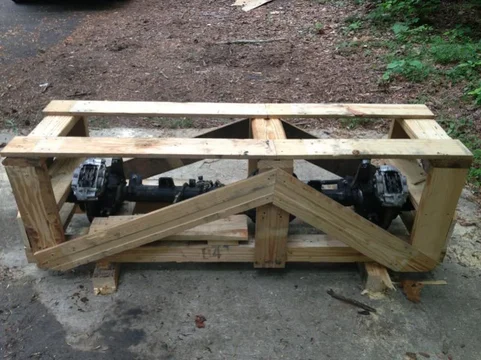

1978 FJ40 front axle:
This is the SOA I have under my diesel 40. I'm building a custom FJ60 front axle to replace it.
It's a 1978 disc brake axle. The brakes are fairly new with marginal wear, I haven't driven it much since my 40 restoration.
Housing is a cut and turned housing, I so not recall what degrees the knuckle balls were rotated.
4x4 Labs "Frombe" high steer kit. Kit is for the 1978 small knuckle arm stud knuckles.
Knuckle balls are clearanced for larger "mini truck" birfields. The short side is Longfield 30 spline inner shaft and birfield. Long side is Longfield's heat treated series "stock mini truck" birfield but it is not covered under warranty because the birfield was grounded on to give extra clearance within the knuckle ball (previous owner did that). Long side axle shaft is a Longfield shaft.
Fine spline front pinion with lock-rite locker. Locker was bought new a few years ago and has less than 10 wheeling trips on it.
Axle is currently under my truck waiting on a buyer. Asking $1000 OBO. Make me an offer!
I'll even throw in the used gear oil for FREE!!! Haha
Elkaholic, I may be interested. You are over in Fort Mill, right?
Sent from my ultimate time waster using IH8MUD
Is this worth the coin? I will be in the area of the great city of Troutman on Friday, and was thinking of getting it, but if I pass and someone else might need it I could pick it up.http://charlotte.craigslist.org/pts/3827393766.html
Shane
If it is a Warn steel fairlead, it will work fine with cable. If it is aluminum, not so much. It looks a lot like a Warn steel fairlead that used to be standard for their winches.
pictures would help as well as your plans for it but so far id say YES.
Worth every penny. worst you cold do is part and scrap if plans change ans space allowed.
55 in statesville huh?
