Didn't really know whether to put this in the Diesel section or the 80 forum...I'll give it a go here. It's going to be a long-term thread documenting this build. I thought it might be interesting since the 12H-T was never offered originally in the 80 series...so there's probably going to be a few interesting kinks to work out along the way.

The 12H-T was the engine I really wanted...I felt that it had the right combination of simplicity, power, efficiency, and robustness that to me embody the idea of a Land Cruiser. When this donor vehicle presented itself, I couldn't say no. :)

I will post pics of my FJ80 later...it's in stock form with tiny little 29" tires that already seem to be too much for the lowly 3FE to turn, even when guzzling back all that gasoline in the effort. :rolleyes: Needless to say, I can't wait for the day I tear that gas pot out of my truck. Special thanks to Driley for taking time out and checking this truck out for me in his hometown and giving me an excellent report about it. Also thanks to all those who generously offered.:cheers:
Here's a pic of the 1991 FJ80 that will be the transplant recipient:

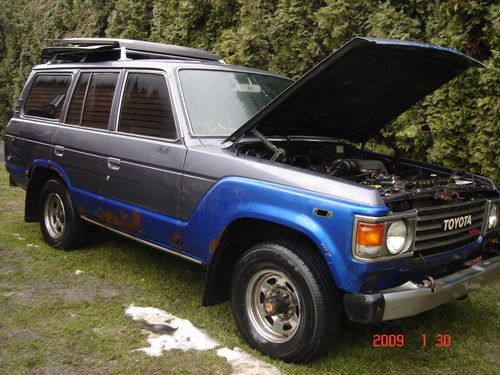

The 12H-T came to me by way of a rusty Canadian HJ60 that someone had dropped this poor engine into.


The original transplant into this rust bucket ran, but the quality of the transplant was somewhat lacking...there were wires routed in the most ridiculous manner, and it looked like some construction material served as custom bracketry in the engine bay.

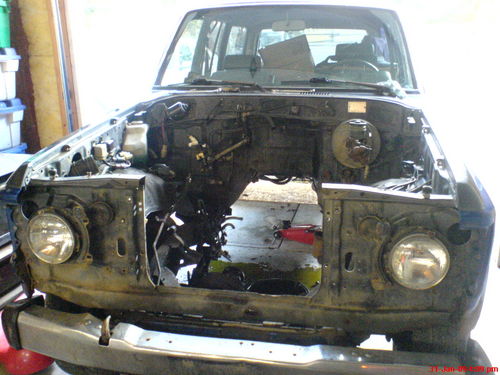

Starting to take the rusty stuff off...


Most of the front bib gone...it was very entertaining finding all sorts of different sized bolts and nuts jumbled together in this truck. For example, the right engine mount had the usual 17mm nut, but the left engine mount was secured with a "custom" 19mm nut. :)


My good friend, Sheldon, putting the engine hoist into position...

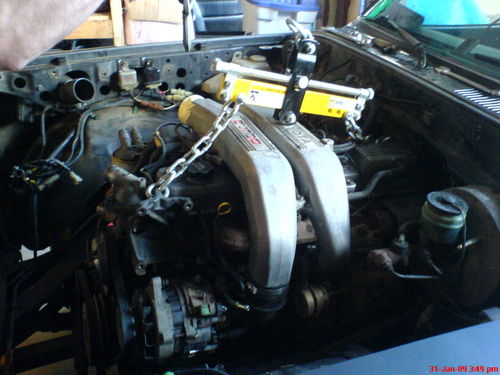

The most beautiful word to ever grace the top of a Toyota diesel engine..."TURBO". :)


This photo is me leaving Sheldon in a precarious position just to take an "action" photo...:D


A sweet 12H-T liberated from its rusty tomb...


A Canadian HJ60 body now available for sale...complete but with typical Toyota rust. Hey...it's Left Hand Drive...who wants those mint Japanese right hand drive imported crap when you can drop a turbo diesel into this sweet chassis? LOL! :D


The beast ready for prep work in preparation for the transplant into the FJ80. That's Sheldon's 24V 1HD-FT in the background...but I'm sure nobody's interested in that thing. :D Drool!


More to come as the build progesses! :cheers:

Last edited:
Joined
Jul 3, 2006
Messages
1,937
Location
Fort Apache: Victoria
Looking forward to seeing your updates.

Considering the (relative) affordability and availability of Toyota diesels here, we're pretty lucky. I am trying to decide what is going to go into my own 80..... if your swap goes well that will narrow it down considerably. WAY cheaper than a 1HD-T!

Joined
Nov 6, 2004
Messages
936
Location
Calgary
Website
www.rmlca.ab.ca
That is super cool Stone. Before I bought my HDJ81 I was seriously considering the same project, with Sheldon's (G & S Cruiser Parts for those who don't know) parts help and advice of course.

The engines never really materialized for me though.

Good luck!

Craig.

Joined
Jan 10, 2003
Messages
3,753
Location
Austin, Tx
Any diesel conversion in any 80 is interesting. Post on dude!!!

Joined
May 12, 2004
Messages
3,131
Location
BC, Canada
Website
bcfishingreports.com
Stone, glad to read that you're back with a Cruiser. What are your plans regarding trans and transfer case?

-Steve

Thanks, Steve. :)

Sheldon and I were discussing this, and I really would like to keep the full-time AWD/4WD system that's in my FJ80 right now if I can. The 12H-T is currently bolted up to an A440 and a part-time case. We'll have a better idea when we pull out the 3FE/tranny combo from the 80 and compare the two drivetrains side-by-side. Hoping that there isn't too many complications inside in terms of compatibility...thinking about the torque converter, and hoping a 12H-T compatible torque converter will just fit into my 3FE A440.

If it really gets complicated or expensive to keep my full-time case, I guess we'll retrofit the part time one and deal with the vacuum shift issue.

I was so excited last night I couldn't fall asleep until 0130 in the morning. Was a bit hard to get up early to go to work today...everyone seemed to have survived though... :D

Joined
May 12, 2004
Messages
3,131
Location
BC, Canada
Website
bcfishingreports.com
way cool project stone. nice to see another diesel converted 80 being done up here...i wish i could be a member of that club! cant wait to see more progress pics...

Thanks, Sonny...G&S have a couple of 1HD-T's available, I think...would fit nicely into your 80. :D

Joined
Aug 21, 2003
Messages
7,293
Hey Stone,

Good to see that you're back in the cruiser saddle again! :D

Good luck with the conversion!!

Mot :cheers:

Joined
Apr 23, 2008
Messages
270
Location
Sunnyslope, Phoenix, Arizona
Subscribed.

Wishin' on a dream....

Joined
Nov 11, 2008
Messages
1,591
Location
Anniston, AL
cant wait to see it finished

Joined
Oct 8, 2003
Messages
2,574
Right on Stone, I'm SO happy to see you back in a Cruiser again!!
A 12H-T powered 80 is going to be awesome, great choice.


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,645
Location
Panamá
Website
www.4x4panama.com
Great project Stone .. glad so see you here and back !

are ypu planning a complete rebuild to the 12H-T ?

Planning to add a intercooler and few more PSI .. ? :D

Joined
Nov 12, 2003
Messages
1,274
Location
Truckee, CA
fun project. I'm interested to see if you can bolt the HF2AV transfer case to the A440 (seeing as the A440F was in the early 80 series... bolted to an HF2A).

btw, your BJ74 says hi.


70sguy

SILVER Star
Joined
Nov 14, 2003
Messages
2,089
Location
Greendale B.C Canada
Website
www.gscruiserparts.com
We won't be trying to bolt the HF2A to the 12H-T/A440. We are aiming to bolt the 12H-T to the
stock A440F/HF2A from the FJ80... if that makes sense.

Joined
May 12, 2004
Messages
3,131
Location
BC, Canada
Website
bcfishingreports.com
Not much of an update for this week...

Just degreased and sprayed down the engine some more. Also removed the Alternator and Starter so that they can be converted over to 12V. The AC compressor clutch will need to be converted to 12V also.

:beer:
