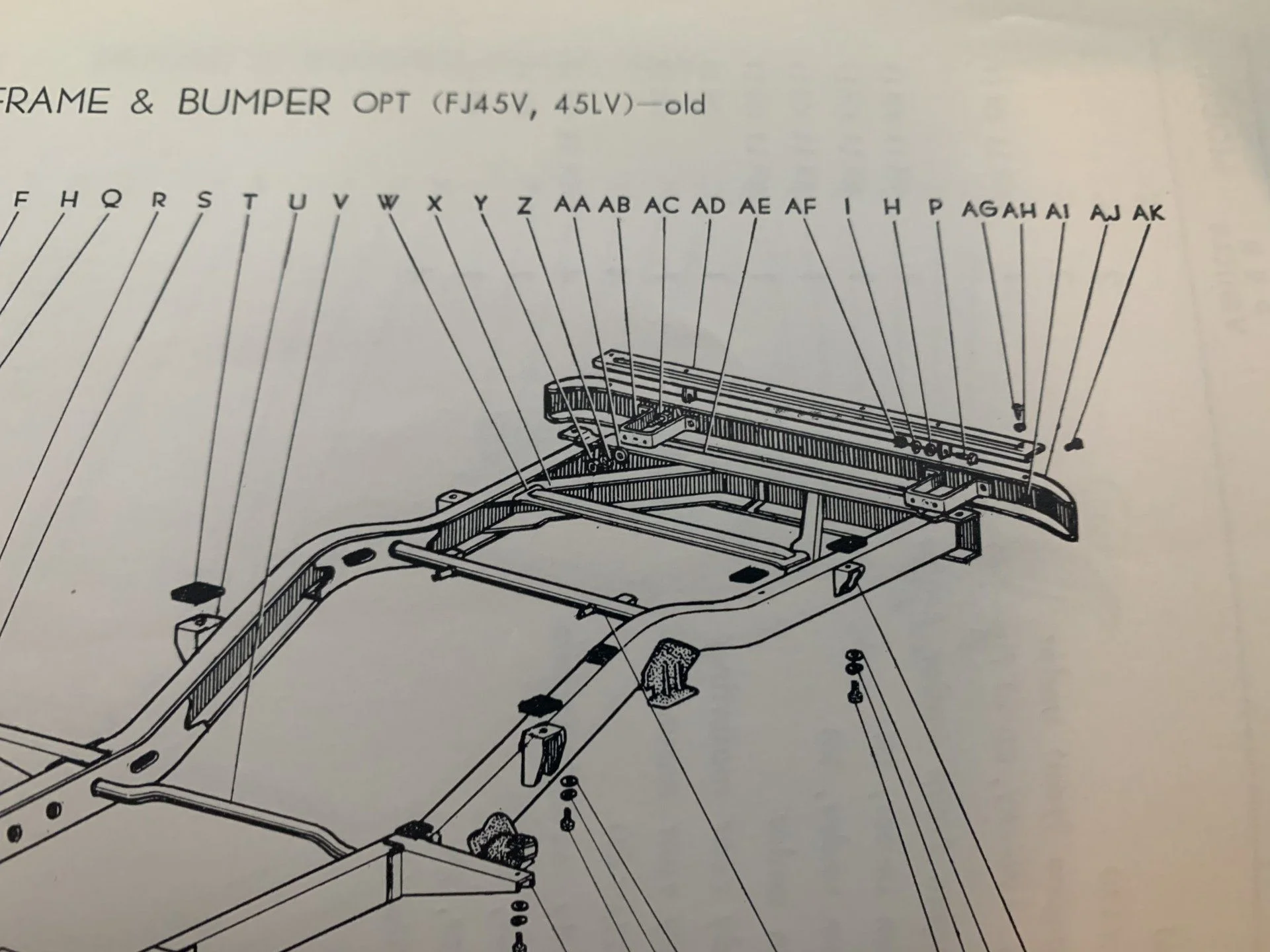

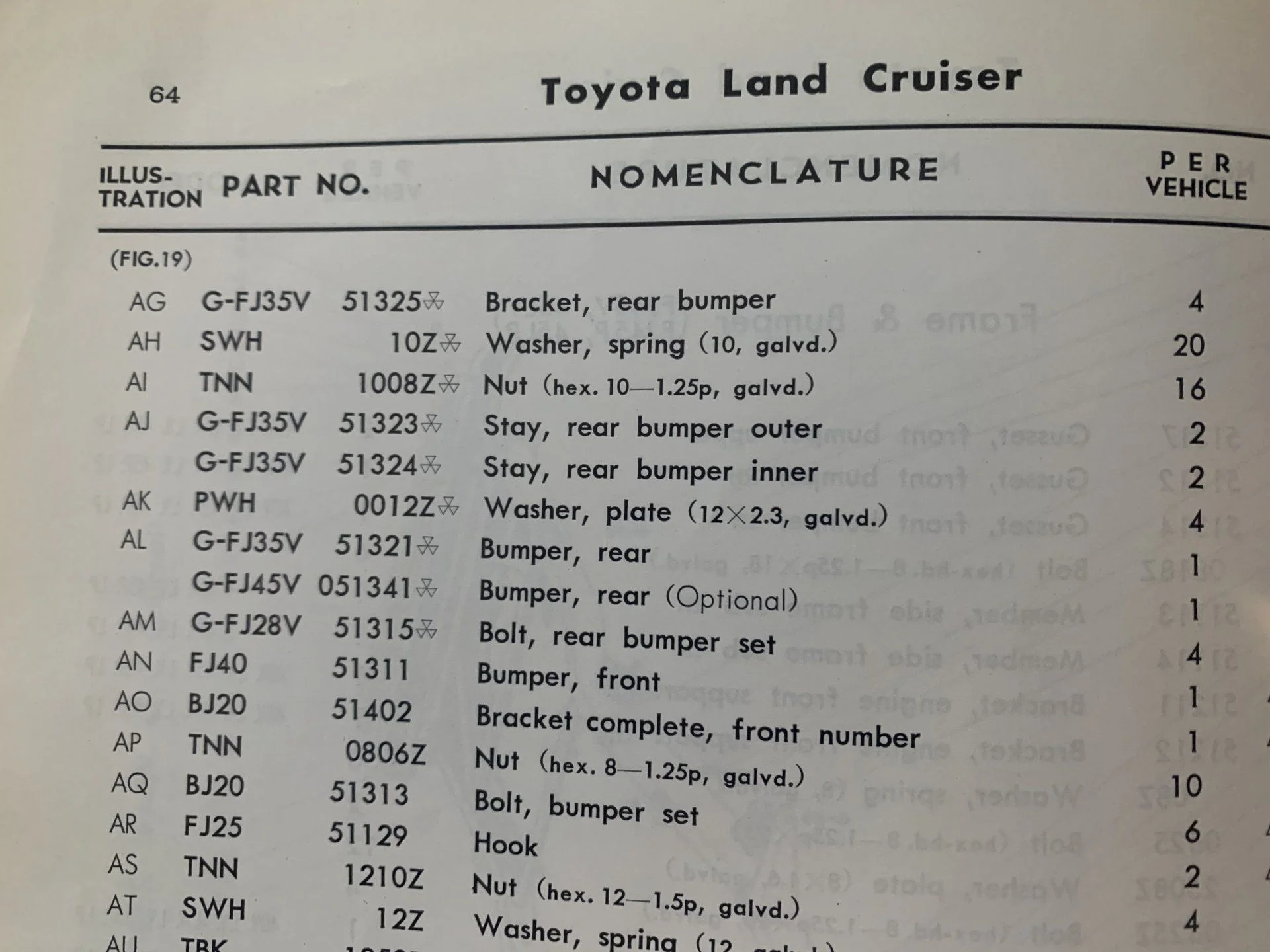

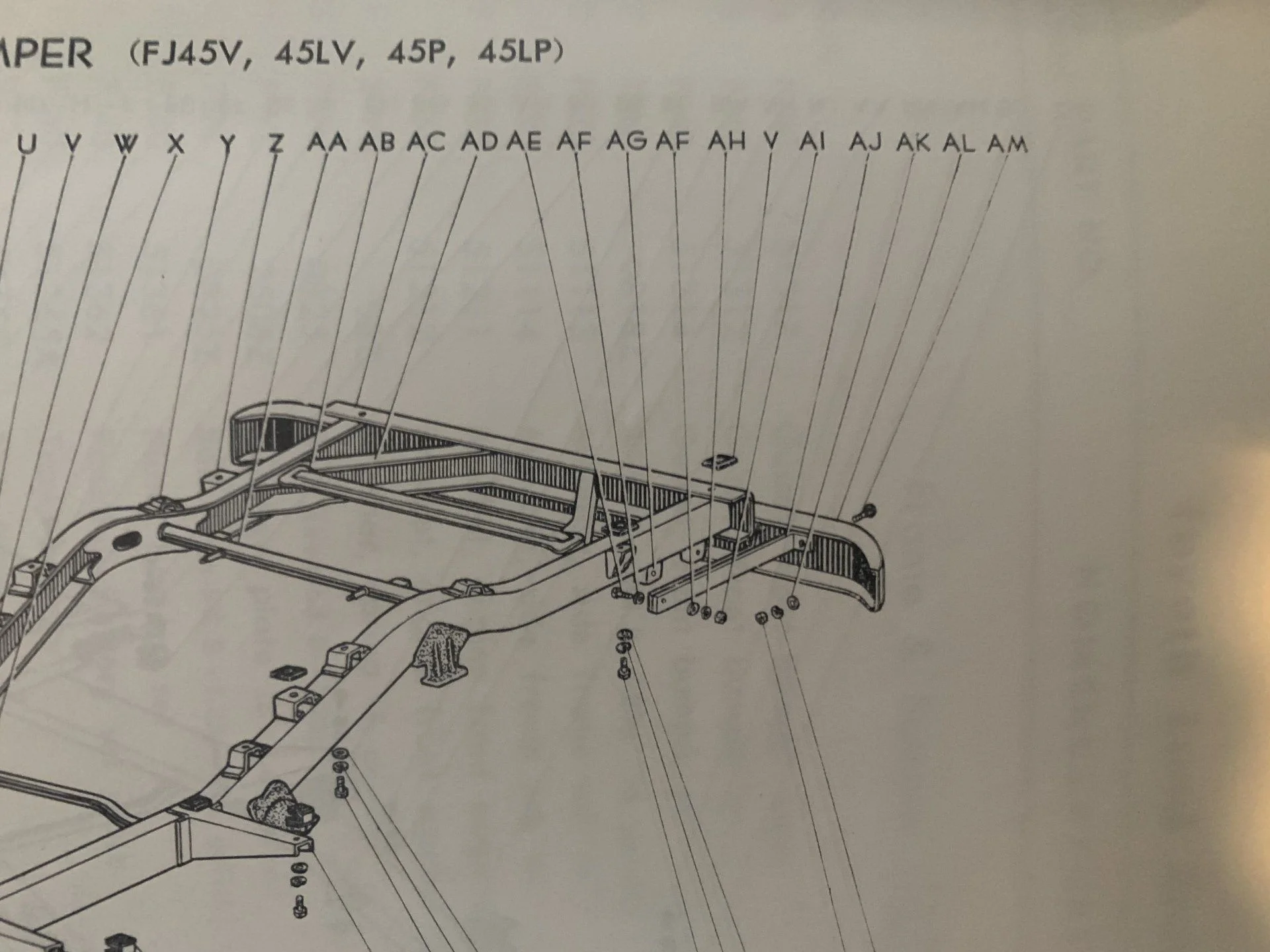

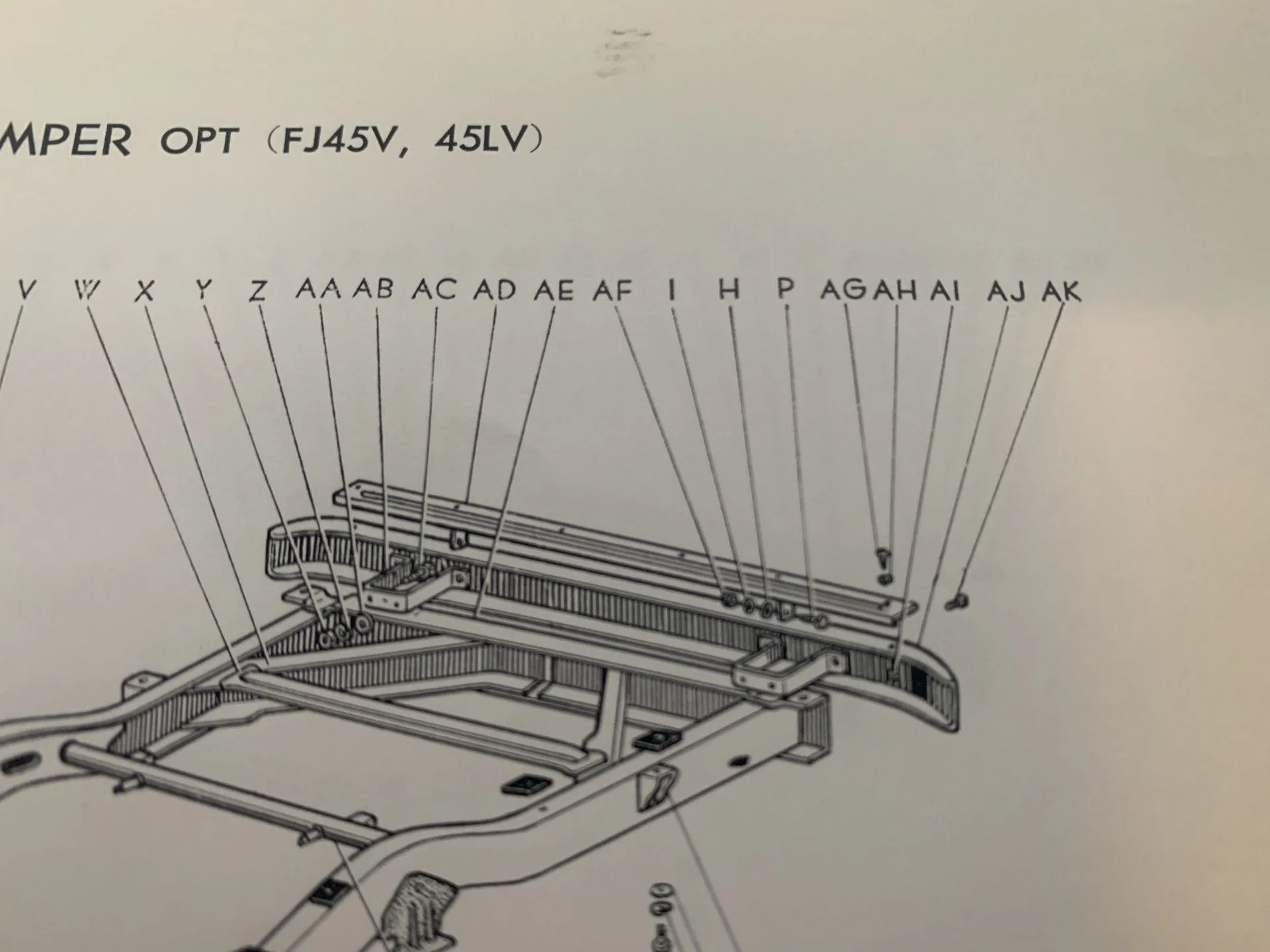

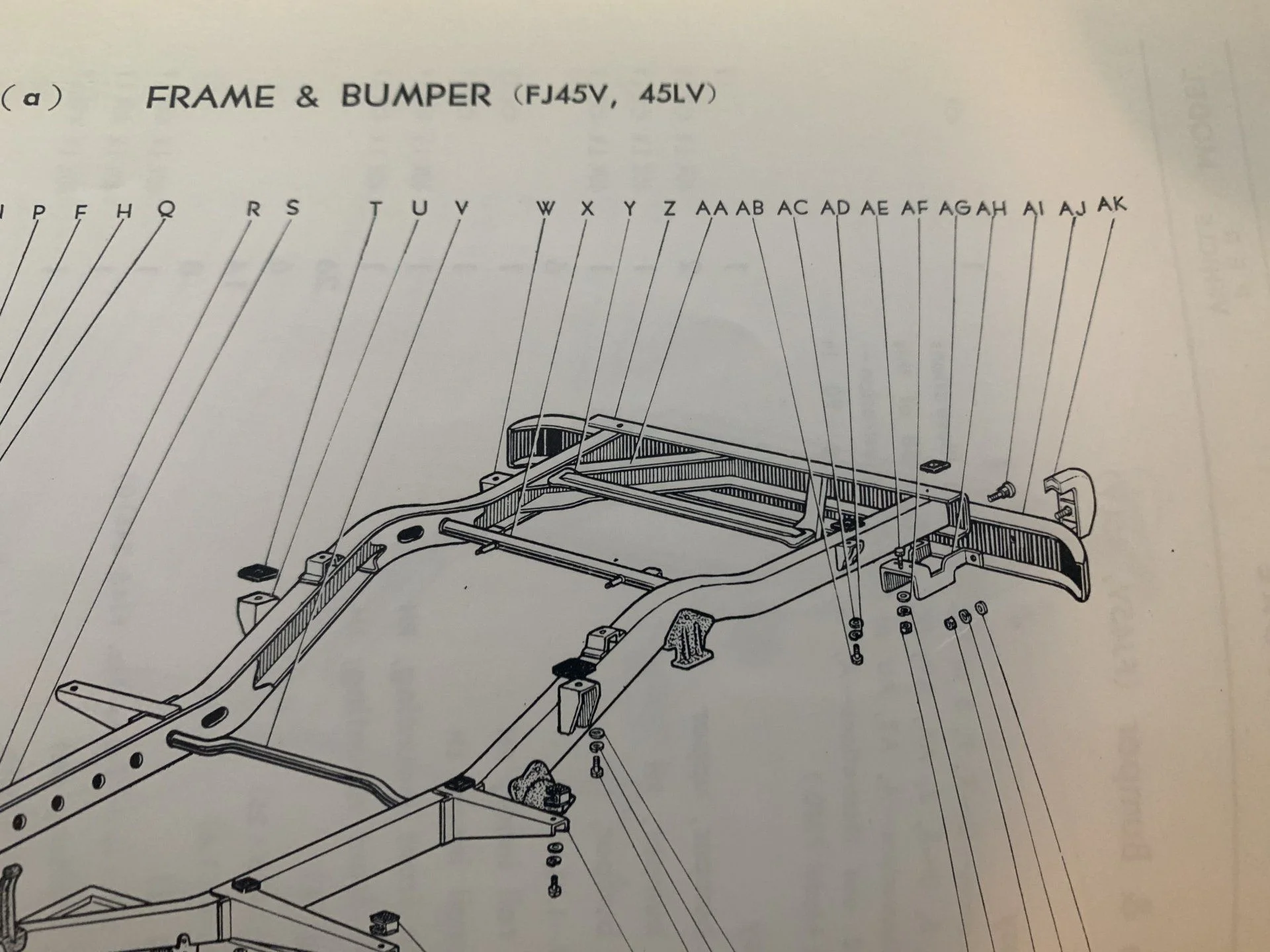

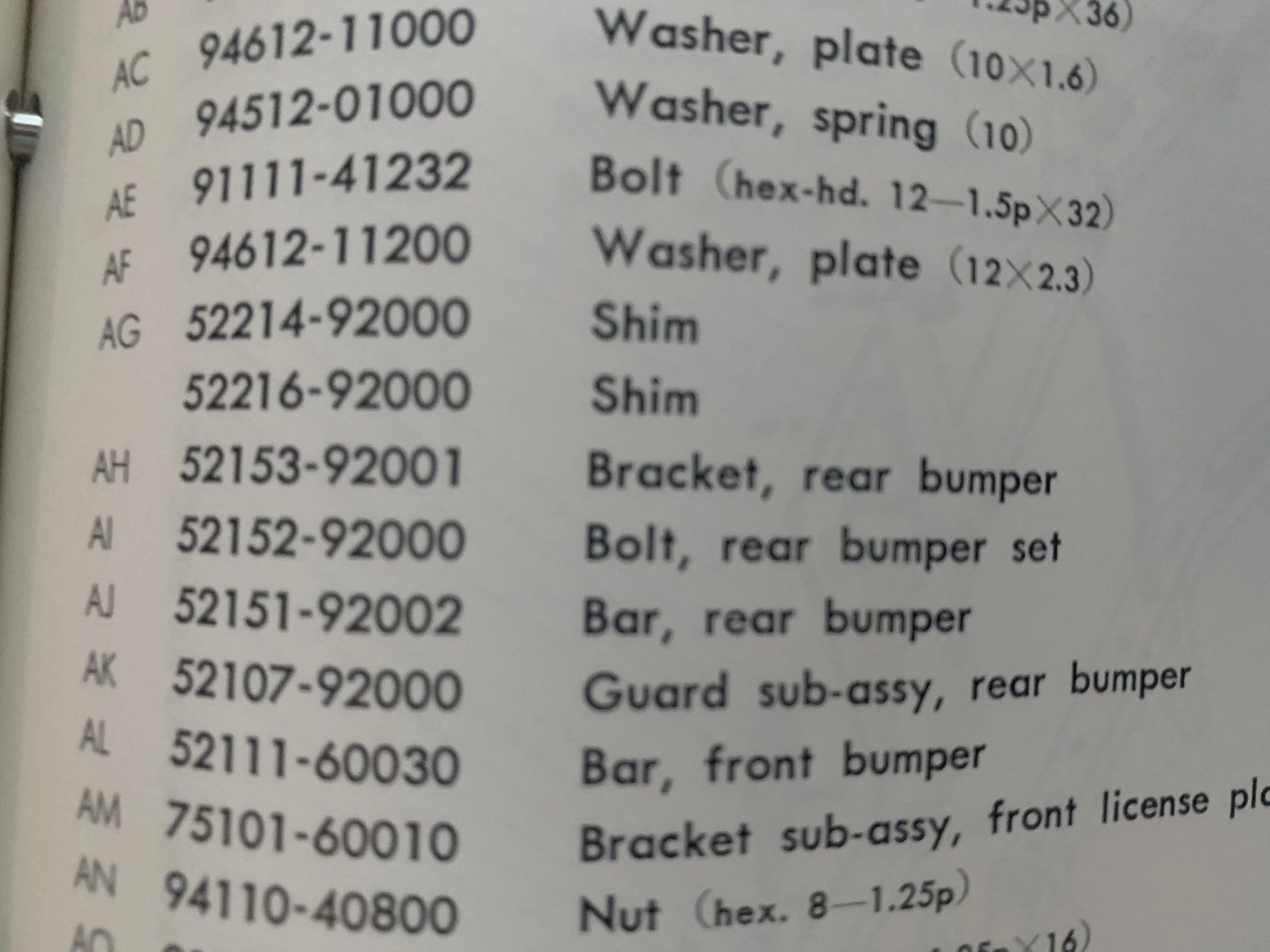

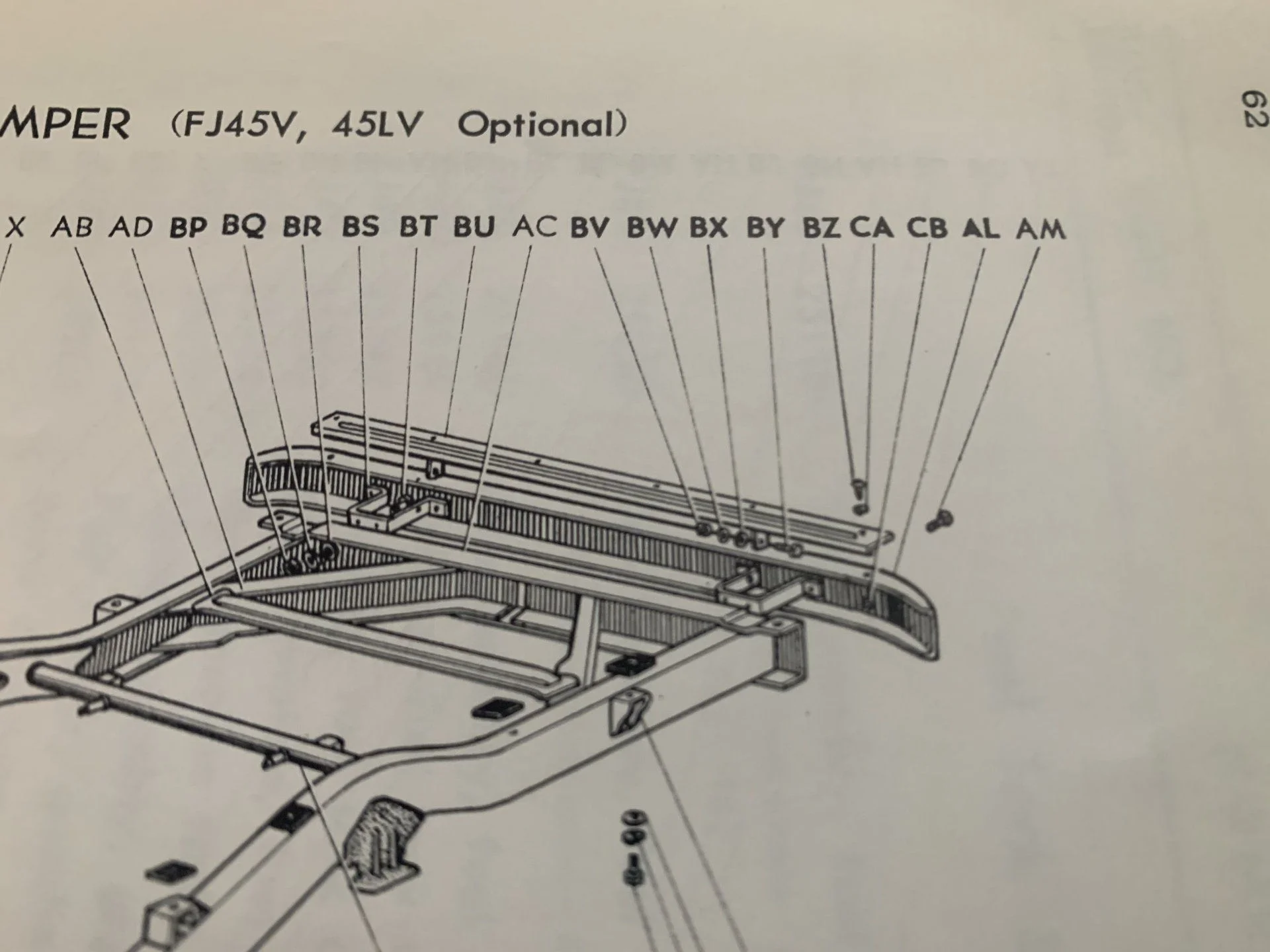

Ok, this is interesting. There were at least two brackets through the production run of LV’s. My 1964 frame does not have the three holes needed to mount one of the later brackets like yours. (I still want a set, though). The first four pics are from the 1963 45V parts manual. Unfortunately, this 1963 manual uses the old part numbering system and I don’t have a cross to the later system for this part. As you’ll see, there was an early style with long brackets that dates back to the FJ35LV and an optional setup with a bracket that seems to mount straight off the back of the crossmember, but we know it can’t work quite like that. I’m wondering if the early frames have an additional welded or riveted bracket that drops down from each end of the crossmember for the brackets to bolt to. My 1964 frame shows slight remnants of some booger welded brackets that were probably welded on later by a PO.



Last edited:
Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
Thanks for the clarification Splangy!

Looks like the reproduction brackets I have are for '65-'67 only. It's possible Toyota made the switch sometime earlier, so easiest way to know is to check for the 3 bolt holes on bottom of frame at rear.

Sorry @swamp-thing and @mmcinnis. I'll wait to hear from you that you've seen this and don't want the brackets before changing the list.


swamp-thing

SILVER Star
Joined
Jan 17, 2007
Messages
2,528
Location
COLO~RAD~OH!
thanks all for the clarification! my set can go to the next in line and I will verify my setup next time i’m at the rigs storage spot.... much appreciated.

@crustycruise can you please add me to the second buyer list while i confirm/disconfirm my frame has the 3 holes?

thx

Last edited:

KT40

SILVER Star
Joined
Jul 20, 2005
Messages
1,816
Location
Redwood City,CA

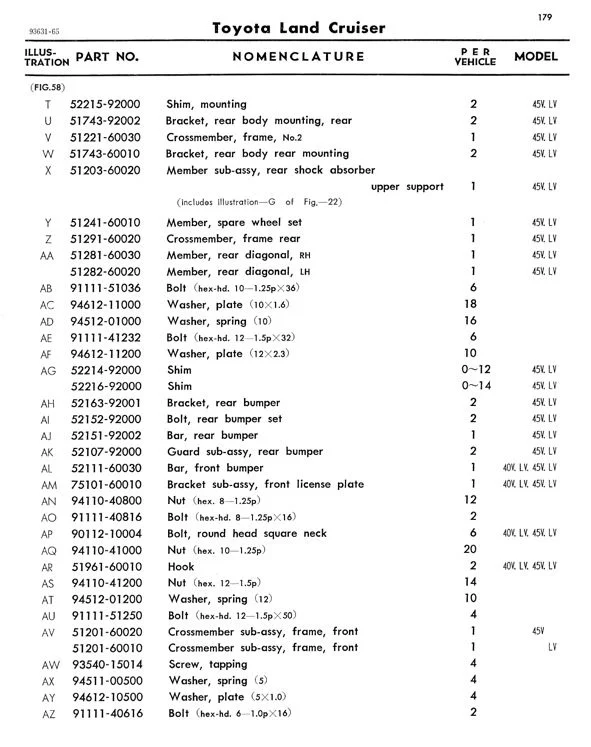

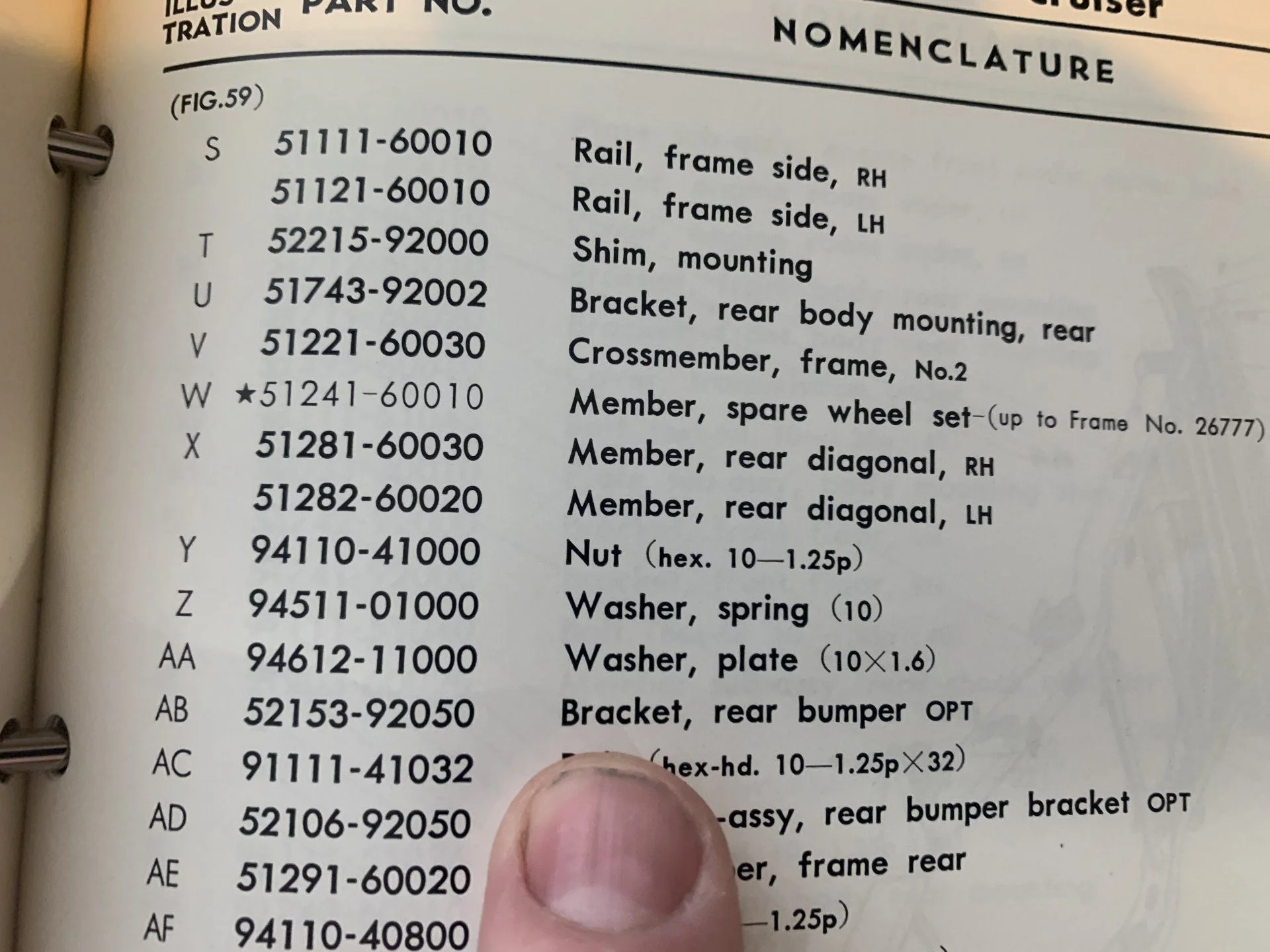

In the 63 manual, what is part number “BU”? Also in the 65 manual as “AD”. Description is “Plate sub-assy, rear bumper bracket OPT”

Also, Is @TRAIL TAILOR going to run a batch of rear LV bumpers?

Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
In the 63 manual, what is part number “BU”? Also in the 65 manual as “AD”. Description is “Plate sub-assy, rear bumper bracket OPT”

Also, Is @TRAIL TAILOR going to run a batch of rear LV bumpers?
I only have the '65 manual. The whole page including AD is attached.

Not positive, but I believe Trail Tailor is willing if we LV owners can supply an original.

65 LV manual.jpg

Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
Do you have a digitized LV manual?
Yes, thanks to @DomSmith I have PDFs of the '65 FJ40 and '65FJ45LV catalogs, which, combined, covers everything on an LV. Also have the FJ45 P-B catalog. Good news for you is Dom gave me permission to share! Here's an idea, you PM me your email, I'll send you the 3 catalog files and you can share with anyone else that's interested; almost certainly others will want copies. Deal? Trust me, having these manuals is a game changer!

LV Catalog.jpg

Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
The company that created the CAD agreed to share this PDF with me (couldn't talk them into releasing the native CAD file). Thought some of you, especially LV owners outside the US wanting to avoid high shipping costs, might be interest in creating a CAD file, making your own brackets, etc.

Bracket Design.jpg

Joined
Sep 6, 2017
Messages
87
Location
British Columbia
Yes, thanks to @DomSmith I have PDFs of the '65 FJ40 and '65FJ45LV catalogs, which, combined, covers everything on an LV. Also have the FJ45 P-B catalog. Good news for you is Dom gave me permission to share! Here's an idea, you PM me your email, I'll send you the 3 catalog files and you can share with anyone else that's interested; almost certainly others will want copies. Deal? Trust me, having these manuals is a game changer!

View attachment 2629588
Thank you! Sent message

Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
Round 1 is done!

A round 2 list has been started and four slots are taken. Anyone else? I'd like to have the next batch cut this week or early next, so please let me know if you want in so I can set a number.

LV bracket rd2 .jpg


xtremeVA

SILVER Star
Joined
Feb 9, 2014
Messages
966
Location
NoVA

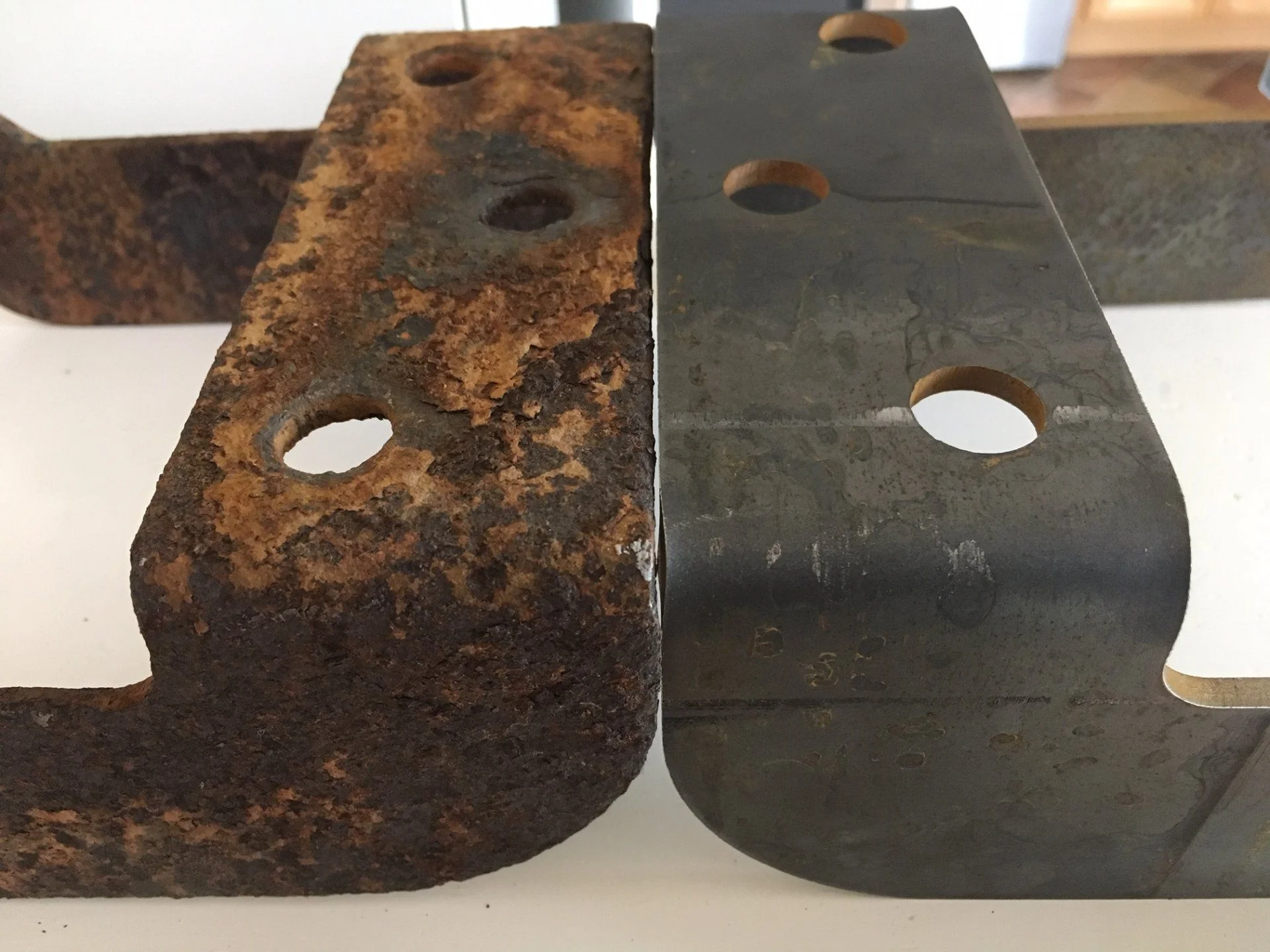

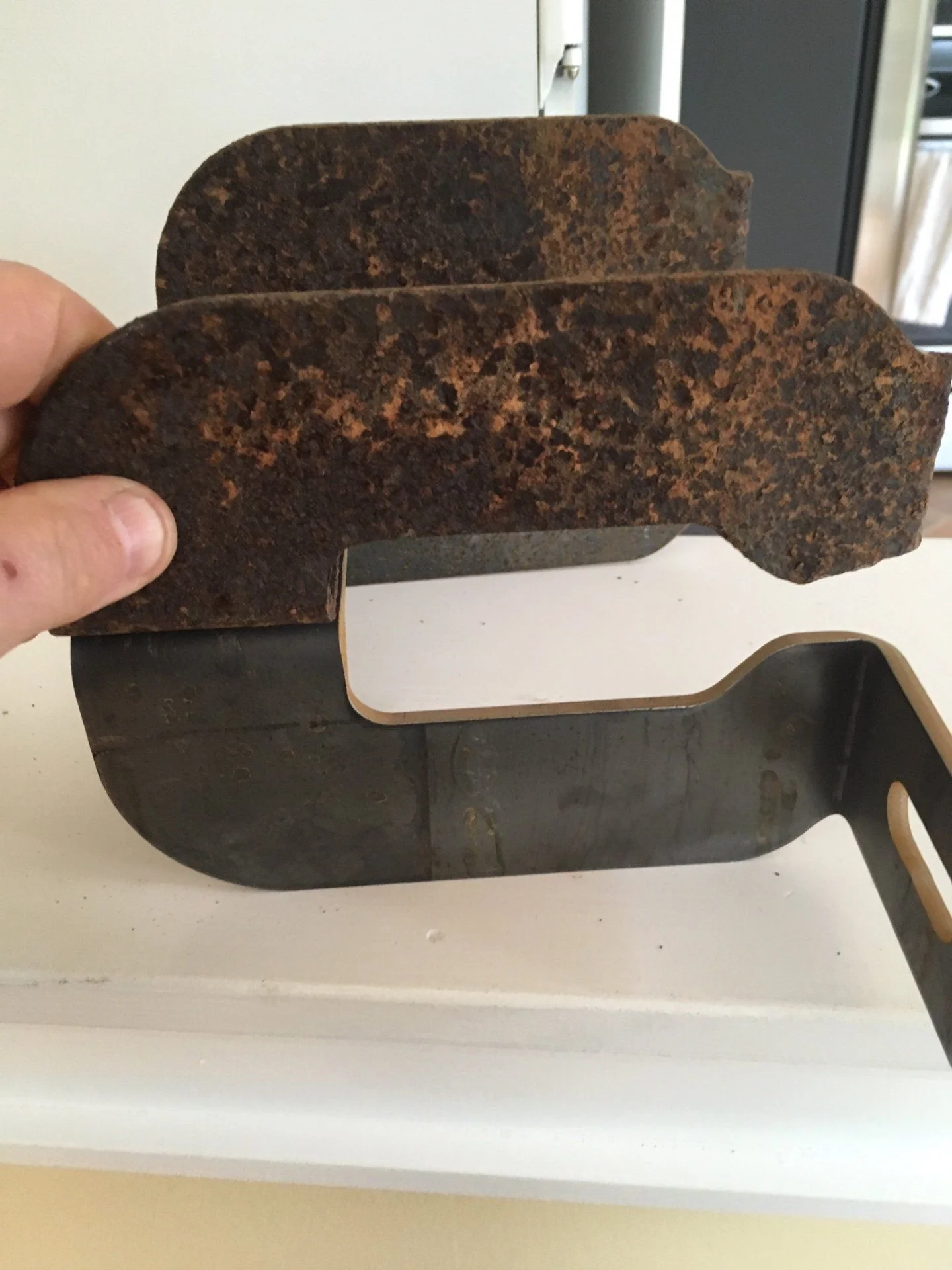

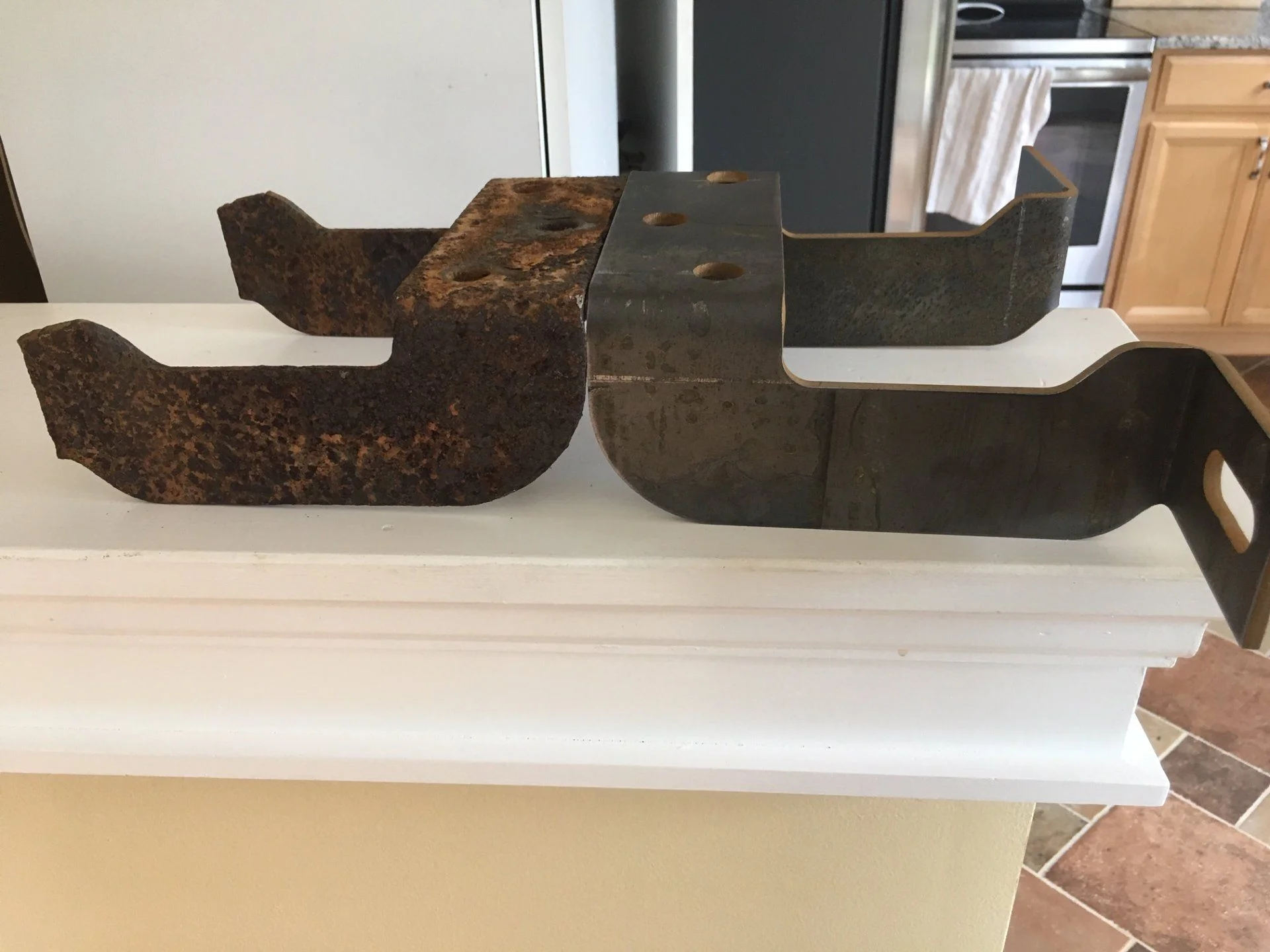

FWIW - I have a 64 LV and there was one rear bumper mount still on the truck (ends that connect to bumper on my original were missing). I compared the original to the @crustycruise repros and they look the same. 3 frame mount holes are identical spacing. Of course, the new repros are heftier gauge metal 👍. Highly recommend these to LVers. In the big scheme of "LV-unobtanium", these are a bargain.

45LV bumper mount 1.JPG
45LV bumper mount 2.JPG
45LV bumper mount 3.JPG


swamp-thing

SILVER Star
Joined
Jan 17, 2007
Messages
2,528
Location
COLO~RAD~OH!
@xtremeVA That helps a ton ! -- I haven't been able to check my 64 yet ( I am going to on monday ) -- but it looks promising from your experience like these will probably work for me. @crustycruise just to confirm I am on list #2 since I offered up my spot on list #1 while trying to figure out compatibility with pre-65

Joined
Jan 27, 2018
Messages
487
Location
Wrightsville Beach, NC
@xtremeVA That helps a ton ! -- I haven't been able to check my 64 yet ( I am going to on monday ) -- but it looks promising from your experience like these will probably work for me. @crustycruise just to confirm I am on list #2 since I offered up my spot on list #1 while trying to figure out compatibility with pre-65
Absolutely

Joined
Aug 4, 2009
Messages
7,545
Location
New Hampshire
FWIW - I have a 64 LV and there was one rear bumper mount still on the truck (ends that connect to bumper on my original were missing). I compared the original to the @crustycruise repros and they look the same. 3 frame mount holes are identical spacing. Of course, the new repros are heftier gauge metal 👍. Highly recommend these to LVers. In the big scheme of "LV-unobtanium", these are a bargain.

View attachment 2632649 View attachment 2632650View attachment 2632651

Must have been a mid year change in 1964 as mine and some others’ 1964’s don’t show similar mounting.
