Build My 1975 lazy style revival thread

[JackA]

All wheels and tires are ready to go. Looks so much better with the correct wheels. New lug nuts and hubcaps.



[JackA]

Forgot new rear shocks.......



[JackA]

More cleaning and painting. This round did the pedals and column stuff.



[JackA]

Got some new tail lights installed.



[tahoe40/45]

Looking great! Another lucky Land Cruiser getting a second chance on life.



[JackA]

Made a patch panel with relocated shifter holes. Then coated both sides with heat and sound deadening.



[clrussell]

I’m along for the ride. Great rebuild so far



[JackA]

Starting on this mess. Did some removal. Time to clean and replace as needed.



[JackA]

Got the new booster and master cylinders installed. New clutch slave is in too. Plus I gave the heater some love.



[JackA]

New voltage regulator installed along with putting the column back together. New gasket for the trans hump and installed that too. Added new cowl drain hoses with new gaskets thru the hump. Still waiting for my nut inserts to attach the shifter boots.



[JackA]

Shifter boots, new knobs, heater and a new sticker are now in place.



[JackA]

I used some AN adapters and a pre-made line to finish the clutch plumbing. Got most of the drivers side firewall all cleaned up. Revived the horn button. Then today, I built a bolt in tailgate panel. It's painted and ready for install. Got a few other items painted too.



[JackA]

Tailgate panel in place. The spare tire carrier needs some spacers and some fixing before I can reinstall.



[JackA]

Tire carrier bolted on with matching spare. I messed up one of the studs threads, so I will have to retap and fix that one. It's always something.



[wngrog]

Send me the info on the clutch line with An stuff. I like that. I need to relocate a clutch to the passenger side on an upcoming project.



[JackA]

Need to remove these chunky front dual shock mounts. Going to replace with some factory ones. Since the rivets are gone, I plan to make nut plates to install inside the frame. Should be plenty strong.



[JackA]

Huge thanks to my friend from Tucson for dropping off parts to me when I was out wheeling and camping.
Got a perfect powder coated gas tank, heater duct, and a disc or welded type oem wheel.
Should be making alot of progress this week.



[JackA]

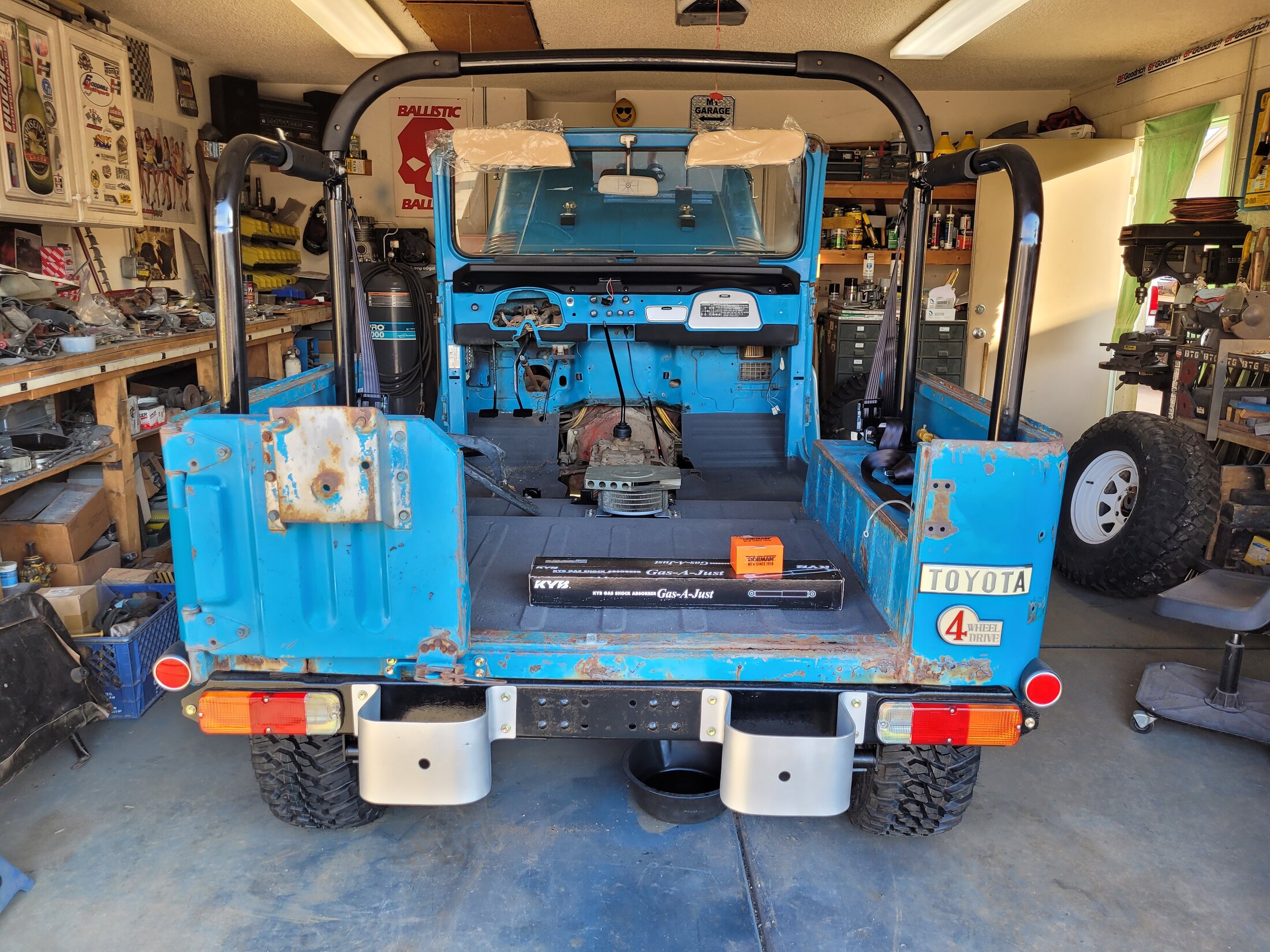

New tank is installed and covered. Seats are next.



[JackA]

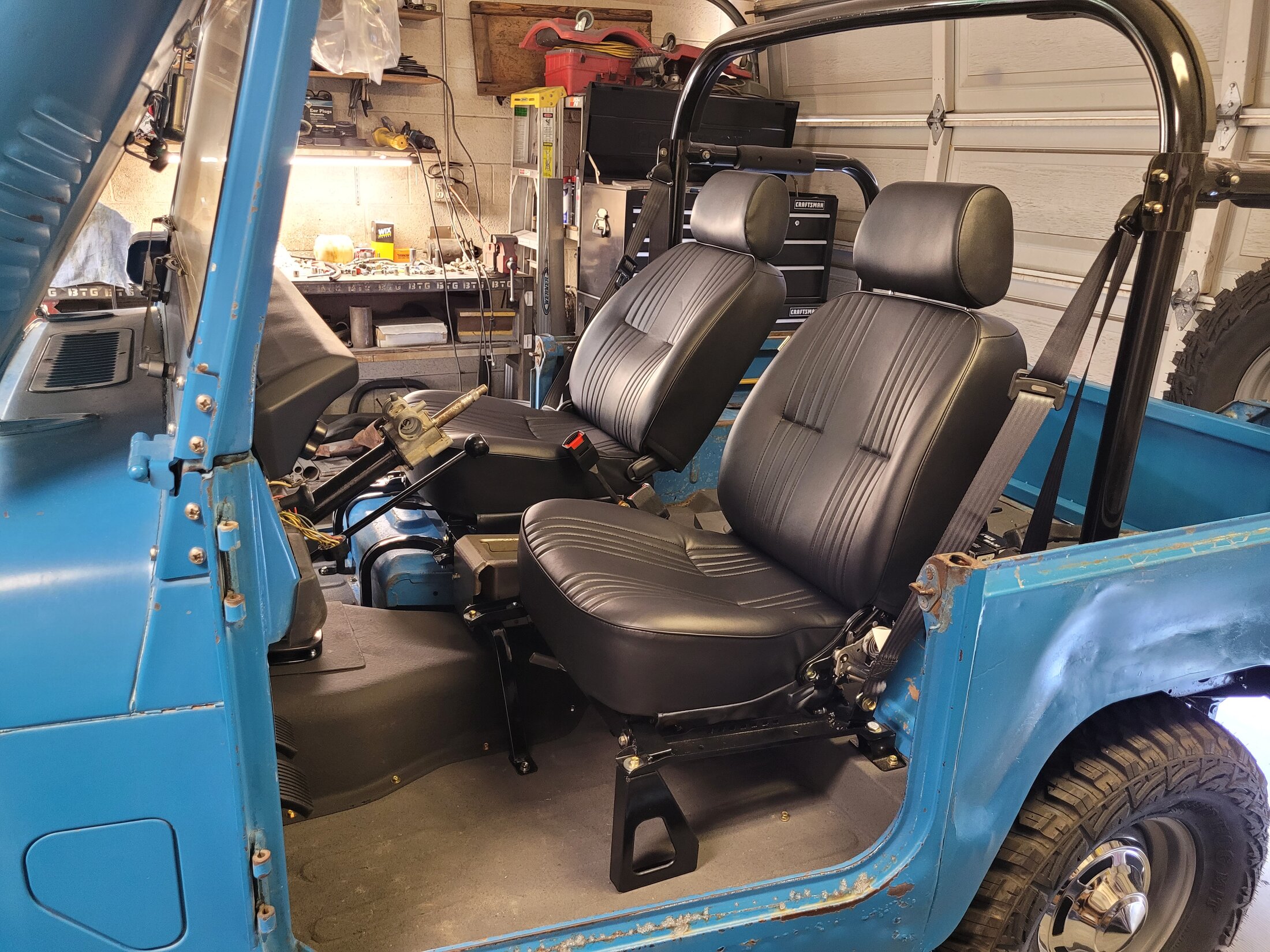

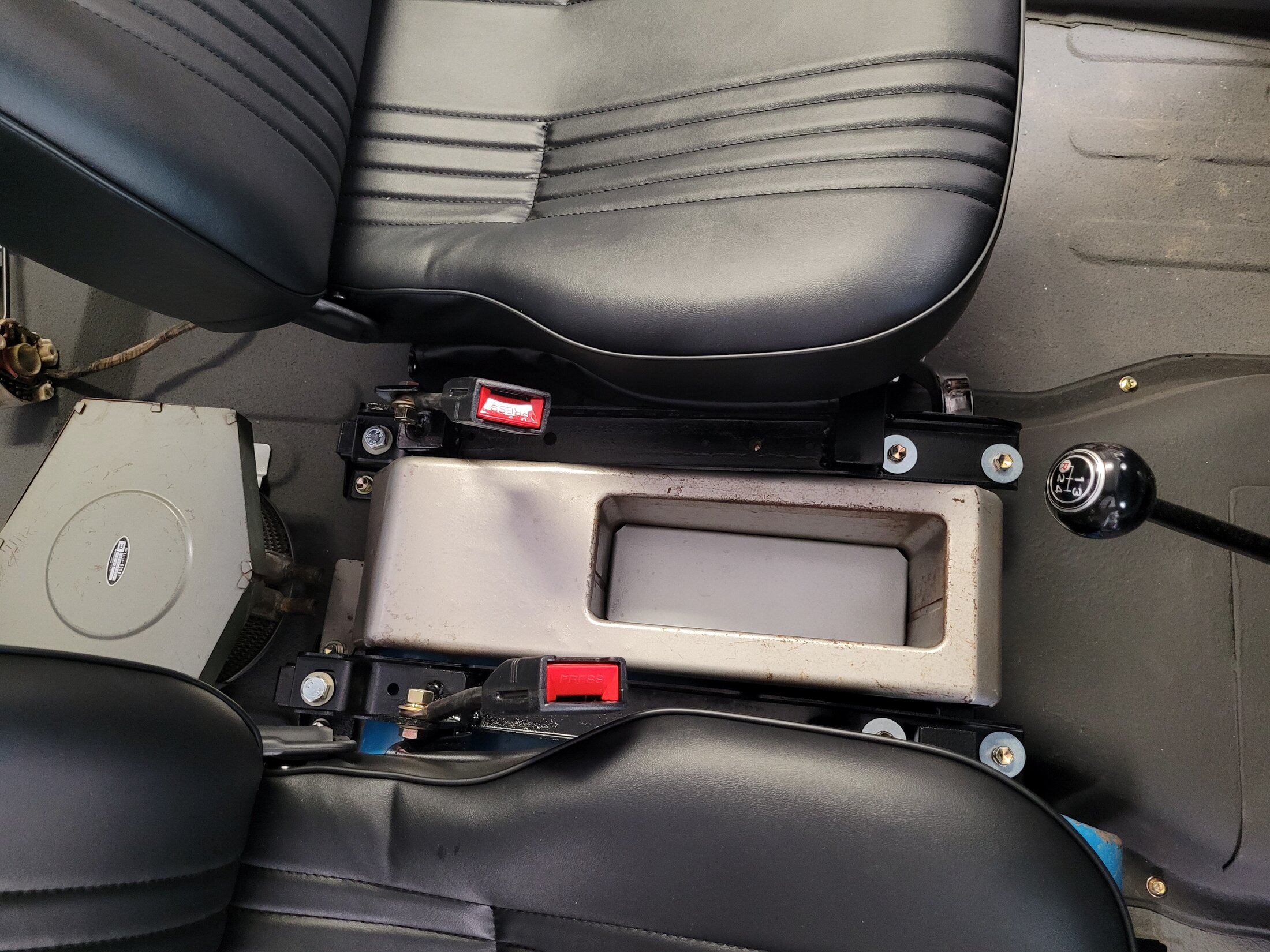

Seats and 3 point seatbelts installed. Waiting for the upholstery kit for the rear jump seats. Factory console back in place too.



[mrboatman]

Looking great
