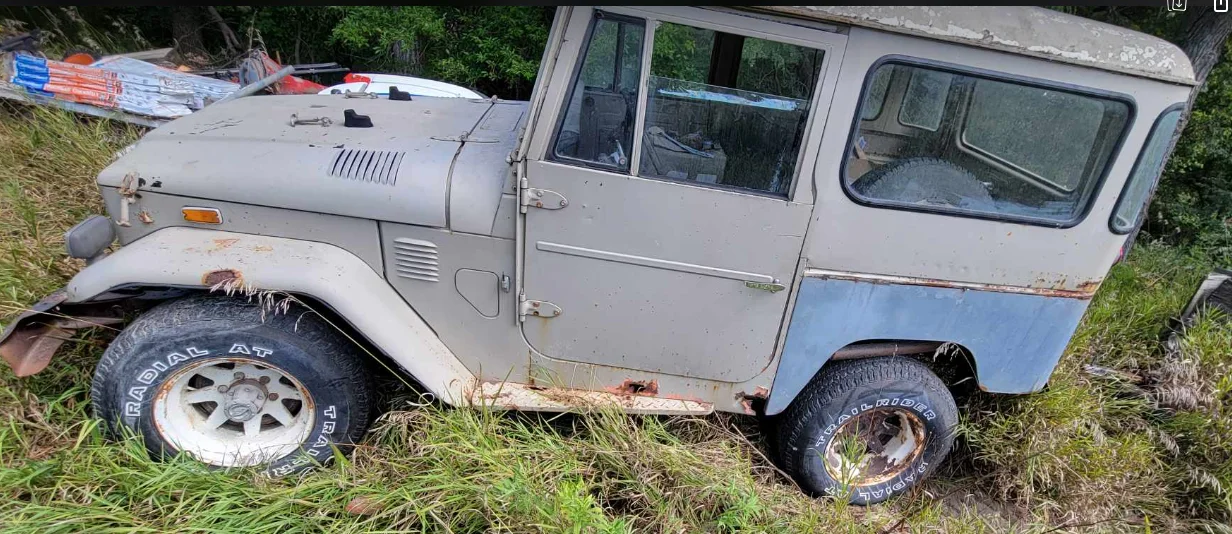

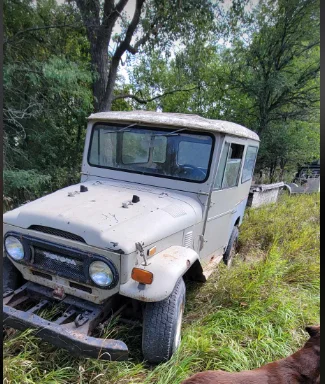

i found this 40 local to me here in iowa and i have no idea what year. judging by the pics its at least mid 70s from what i can tell. there are disc brakes in a package in cab, dash pad, looks like 2 f engine.
may buy this 40, help me id the year of it (2 Viewers)
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Have you looked at the VIN plate? It should give you a date and what engine was originally in the truck.
Skreddy
SILVER Star
My guess: 72-74. No split hood, wipers on top of windshield frame, no door panel doors. More fine tuned guess is late 73 or 74 based on heater. But all bets are off because all that is changeable between vehicles.
- Thread starter
- #4
i may go look this weekend. i totaly think the guy selling his wife is making him sell so not much info has been given. i will look it over and get better details for sure. just looking for the simple insight like split hood and dash stuff. thanks
pb4ugo
SILVER Star
Look on the Vin tag drivers side A pillar. My guess would be a 74. Shifting instructions looks like a 4 speed, which would be the 1st yr. 75 had amby doors and rollbar. @Living in the Past could disect it.
Steering column and wheel, too.
Living in the Past
SILVER Star

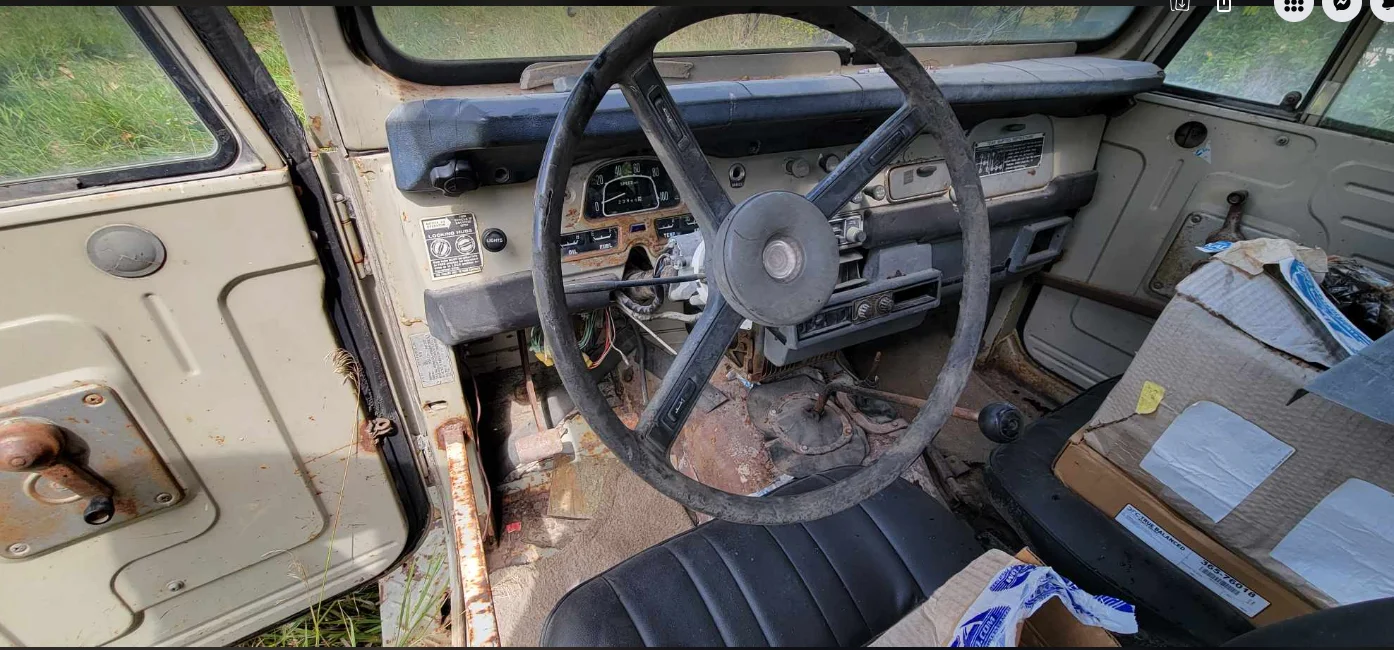

Heater changed in 9/73 with the 74 model. This one is a the later style with the vent on top. Tail light changed at the same time as well as the emblems on aprons and the bib. The handle for the interior door went metal to vinyl. Knobs on the dash changed 9/72. Heater switches were marked front and rear. 9/73 rear heater worked off hight speed of the front heater. Switch. Rear no longer had its own switch.
Living in the Past
SILVER Star
Steering column with that steering wheel was used 73-75. Same with the headrests which was an option at that time.
- Thread starter
- #9
sterling
SILVER Star
Looks like a fun project, especially if you snag it for a "I just want it gone" price.
I assume the door braces are structural due to the extent of the rust? Interesting
I assume the door braces are structural due to the extent of the rust? Interesting
- Thread starter
- #11
holly cow thats good eyes. i did not catch the door braces at all. oh my now s*** just got real.....
pb4ugo
SILVER Star
It's to be expected from the pic of the rusted floors. It's got a head start towards the required bracing so the floors can be replaced.
- Thread starter
- #13
that makes since, i did re read a texted where he said he squared up the body to start on the floor. or something. its hard to tell what he meant because the text was one run on message. lol but now i think i got figured out. at first i thought he had square tubing in the back that was coming with the LC lol

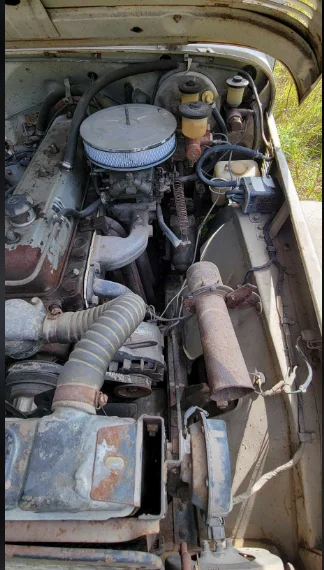

Looks like an "F" engine to me. I thought the 2F moved the alternator to the pass side.... (along with aluminum valve cover, which was also on the 1.5 F, but I never saw a 2F with stamped steel).
Heater looks different than my '74. Not sure if that's newer (can't be much newer) or older.
Is that an A/C kit on the heater box and duct?
- Thread starter
- #16
you maybe right i believe it is an old F not the 2F
Skreddy
SILVER Star
Should be an “F.5”. Updated oiling but not quite 2F yet. Year lined up for that to be right plus, the very front exhaust manifold bolt is not usually drilled/tapped on the F 155 head.
And yep, that’s an AC box in there.
And yep, that’s an AC box in there.
- Thread starter
- #18
very cool thanks again tons of info...
FJ40Savvy
SILVER Star
I was going to say 74 or later. There is no picture of the back.. for the tell-tale ski google backlight. One question, there is no roll bar in the pictures. I know that '73 doesn't have roll bar. Any history on when the roll bar and 3 point seat belts were added to the US vehicles?
Living in the Past
SILVER Star
That style door ended 1/75. As for three point seat belts, those started 1/76 in the US. Not attached to the roll bar but the hard top. 2/78 seat belts moved to the roll bar.
