@antFJ can you print the front door hinge A-pillar seals? If so I'll send you some hinges to model to.
making your own... because lets be honest... what can't we make at this point?
- Thread starter antFJ
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #42

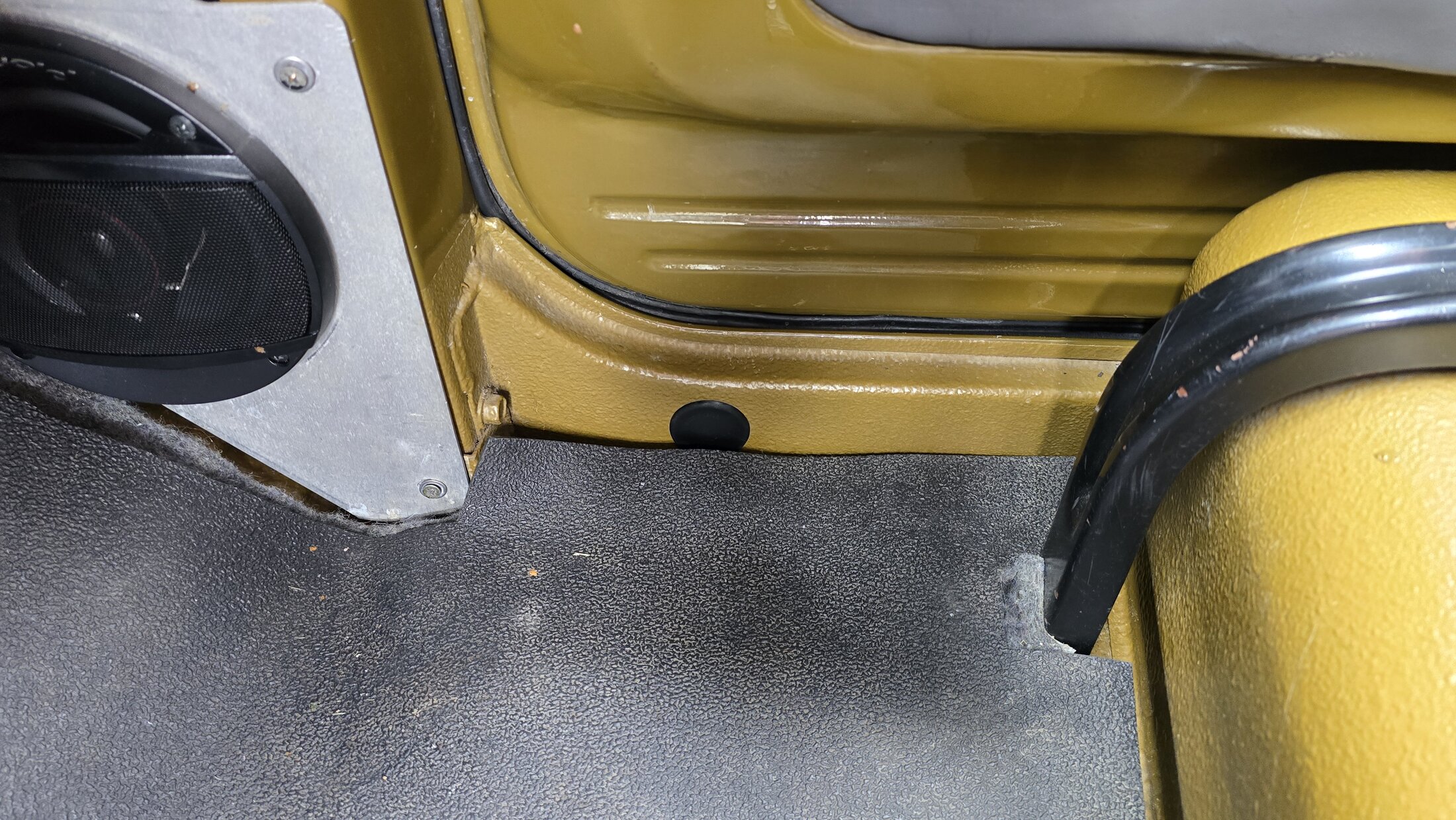

Are you looking for ones like these? or more smooth like the original? I'm going home to my cruiser and I still have a spare/bare cowl so I can just measure my hinges and then measure the opening to get the dimensions. You won't need me to send anything!
Last edited:
- Joined
- Jan 12, 2008
- Threads
- 298
- Messages
- 3,568
- Location
- West MI near GVSU
- Website
- www.mcdesignsoffroad.com
Those are what I'm referring to. However, The hinges I sell have a thicker flange than oem. Would those fit the same shape/profile, but 1/4" material?
So how do we go about ordering some of these items?
- Thread starter
- #45
Yeah i think I can still make that happen - I'll follow up when I get the measurements
- Thread starter
- #46
I'll post when I get a store setup... right now I'm keeping this tech and showcasing the technology and trying to figure out where the need might be for this kind of thing. I'd say at least a month or two.
Door lock levers, this is just one person, there are a few others out there.
Toyota Land Cruiser FJ40 / 45 Door LOCK KNOB 1963-74, Made in USA | eBay
1/75-1984 FJ40 REAR ambulance Door. The brown-grey knob pictured is a factory original from a 1970 FJ40 and is not for sale; only reproductions are for sale. Made in USA, includes knobs & Stainless Steel screws.
www.ebay.com
Sir you promised pics and info about the setup.
I have experience with FDM printers but the quality of the prints is not good enough. After 2-3 years all the PETG stuff breaks.
I have experience with FDM printers but the quality of the prints is not good enough. After 2-3 years all the PETG stuff breaks.
Does anyone make reproduction inner shift boots?
For the transmission?
4 or 5 Speed Shift Lever Inner Boot for Land Cruiser FJ40 FJ45 FJ55 FJ60 BJ70
Shift lever inner boot for 4 speed or 5 speed Toyota Land Cruiser. Fits '73 to '87 FJ40, FJ45, FJ55, FJ60, and BJ70. High quality aftermarket replacement for OEM part # 33555-55011.
www.cityracerllc.com
Transfer case as well depending on year.
Transfer Shift Lever Inner Boot for Land Cruiser FJ40 FJ45 FJ55
Transfer shift lever inner boot for Toyota Land Cruiser FJ40 / FJ45 / FJ55, model years 9/73 to 9/82.Fits under the vinyl boot to keep dirt, grime, and noise out of the cabin.Brand new. Made by us. Just like OEM part # 58288-90300.No longer available from Toyota.
www.cityracerllc.com
Last edited:
Anyone any experience with this?
Just found it... Need expensive parts to make up for that price though.
Just found it... Need expensive parts to make up for that price though.
- Thread starter
- #54
Yeah formlabs makes an incredible machine. Quality is similar to mine except I don't have access to their ecosystem which costs more but is more plug and play and more commercially oriented.
- Thread starter
- #55
YES I DID. Post incoming...
Last edited:
- Thread starter
- #56
Okay here is the setup...
Elegoo Saturn 4 Ultra 12K Machine (SLA style 3D printer)
Flexible Resin is Resione F80 (Shore hardness of 64A which is close to the standard(ish) for rubber)
Exhaust Fan and associated equipment is all AC Infinity with a tent style enclosure
My FDM printer is an older one - CR-6SE but modified to run engineering grade filaments at ~350C on the hotend.
Here are some pictures:
Elegoo Saturn 4 Ultra 12K Machine (SLA style 3D printer)
Flexible Resin is Resione F80 (Shore hardness of 64A which is close to the standard(ish) for rubber)
Exhaust Fan and associated equipment is all AC Infinity with a tent style enclosure
My FDM printer is an older one - CR-6SE but modified to run engineering grade filaments at ~350C on the hotend.
Here are some pictures:
- Thread starter
- #57
I do not have those parts to copy from but I'm sure I could!
- Thread starter
- #58
Back from holiday - I got a chance to try out some of the parts and I think i solved the FST flex issue.
- Thread starter
- #59
FST Door handles had way to much flex in the shaft and they would have worn in the doors to quickly so this is what I came up with.
With this design the core/shaft is a 316L stainless 3d printed part (i had to order this from a printing company) and the handle is the resin print. This drastically reduces the cost by almost 10 times and completely eliminates the flex. Shaft is designed to be epoxied into the handle.
With this design the core/shaft is a 316L stainless 3d printed part (i had to order this from a printing company) and the handle is the resin print. This drastically reduces the cost by almost 10 times and completely eliminates the flex. Shaft is designed to be epoxied into the handle.
