I have a 1970 Fj40 that is in its final stages of an LS Swap, 5.3, 4l60e. The engine is already pushed 1 1/2" to the driver side to help with driveshaft clearance. The only issue is the front driveline is still extremely close (1/4"). I used the high flange kit from advanced adapters and had a new driveshaft (2" tube) made. What would you recommend my best option be for more clearance?
Is there enough room in a 4l60e transmission pan to notch the bottom passenger corner side? Or should I have the driveline tube reduced to 1.5" or 1.75"? Or possibly do both of the above mentioned options to gain the most clearance?

Thank you in advance.



[tankxenia]

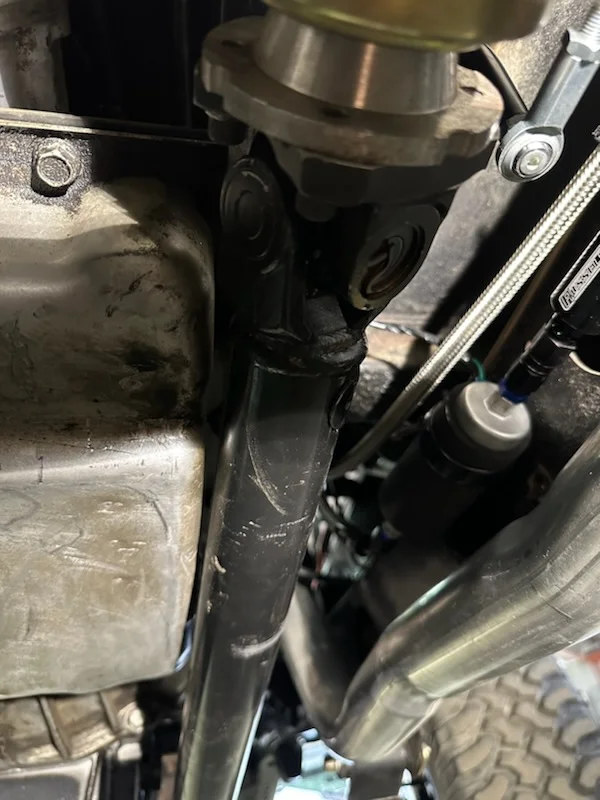

Attached is a picture of how close the driveline is to the transmissions oil pan.



[badsamaritan]

I would look around on LS1 tech and see if there are different pan options for the 4L60E. They came in a lot of different vehicles, to include a few 4wd options there may be one that is slightly narrower and gives a little more clearance. If that is not an option I would see if the pan can be modified to have a C shape right there and give more room.



[texcwa]

I have a 1970 Fj40 that is in its final stages of an LS Swap, 5.3, 4l60e. The engine is already pushed 1 1/2" to the driver side to help with driveshaft clearance. The only issue is the front driveline is still extremely close (1/4"). I used the high flange kit from advanced adapters and had a new driveshaft (2" tube) made. What would you recommend my best option be for more clearance?
Is there enough room in a 4l60e transmission pan to notch the bottom passenger corner side? Or should I have the driveline tube reduced to 1.5" or 1.75"? Or possibly do both of the above mentioned options to gain the most clearance?

Thank you in advance.

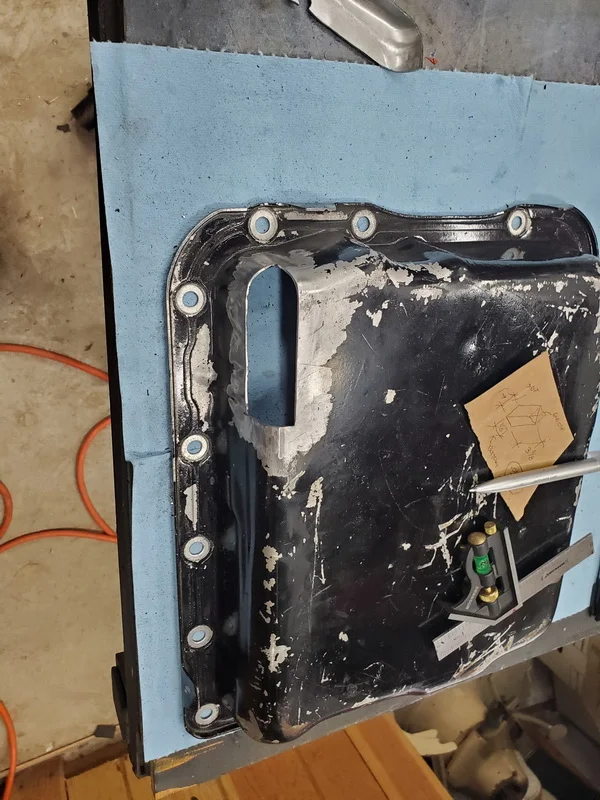

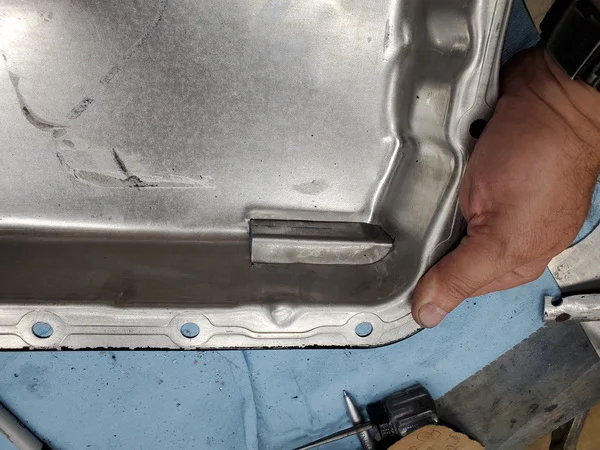

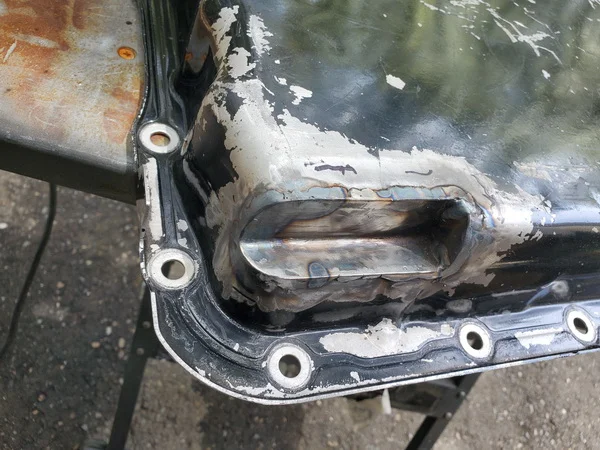

I had the same problem with my SBC and 700R4 Trans. I believe the 4160e and 700 R4 are sim. in build except yours is computer controlled. I modified the pan to get the clearance, see photos. There was plenty of room within the trans for what I did.



[cruisermatt]

early-mid 90's S10 pan is shallower overall. You will also need the matching filter
