locker actuator rebuild
- Thread starter landtank
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #142
When I’ve glued magnets back on I put a small bead of glue in g to he corner of the hat where the magnet goes and then place the magnet in place above the bead and then push the magnet in place.
This ensures that there is not glue behind the magnet.
This ensures that there is not glue behind the magnet.
Checked with a compass and had NSNS. Took off my two magnets, swapped and now working. Yah!
Will reassemble and put back on truck
Will reassemble and put back on truck
All good. Had to partly put on locker and bolt in shift fork 1st (as not able to get actuator to correct length as motor 'chopy'). Was then able to apply power and get it pulled in and able to bolt up ok.

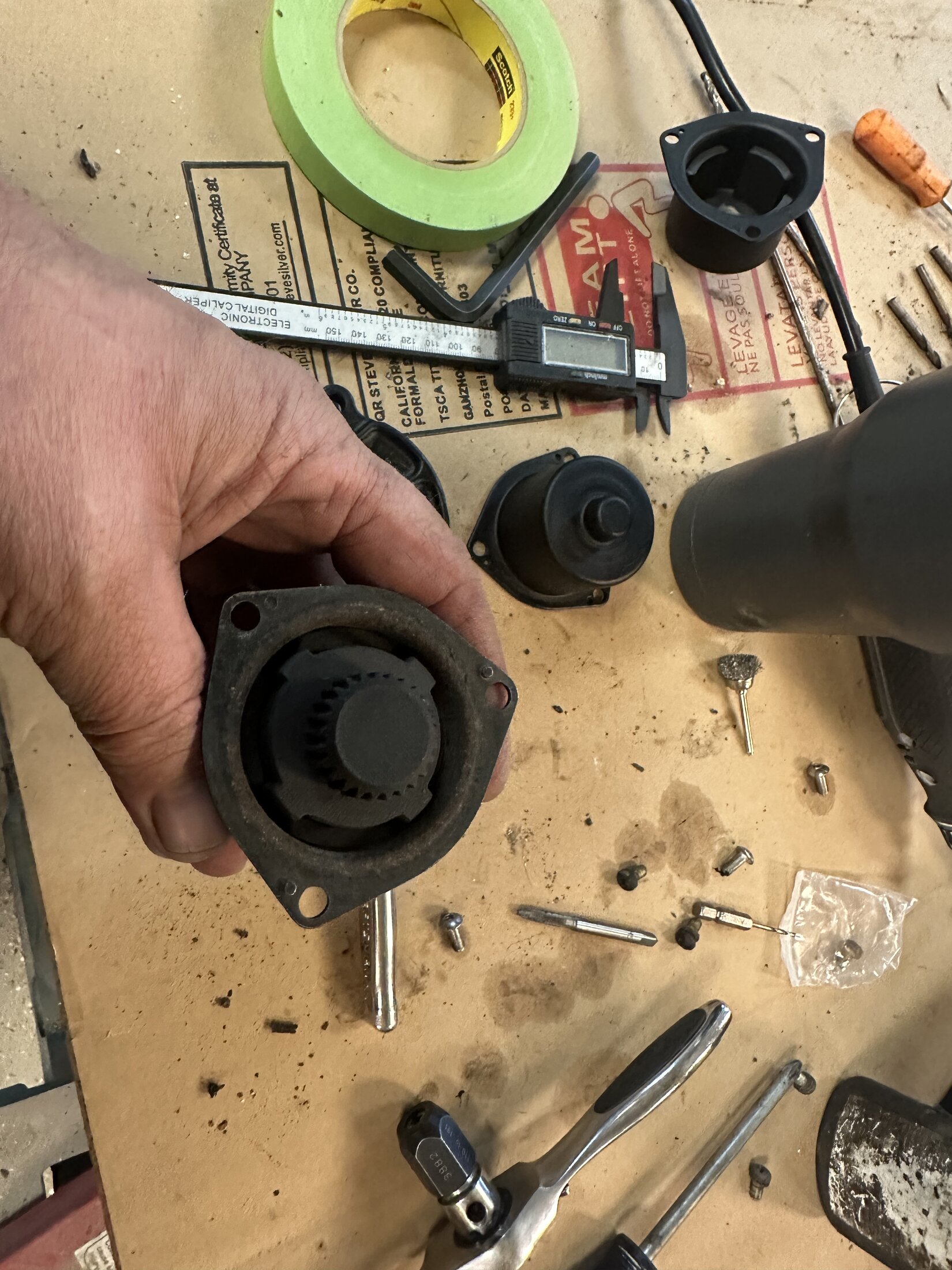

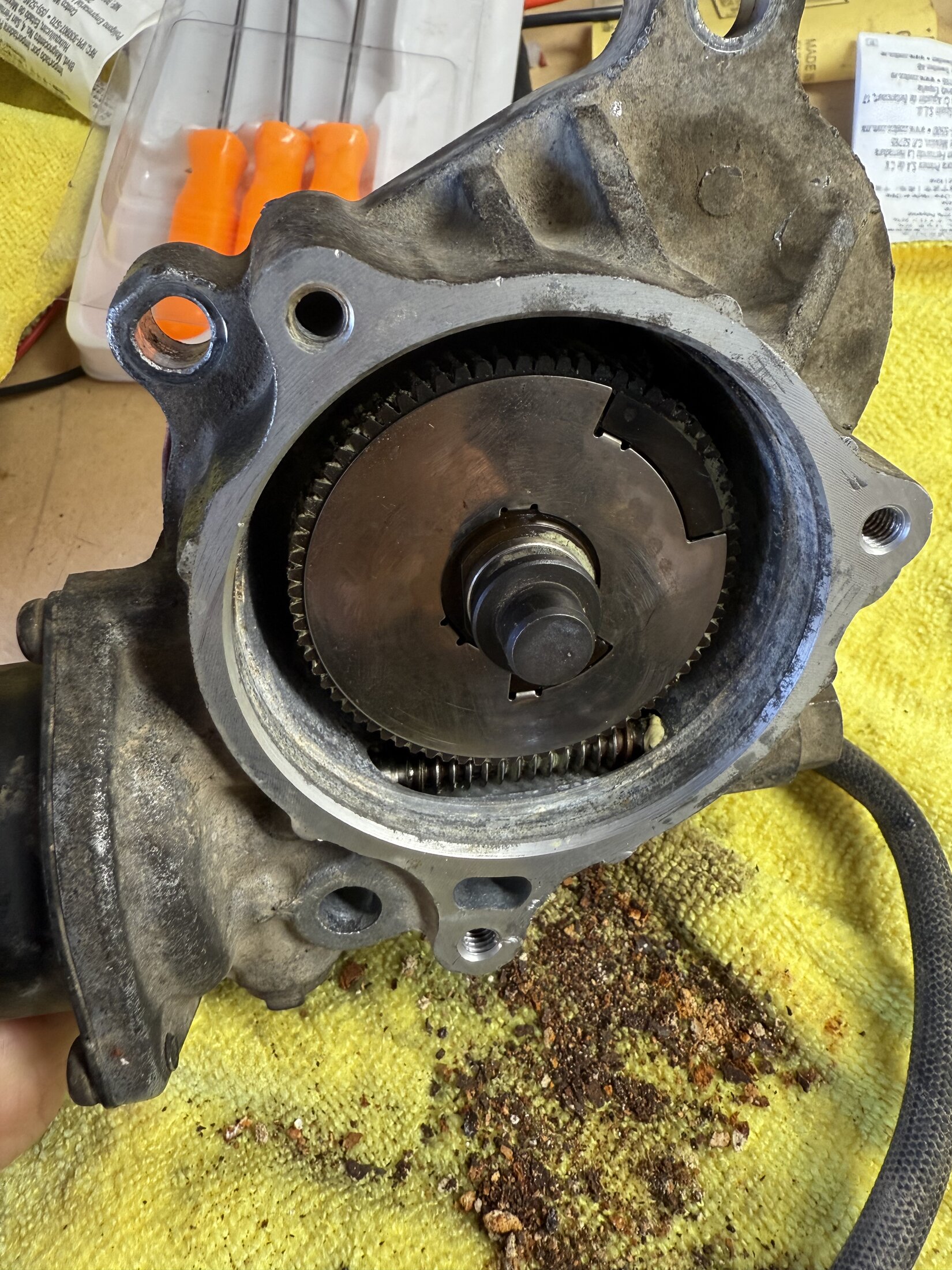

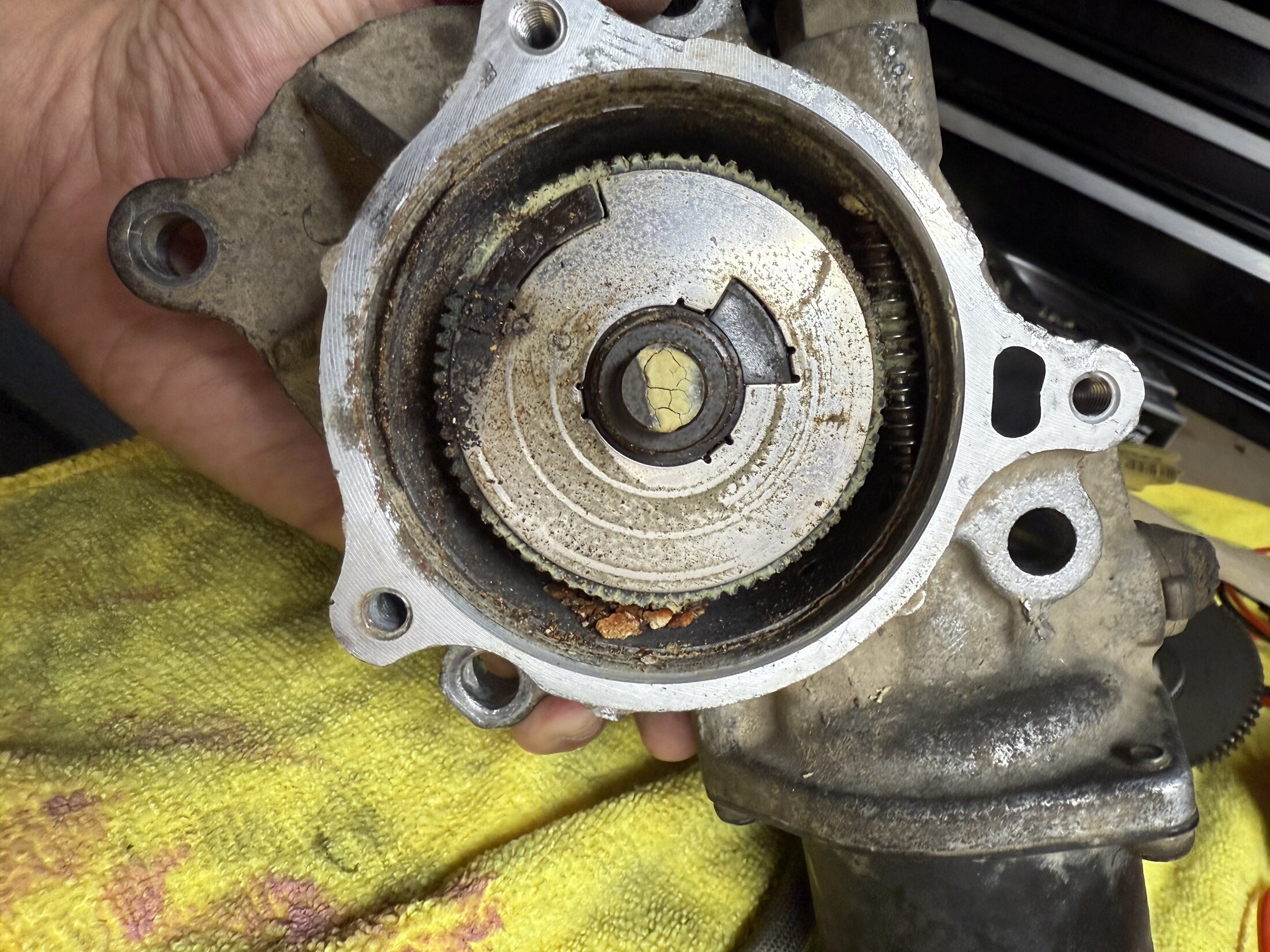

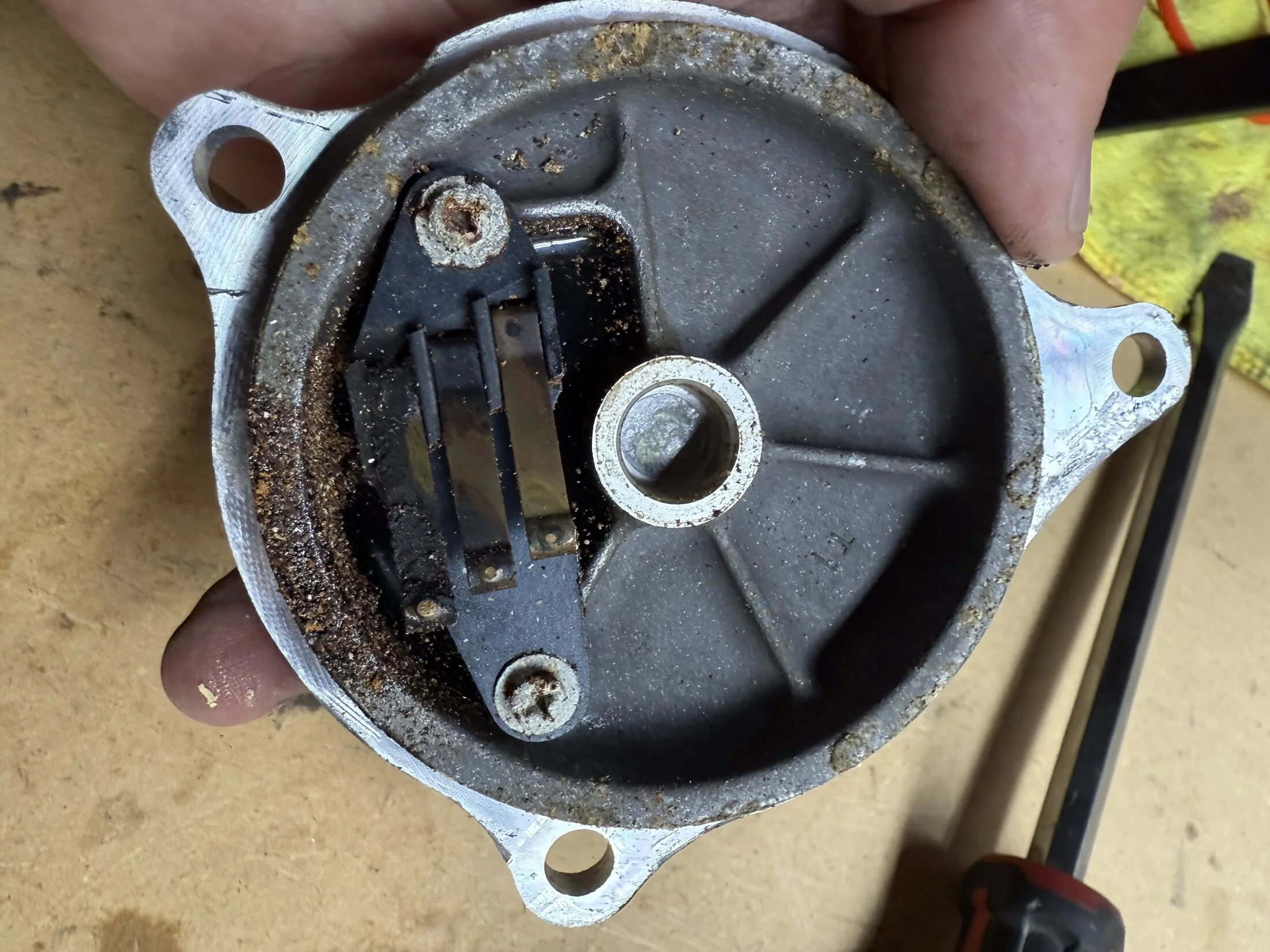

Opened up my center diff actuator since it failed the tests in the FSM. Definitely had some dirt and corrosion. I’ll be disassembling the motor side soon as well. But kind of stuck right now as I can’t get this gear removed. Maybe I’m not pulling on it hard enough? Any guidance would be appreciated!
Try to remove the worm gear first.
It moves, but not enough to get it out. I went ahead and removed the small gear on the other side of the actuator as well as the snap ring that holds it in place, to see if it does anything. Maybe I’ll take a rubber mallet to it. Haha
You'll have to turn the worm (the long, small diameter gerar) to remove it. I haven't personally rebuilit these, so I'm spitballing here, but you may need to remove the motor to free up both ends of the worm.
Thanks! I’ll give that a go. Can’t hurt

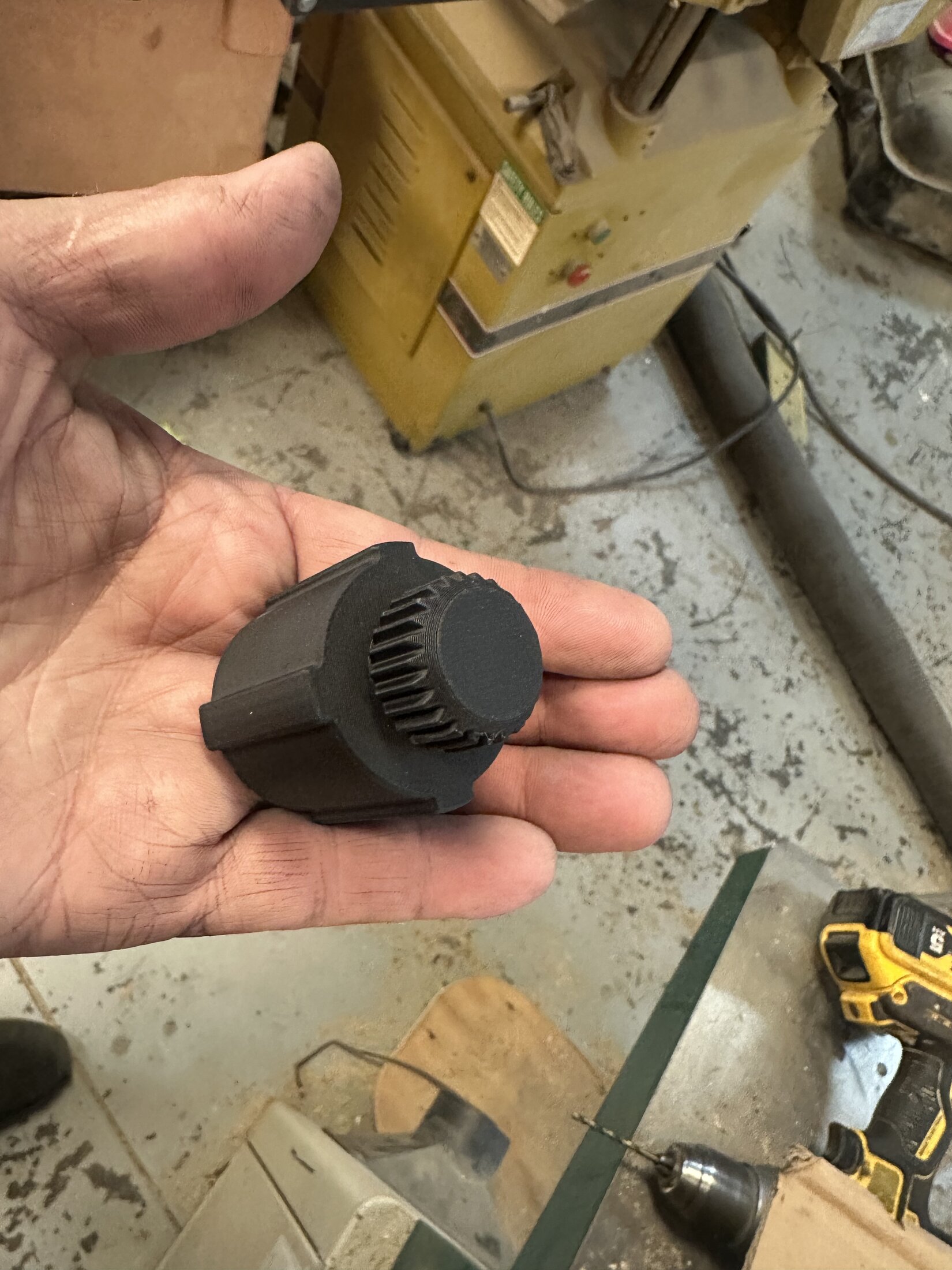

Great information here, wanted to share that my son made a design you can print on your filament printer to help align the magnets and make sure they are in the right position .. if anyone’s interested, I can send you the file.
fyi.... just to be clear, you put similar magnets on opposite sides... that is very well explained on this thread. I used two part epoxy and since the magnets like metal.... they are attracted to the metal so will provide the clamping power to the sides, however, since every other one is opposing, they like to come together ,so that is what this jig does, keep them spaced apart.
So far, I have rebuilt two fronts at 100% success. and rebuilt two rears an ZERO success..... batting 500.. I will quote the great legend, from the movie Major League, the big boy, Pedro....
Bats, they are sick. I cannot hit curveball. Straightball I hit it very much. Curveball, bats are afraid. I ask Jobu to come, take fear from bats. I offer him cigar, rum. He will come.
.... with that I will wait for something.
So far, I have rebuilt two fronts at 100% success. and rebuilt two rears an ZERO success..... batting 500.. I will quote the great legend, from the movie Major League, the big boy, Pedro....
Bats, they are sick. I cannot hit curveball. Straightball I hit it very much. Curveball, bats are afraid. I ask Jobu to come, take fear from bats. I offer him cigar, rum. He will come.
.... with that I will wait for something.
About to rebuild my rear actuator. Wish I had not seen your post. If you are 0 for 2 on rears, I might be in trouble. Because you are an excellent mechanic. New is $1,114 from Molle with discount.
Your new place in CO looks like it's going to be freaking awesome! Take care.
Your new place in CO looks like it's going to be freaking awesome! Take care.
Last edited:
I'd appreciate having that file
- Thread starter
- #156
Rock auto Aisin brand 481.00
- Thread starter
- #157
I only quickly scan the front page now a days. Glad to see people still getting use out of this post
I would definitely find that file useful. Not planning on doing the job immediately, but they're getting glitchy, so it's going to happen eventually.
