Is this a transmission temp sensor? (1 Viewer)

[Arizona Jeff]

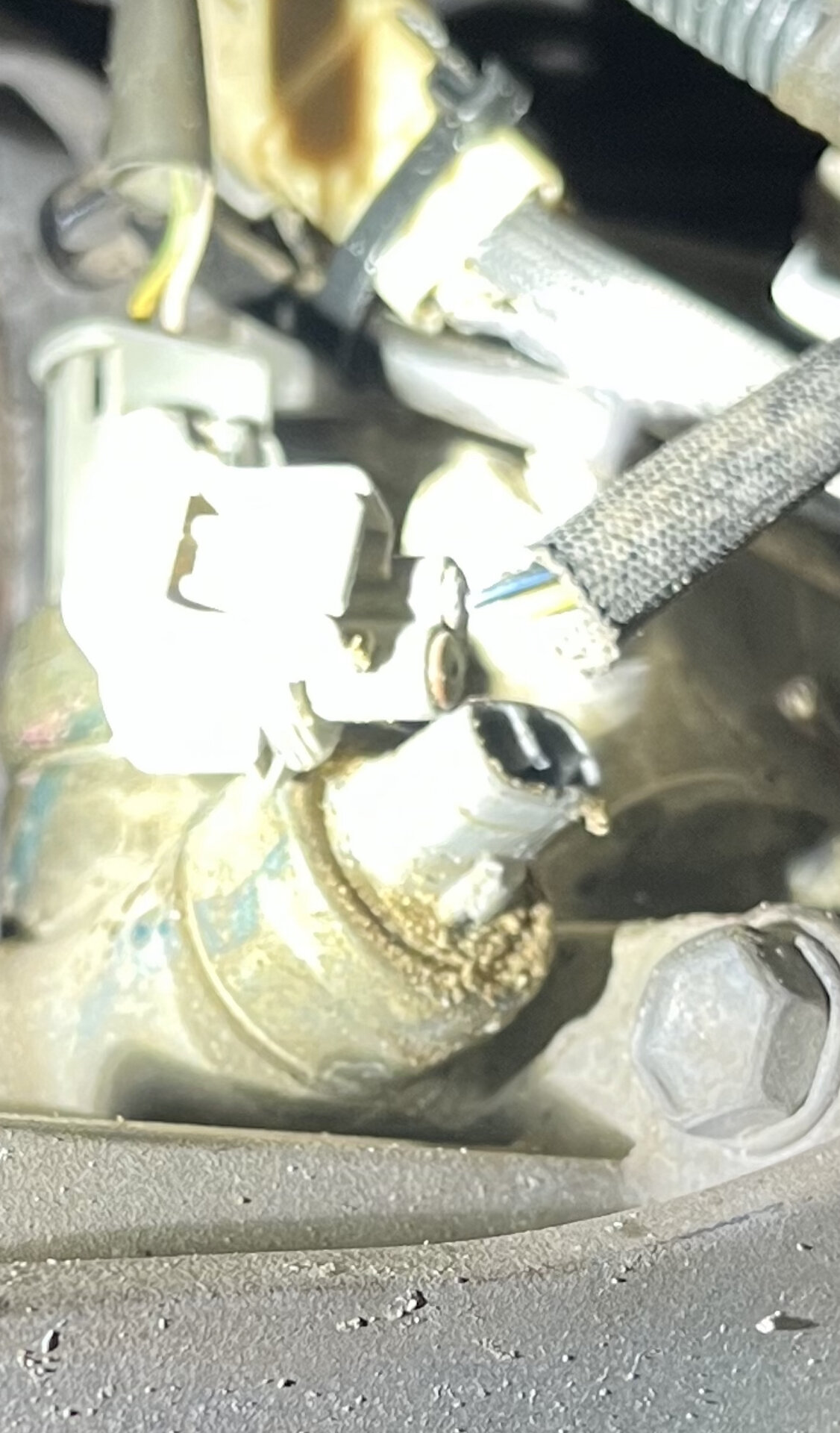

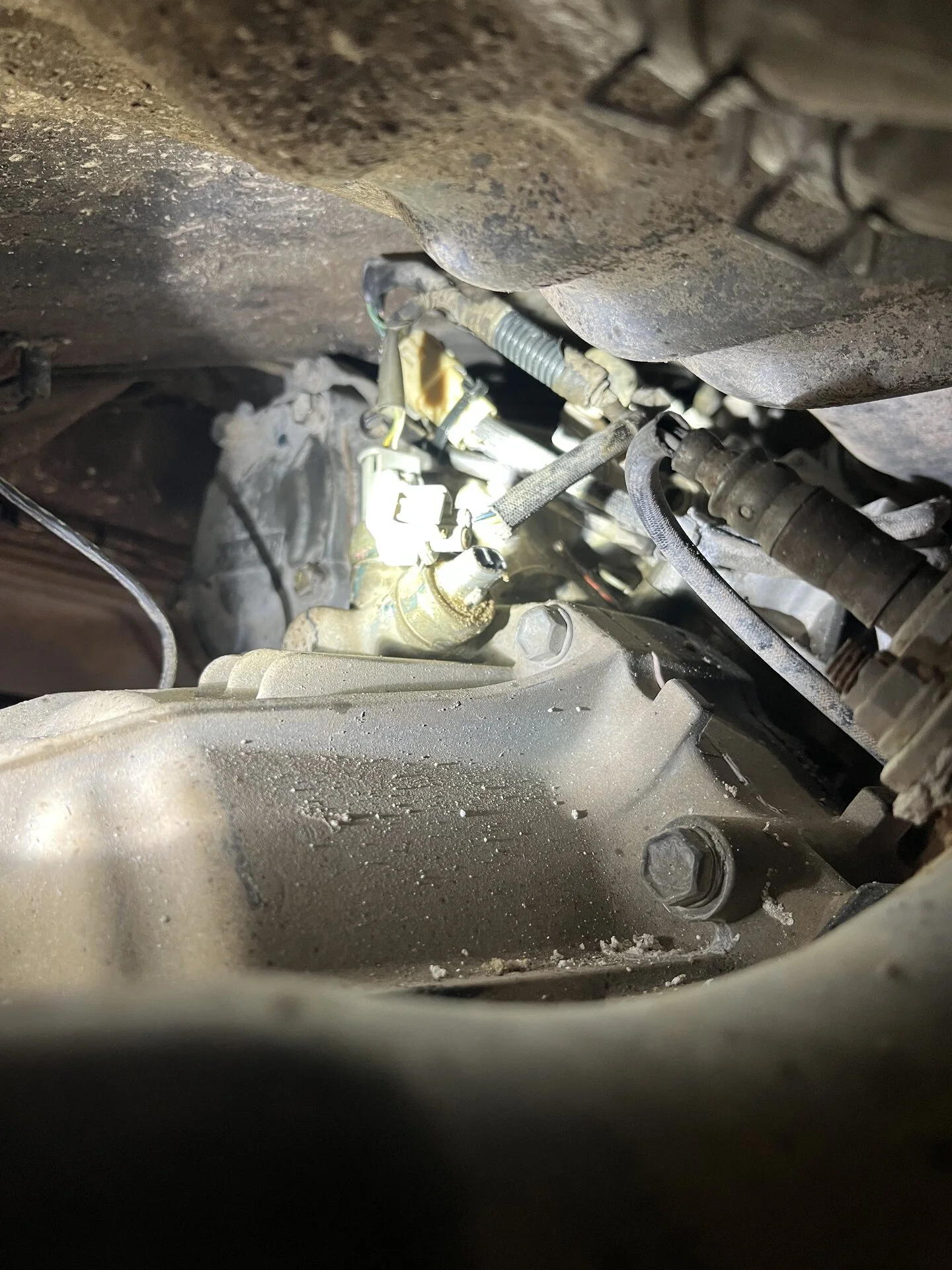

96 LC. A343F. At the rear of the transmission is what I believe to be the second temp sensor. Green and yellow wires. Note one of them is broken. Is this a temp sensor that triggers the dummy light on the dash or something else? This will be a pain to repair. Hoping someone can tell me how critical this is before I attempt the repair. Thanks.



[reklund5]

Looks to be a position indicator on the transfer case, not the transmission.

Does your CDL work as it should?



[Arizona Jeff]

Looks to be a position indicator on the transfer case, not the transmission.

Does your CDL work as it should?

You are correct in that it’s at the front of transfer not back of transmission. My center dash is torn apart right so my CDL switch is not active now but I did notice my dash dummy light for low range didn’t come on today When I switched the transfer to low range. Would this also be the position indicator for low range?



[robnicko]

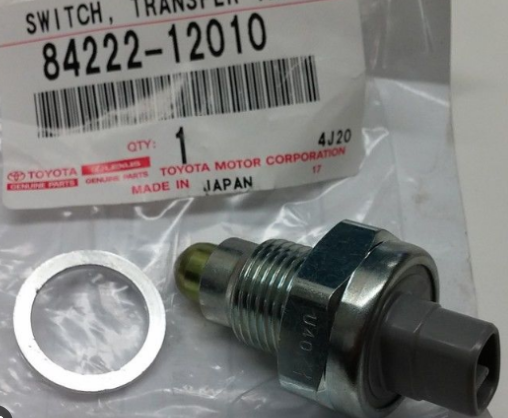

does look like the switch that activates the dash light when moving from HtoL, same as a reverse light switch



[ppc]

OP stated it was located at the front of the transfer case so if that is correct then that connector is the CDL indicator sensor.



[Malleus]

The temp sensor is in the cooler line fitting.



[jonheld]



[Arizona Jeff]

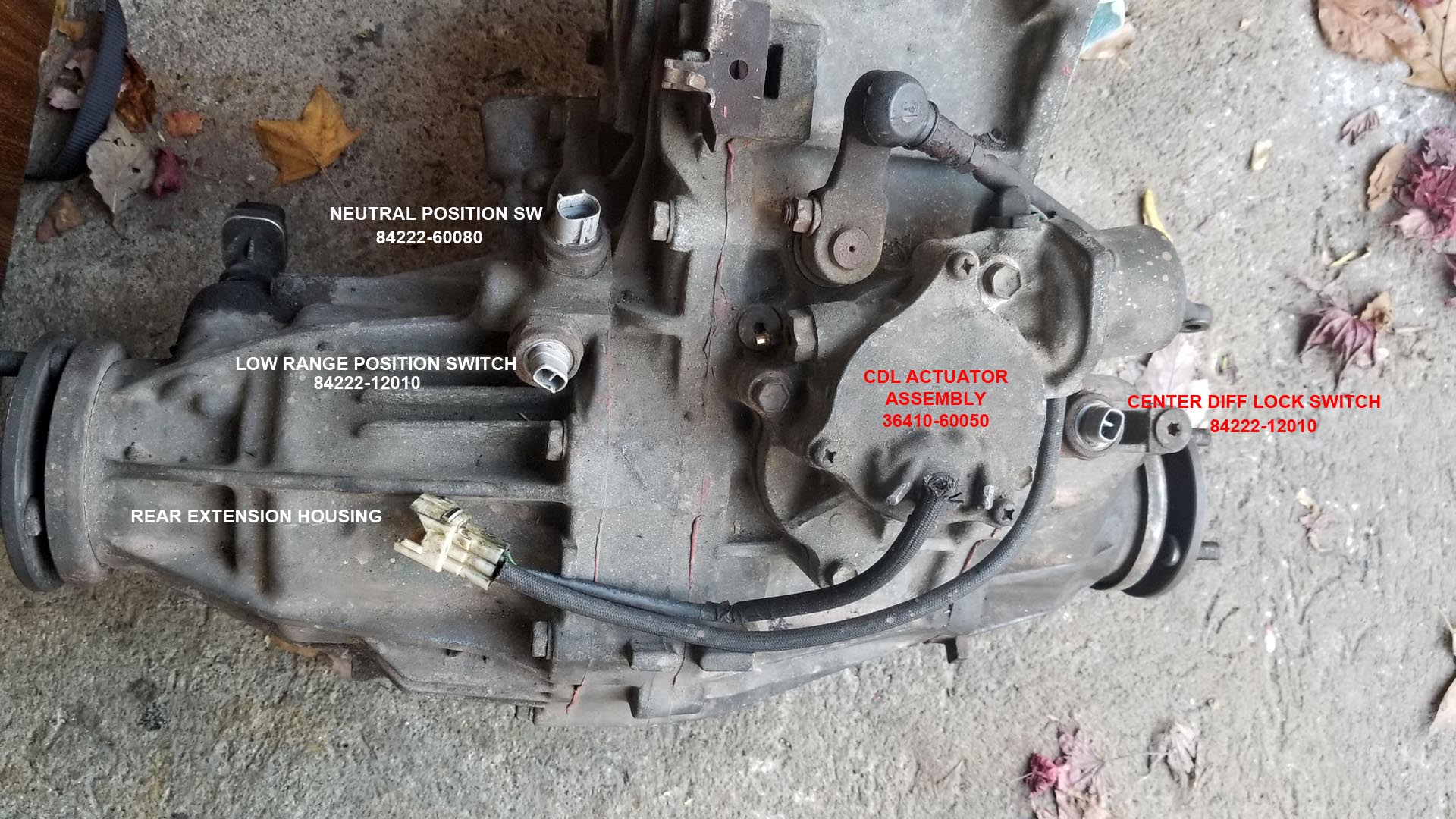

View attachment 3504343

Thanks everyone. This image is great. My broken wire is going to the low range position switch. This will be a fun one to repair.



[jonheld]

Thanks everyone. This image is great. My broken wire is going to the low range position switch. This will be a fun one to repair.

Connector housing is 90980−11250.
Individual terminals with 6" pigtail is 82998-12440.
The harness that runs to the transfer case for the 3 switches and the CDL motor can be dropped down below the frame to make it easier to get to. I spent some time re-wrapping mine as the factory wrap had disintegrated over time.



[jonheld]

You are correct in that it’s at the front of transfer not back of transmission.

That is the REAR of the transfer case, not the front.



[Arizona Jeff]

That is the REAR of the transfer case, not the front.

That is the REAR of the transfer case, not the front.

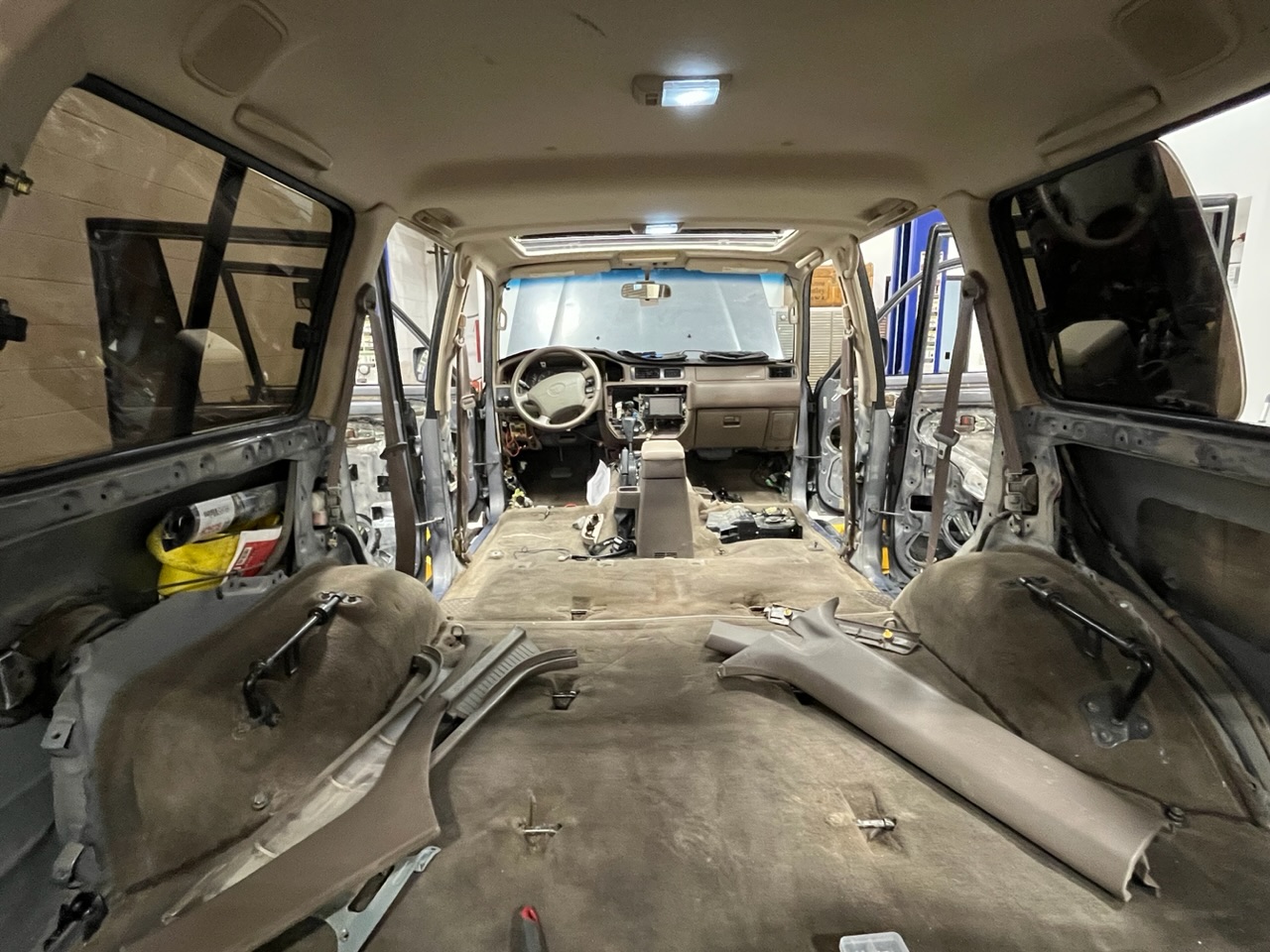

Yeah my bad. Had the picture and then made the post later and forgot. I’ve got my rig so damn torn apart right now I don’t know front from back!



[Arizona Jeff]

Connector housing is 90980−11250.
Individual terminals with 6" pigtail is 82998-12440.
The harness that runs to the transfer case for the 3 switches and the CDL motor can be dropped down below the frame to make it easier to get to. I spent some time re-wrapping mine as the factory wrap had disintegrated over time.

That's great feedback - much appreciated!



[JLH911]

Not to hijack, but kind of related. Can the stock temp "dummy light" sensor be replaced with one that can show actual transmission temps? I realize one can be installed in trans pan, but I figured this might be easier.
