Hidden Winch Mount Behind Factory Bumper - 100 Series (1 Viewer)

Joined
May 29, 2018
Messages
76
Location
Oceanside,Ca
Well I've been posting on Instagram a ton and wanted to finally post something on here for everyone to look at!

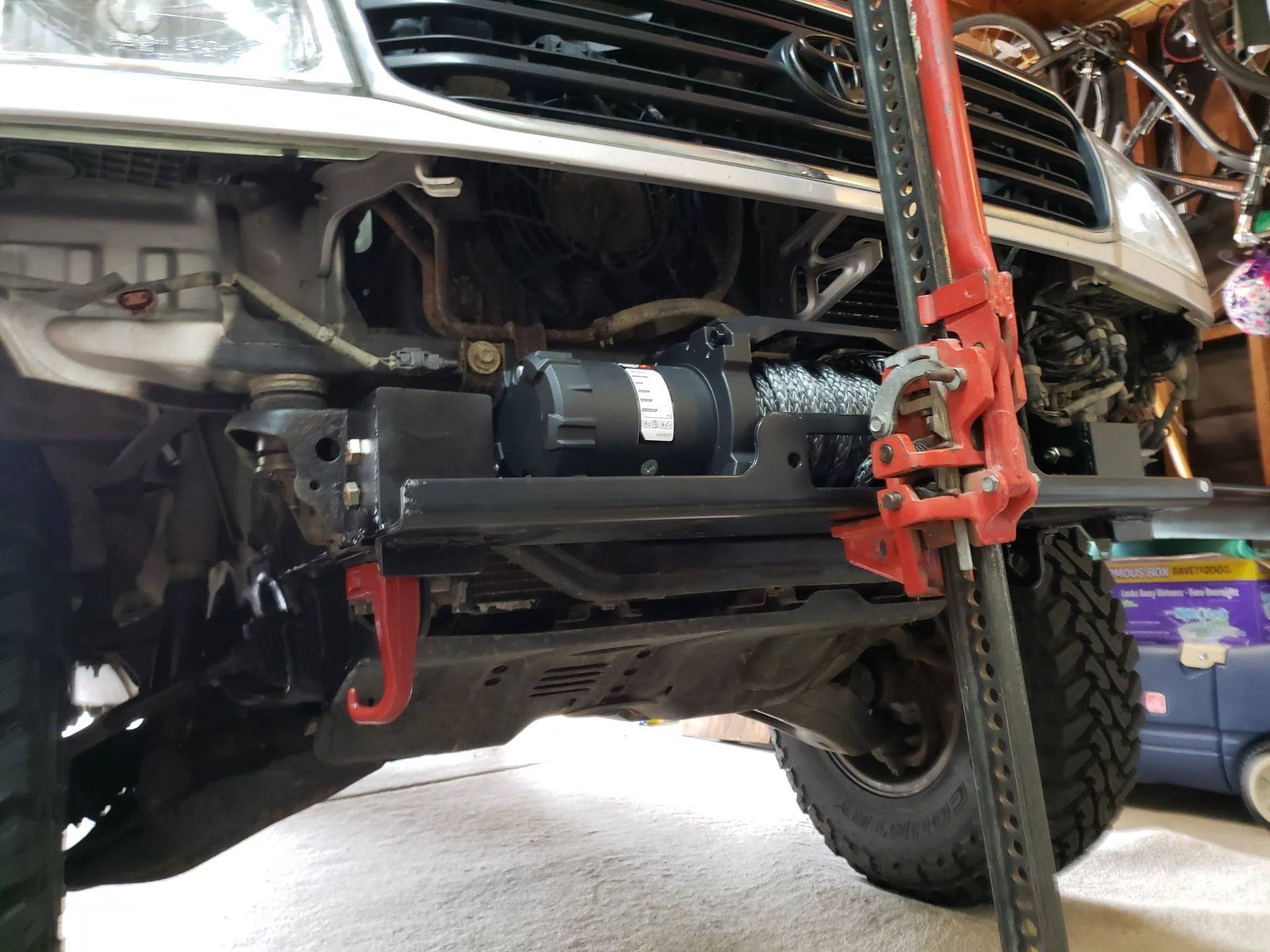

Below is my build for my hidden winch Mount inside my factory bumper!

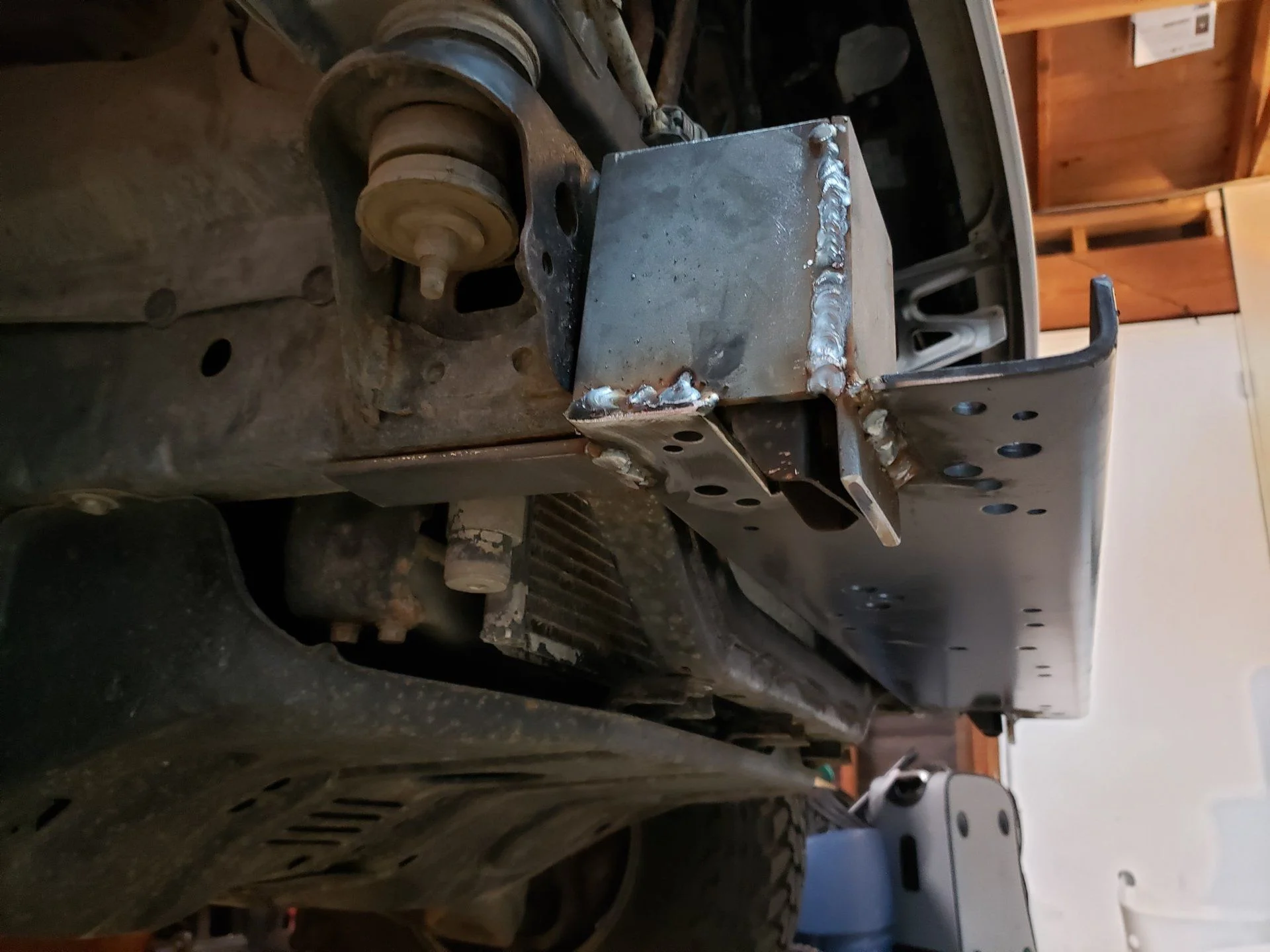

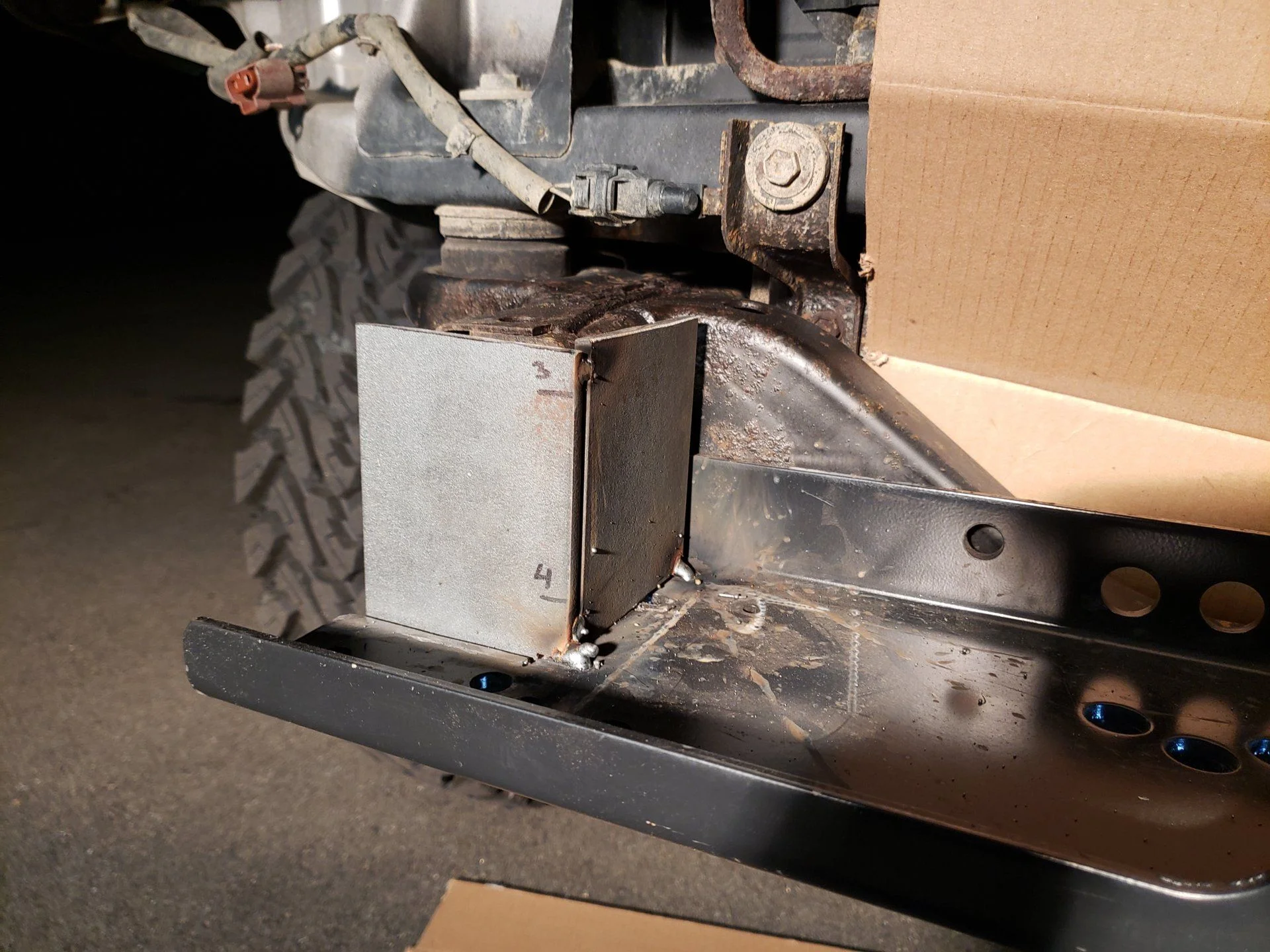

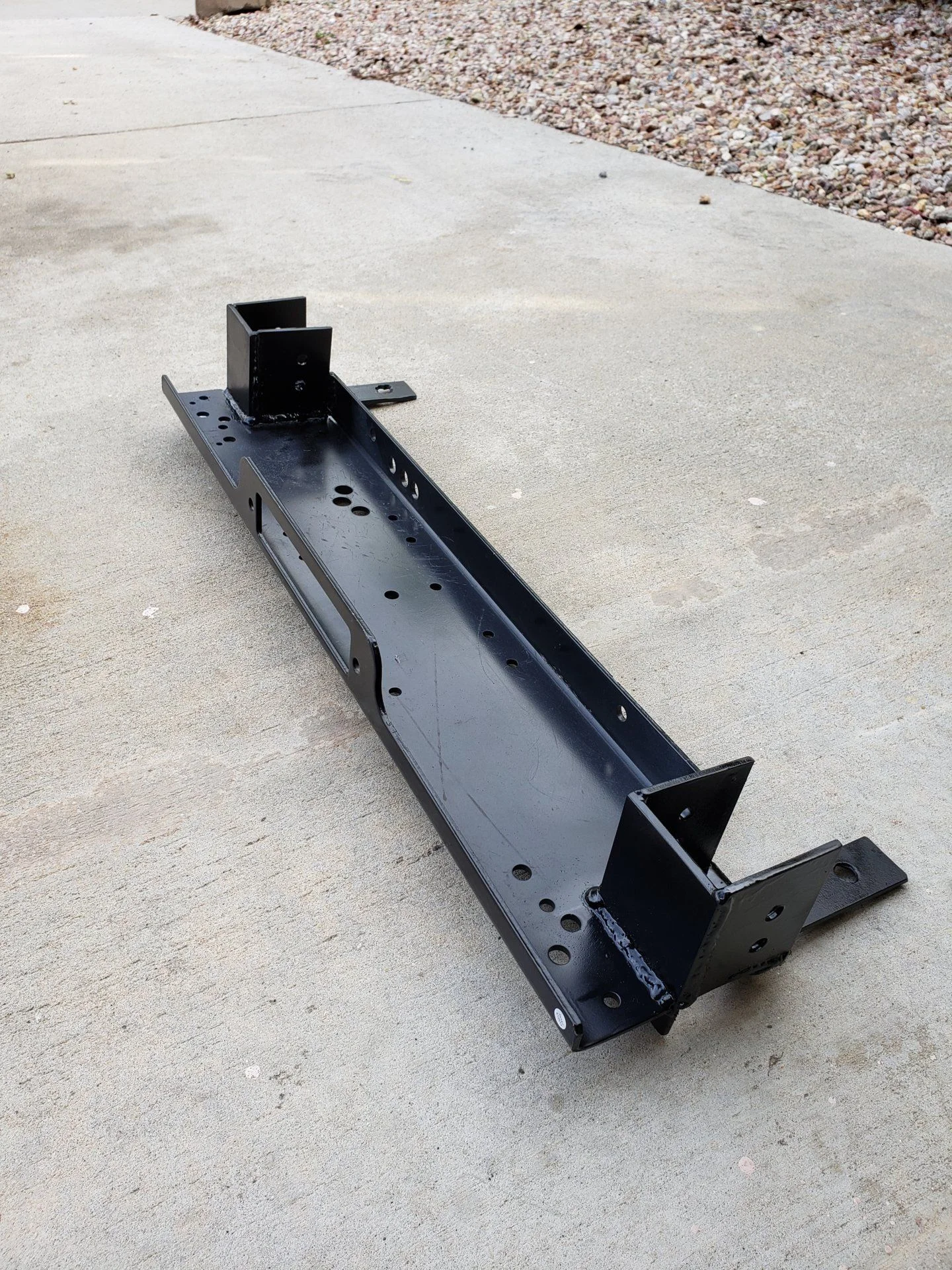

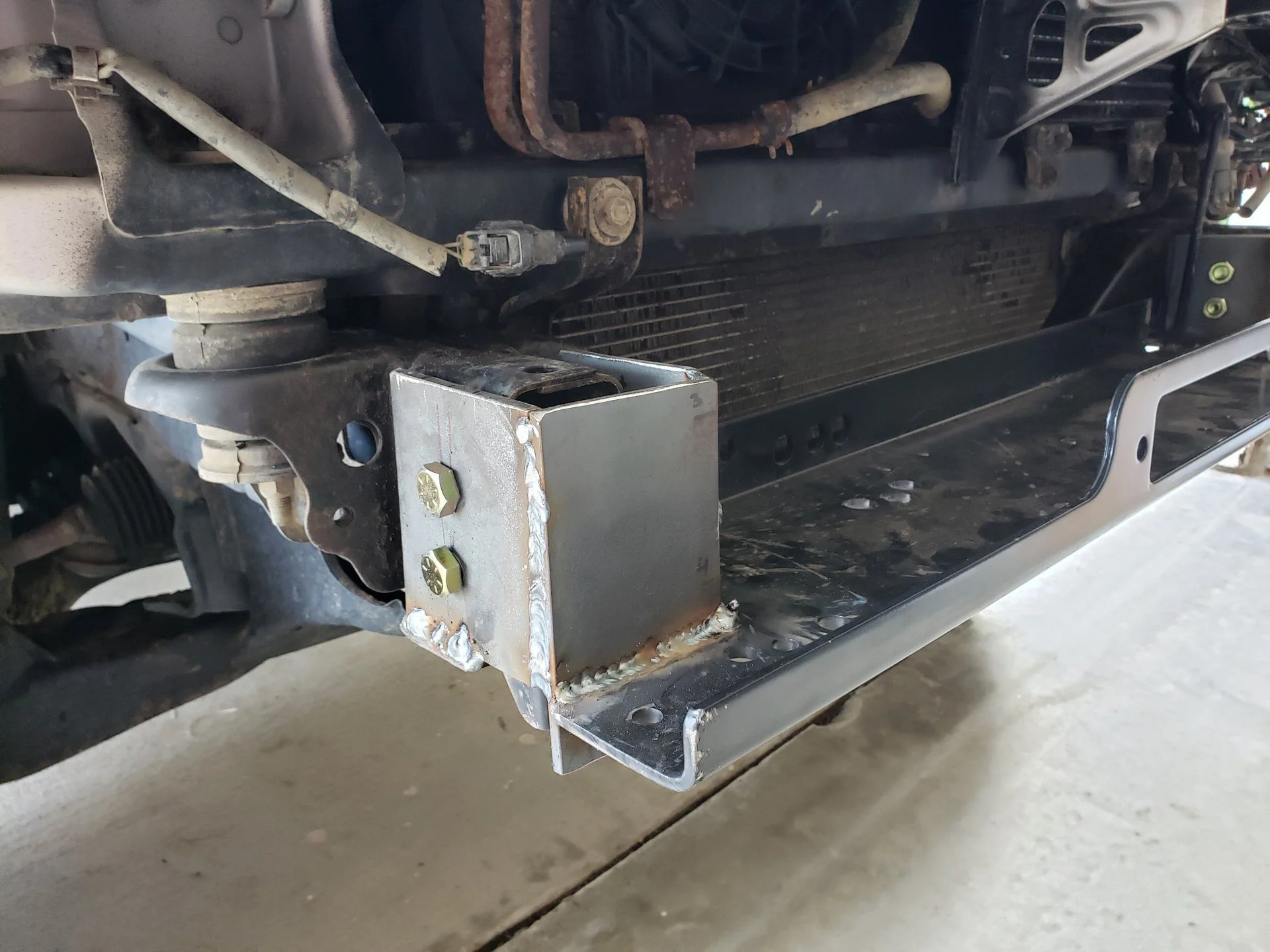

To start the build I used a universal winch plate from Harbor Fraud! From there I cut it up and welded with my own brackets that clamp around the frame. It requires no welding on to the factory frame rails. It did require that I drill two holes through the frame to bolt it on.



1915075


1915076


1915077


1915078


1915079

Last edited:
Joined
Oct 27, 2014
Messages
2,035
Location
Florida
Looks great! I have a hidden mount and need a winch to go along with it. Looking at the HF 12k.

Never heard of that winch your using.

Also, where did you mount the solenoid and how is it using the spool handle?

Was thinking of routine mine into the engine bay.

Joined
May 29, 2018
Messages
76
Location
Oceanside,Ca
Looks great! I have a hidden mount and need a winch to go along with it. Looking at the HF 12k.

Never heard of that winch your using.

Also, where did you mount the solenoid and how is it using the spool handle?

Was thinking of routine mine into the engine bay.
The winch is not released to the market yet so that's why your having trouble finding it. Through my work we sell lots of rigged Ridge and Omix Ada so that's how I got It. The control box is zip tied next to the winch. I'll make a bracket soon for it.

Joined
Mar 14, 2014
Messages
796
Location
Columbus, Ohio
(edited)

Looks fantastic!!


flintknapper

SILVER Star
Joined
May 22, 2004
Messages
11,193
Location
Deep East Texas
Looks great! I have a hidden mount and need a winch to go along with it. Looking at the HF 12k.

Never heard of that winch your using.

Also, where did you mount the solenoid and how is it using the spool handle?

Was thinking of routine mine into the engine bay.



87warrior

Whiskey Tango Foxtrot
SILVER Star
Joined
Dec 14, 2015
Messages
1,179
Location
Junction City, Kansas
@2000_land_cruiser Nice work on the custom winch plate.

Also, where did you mount the solenoid and how is it using the spool handle?

Was thinking of routine mine into the engine bay.
When I had a hidden winch, the clutch lever and solenoid box were very easy to access by lifting the hood and reaching behind the grill. So easy in fact, when I installed an ARB, I mounted the solenoid box behind the grill instead of on top of the bumper.

Joined
May 29, 2018
Messages
76
Location
Oceanside,Ca

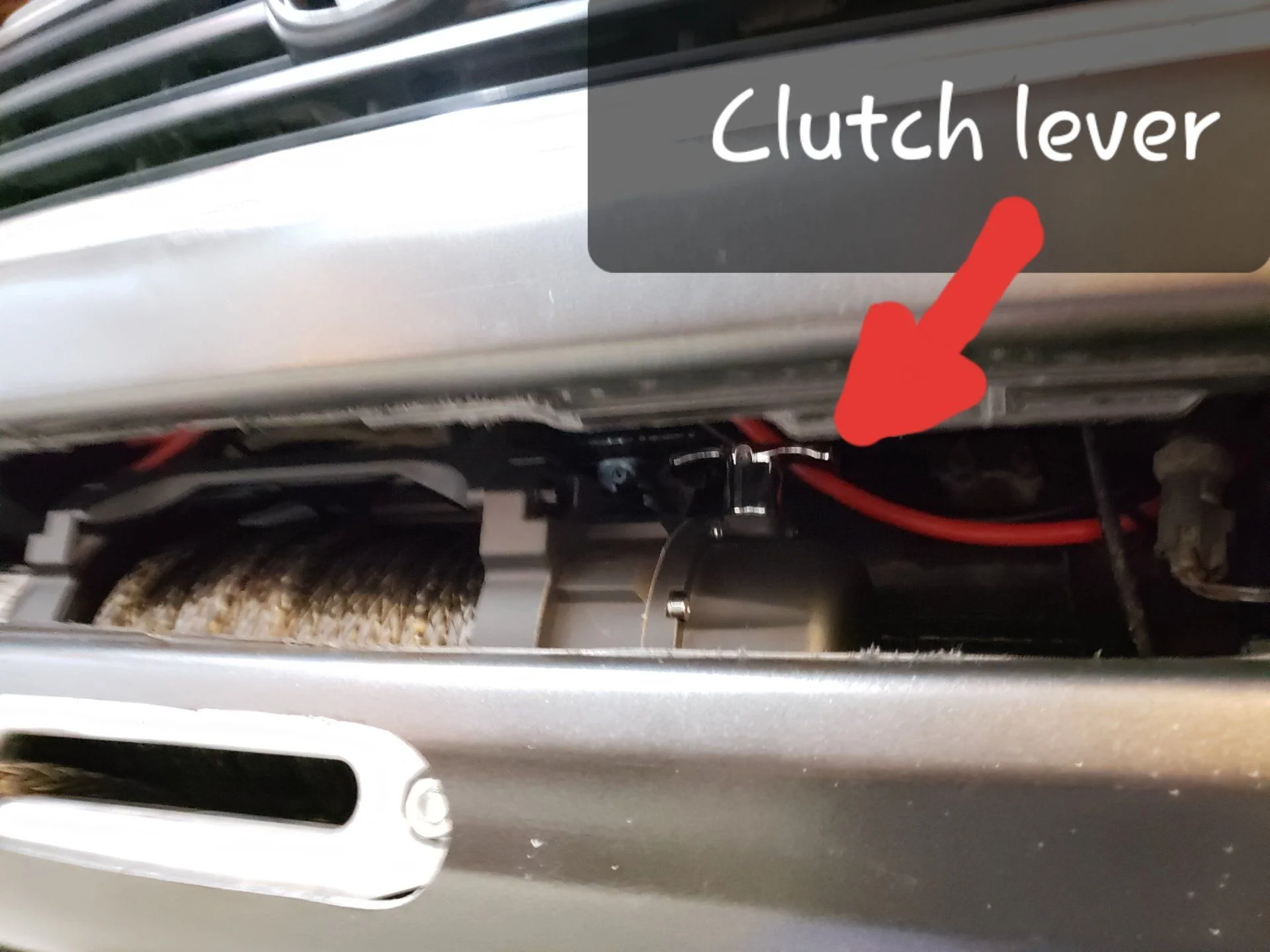

Sorry forgot to mention that the winch is wireless and has a remote to control it! If I want to free spool it, I can just reach in through the opening and flip the lever. (see pic)
1915231

Joined
Oct 17, 2004
Messages
242
Location
Flowood, MS
@2000_land_cruiser Nice work on the custom winch plate.


When I had a hidden winch, the clutch lever and solenoid box were very easy to access by lifting the hood and reaching behind the grill. So easy in fact, when I installed an ARB, I mounted the solenoid box behind the grill instead of on top of the bumper.

Does your winch set upright/normal position on the ARB bumper, or is it a side mount which requires clocking the motor.


87warrior

Whiskey Tango Foxtrot
SILVER Star
Joined
Dec 14, 2015
Messages
1,179
Location
Junction City, Kansas
Does your winch set upright/normal position on the ARB bumper, or is it a side mount which requires clocking the motor.
I clocked the motor for the ARB install. I mounted the solenoid box for the winch behind the grill, just as it was with the hidden winch.

Access for hidden winch mount:
1915239

Joined
Sep 18, 2016
Messages
463
Location
Louisiana
Saw this on a vendor's website when looking for a CB Mount. Not sure how it compares to the HF (install ease wise) but figured I'd share it. It is specifically designed for the 100.

Joined
May 29, 2018
Messages
76
Location
Oceanside,Ca
Saw this on a vendor's website when looking for a CB Mount. Not sure how it compares to the HF (install ease wise) but figured I'd share it. It is specifically designed for the 100.
Yeah those are pretty legit I originally wanted to go that route but for that cost you can almost get a bumper! I figured I could make one myself it wouldn't look as pretty but it would function the same it's all hidden anyways.


bamabrock

Ain’t Life Grand
SILVER Star
Joined
Jan 22, 2010
Messages
3,952
Location
Birmingham, AL
Just saw ASFIR has an interesting hidden winch mount on their site.


edit: I'd still recommend a hidden kit from trail tailor who actively supports the forum

Last edited:

Njck22

SILVER Star
Joined
Sep 24, 2017
Messages
1,021
Location
Texas
Just saw ASFIR has an interesting hidden winch mount on their site.
I actually ordered this recently, They said it will take a bit to get here. They say it’s made from 6mm steel and suitable for a 9.5k winch. It’s designed around a diesel 100 series, but I am hoping it will fit directly or with a little modification. I believe the ac lines that are near the frame rails on the front route differently on the hdj100s. I will be sure to post the results.

Joined
May 29, 2018
Messages
76
Location
Oceanside,Ca

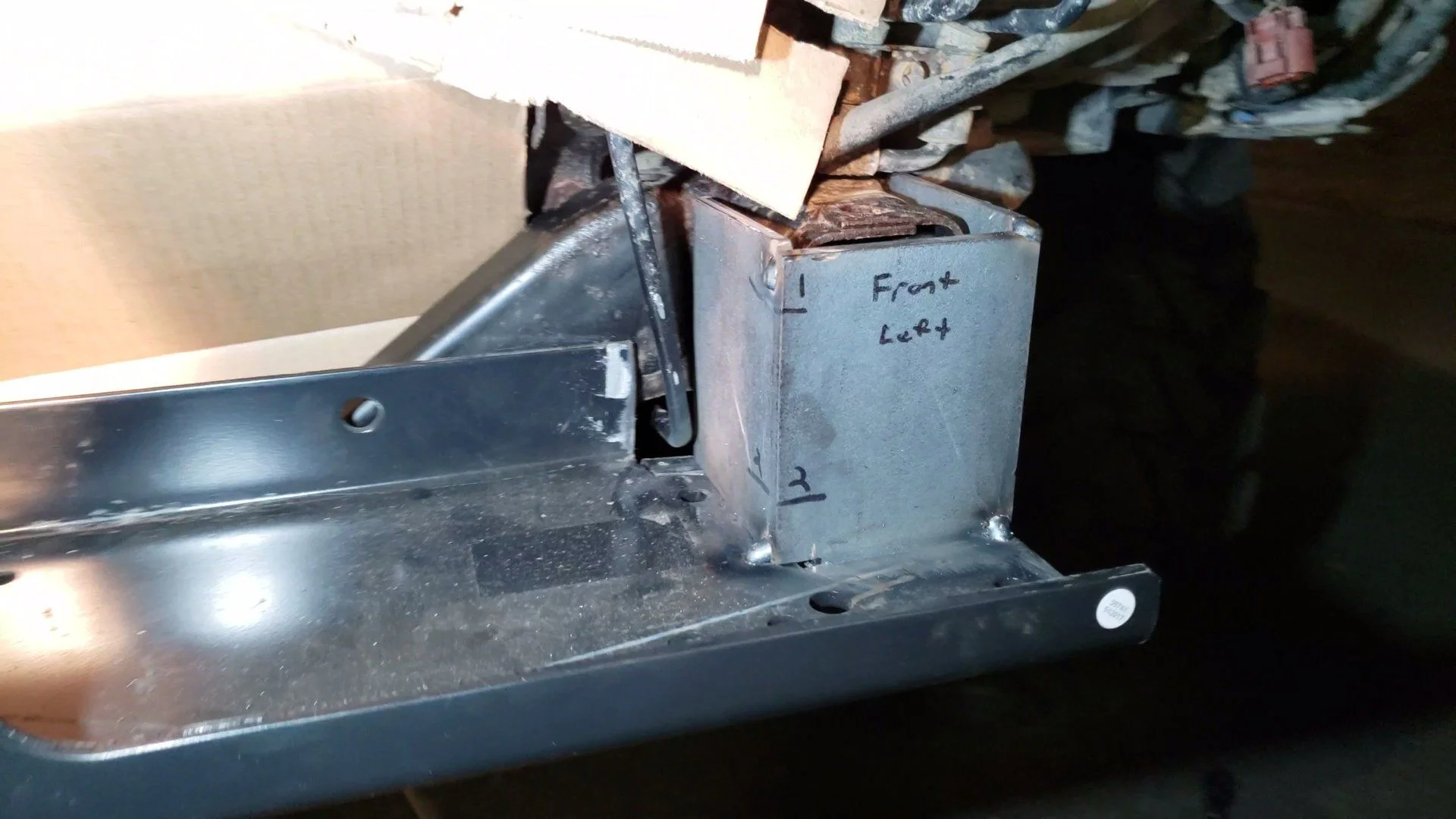

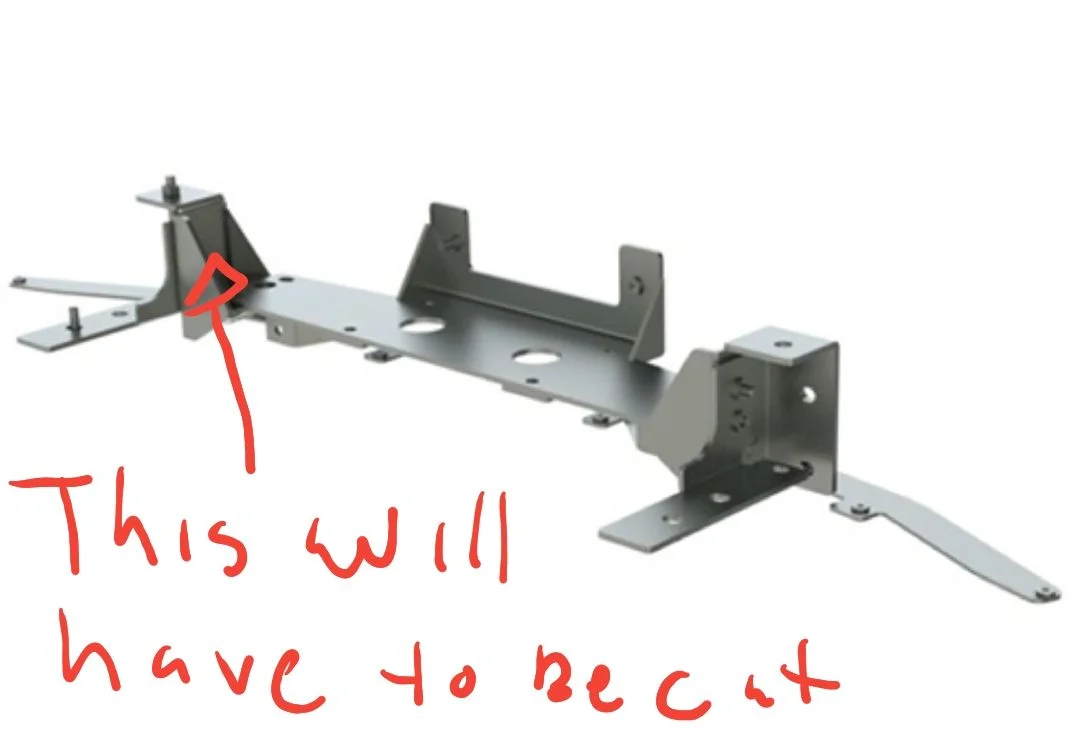

@Njck22 After spending so much time under the front of my car I think you only have to make one modification. Check it here. You can see in the second picture where I had to cut out for the AC line.
1922307
1922313

Joined
Feb 12, 2017
Messages
1,776
Location
Portland, OR
Website
www.shapeways.com
I actually ordered this recently, They said it will take a bit to get here. They say it’s made from 6mm steel and suitable for a 9.5k winch. It’s designed around a diesel 100 series, but I am hoping it will fit directly or with a little modification. I believe the ac lines that are near the frame rails on the front route differently on the hdj100s. I will be sure to post the results.

Also says the mount fits 03-06 only, I’m curious what the differences are.


Njck22

SILVER Star
Joined
Sep 24, 2017
Messages
1,021
Location
Texas
I believe the 03-06 specification is because they only sold the landcruiser up to 2006 in certain markets.


@Njck22 After spending so much time under the front of my car I think you only have to make one modification. Check it here. You can see in the second picture where I had to cut out for the AC line. View attachment 1922307View attachment 1922313

Thanks, I figured as much because it looks like the diesel 100 series route that line outside the frame rails. I suppose routing it inside helps protect it more but it’s just an ac line.
