Help with reverse light switch fj40 (1 Viewer)

[reese1]

Hi all.

Looking to replace the reverse light switch on a 1970 FJ40 with column shift. What I pulled out is pictured below....not factory and I can't seem to find a replacement. If anyone can help identify this switch or suggest a way forward I would appreciate it. Threads look a bit bigger than factory.



[Scota4570]

Push-Pull Switches - Surplus Sales of Nebraska

Great selection of push-pull switches in-stock

www.surplussales.com

The upper tight may work. Use a relay.
Lower right? Add a spring.

The real switch I bought for my floor shift '70 was very poor. The distance between the end of travel and completing the circuit was only a couple of thousands. I ended up using a gasket material washer and machining the switch. The adjustment for correct function was to critical to be practical. I expect it to fail. When it fails I will make something that has reasonable travel distance so it functions and will last.

I'd try to fix the old one you have first.



[JackA]

That one looks like oem but modified. The oem switch is still available through Toyota.



[Living in the Past]

That one looks like oem but modified. The oem switch is still available through Toyota.

Your showing 84210-30021 still available? Search brings up @ToyotaMatt having one left going on three years ago. But everywhere else show NLA.



[JackA]

Maybe I am mistaken. I got a new oem the screws in the shifter base from Toyota. I just assumed it was the same.



[Living in the Past]

The slip thru a hole in a bracket at the bottom of the steering column. A C clip holds it in place. Found a few pictures.



[CondeCruiser]

I've got one.

For Sale - Virginia--- column shift reverse light switch

It's in good working condition. $50 shipped in the US.

forum.ih8mud.com



[MatthewMcD]

How are the wires connected to the poles on the switch? I found the problem with my backup lights, the rubber boot and wires are disconnected from the switch. Looking at the switch I see two clean poles. It's not clear to me how these wires could have been attached unless I am missing a part.

Is it possible to remove the switch without removing the transmission cover cowling inside the cab?



[45Dougal]

How are the wires connected to the poles on the switch? I found the problem with my backup lights, the rubber boot and wires are disconnected from the switch. Looking at the switch I see two clean poles. It's not clear to me how these wires could have been attached unless I am missing a part.

Is it possible to remove the switch without removing the transmission cover cowling inside the cab?

If I remember correctly, they were soldered into solder buckets originally on mine.
Use a small gas torch and plenty of flux to resolder them.

Its possible to remove but you need the right spanner. A ring should give you more angular freedom, but I ended up cutting down an open ended spanner to about 120mm long, and now keep it as a special tool.



[MatthewMcD]

A ring should give you more angular freedom, but I ended up cutting down an open ended spanner to about 120mm long, and now keep it as a special tool.

Do you have a photo?



[ryanwk628]

This Fastronix switch worked perfectly for mine and frankly seems to be a more robust part. All I had to do was change to ring terminals.

More info here.



[MatthewMcD]

This Fastronix switch worked perfectly for mine and frankly seems to be a more robust part. All I had to do was change to ring terminals.

More info here.

Thanks, though that looks like a column shifter switch. My switch is on the transfer case.



[45Dougal]

Do you have a photo?

I'll see if I can dig it out tomorrow



[cruisermatt]

Thanks, though that looks like a column shifter switch. My switch is on the transfer case.

For that you should just replace the switch.



[Living in the Past]

How are the wires connected to the poles on the switch? I found the problem with my backup lights, the rubber boot and wires are disconnected from the switch. Looking at the switch I see two clean poles. It's not clear to me how these wires could have been attached unless I am missing a part.

Is it possible to remove the switch without removing the transmission cover cowling inside the cab?

Thanks, though that looks like a column shifter switch. My switch is on the transfer case.

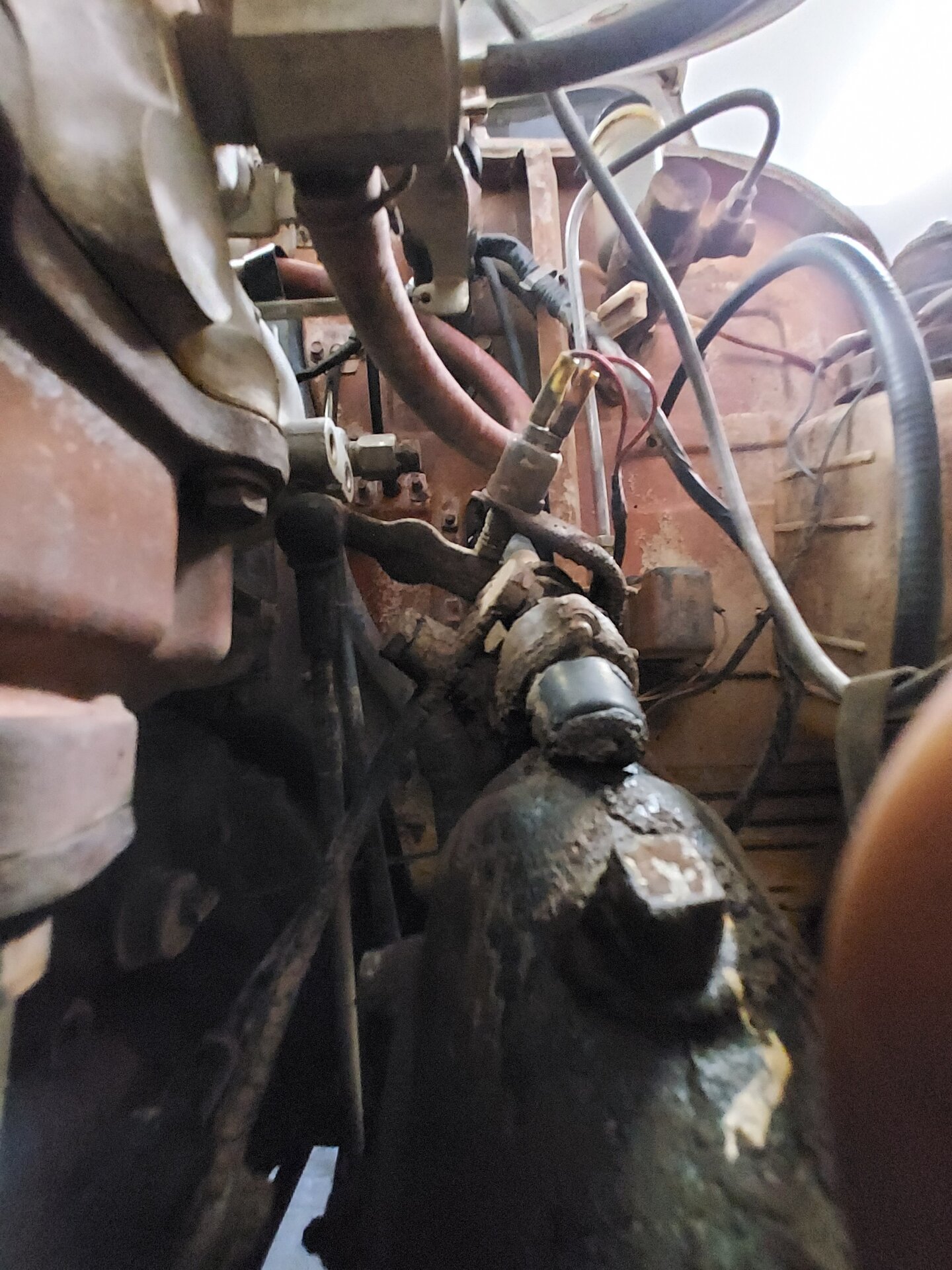

For the transfer case 4WD light switch it is possible to replace from the bottom side. Lift the front and shouldn't have any problems with more than a drip or two of gear oil. My 1970 model year FJ40 had a bad switch. I easily changed from the bottom.

Plunger was fine.

The opposite side with the two pigtail wires with the male bullet connectors can't say the same.



[MatthewMcD]

For the transfer case 4WD light switch it is possible to replace from the bottom side.

Excellent, thanks, looks like the wrench can go around the switch body.
