Help!! Need part # for cooling fan relay connector

Joined
May 22, 2016
Messages
243
Location
Central Illinois
I work at a new car dealership, but not a Toyota one. I've called 2 Toyota dealers trying to get the part number for the cooling fan relay electrical connector as mine is disintegrating. I've already got the relay. I guess it's a real pain to look up this connector and was hoping someone here had replaced one already.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
Solved!! To help the next guy.... My LX470 is a 1998 and the Toyota dealer says it's part # 90980-10940. A google search shows one on ebay, and it appears they do NOT come with the terminals, just the blank plastic connector housing. I will post a pic of the relay and the connector when I get home tonight.


Trunk Monkey

Moderator


Joined
Apr 27, 2003
Messages
9,185
Location
Salt Lake City
Someone recently posted a link to a pdf of all the available Toyota connectors, search for that, it was super handy to have.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
Fyi, the connector I got from Toyota is wrong..................... I'll post up the correct number when i find it


flintknapper

SILVER Star


Joined
May 22, 2004
Messages
6,423
Location
Deep East Texas
Aren't relays pretty standard? Either 4 or 5 bladed models. I would think any NAPA auto parts could supply you with the connector.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
I have been a parts guy for 20 years, I wish it was that easy. I assure you, if you could just get one from Napa, that would have been done A LONG time ago.

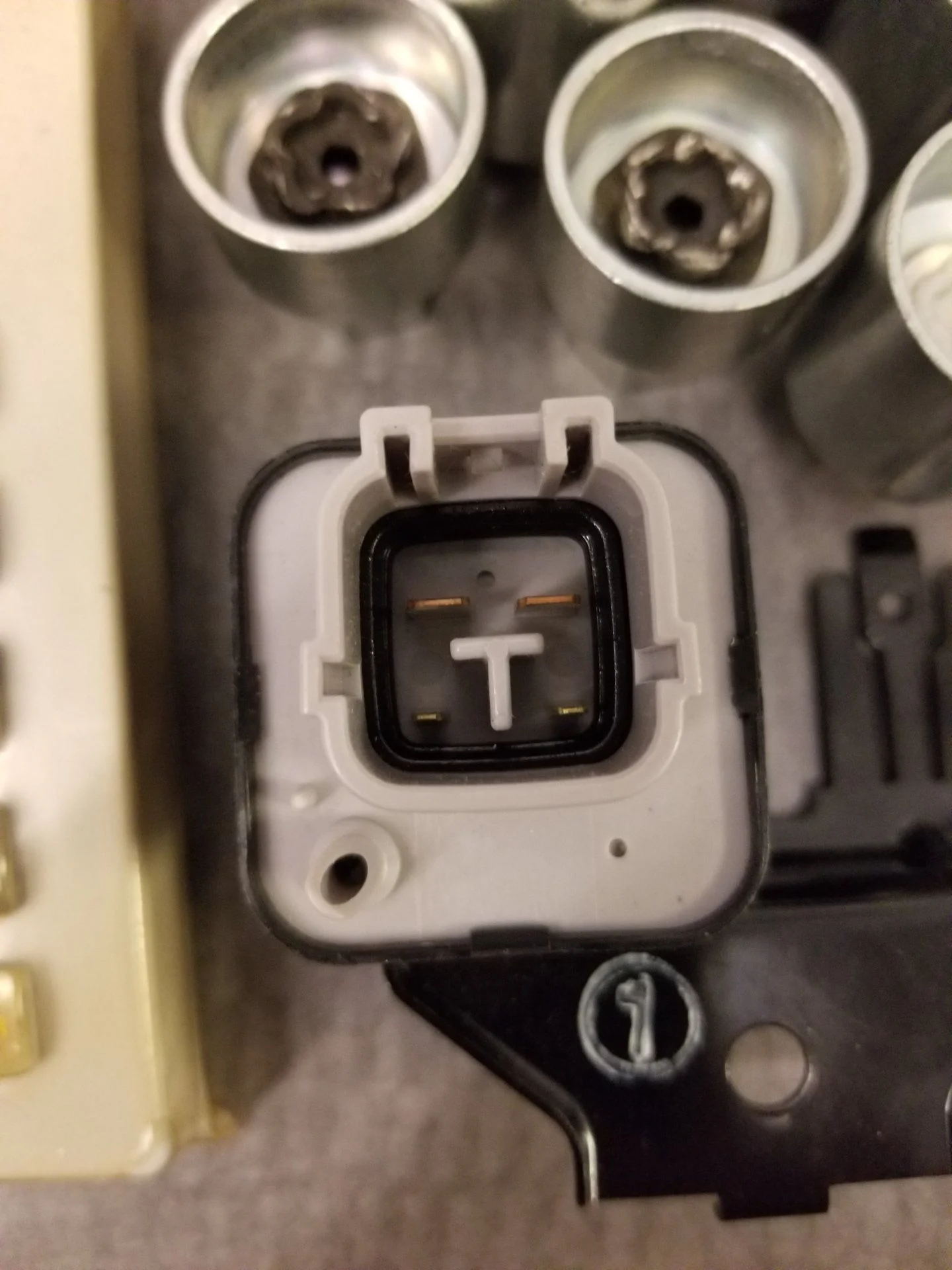

new relay.jpg


old relay.jpg


2001LC


Joined
Nov 4, 2007
Messages
8,079
Location
Colorado
Typically (not done this one) my Toyota parts guy orders me the housing. They stock various pig tails.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
Still trying to get this ......... I have an aftermarket relay, but if someone even has the Toyota part # for the OE Relay, it would be super helpful. This connector is made of unobtainium!! The dealership is struggle, and my vin doesn't help because it's a Lexus vin. Fortunately it's been nice and cool around here.


flintknapper

SILVER Star


Joined
May 22, 2004
Messages
6,423
Location
Deep East Texas
Still trying to get this ......... I have an aftermarket relay, but if someone even has the Toyota part # for the OE Relay, it would be super helpful. This connector is made of unobtainium!! The dealership is struggle, and my vin doesn't help because it's a Lexus vin. Fortunately it's been nice and cool around here.
Look closely at the connector you have now and see if you can read any numbers on it. I believe nearly all Toyota connectors have their part number/type on them. I have the Toyota Connector PDF stored somewhere on my computer and could 'confirm' any number you might come up with if that will help.


kruisinkid

topless dorkel
SILVER Star
Joined
Jul 23, 2013
Messages
1,717
Location
BK/PA
every CONNECTOR p/n is in the back of the EWD. the PDF of which is all over this site. the number for the relay is harder to find.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
Okay, I'll look. I've already got the relay itself, so not a huge deal there, but the connector I really need. I'll look when I get off work tonight.


flintknapper

SILVER Star


Joined
May 22, 2004
Messages
6,423
Location
Deep East Texas
I guess you already noticed that your new relay is different than your old relay. Hopefully the new one is backwards compatible with the old connector?

Joined
Mar 1, 2012
Messages
60
Location
DFW, TX
2 sources for you to try.

www.connectorexperts.com - < Have used these guys in the past, they were able to supply all connectors when OEM was not available, parts worked exactly like OEM according to my installers.

Home / Protech - These guys are a local outfit, we used them all the time to get used harness connectors. Send them the pics, and they'll probably be able to get what you need, but it will be pricey.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
I guess you already noticed that your new relay is different than your old relay. Hopefully the new one is backwards compatible with the old connector?
Yeah, they are different, but the terminals are in the same spot, and everything else should mesh. There's just more plastic Tees and such in the original. I appreciate you pointing that out, and of course I appreciate everyone's help on herer.


flintknapper

SILVER Star


Joined
May 22, 2004
Messages
6,423
Location
Deep East Texas
Solved!! To help the next guy.... My LX470 is a 1998 and the Toyota dealer says it's part # 90980-10940. A google search shows one on ebay, and it appears they do NOT come with the terminals, just the blank plastic connector housing. I will post a pic of the relay and the connector when I get home tonight.

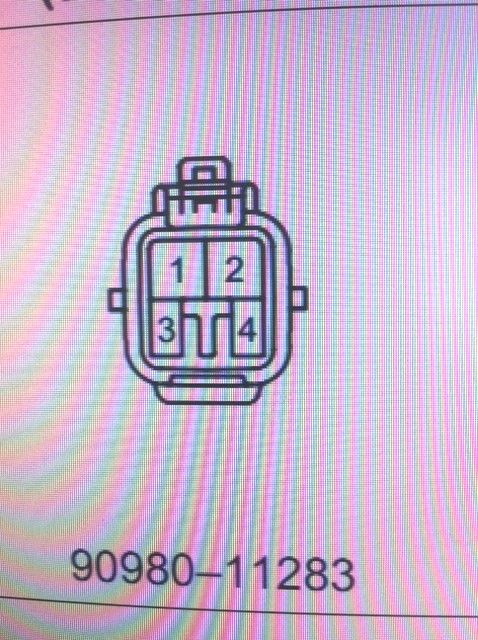

None of the connector housings will come with leads. I am thinking you need a 90980-11283 but good luck finding one.


Joined
Jul 30, 2016
Messages
1,524
Location
gulfport MS
I looked for that also, 283 and 304 look the same. They are both 4.8 and 2.3 terminals. I'd quick fix it and spend a few weeks searching all over.
Sometimes there is a amp # deep inside or on the back that matches with manufacturer #s, maybe not even amp. Honestly I think it might be easier to rob a bank than find some of those housings.

Joined
May 22, 2016
Messages
243
Location
Central Illinois
Thanks everyone!! I now have a connector and leads on order, should be here by the weekend. I will update with pics and numbers if everything is in fact correct!! I'm crossing my fingers.

Joined
Mar 1, 2012
Messages
60
Location
DFW, TX
Please make sure you post the part #'s. The most frustrating thing is for someone to ask a question, then post "nevermind figured it out".

Thanks.
