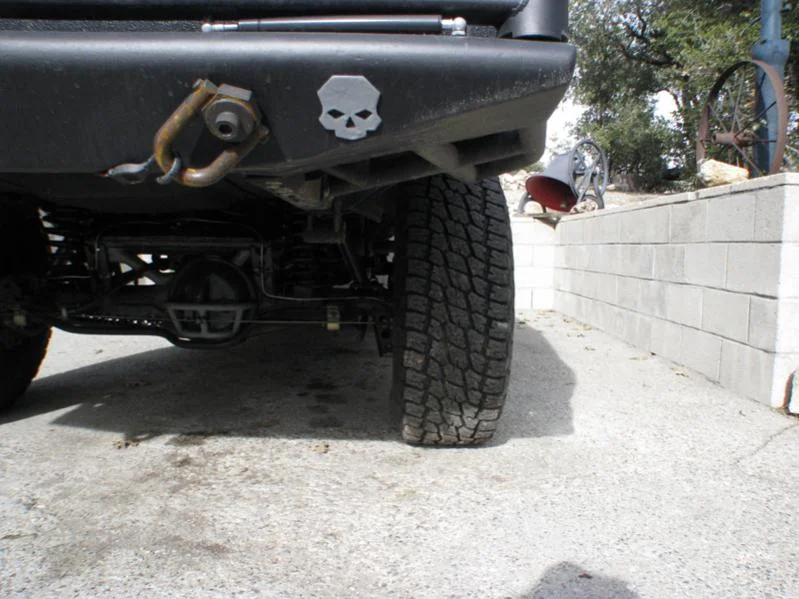

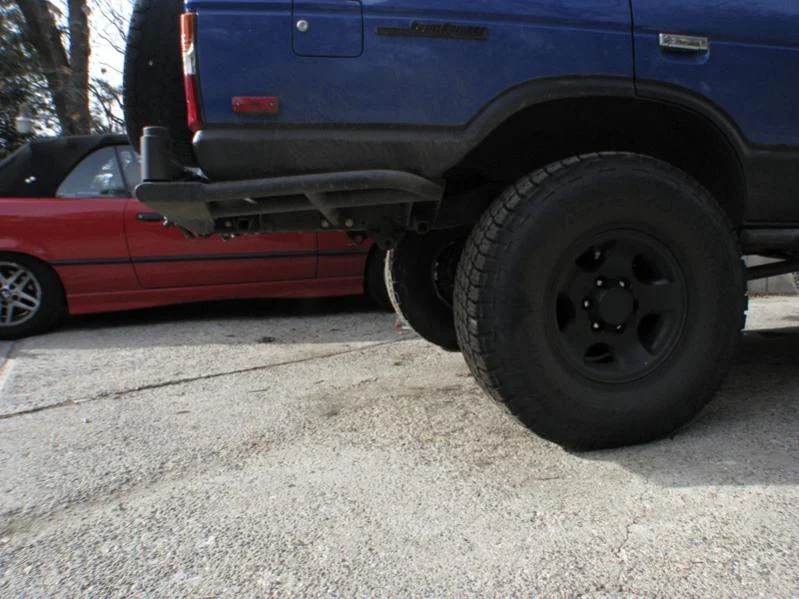

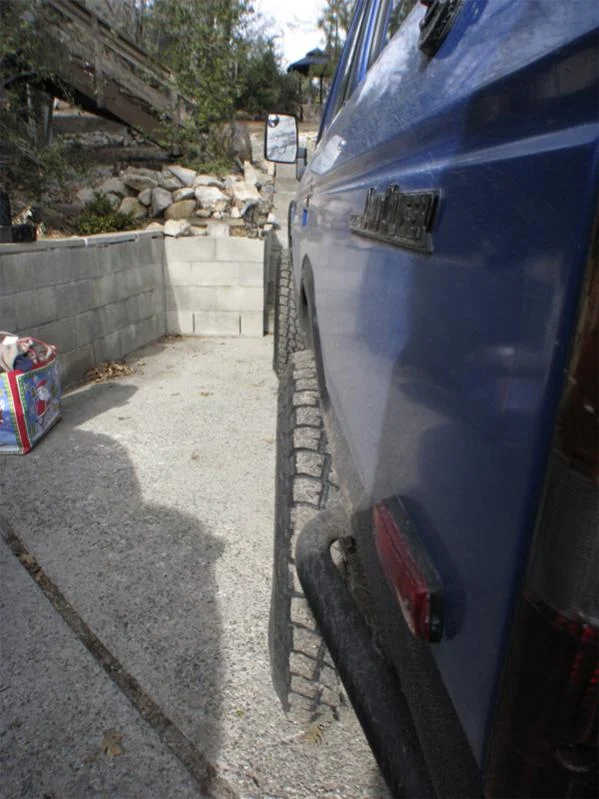

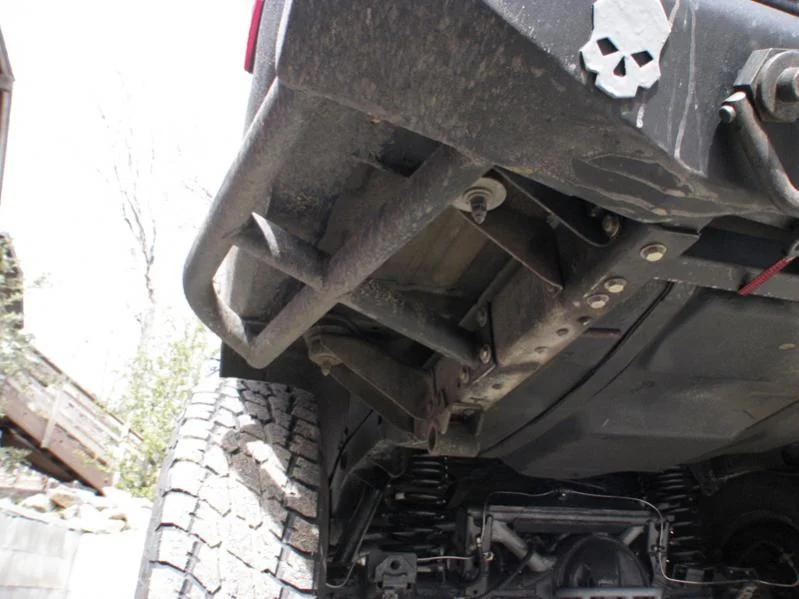

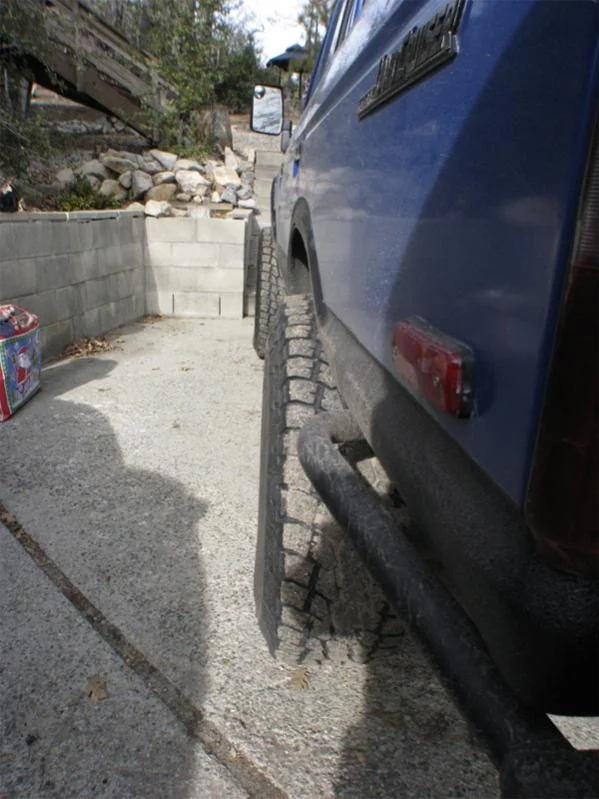

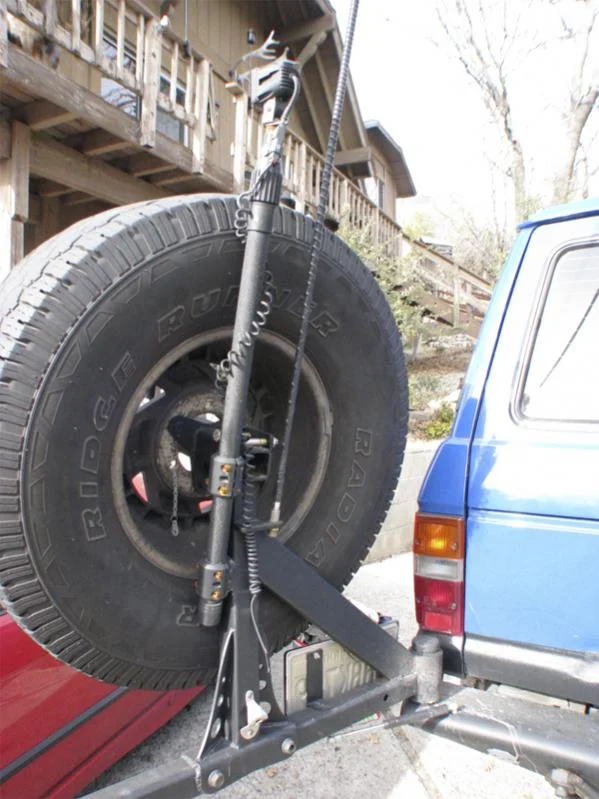

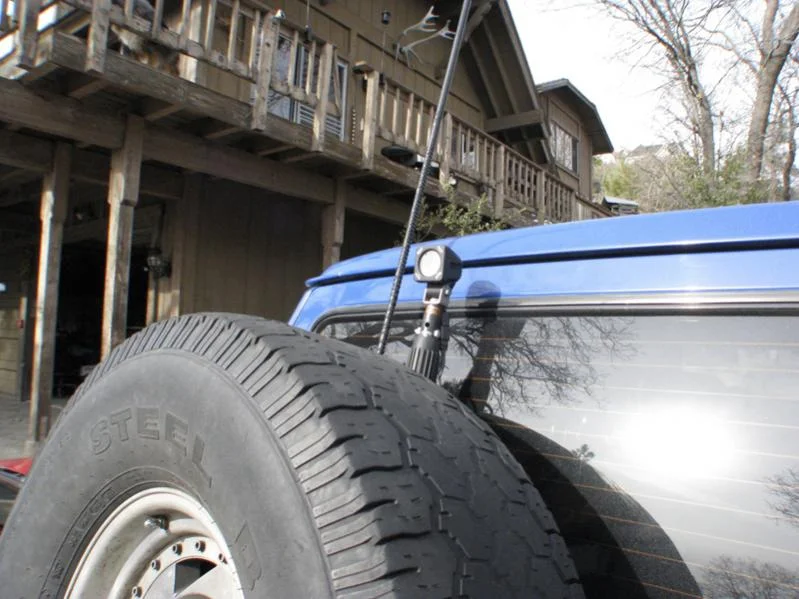

Couple pics showing how I modified my 4x4 Labs rear bumper. I bought it in kit form and cut/welded to fit my needs. I really gained a lot of extra clearance on both sides with the cuts I made. You can see the quarter protection I made. I wanted them to match my rocker sliders. Also, see the pivot tow points I added. I like that they pivot and how the edge of the bumper is nice and smooth now. ......
Last edited:
EarthX
Owner of Earth Exploration Technologies
- Thread starter
- #188

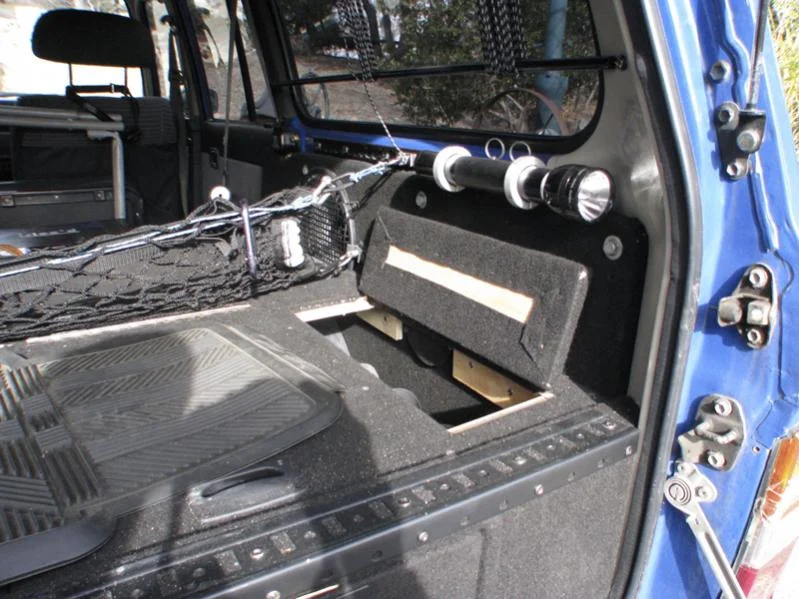

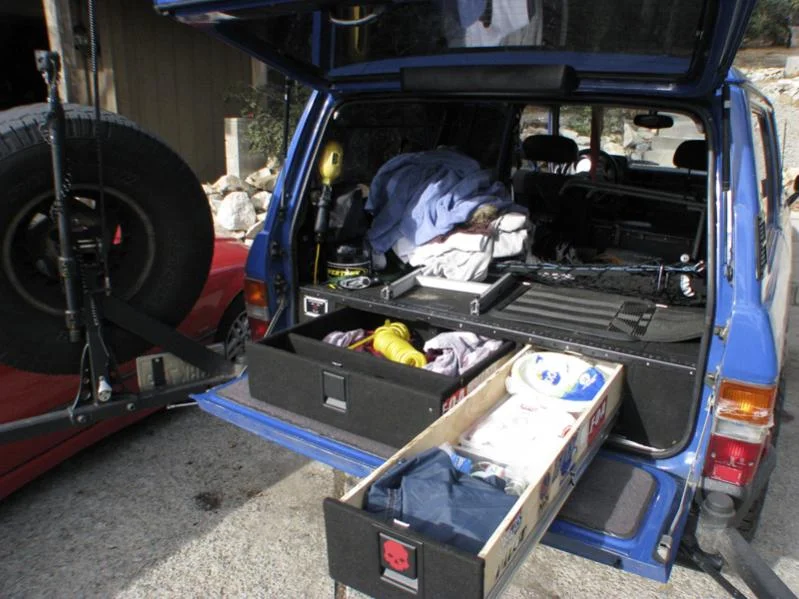

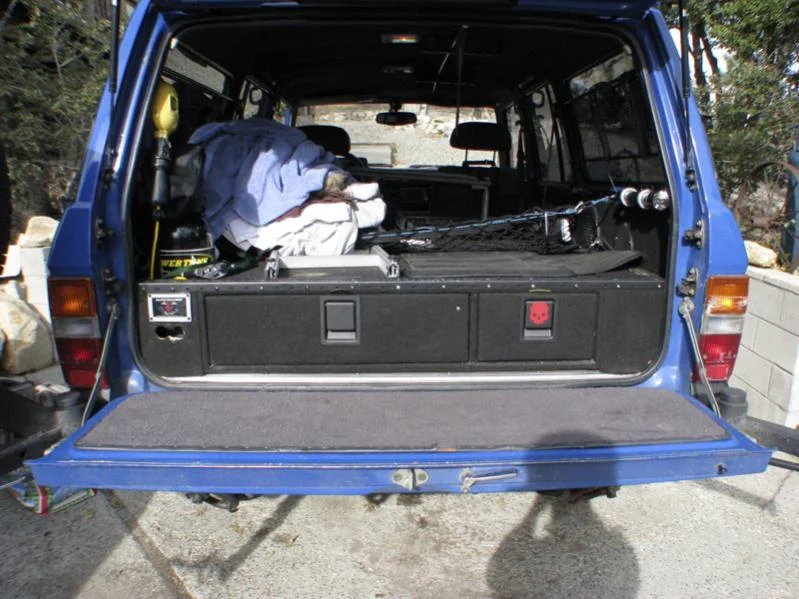

I don't think I ever posted any pics of our rear drawers. Pretty simple, but oh so useful. Two drawers one long and narrow, one short and wide. In front of the short drawer is where I keep all my tools,spares. Everything else is for gear. Both drawer also have top access.
theferg
SILVER Star
What an amazing build! I bet it rides like a dream now. Makes me soooo miss my Big Blue Box....
FWIW, I much prefer the alloy look of the wheels with the blue. Dunno why though cause I run black wheels on everything I've ever had--even had black steelies on my blue 60 til i added the alloy 80 wheels. But for some reason the alloy looks amazing with the blue to me.
Plans to hit Cruise Moab any time soon?--I'd love to see this truck in person.
Again, very nice job!
-Ferg-
P.S. Please please please let this 60 never end up parted out or all cut up and on 55s... ;(
FWIW, I much prefer the alloy look of the wheels with the blue. Dunno why though cause I run black wheels on everything I've ever had--even had black steelies on my blue 60 til i added the alloy 80 wheels. But for some reason the alloy looks amazing with the blue to me.
Plans to hit Cruise Moab any time soon?--I'd love to see this truck in person.
Again, very nice job!
-Ferg-
P.S. Please please please let this 60 never end up parted out or all cut up and on 55s... ;(
Last edited:
Great form and function all around.
That rear bumper is real slick.
EarthX
Owner of Earth Exploration Technologies
- Thread starter
- #192
I know what you mean.... I really like black wheels, even on my 60, but there's just something that looks right with the factory alloys. I really don't know what I prefer. Most likely I'll leave them black till I get new tires, then give it another thought then.
I'm trying to get a couple guys to come out to Cruise Moab with me. Ive wanted to make it for years now but it just never works out, hoping this year it will!
EarthX
Owner of Earth Exploration Technologies
- Thread starter
- #193
Haha, just saw this.
This bumper wont fit most trucks. I cut quite a bit off the front valence and tucked it close to what remains so it would never fit a stock truck.
Actually, I'd love to get into custom fab work for cruisers, but have never really thought it could be profitable. Who knows, maybe one day.
If you lived closer I'd be more than happy to help you build one for you truck......
EarthX
Owner of Earth Exploration Technologies
- Thread starter
- #194
OK, time for a tech question.
I have yet to wire up the elockers. I still have the donor 80 so I have all the factory wiring. Id like to tackle this job in the next few days or so since I have some time off.
My question is this; How would you go about wiring them up. It seems like it will be a pain the figure out the factory computer and locked/locking lights, although I haven't looked it in in depth. Maybe it's not that hard? Plus, as far as I'm concerned, I already have too many electronic thingies on this truck. (I really don't have very many).
What about some kind of cable system?
Is that something I could rig myself? Or is anyone making a cable kit? Cheap and simple are my thoughts right now.
Maybe I should post this over in the 80 section?
I have yet to wire up the elockers. I still have the donor 80 so I have all the factory wiring. Id like to tackle this job in the next few days or so since I have some time off.
My question is this; How would you go about wiring them up. It seems like it will be a pain the figure out the factory computer and locked/locking lights, although I haven't looked it in in depth. Maybe it's not that hard? Plus, as far as I'm concerned, I already have too many electronic thingies on this truck. (I really don't have very many).
What about some kind of cable system?
Is that something I could rig myself? Or is anyone making a cable kit? Cheap and simple are my thoughts right now.Maybe I should post this over in the 80 section?
I came across this thread...it might be helpful to you on the elocker issues.
https://forum.ih8mud.com/79-95-toyota-truck-tech/204094-elocker-wiring-switches.html
https://forum.ih8mud.com/79-95-toyota-truck-tech/204094-elocker-wiring-switches.html
ntsqd
technerd
Linked in Elbert's link:
http://carterswebsite.com/4runner/mods/locker/
Mike's just down the hill from you in Fullerton. I can make an intro if needed or desired.
http://carterswebsite.com/4runner/mods/locker/
Mike's just down the hill from you in Fullerton. I can make an intro if needed or desired.
EarthX
Owner of Earth Exploration Technologies
- Thread starter
- #197
Thanks for the links.
After looking more in depth, I think Ill use the factory ecu. Now the question is; do I painstakingly remove the the entire harness for the truck and separate the locker part, OR, just cut cut the at the ecu leaving enough to make my own harness. I have the harness that comes off the lockers but it seems that after the locker ecu the wires tie into the main harness. Does that make any sense?
After looking more in depth, I think Ill use the factory ecu. Now the question is; do I painstakingly remove the the entire harness for the truck and separate the locker part, OR, just cut cut the at the ecu leaving enough to make my own harness. I have the harness that comes off the lockers but it seems that after the locker ecu the wires tie into the main harness. Does that make any sense?
That was quite a while ago. I would have loved to have one but I bought a SROR bumper this summer. Its still sweet!
ntsqd
technerd
There is a reversing motor and a set of limit switches, right?
What is a logic circuit needed for, the OE's 35 mph auto-disengage and what else?
Mike worked out the single axle motor control using two relays and momentary SPDT switch. Would you want the diffs inter-related? I deliberately ordered the ARB's w/o the ARB harness because I did not want one dependent on the other.
What is a logic circuit needed for, the OE's 35 mph auto-disengage and what else?
Mike worked out the single axle motor control using two relays and momentary SPDT switch. Would you want the diffs inter-related? I deliberately ordered the ARB's w/o the ARB harness because I did not want one dependent on the other.
theferg
SILVER Star
Thanks for the links.
After looking more in depth, I think Ill use the factory ecu. Now the question is; do I painstakingly remove the the entire harness for the truck and separate the locker part, OR, just cut cut the at the ecu leaving enough to make my own harness. I have the harness that comes off the lockers but it seems that after the locker ecu the wires tie into the main harness. Does that make any sense?
Good choice. Don't worry about getting the whole harness. Just cut at the ECU and splice in 6-wire (combine the two grounds) trailer wiring to each diff and splice them to the factory diff harnesses. I've done this for the rear locker I added to my 4Runner and I've worked with the 80 diffs as well and it's not too difficult of a job when you've got the ECU and when someone's already figured out all the wiring and made up a schematic for ya.
