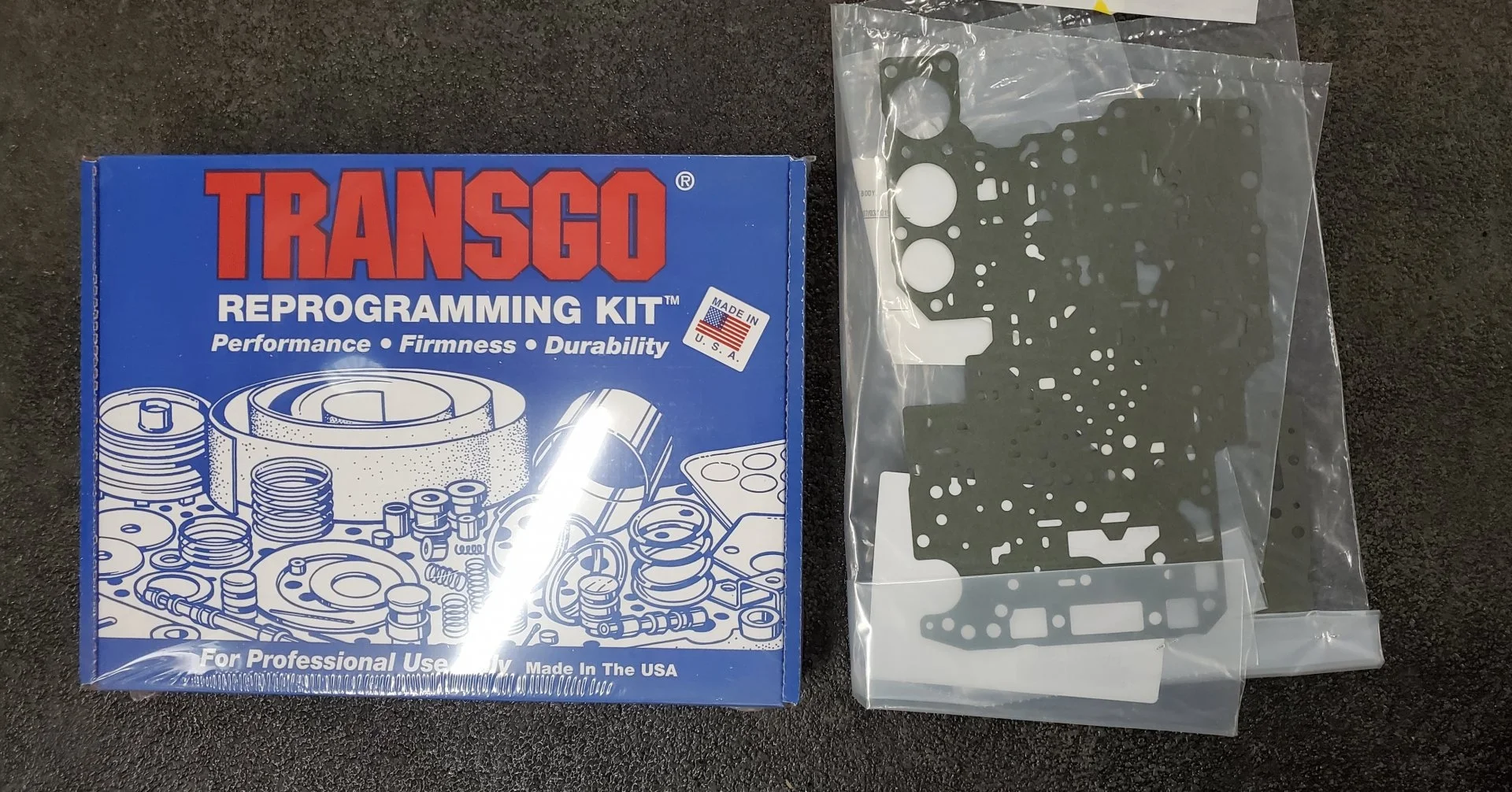

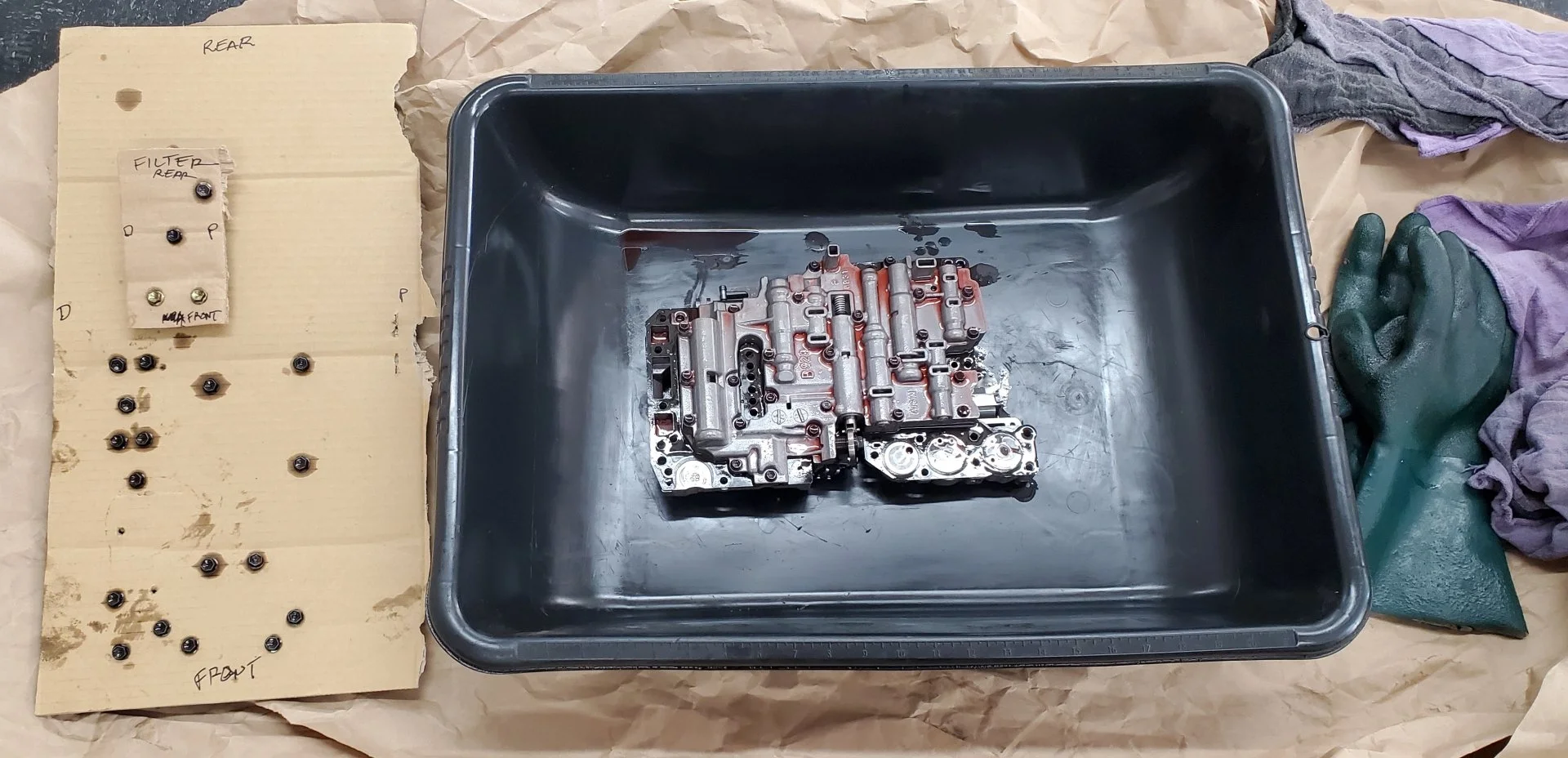

Started Transgo shift kit surgery. I will hopefully finish this on Monday. I used the thread here to aid in the process: A343 Transgo Reprogram Kit Install - 1995-1997 - https://forum.ih8mud.com/threads/a343-transgo-reprogram-kit-install-1995-1997.731930/




Last edited:

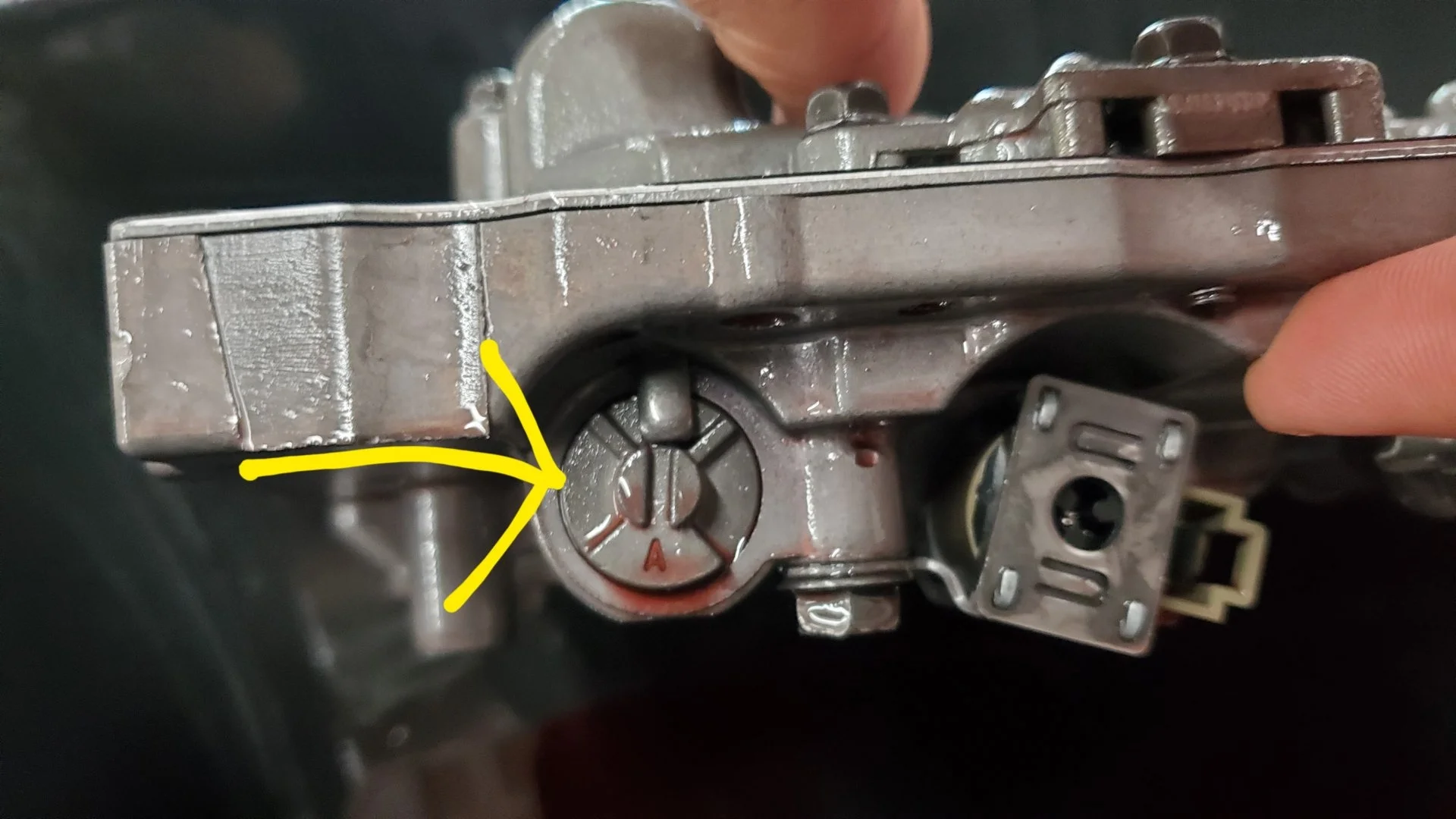

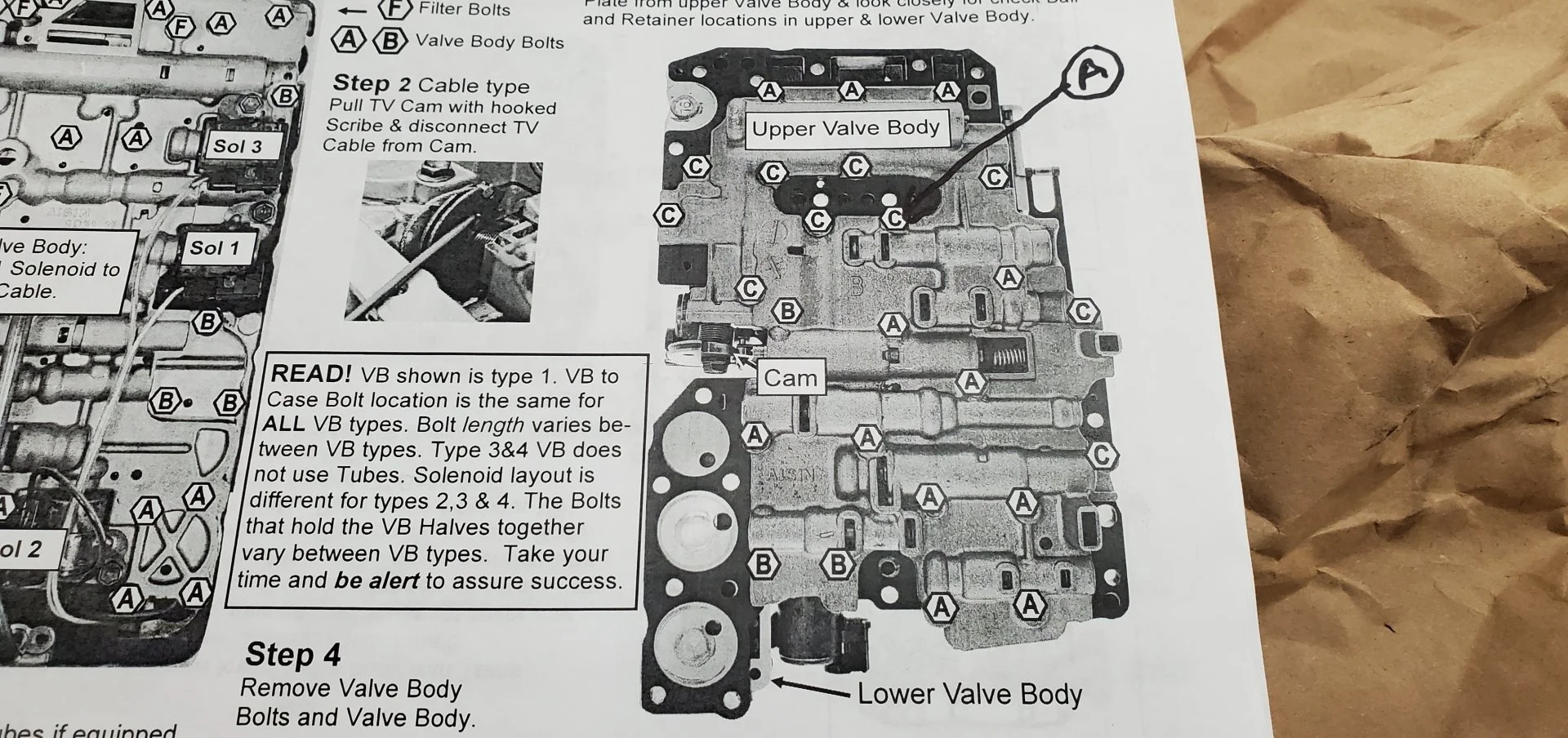

A little progress today. I was swamped at work so not much time. Take note of instructions having one bolt mislabeled. If you are paying attention to the sizes you will know. Size A not C.

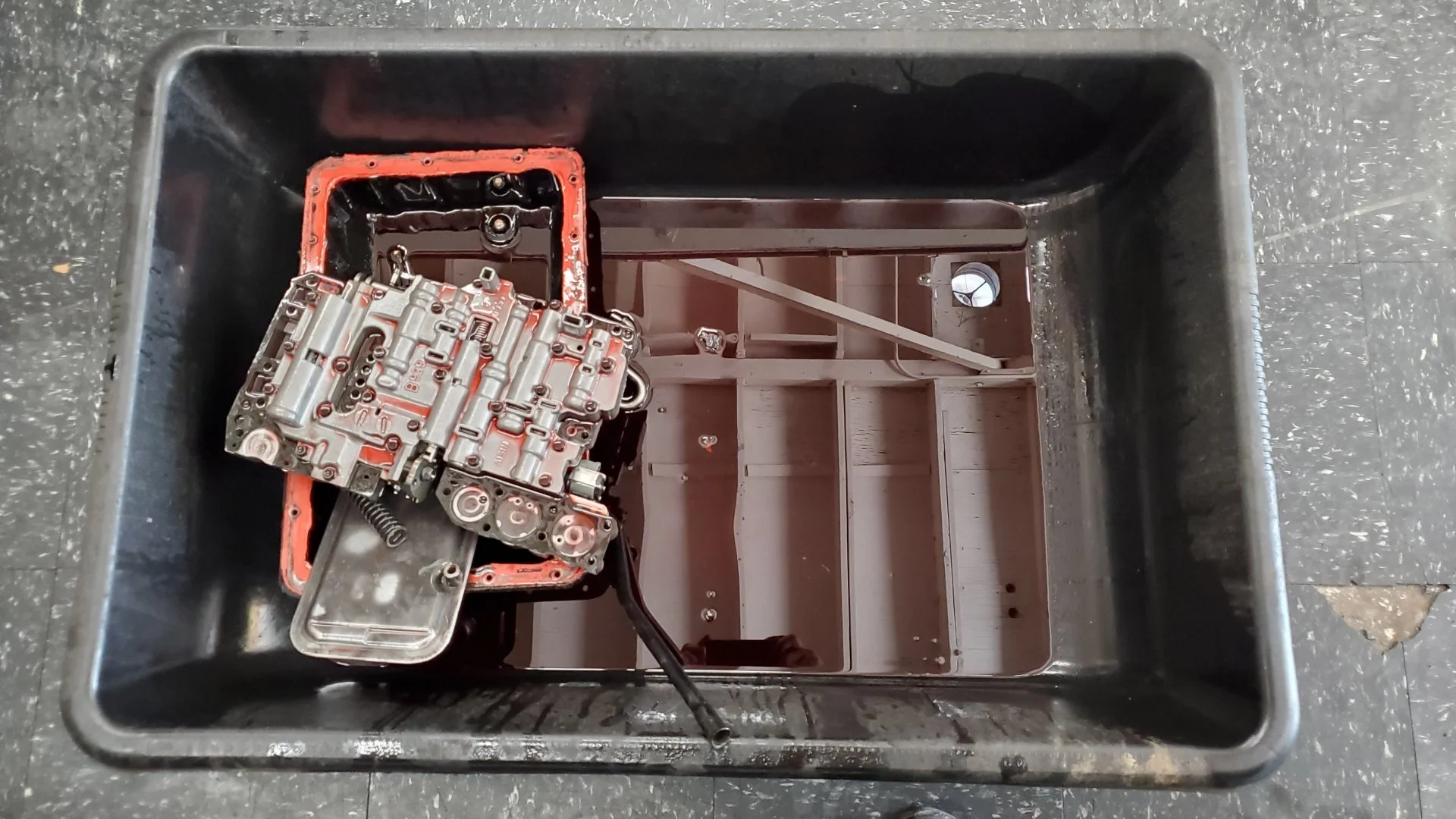

Swapped and removed springs..


Last edited:

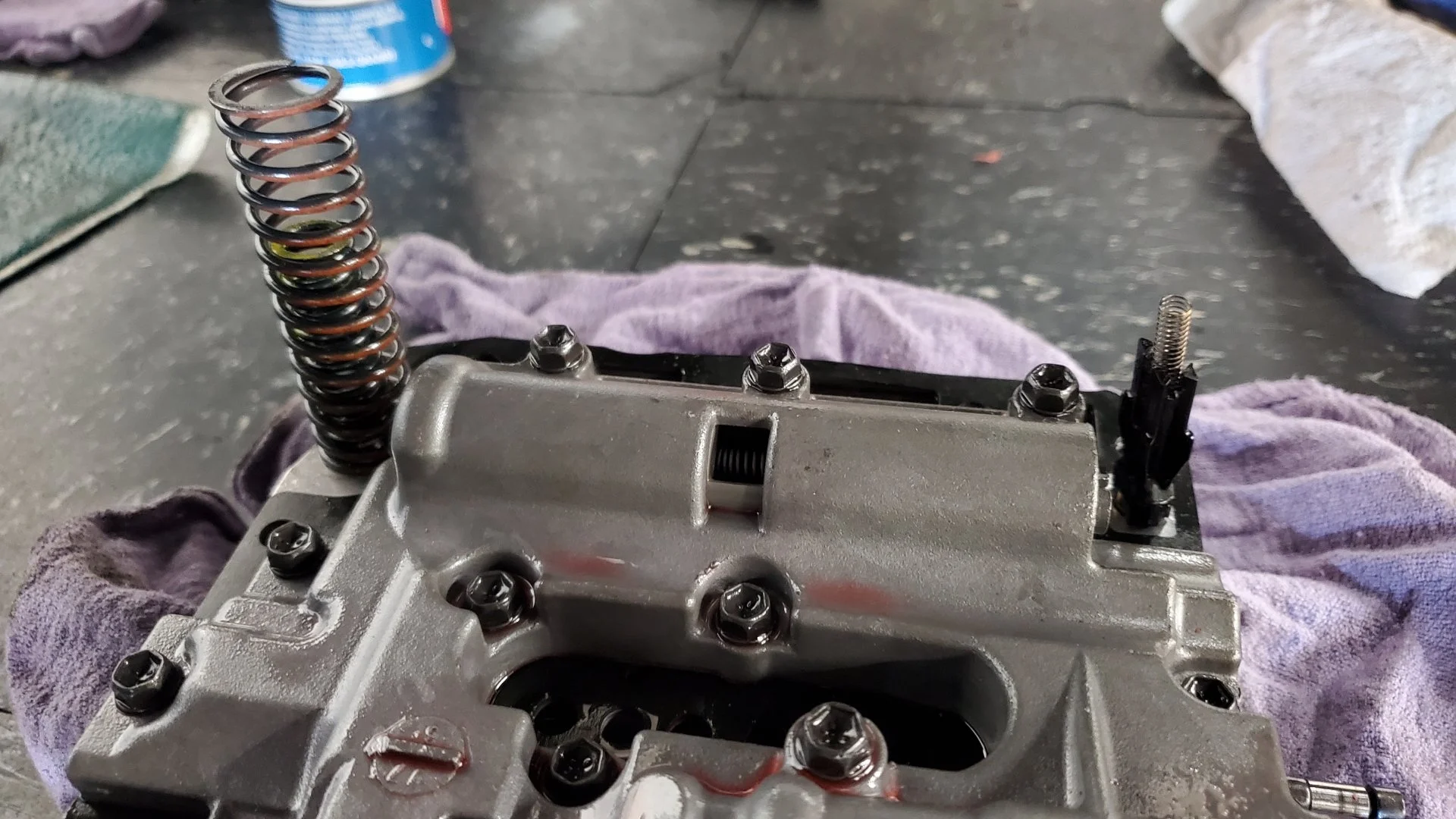

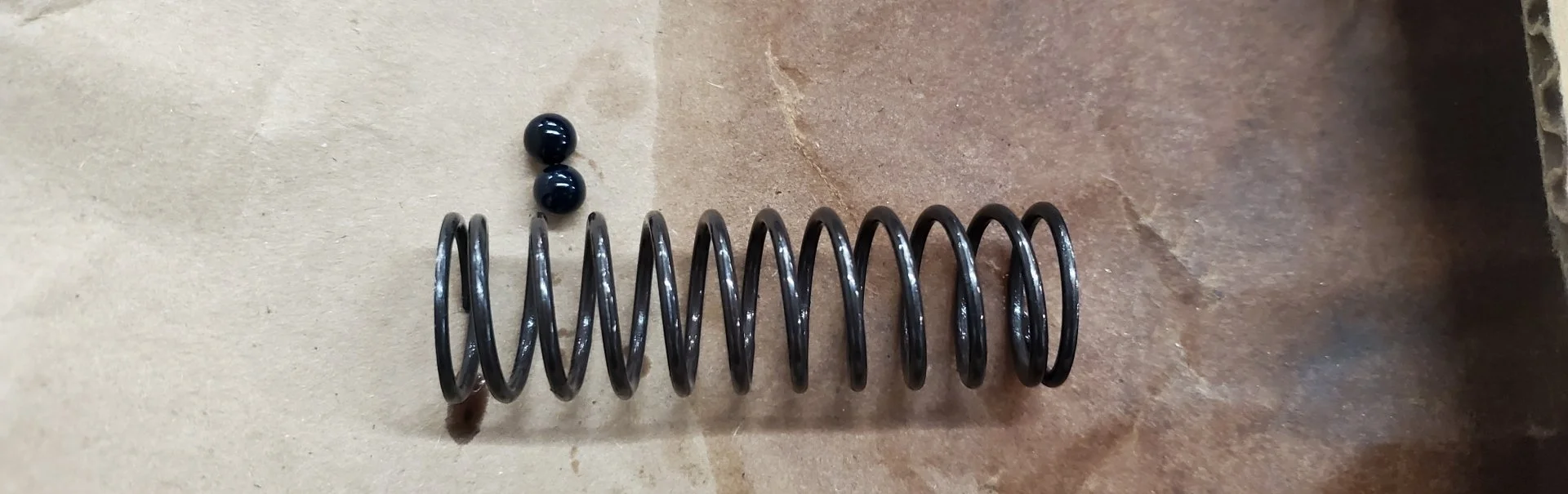

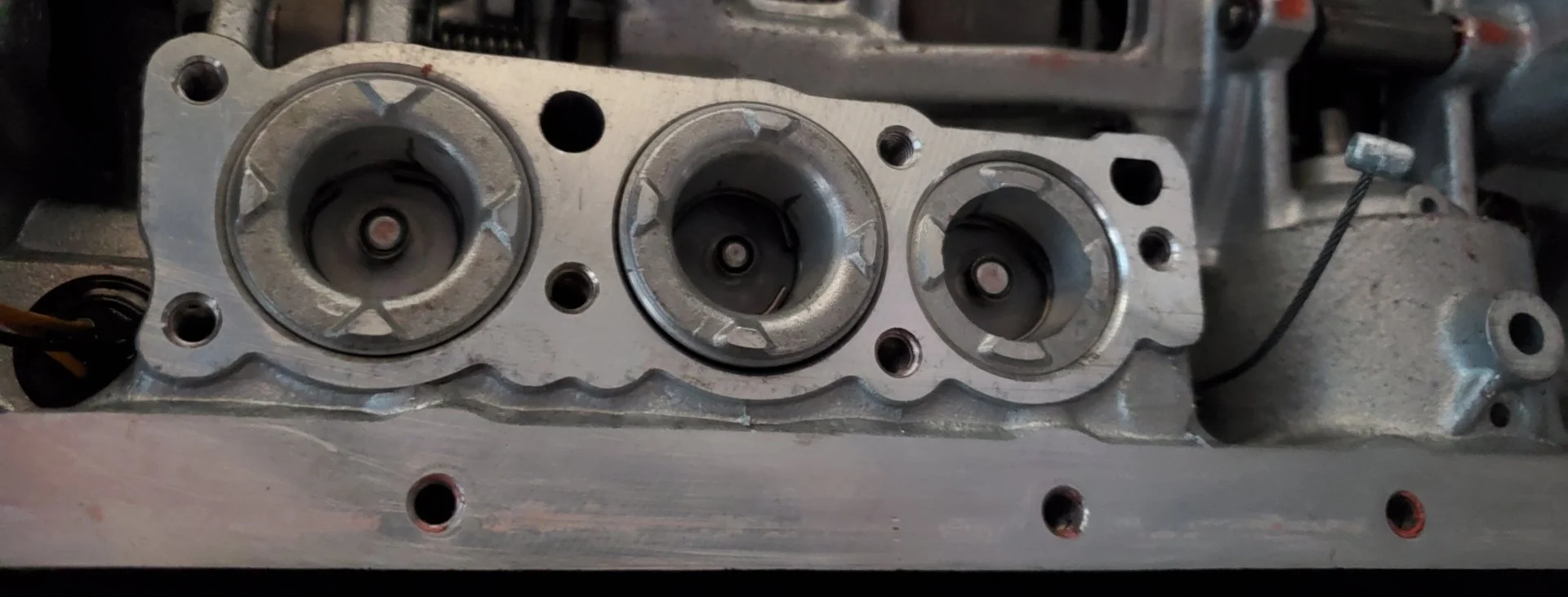

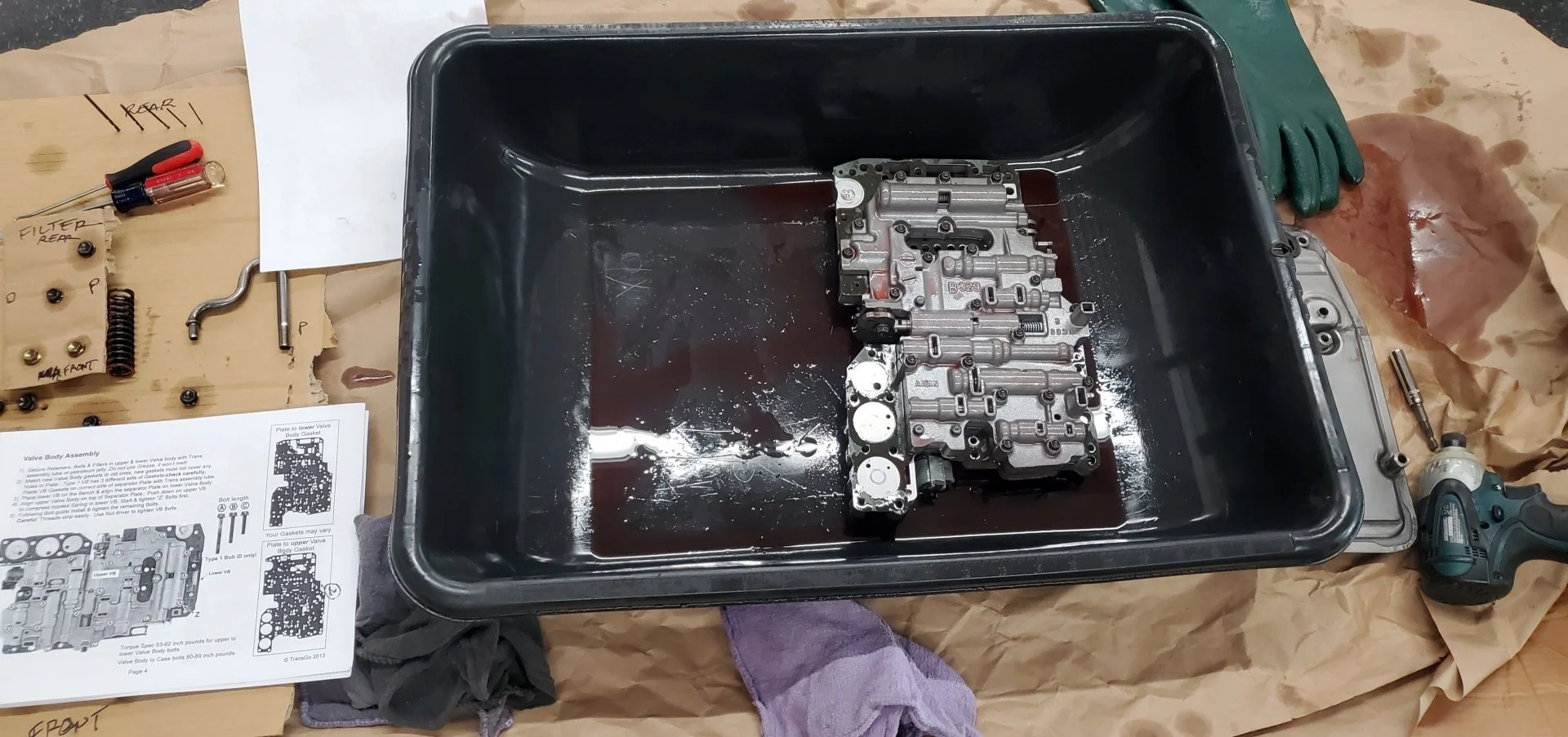

I removed one ball from the upper body and one from lower body. The pressure spring pictured below is removed from the valve body and replaced with one in the kit. It is located in the second picture and retained by a removable tab. The tab can be removed vertically once you depress the pressure assembly with your finger towards the valve body.

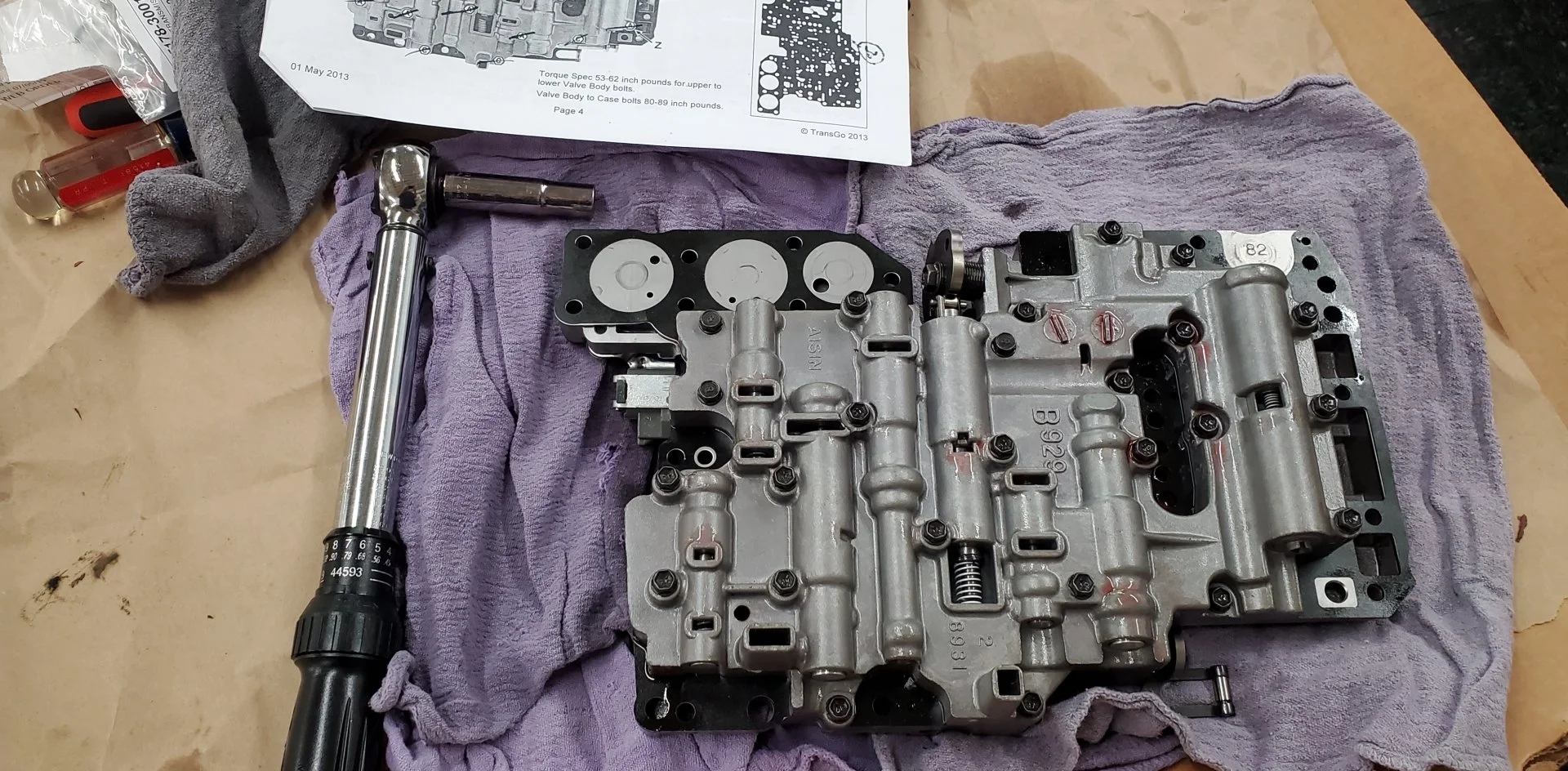

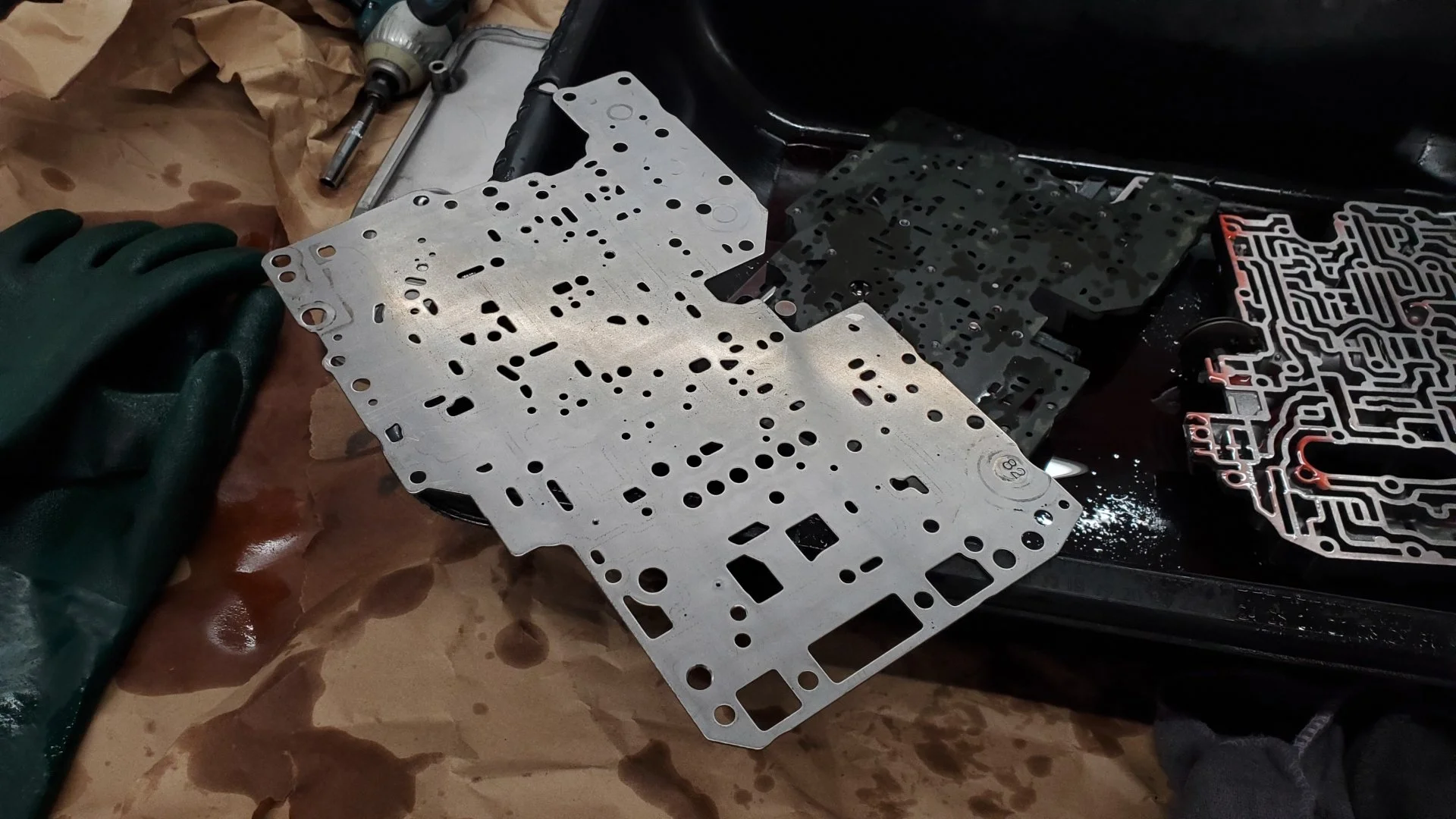

Holes drilled in plate for "truck" setting and new gaskets installed.



All back together and..........I forgot my torque wrench at home lol. Going to clean up gasket materials and pan in the time being...

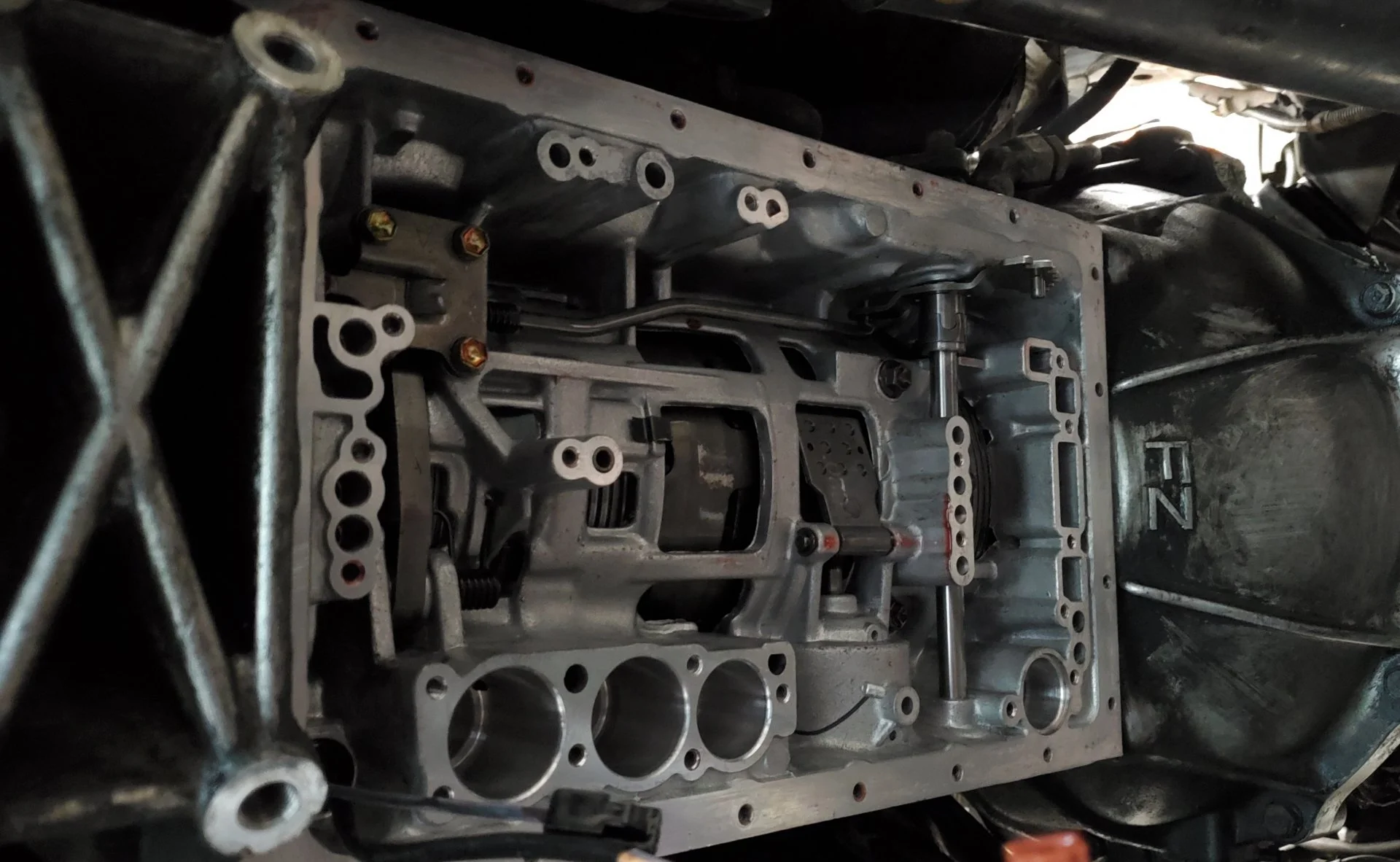

Cleaned up n ready to go.


Bolts torqued, 84 inch pounds.



Case cleaned.

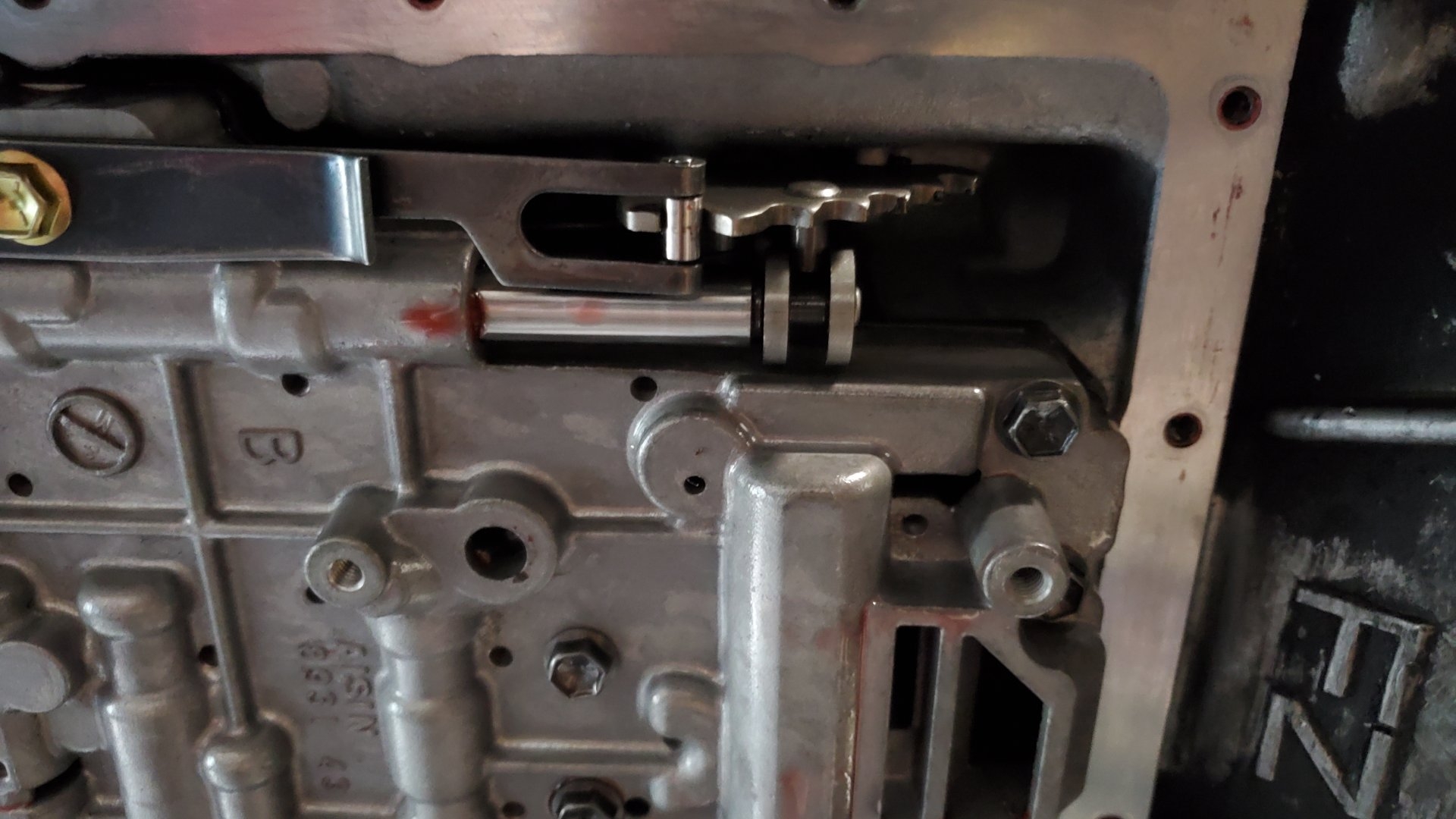

Accumulators in and make sure you reattach the throttle cable to the cam on the right...



Make sure check ball and other springs are in place. Carefully balanced and put into place solo is fun. 😊



Make sure this pin is indexed.


Last edited:

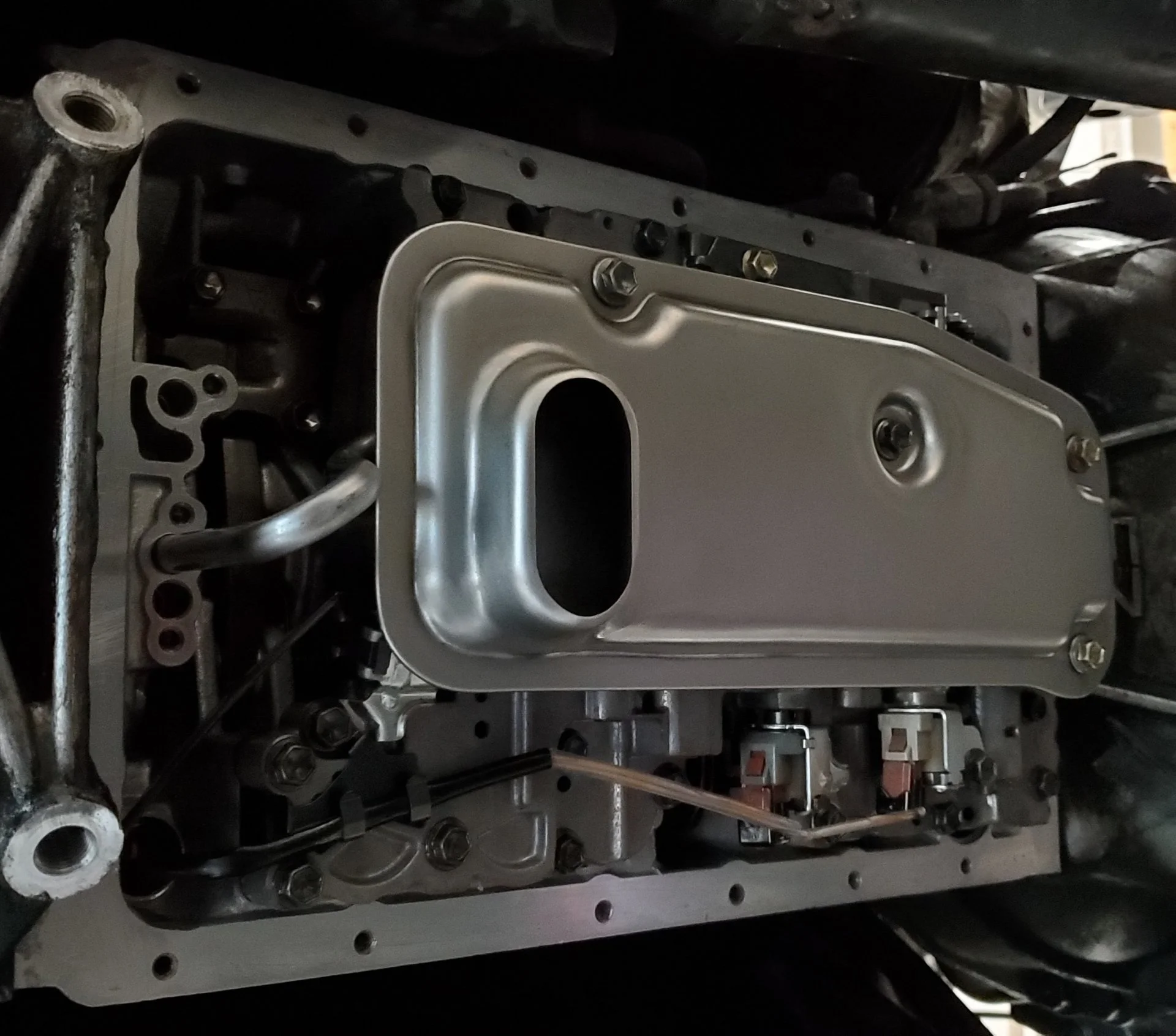

Filter in, 84 inch pounds and oil pipe pushed into place.

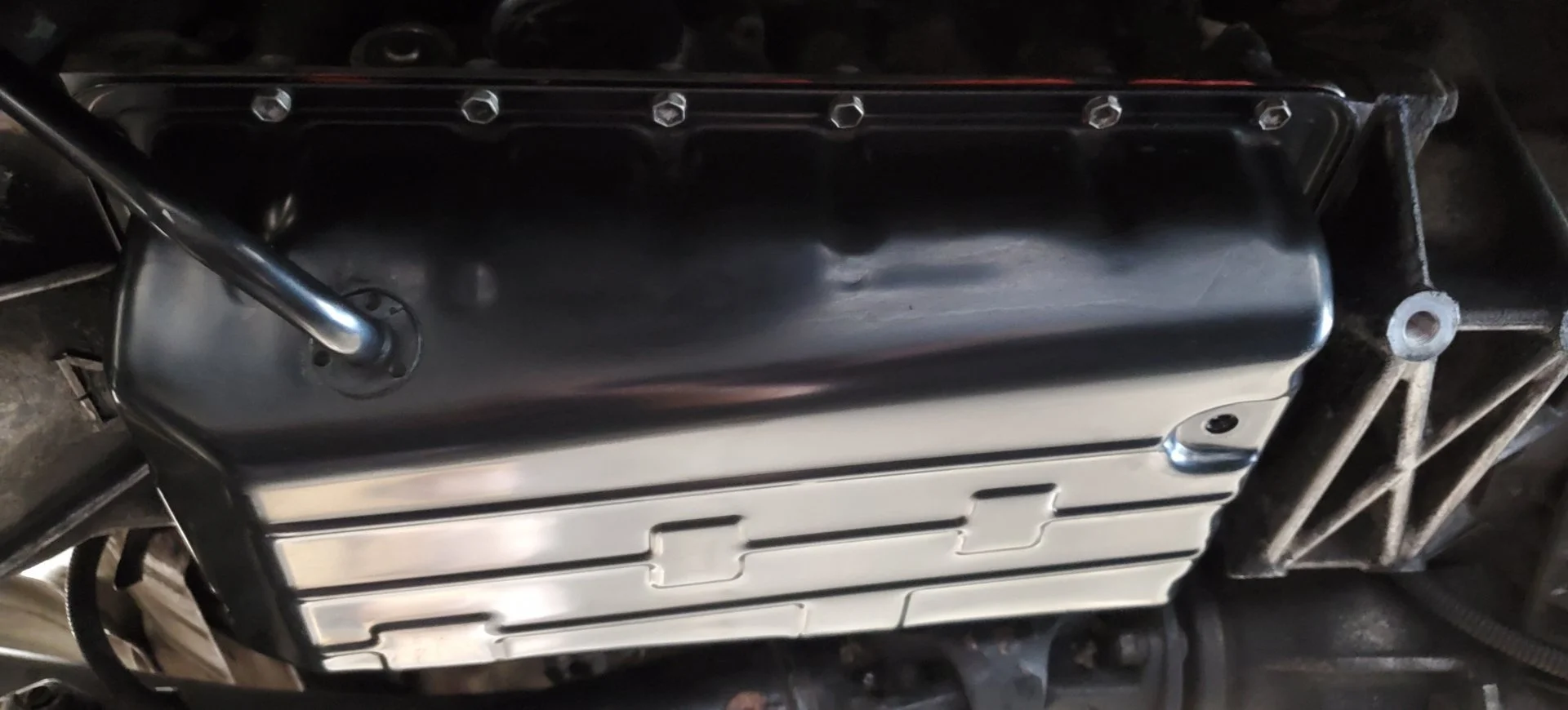

FIPG applied per FSM and pan bolts set to 65 inch pounds.



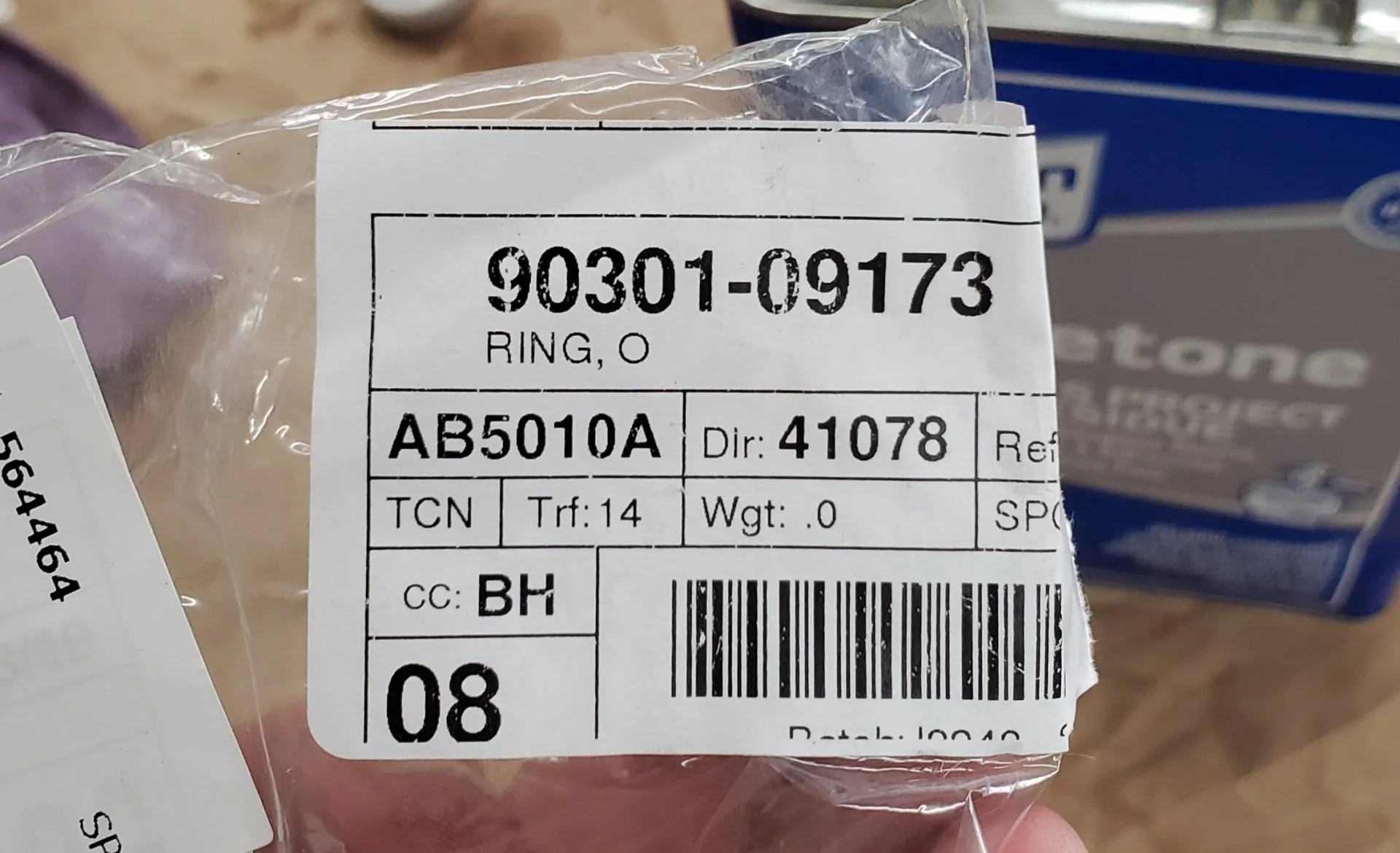

New O-ring for transmission dipstick tube.


Paul, looks like u gettin ready for a turbo?...

woodsman 44 said:
Paul, looks like u gettin ready for a turbo?...
Click to expand...
I hope so.... Purchased 2 years ago, but needs CARB cert. I'll cross that road when I get there.

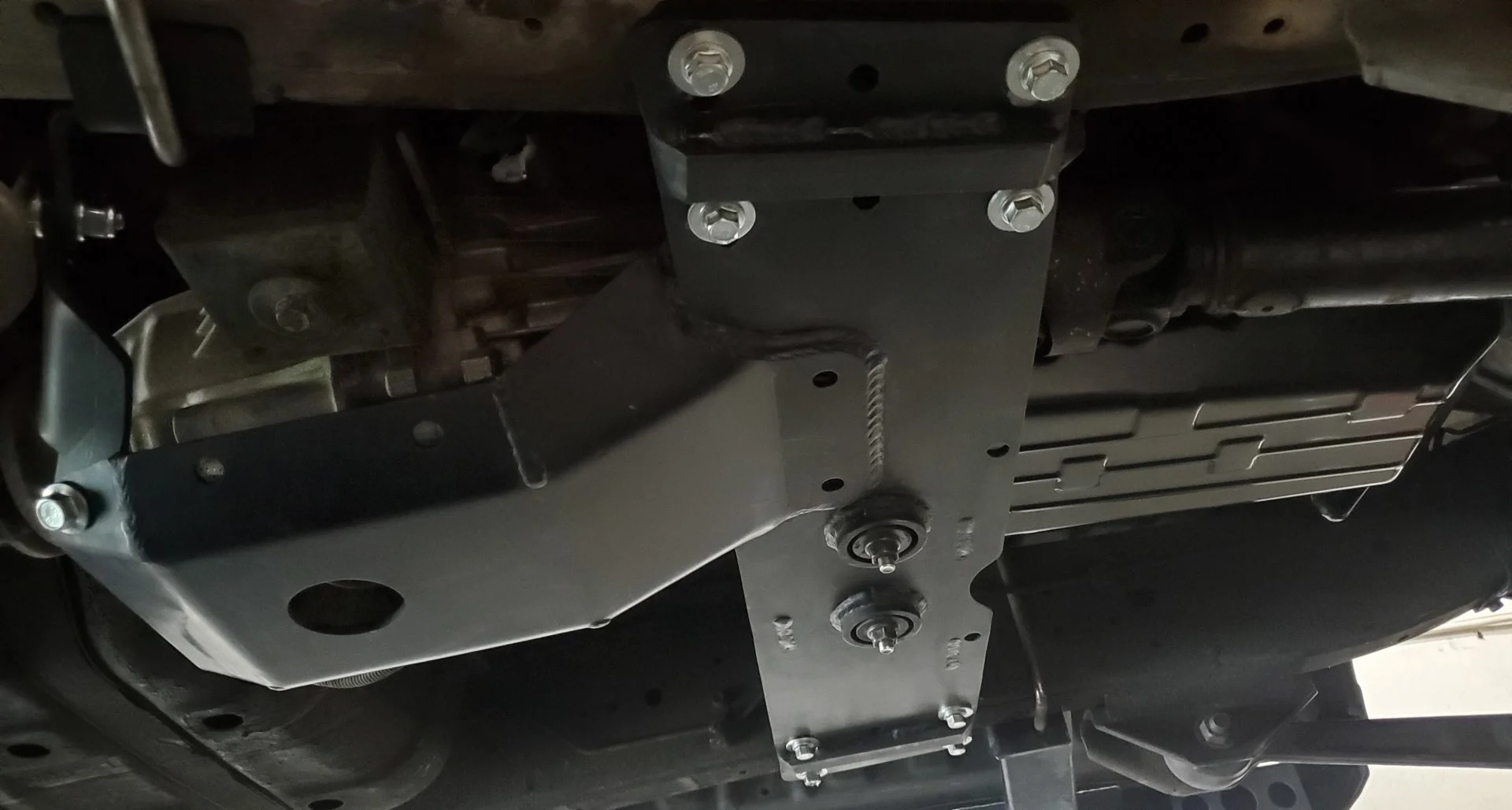

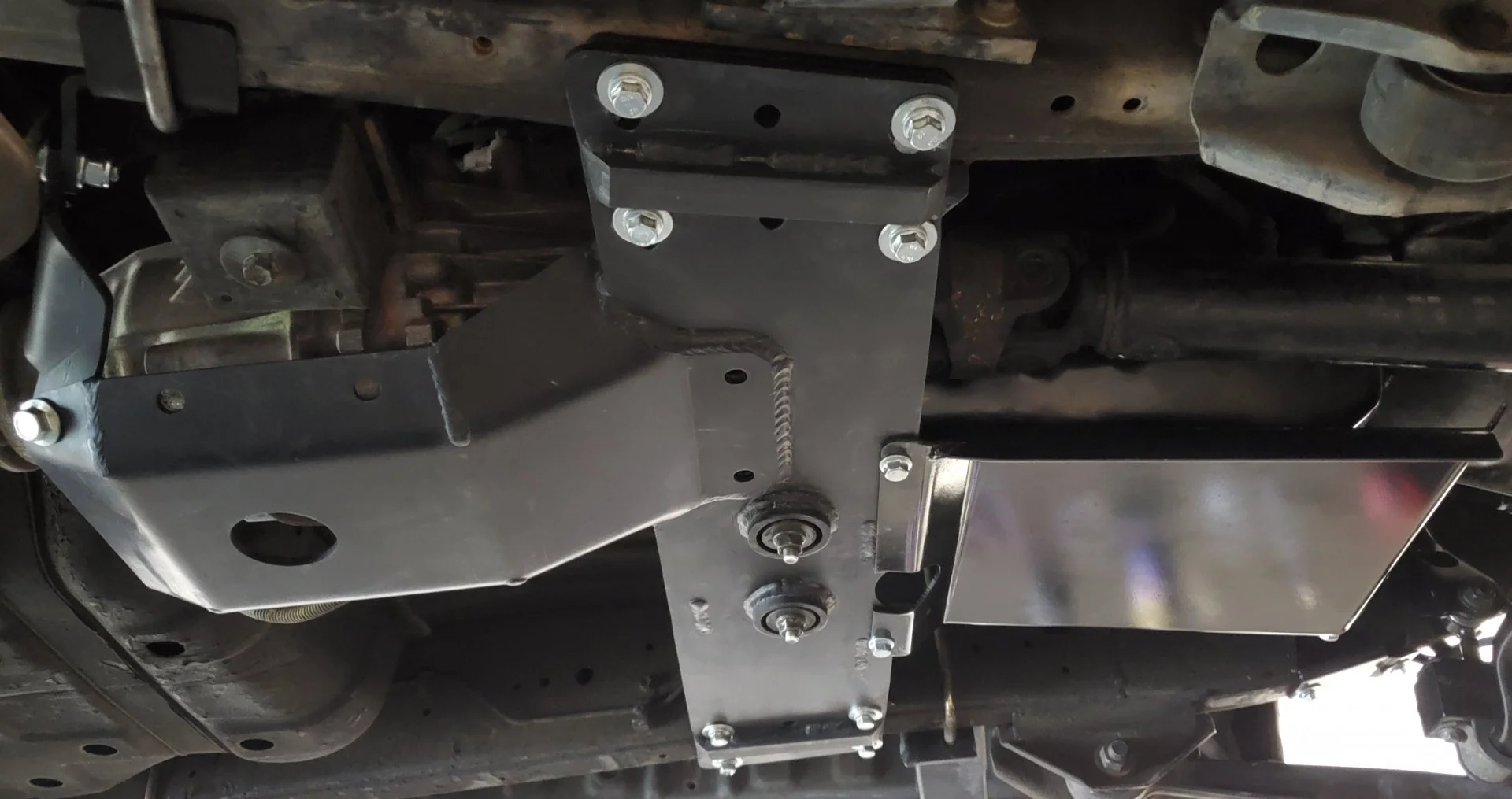

Gray Industries Skid ~ HuddExpo installed.

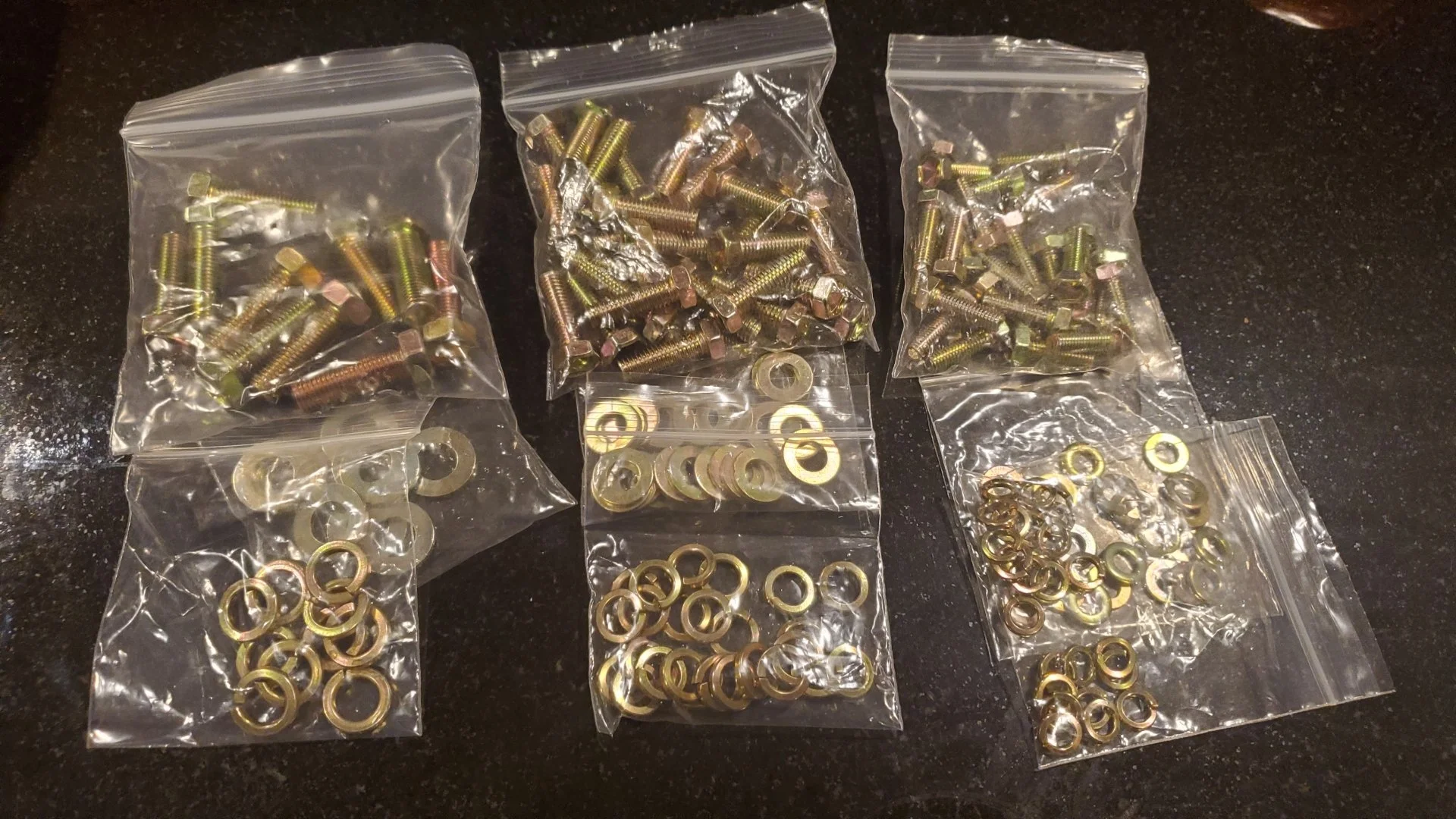

Received some hardware from Overland Metric as extras to have on hand and for rivet nut additions.


woodsman 44 said:
Nice!...Grade 8 Paul?
Click to expand...
10.9

www.overlandmetric.com

Overland Metric | JIS Hardware

At Overland Metric we've spent the last seven years learning the business of Toyota Land Cruiser and JIS hardware. In 2016 we expanded the business from Full Vehicle Kits to include Stainless Kits and Bulk Hardware. We spent six months with manufactures to duplicate OEM hardware as closely as...
www.overlandmetric.com www.overlandmetric.com

That skidplate tells me you're ready to do some crawling!

TYM4FUN said:
Stepping it up a bit....Still not a fan of body damage.
Click to expand...

Look at my truck, no body damage and it's only used for wheeling. Heck I don't even have a skidplate! Still rocking the original!

jcardona1 said:
Look at my truck, no body damage and it's only used for wheeling. Heck I don't even have a skidplate! Still rocking the original!
Click to expand...
Same. Odds are against us/me lol...
