DIY FJZ80 Low Budget Turbo Build

Discussion in '80-Series Tech' started by lilevo, Feb 20, 2013.

  1. clownmidget

    clownmidget SILVER Star

    Messages:
    2,433
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    Place holder for adding detail....
    Manifold:
    Air Power Systems Safari turbocharger (http://www.safarisnorkel.com/turbo/turbo_product.htm) -all Toyota petrol stuff defunct
    this is a two part log style, divided T3 flange facing down

    Turbo:
    Holset HX35G (non-US market, likely Volvo LPG), divided T3, 12 cu cm turbine housing, coolant & oil fed center section
    Internal wastegate, 8 psi Garrett actuator

    Spark Plugs:
    The original Safari instructions call for replacing them with NGK BCPR7ES-11
    Information from here recommends Toyota (DENSO) 90919-01180-83

    MAF:
    LandTank Gen1 housing without sleeve (~3.03" diameter)
    Treadstone 3.5" housing 1.23" DENSO sensor (http://www.treadstoneperformance.com/product.phtml?p=68092&cat_key=467&prodname=DENSO MAF, Mass Air Meter Pipe, Subaru, Scion, Mazda, Toyota, Lexus)
    Treadstone Honeycomb (http://www.treadstoneperformance.com/product.phtml?p=68172&cat_key=467&prodname=HoneyComb MAF Mass Air Meter Airflow Straightener)

    Gauges:
    PLX DM-6 Gen 4 AFR & V/B
    Ultragauge OBD-II

    Injectors:
    stock

    Fuel Pump:
    stock

    Fuel Pressure Regulator:
    stock

    ECU Piggyback:
    AEM F/IC-8


    Last edited: Nov 13, 2014
  2. clownmidget

    clownmidget SILVER Star

    Messages:
    2,433
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    Will try to add to this in a step-wise fashion. First will keep most of this stock.

    Right now, with essentially just the turbo thrown on it is clearly not getting enough fuel as you go towards full throttle as Lilevo experienced. I've only run the engine through less than 10 start up/shut down cycles so maybe the ECU is still learning but the STFT & LTFT values have settled into pretty normal values except under mid to full throttle. Have not finished installing the PLX gauges so I don't have AFR or boost values yet. Amazingly no CEL or pending ones. Stock O2 sensors in the stock position with high flow catalytic converter, 3" diameter exhaust.

    I have the 3.5" MAF housing in hand to throw on once I see what AFR's are. Everything else is sitting on work bench as well.

  3. scottryana

    scottryana

    Messages:
    8,309
    Albums:
    1
    Likes Received:
    3,918
    Joined:
    Feb 2, 2004
    Location:
    Richmond, VA
    I would not throw the 3.5" MAF on unless you are matching it with equal size injectors and have a way to retard timing. By increasing the MAF size you're decreasing the perceived load which means timing will be more advanced than stock when you already want to retard timing.

  4. clownmidget

    clownmidget SILVER Star

    Messages:
    2,433
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    Right, thanks. I should be more clear too, I won't be adding anything until I've got some results and numbers from the current setup to make a move - bigger injectors, MAF housing, fuel pump, etc. I think the very next thing once the AFR & boost gauge is on, is the FIC-8 so I can try and deal with the issues Lilevo has dealt with in this thread. It appears the narrowband O2 values may be the biggest challenge. Thought this was interesting (http://www.plxdevices.com/AppNotes/PLXApp004.pdf) - bottom of page 2 shows type of connection for the pre-catalytic converter O2 sensor.

  5. scottryana

    scottryana

    Messages:
    8,309
    Albums:
    1
    Likes Received:
    3,918
    Joined:
    Feb 2, 2004
    Location:
    Richmond, VA
    Oh that is cool, but I am sure the PLX sensor doesn't match the stock O2 sensor pattern so you will need to weld in a bung regardless. Pretty cool to have that option though if you were starting an exhaust from scratch and had old stock O2 sensors.

  6. clownmidget

    clownmidget SILVER Star

    Messages:
    2,433
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    Yeah, the exhaust has the wideband O2 sensor just upstream of the stock pre-catalytic O2 sensor. What I want to know is can I do that with the narrowband wiring in order to allow the AEM to better control those values?

  7. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    No fuel cut issues. 450's and the new MAF solved those issues. 3" from the turbine housing to the exhaust tip. No cats. BOV of course, every forced induction setup should have one. Don't know about knock since there is no way to log it. Distributor works fine, no issues.

    Truck runs fine, I only drive it a few hundred miles a year. All i have been using it for is towing my jetskis to the lake and towing my race car around here and there.

    With the added 4k+ lbs of the trailer it just doesn't tow well with the F/IC 8 setup. There are too many times where I'm in "limbo cells". I'm never WOT while towing and usually always in 1-3psi range at low load/low RPM. This confuses everything and it never runs the proper AFR. So I end up towing in vacuum the whole time.

    My solution is that I'm buying a Tundra to do towing and leaving the Cruiser as just a driver. At this point, its more like a car anyways. If the cruiser was my only toy I would maybe do a Honda AEM box like the "Dezod IS300" kit for early 2000's IS300's which uses the AEM as a piggyback to do timing and fuel.

    I still have the 800hp Mitsubishi and also picked up a Lamborghini Gallardo a few months ago. I have an 04 LS430 as a daily, I also have an 89 22-RE pickup, 71 Land Cruiser with an SBC 355, and a fully lockered 94 Cruiser that I use as a plow rig. I also jetski all summer so I have three of those to keep up on modifications and what not. Nothing is ever "finished" and something always needs tinkering.

    The turbo land cruiser really needs a fresh engine put in. It has 240k on it and leaks oil like crazy. Front, rear main seals, oil pan maybe. Last time I towed my car 400 miles there was engine oil all over the underbody, spare tire, rear diff, trailer, etc, lol. It just drips/leaks and sprays backwards. Typical high mileage stuff. So that's another huge undertaking.

    Last edited: Nov 13, 2014
  8. concretejungle

    concretejungle SILVER Star

    Messages:
    9,384
    Likes Received:
    635
    Joined:
    Oct 27, 2003
    Location:
    North Cadillac
    A lambo?! nice! All wheel drive, right?

  9. Robb235

    Robb235

    Messages:
    30
    Likes Received:
    2
    Joined:
    Jun 5, 2013
    You're not inadvertently boosting the crankcase are you?

  10. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    No. It was leaking before I ever went turbo. I have a proper catch can setup for crankcase ventilation.

  11. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    Yep!

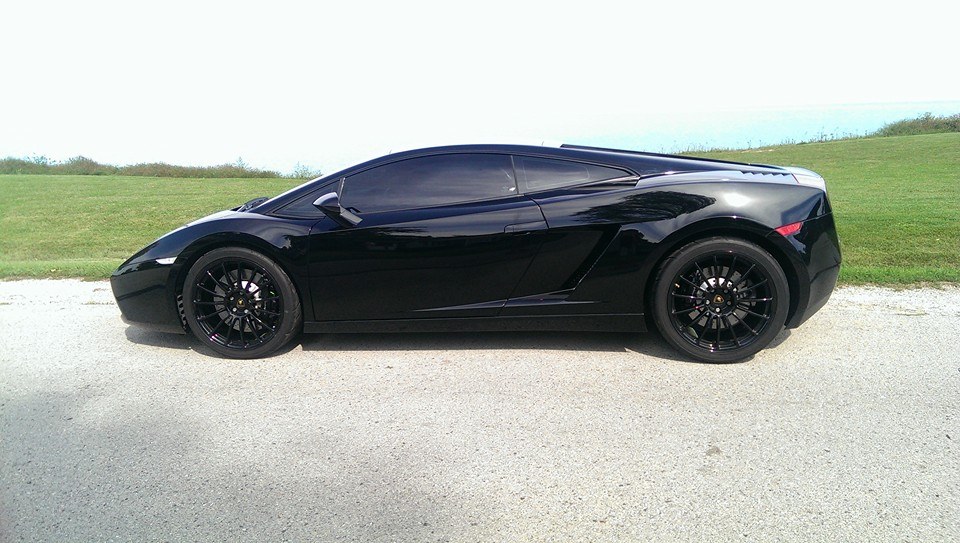

    [​IMG]

    concretejungle likes this.
  12. retrofive

    retrofive

    Messages:
    13,977
    Likes Received:
    4,868
    Joined:
    Jan 6, 2008
    Location:
    so. oregon
    Can you put 35's on it? :flipoff2:

  13. scottryana

    scottryana

    Messages:
    8,309
    Albums:
    1
    Likes Received:
    3,918
    Joined:
    Feb 2, 2004
    Location:
    Richmond, VA
    Congrats on the new toy, E-gear or manual?

  14. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    The only real option, 6 speed gated. 2004 with some 2006 revision mods, 10k miles

  15. scottryana

    scottryana

    Messages:
    8,309
    Albums:
    1
    Likes Received:
    3,918
    Joined:
    Feb 2, 2004
    Location:
    Richmond, VA
    Nice find, not a lot of 2004's around and even fewer with only 10k miles. Looks good. What wheels and tires did you go with? When does the twin turbo happen?

  16. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    They are OEM Scorpius wheels from the Superleggera. Tires I believe are Toyo R888 tires. TT probably a few years.

  17. scottryana

    scottryana

    Messages:
    8,309
    Albums:
    1
    Likes Received:
    3,918
    Joined:
    Feb 2, 2004
    Location:
    Richmond, VA
    The R888's are nice they stick well, wear fast, but mine had a bad howl around 80mph, 5mph in either direction was ok, but cruise set at 80 was terrible.

    Sounds like you have some fun toys.

  18. Bella1992

    Bella1992

    Messages:
    423
    Likes Received:
    187
    Joined:
    Mar 22, 2009
    Location:
    Gilbert AZ
    Cruiser parts.net has a 1993-1997 1FZFE Turbo kit for $1499.99
