    Here comes another turbo build!

    This one on my 1996 Cruiser.

    This build will be slightly different than the others, it will be ultimate low-budget, but quality DIY for someone looking to put a turbo on their truck.

    I will list part numbers, prices, and other detailed measurements that anyone will be able to use and put together.

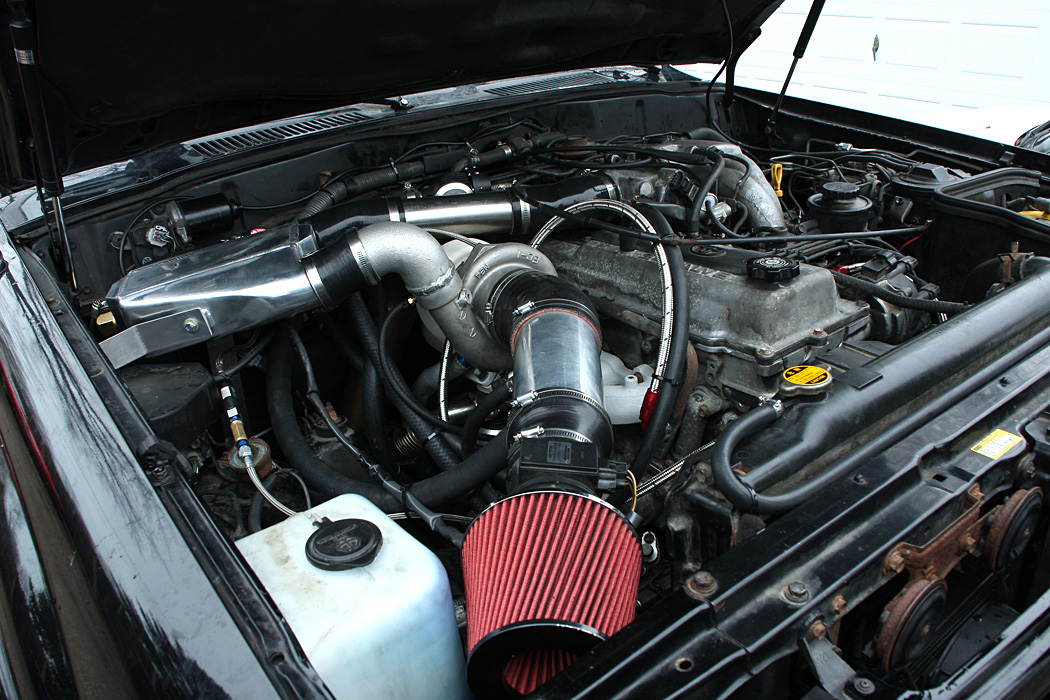

    Turbo Kit Completed 4/7/13 - Cliff Notes:

    Fuel Pump:
    OEM TT Supra Denso Pump, hardwired to the battery with 10 gauge.
    Denso p/n 195130-1020
    Toyota p/n 23221-46110

    Fuel Pressure Regulator:
    Stock, rising rate regulator, no change needed

    Injectors:
    On my setup, the stock 280cc injectors were totally maxxed out and unsafe to drive at wide open throttle.
    Yellow Denso 854-450 (195500-4450). $435 for a set of 6
    www.fiveomotorsport.com

    MAF:
    Oem maf doesnt cut it with the extra massive airflow.
    1999+ toyota 22204-21010 air flow sensor (search for Landtank MAF PDF as the pinout needs to be altered)
    Treadstone Performance 3.5" denso 1.23" maf pipe
    Treadstone 3.5" honeycomb to smooth airflow

    Spark Plugs:
    OEM is BKR5ES. I highly recommend BKR6ES. It is one step cooler and will resist detonation better than the 5's

    ECU Piggyback:
    Underdog Racing Development Fuel Timing Controller. Other good options are the Haltech interceptor or AEM F/IC 6 p/n 30-1910 or AEM F/IC 8 p/n 30-1930. The F/IC 8 has built in boost control (you need a $40 MAC solenoid P/N 35A-AAA-DDEA-1BA) and has a few other features over the F/IC 6.

    Transmission:
    The stock shifting is no good with added power. Install a TransGo reprogram kit
    DIY thread here: https://forum.ih8mud.com/80-series-tech/731930-a343-transgo-reprogram-kit-install-1995-1997-a.html


    Knock Sensors:

    My truck has 238k on it and I never had problems with the knock sensors. My first test drive with the turbo kit threw both knock sensor codes. I just replaced them both with aftermarket ones on ebay $70/each. Codes went away. If you don't replace them, the truck will be very doggy due to pulled timing.

    If you are adding forced induction, replace your knock sensors!

    Spreadsheet of the entire build:
    http://lilevo.com/pictures/cars/turbolc/TurboLandCruiser_Price_List.xls

    Videos:


    http://www.youtube.com/watch?v=QkT60G8DjPk&feature=youtu.be

    0-60mph Cluster Video Pre-Transgo reprogram kit
    http://www.youtube.com/watch?v=7BXnHmd3S5g&feature=youtu.be

    Few pulls after I installed the Transgo reprogram kit and after the dyno session at 295awhp / 357tq at 8.5psi
    http://youtu.be/JuvjhjHjry8

    Dyno:
    Stock N/A was 155hp/219tq
    8.7psi was 285hp 339tq
    10.5psi was 295hp 357tq

    I didn't want to try more boost still being on stock head bolts although I probably could have cracked 300hp easily.

    I also dynoed my car that I trailered there with the truck. The car made:

    22psi = 510hp, 398tq
    45psi = 744hp, 566tq

    Video: http://youtu.be/l1gU8DXs5Yg


    [​IMG]











    First step, the manifold. I went with the Treadstone because they have a lifetime warranty, cast manifolds are cheap, and well suited for the low boost duty my truck will have. A custom tubular manifold by my friends shop would run around $1600 and the timing and overkill eliminated that as a choice.

    Treadstone also seemed to have changed their design, at least from the pictures on their website, to incorporate expansion cuts in the runners that may reduce any potential cracking.

    Price: $419 plus the $25 gasket, stud, washer, and nut set for the turbo and wastegate.

    I have many of the rest of the fab parts on the way and I also have the turbo from a prior vehicle. Subscribe and stay tuned!


    [​IMG]
    [​IMG]

    Last edited: May 25, 2014
    meckanik likes this.
  2. Duiser Offroad

    Duiser Offroad

    Messages:
    1,389
    Likes Received:
    110
    Joined:
    Jun 29, 2012
    Location:
    Portland, OR
    Sub'd. What turbo are you using?

  3. landtank

    landtank SILVER Star

    Messages:
    18,848
    Likes Received:
    982
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    Be aware that theanifold is not machined 100%. They don't spot face where the studs are so the factory hardware is useless. And finding longer studs in a m10x1.25 has proven difficult from what I remember. They also don't machine a passageway foe the egr, if that matters to you.

  4. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    I had a GT35R that I've used for years in my car. I upgraded to a larger turbo so it is retiring into the truck.

    I also ordered a T4, .82, 3" vband turbine housing.

  5. jamisobe

    jamisobe

    Messages:
    2,088
    Likes Received:
    18
    Joined:
    Sep 27, 2006
    Location:
    Texas
    Baktash is selling the J-pipe which is ideal for a twin scroll and the 1FZFE manifolds are excellent to support a twin scroll set up. I think he is asking close to the same as that log style manifold.

  6. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    The j-pipe is a good idea, but not my style. I'm not sure we can estimate reliability and longevity either on something like that. Never done before on this application that I know of.

    I mocked up the manifold and turbo. I also drilled and tapped the pan, and got the oil feed lines squared away. I have a -4 braided line coming off of the block into a three way "T". The factory sending unit and another -4 line comes out of the T and goes to an inline filter which also doubles as a restrictor. I will take final measurements tomorrow for couplers, intercooler piping, and air/water size and fitment.

    Then I'm putting the stock pipes back on so I can drive to Indy and spend a weekend at my friends shop to fab up a downpipe. At that point it will literally only take a few hours to swap the turbo bits on since I will have all the fiddly stuff complete. I have a -10 cap on the drain so I can still drive the truck and the oil feed "T" is also capped off.

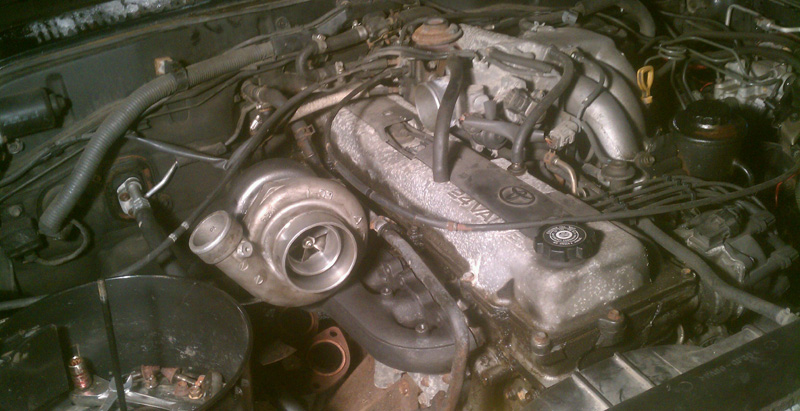

    Engine overview picture:
    [​IMG]

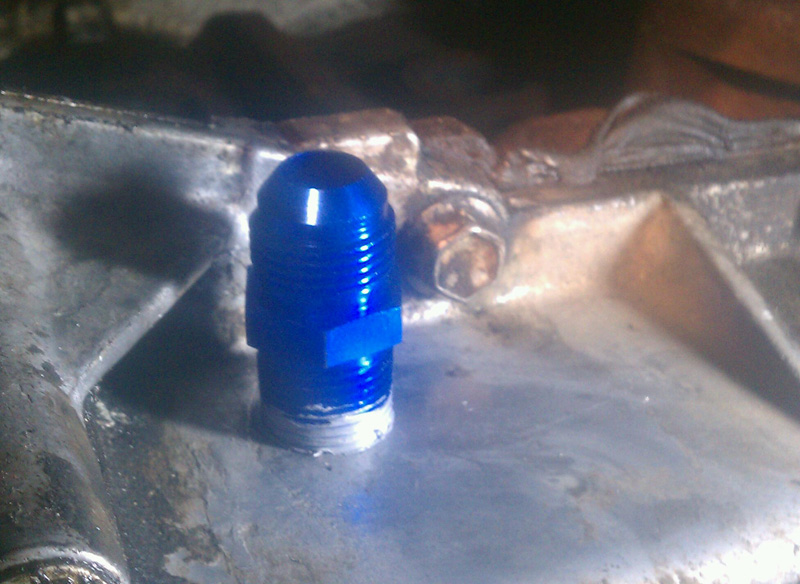

    Completed oil drain fitting. (1/2 NPT to -10)
    [​IMG]

    I'm also compiling a nice clean PDF file with all part numbers, quantities, and prices

    Last edited: May 25, 2014
  7. yotaslave

    yotaslave

    Messages:
    221
    Likes Received:
    0
    Joined:
    Oct 12, 2010
    Location:
    South Texas
    I'm interested to see how it turns out. How is the quality of the Treadstone manifold?

  8. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    The fit and finish isn't as perfect as oem cast turbo manifolds like a mitsubishi for example, but for being one of the only options on a good off the shelf manifold I'm happy with it.

    I have all my other exhaust parts on my mitsubishi Swain coated so I will be sending off the manifold and the turbine housing on monday to get the same white ceramic.

  9. 1973Guppie

    1973Guppie

    Messages:
    9,403
    Media:
    31
    Albums:
    1
    Likes Received:
    944
    Joined:
    Jan 31, 2003
    Location:
    "the whale's vagina", CA
    looking forward to updates......

  10. clownmidget

    clownmidget SILVER Star

    Messages:
    2,431
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    You lost me on the "low budget" the second you went with the $$$$ GT35R...

  11. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    Well I had it laying around so it was a non expense for me. Insert your turbo here, but you should be able find 35Rs for $800 without much issue. They also make non BB versions that can be had for cheaper.

  12. yotaslave

    yotaslave

    Messages:
    221
    Likes Received:
    0
    Joined:
    Oct 12, 2010
    Location:
    South Texas
    Low budget for him...he already had it!

  13. clownmidget

    clownmidget SILVER Star

    Messages:
    2,431
    Likes Received:
    53
    Joined:
    Jul 2, 2003
    Location:
    Trumansburg, New York
    Maybe a used one can be had for under $1K but then you'll be wondering...

    The real deal properly spec'd is going to be closer to $1500 just for that, before you start tossing in blow off valve & plumbing. Not trying to pee in the Cheerios, just to make it clear doing a turbo setup is not really cheap.

  14. Dalew494

    Dalew494

    Messages:
    4
    Likes Received:
    0
    Joined:
    Mar 3, 2013
    this is amazing, please keep this updated, im in the middle of doing the exact same build and having a few slight problems

  15. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    Well, knowledge and resources are key to finding a good, used, reliable turbo. Similar to this website, there are others that I am on geared more towards performance and these parts are traded at a much lower cost and much more frequently.

    I bought my GT35R with Tial 38 wastegate, cast treadstone (mitsubishi) T3 manifold, with a T3 turbine housing for $1200 shipped. It had to be basically brand new or used for under a few thousand miles. A lot of times guys will buy these things to mock up to their engines or run them for a brief period of time before parting out, blowing up, or upgrading to something else. That's the mitsubishi world for you.

    That was back in 2007 and the turbo has lasted since then on up to 45psi on my other car. I put down 640awhp which is approximately 750-760hp at the engine and then upgraded to another turbo.

    Back on topic, I guess the word budget is up to your own opinions, but in this case it means being able to do the project yourself in a weekend or two with the ability to source all your own parts versus buying an off the shelf kit for 3-$5000 and not really knowing what you are receiving.

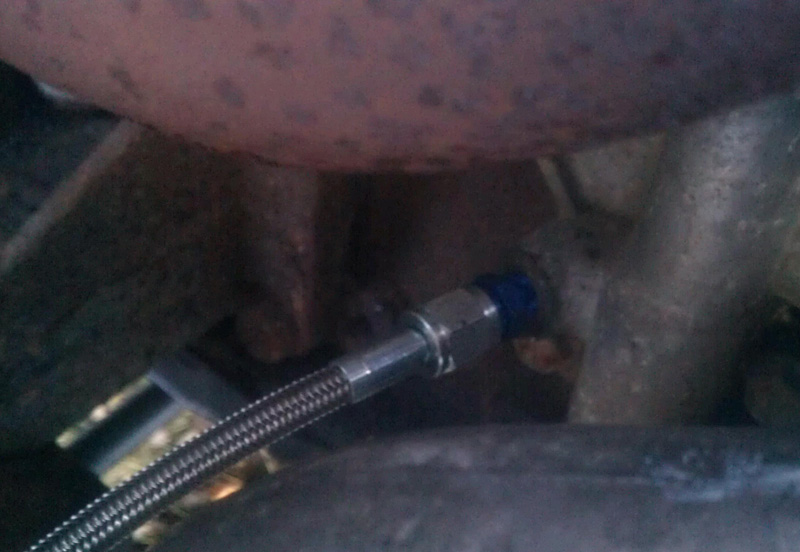

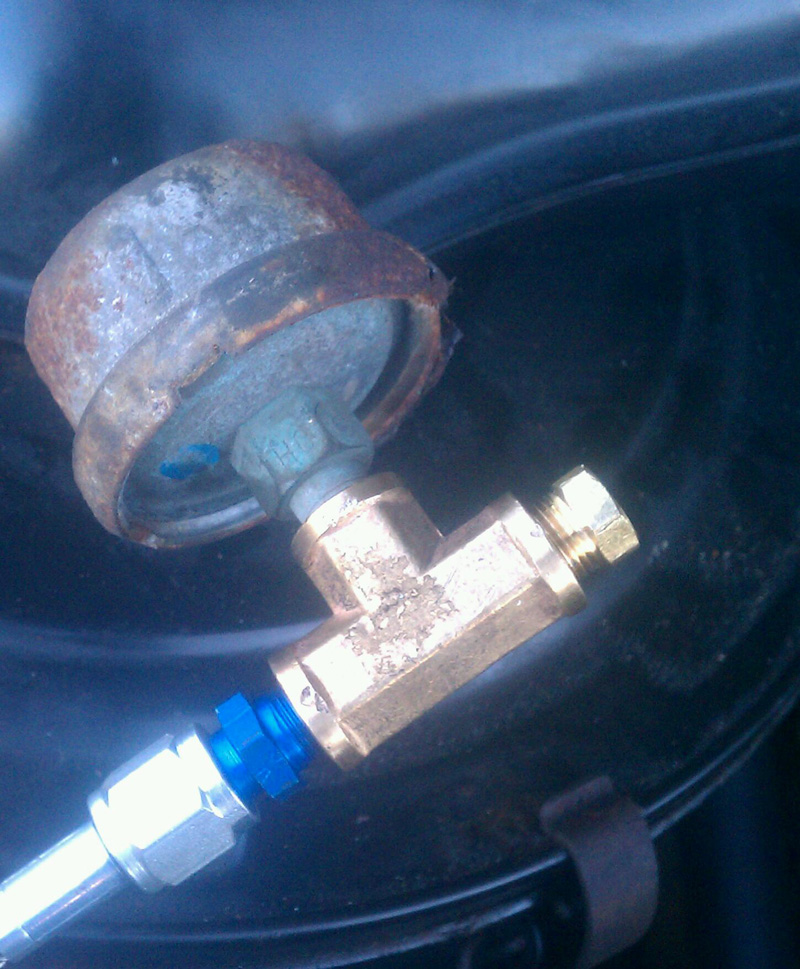

    Here is a picture of the new oil sending unit setup and original oil sender port on the engine:
    [​IMG]
    [​IMG]

    The capped outlet on the T goes to a -4 inline oil filter from Forced Performance (I will never run another turbo without it) and then to the turbo.
    Filter: http://store.forcedperformance.net/...de=FP&Product_Code=FP4ANFilter&Category_Code=

    I just placed the last order of parts and send the turbine housing and manifold off to Swain Tech to be coated. They should be back in my hands within three weeks or so. Then I'm off to Indy to install the kit over a weekend.

    Last edited: May 25, 2014
  16. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA

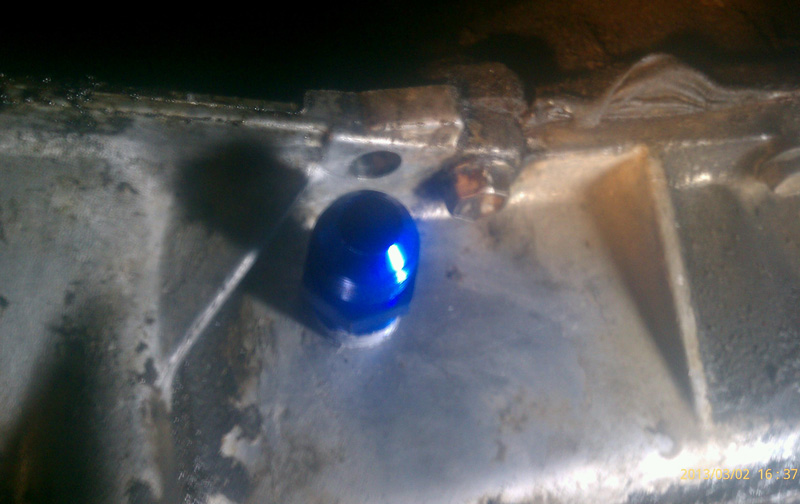

    Here is a better picture of the oil drain location. Currently it's capped off with a -10 cap so the truck can still be driven as-is.

    [​IMG]

    Last edited: May 25, 2014
  17. Duiser Offroad

    Duiser Offroad

    Messages:
    1,389
    Likes Received:
    110
    Joined:
    Jun 29, 2012
    Location:
    Portland, OR
    Keep it coming! People can use whatever turbo they want.:cheers:

  18. Timpanogos Slim

    Timpanogos Slim

    Messages:
    2,181
    Media:
    1
    Likes Received:
    154
    Joined:
    Sep 19, 2012
    Location:
    Orem, UT
    Ha. If i put a bigger turbo on my GTI can i use the old K03?

  19. lilevo

    lilevo

    Messages:
    618
    Likes Received:
    17
    Joined:
    Sep 15, 2008
    Location:
    53402, Racine, WI and 92111 San Diego, CA
    As a paperweight

  20. Timpanogos Slim

    Timpanogos Slim

    Messages:
    2,181
    Media:
    1
    Likes Received:
    154
    Joined:
    Sep 19, 2012
    Location:
    Orem, UT
    McMaster sells "metric Medium-Strength Alloy Steel Threaded Studs and Rods—ASTM A193 Grade B7" in m10x1.25, plain 4140 alloy steel, 300mm length for $30.

    Also "low strength" "class 4.6 plain steel" m10x1.25 in 40mm, 50mm, 60mm, 300mm, and 1M lengths.
