destins 1964 fj40 FST restore thread

[a.greenspan]

If it`s really necessary an altenator or starter or ... can be repaired
yellow pages portland
Portland Alternators & Generators Automotive | Car Alternators Portland

Chers
Peter

... btw. nice Unimog your neighbour have, he can sell his house and live in the Unimog



[destin]

If it`s really necessary an altenator or starter or ... can be repaired
yellow pages portland
Portland Alternators & Generators Automotive | Car Alternators Portland

Chers
Peter

... btw. nice Unimog your neighbour have, he can sell his house and live in the Unimog

Thanks Peter

ABE elecitrical will be putting in the correct brushes and armature in the generator That unimog is awesome !

love that thing



[waiting for time]

... btw. nice Unimog your neighbour have, he can sell his house and live in the Unimog

I thought it was his house he was moving.



[destin]

I thought it was his house he was moving.

hehe



[destin]

ok did some serious reading in the electrical seciton of the FSM, took a few photos of my fuese box, and figured out the color code key

Seems like alot of my wires are not hooked up correct at the box!!!!

in my case, the red wire on the bottom side of the box is the wire from the voltage regulator btw

Should i rehook up the wires according to the FSM ( after installing fusible link to the starter )

what you guys think?

Looks like it is hooked up all jacked, suprised anything works haha ( i hooked it up back the way the PO had it hooked up when i dissasembled it )

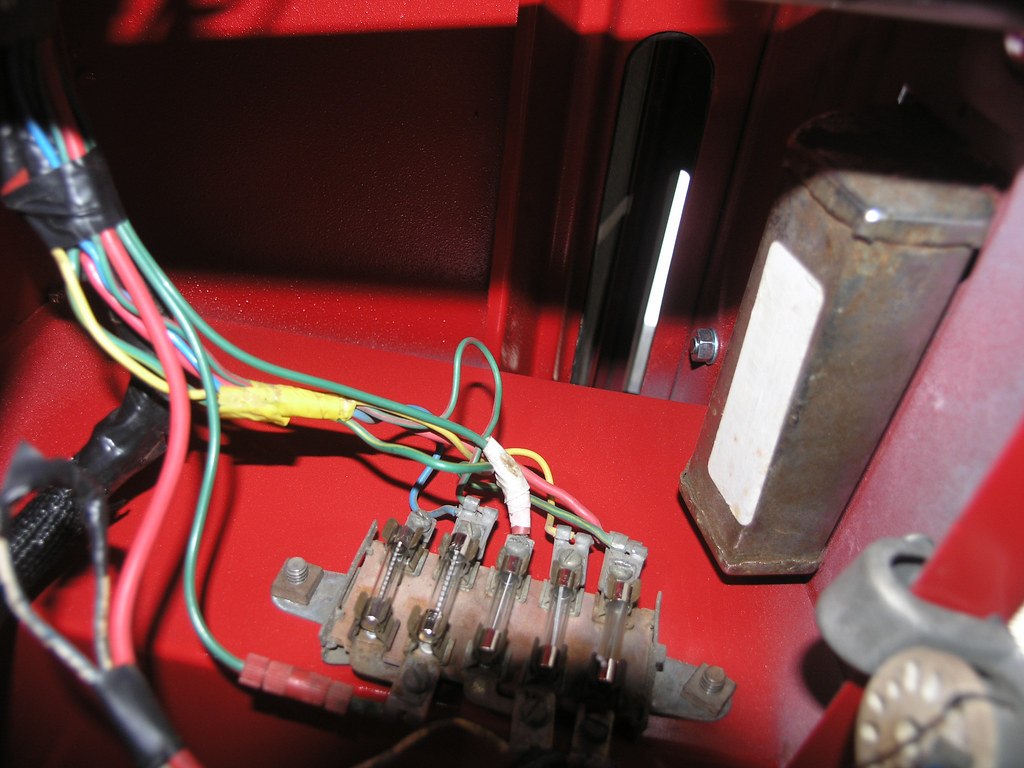

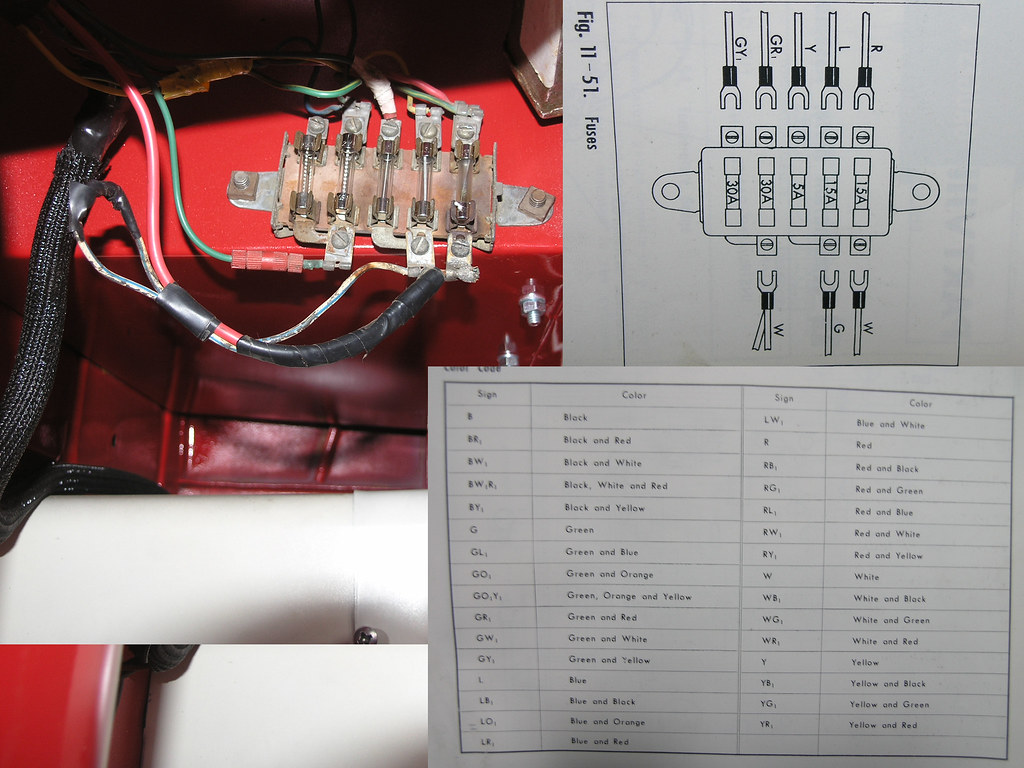

here is the photo with my fuse box, FSM fuse box with color codes for 1964 fj40 FST and the wire color codes:

larger image here:

All sizes | WIRING.jpg | Flickr - Photo Sharing!@@AMEPARAM@@http://farm6.static.flickr.com/5121/5313272510_e6e2ce08c5_m.jpg@@AMEPARAM@@5313272510@@AMEPARAM@@e6e2ce08c5

here is a better photo of the top side of the fuse box and the color of wires



[waiting for time]

Don't assume the wire's have the same function/color as original, you'll have to check on the other side if they have their original function.



[destin]

Don't assume the wire's have the same function/color as original, you'll have to check on the other side if they have their original function.

hehe yeah, i poked around and looked where they connected into the harness.
Some weird stuff going on for sure

I did three things before i pulled the fusebox and sorted that

1) placed a fusible link between the starter and the white wire for the wiring harness

2) put new positive battery cable, dielectric grease to protect

3) new ground cable with dielectric grease, checked all other grounds and secured

I then pulled the fuse box and cleaned it up with a soft brass brush.

i Checked and reconnected the wires as the FSM show based on wire color codes

Started it up and everything runs great.
I can now have the wipers, heater, lights and turn signals all on at once at an idle, and the turn signals still blink

That being said I think i need to look into the generator and make sure the brushes and armature are correct so my battery keeps charging.

I will take some photos in a few seconds, just enjoying some hot coffee, it is fawking cold out there

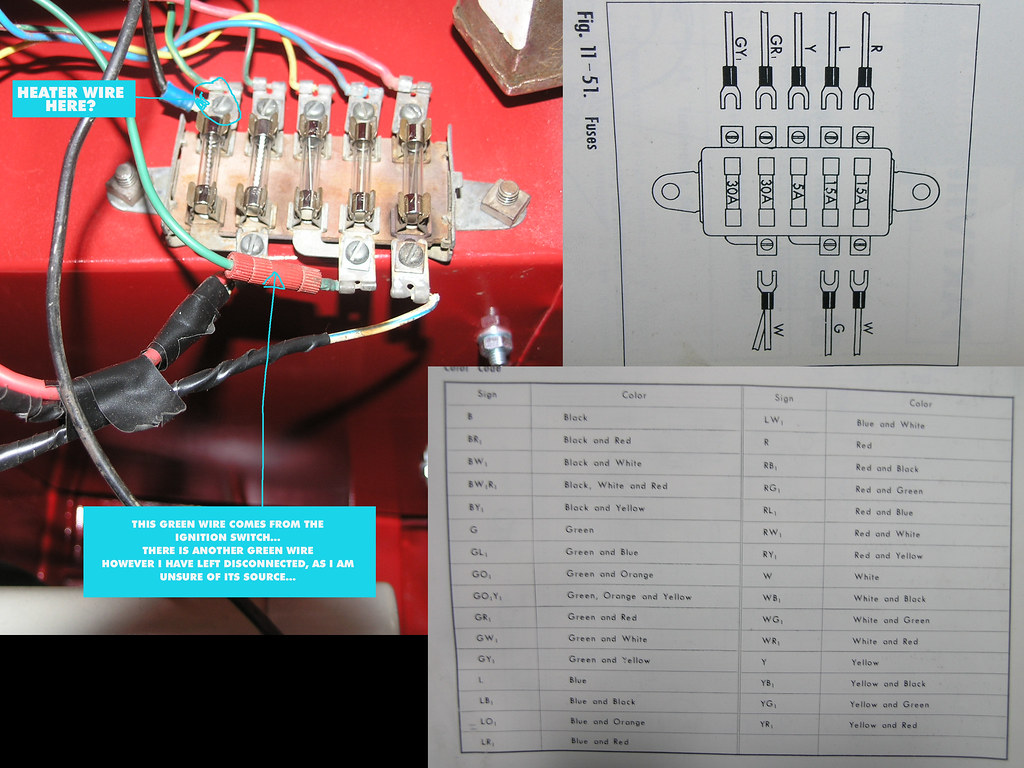

ok Here is the new wire image, wired with the same colors as the FSM...

could any of you answer the 2 questions in the image?

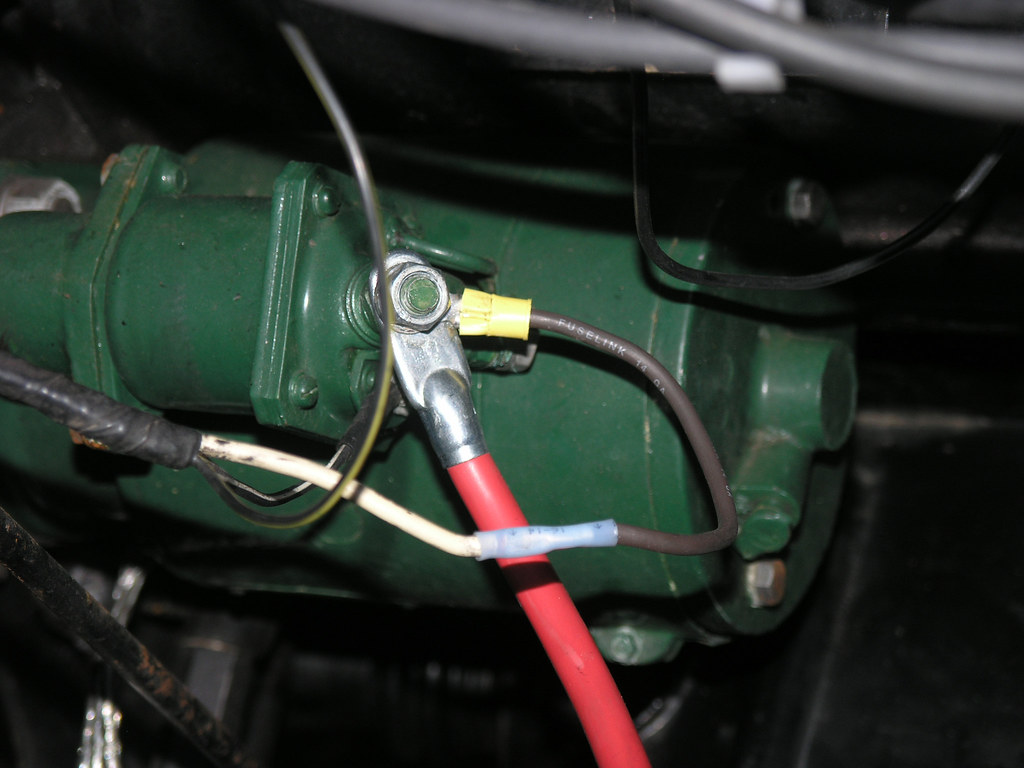

here is the photo of the fusible link



[destin]

Map light question


I was able to get one of those hard to find under the dash map; lightd a while back, and had a question about wiring...

The wiring diagram shows the map light connected to the ignition switch... but i am wondering, shoudl it be on the accessory connection of the ignition?

Does anyone have one wired?

Thanks guys



[waiting for time]

Map light question


I was able to get one of those hard to find under the dash map; lightd a while back, and had a question about wiring...

The wiring diagram shows the map light connected to the ignition switch... but i am wondering, shoudl it be on the accessory connection of the ignition?

Does anyone have one wired?

Thanks guys

On later cars it would be on acc or permanent power. It makes sence to put it on acc. makes it more usable.



[destin]

On later cars it would be on acc or permanent power. It makes sence to put it on acc. makes it more usable.

Perfect, thanks man



[destin]

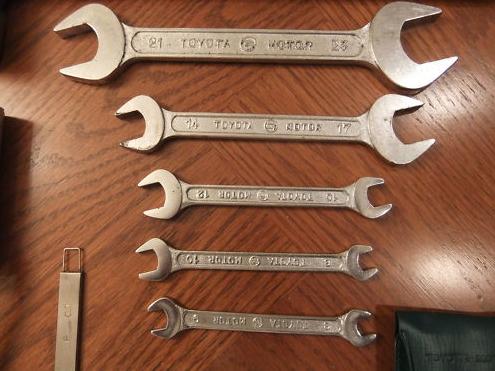

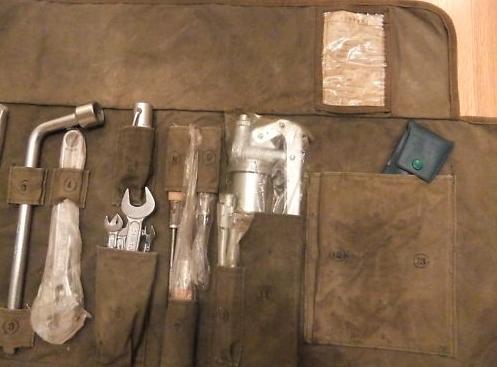

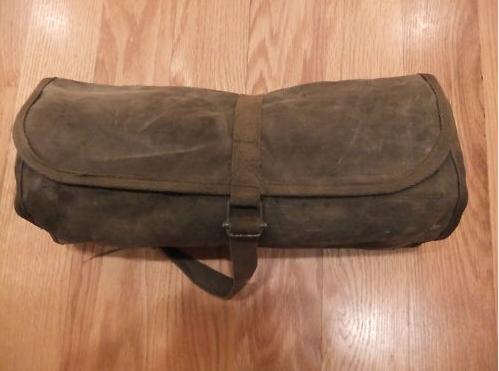

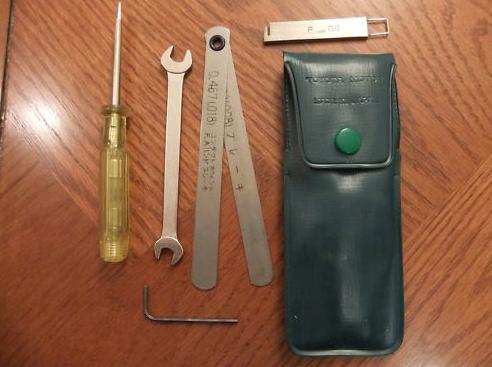

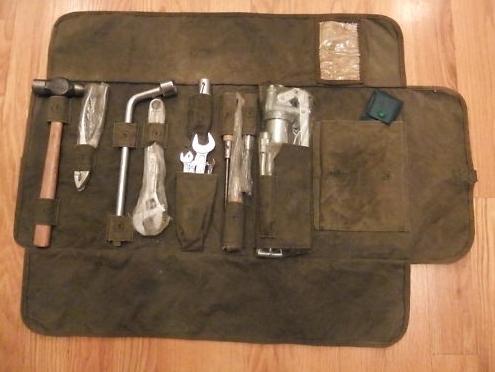

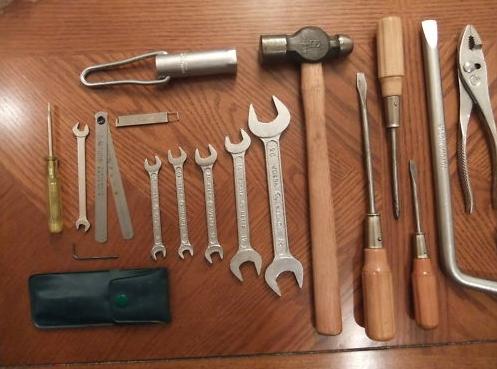

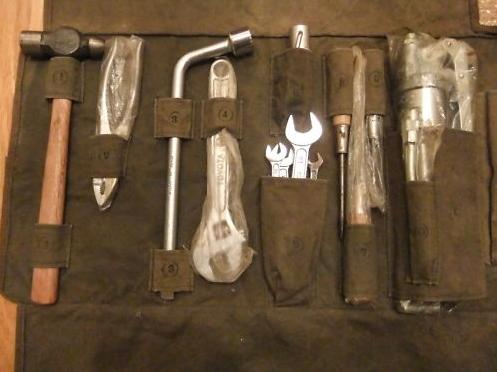

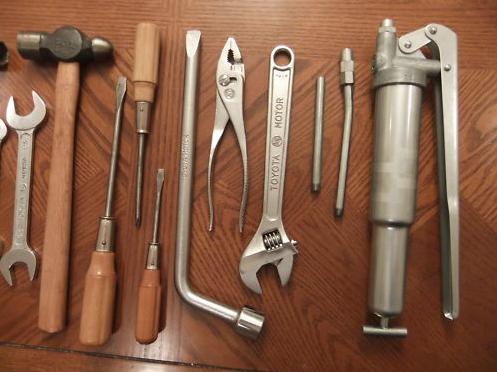

a late christmas present ( early b-day present she tells me as well ) from the wife

I will take some better photos when it gets here



[waiting for time]

That is a great present, good to see your shares your enthousiasm. Nice.

How are the plans for moving, still happening or did you decide to stay.



[destin]

That is a great present, good to see your shares your enthousiasm. Nice.

How are the plans for moving, still happening or did you decide to stay.

Thanks man

I am super stoked about the toolkit

Looks like we are staying in portland which i am happy about

The wifey is interviewing at a few jobs in town



[Falco80]

You've got a good woman there! I'd love to have an old Toyota toolkit. That one looks great. Some detailed close-up pics, when you can, would sure be appreciated here i'm sure.



[a.greenspan]

The wifey is interviewing at a few jobs in town

....
...maybe she can open her own shop for old school Toyota accessory.
Posac
The Portland old school accessory company
Cheers
Peter



[My wife said no FJ!]

Very cool Destin!



[CarmMontana]

Nice Destin, you have to love a wife who shares your love for the Yota.



[CarmMontana]

Nice Destin, you have to love a wife who shares your love for the Yota.



[destin]

Thanks guys

I will take some super high res photos when it arrives

Super stoked!



[whitey45]

Thats awesome Destin,talk about the final touch on a killer resto.Looks familier,but yours looks unused! Another just popped up on ebay today!!
