How much did you end up cutting off the WFO bracket? Did you use the redneck tabs and then just shorten then for the other end? I really like the hose routing bracket!My friend Ron @Road Apple came down last weekend and we did a complete make over on his steering System.

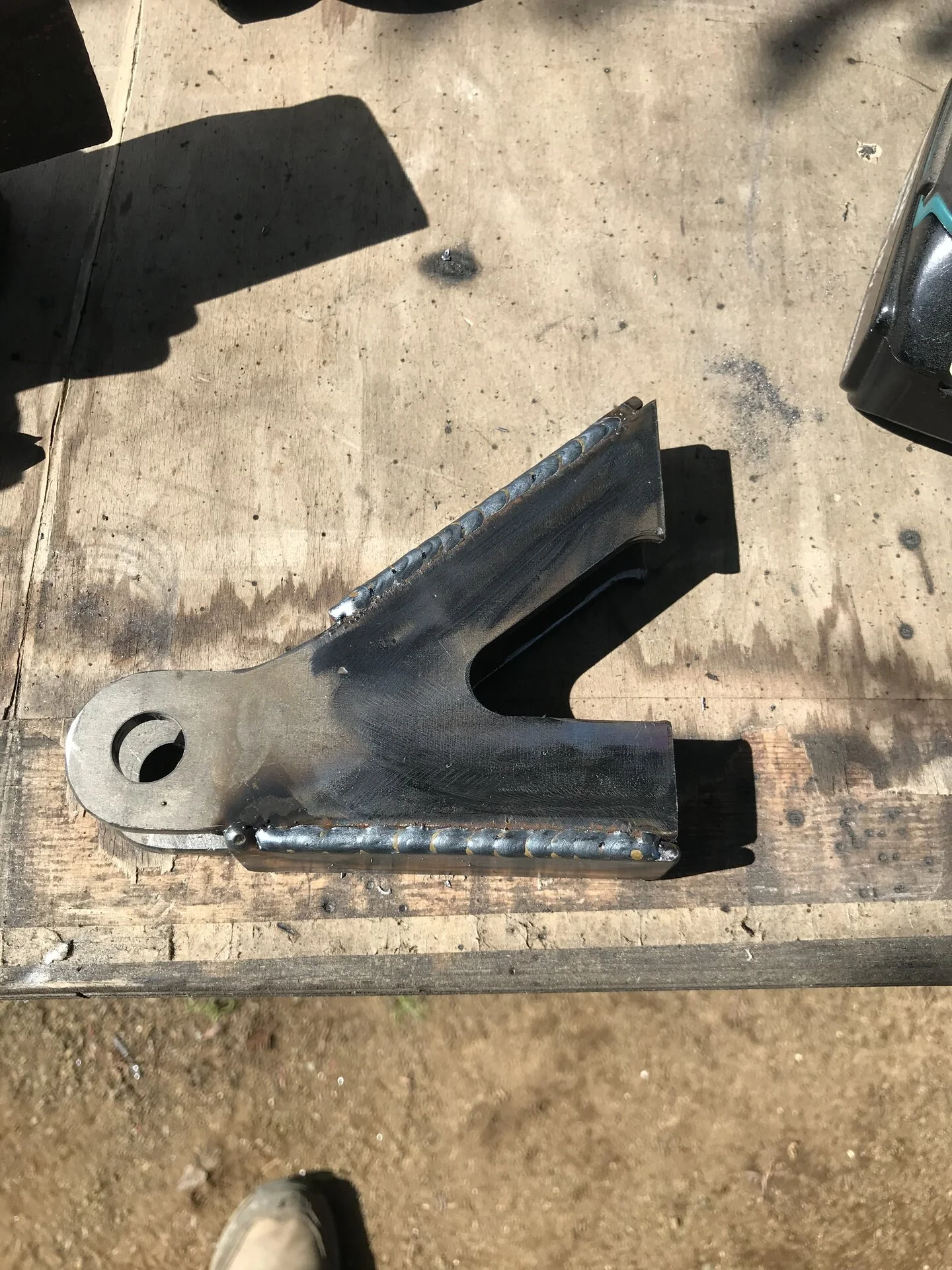

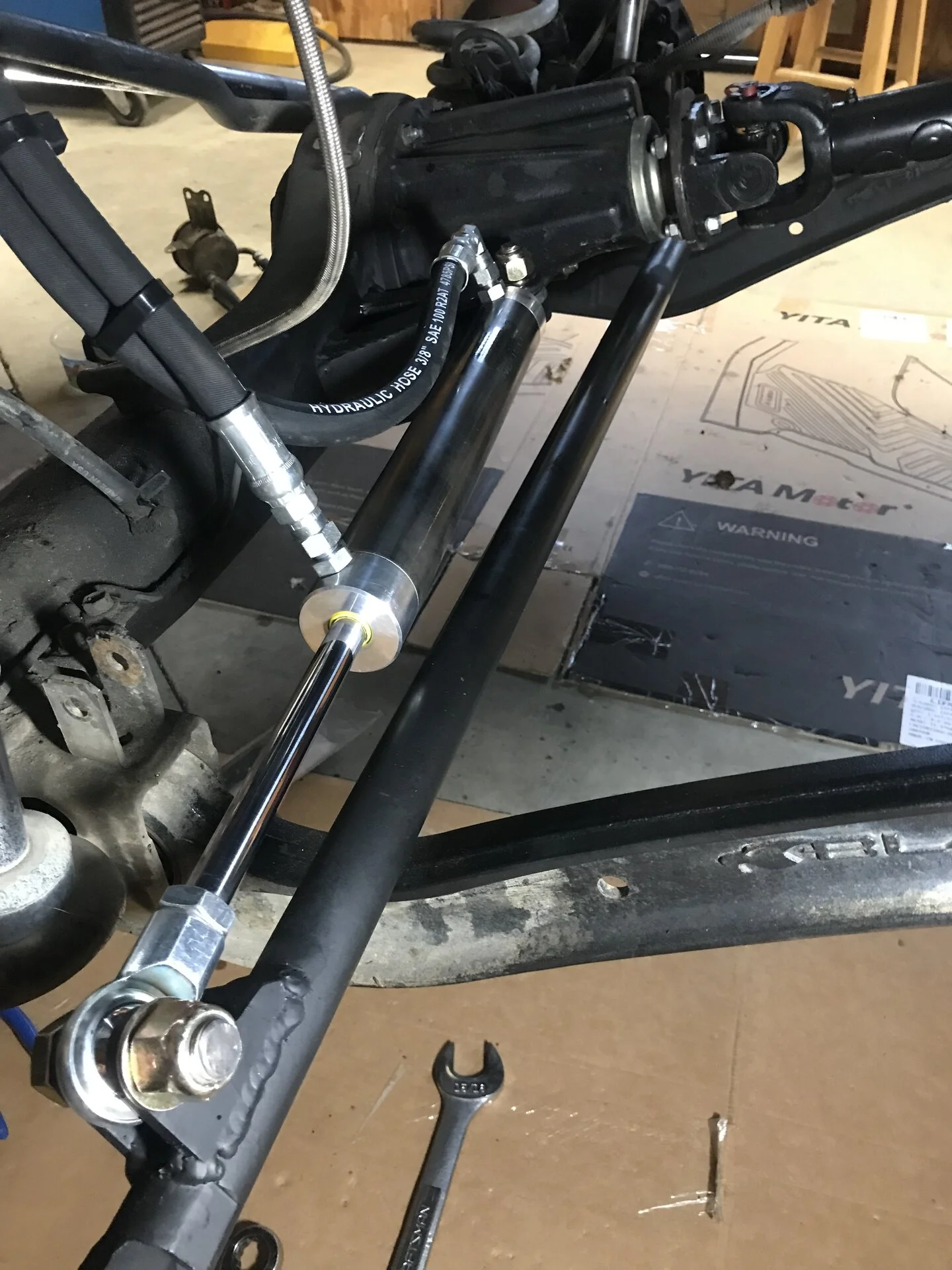

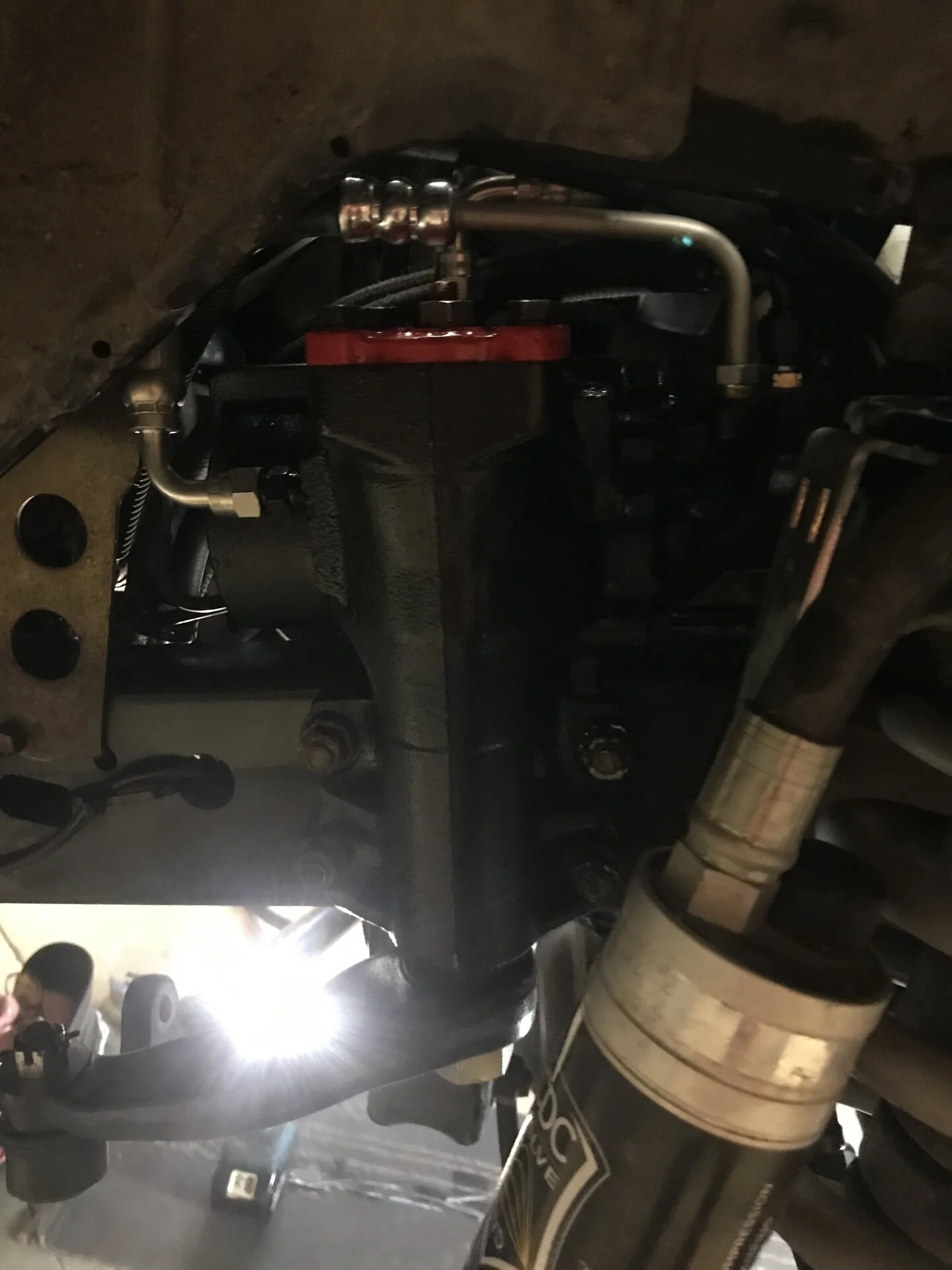

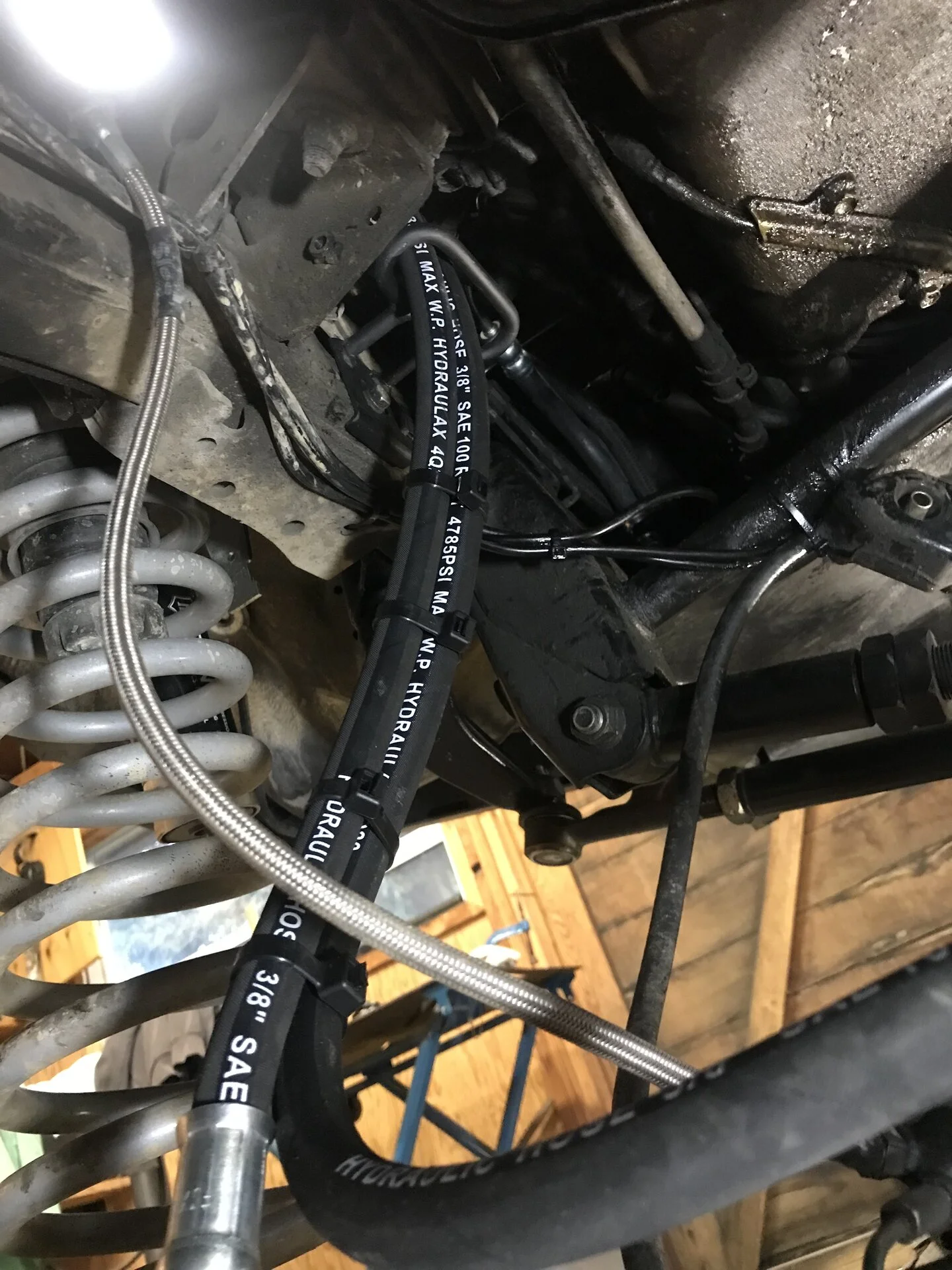

Including hydro assist, newly rebuilt RedHead steering box with a 105 kit, Chase Bay reservoir, 10” ram from RedNeck Ram, Witt’s Ends cooler and all new hoses. View attachment 3281704We made the reservoir mount utilizing the mount off the OEM reservoir. View attachment 3281712Modify the ram mount View attachment 3281715And welded it to the axle. View attachment 3281721View attachment 3281722Tabs were modified and welded to the tie rod. View attachment 3281723Made this to keep the hoses contained and away from the motor. View attachment 3281730Installed the new steering box, oil cooler and all the new holes View attachment 3281733It was a long hard 3 days of work and very dirty, there’s a few oil leaks that need to be tended to so it was a bit more messy under there then under my Reg
I forgot to get pictures of the new oil cooler.
Overall it came out really nice and Ron well be able to turn with the lockers on in the rock of Utah next month at Cruise Moab!!
Can’t wait it going to be Epic!!
Builds Broski's Adventure Rig build thread (7 Viewers)
- Thread starter Broski
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #882
Basically just cut the base off or right to the center opening.
Yes the redneck tab where cut down and notched for clearance at heim joint so that you can run them backwards so they don't extend off the end of the tie rod.
It also helps with clearance at the drivers side shock. It can get really close there tack weld and cycle to check clearance.
For reference the WFO bracket is centered over the weld on the axle housing and a 1/4" from the Diff
Thanks
1) I'm not sure I see or understand what was notched on the tabs? I assume right above the hole, not near the base?
2) was the 90 hose on the top of the box made that way, very long fitting, by request? Is that need? In other the 90s on both hoses look different...is there a clearance issue?
1) I'm not sure I see or understand what was notched on the tabs? I assume right above the hole, not near the base?
2) was the 90 hose on the top of the box made that way, very long fitting, by request? Is that need? In other the 90s on both hoses look different...is there a clearance issue?
Road Apple
SILVER Star
Hi @Noahrob.
Edit. Richard notched tabs where you thought. We just needed about a 1/4” of material removed to make the clearance.
The hydro hose at the top of the box is a standard fitting when ordered from West Texas Offroad. I didn’t ask for anything different for the fittings, but did specify that hoses needed to be 41” and 42” long. The upper 90 at the box is a single crimped fitting. The 90 at the ram is 2 separate fittings to allow for movement and orientation of the line. Richard has been talking about noting the fitting angles in relation to each other and building custom lines with only 1 fitting on the hydro side to reduce the chance of leaks.
Last edited:
- Thread starter
- #885
Also the hose with the long 90* is the high pressure power steering line both the hydro lines are the same and have a small 90*
I cut on the dotted lines
I cut on the dotted lines
- Thread starter
- #886
