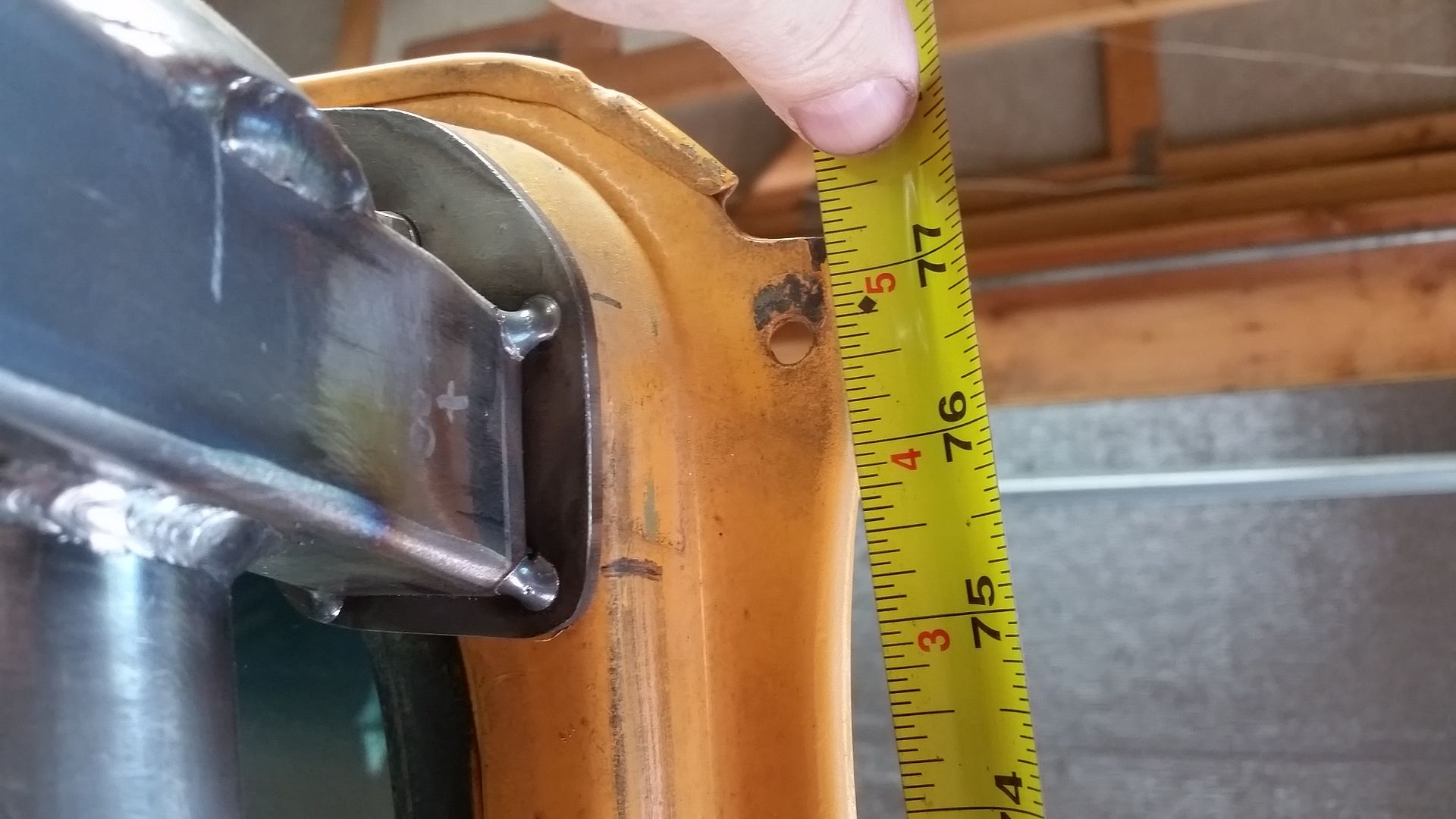

    I haven't got it at 100% final weight yet, but it is about 77" to the hole on the windshield frame.

    [​IMG]

    I 'pulled the hat down' with my top design also. The top really isn't any taller than the windshield frame peak.

  5. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004
    I'm still waiting on parts, but trying to get back in the groove....

    [​IMG]

    [​IMG]

    [​IMG]

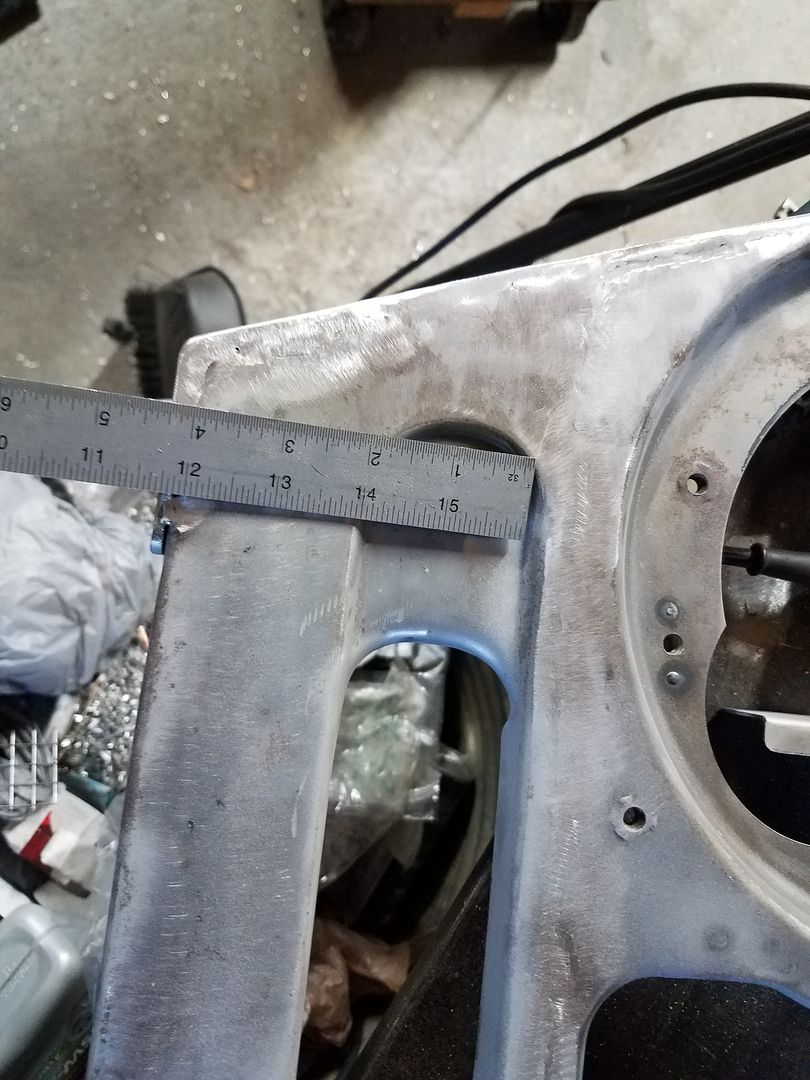

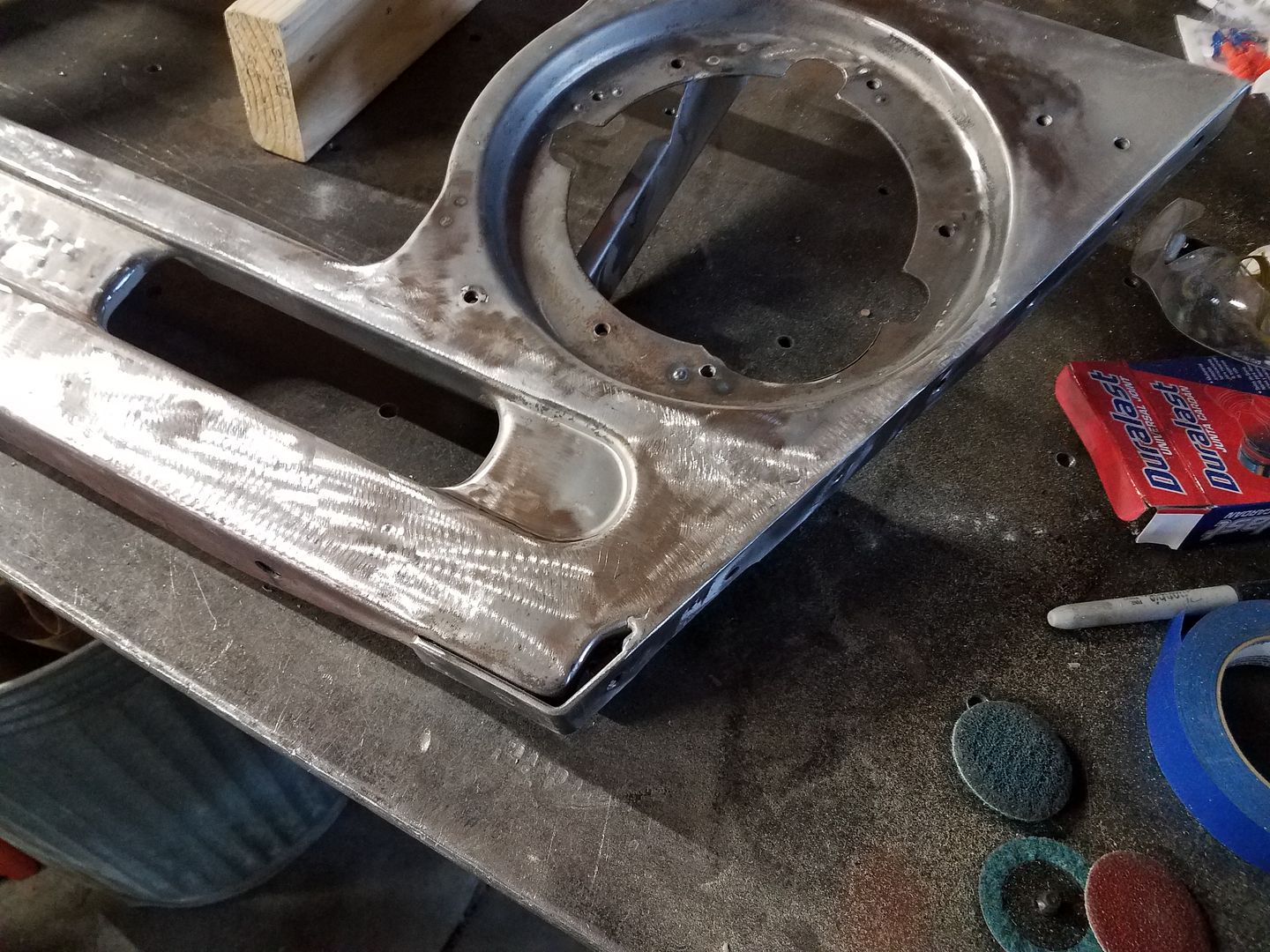

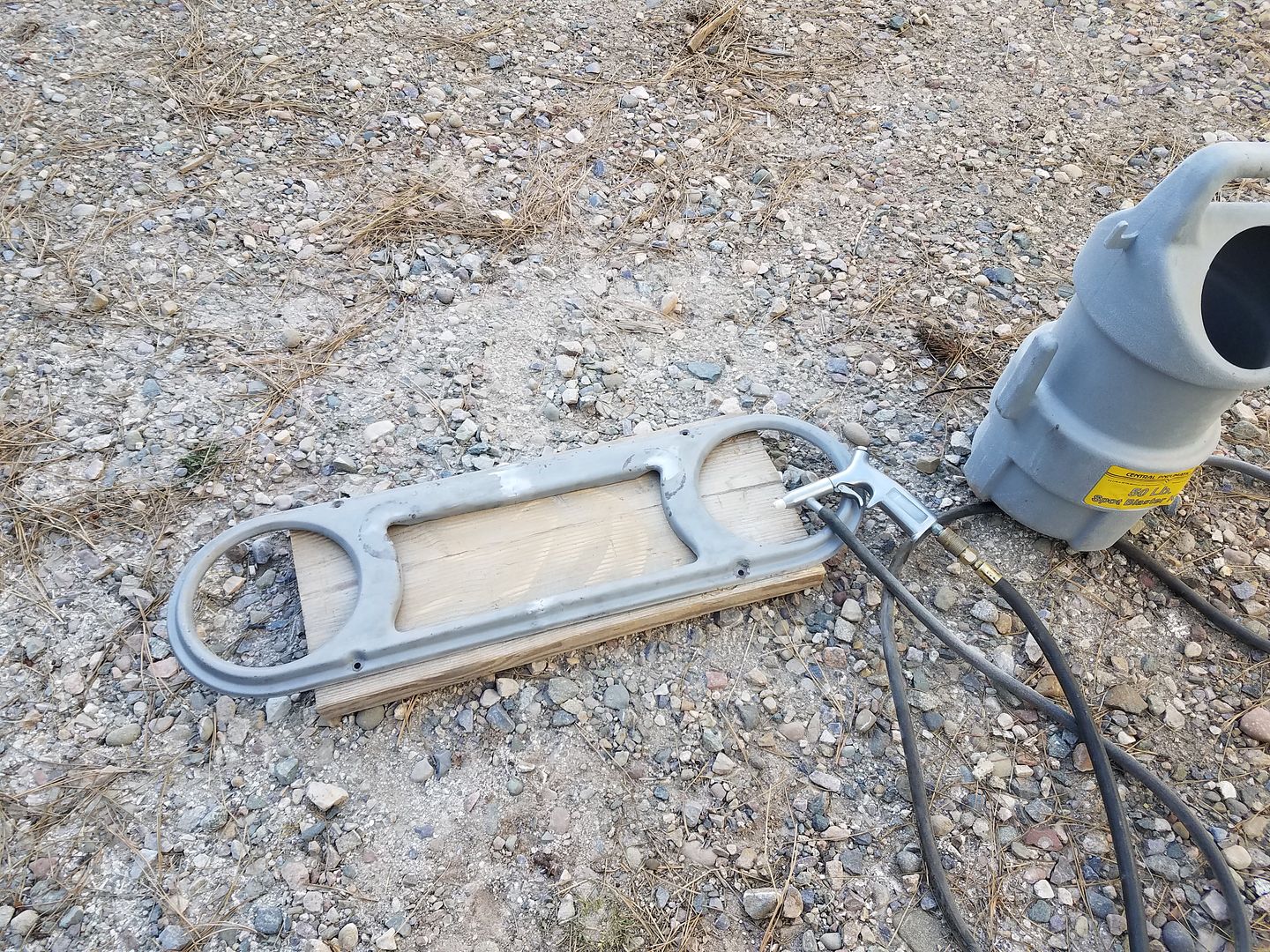

    Baby steps on the #LX45 tonight. I got most of the paint stripped and blasted off the grill shell. Now I am wondering if I should just fill in these little voids in the lower corners? Probably should.....

    abtx4x4, GLTHFJ60 and G-Cat like this.
  6. mudgudgeon

    mudgudgeon

    Messages:
    2,457
    Likes Received:
    1,383
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    Come on! How is this even a question? You know you want to weld something!

    Pacer, fjdiesel and scrapdaddy like this.
  7. scrapdaddy

    scrapdaddy Standing on the corner SILVER Star

    Messages:
    7,386
    Likes Received:
    3,261
    Joined:
    Aug 21, 2011
    Location:
    Dittmer, Mo.
    What I was thinking. :)

    fjdiesel likes this.
  8. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004
    Little catch up....been slacking...

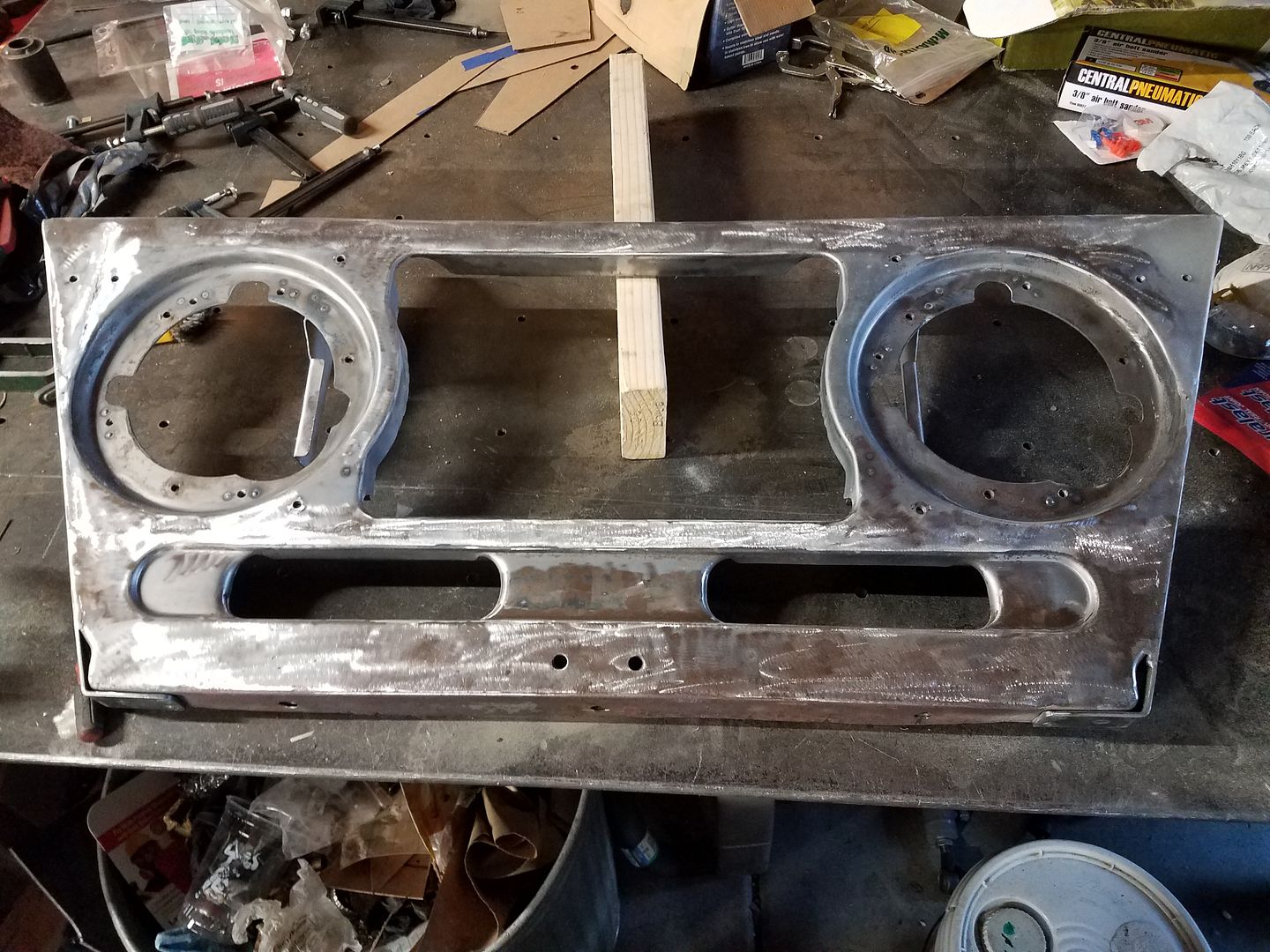

    [​IMG]

    [​IMG]

    [​IMG]

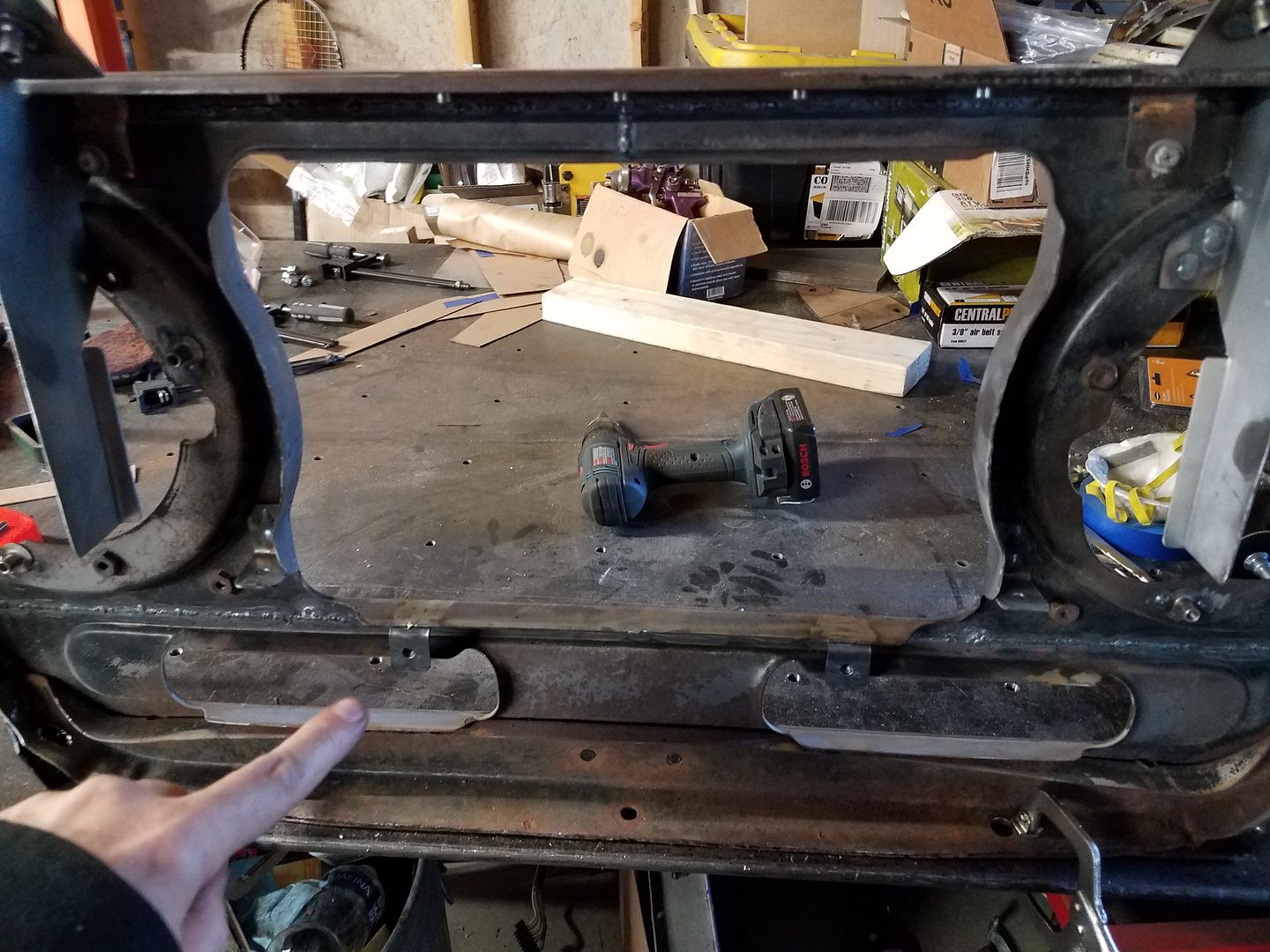

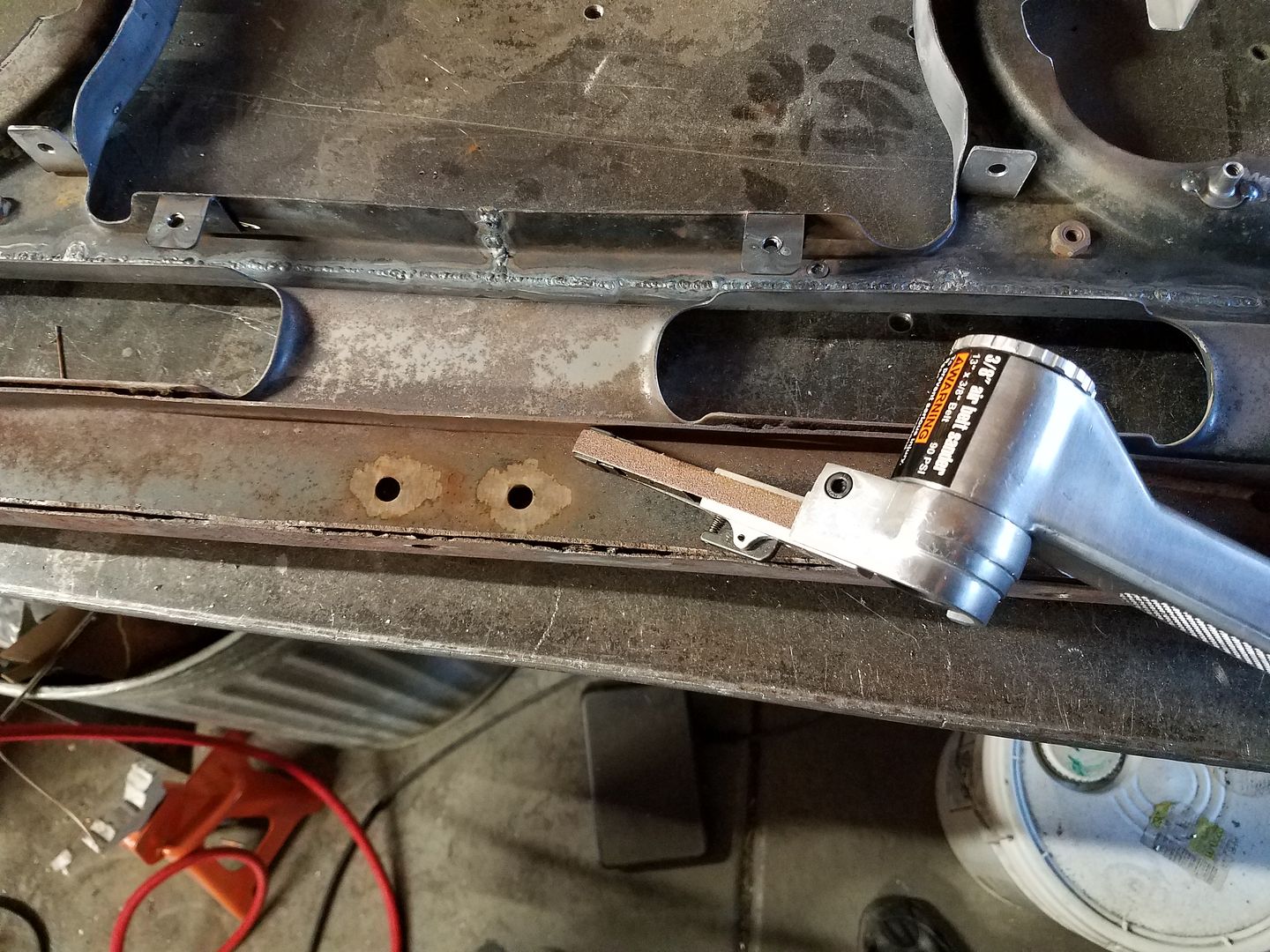

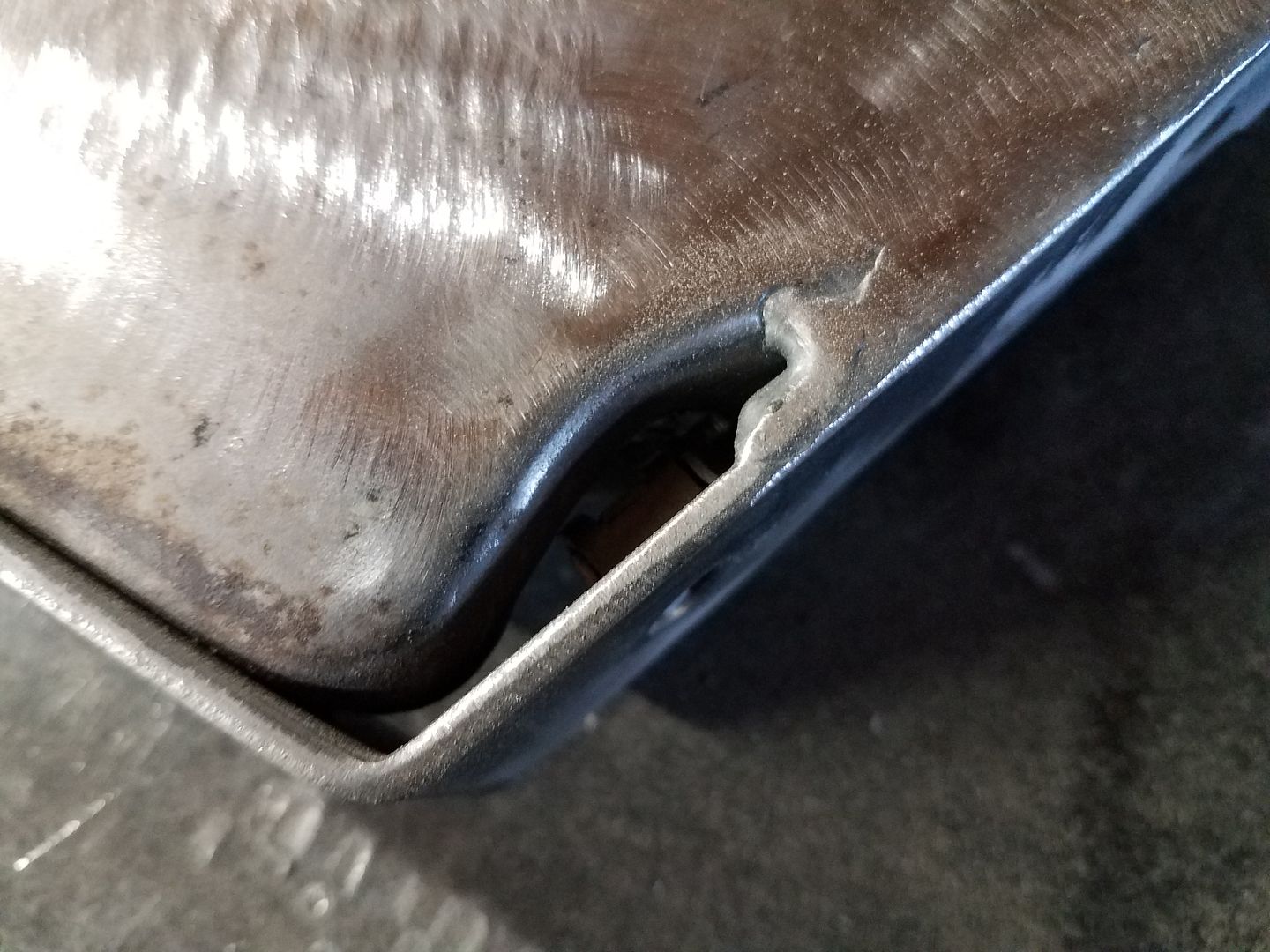

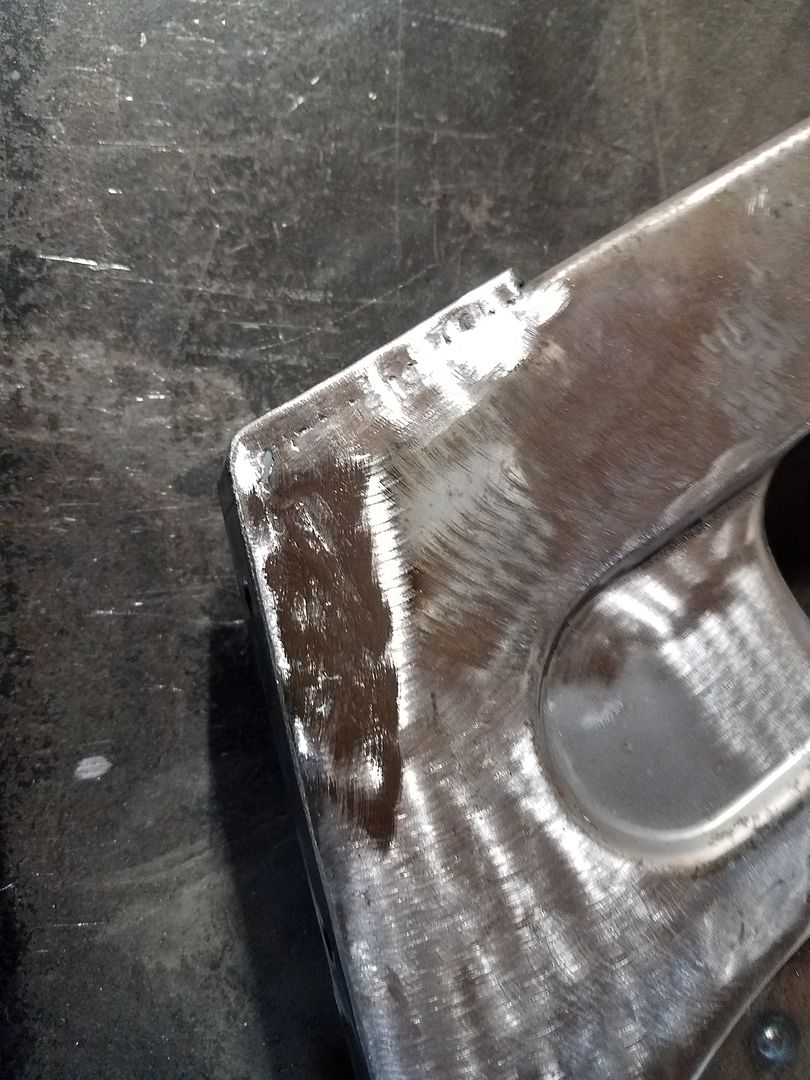

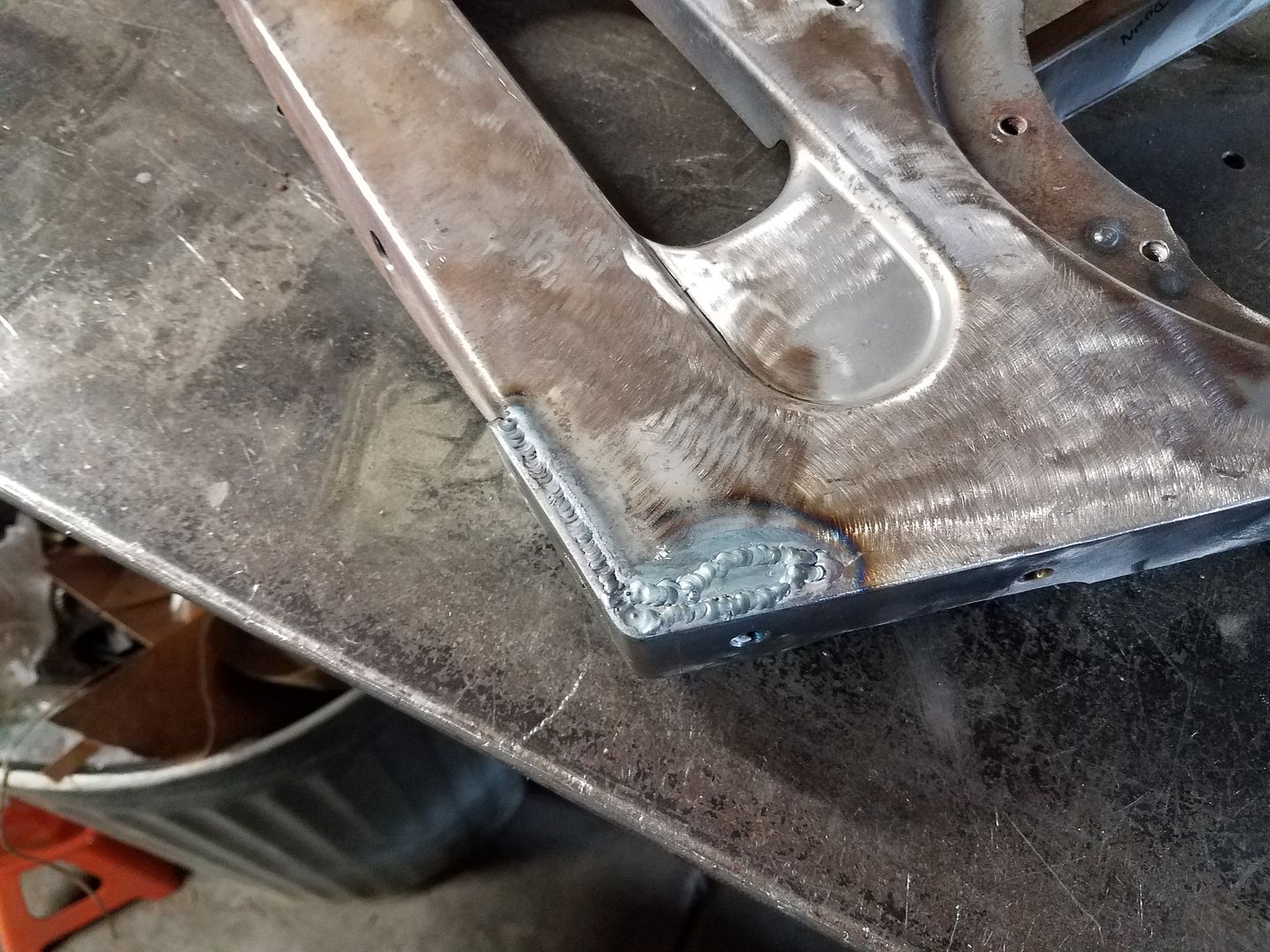

    I ended up patching some small holes in the bottom corners of the grill. They started to allow me and needed to go. It was a pain in the rear but worth it.

    [​IMG]

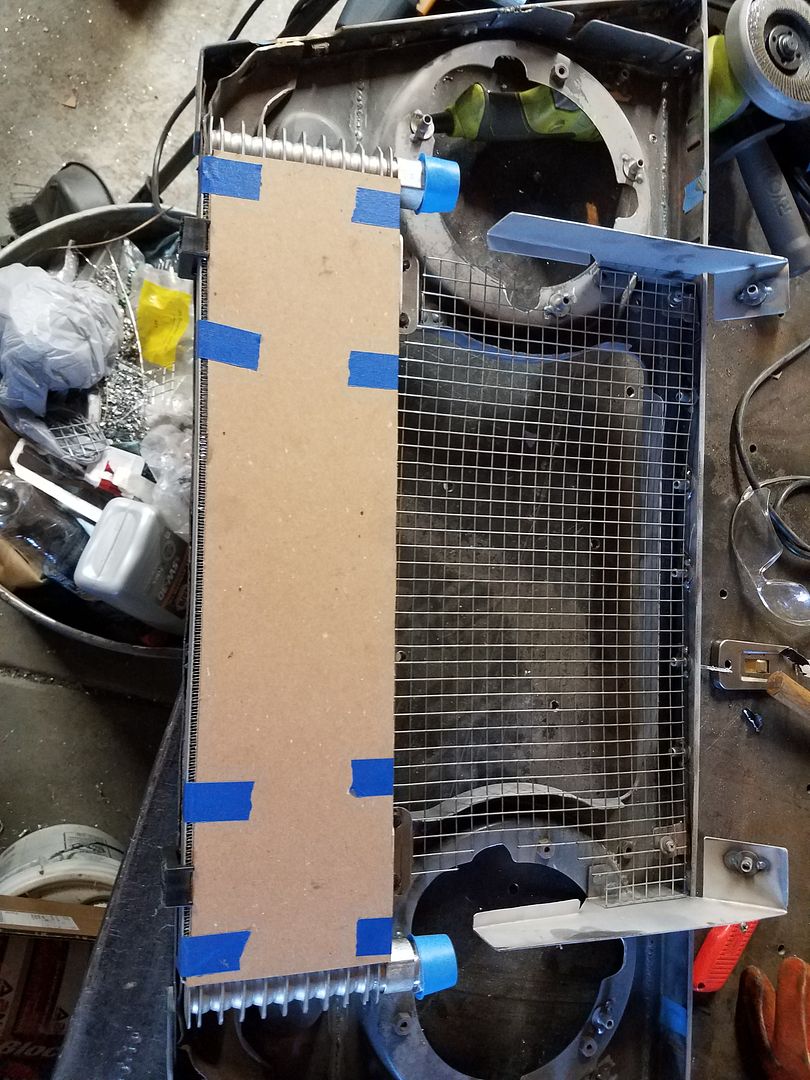

    I also had to add back some tabs to hold the grill screen insert to the botto edge of the main opening.

    Details Details.

  9. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004

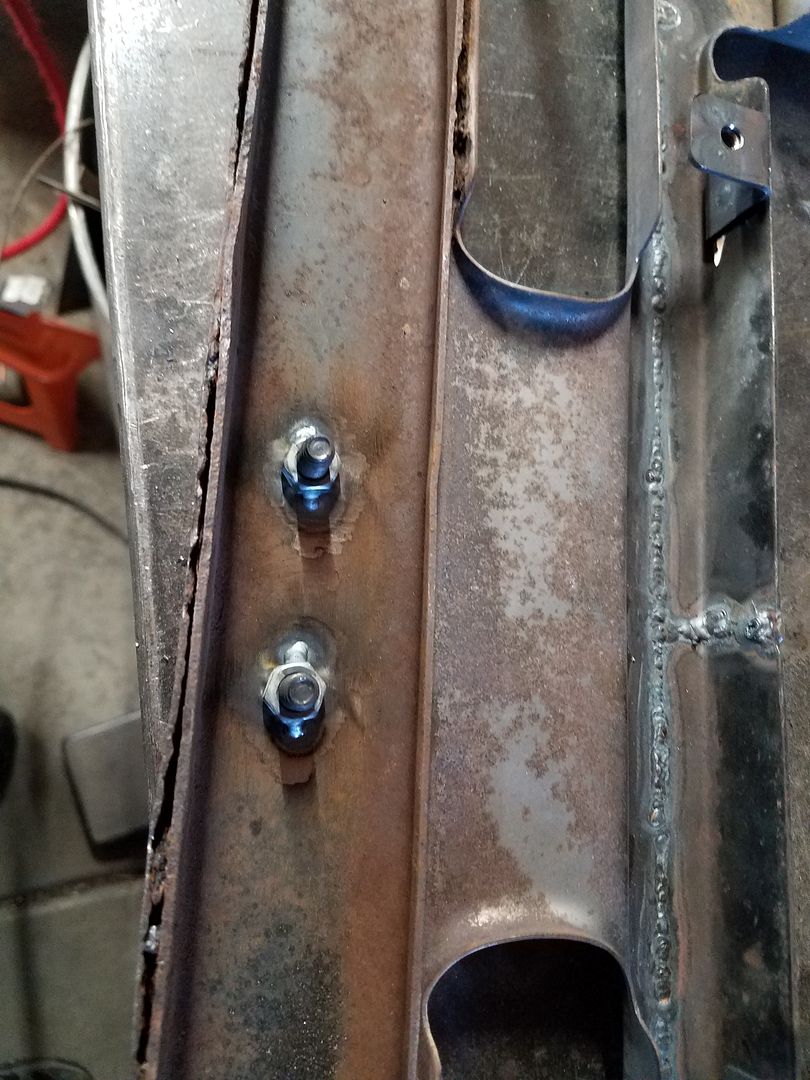

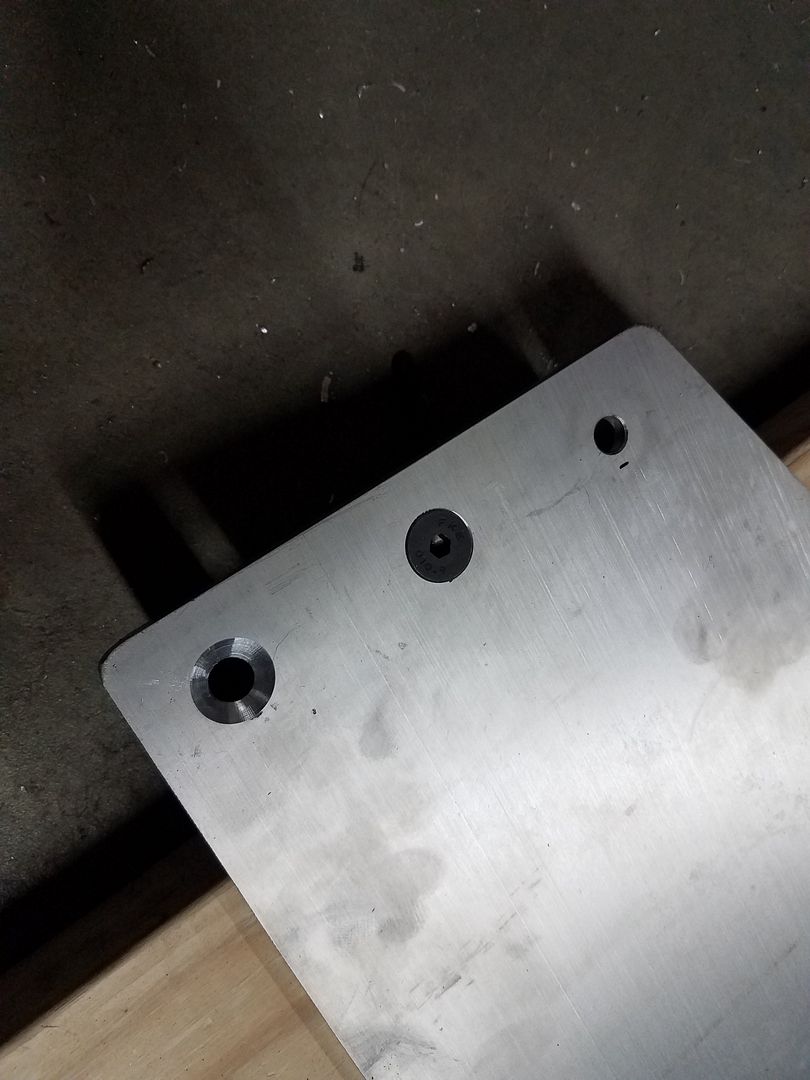

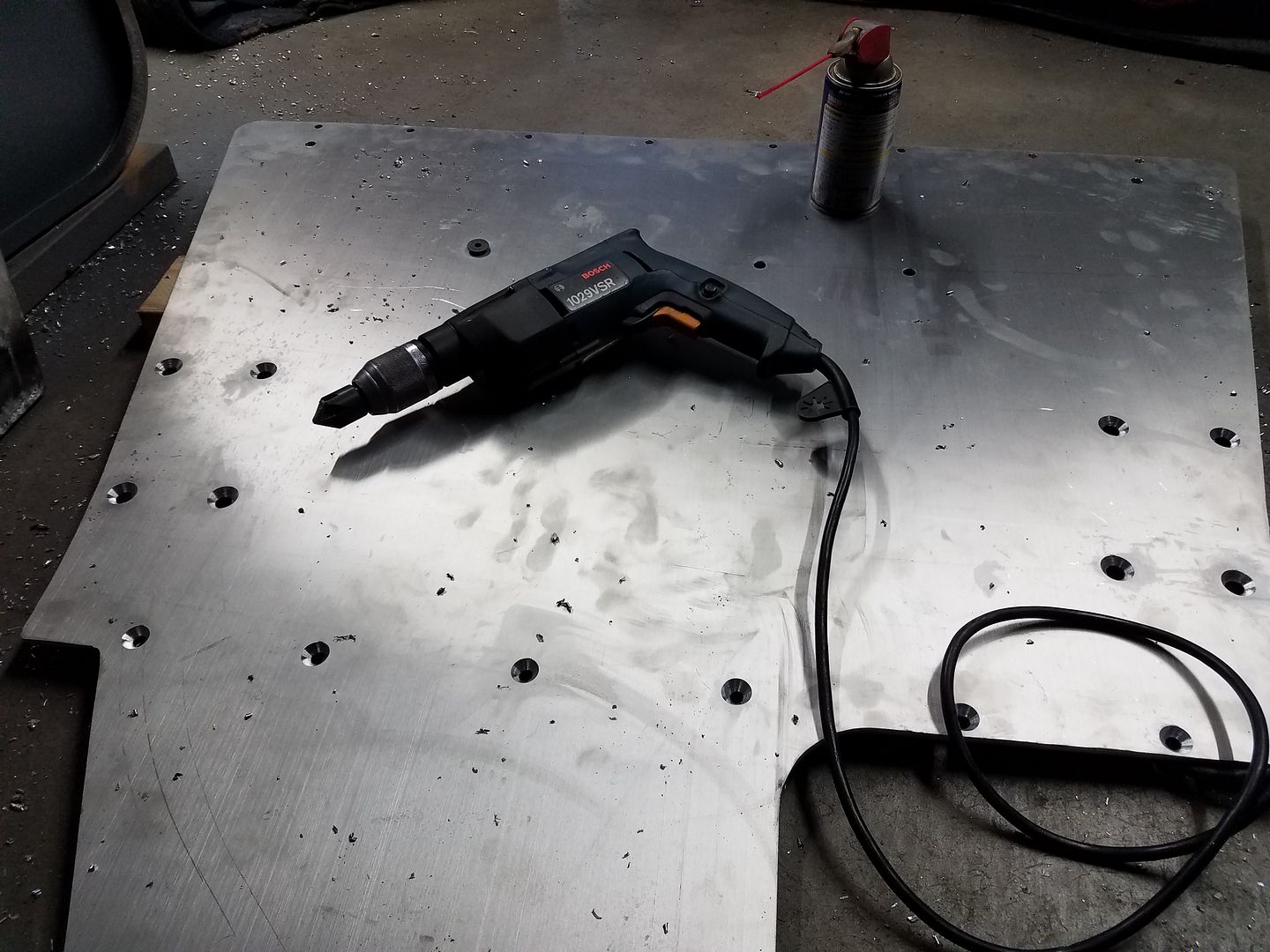

    More small projects on the #LX45 tonight. Added a few blind fasteners to the old lower grill mount holes. The belly pan came out again to get drilled for the support ribs and all the holes where countersunk for tapered heads. I also picked up one of those small belt sanders. That thing is super handy!

    [​IMG]

    [​IMG]

    [​IMG]

    Shop tip. Mark the diameter of the fastener head before you start the countersink. This gives you a good reference point for how far you need to go without having to check it a bunch of times.

    [​IMG]

    More to do tomorrow. The belly pan can then go back in and I will trim/mark/drill/tap the 3/4 square aluminum ribs....

  10. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004
    Flat belly....

    [​IMG]

    I was able to finish up the belly pan tonight. I added the 6061 3/4 square stock ribs to give it some more structure. These where drilled and tapped directly for the fasteners. Everything on the bottom of the belly pan is flush. The pan is light enough that I can pull it off myself without anything but hand tools which is a bonus. I should probably add a drain hole or two.....

    Shop tip.

    [​IMG]

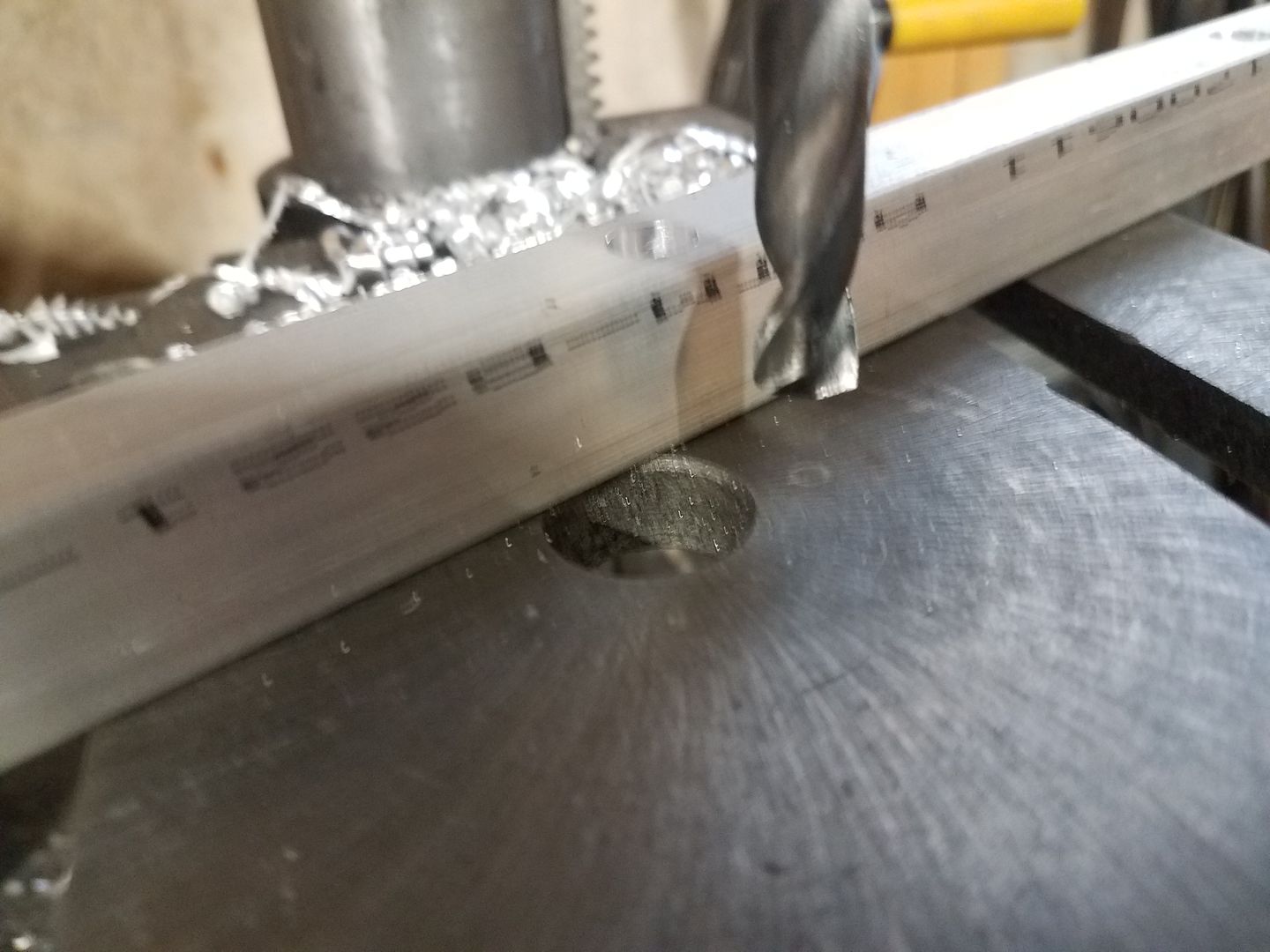

    Poor mans repeatable depth stop for your cheap HF drill press. Bottom the bit out in the top of the chuck. Run the quill down till it bottoms out. Raise the table up till you get the material thickness you need from the bottom surface of the part. I didn't want to tap the entire thickness of the rib so I counterbored the back side till there was only about 5/16 of material for the 8mm impact drill/tap.

    Ronny Grady, GLTHFJ60 and abtx4x4 like this.
  11. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004

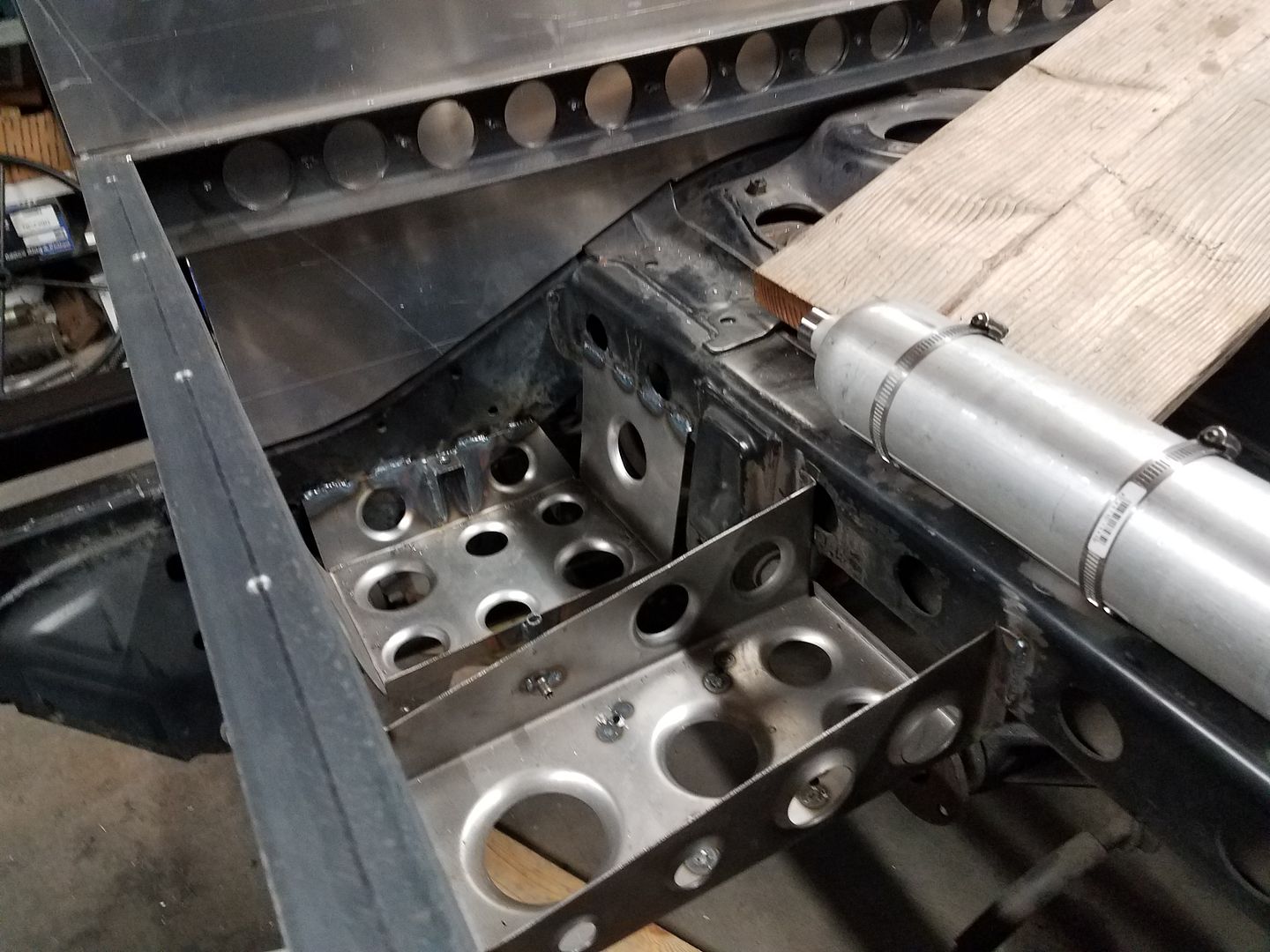

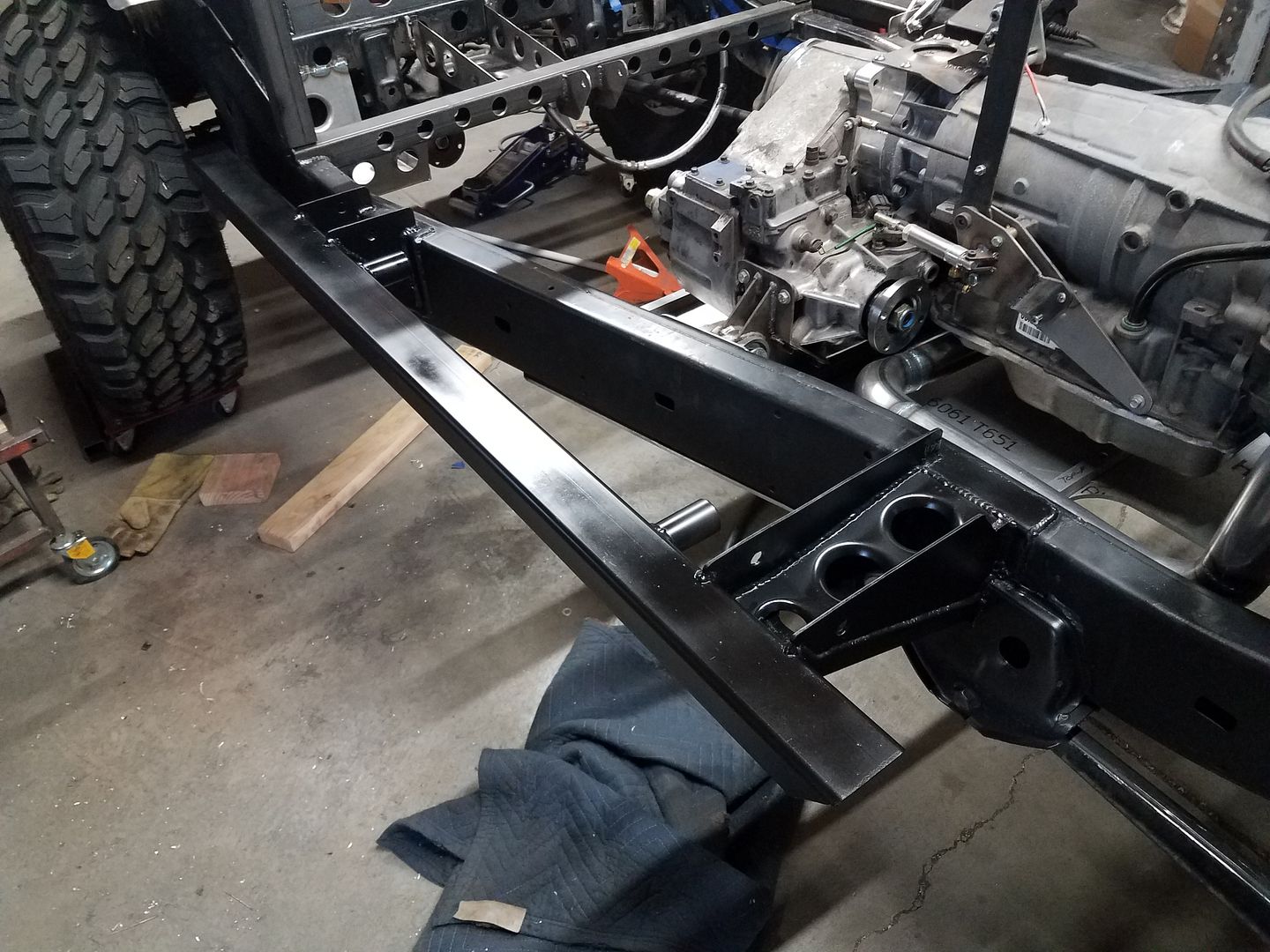

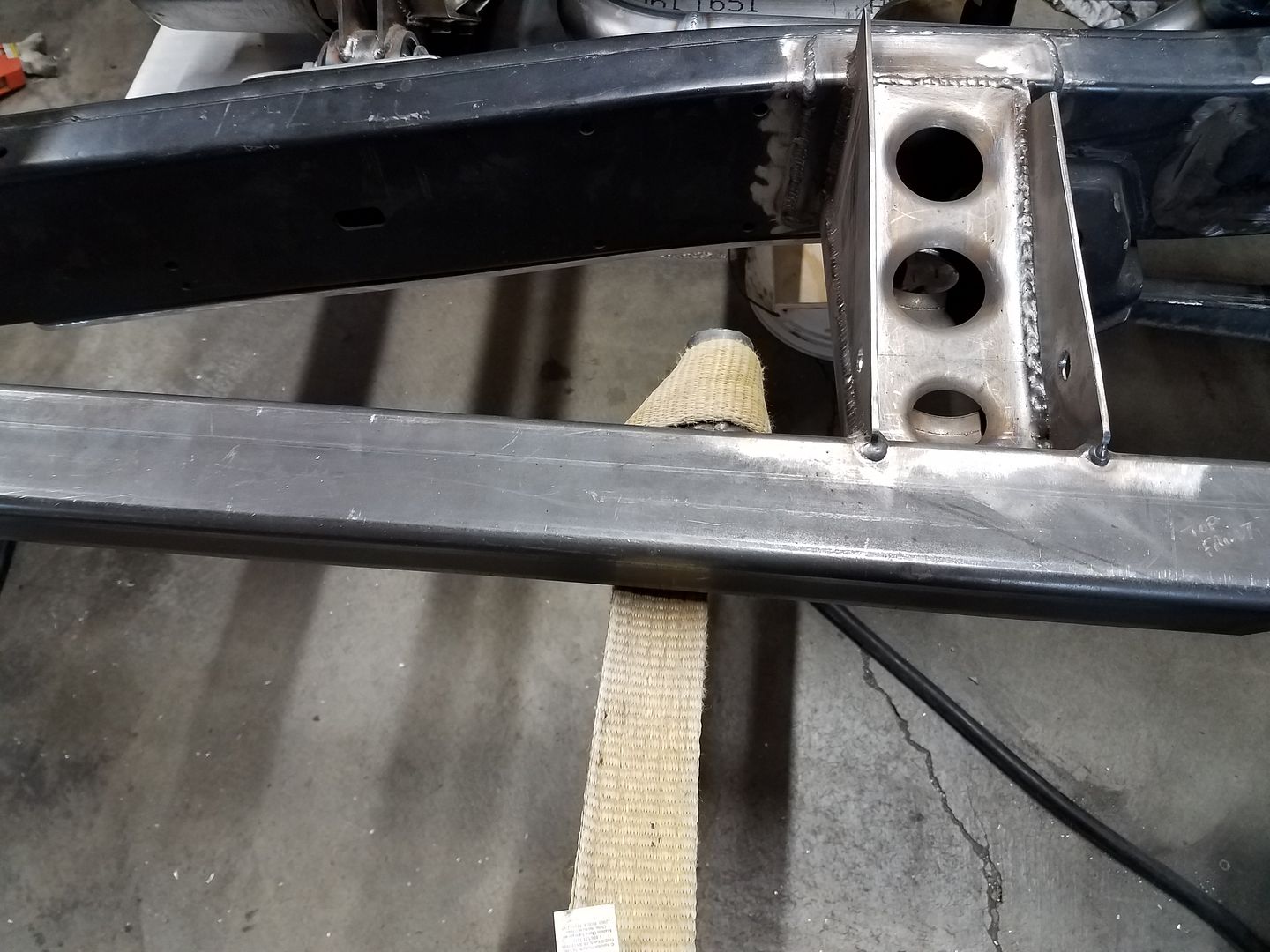

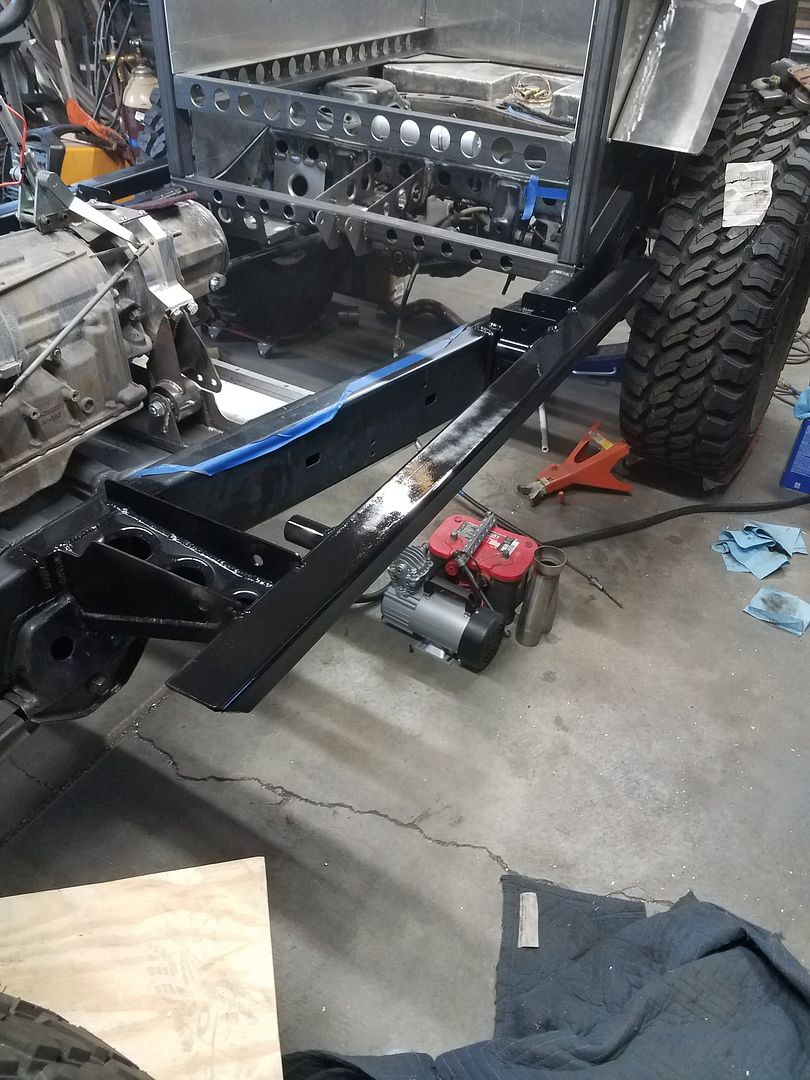

    Trying not to be frustrated with the #LX45 by doing something, anything, to get it done. It looks like I will have to stick the tub back on without the wiring harness (yuck). I still need to pull the tcase off and run all the trans brackets and crossmember to the powder-coater. Maybe I will get lucky with the harness still. Tonight was some TIG welding on the battery tray, compressor mount, and a coat of paint on the passenger rocker.

    [​IMG]

    [​IMG]

  12. GLTHFJ60

    GLTHFJ60 Rum Runnin' SILVER Star

    Messages:
    22,747
    Likes Received:
    6,632
    Joined:
    Apr 18, 2005
    Location:
    Durham, NC
    That flat belly is just gorgeous. Keep it up man!

  13. Mieser

    Mieser

    Messages:
    635
    Likes Received:
    774
    Joined:
    Mar 23, 2004

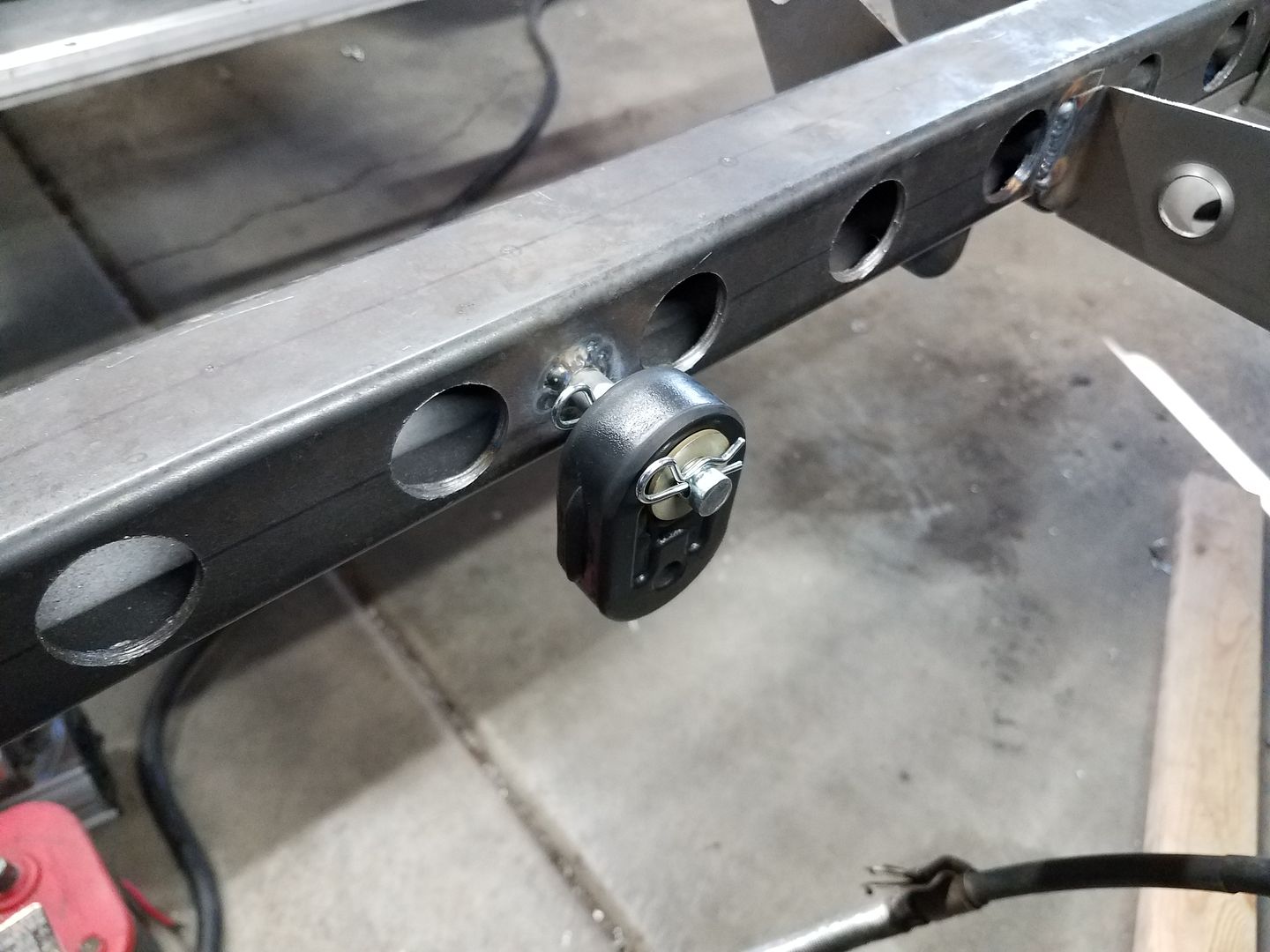

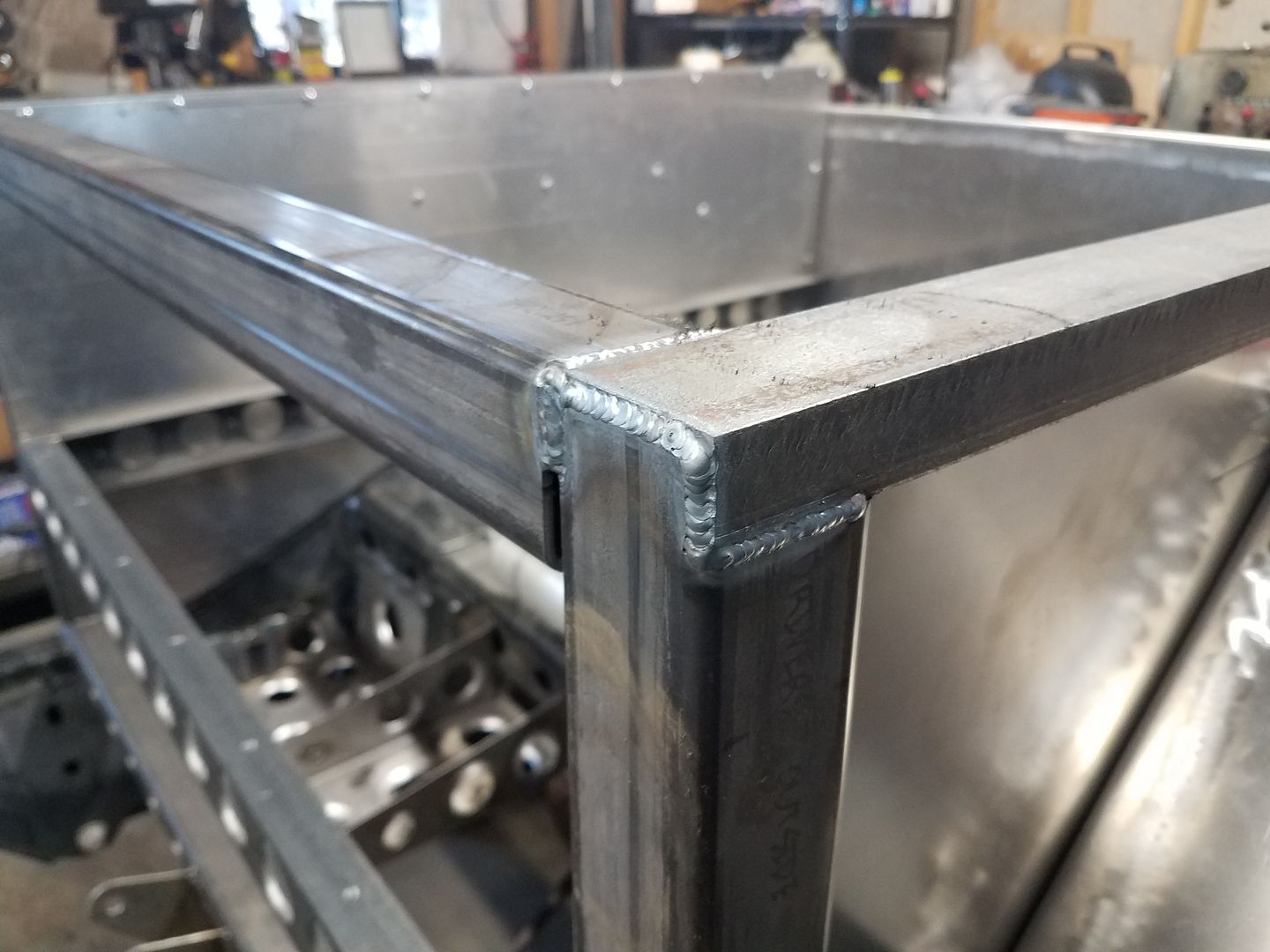

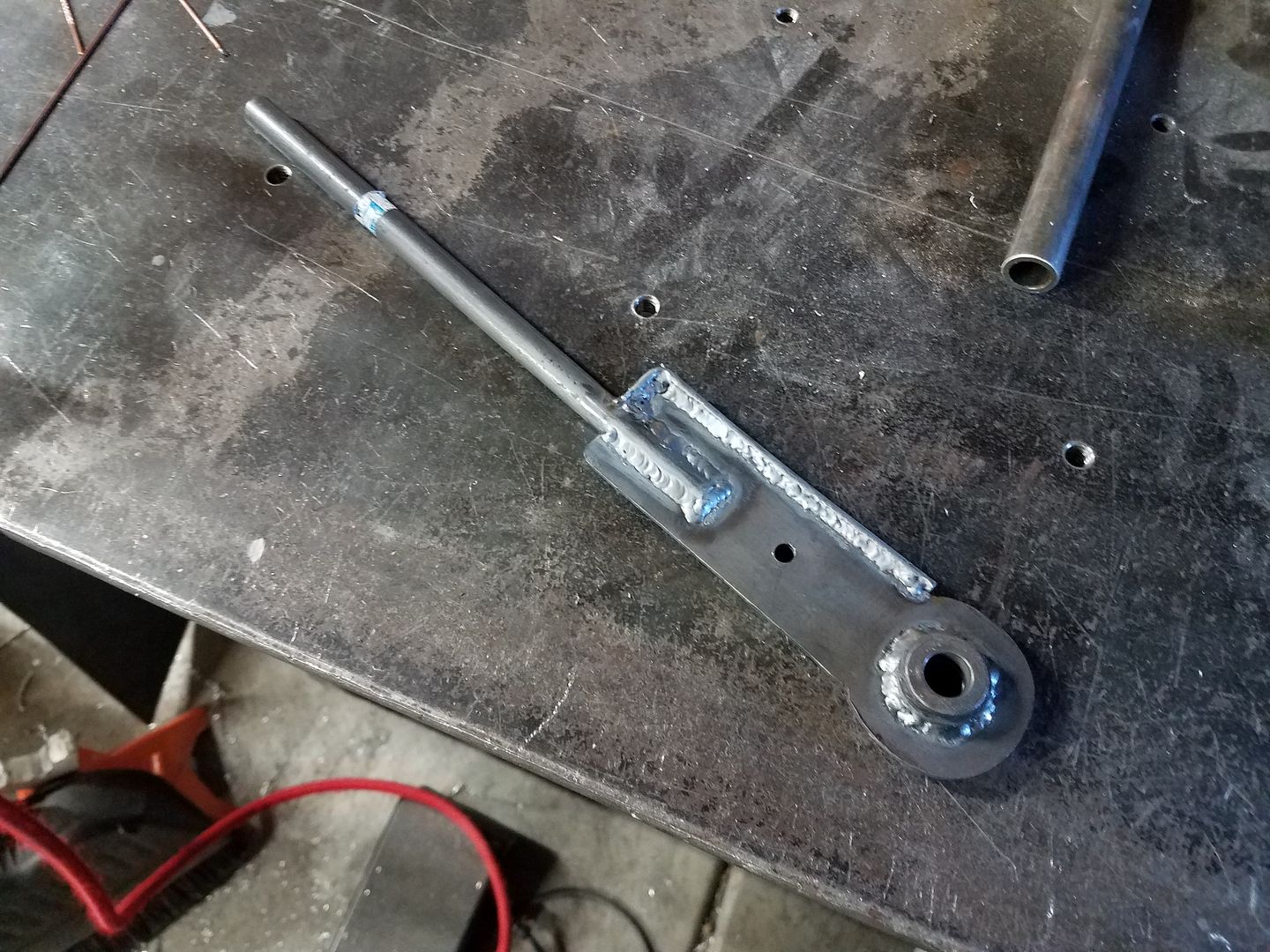

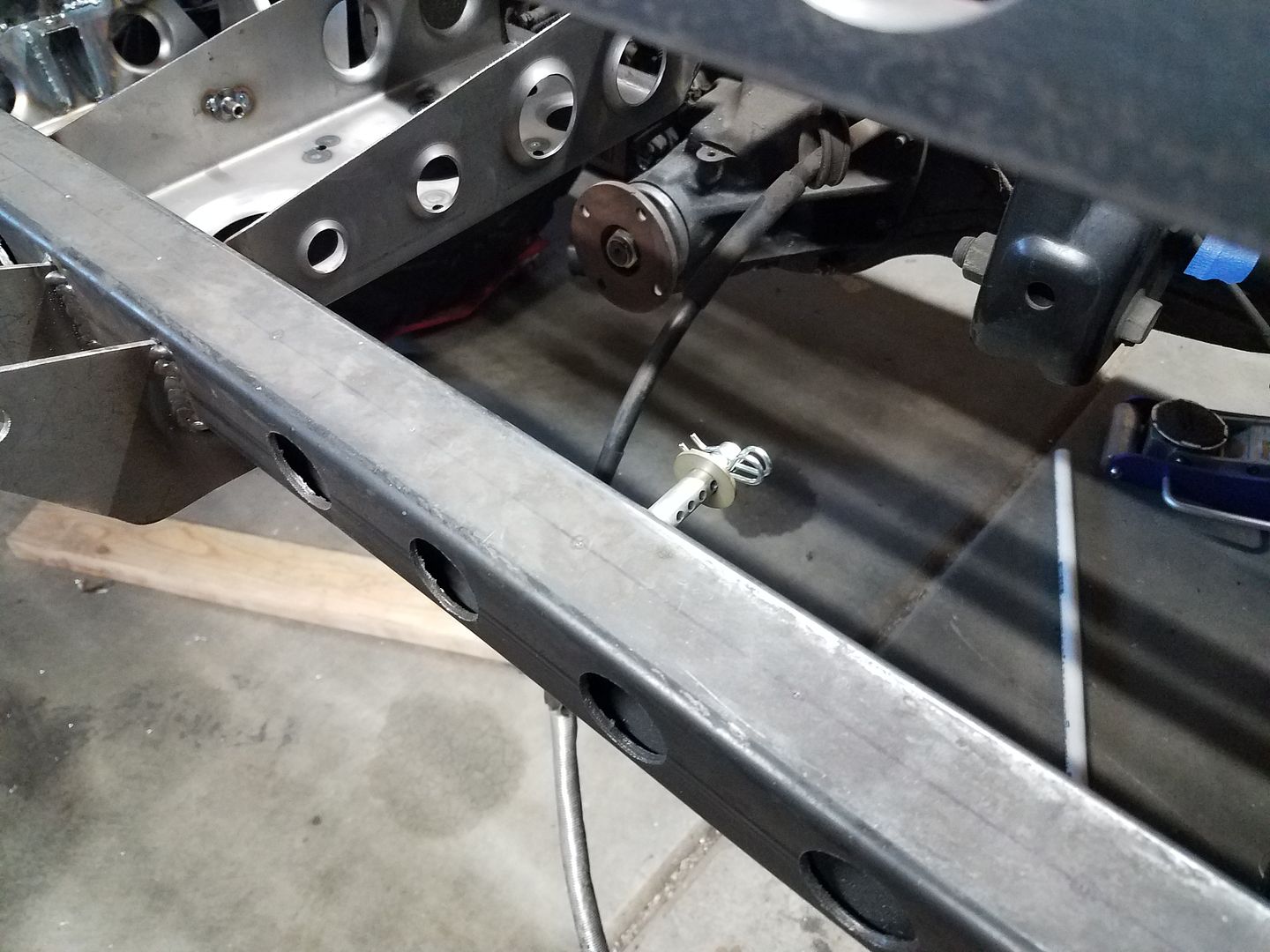

    My daily dose of do something on the #LX45. I added a clevis pin for a future exhaust hanger. The passenger rocker was scuffed and sprayed in another coat of can. Then did some TIG welding on the bed frame. Last thing was to pull this old little blaster out of the corner and test it out with the big compressor. Everything went pretty well.

    [​IMG]

    [​IMG]

    [​IMG]

    Ronny Grady and Pacer like this.
