Make 16 V3: Third Row Ashtray Replacement Panel V3

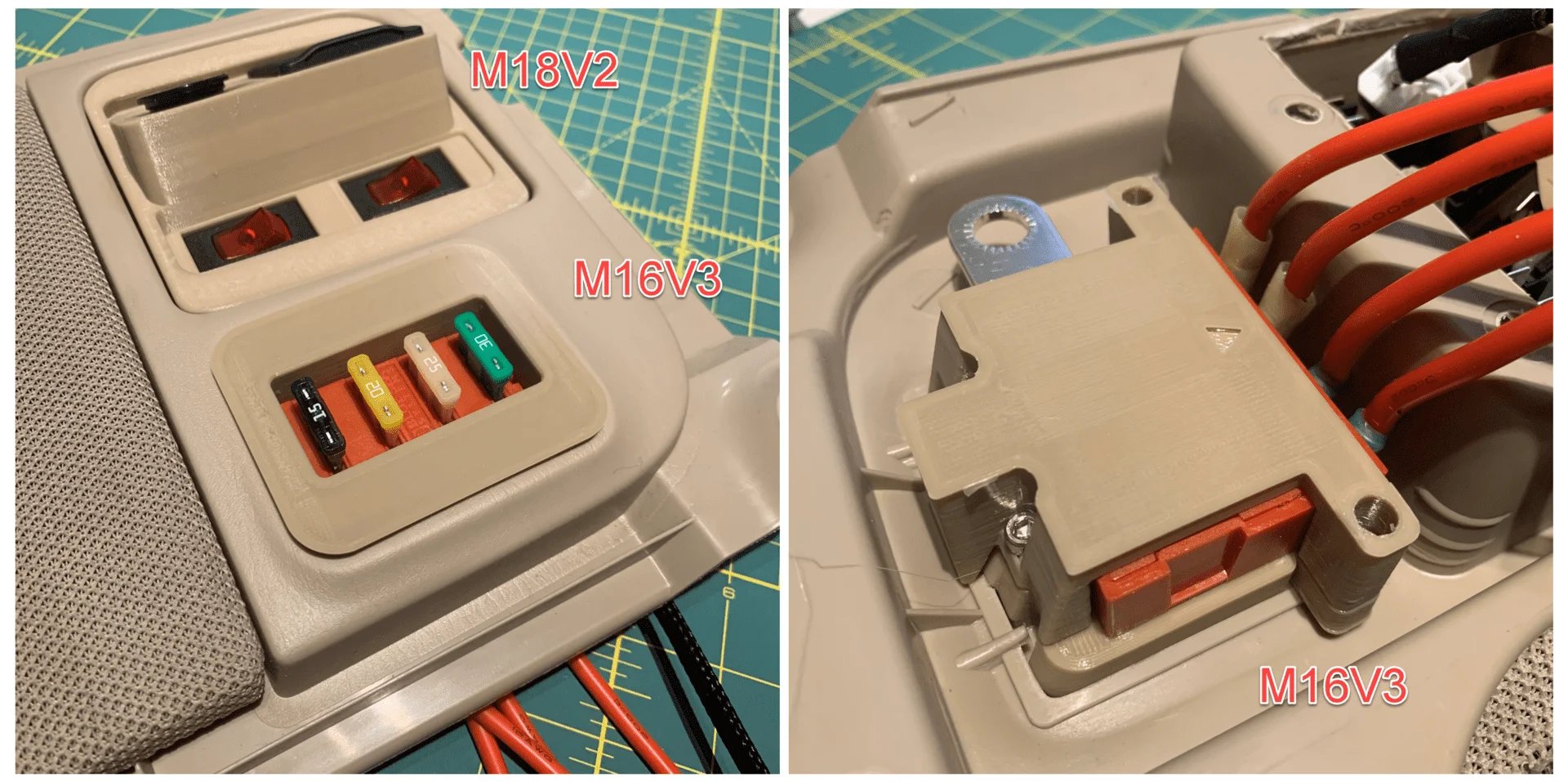

16V3.1 Overview of the Final Product

16V3.2 Introduction

This is designed to address a request of mounting a small fuse block.

16V3.3 Design and Fabrication

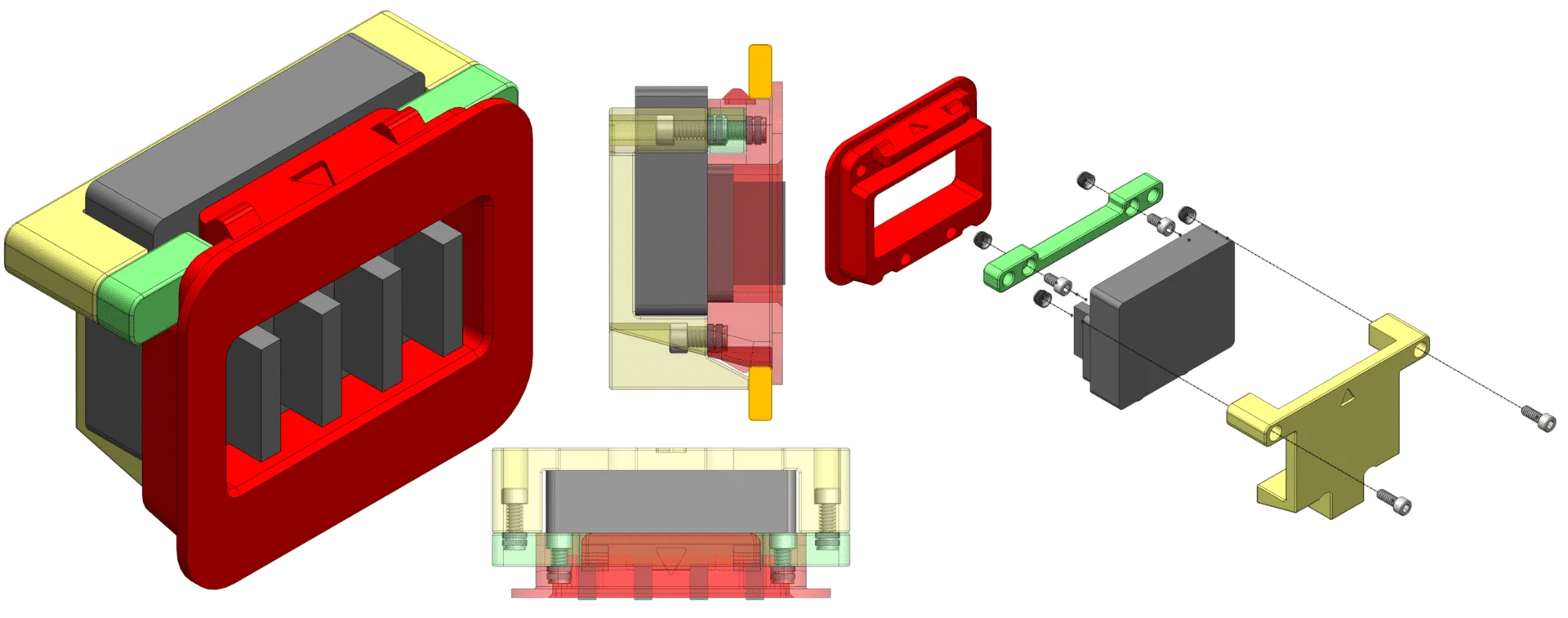

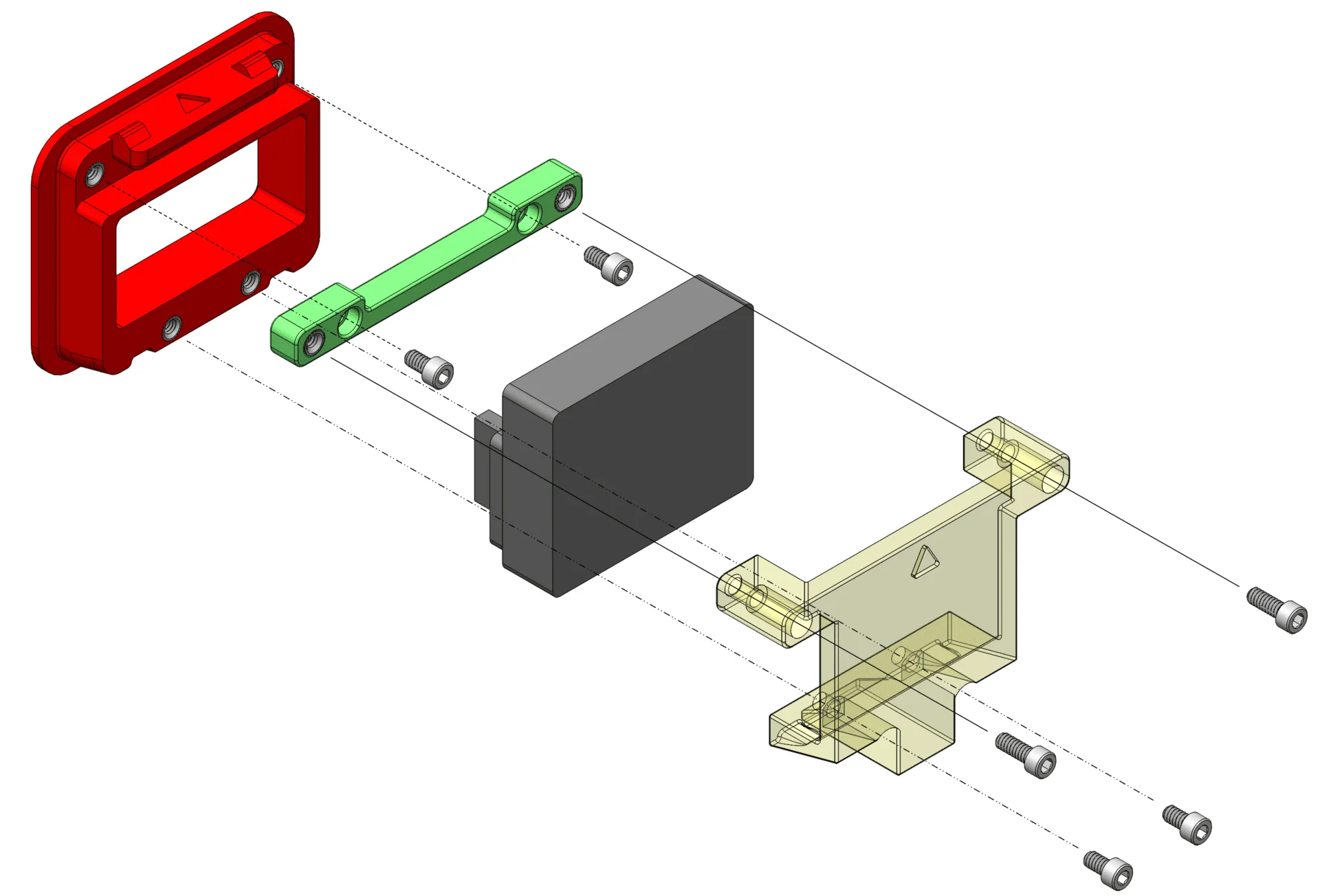

This is a three-piece design to mount the fuse block securely.

16V3.4 Purchase List to Complete the Installation

Blue Sea Systems ST Blade ATO/ATC Fuse Blocks

16V3.5 Purchase Link

PM for Direct Paypal Payment

Price:
$40 + USPS Priority.



[Hugh Heifer]

Super cool. I already have a power block in the back of my truck but this would have been a far cleaner install. Another great item.



[krice118]

Anyone know what to buy with the ram mount for a phone mount that would bring the phone about even with the top of the dash?



[Natchez]

Anyone know what to buy with the ram mount for a phone mount that would bring the phone about even with the top of the dash?

2 of these and a double ball adapter

RAM Double Socket Arm Amazon product ASIN B000WJA5ZY



[Cleric Duran]

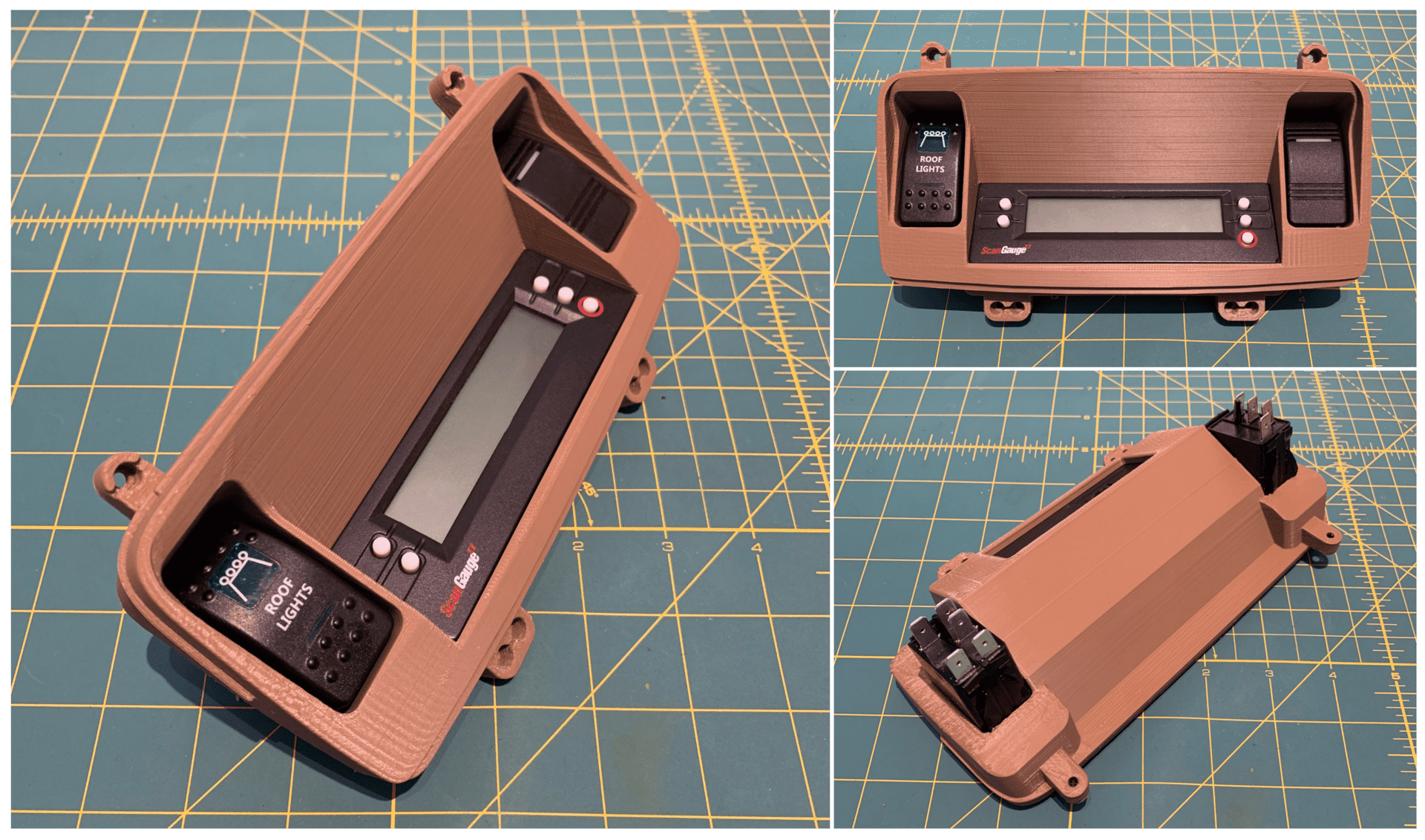

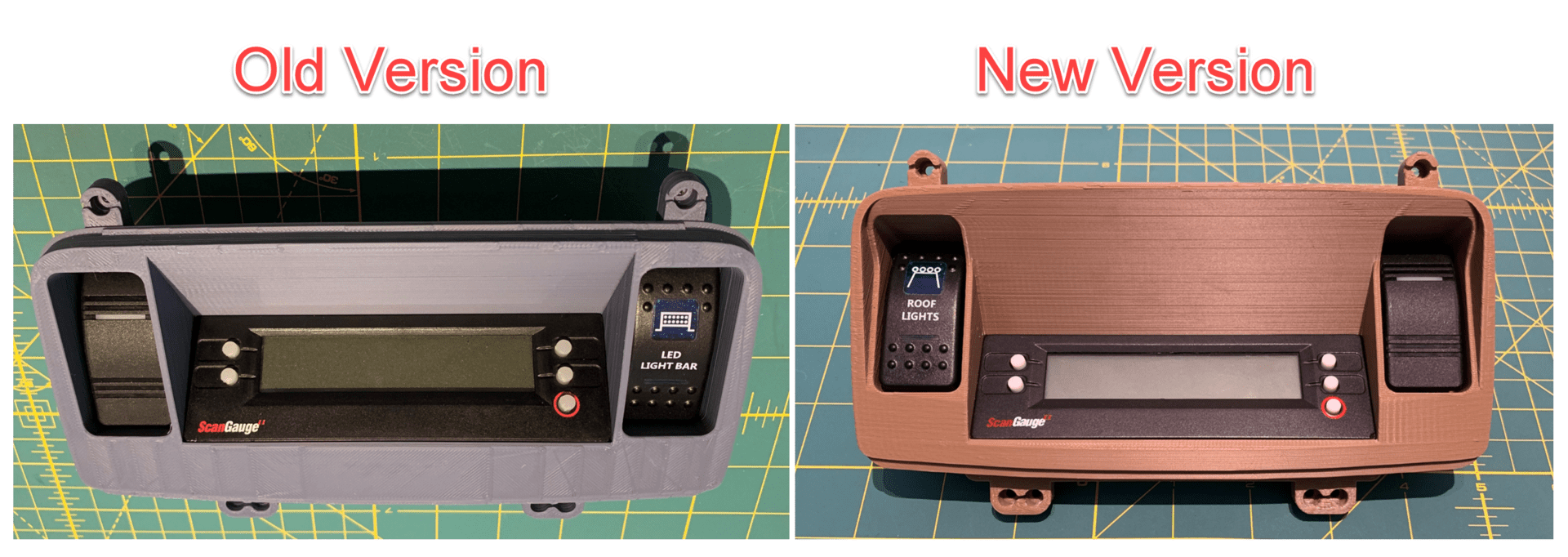

Updated Make 5 "Combo Mount". The major updates include:

1. The position and orientation of the pocket for Scangauge is optimized for better visibility.
2. The walls that separate the switches and the Scangauge are trimmed also for better visibility.
3. Print orientation is optimized for cleaner finish.

If you ordered Make 5 and want the latest version, PM me. I will send you one for free.

View attachment 2164377

View attachment 2164383

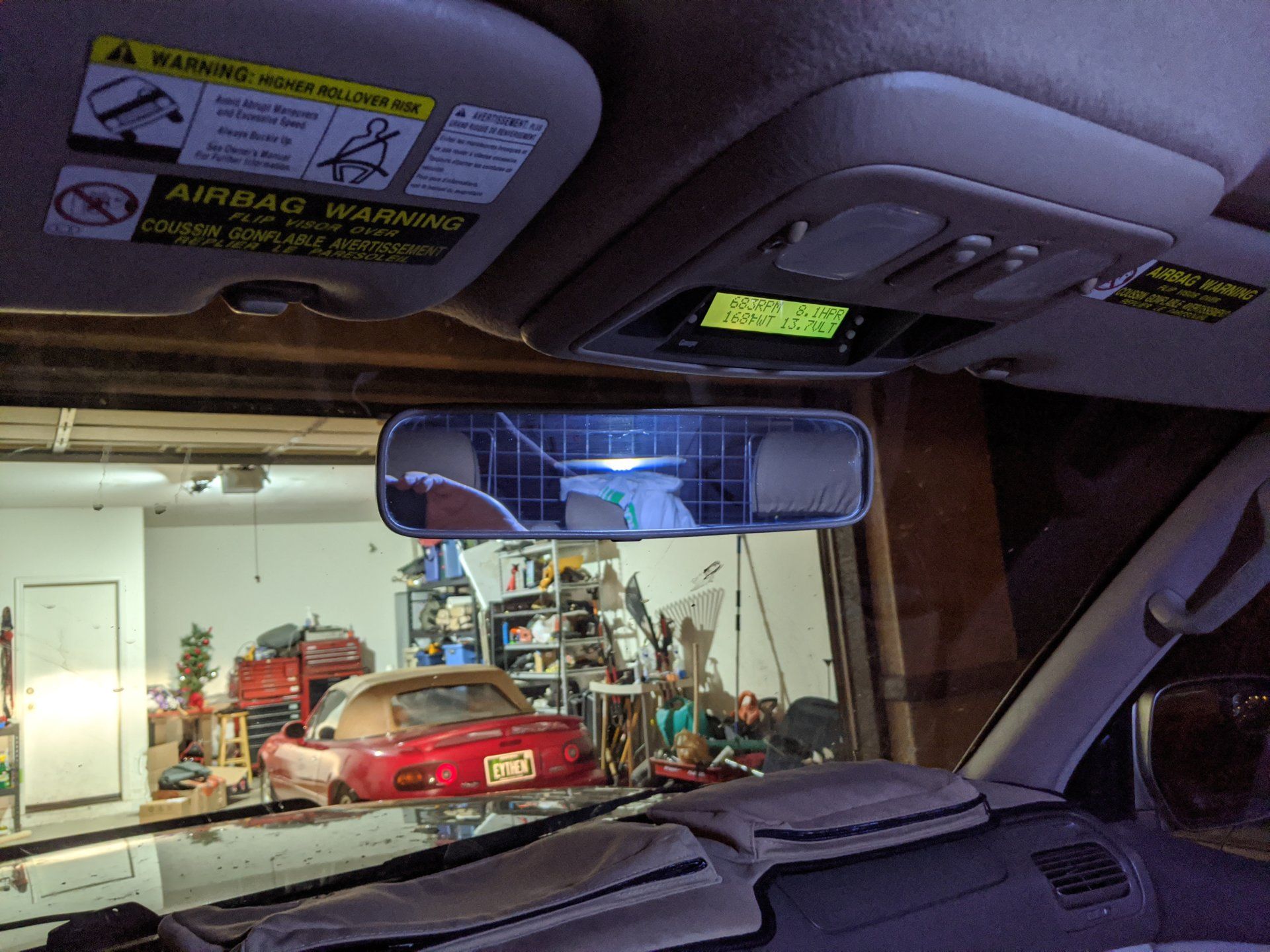

Finally installed this version and visibility is perfect upright or tall drivers. Great job Ben! I'm not sure what else you could do to make this better. Hard to capture in the photo but visibility is great



[BenCC]

Finally installed this version and visibility is perfect upright or tall drivers. Great job Ben! I'm not sure what else you could do to make this better. Hard to capture in the photo but visibility is great

View attachment 2171060

Thanks for your feedback and I am glad it is correct finally.



[krice118]

2 of these and a double ball adapter

RAM Double Socket Arm Amazon product ASIN B000WJA5ZY

Would you mind linking again? It just goes to Amazon's Home page



[gregnash]

Finally got around to popping in Ben's shifter pocket version he made for me. Have not upgraded the stereo yet so don't have the USB installed but just wanted the hole filled in.

Untitled by Greg Fisicaro, on Flickr

Quality is awesome, much thicker and more robust than I expected. Can't wait to upgrade my headunit so I can install the USB extension!



[Hugh Heifer]

Would you mind linking again? It just goes to Amazon's Home page

I think he was trying to show you something like this:

RAM Medium Double Socket Arm, Long Double Socket Arm & Double Ball Adapter for B Size 1" Balls - RAM-B-201-201U-C

The RAM-B-201-201U-C offers both a medium and long double-socket arm joined by a size B 1" double-ball adapter. Get mounting hardware from OC Mounts today.

ocmounts.com

And then one of these:

RAM Double Ball Adapter (RAM-B-230U)

Extend the reach of your RAM mount with this double mount adapter. Use multiple arms (sold separately) to make a customized mounting solution for your plane. Standard 1" rubber ball on each end; total length is 1.75". RAM part number RAM-B-230U.

www.sportys.com



[LXMUTT]

Ever thought about making something for this space in the center console? its where the disk changer used to be.



[Torquen]

The current model does not. Can you post a link of OEM style switch? I can make a model that can mount OEM style switches.

Say something like this; 12V OEM type Push switch 833W TRACTION LED white on off For Toyota LandCruiser | eBay

I assume it would be very similar dimensions to the rocker switches.



[BenCC]

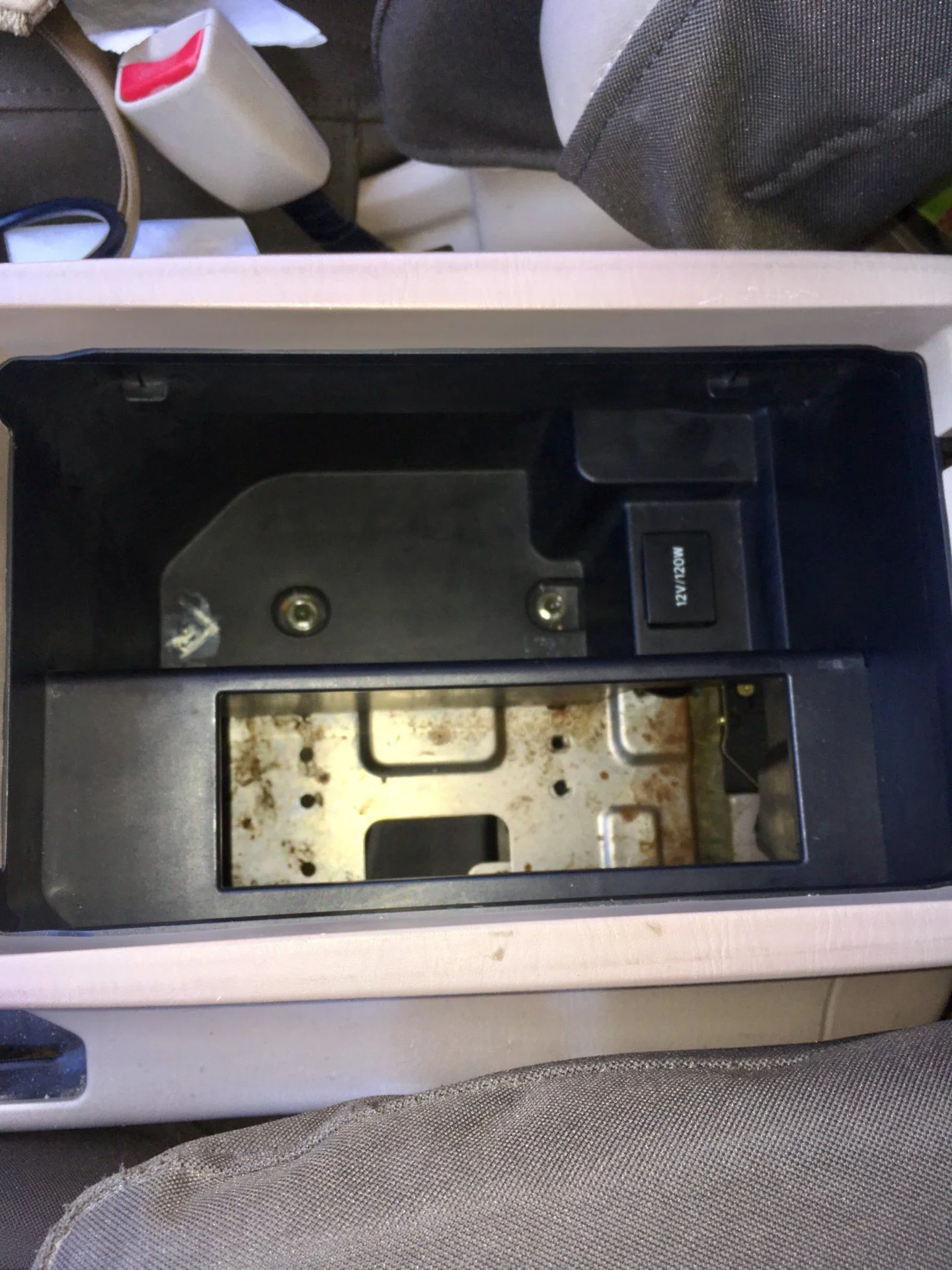

Ever thought about making something for this space in the center console? its where the disk changer used to be.
View attachment 2175175

This project is in line lol.



[BenCC]

Say something like this; 12V OEM type Push switch 833W TRACTION LED white on off For Toyota LandCruiser | eBay

I assume it would be very similar dimensions to the rocker switches.

The best way would be that you send to me the exact switch you want to mount. I can make a mount based on it.



[BenCC]

I think it is the time to make a summary.

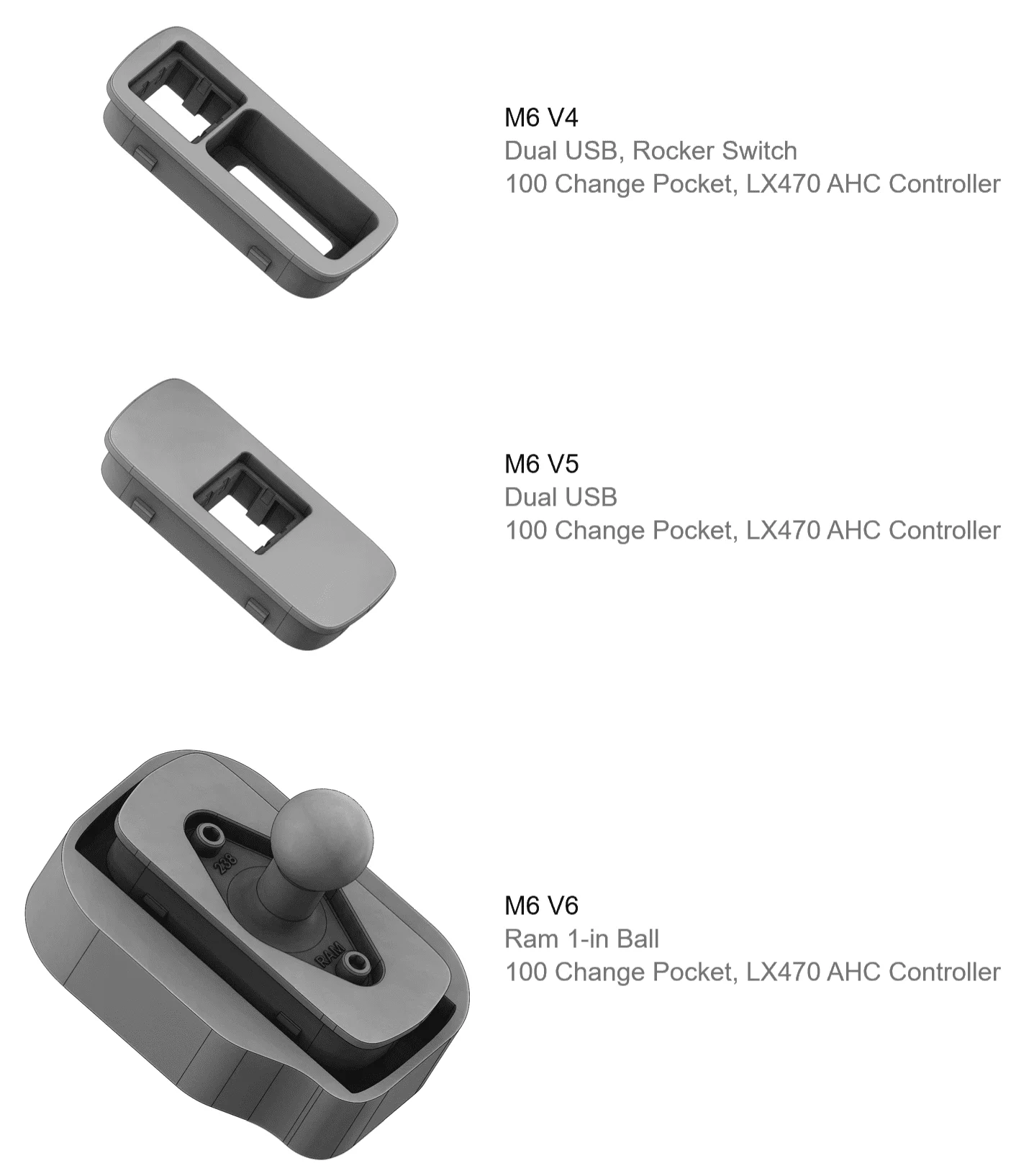

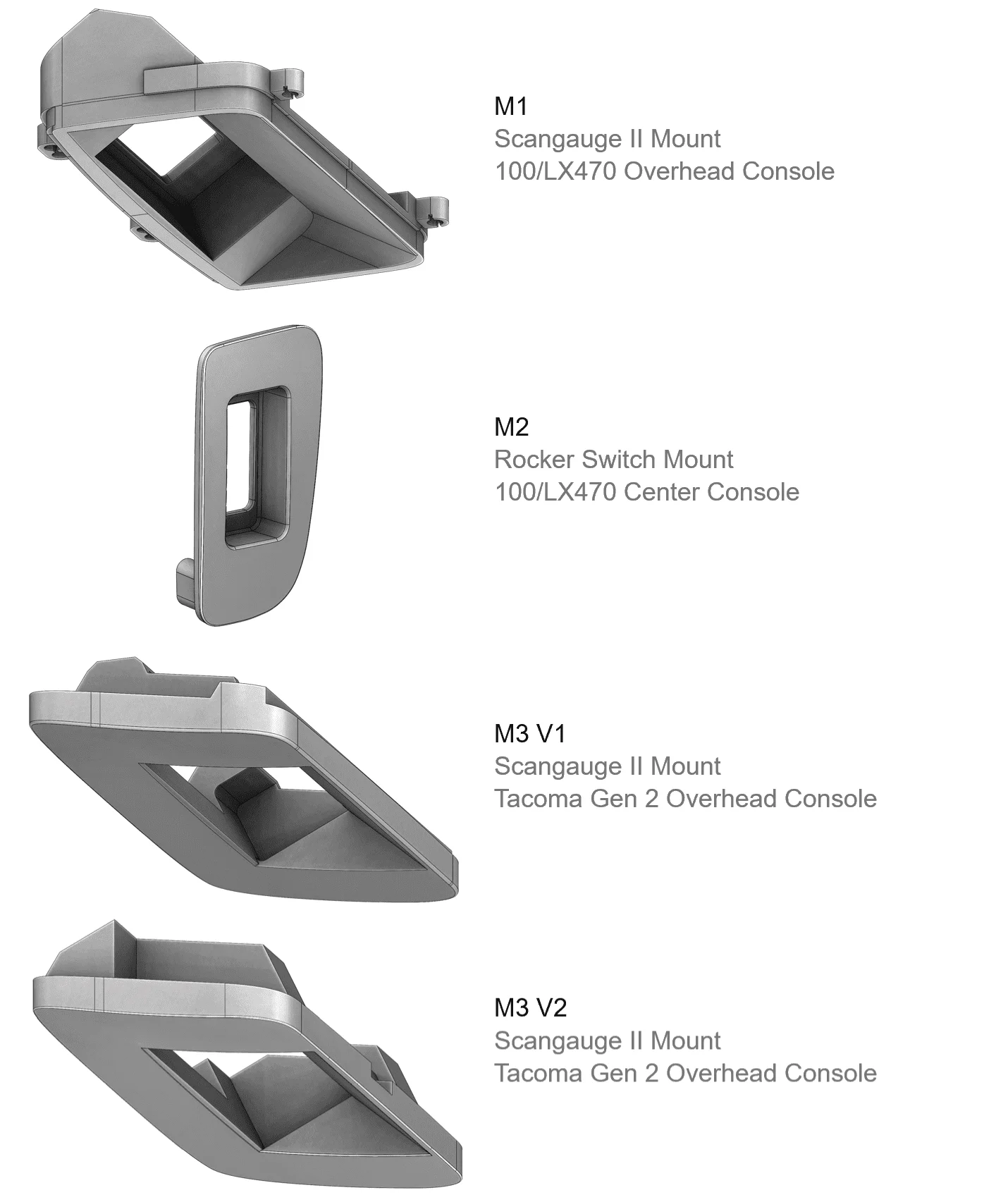

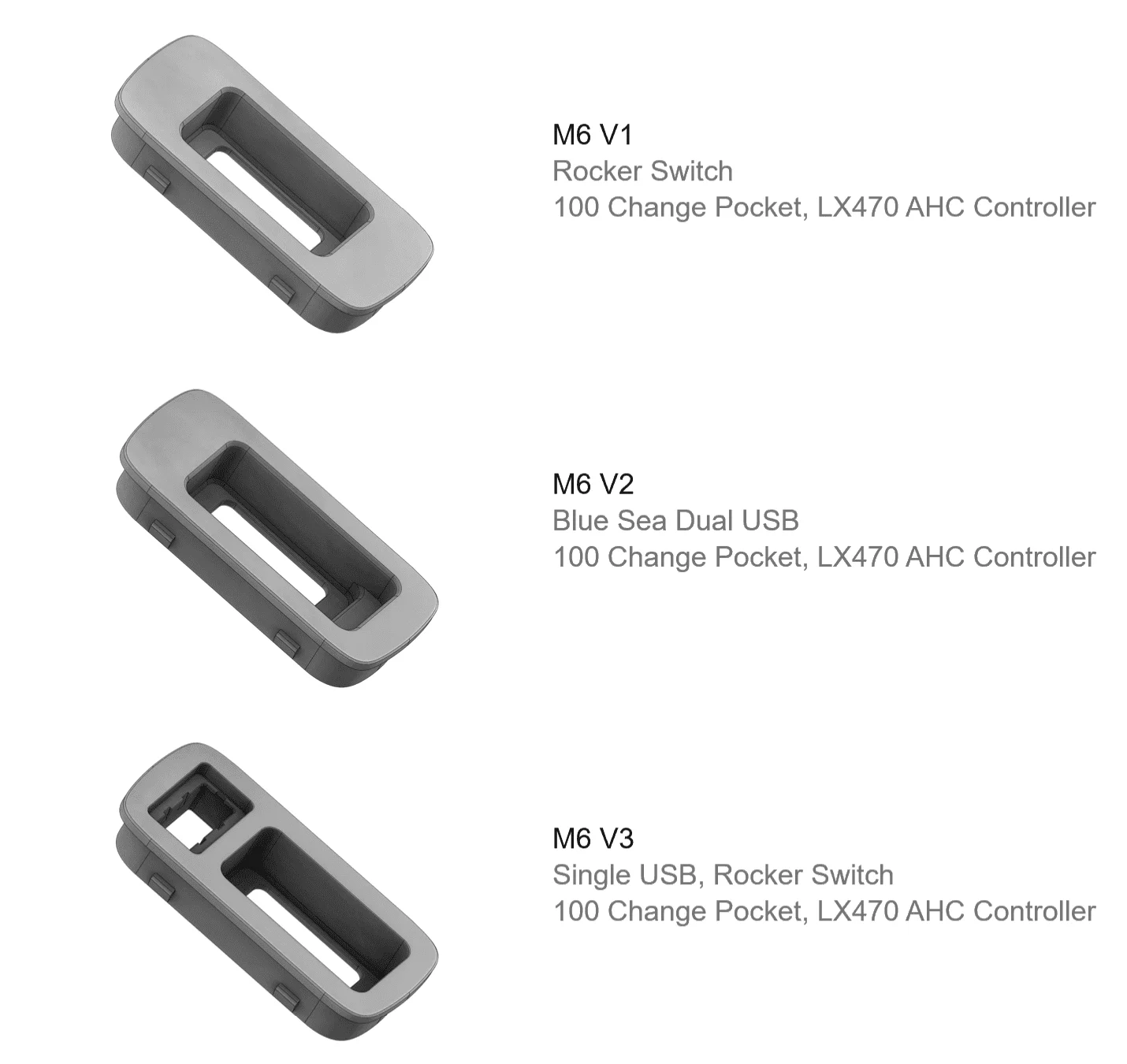

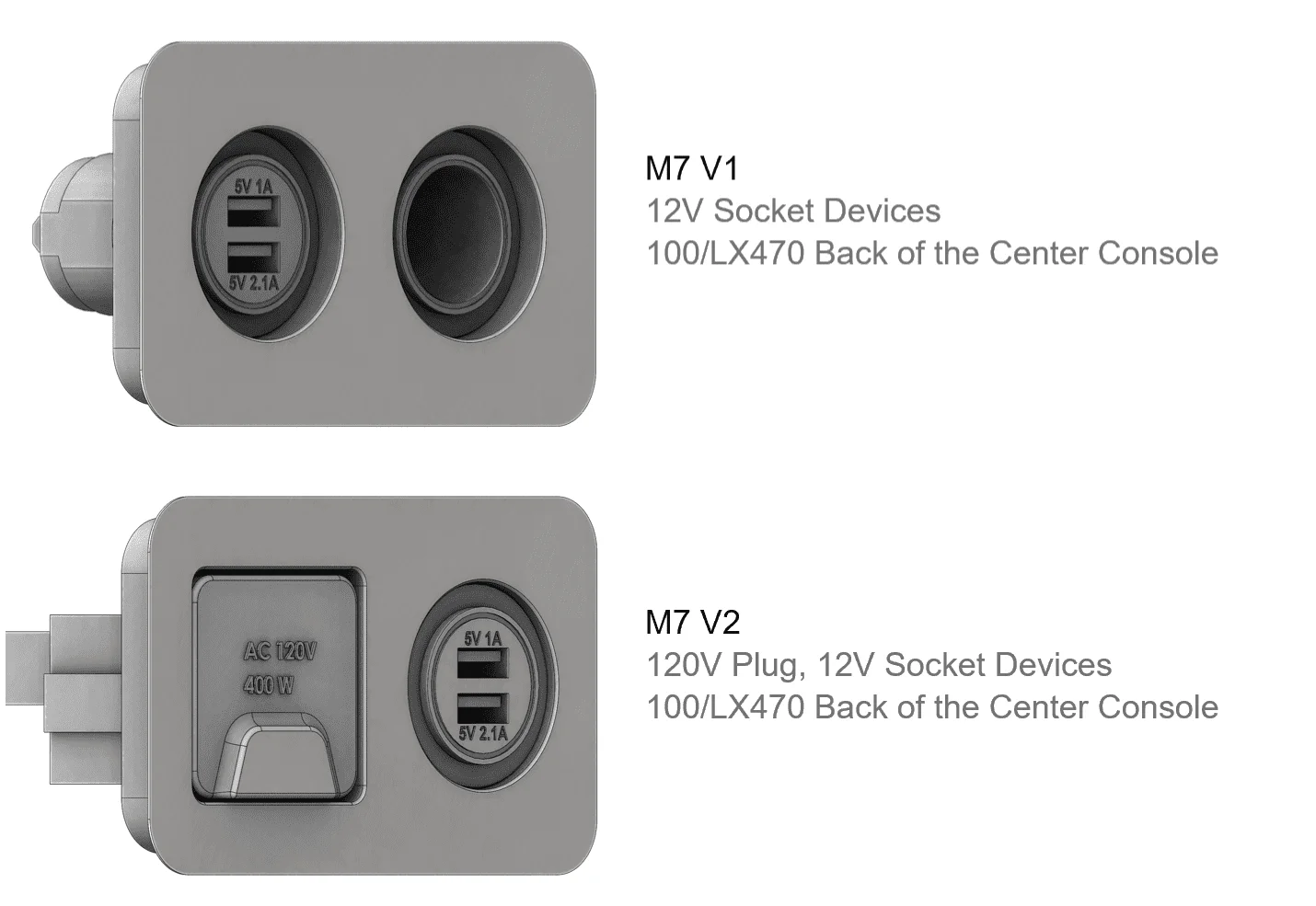

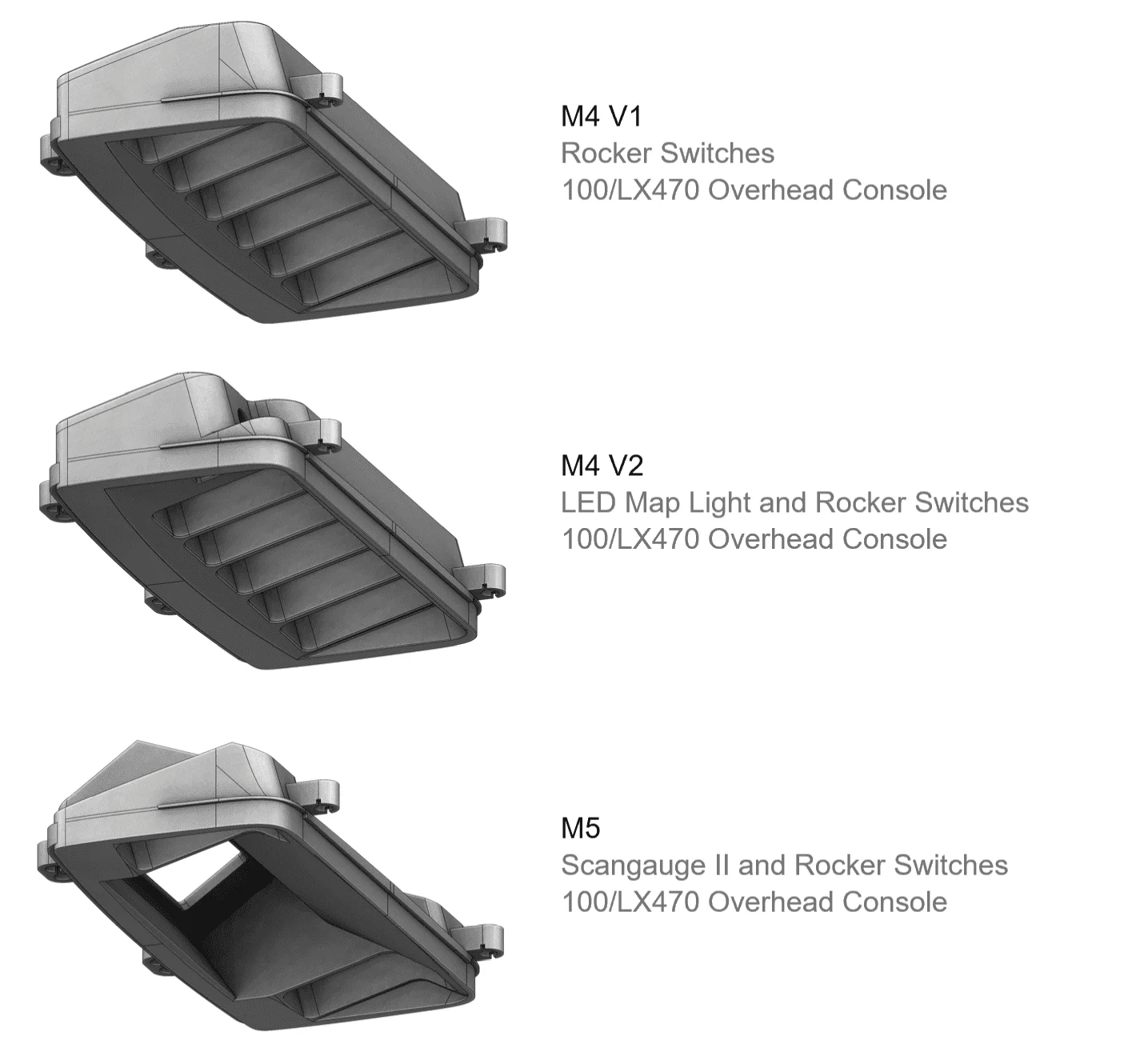

Make 1 through Make 7:



[BenCC]

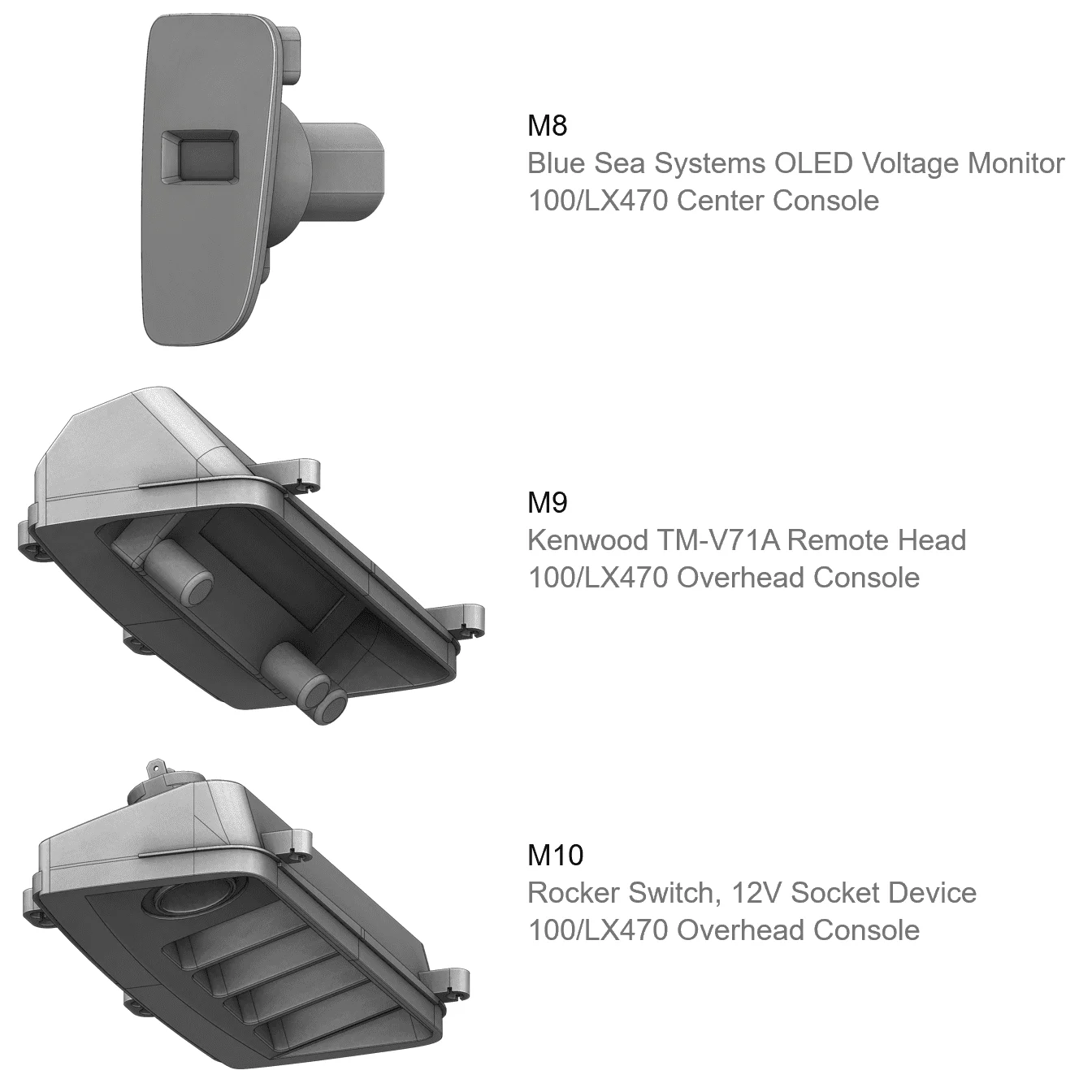

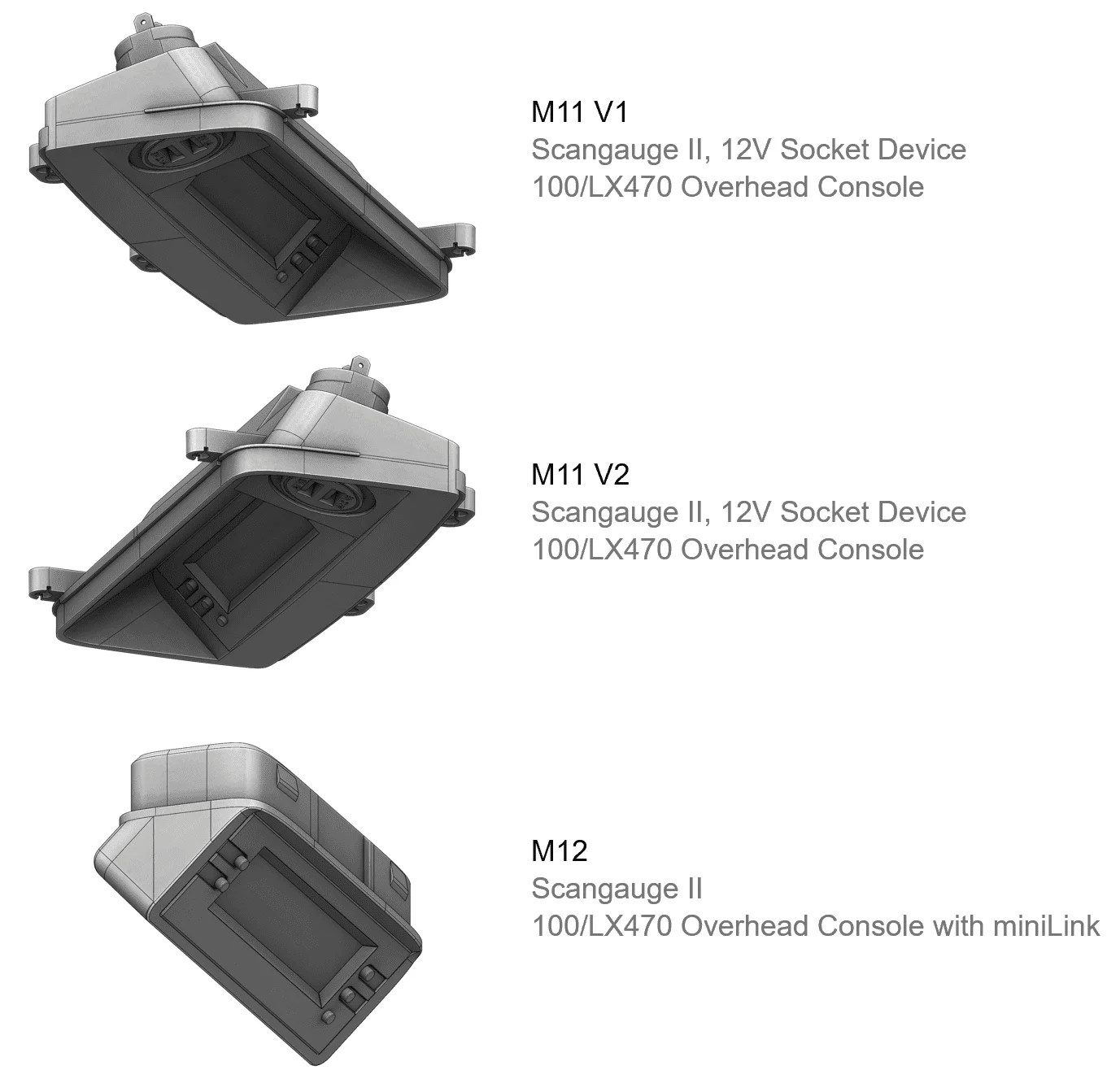

Make 8 through Make 12:



[CBdeJ]

It would be great to get a corresponding list of links to purchase the various builds. Many aren't linked (maybe it's just me) and it would save time vs. combing through 29 pages.. Perhaps a locked sticky with the above photos and associated links and shopping lists at the top of the 100 forum?



[BenCC]

It would be great to get a corresponding list of links to purchase the various builds. Many aren't linked (maybe it's just me) and it would save time vs. combing through 29 pages.. Perhaps a locked sticky with the above photos and associated links and shopping lists at the top of the 100 forum?

The very first post has links to all the makes. But I will add links in the above posts. Thanks.



[CBdeJ]

The very first post has links to all the makes. But I will add links in the above posts. Thanks.

Big "Duh" on my part for overlooking the first page. In my defense, on the long threads I've been jumping to the last page to see the latest updates, I don't know if others do the same.



[BenCC]

Big "Duh" on my part for overlooking the first page. In my defense, on the long threads I've been jumping to the last page to see the latest updates, I don't know if others do the same.

I will figure out a way to make a good table of content on the first post.



[Randy88FJ62]

@BenCC
Random question here. I have a 2008 4th gen 4runner with sunglasses holder in the overhead console. I'm looking to install a scangauge II there. Do you know if your product would fit?

I know it's a long shot but thought I would ask. Thanks.
