Build Atwalz 2013 TLC 200 Build Thread.

[Atwalz]

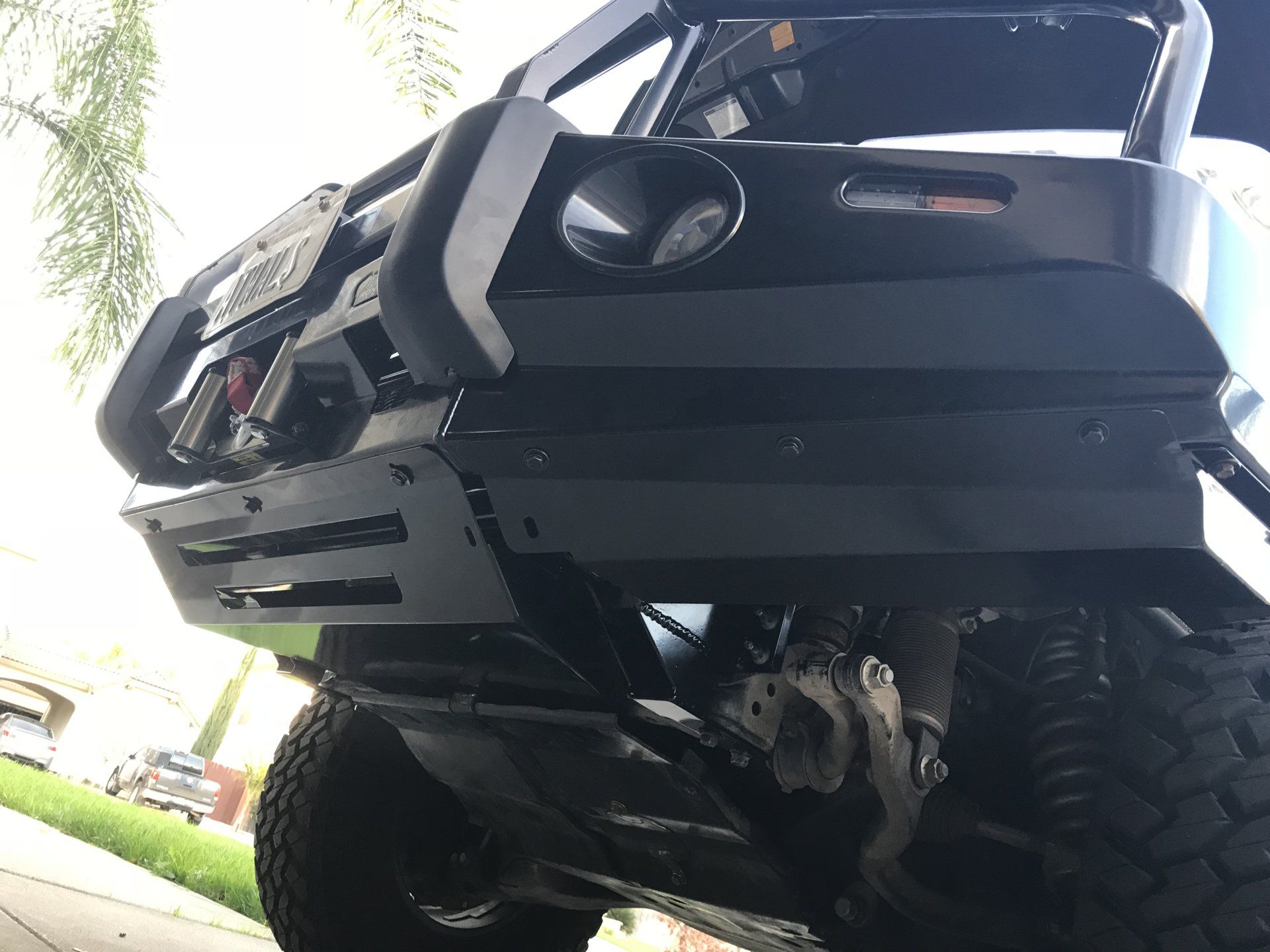

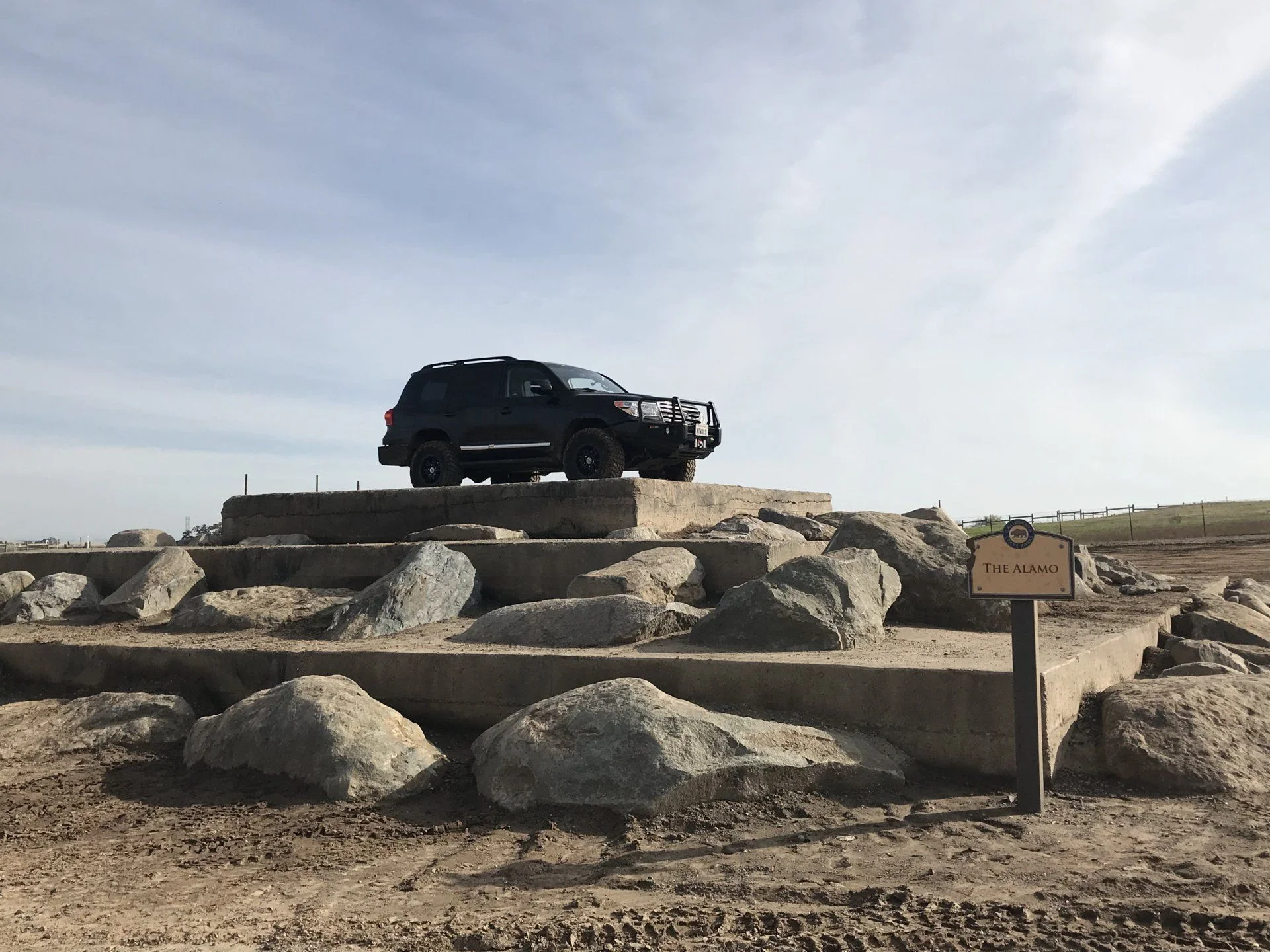

Testing new approach angles.



[Atwalz]

@Atwalz, how deep is the bumper? Can you hit the center with a tape measure when you have a chance?

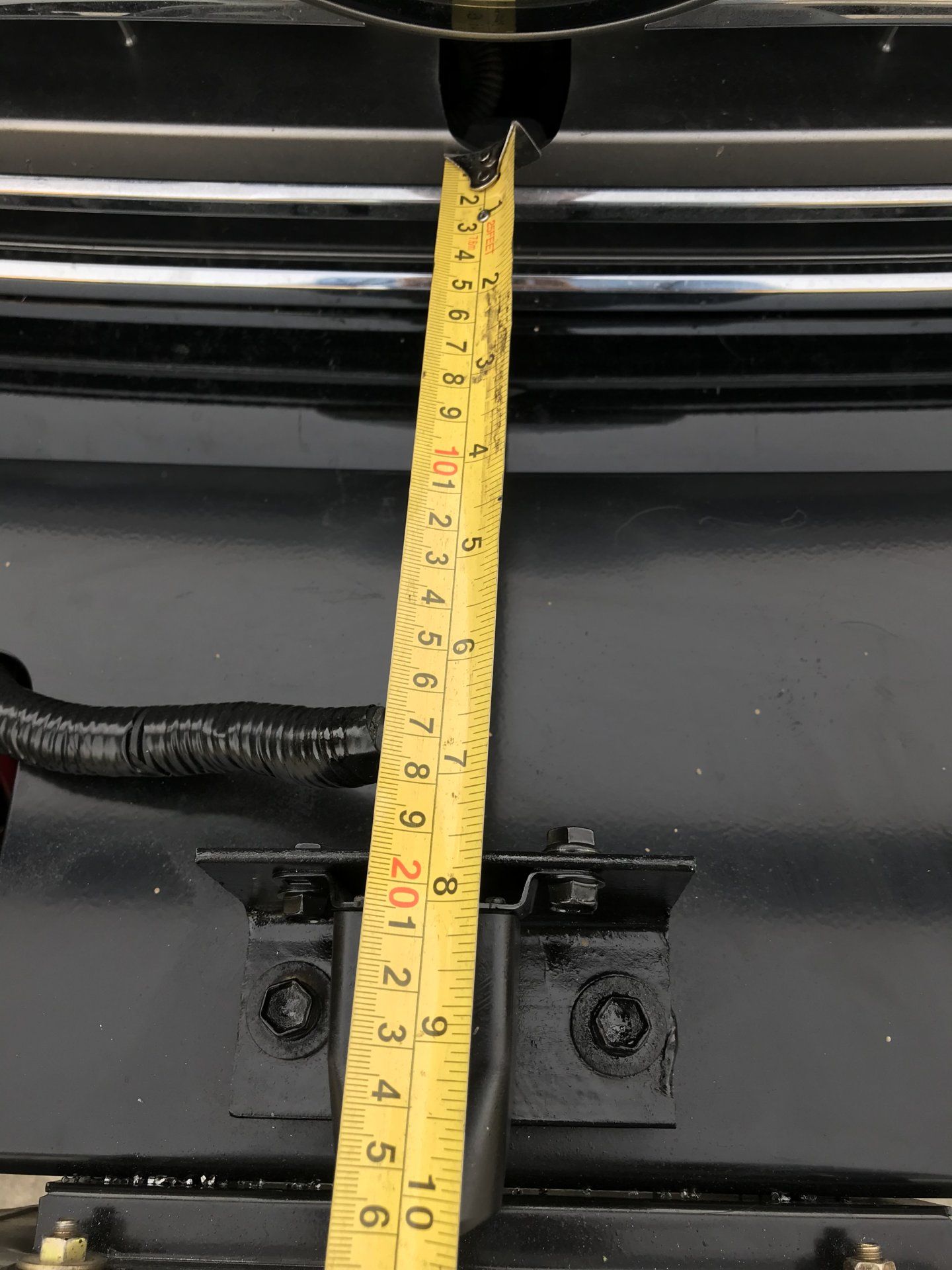

10” to face of grill to face of bumper, excluding license plate bracket.



[linuxgod]

Thank you!



[Atwalz]

Thank you!

It’s reccessed 2” back on lower portion where fairlead roller are mounted.



[Atwalz]

FWIW, it does have a crush zone built in front of winch tray.



[95s52]

Got to see this monster in person. Exceptional work on the custom bumper!



[Atwalz]

Couple weeks ago I installed Diode Dynamics Smart Relay for custom flasher settings. The setup allows for custom flashes when you tap stalk for the turn signal.

Also replaced the gas cap. I reset the CEL but codes are still coming back. One of these days I am going to drop at the dealer for them to diagnose the issue.

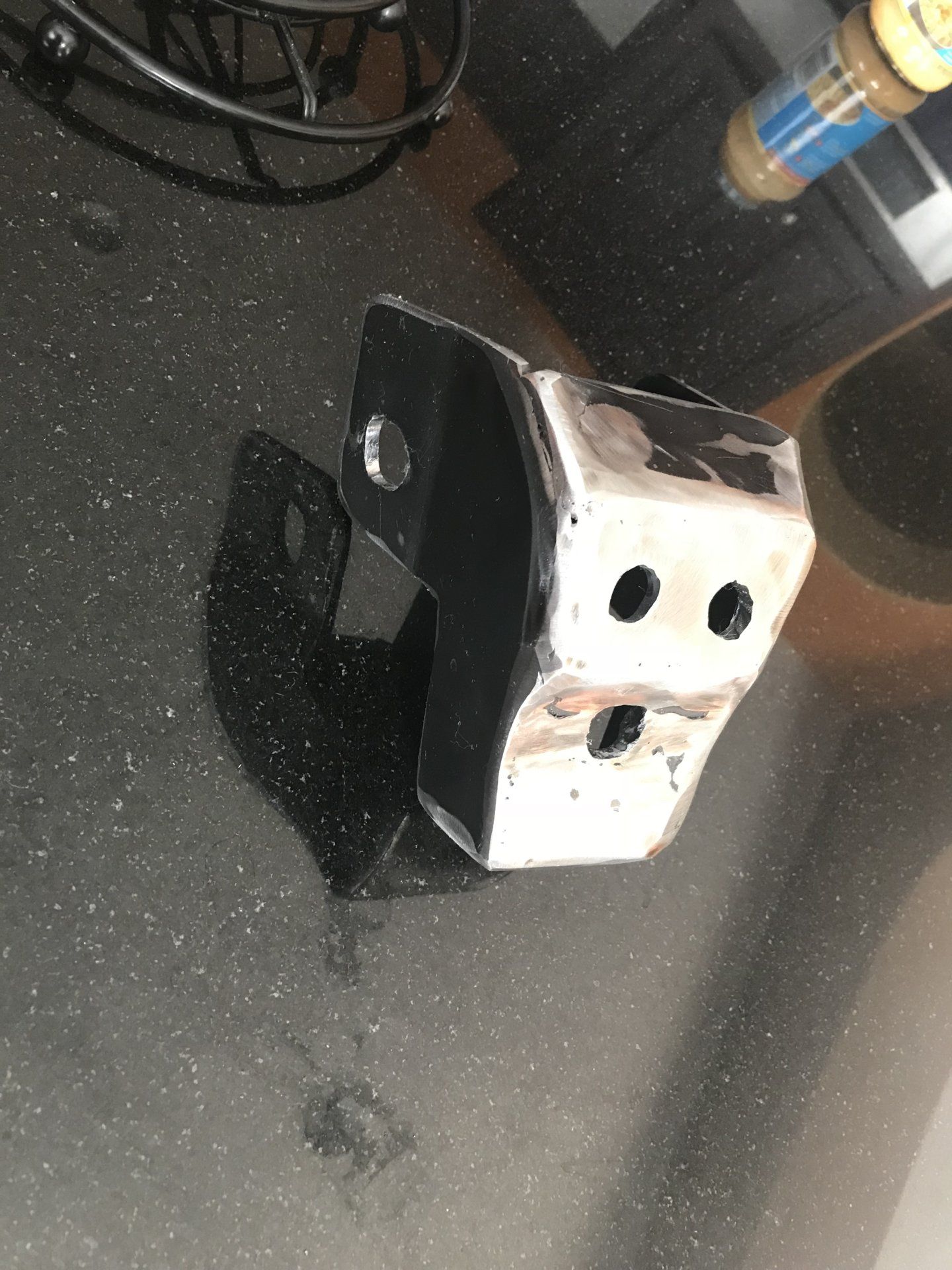

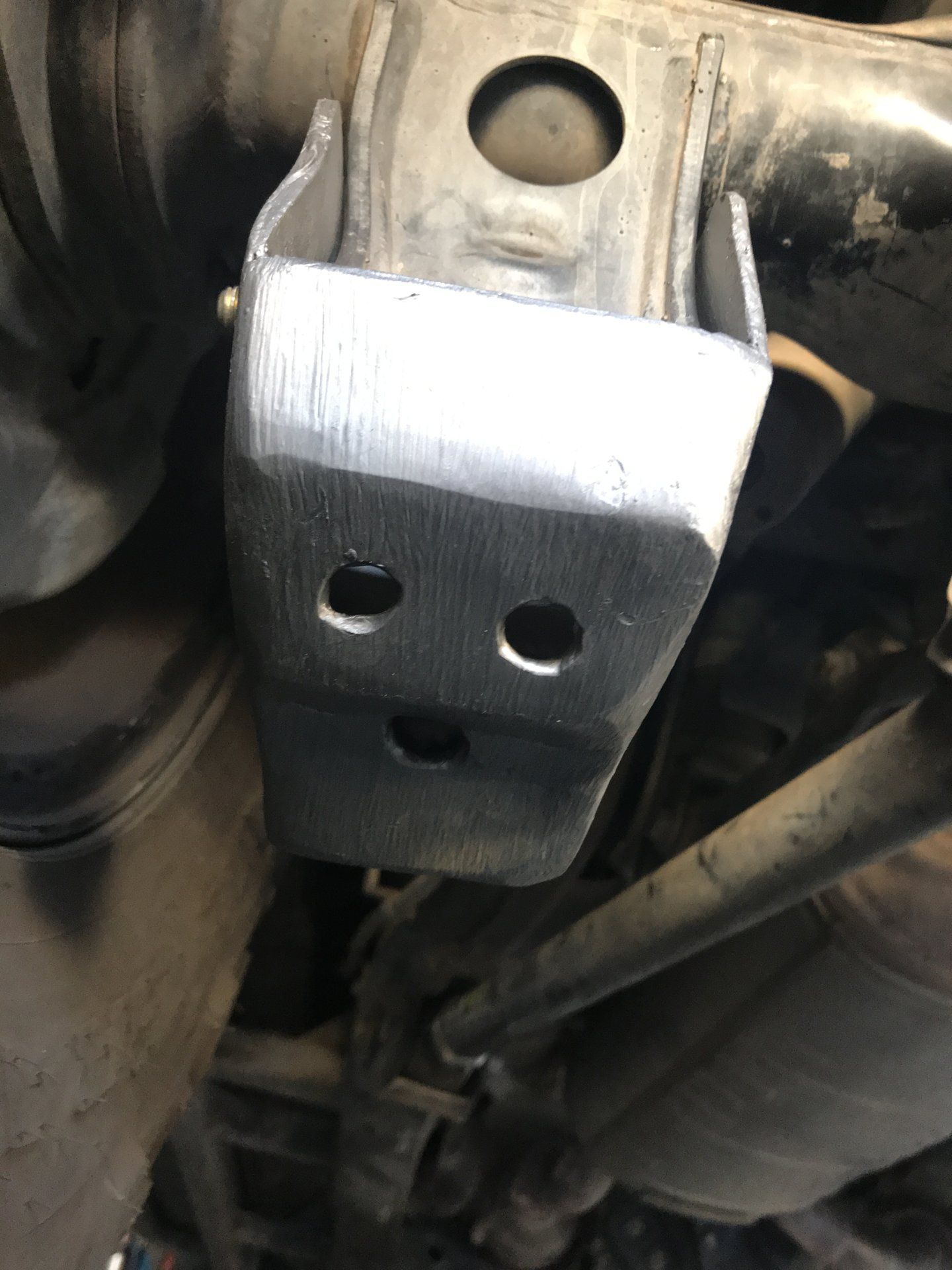

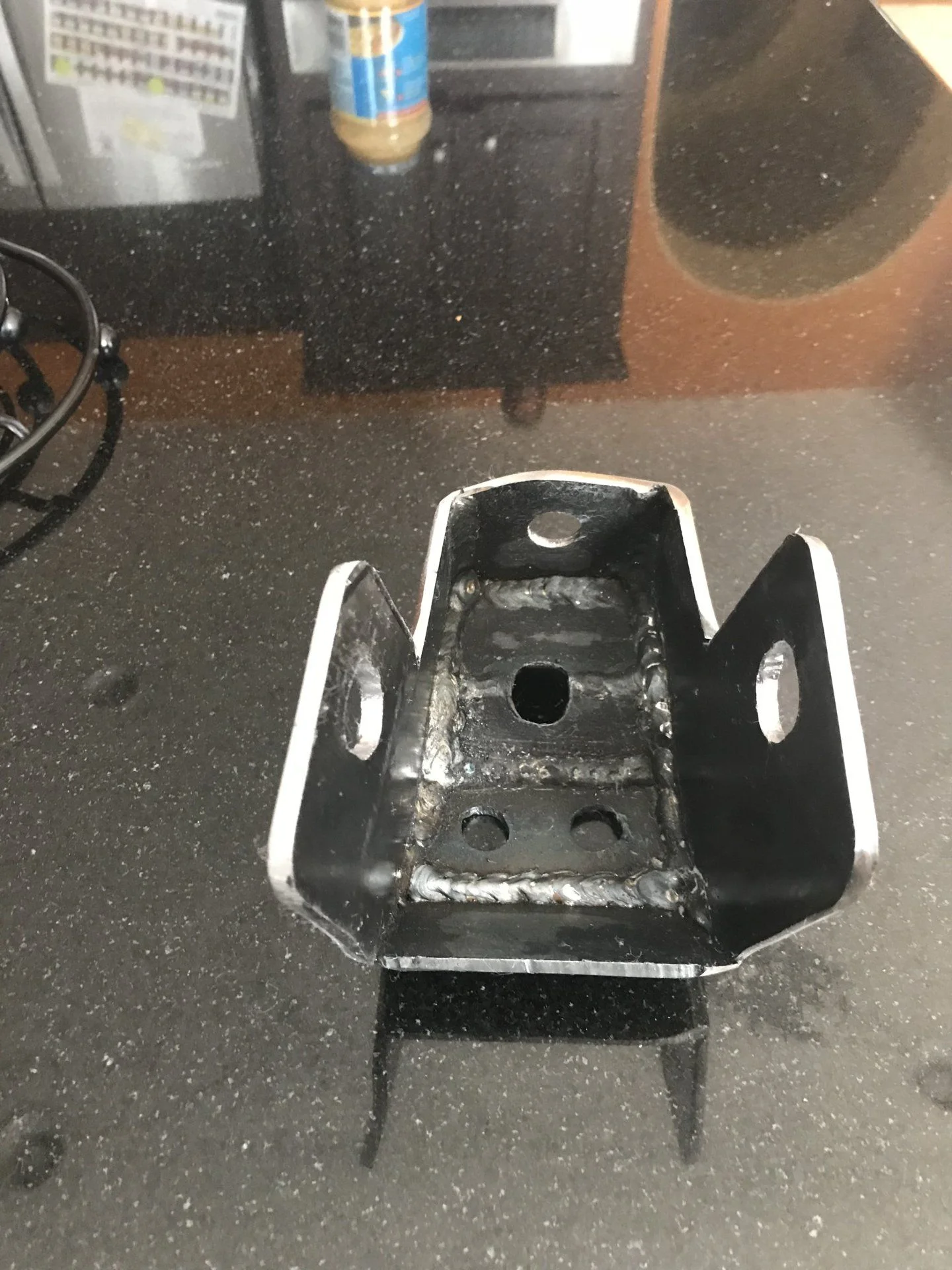

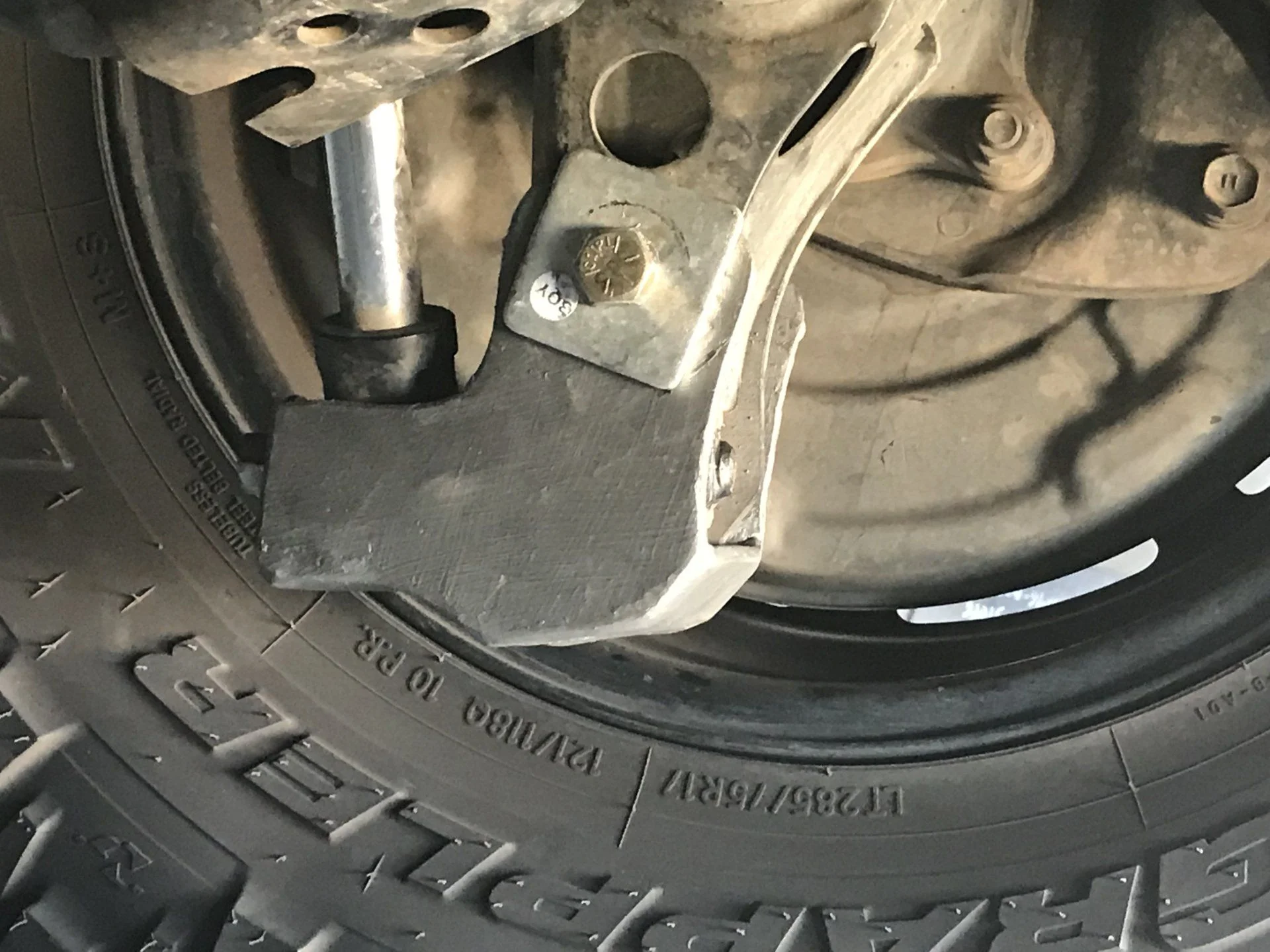

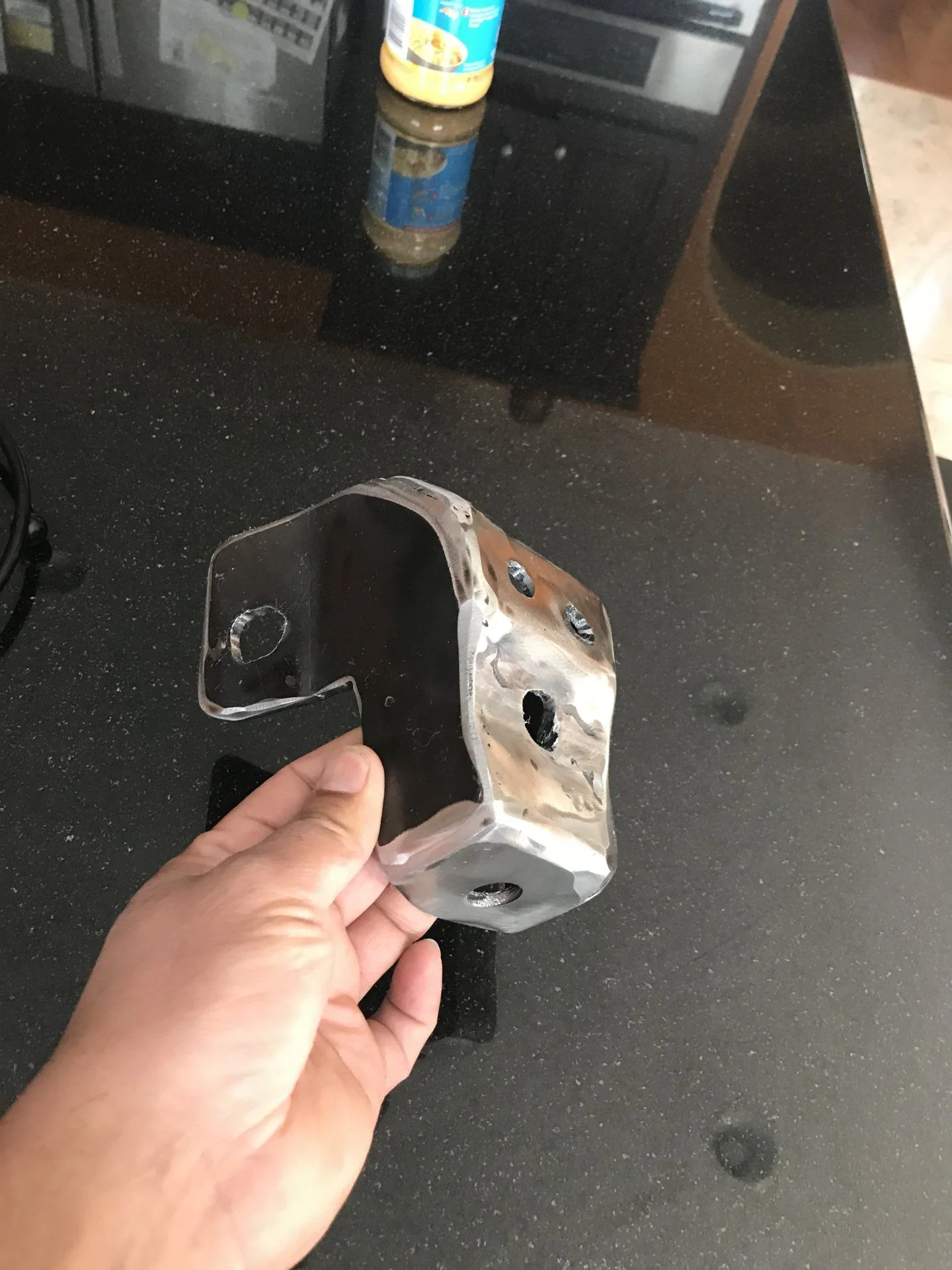

Last weekend, I built rear lower shock mount armor. I waiting for Steel-it Polyurethane Formulation paint. I will paint them and install them next weekend.

Note to self: add pics.



[Atwalz]

Picked up 1/2”x4.5” bolts, 3/16 plate washers, lock washers and nuts. Testing pending in Moab.



[TYM4FUN]

Nice work man, I see you or your wife driving by my house or around town all the time. Seen the plates and was like, mmmm I remember that screen name from some where....



[Atwalz]

Nice work man, I see you or your wife driving by my house or around town all the time. Seen the plates and was like, mmmm I remember that screen name from some where....

Thanks. Pm me your number we can go for trail runs locally. @dc916cruiser is local too. Last weekend we attempted to do Signal Peak but had to turn around due deep snow.



[Atwalz]

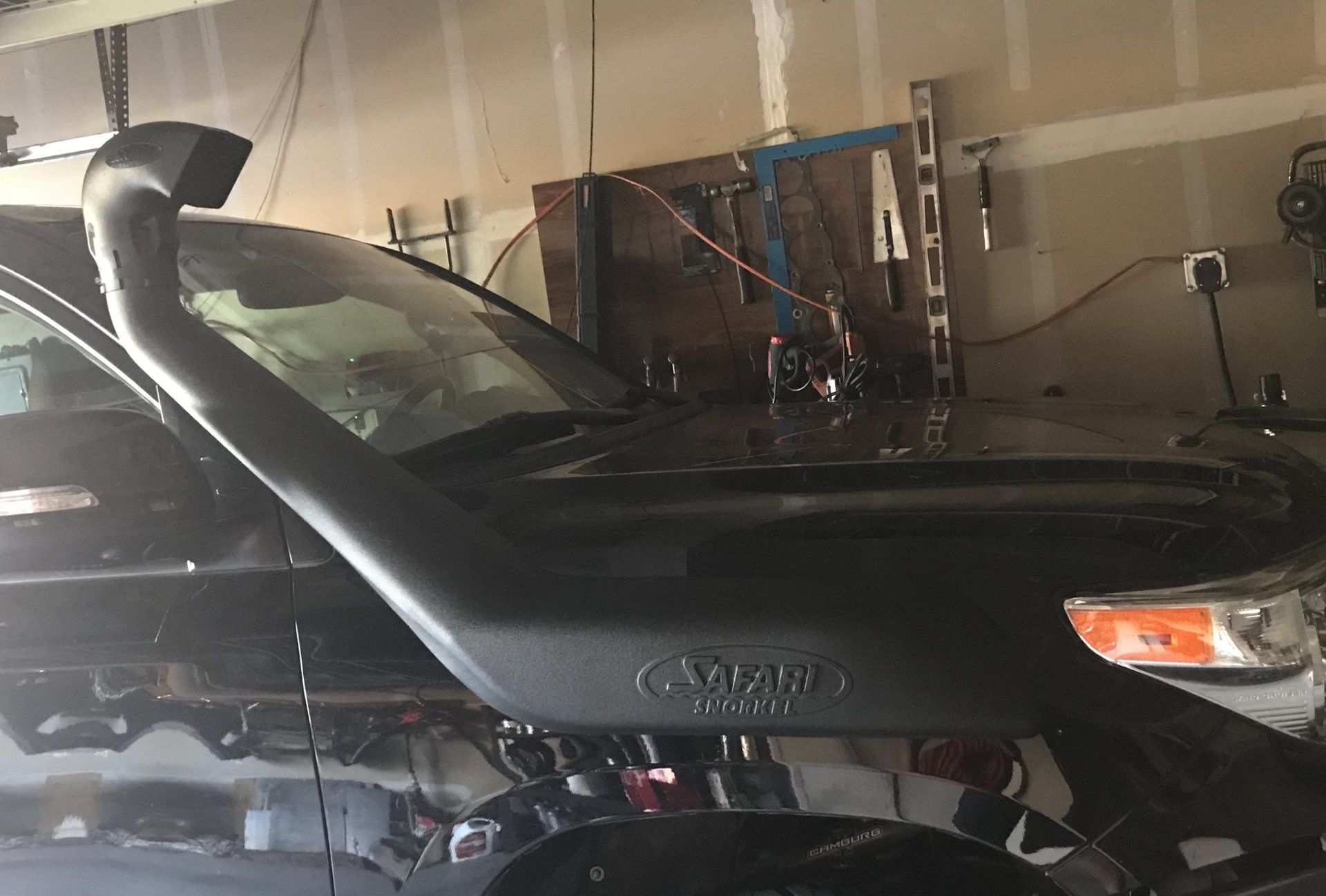

Safari snorkel



[Atwalz]

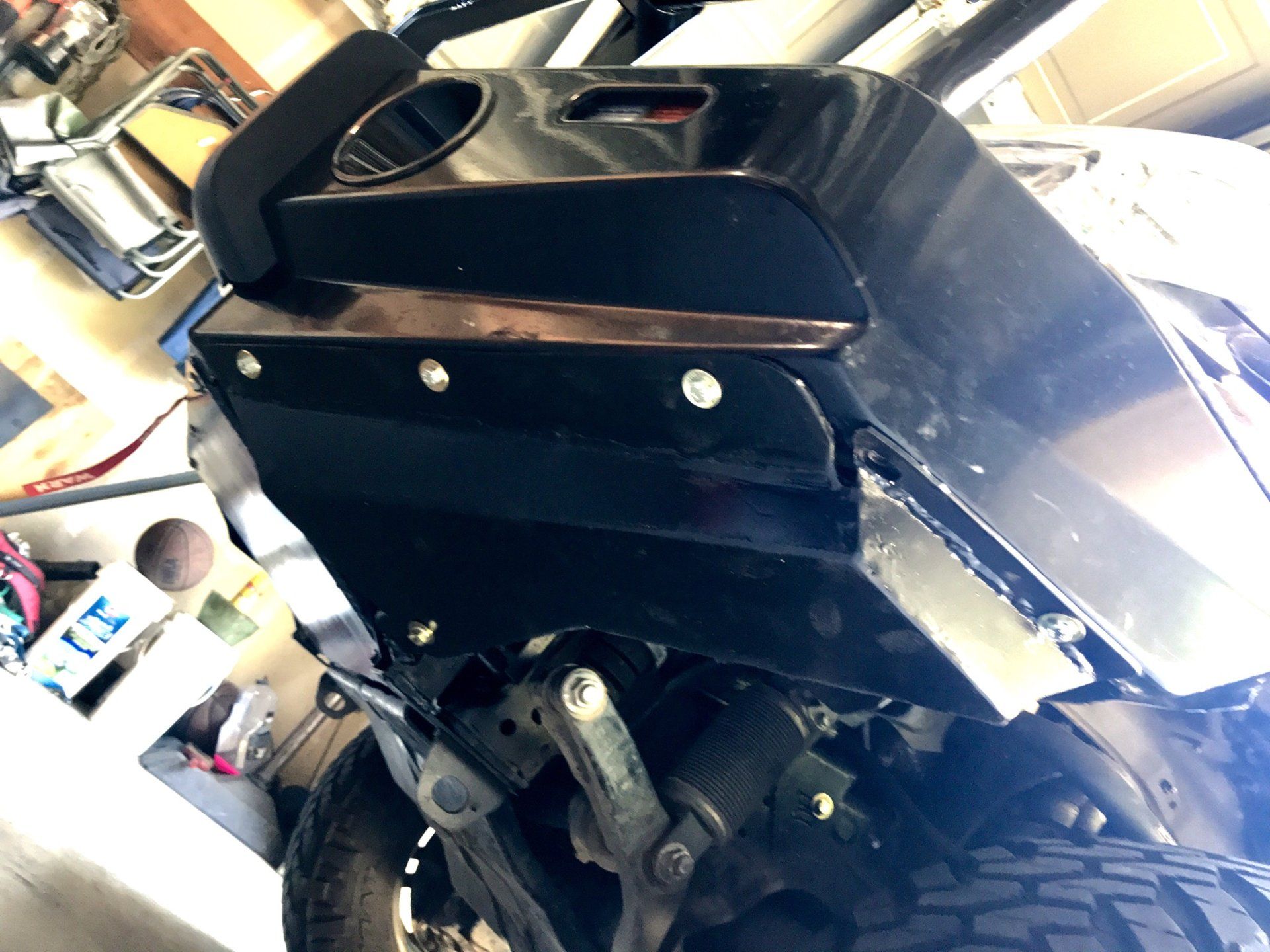

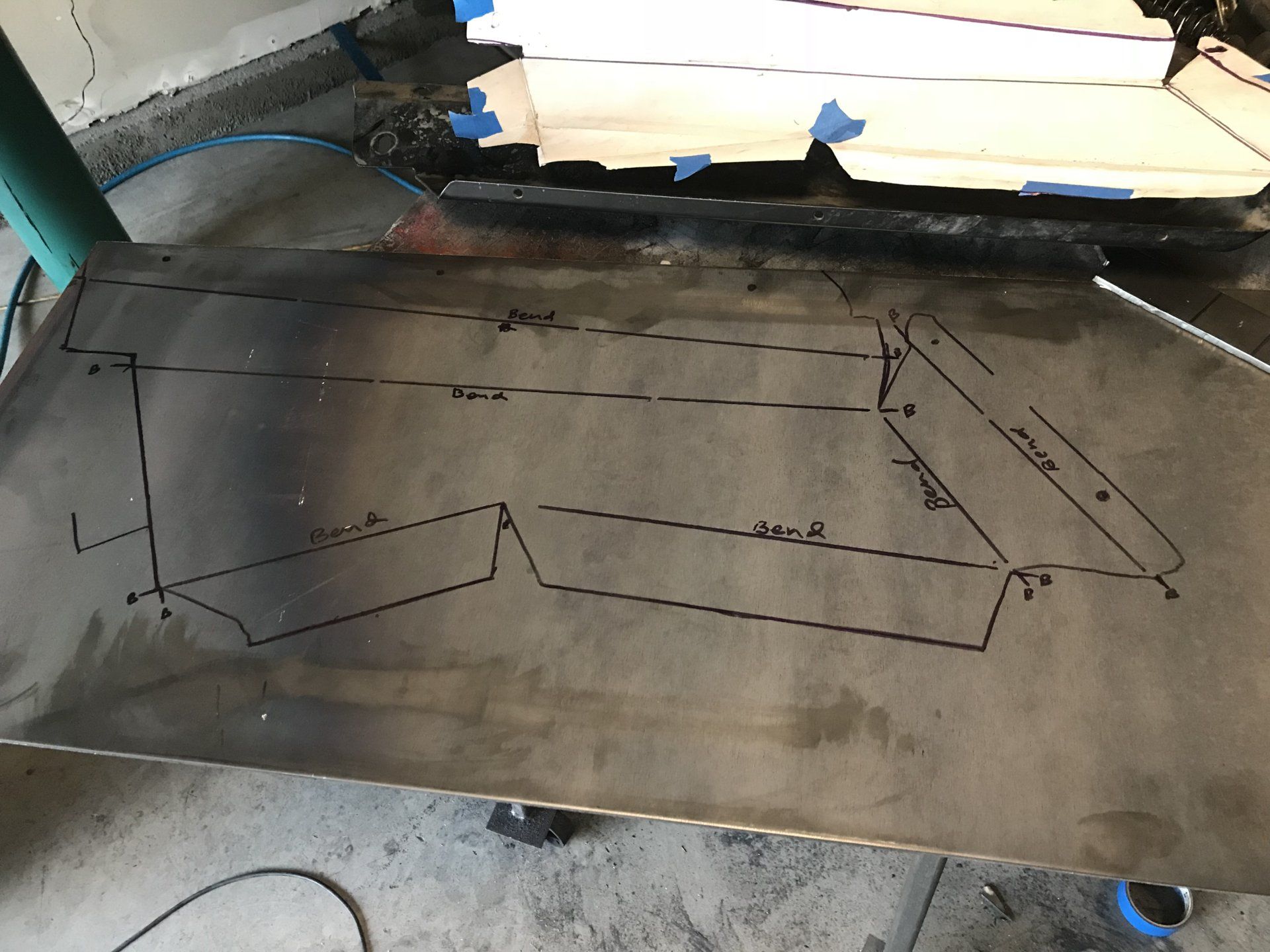

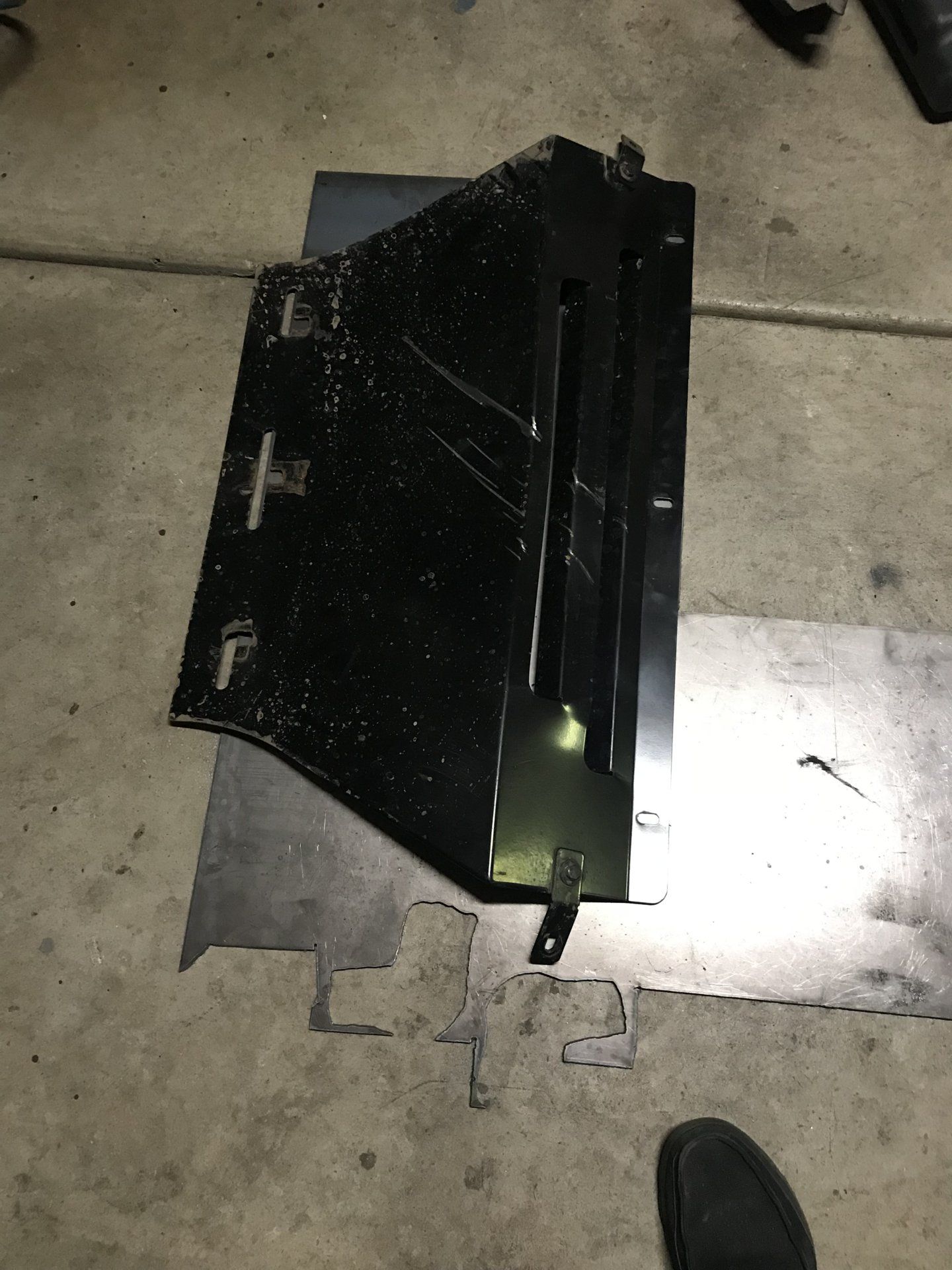

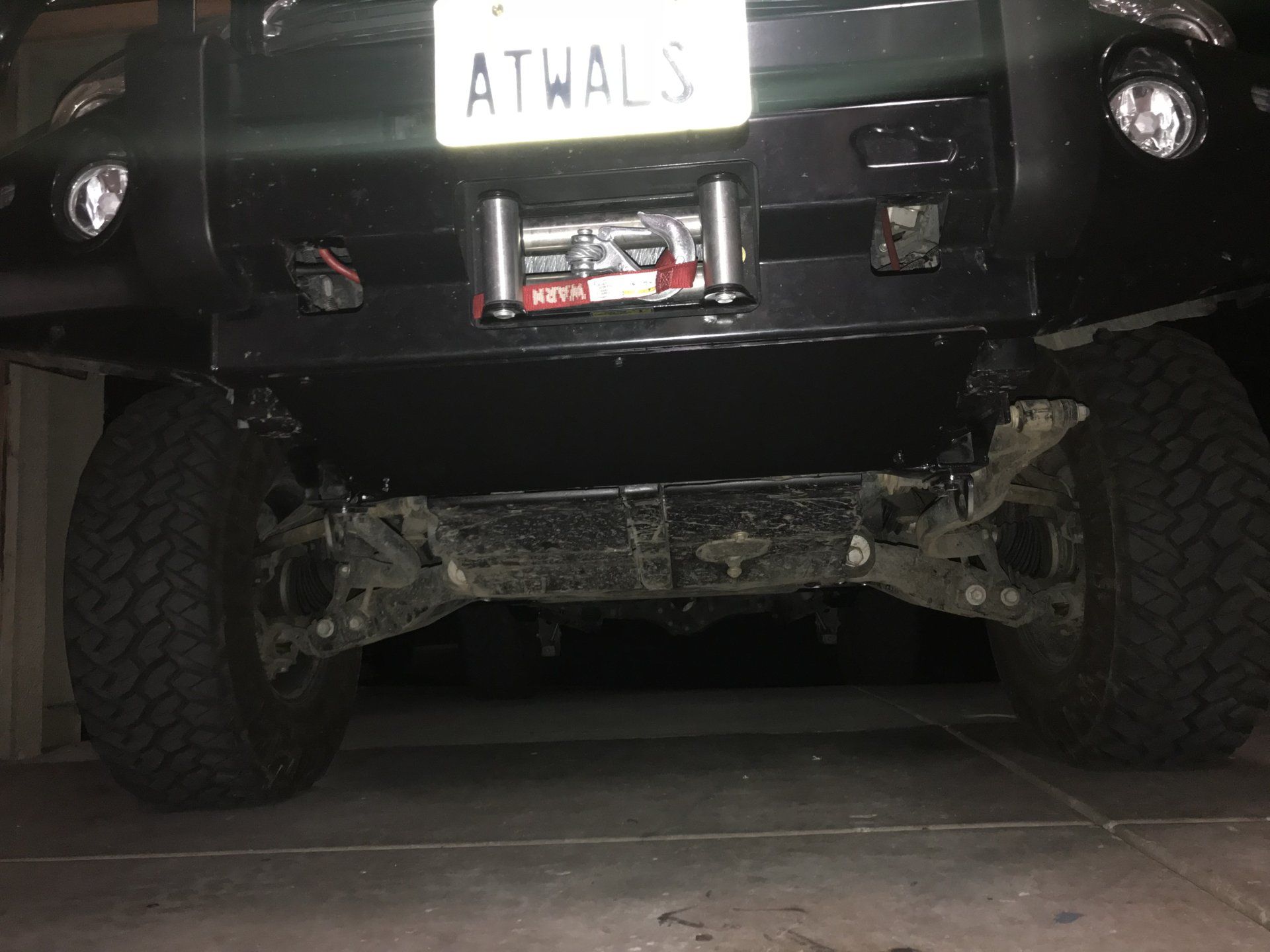

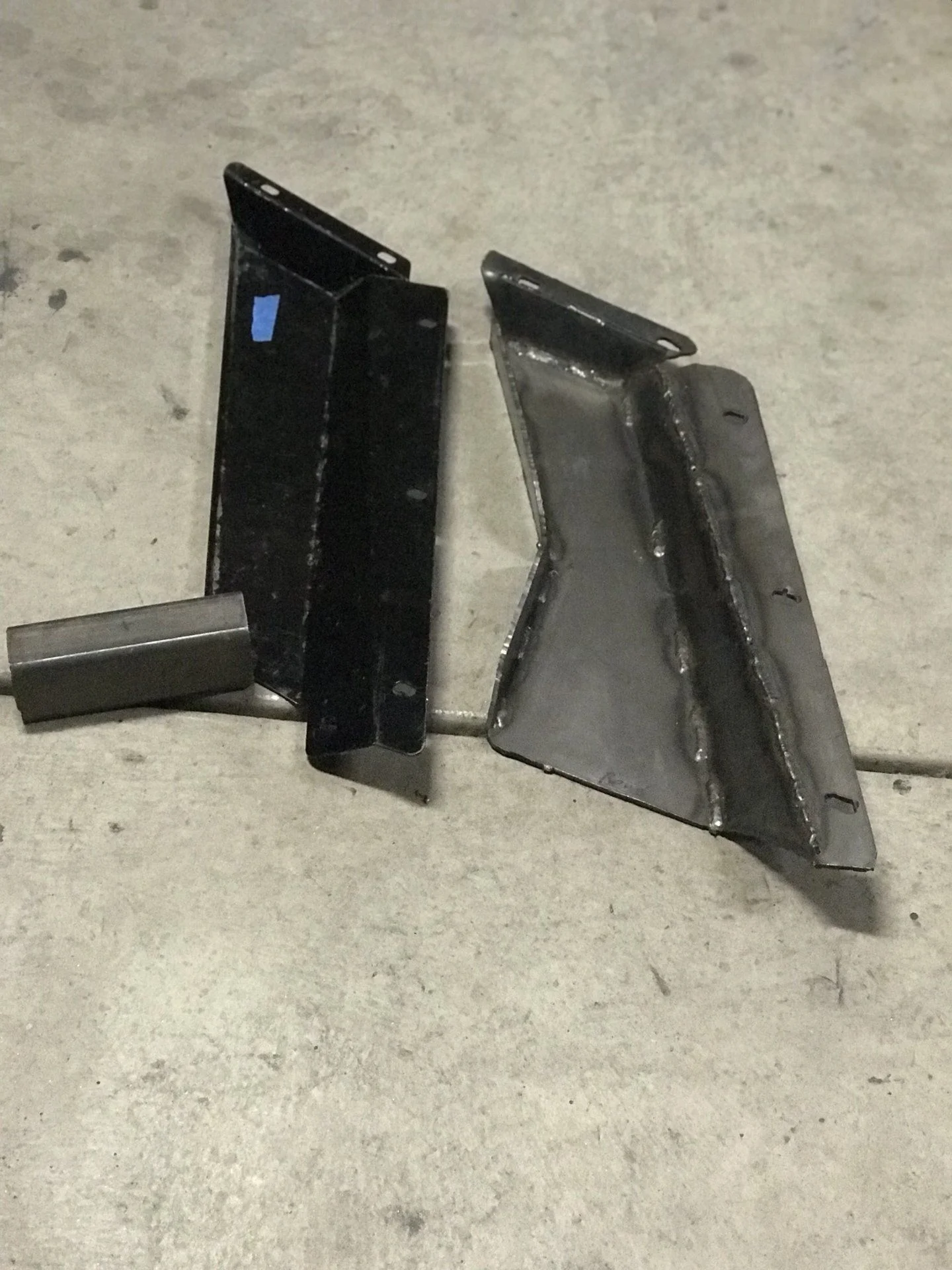

Building some skids to integrate with Ironman bumper. Ones that came with bumper were useless for my purpose. Also changed all fasteners to 1/2” grade 8 nut and bolts. Pinned the bumper on both sides. Rotated the winch lever to 90 degree counterclockwise for easy access.



[Atwalz]

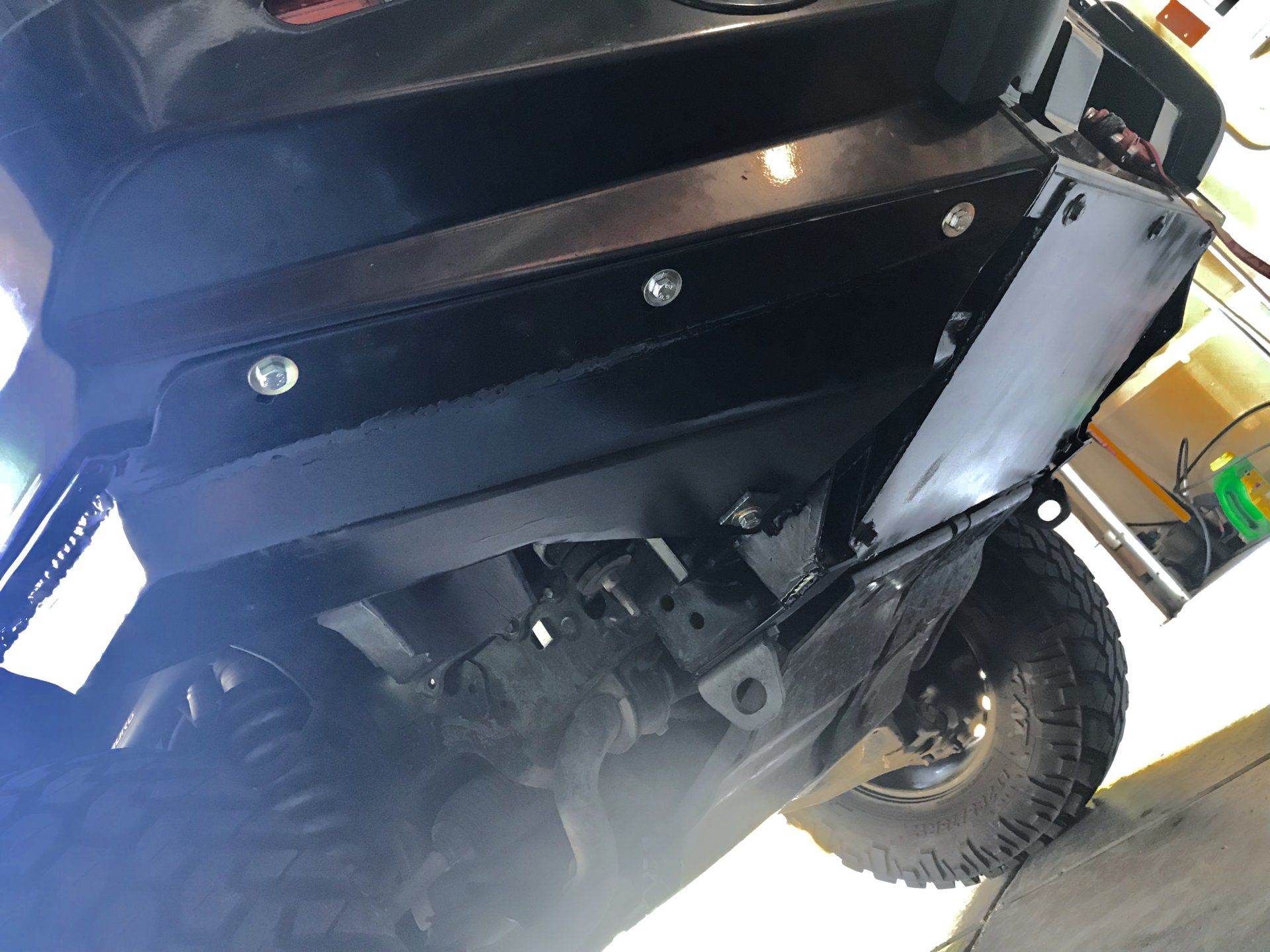

Here are few more pics of them installed.



[Atwalz]

Air supply



[Atwalz]

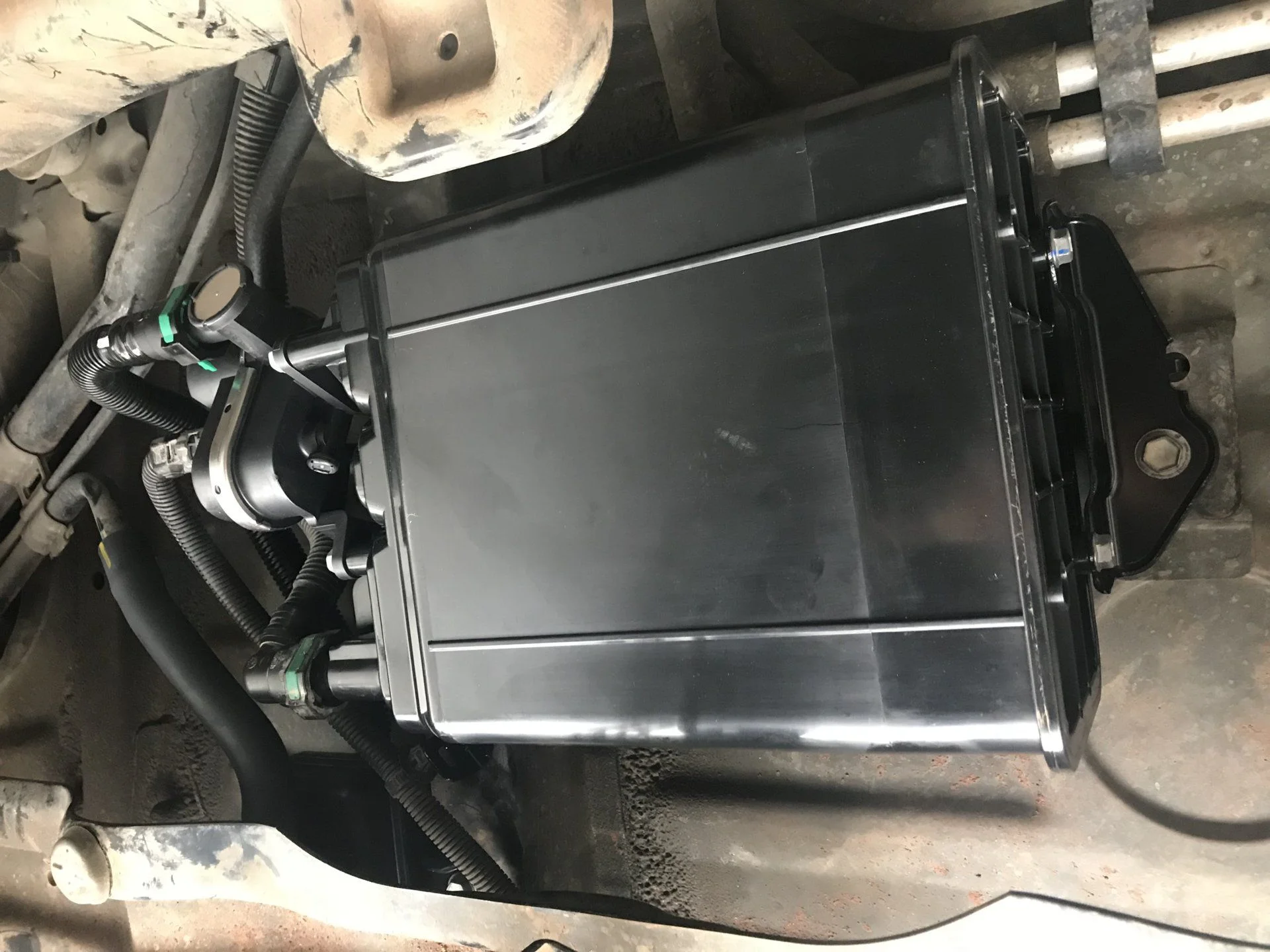

Installed a brand new OE canister and Vapor filter. Green clips are not sold separately. Dealer was unable to find part number. Hose that connects from tank to canister is a two piece, that first hose from tank to coupler is only available as part of whole gas tank. Second piece is available. I ordered that will be here on Thursday. I reset the CEL and let’s see if the code reappears in few days. I have tentatively scheduled an appointment with delear in case code reappears. For what it’s worth canister is covered under warranty until 70,000 miles in California, after that it’s owner’s cost. I wish I had known that and could have saved few bucks. I am past 80k miles as of now.



[TexAZ]

Hope this solves your issues.
Knock on wood the crazy hot summer solved my CEL.

haven't had to reset in 2 weeks.

Will be running top of the world on 1/4 tank this year



[TexAZ]

I spoke too soon.......codes came back this morning.

I guess I don't have to worry about messing anything up on Top of the world.....its still broken.



[TonyP]

The only logical solution is to sell your 200 and buy the far superior 75 series.



[Atwalz]

Here are part numbers for reference.



[Atwalz]

No codes. It’s been a week.
