Wanted AIR CLEANER CLAMP TO CARBURETOR *** see picture (2 Viewers)

[Wadesters]

Vehicle Model

1. 45 Series

#10 in the photo. Anyone have one?



[pardion]

1 or 2 bbl?



[mattressking]

That photo is deceiving, the air cleaner pictured doesn't use a clamp, just a seal and stud to mount to carb. The 74 and earlier carbs use band and clamp and 1bbl or 2bbl needs to be clarified like @pardion mentioned as there are two types.

If you have the pictured air cleaner (75-80 2F for ROW trucks) with early band carb 1 or 2bbl, then you have to make something custom.



[Wadesters]

It is a 1965 FJ45 LPB with an SD40. Maybe I am not supposed to have a clamp?



[locklaw]

It is a 1965 FJ45 LPB with an SD40. Maybe I am not supposed to have a clamp?

Yep, it does need a clamp.



[middlecalf]

Needs clamp 90461-23123 or Ace hardware equivalent



[red66toy]

Needs clamp 90461-23123 or Ace hardware equivalent

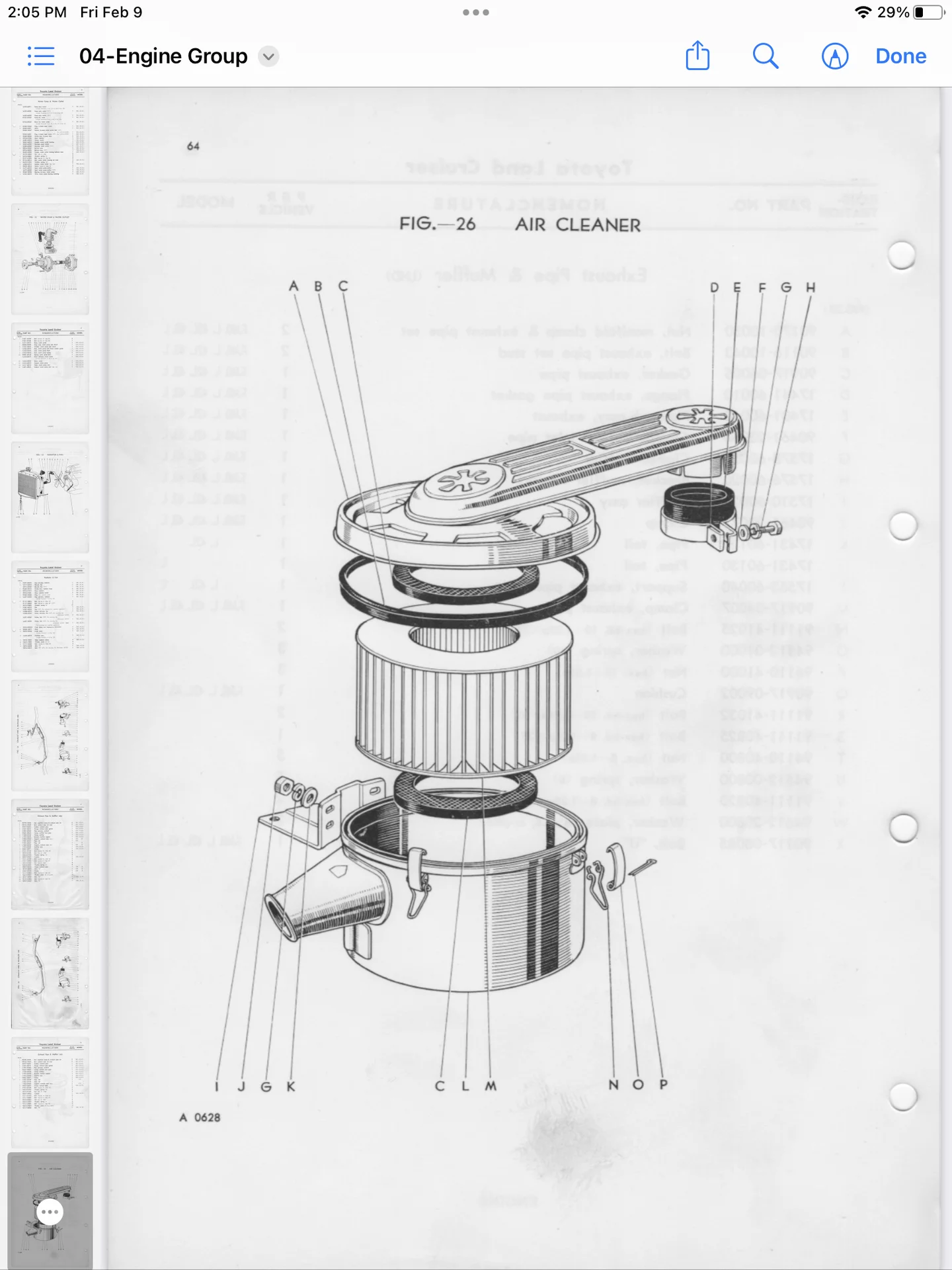

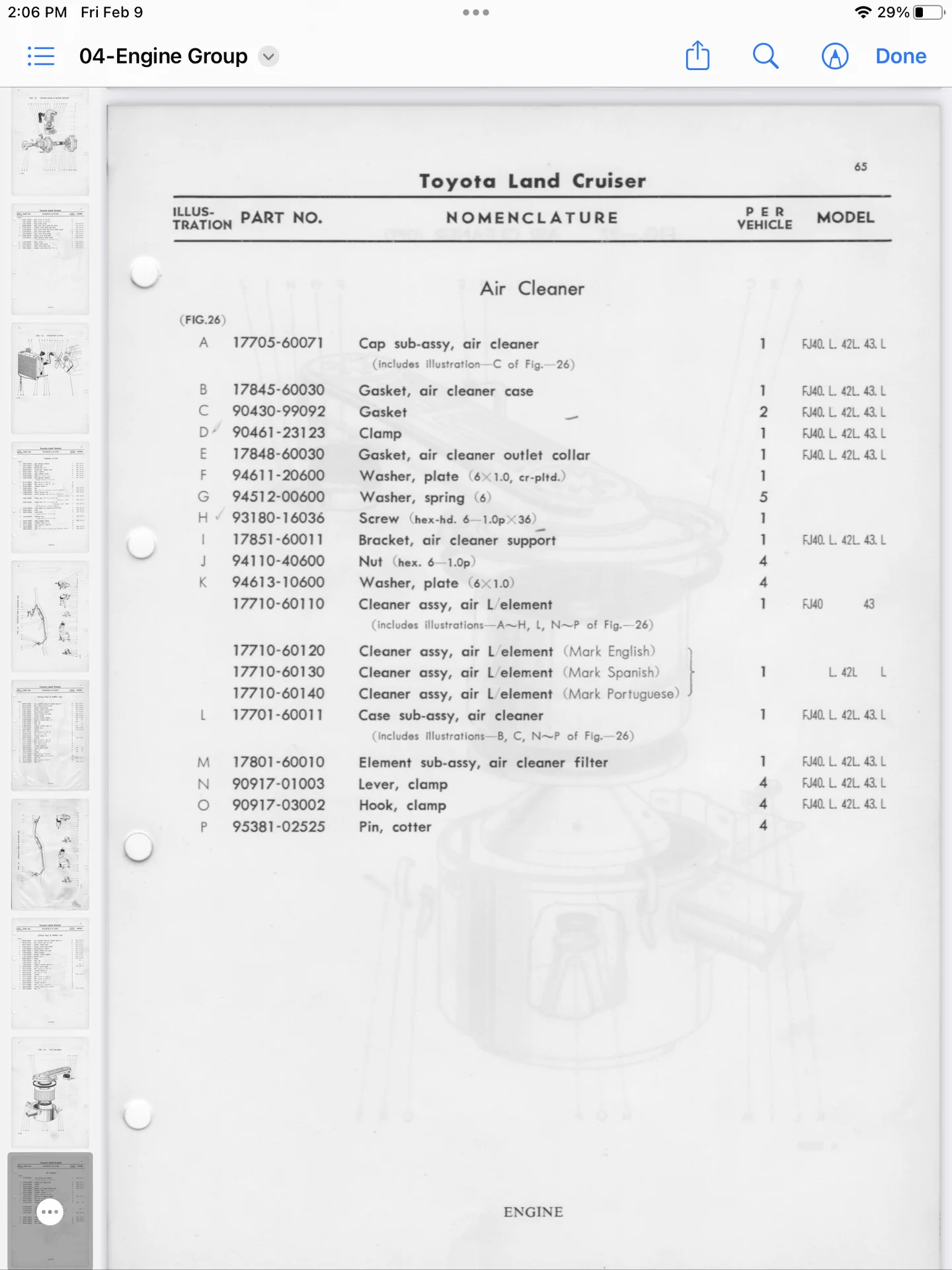

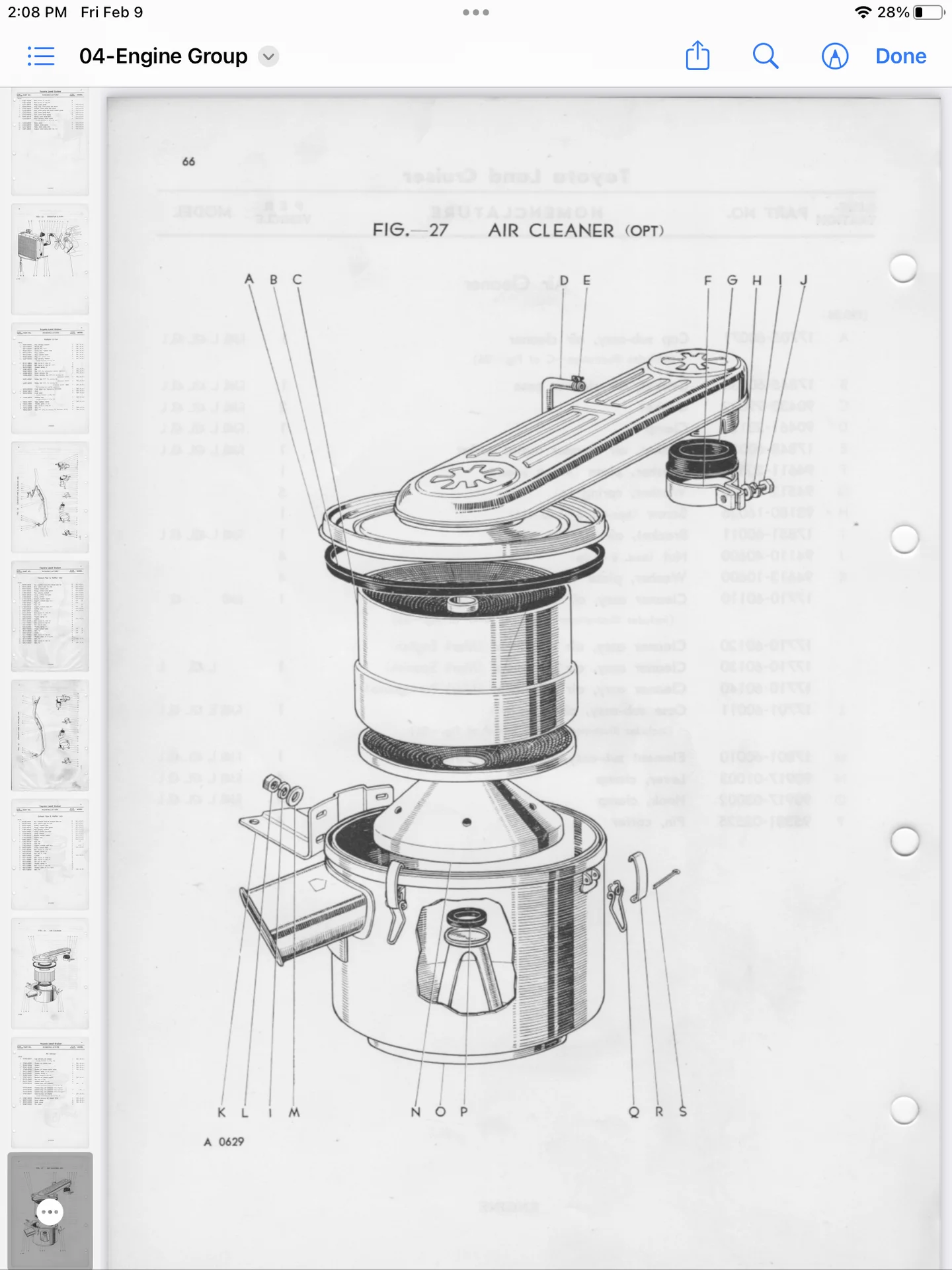

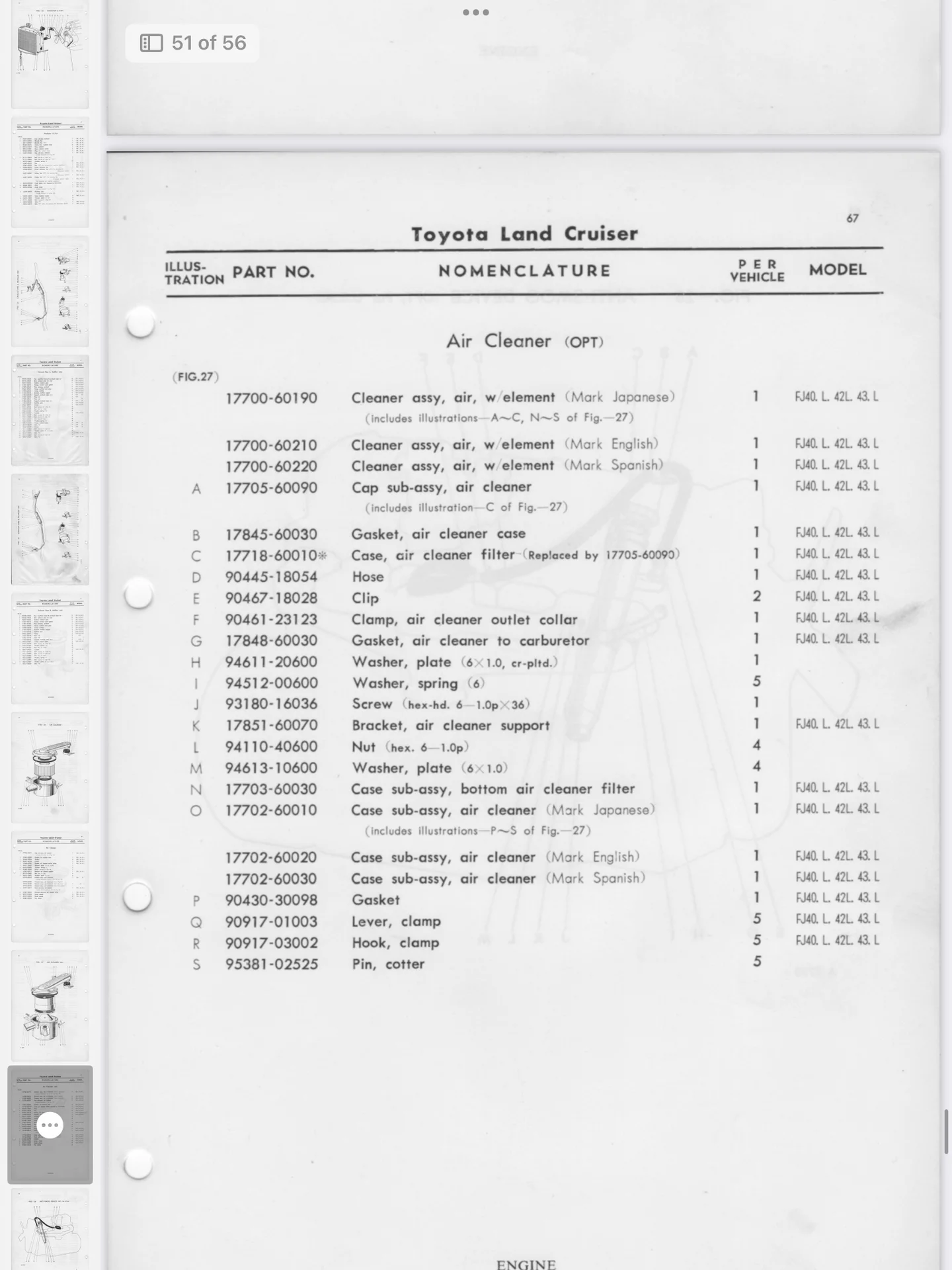

View attachment 3554258View attachment 3554259View attachment 3554261View attachment 3554262

I have been using a hose clamp. Leaves a little to be desired functionally



[red66toy]

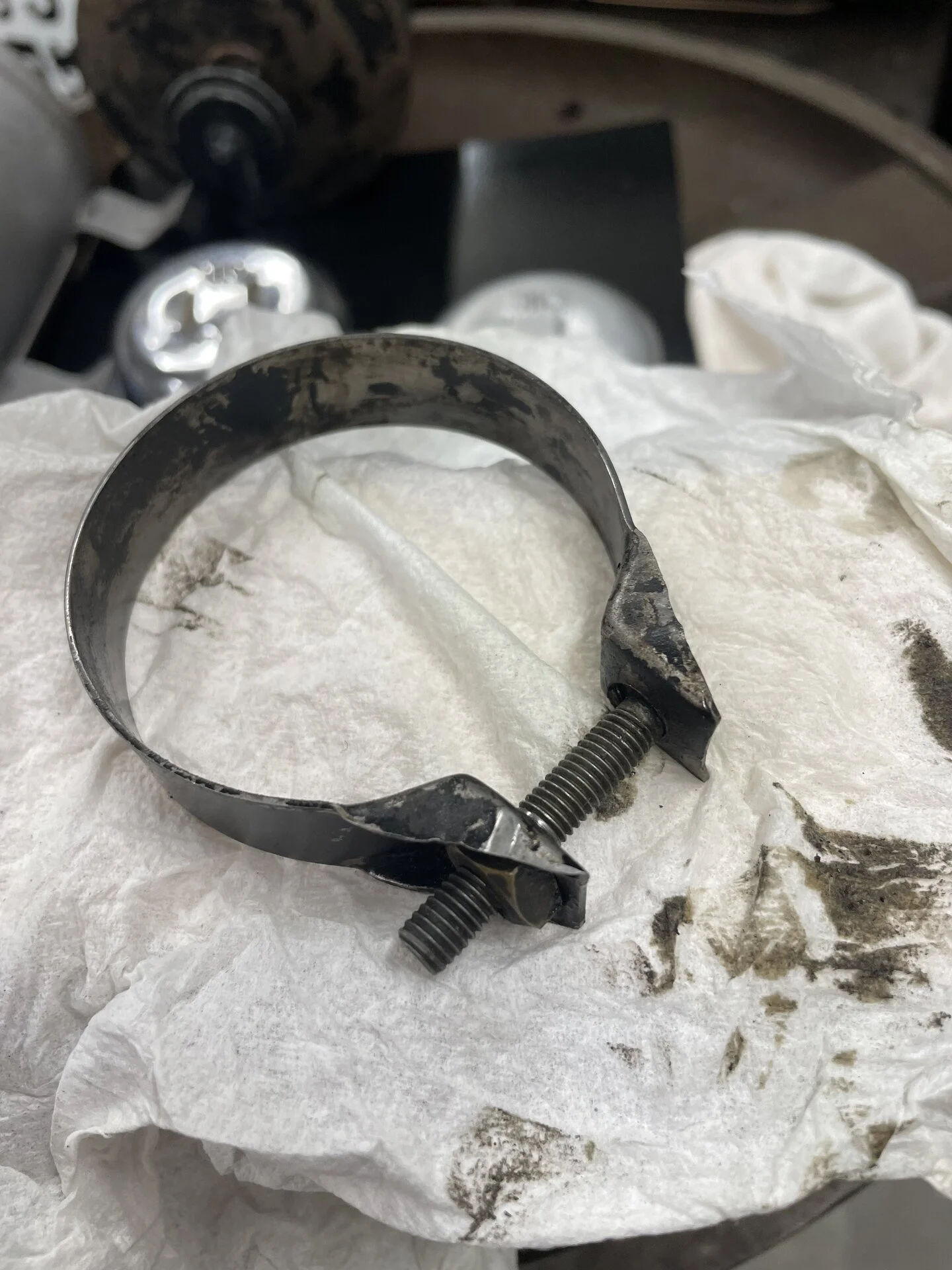

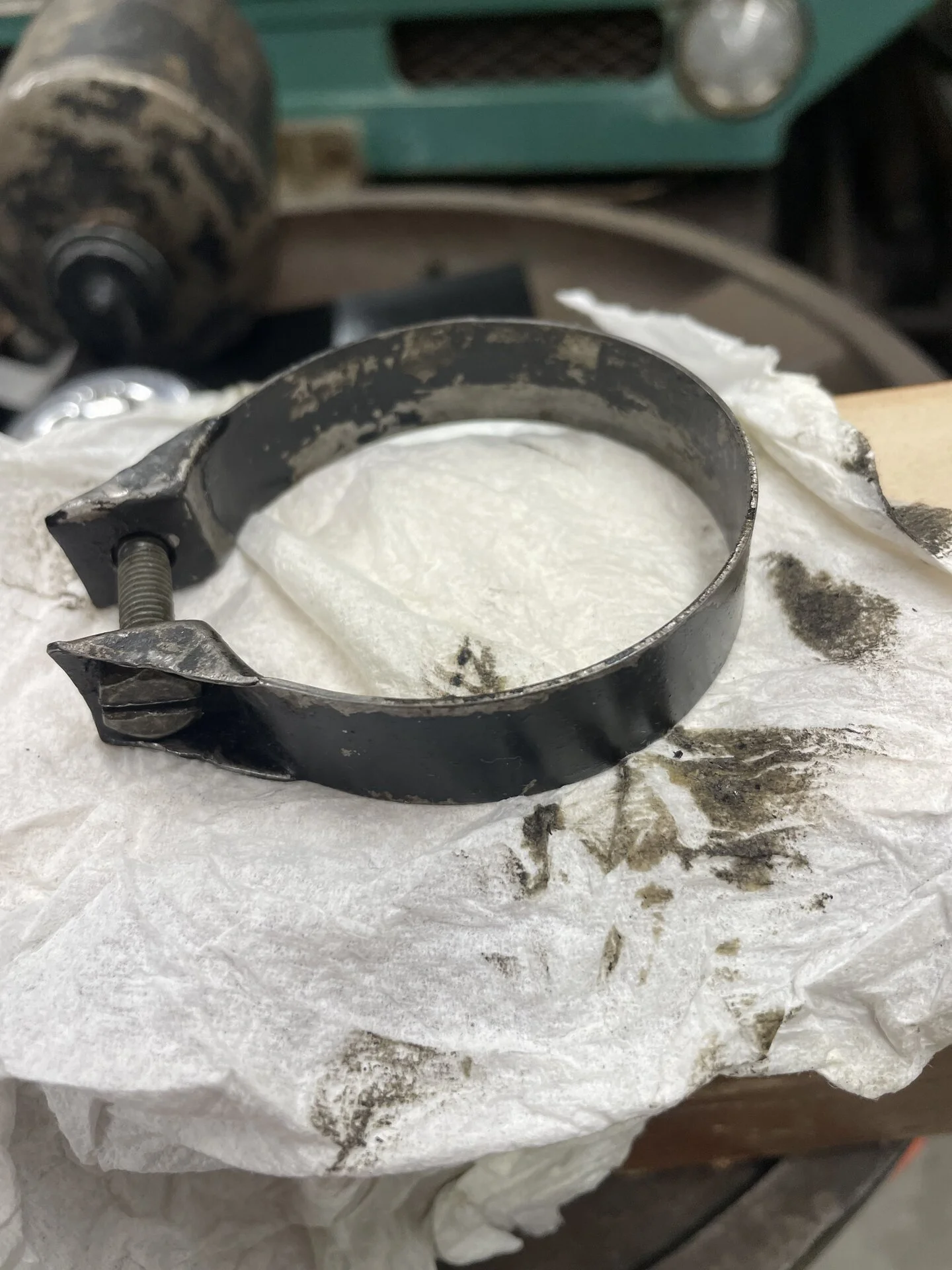

Here is one from a local 1962 for visual reference:
