80 Series Rear Locker Sub-Harness Information

Onur

Moderator
GOLD Star


Joined
Aug 28, 2004
Messages
26,505
Location
NY, USA

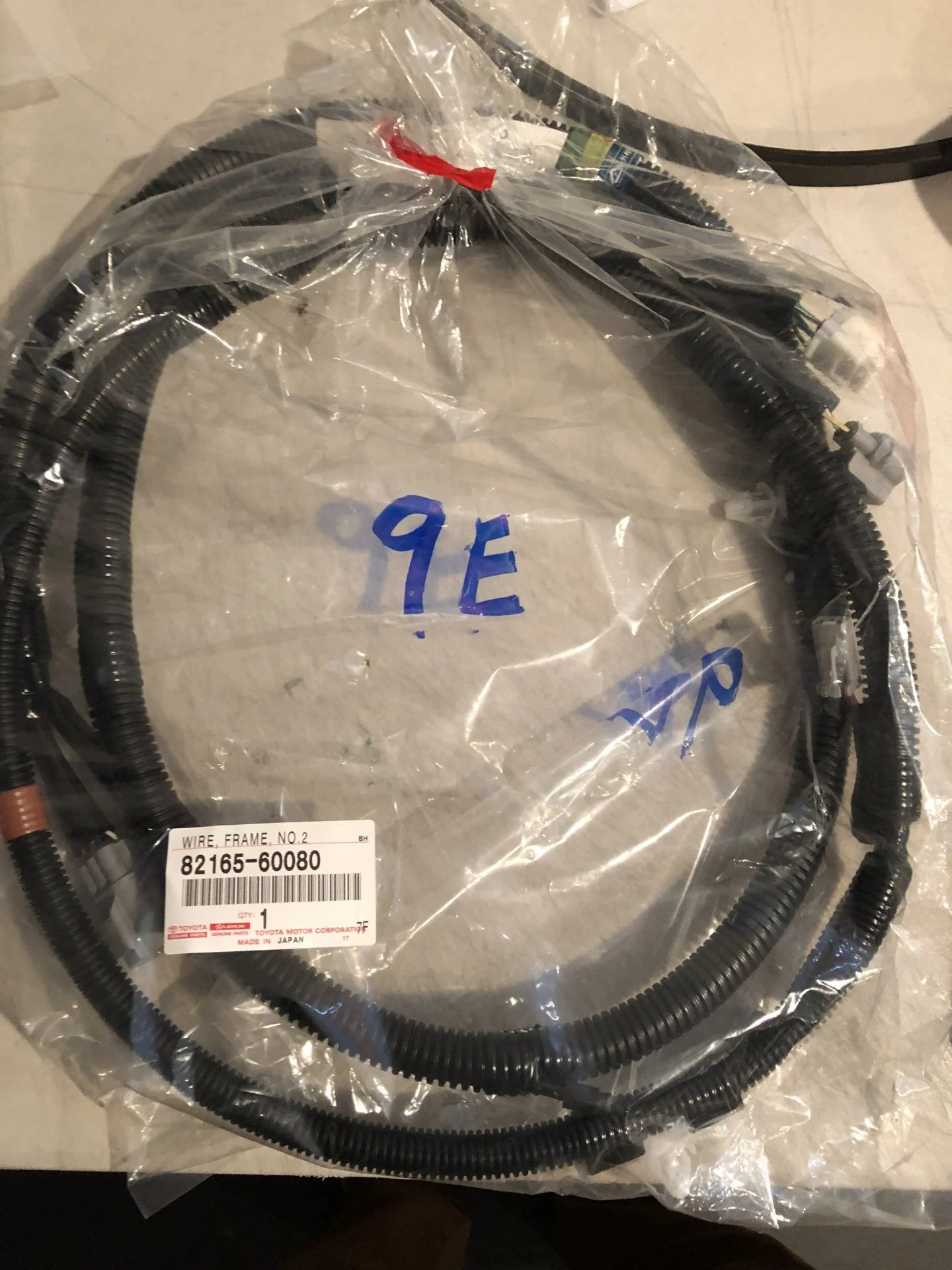

This is the only remaining complete locker sub-harness for the 80 series from Toyota.

This will fit all of the 1993-1997 80 Series trucks. This part is barely still available from Toyota. Also integrates the locker breather tube as well.

Hope this information helps folks.



It is manufactured by Yazaki for Toyota.

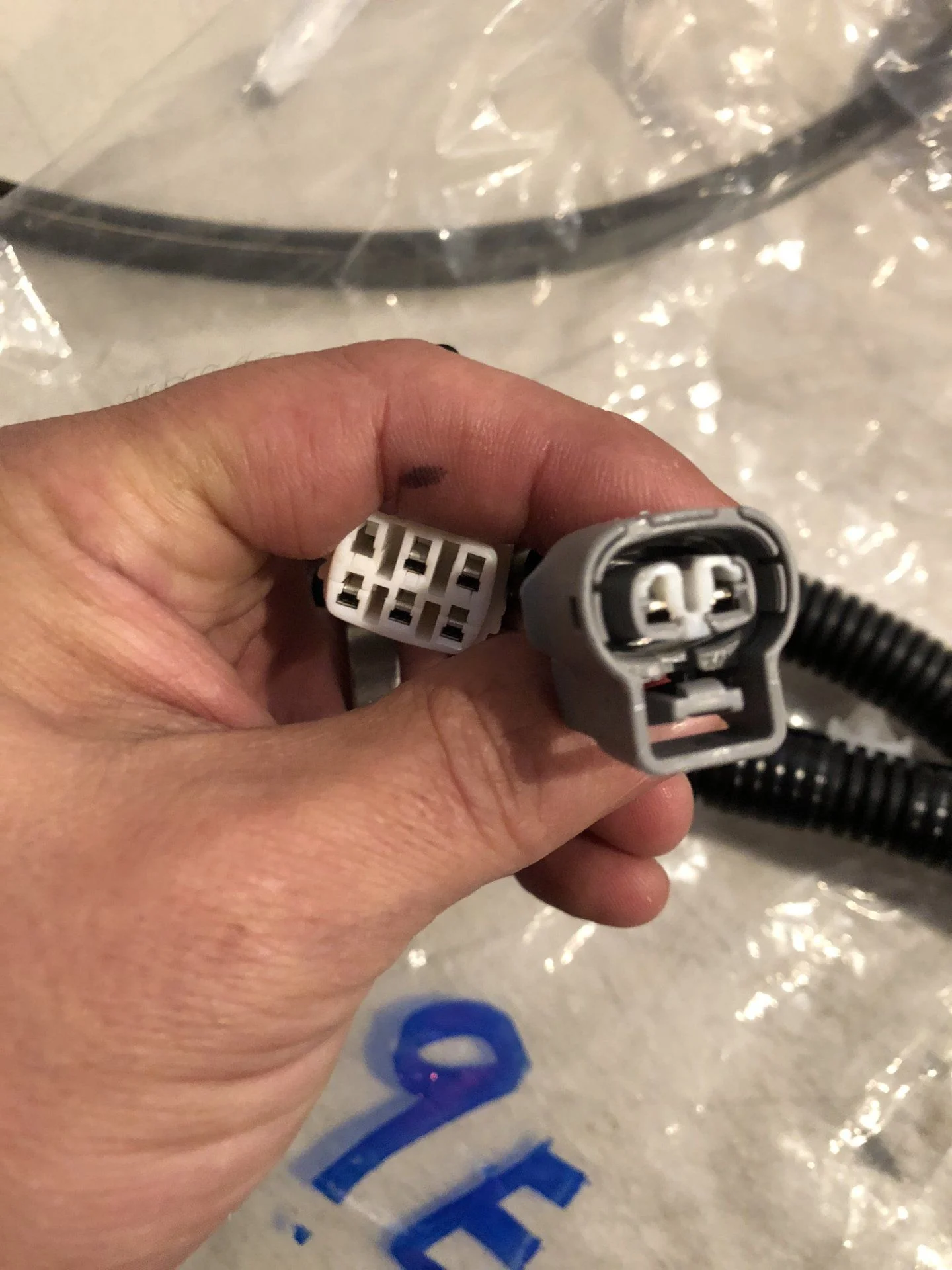

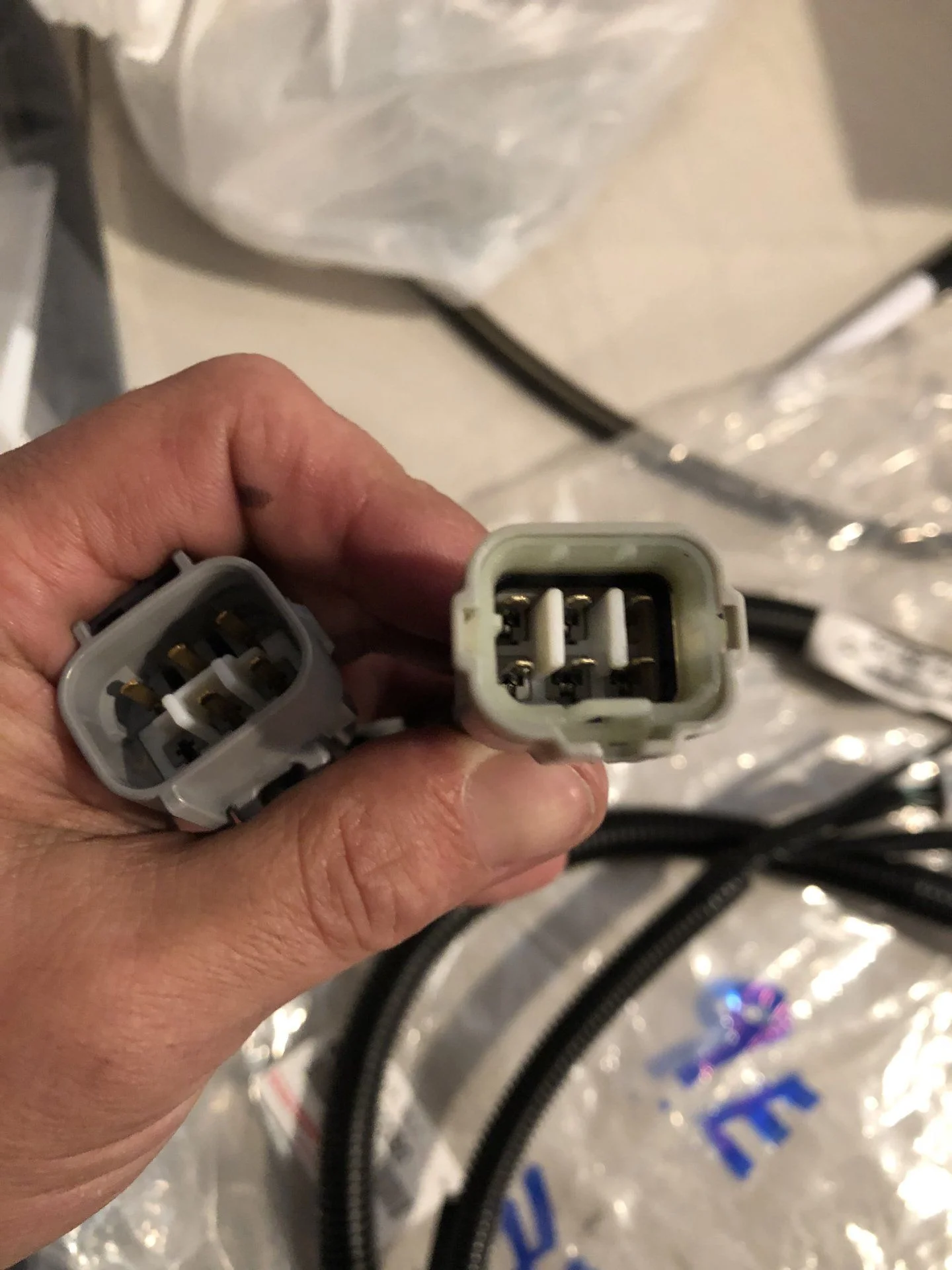

The Connectors:

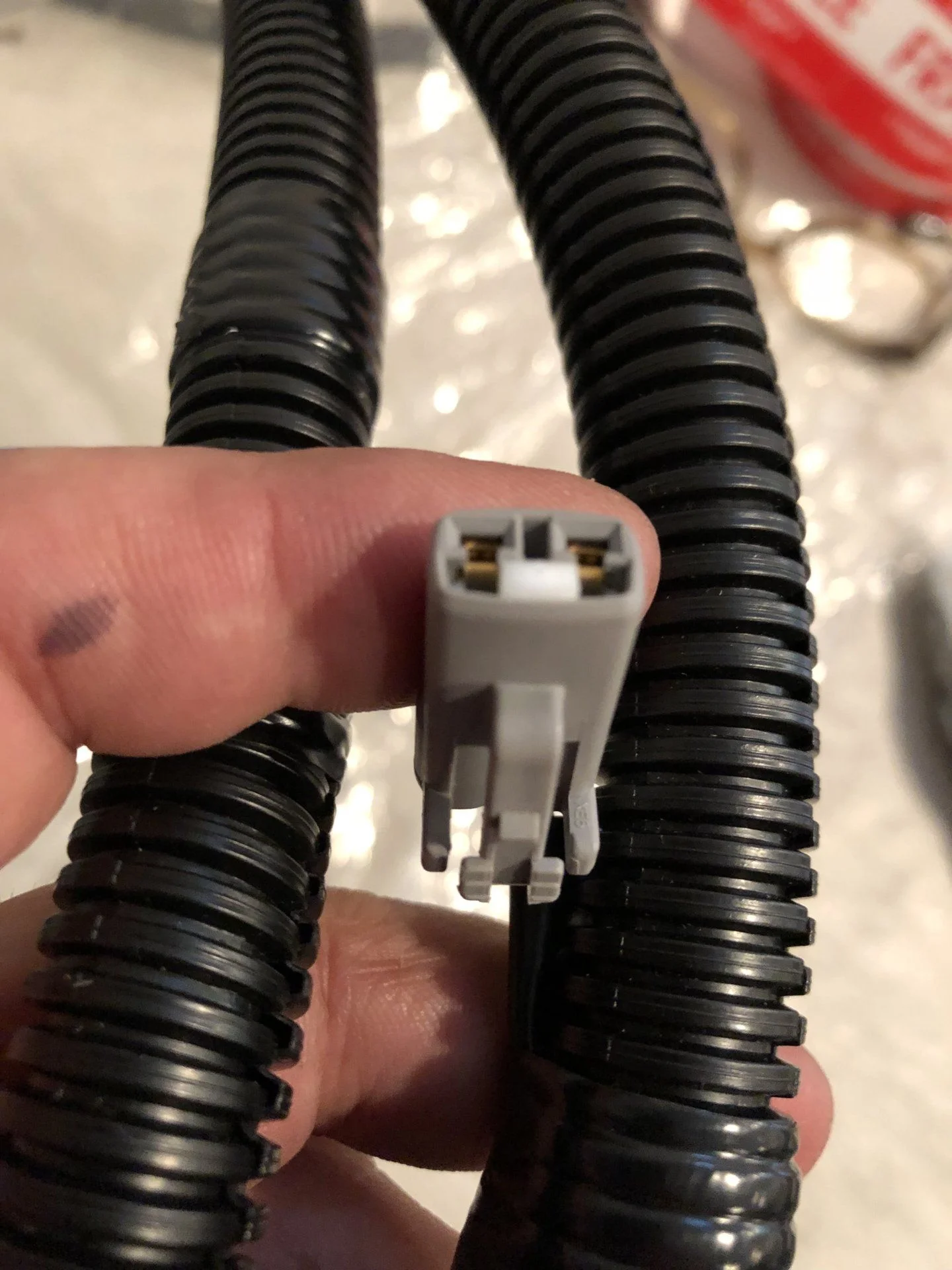

Gray: 2 cavities, both used: 90980-11250
White: 6 cavities, 5 used: 90981-11290



Gray, 6 cavities, 5 used: 90980-10987
Gray, 6 cavities, 6 used: 90980-10477



Gray, 2 cavities, 2 used: 90980-11075


Joined
Sep 19, 2018
Messages
120
Location
New York

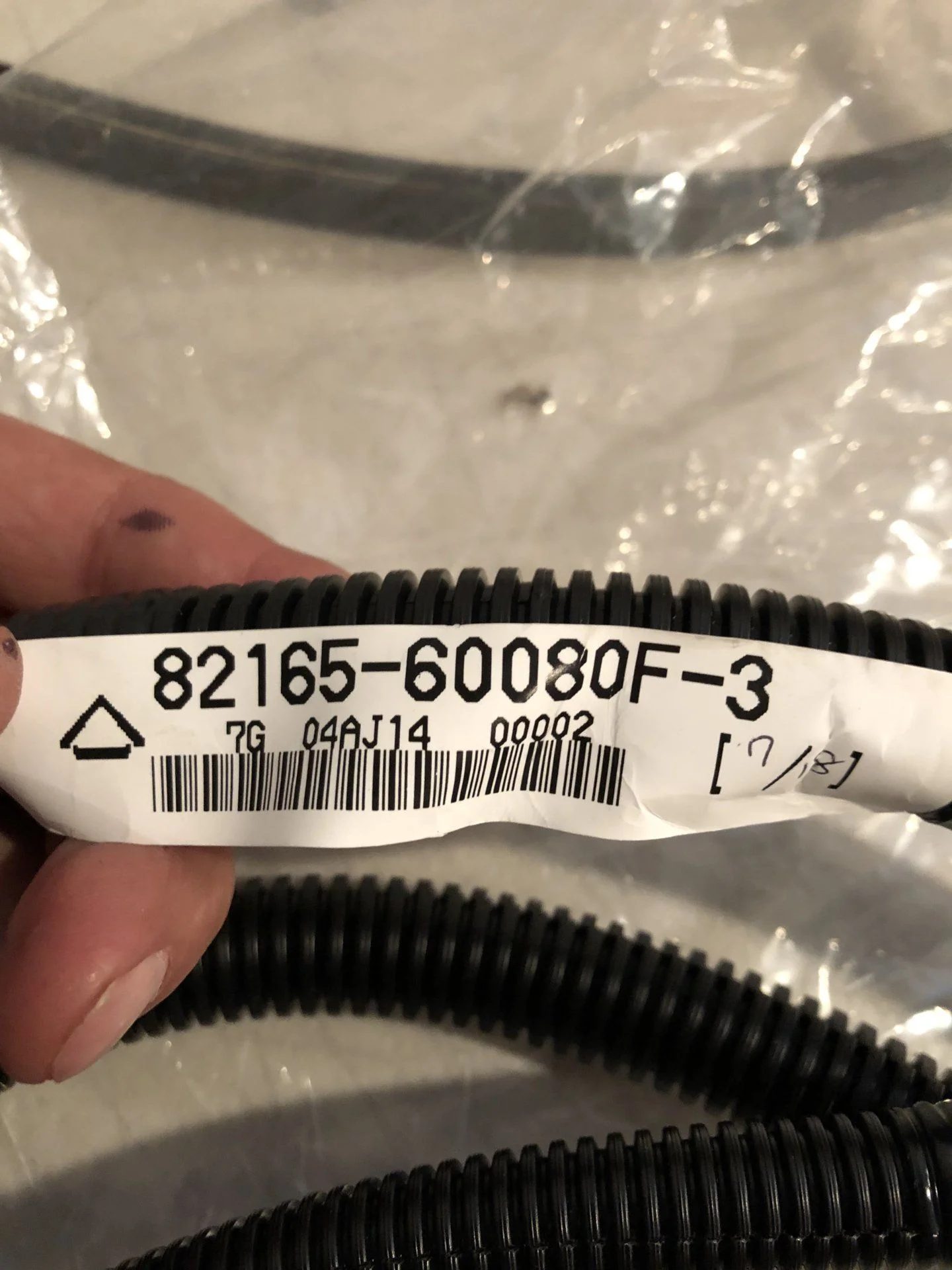

This is the best that I could do for manufacturer part numbers

Toyota 90980-11250
Yazaki 7283-8228-30

Toyota 90981-11290
Sumitomo 6189-0368

Toyota 90980-10987
Yazaki 7282-7064-40

Toyota 90980-10477
???

Toyota 90980-11075
Yazaki 7283-7029-40
