4:1 gears in a 34mm split case

Joined
Mar 12, 2005
Messages
2,972
Location
Littleton, Colorado
I am looking to upgrade my splitcase to 4:1 gears. 38mm cases are getting tougher to find so I’d like to see who has used their 34mm case. Would love to see pictures of the process as well as where and how much material has been added.

Thanks!
Max



cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
11,713
Location
Winter Park, Florida
Website
www.facebook.com
4:1 gears in a 34mm case that's black magic voodoo bro


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
11,713
Location
Winter Park, Florida
Website
www.facebook.com
The word on the street is that the case gets... "thin"
I want to try it, and just cut a big window out of the case and weld a piece of 1/8" where it gets thin.
Basically, send me your transfer case and and some gears and let me get crazy

Last edited:

cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
11,713
Location
Winter Park, Florida
Website
www.facebook.com
Joined
Mar 12, 2005
Messages
2,972
Location
Littleton, Colorado
The word on the street is that the case gets... "thin"
I want to try it, and just cut a big window out of the case and weld a piece of 1/8" where it gets thin.
Basically, send me your transfer case and and some gears and let me get crazy

Kinda the same idea I had too. with enough aluminum welded in I won’t need a skid plate 😂

Going to order the gearset tomorrow. I’ll document it here.


orangefj45

Supporting Vendor
Joined
Mar 14, 2003
Messages
17,913
Location
norcal

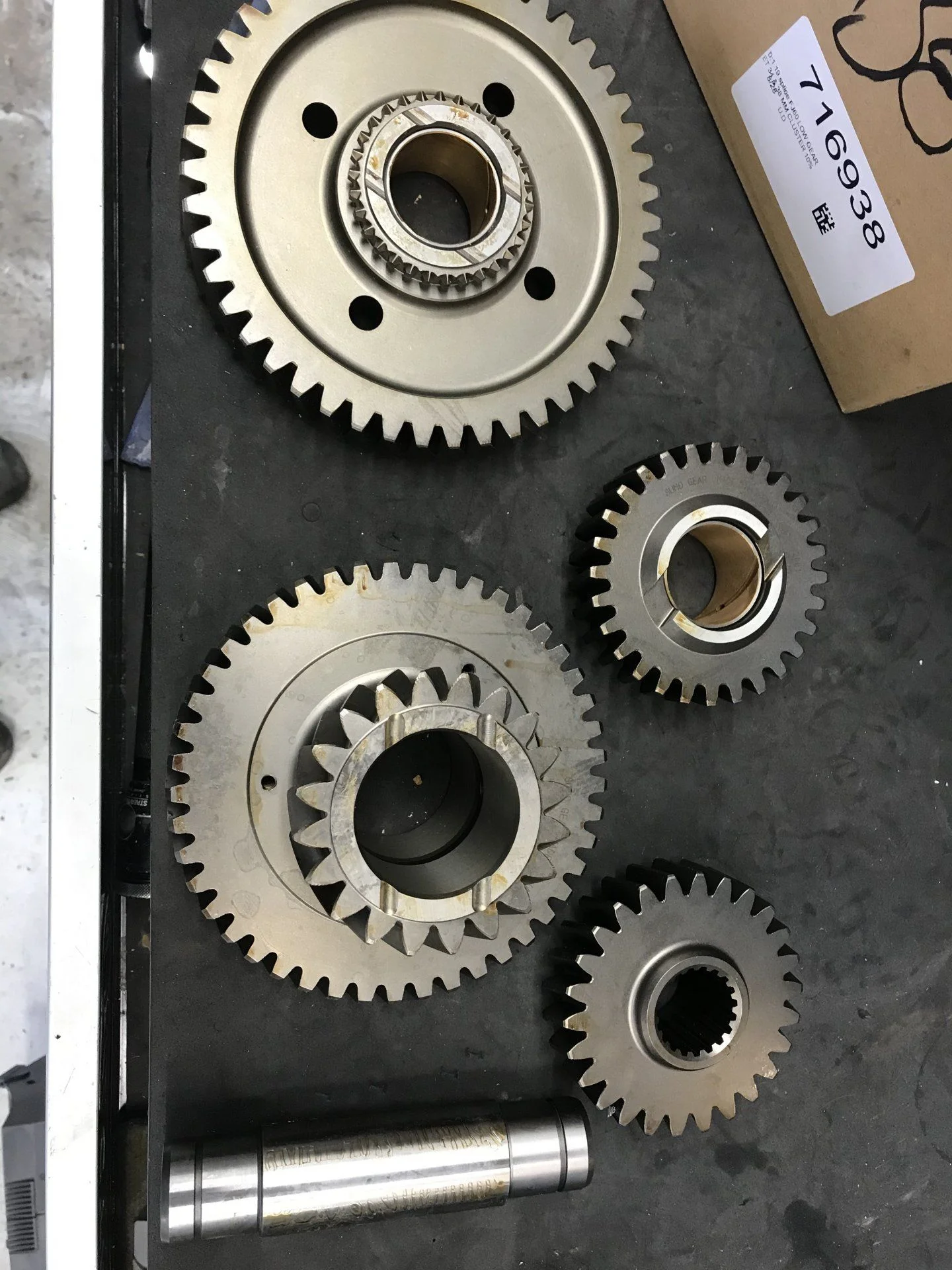

Kinda the same idea I had too. with enough aluminum welded in I won’t need a skid plate 😂

Going to order the gearset tomorrow. I’ll document it here.

Feel free to call if you need tech support. We have the gear sets and rebuild kits in stock. We also offer machining services to clearance the Tcase for the lower gear sets.
Georg @ Valley Hybrids, Cruiser Brothers & Long Range America
Shop 209-475-8808


orangefj45

Supporting Vendor
Joined
Mar 14, 2003
Messages
17,913
Location
norcal
Joined
Apr 14, 2008
Messages
5,827
Location
North of LA California
@74fj40
Are you planning on clearance the case yourself? I've held back on attempting this and I'm curious how it will go. I have a spare case at the moment which may be fun to try on my own.

Joined
Mar 12, 2005
Messages
2,972
Location
Littleton, Colorado

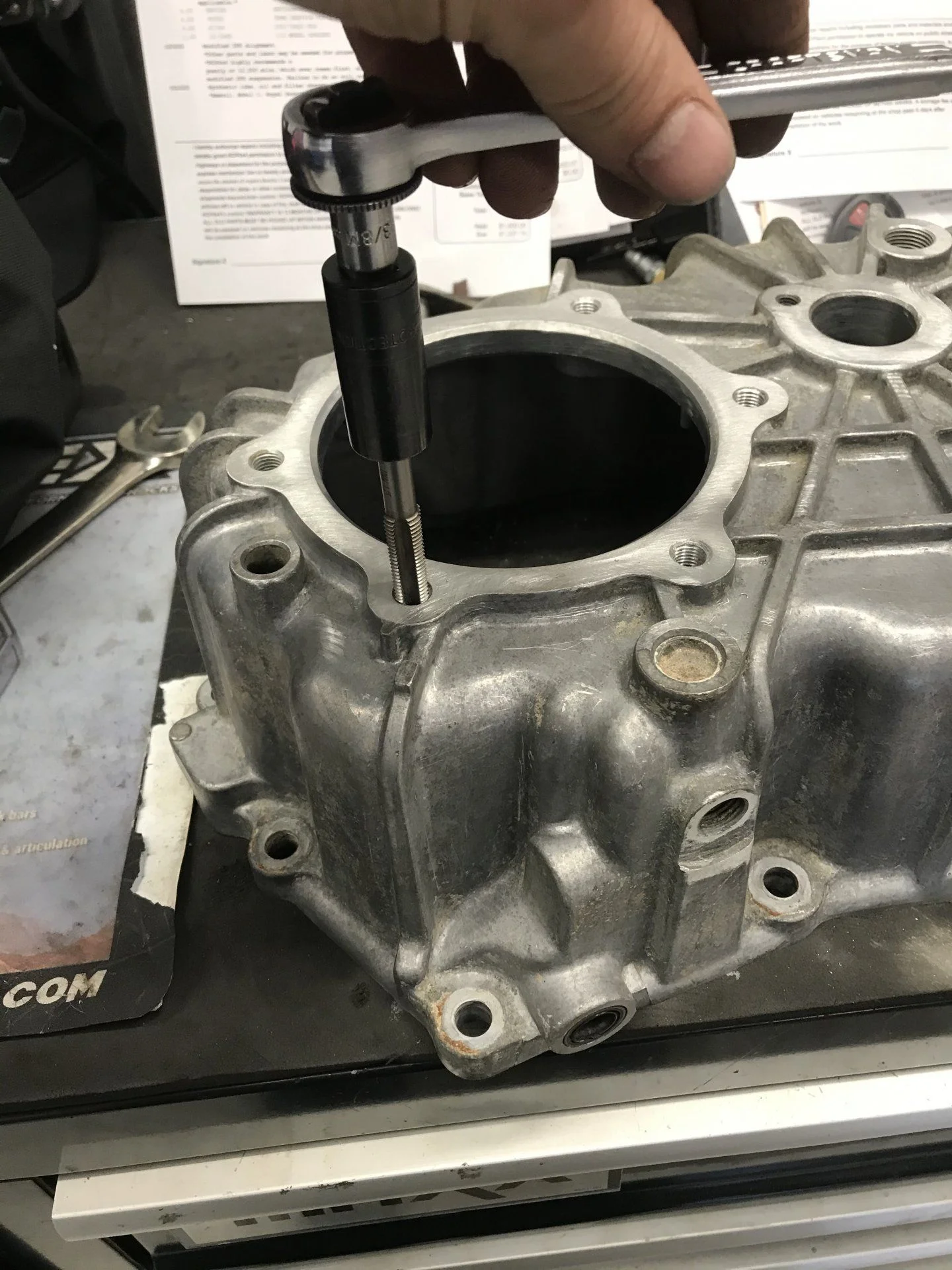

I have the transfercase mostly apart. Back half of the case is clean. Not Georg clean but good enough for me. Found some pictures posted by Georg of a machined case and used it as a diagram to do some preliminary machining (AKA Precision grinding).

I only allot myself 30 minutes of garage time a night so I’m pretty happy with how far I’ve gotten in a few days time.

Joined
Mar 12, 2005
Messages
2,972
Location
Littleton, Colorado
@74fj40
Are you planning on clearance the case yourself? I've held back on attempting this and I'm curious how it will go. I have a spare case at the moment which may be fun to try on my own.

Absolutely am going to give it a try myself. If I blow through the case I can tig weld it, so I'm not too worried about it.

Joined
Apr 14, 2008
Messages
5,827
Location
North of LA California
I too am not afraid of adding material. Would love to see very specific measurements and details.


MoaByte

SILVER Star
Joined
Dec 13, 2014
Messages
2,061
Location
Moab
This is cool. So to clarify, a 10% reduction in high in the TC is equivalent to swapping 3.73's to 4.10's. but the low-range is compounded how much?

Joined
Aug 3, 2010
Messages
2,415
Location
North of Seattle, WA
Website
instagram.com
This is cool. So to clarify, a 10% reduction in high in the TC is equivalent to swapping 3.73's to 4.10's. but the low-range is compounded how much?

from 2.28:1 stock low range to 4:1 would be about a 75% reduction in ratio.
