3FE flywheel bolts

[cruisermatt]

I searched by flywheel and didnt see them. I looked through the first few pages and didnt see these. Dont need to sound like an a****** just to prove that you were right. some people don't use the site enough to be able to search quickly.

You’re welcome. Maybe I should’ve just not responded in the first place and let you figure it all out for yourself like I had to when I ran into this particular roadblock. That would be me being an a******.



[cruisermatt]

Please do update here, anxious to see how these work for you.

They probably won’t, 1FZ has eight bolts and I believe they’re smaller. I could be wrong on this though.
However, the 22R/RE flywheel bolts he OP referenced in his first post look like they would work if you compare the dimensions from Marlin Crawler’s site to those I posted above.
I found this in about four seconds of Google searching:

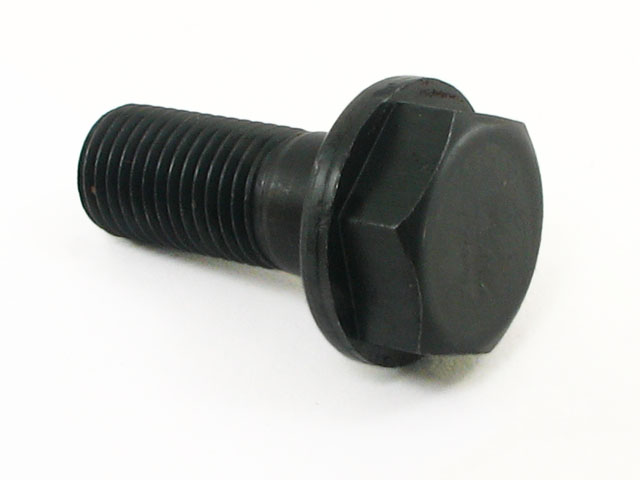

2.4L 22R Flywheel Bolt | Marlin Crawler, Inc.

This is a Genuine Toyota 22R Flywheel Bolt. It fits all 1981-95 22R, 22R-E, and 22R-TE engines. Torque: 80 lb-ft (no special sequence, no thread sealant required) Dimensions:...

www.marlincrawler.com



[Spike Strip]

I dunno, I may just be anal, but I'd be damm sure I didn't guess about fasteners that hold a 75lb steel disc spinning 3500 rpm



[brian]

I dunno, I may just be anal, but I'd be damm sure I didn't guess about fasteners that hold a 75lb steel disc spinning 3500 rpm

Wheres your sense of adventure?



[Godwin]

I dunno, I may just be anal, but I'd be damm sure I didn't guess about fasteners that hold a 75lb steel disc spinning 3500 rpm

C'mon, it doesn't really weigh that much just seems like it when your lying under the truck trying to hold it in place and you know if it slips the ring teeth will be slicing up the bridge of your nose.



[4Cruisers]

Details on the flywheel bolt change:

Toyota Service Bulletin dated 10-05-90

The length and diameter of the flywheel set bolt has changed. This results in changes to the crankshaft and drive plate as well.

Starting with:

Production Date October 1989

VIN JT3FJ62G*L1186060

Engine No. 3F-250226

The new short block assembly part number is 11400–61121 (was 11400–61120)



[Skniper]

Details on the flywheel bolt change:

Toyota Service Bulletin dated 10-05-90

The length and diameter of the flywheel set bolt has changed. This results in changes to the crankshaft and drive plate as well.

Starting with:

Production Date October 1989

VIN JT3FJ62G*L1186060

Engine No. 3F-250226

The new short block assembly part number is 11400–61121 (was 11400–61120)

Well ain't that a beetch...mine's a December 1989.

Just ordered a handful of the 90913-01019's that @cruisermatt referenced from another continent that now has my credit card info.
We'll see.



[cruisermatt]

I dunno, I may just be anal, but I'd be damm sure I didn't guess about fasteners that hold a 75lb steel disc spinning 3500 rpm

I mean, it’s not guessing, they either fit or they don’t, and either use the provided thread depth in the crankshaft or they don’t



[garrett goodwin]

So I received 9091301021 and they are too large for the holes on the back of my crank. I have ordered 9091301019 like cruisermatt suggested to see if they will work better. 9091301021 are a size 12 instead of the 11 that everything states they are. I received my last shipment in 3 days so hopefully these are just as quick.



[Skniper]

So I received 9091301021 and they are too large for the holes on the back of my crank. I have ordered 9091301019 like cruisermatt suggested to see if they will work better. 9091301021 are a size 12 instead of the 11 that everything states they are. I received my last shipment in 3 days so hopefully these are just as quick.

From where did you order the 01019’s?



[garrett goodwin]

PARTSOUQ.COM



[garrett goodwin]

part number 9091301019 was the correct size. @cruisermatt thank you for responding with the correct part number.



[Skniper]

Just got my larger flywheel bolts from Japan through Amayama. Took some time to get these but they were at least updating my order status which is nice. Feel much better knowing these are in hand. @cruisermatt thanks for the reference.
