1FZ-FE Sticker location on valve cover (1 Viewer)

[CharlieS]

Yeah, stupid thing to be wasting my time on, but what the hey.

Anyone have a picture of the location of the factory 1FZ-FE sticker on the valve cover? Or measurements?

I grabbed a sticker and want to put it on right. I don't want to get ribbed like the poor guy in another thread (Builds - 94 FZJ80 - Let the Adventure Ensue - https://forum.ih8mud.com/threads/94-fzj80-let-the-adventure-ensue.1240631/post-14839675).

Yes, it is a cheap ebay reproduction, but it makes me smile.

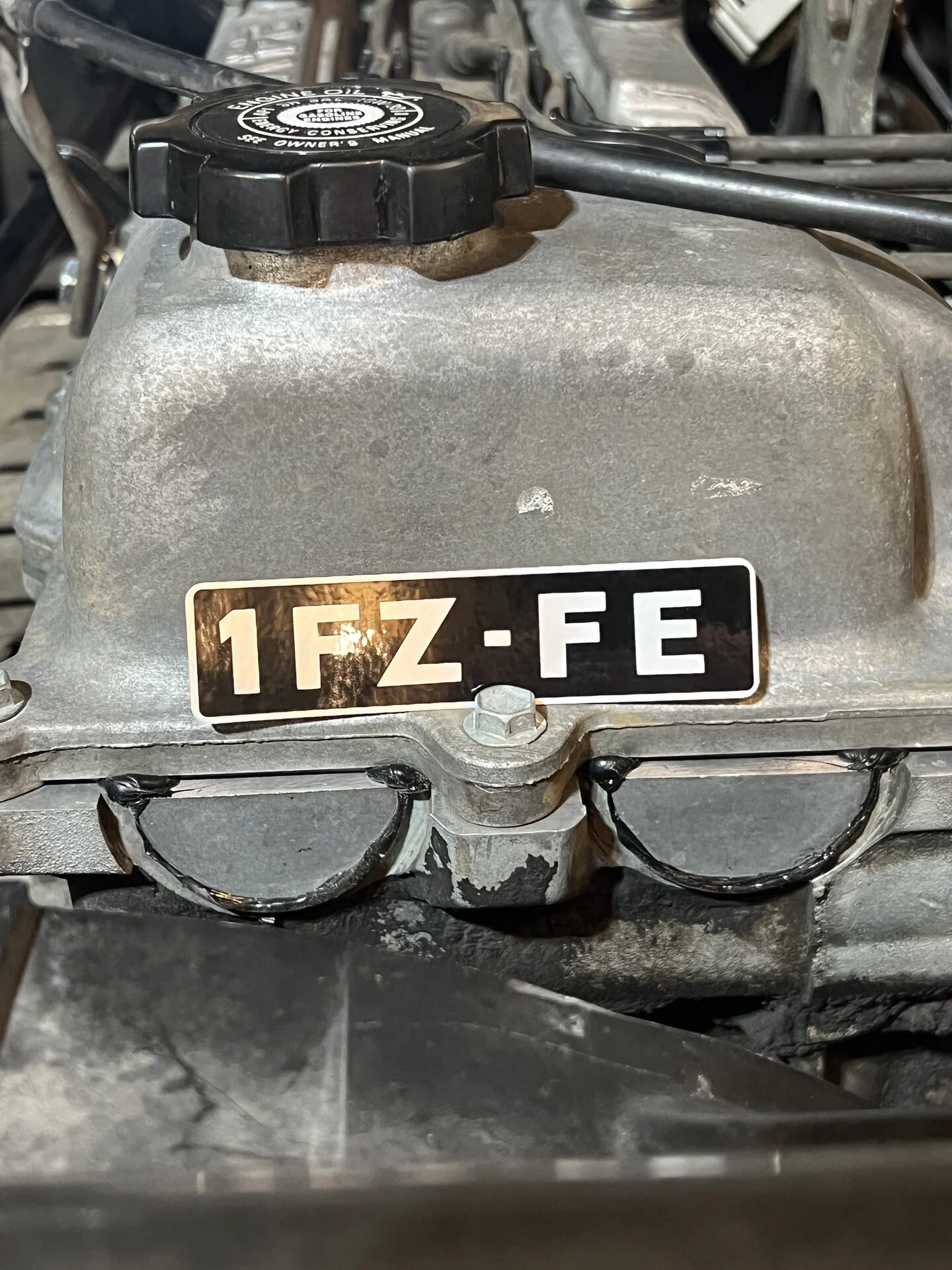

Propped up below:



[bhsdriller]

Only factory on early models. I've never seen any measurements on it just get it centered and straight



[Mr. Lawrence]

Only factory on early models. I've never seen any measurements on it just get it centered and straight

I am Original owner of a 94. (Build date was April 94, delivered to me June 94 from Portland, OR)
Never had the sticker. My advice would be … leave it off.



[CharlieS]

Yep, I get that the 94 didn't come with the decal on the valve cover. Thanks.

Super cool that you've had your '94 since new!! I'm jealous.



[OGBeno]

11291-66010 was only applied a the factory for the first 8 months of production of the 1FZ-FE.



[CharlieS]

C'mon guys, it isn't like I'm talking about putting a M3 badge on my 318Ti here.



[LongDuck]

I'd put it on upside down and crooked. Coleman Lantern owners would see it and recognize it as a rare factory mistake leading to atrocious offers to buy it from me!

Seriously, though - if you like it, check out some pics and get it close. Nobody is taking a micrometer to your engine except you!



[ajax1]

I put one on the tundra



[devo]

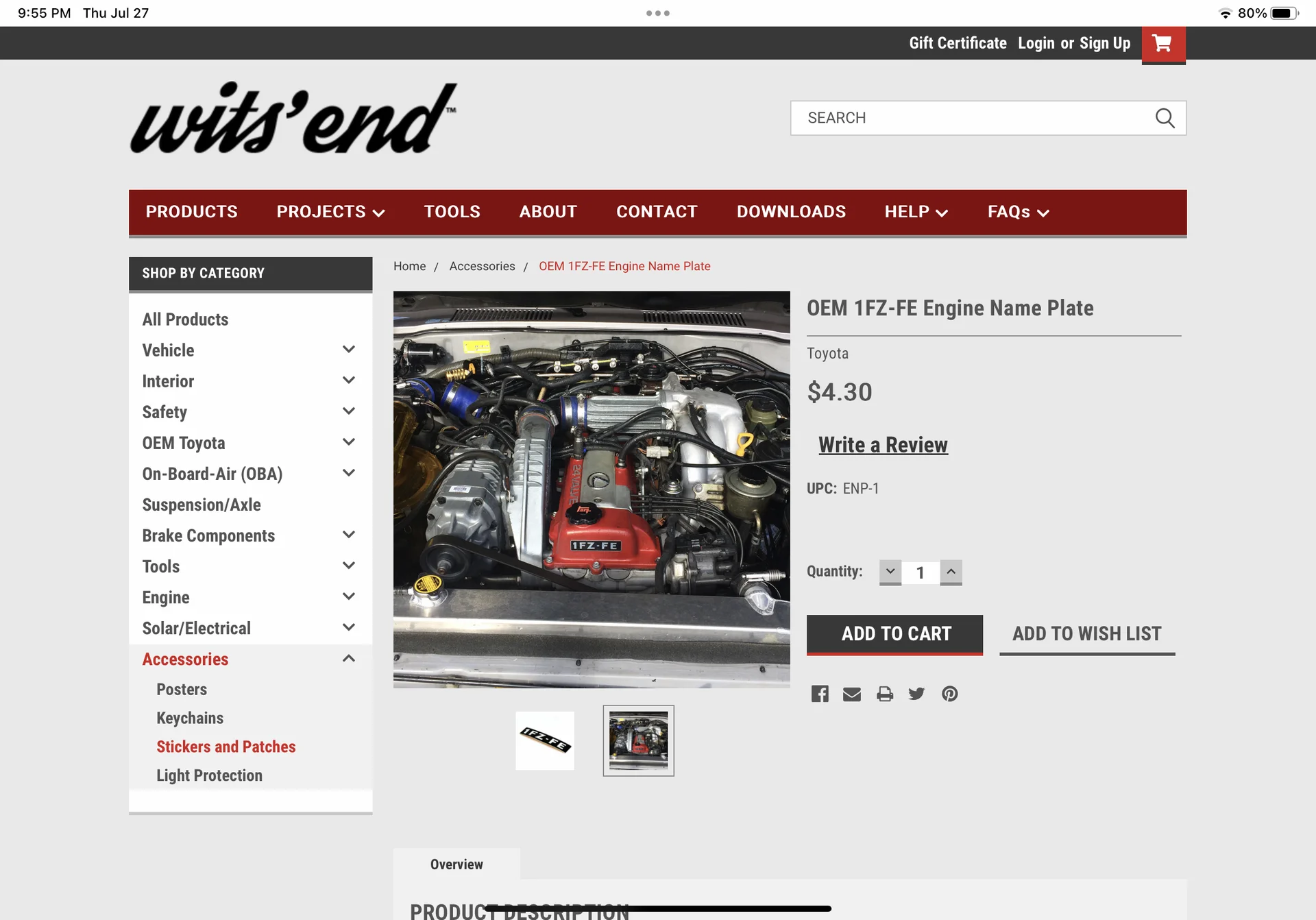

This vendor would only put the sticker in the exact OEM position……..



[JoeCova]

Just center it.



[CharlieS]

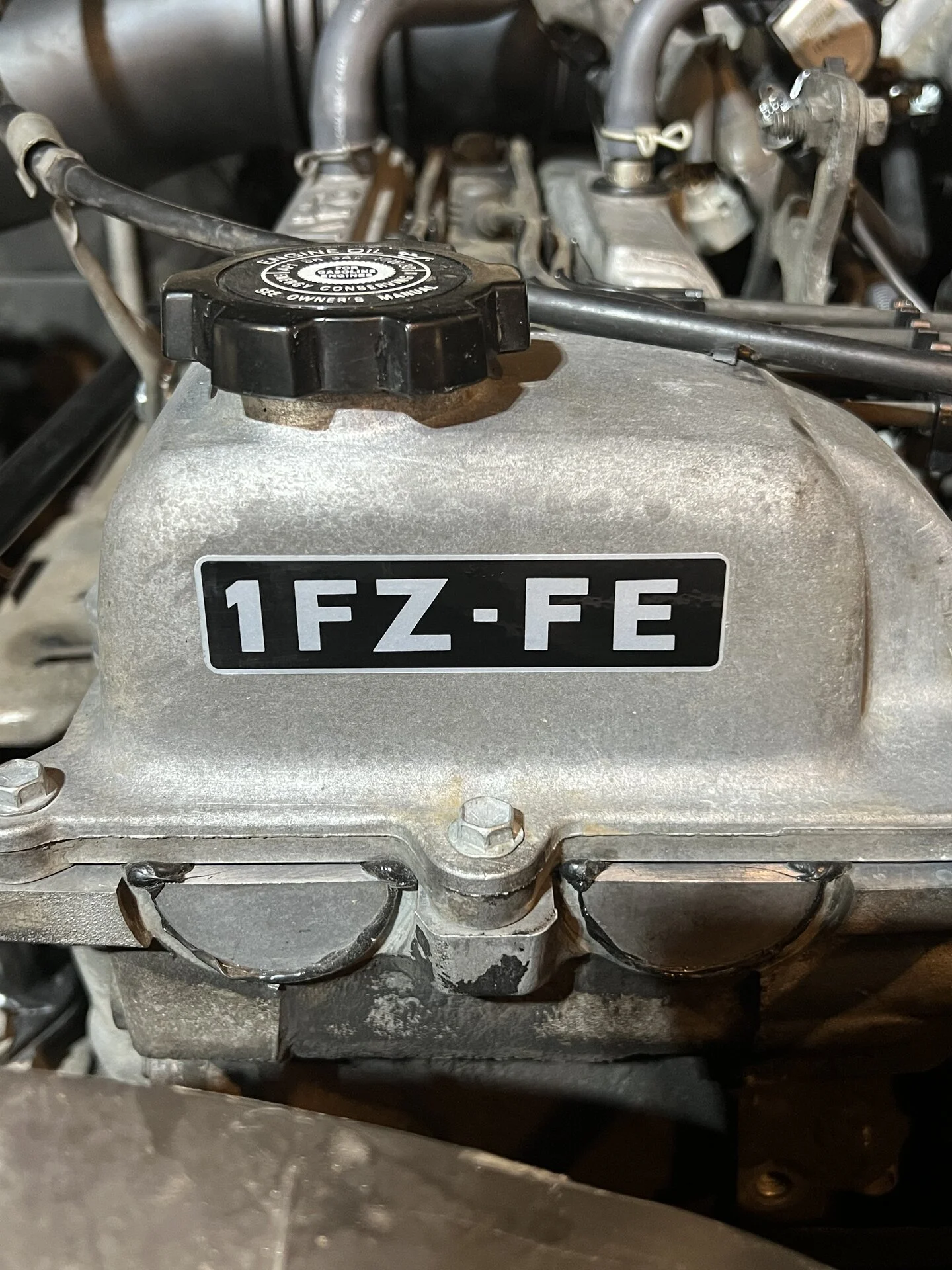

It is done. Right, wrong or otherwise.



[Malleus]

This vendor would only put the sticker in the exact OEM position……..

View attachment 3385338

Yeah, but that valve cover is really red! You'll give Dan fits if he sees it.



[manofthewoods]

Yeah, but that valve cover is really red! You'll give Dan fits if he sees it.

Red valve cover is worth at least 20hp!
With the sticker, OMG! Gotta be at least 100hp!



[CharlieS]

Awww, man, I knew I shoulda painted it red and added a TEQ oil cap.



[Shoredreamer]

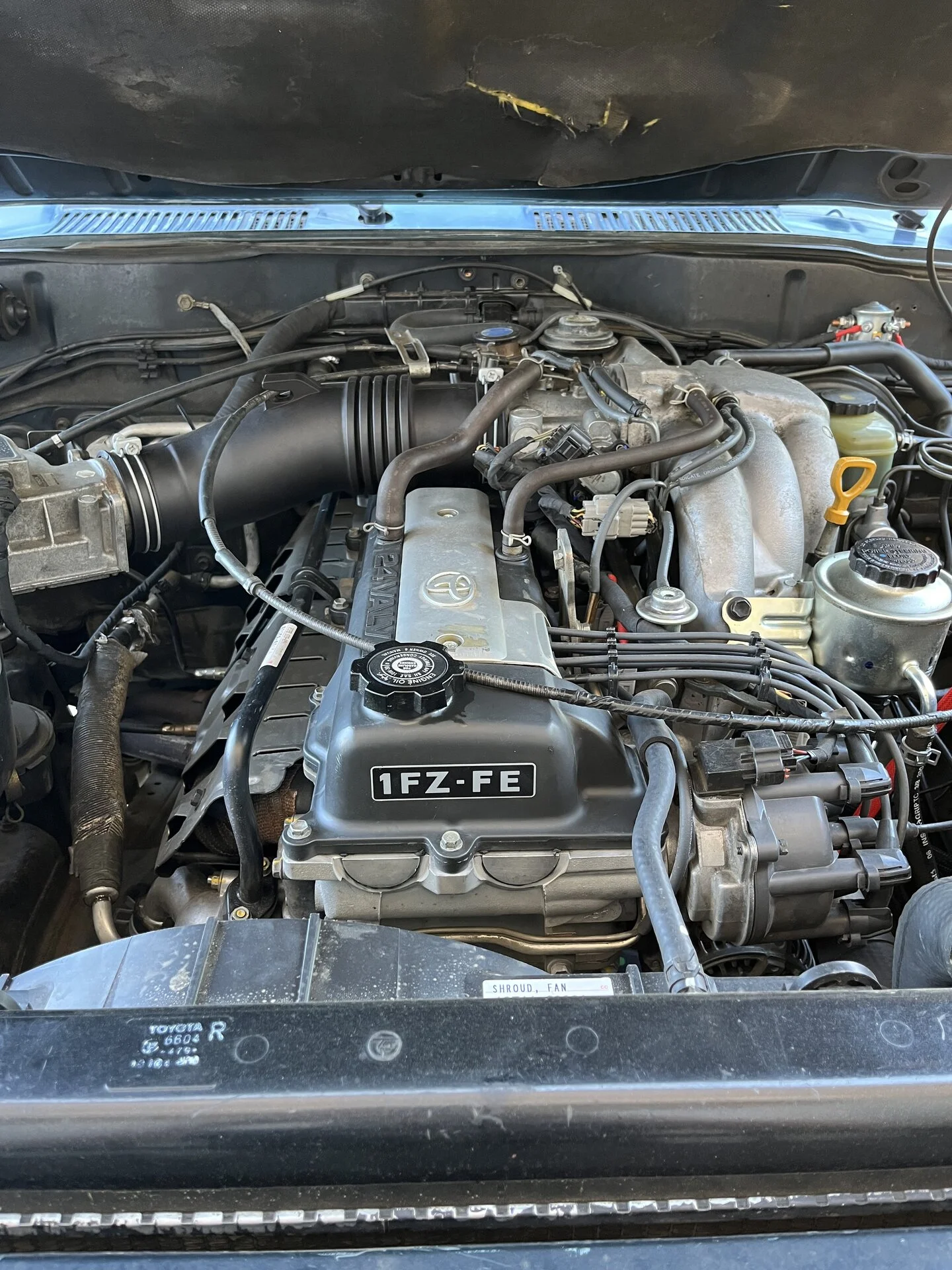

Factory installed on my 9/92. Crooked and off center haha



[JoeCova]

Non-factory because it’s what the cool kids do.



[LongDuck]

I dunno man - looks a little high to me...



[mudgudgeon]

Red valve cover is worth at least 20hp!
With the sticker, OMG! Gotta be at least 100hp!

Totally! But get it in the wrong spot, your head gasket is done! Toast! Cooked!



[mudgudgeon]

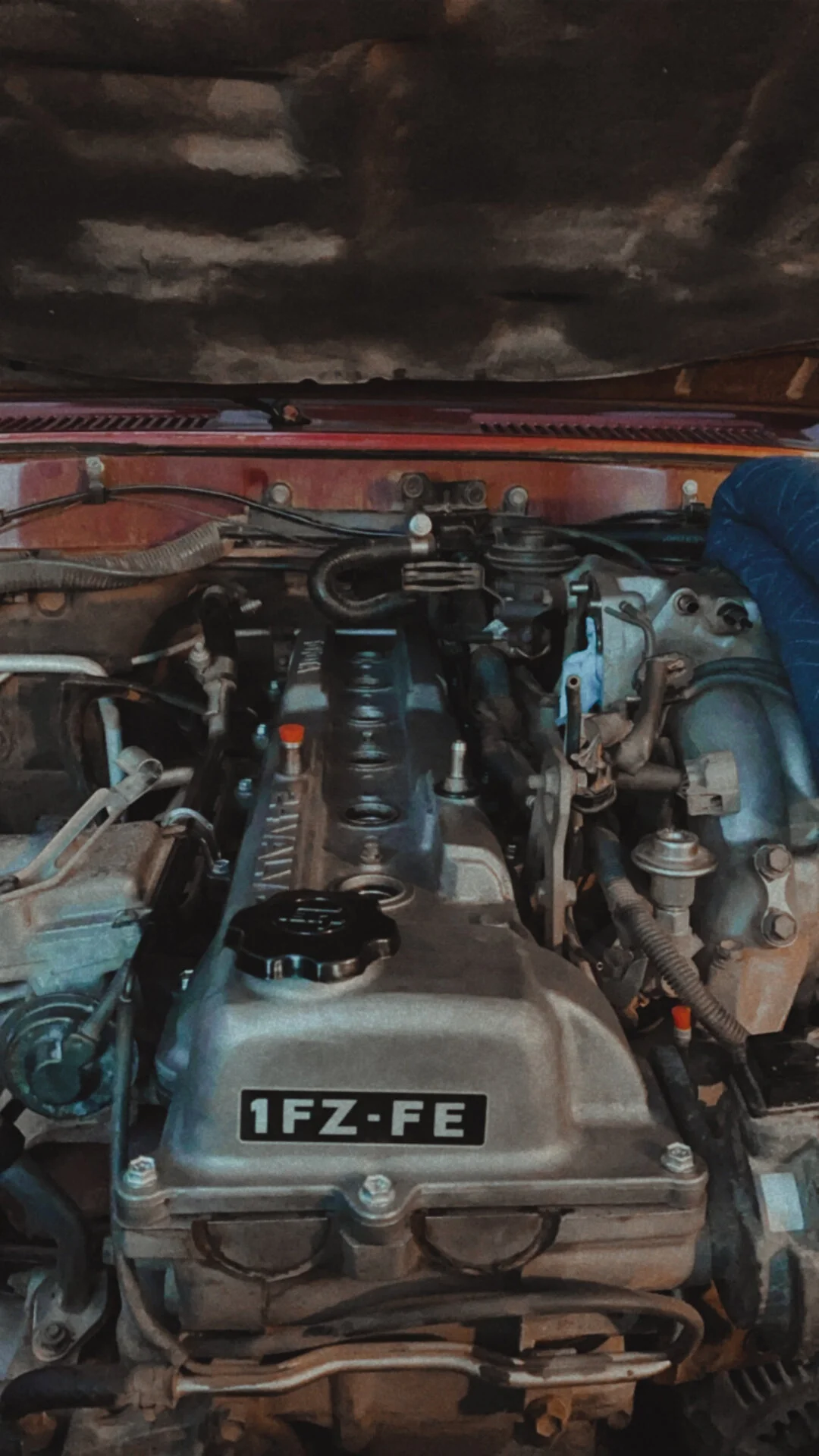

View attachment 3385609
Factory installed on my 9/92. Crooked and off center haha

Just as the Toyota engineers intended it! Perfect!



[ToothDr]

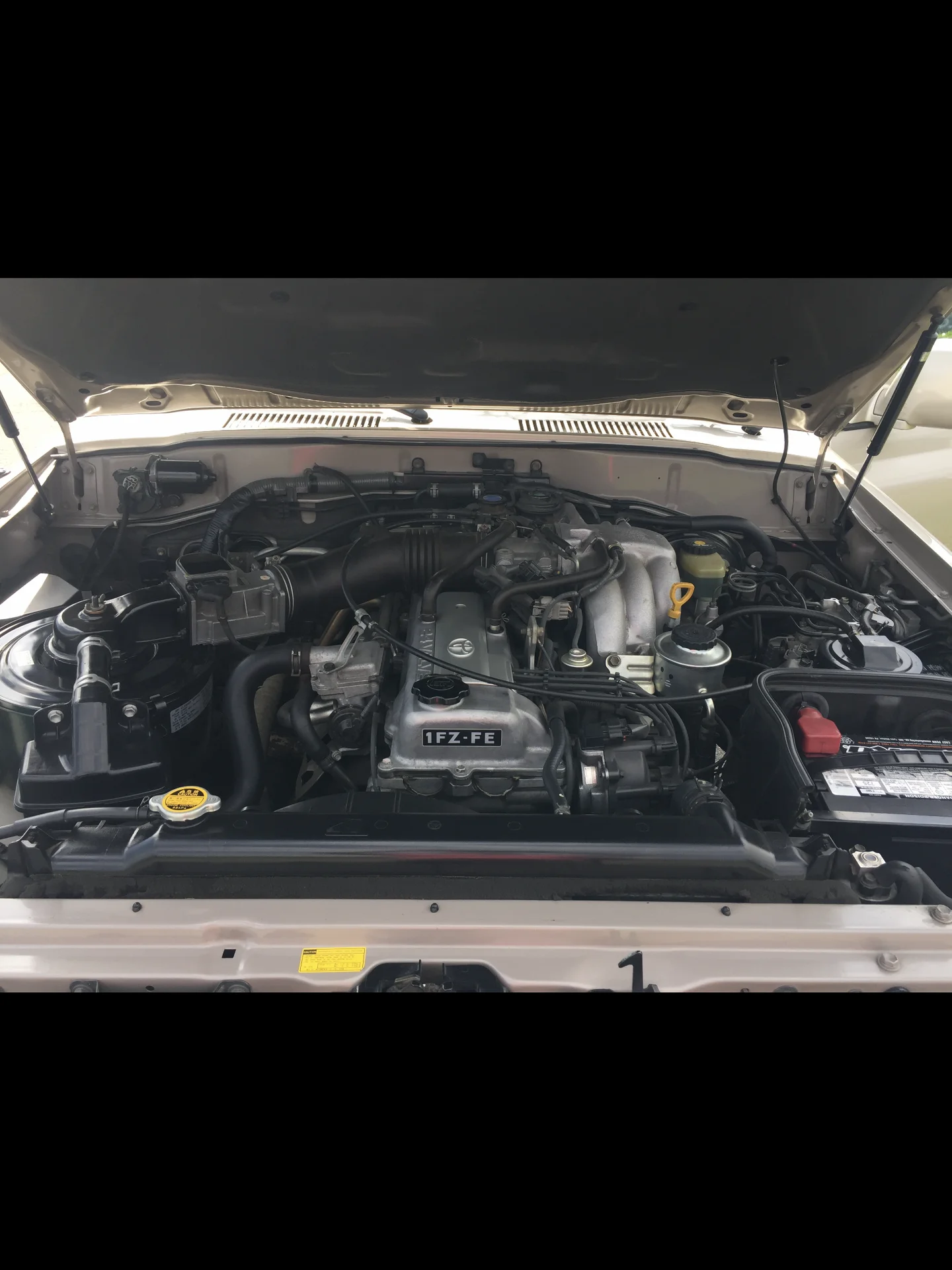

Stock 1993 with factory location of the sticker
