Hi,

I am new here. I am trying to figure out what these wires and connectors are for, and what do I connect them to on a 1983 Toyota FJ40.

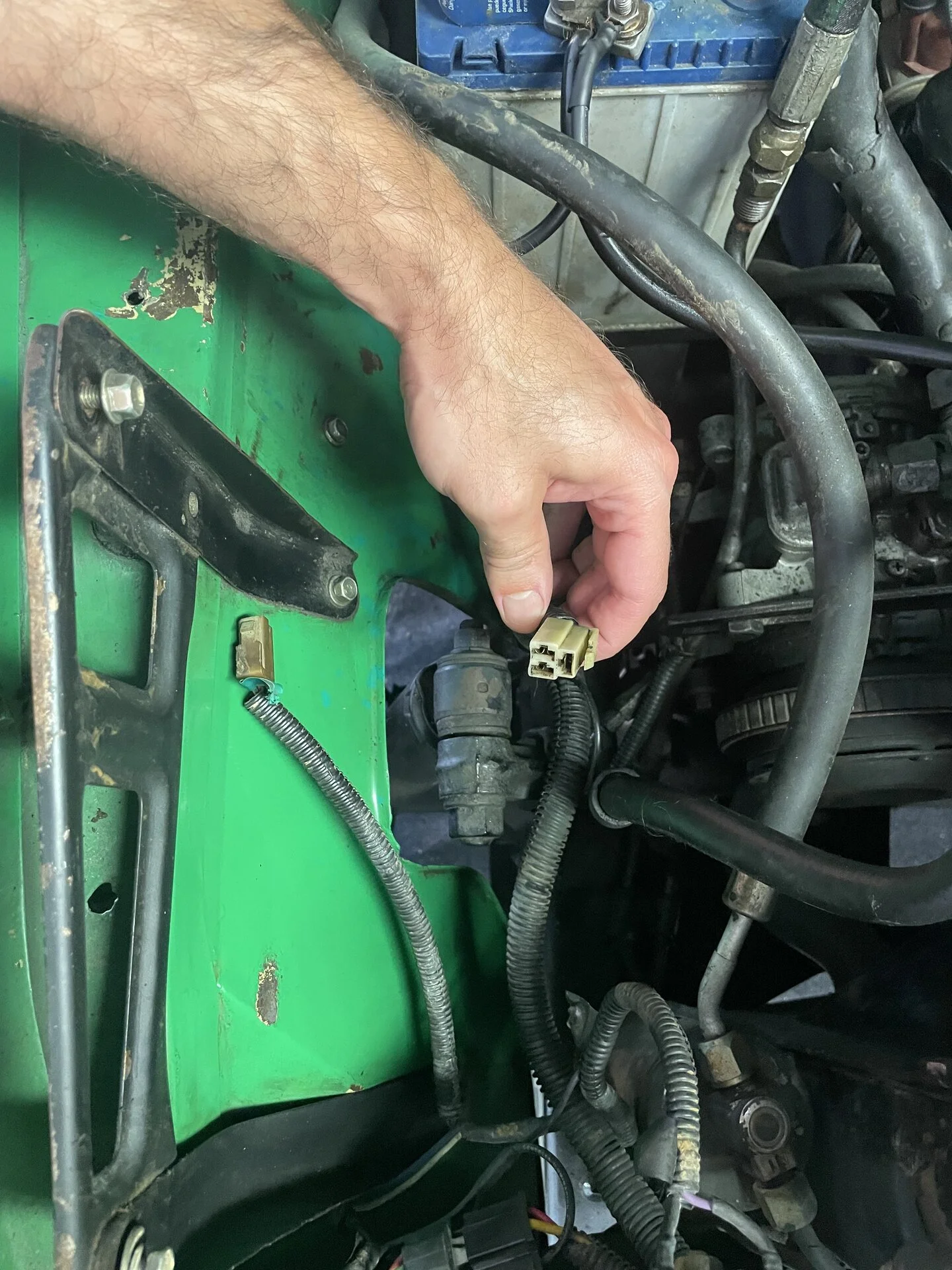

I am asking about the connector on my hand, not the one for the washer fluid pump. I removed the washer and the radiator tanks to take this picture.

Also, if you have a good colored wiring schematic of the 83 fj40, please post a pic or PDF here. Having trouble finding a decent one.

Thank you for the help!



[devo]

If you don’t find where it plugs in you could blow the head gasket.
Exceed with extreme caution !



[45Dougal]

You can find a wiring diagram here - not in colour though, so you'll have to read the colours.

Coolerman's Electrical Schematic and FSM File Retrieval

What color are the wires to that connector - is it the front turn signal / side light?

Your headlight connector needs closing up.



[wimberosa]

Check specifically (and verify diligently) if its the A/C connector (add-on which is probably not present in your 40). I have
a similar unused connector in my 79.



[leotxbr]

Check specifically (and verify diligently) if its the A/C connector (add-on which is probably not present in your 40). I have
a similar unused connector in my 79.

There is an add on AC in this one, and a black wire ran to it. The car runs perfectly, but the AC does not.



[leotxbr]

You can find a wiring diagram here - not in colour though, so you'll have to read the colours.

Coolerman's Electrical Schematic and FSM File Retrieval

What color are the wires to that connector - is it the front turn signal / side light?

Your headlight connector needs closing up.

Wires are green red and black.

Yeah, wires in this FJ40 was not done very well.



[45Dougal]

The only solid green wire is the side light / tail light feed, but I'm guessing that this one is bespoke.

The red and black are probably +12v and ground respectively - you could try pulling fuses to see which circuit its on.
The green is maybe tapped into an existing circuit to provide s switched input (for a headlight relay for example). I'd unpick the trunking and see where it goes - probably ends up under the dash somewhere.



[scotty2hotty]

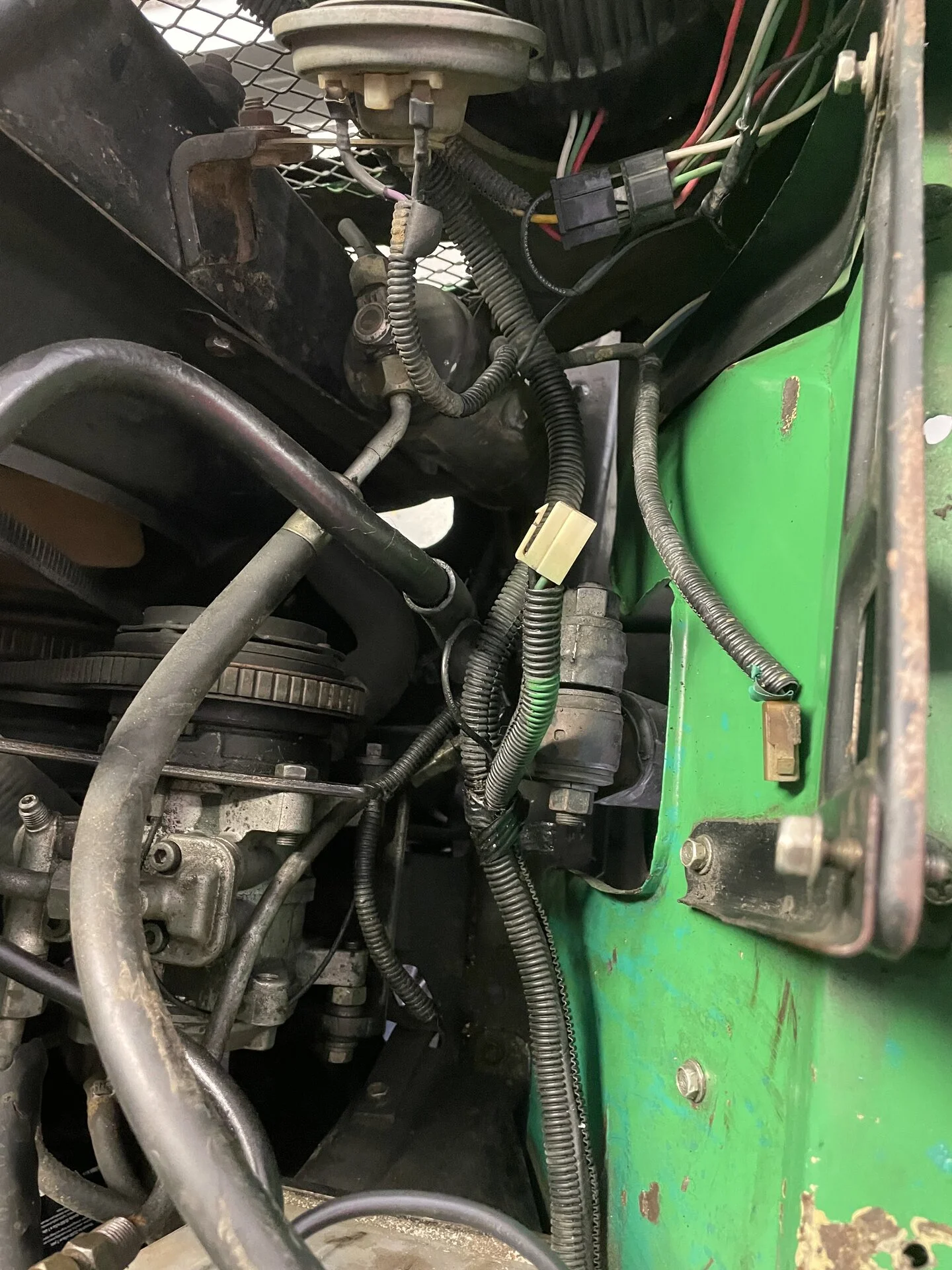

I also have a 83 fj but mine goes into a black end that locates right by the passenger headlight.I not sure what the vacume pot or what ever that piece is but I also have real toyota a/c.You may not and would guess part of the a/c system.My a/c still works oqwned this for years never tyried it until my son said check it.I always have roof off but amazing just added a can of coolent which works with R12 and wow very very cold a/c.I have only 60,000 miles rust free as well



[fjc-man]

”If” that’s a Nippondenso optional A/C system, it would have a single wire (black&white) to the magnetic clutch.
