1975 FJ40 Front Fender Turn Signal Hole Location (1 Viewer)

Joined
Nov 20, 2020
Messages
5
Location
Draper, UT
I just bought a 1975 FJ40. The front fender wells were repaired and the turn signal holes were patched i.e. they're no longer there. Trying to find out the location of the turn signal holes relative to the front edge of the fender and the vertical side of the engine compartment.

Here is a picture:



Thanks


MOC

SILVER Star
Joined
Oct 18, 2020
Messages
33
Location
Naperville, Illinois
I just bought a 1975 FJ40. The front fender wells were repaired and the turn signal holes were patched i.e. they're no longer there. Trying to find out the location of the turn signal holes relative to the front edge of the fender and the vertical side of the engine compartment.

Here is a picture:

View attachment 2531348

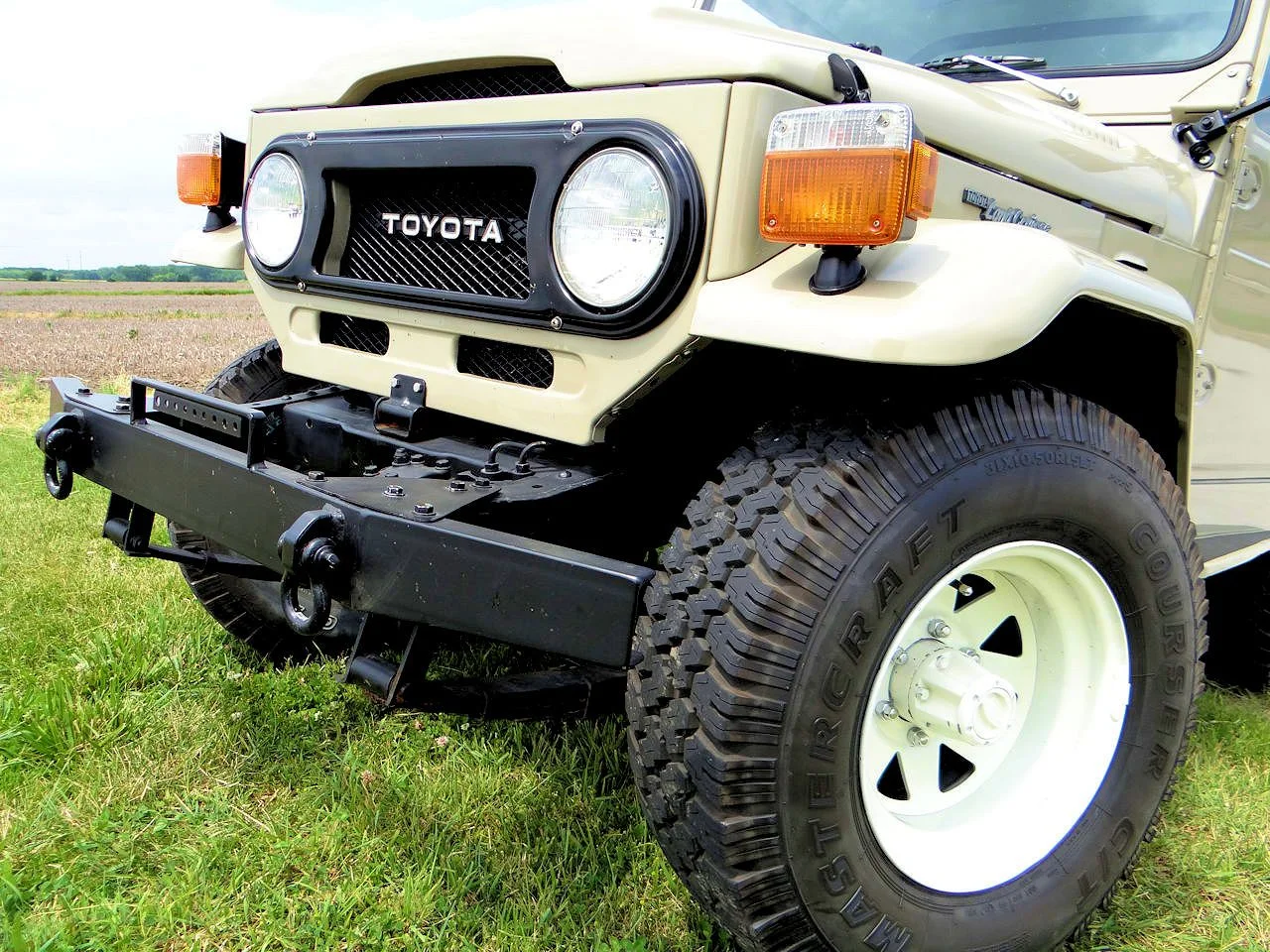

Below is a picture of the turn lights on my '75 40. I can measure the X and Y distances if you need exact measurements.
Thanks


MOC

SILVER Star
Joined
Oct 18, 2020
Messages
33
Location
Naperville, Illinois
I just bought a 1975 FJ40. The front fender wells were repaired and the turn signal holes were patched i.e. they're no longer there. Trying to find out the location of the turn signal holes relative to the front edge of the fender and the vertical side of the engine compartment.

Here is a picture:

View attachment 2531348

Thanks
Just measured my '75 40:
X = 8mm
Y = 6.5mm


3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
14,659
Location
Helena MT
If you look under the fender you should see a metal reinforcing piece that the turn signal assembly mounts to. Just open the hole from the bottom to the top.


X2 that's what I was thinking, cause if it doesn't have the metal piece the nut that tightens the turn signal down won't sit flat.

Joined
Nov 20, 2020
Messages
5
Location
Draper, UT
Thanks all! The drivers side has the bracket under the fender and of course the passenger doesn’t. I can thank the PO for this mess.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
14,178
Location
EAST COAST
If you look under the fender you should see a metal reinforcing piece that the turn signal assembly mounts to. Just open the hole from the bottom to the top.


yes look under the fender ...............

might just be the phase of my shop's day ... 🤔

Joined
Apr 21, 2005
Messages
19,791
you'll need some sort of bracket so the bolt stays vertical and the nut will sit flat against


Plus needs to be wider than just a spacer cut with an angle. That plate spreads reinforcement over a much larger area. The early fender were smaller with just a single hole. Only reason can see for these is one bracket works for either side and get the fender support where it's needed.

Anyone know anyone who makes and sells these brackets? One of 40 a PO cut part of the brackets out and installed KC Daylighters in that location. Both have stress fracture cracks but are otherwise undamaged and rust free. Got to love POs.
