1974 wiring diagram/help (1 Viewer)

[silveradofab]

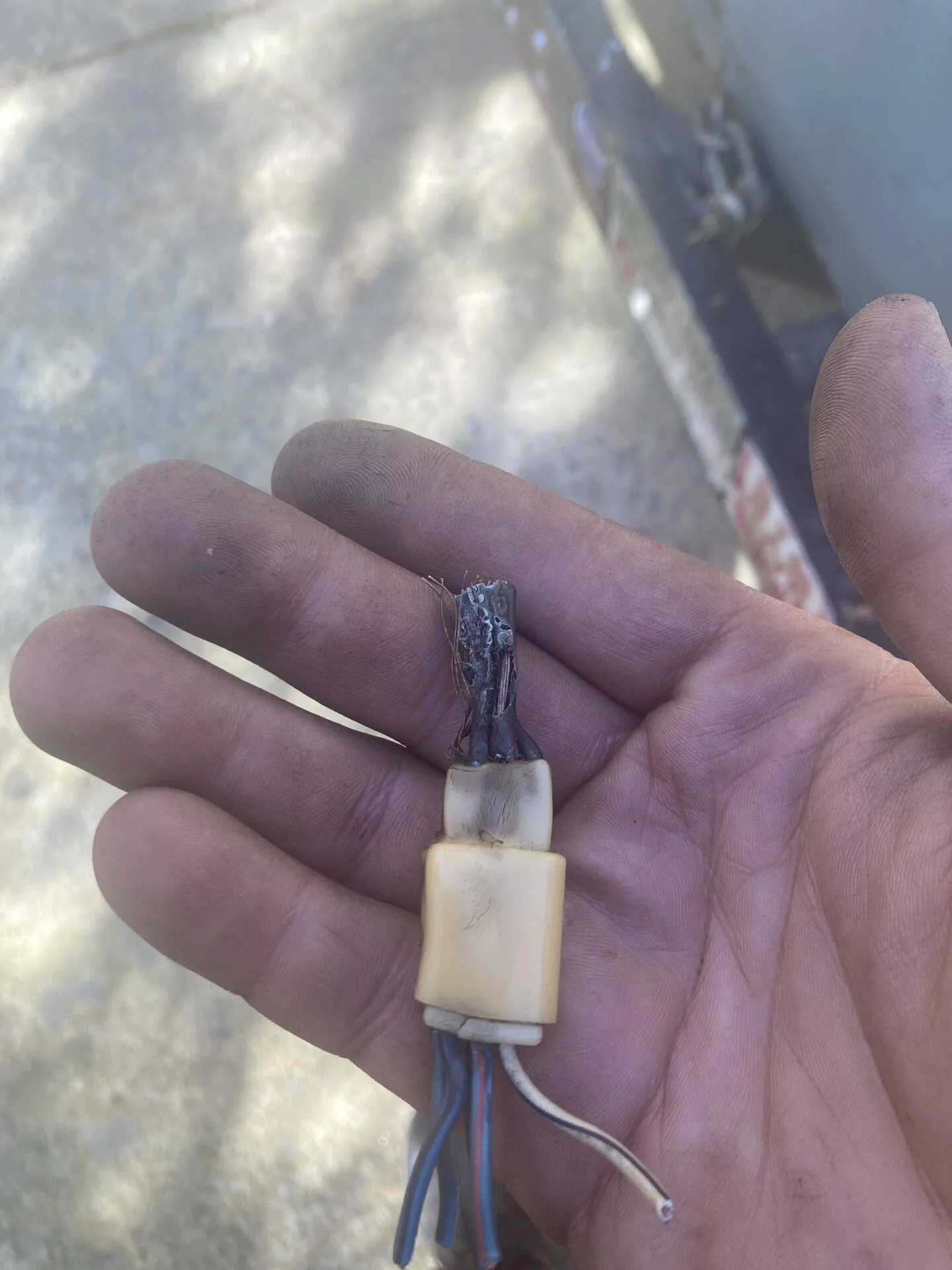

So I have exhausted my searches looking for a wiring diagram specific to a 1974. While I was trying to figure out some wiring under the dash I noticed that the buzz/hum I was hearing was coming from my wiper motor motor. Seems along the way it must’ve been frozen and burned the plug. All the wires from the wiper motor and were all burnt and melted together. Does anyone have a schematic or know how they’re supposed to go back? After cutting it I seem to have lost switched power to the fuse block



[Hank Tank]

So I have exhausted my searches looking for a wiring diagram specific to a 1974. While I was trying to figure out some wiring under the dash I noticed that the buzz/hum I was hearing was coming from my wiper motor motor. Seems along the way it must’ve been frozen and burned the plug. All the wires from the wiper motor and were all burnt and melted together. Does anyone have a schematic or know how they’re supposed to go back? After cutting it I seem to have lost switched power to the fuse block View attachment 3480299

I'd be interested in a diagram too. These old wires are wearing out.



[bobm]

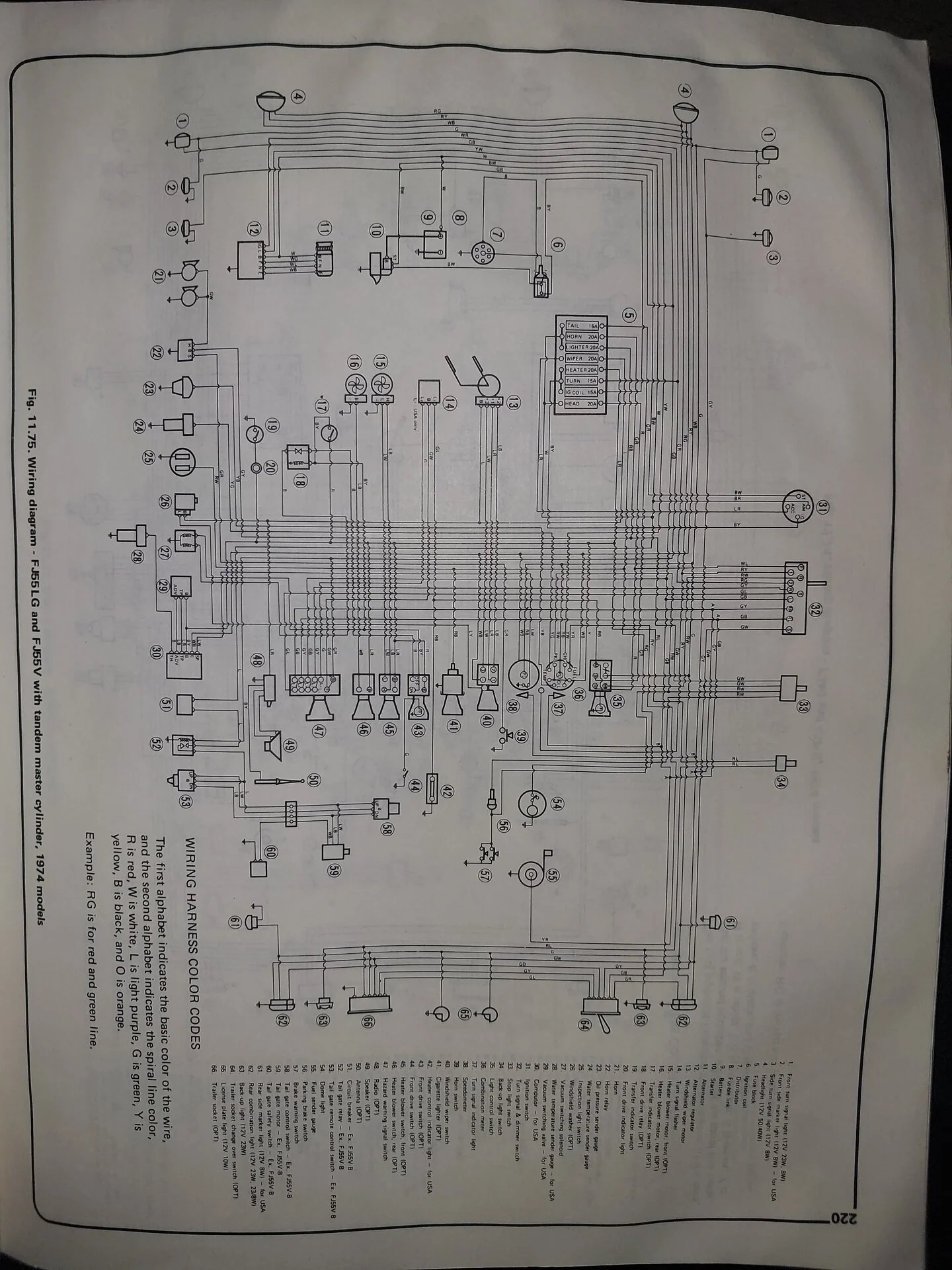

Only thing i got is 78



[J Mack]

So I have exhausted my searches looking for a wiring diagram specific to a 1974



[WarDamnEagle]

Toyota Land Cruiser AC, Wiring Diagrams & Power Steering Manuals - Specter Off-Road

Toyota Land Cruiser parts since 1983. From the oldest FJ25 and FJ40 to FJ45 BJ40 FJ55 FJ60 BJ60 FJ62 FJ70 BJ70 FJ80 and 100 Series, SOR has the largest selection of top quality new and used OEM and aftermarket Land Cruiser parts in stock in the world. Specializing in restoration parts for both...

www.sor.com

$9 plus whatever their normally ridiculous shipping charges are. Probably still under $30 though so not that bad.



[bobm]

@ToyotaMatt approved



[samc2447]

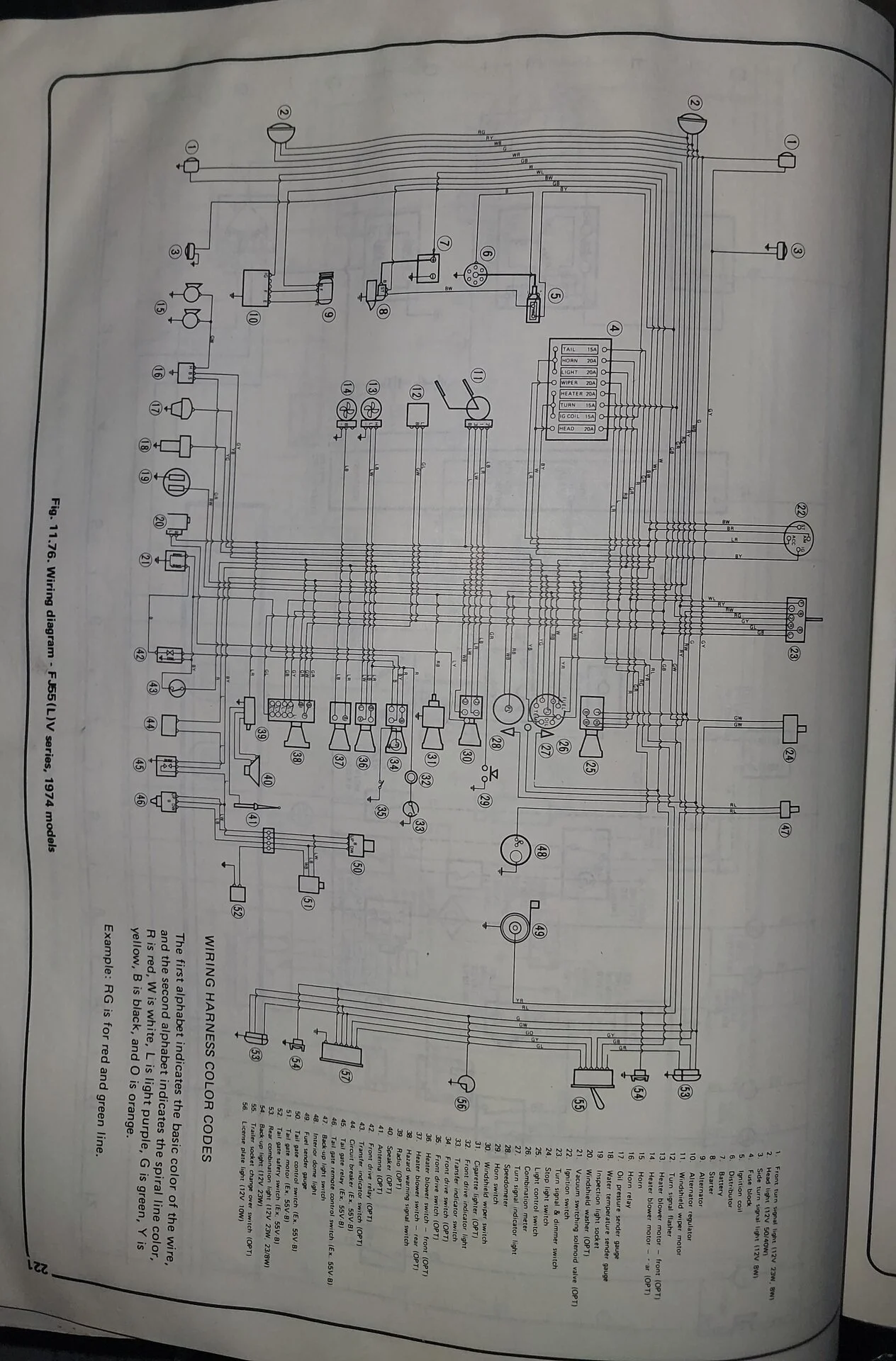

Most manuals and diagrams are available here Cruiser Cult FSM and here Mud Resources
