New L/H engine mount in position. 5mm plate

The R/H engine stay had to be remade because it fouled the steering shaft. 10mm plate should suffice.

I'm starting to get the hang of this welding buisness. Not the prettiest but should hold nicely.



[Locked79]

Drive shafts are in. The whole engine/gearbox assembly is pushed 25mm to the right. The driveline offset is about 1 degree more than standard which should be OK. The engine also sits about 30mm higher than it was, due to the narrower chassis.

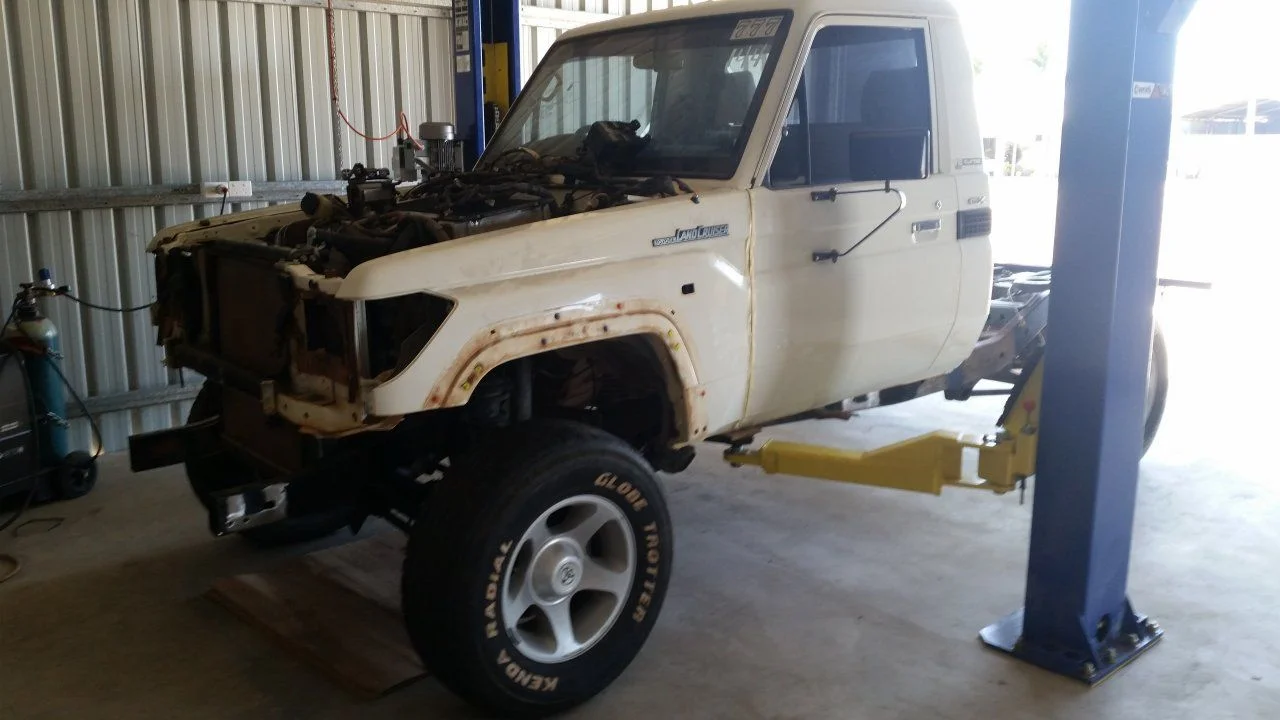

Mockup for body placement. The original chassis mounts aren't even close, so they're coming off tomorrow.
