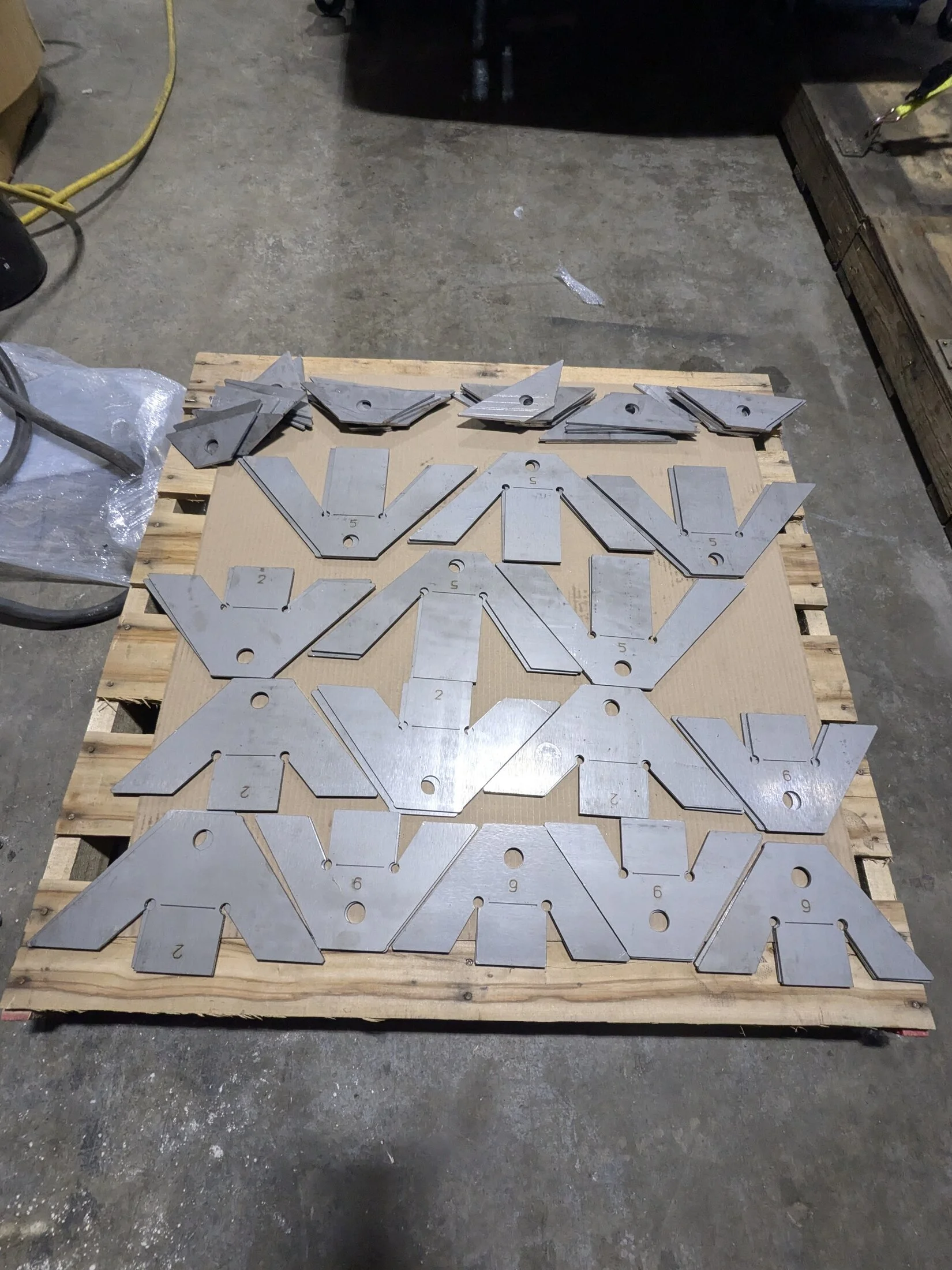

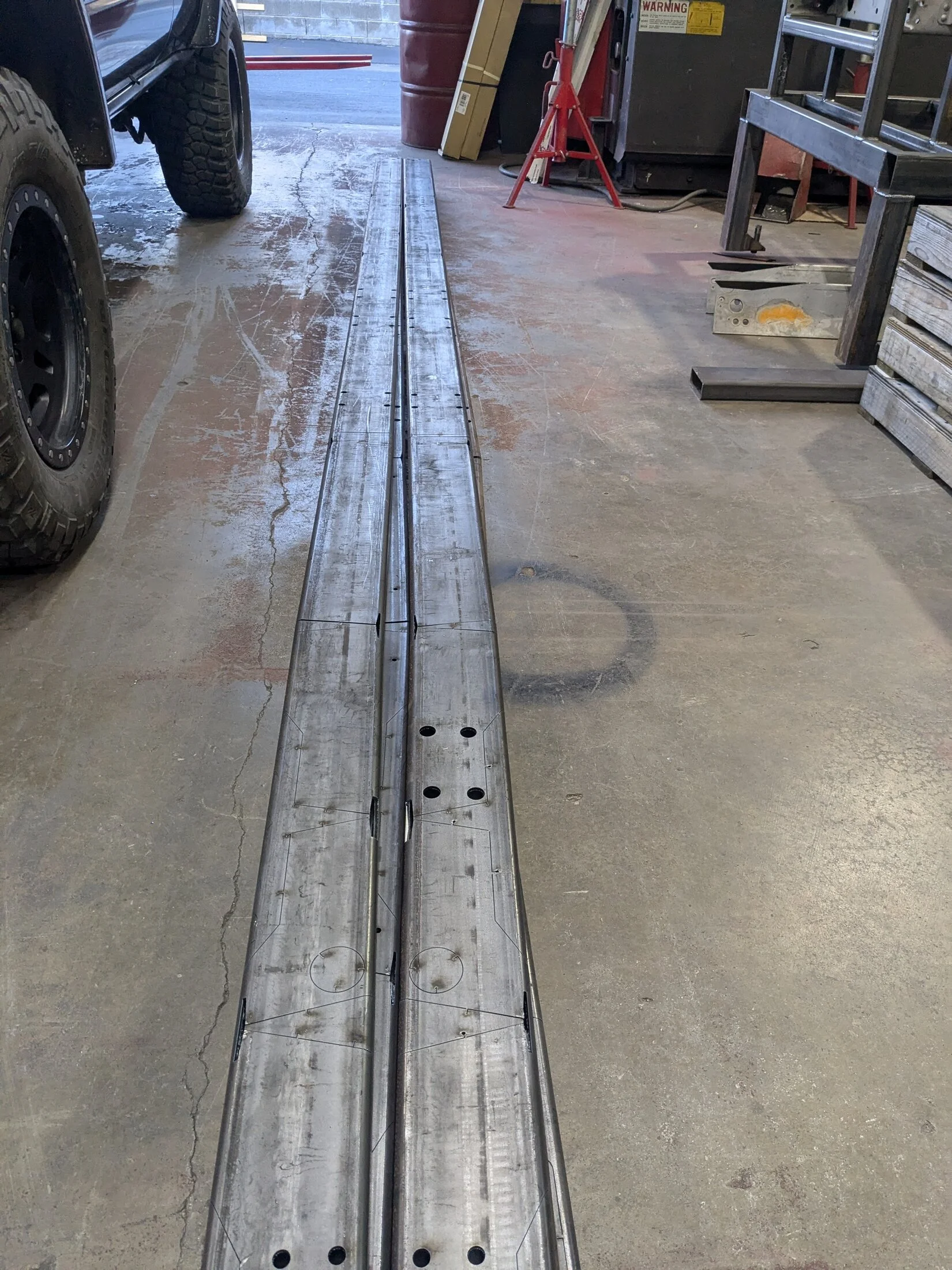

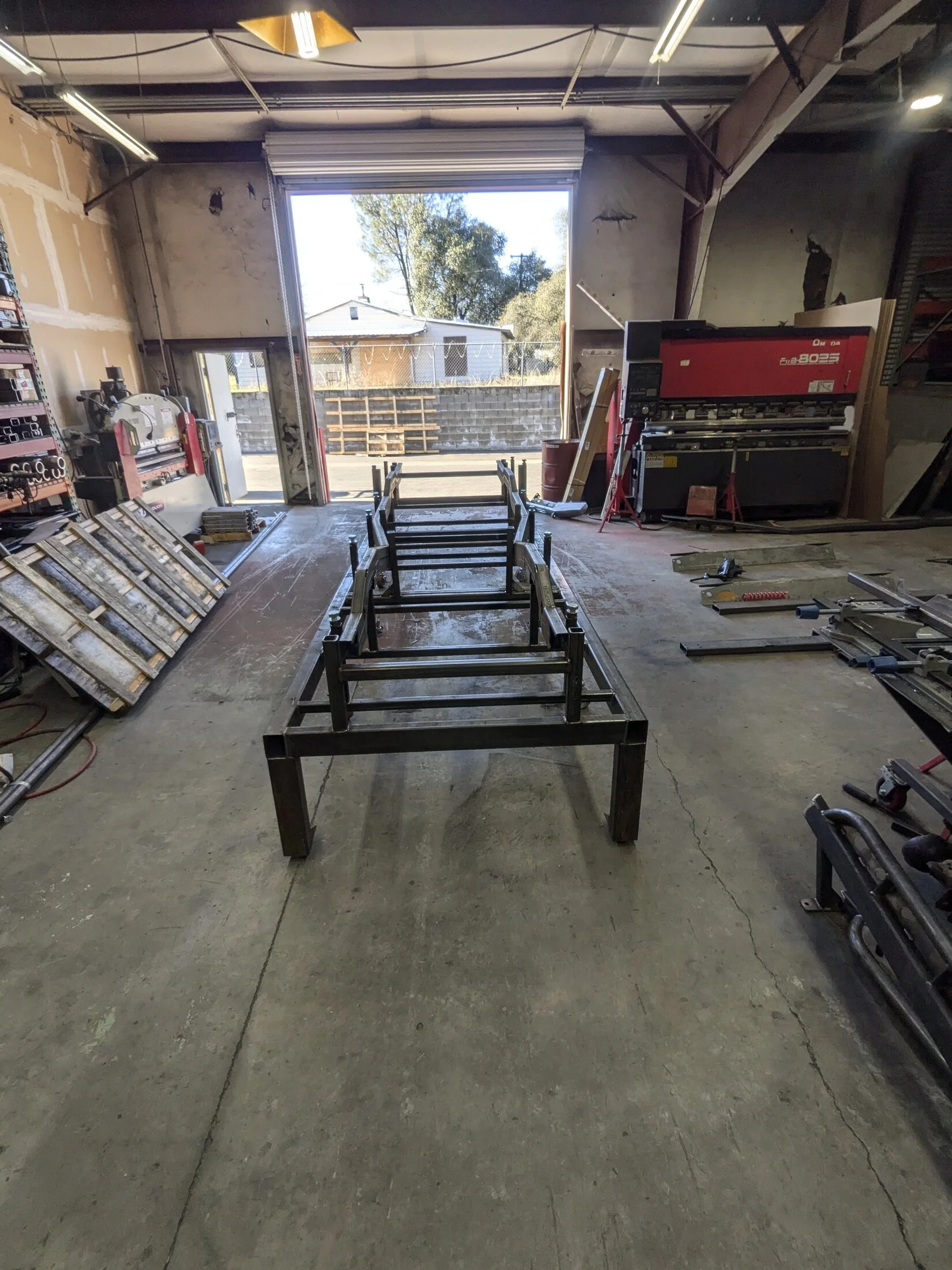

Frame rails are back from the laser cutter. Hope to get the first jigged up soon.

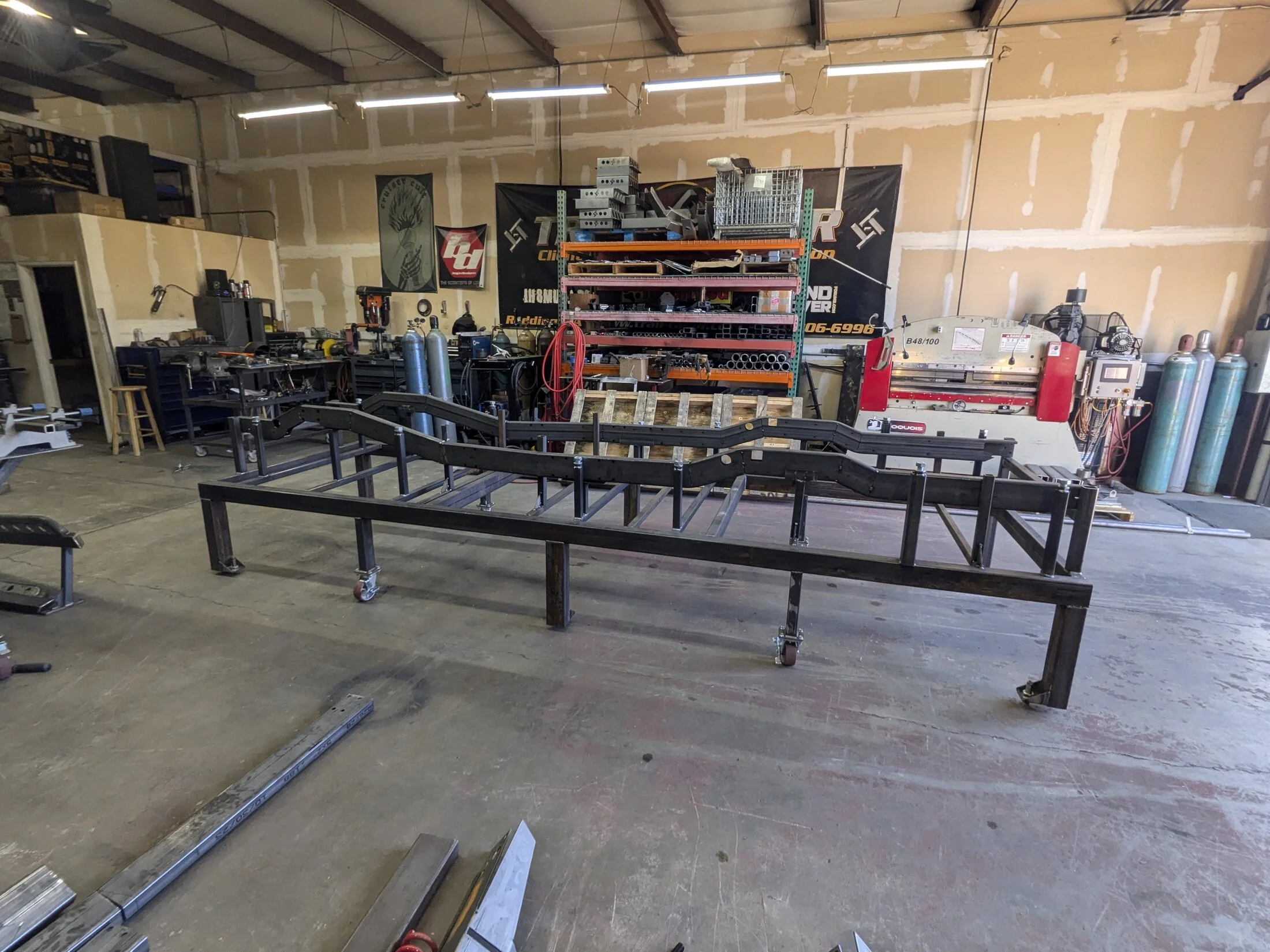

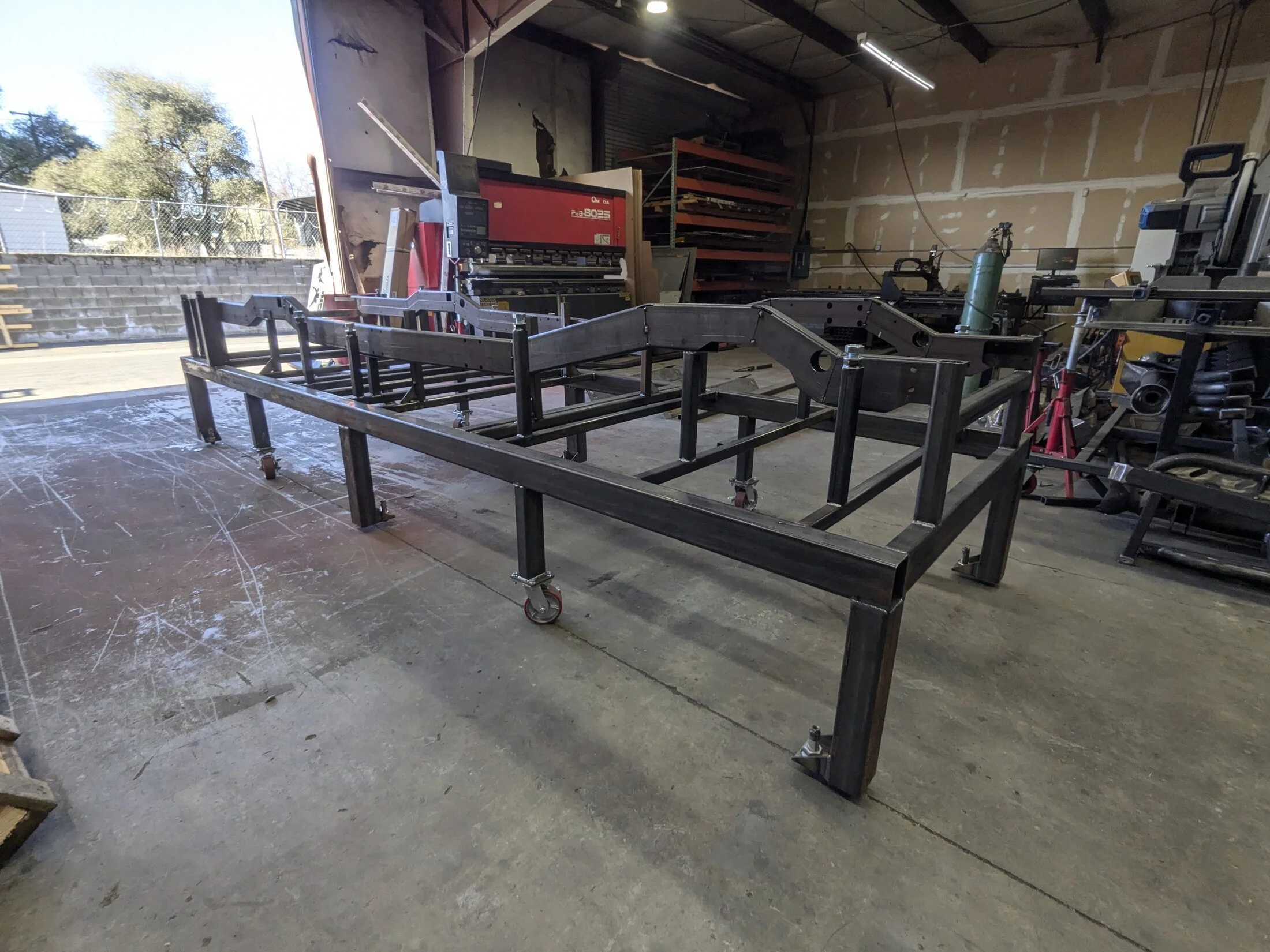

First set of frame rails are tacked up. My good friend @Fj80Ringo has been helping me in the shop a couple days here and there and learning a little fab as we go. He got to see this come to life today. We'll get the other frame sets jigged up and tacked up next week and then to set the body mounts, coil over towers, sway bar sleeves, steering box sleeves, and design the remaining crossmembers and frame and axle control arm brackets.

Thanks for the help J

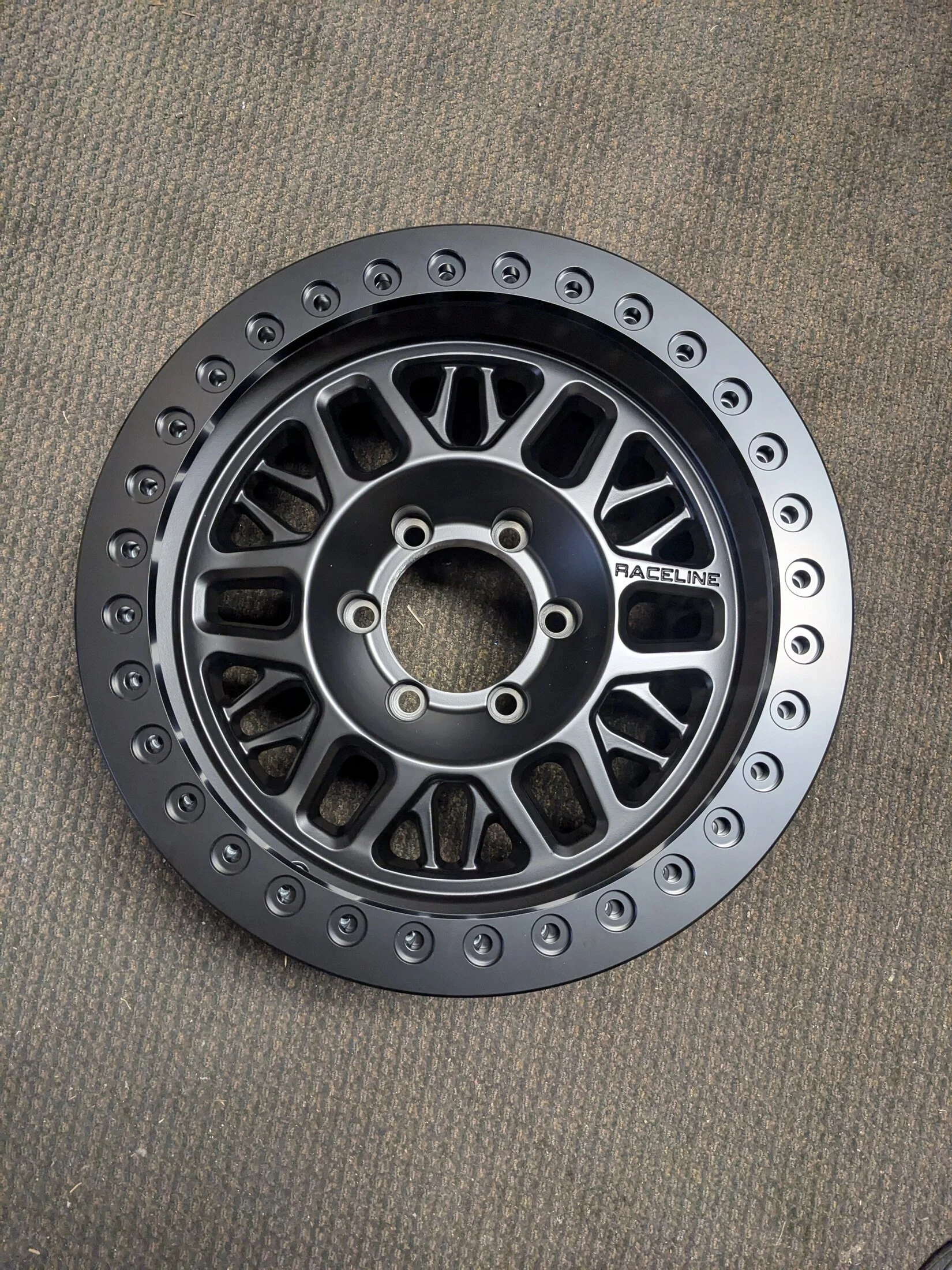

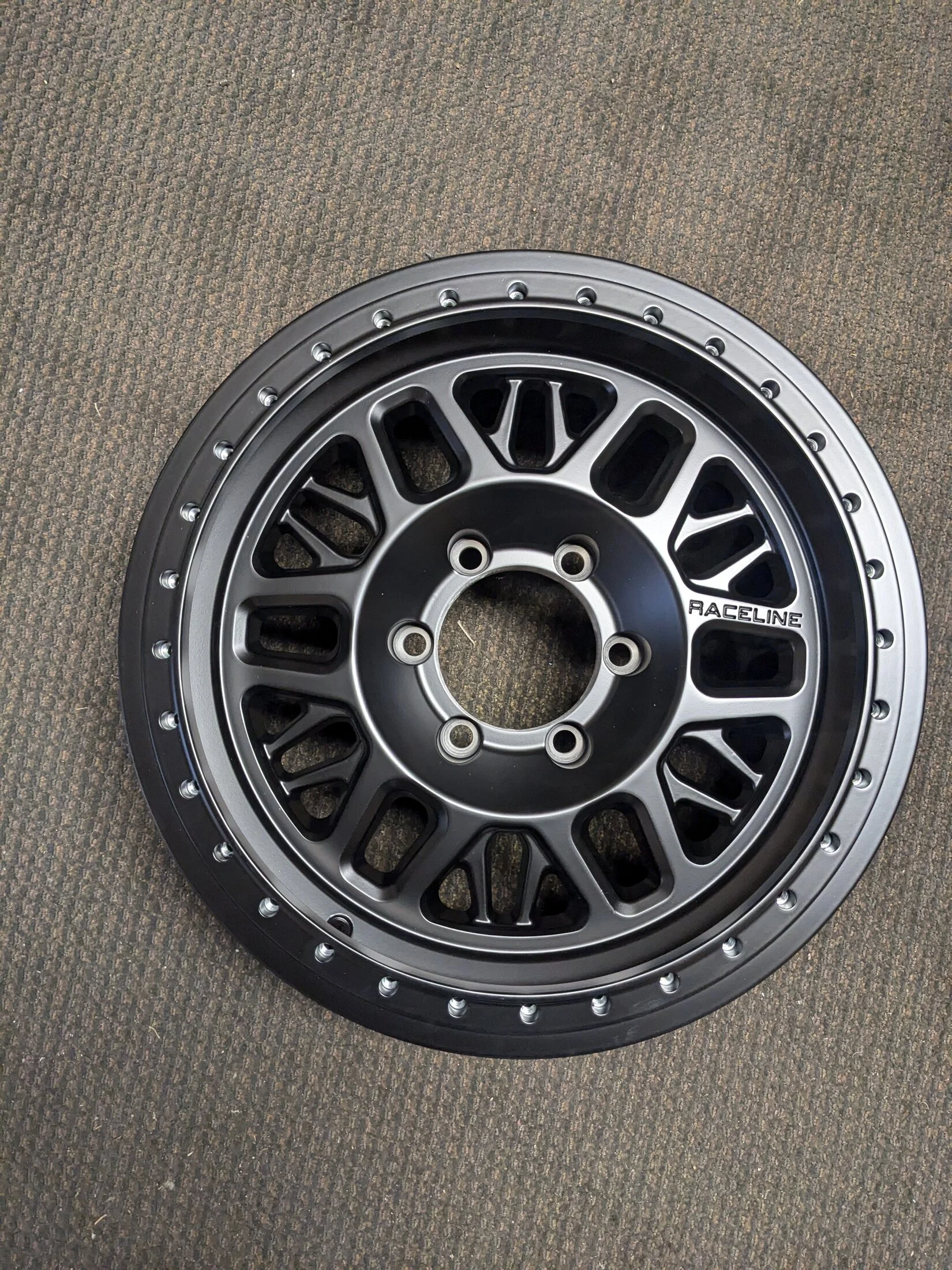

Raceline beadlocks arrived. SWEET!

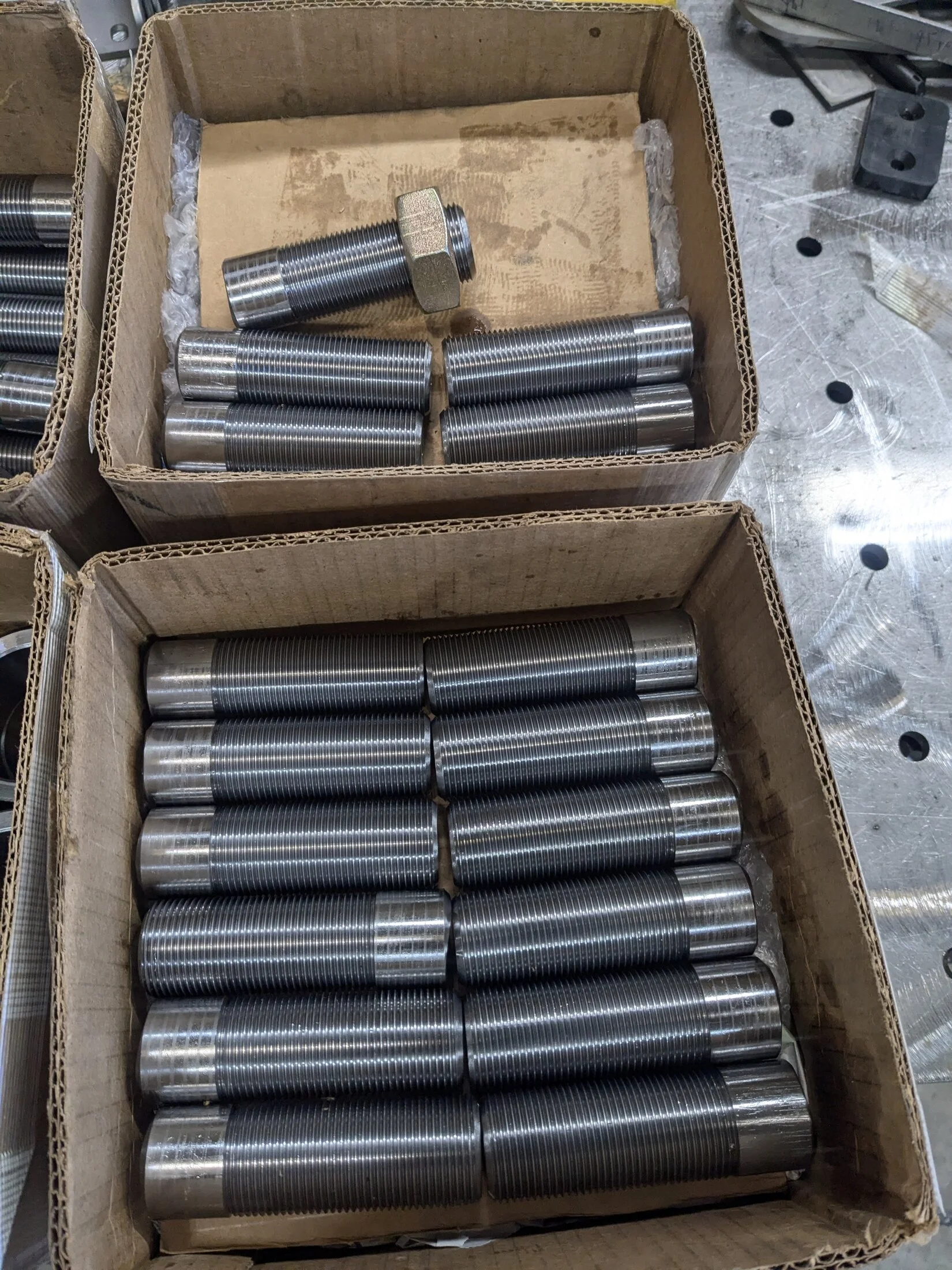

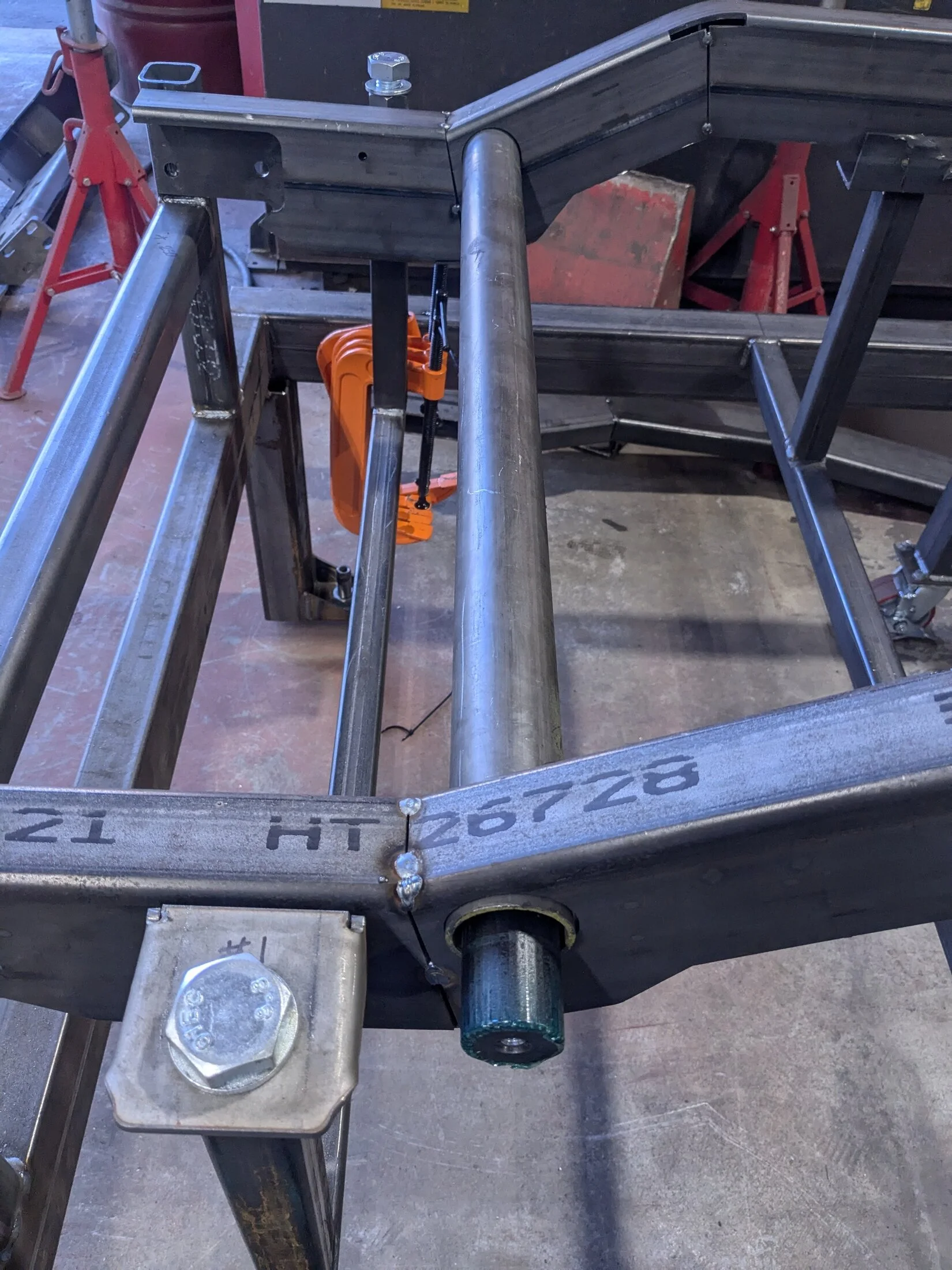

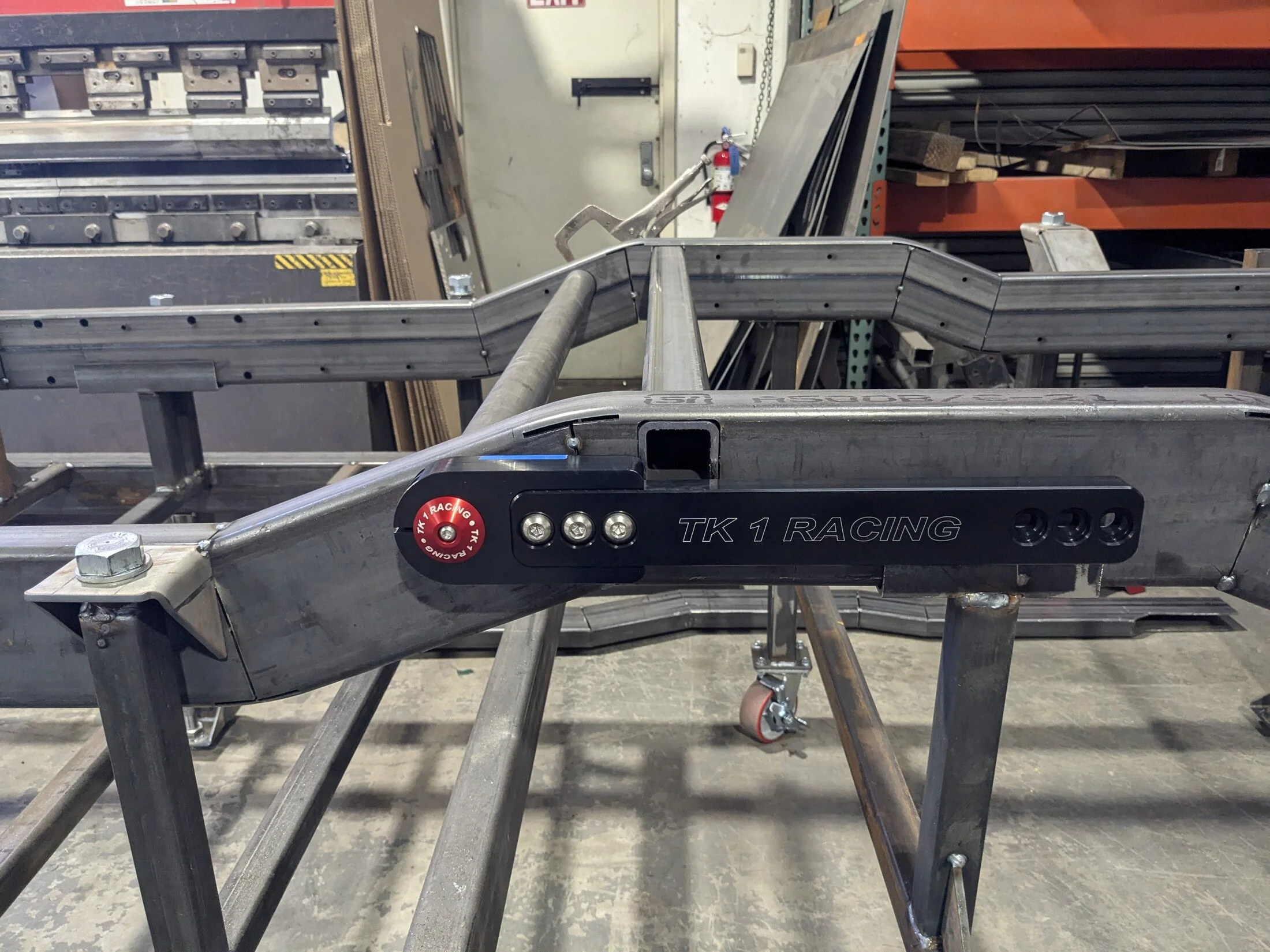

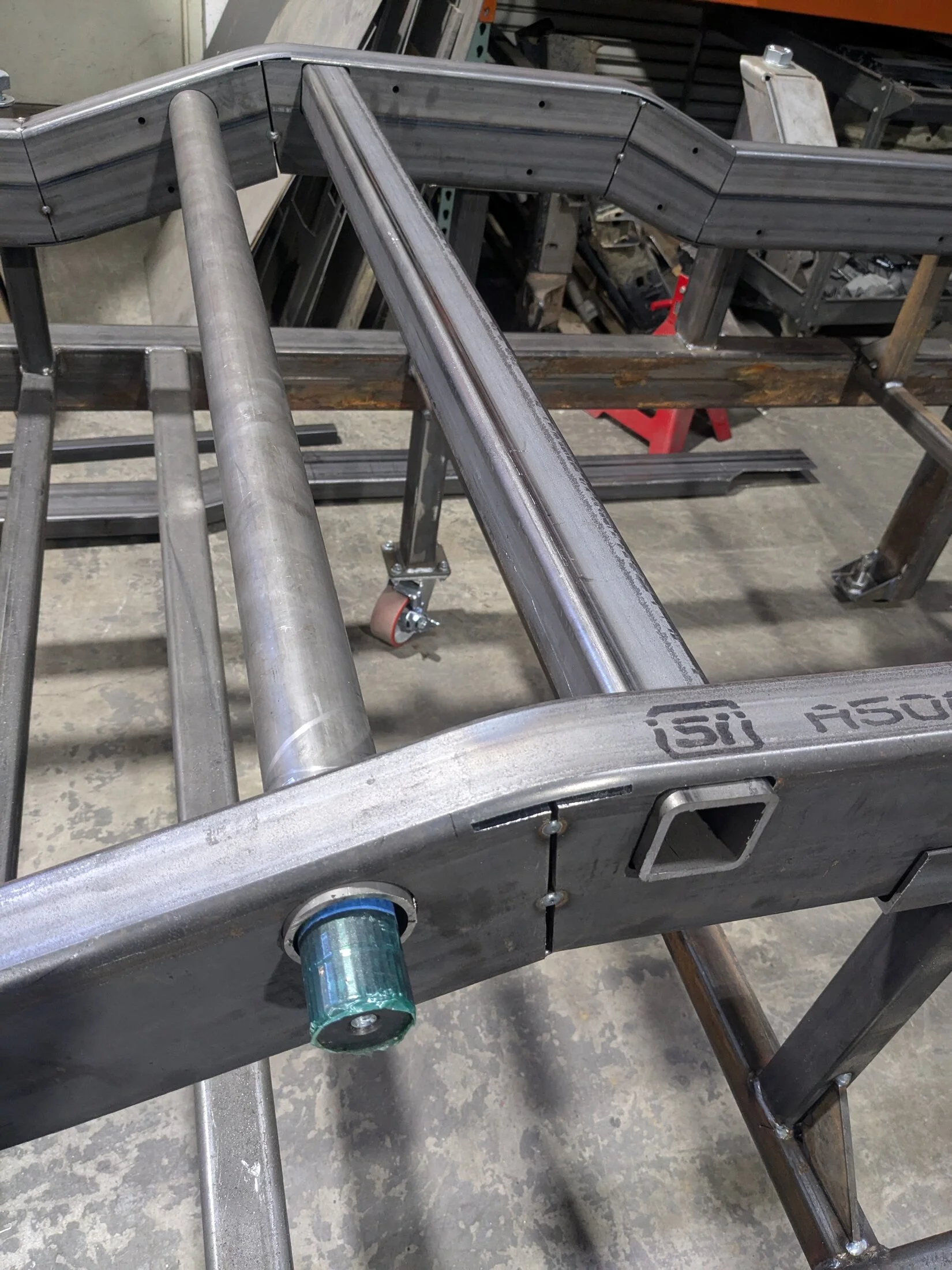

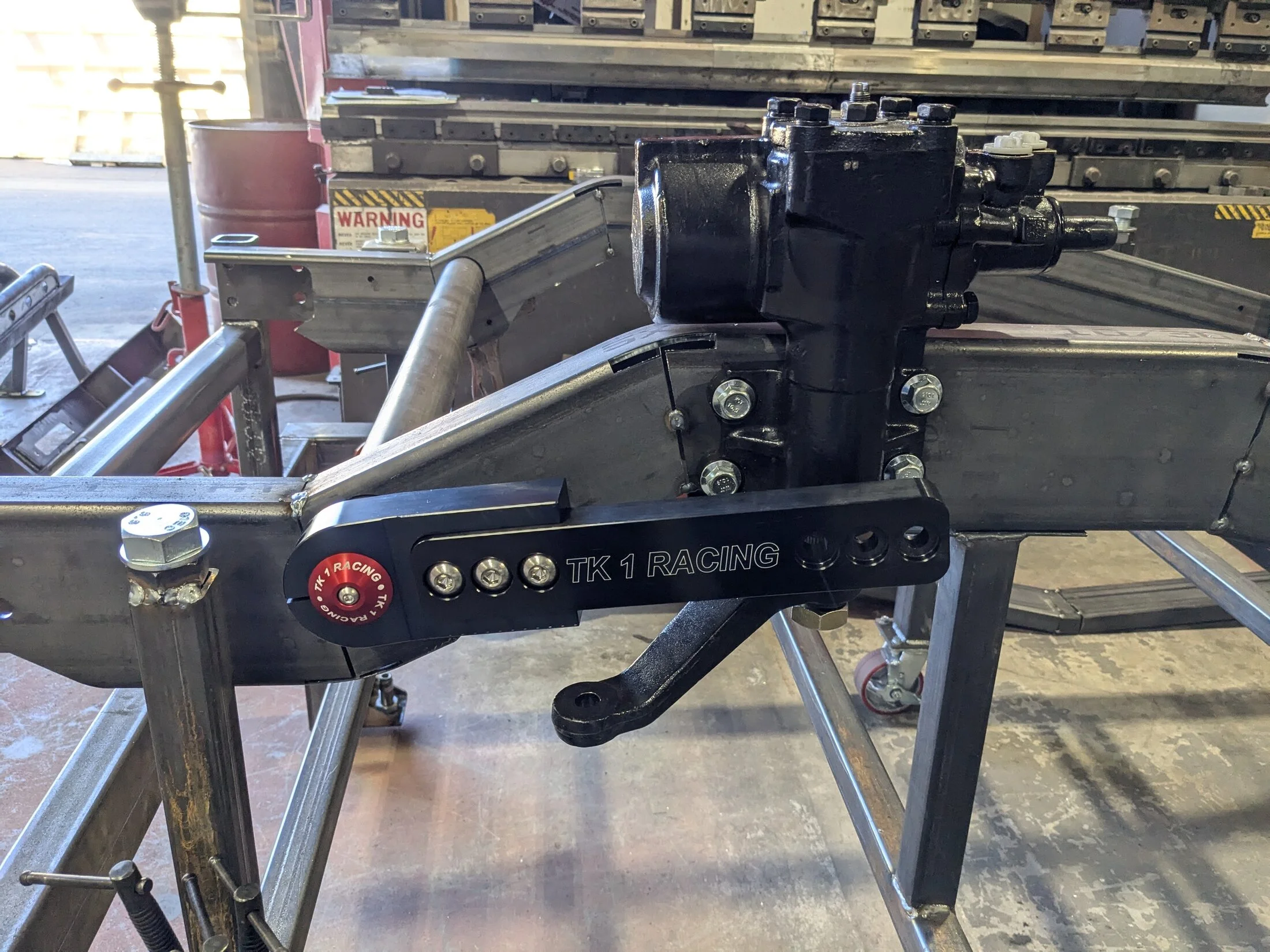

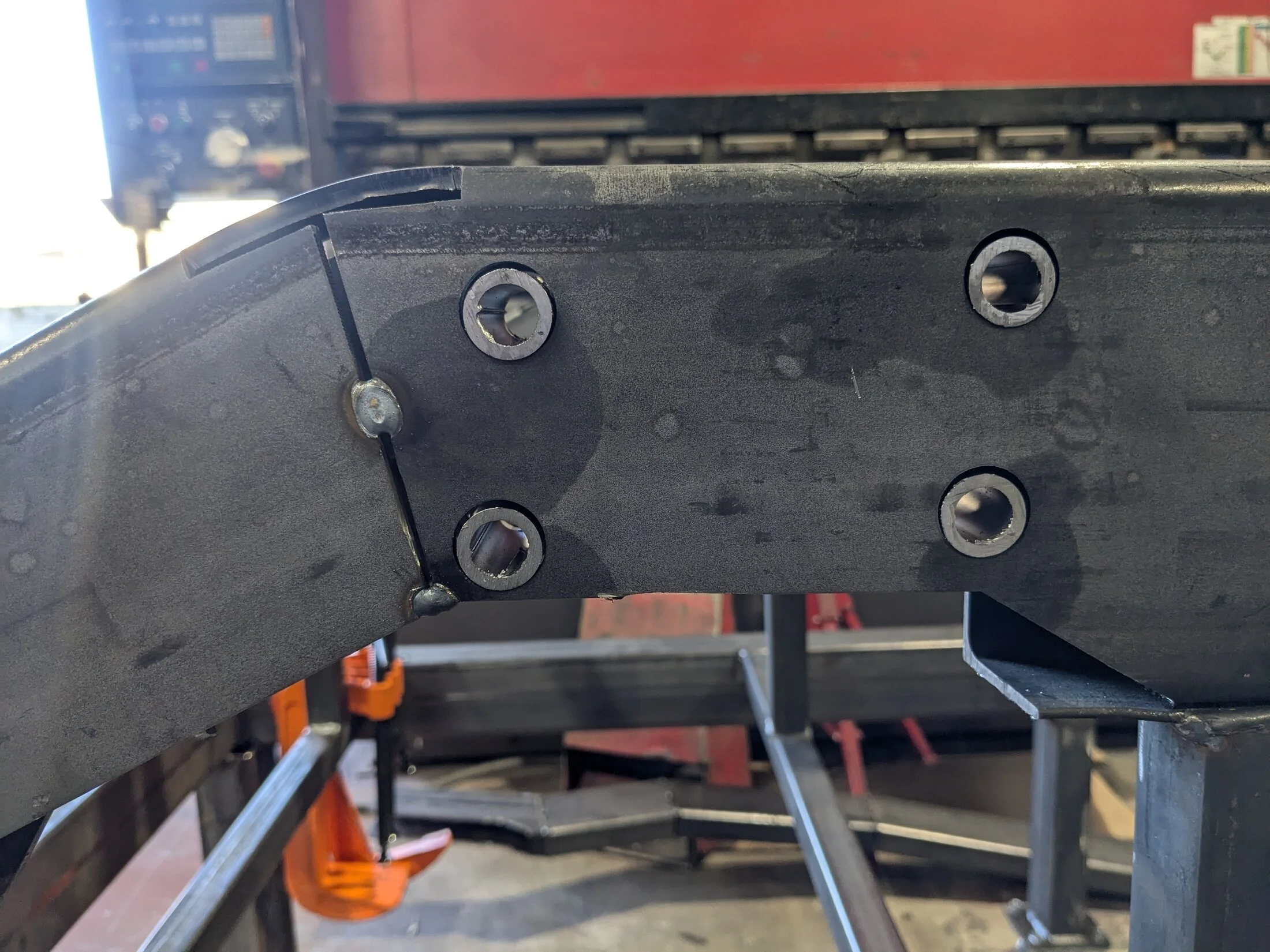

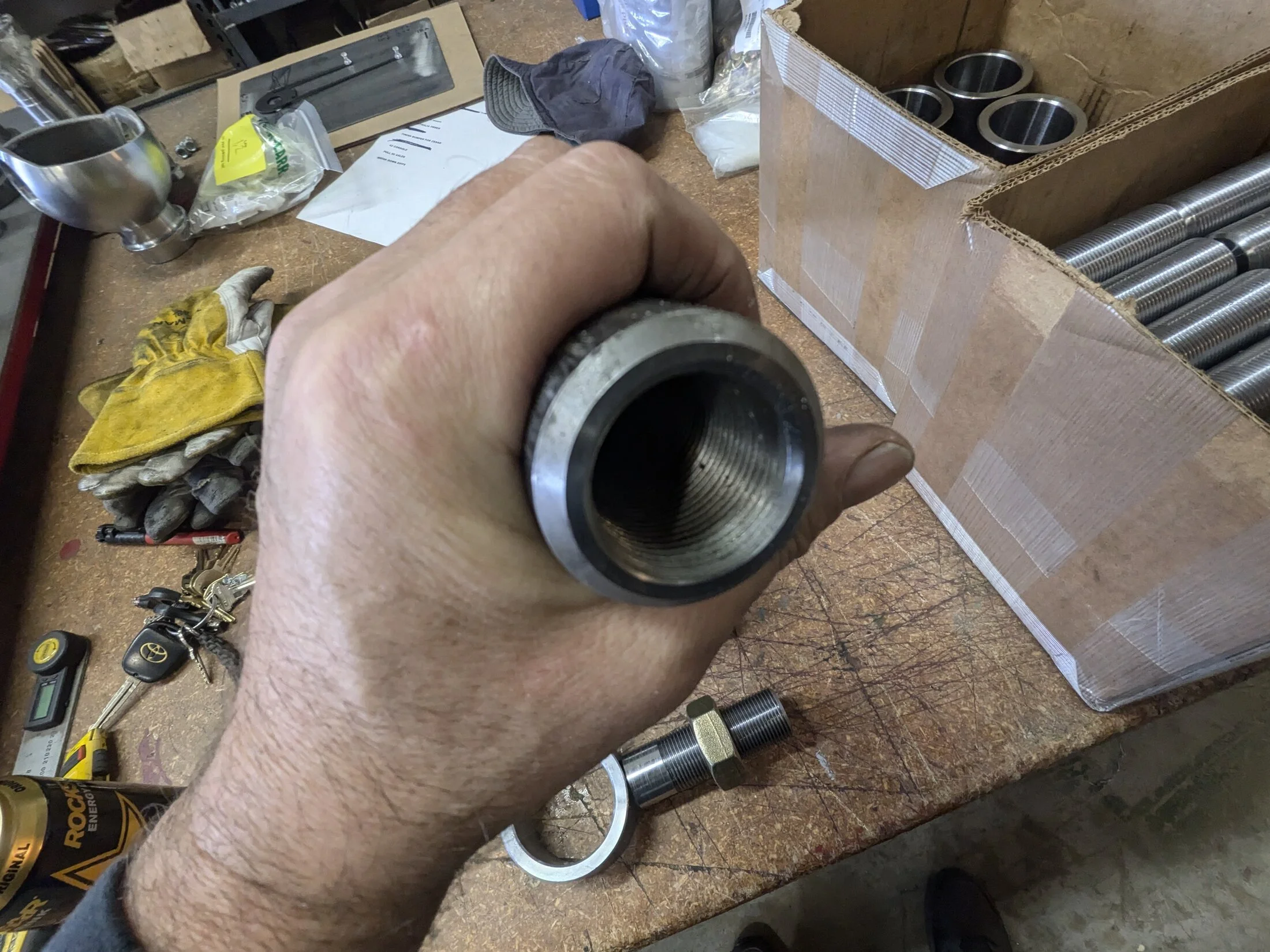

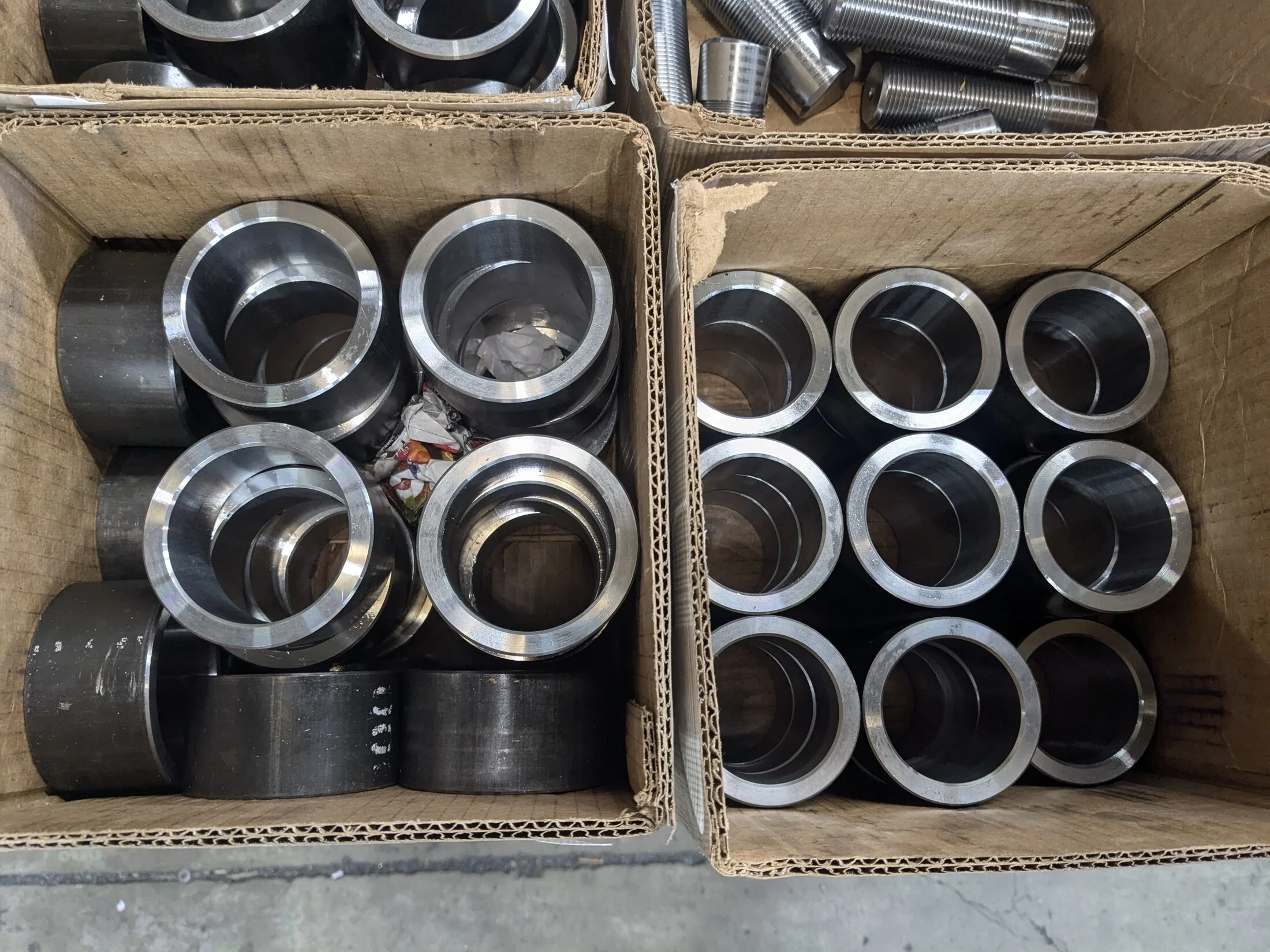

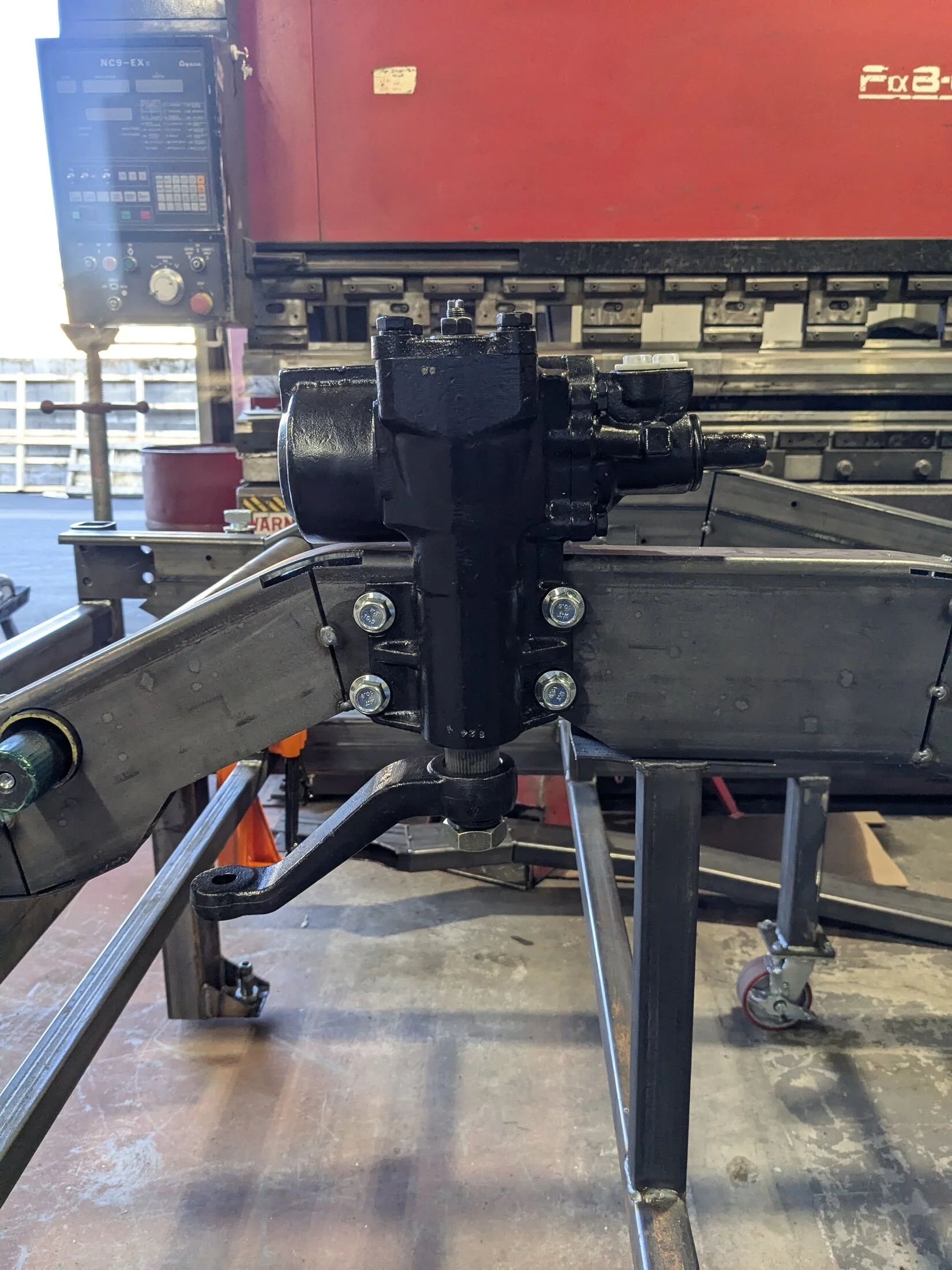

Test fit the sway bars and arms. Steering box sleeves inserted and tacked.

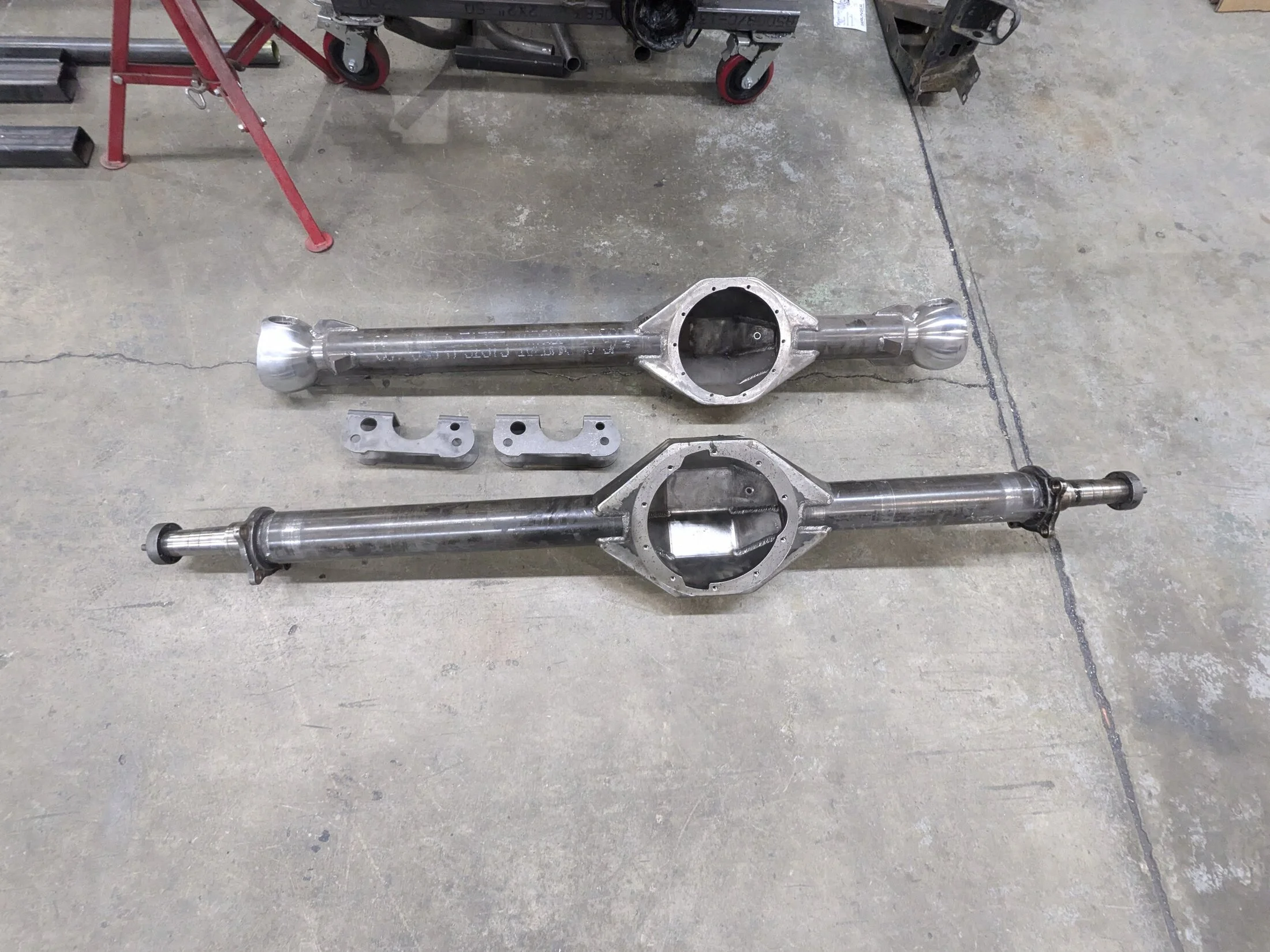

A couple sets of RCV axles arrived. One for me and another for a customer. Waiting on another two sets for the other two frame customers axles now.


View attachment 3822114
