UZJ100 Battery, Alternator and Ground Cable Kits - "Big Three Cable Kit"

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Fourrunner

Fourrunner

SILVER Star
10 Year 15 Year 20 Year
Joined
Jul 30, 2003
Threads
155
Messages
1,804
Location
Syracuse, Utah
All cables are constructed from either 1/0 or 4 AWG tinned wire (marine wire). Wire is very flexible and jacket is resistant to moisture, oil, chemicals, and excellent abrasion resistance. Joints are sealed using mil spec heavy duty adhesive lined heat shrink to prevent corrosion.

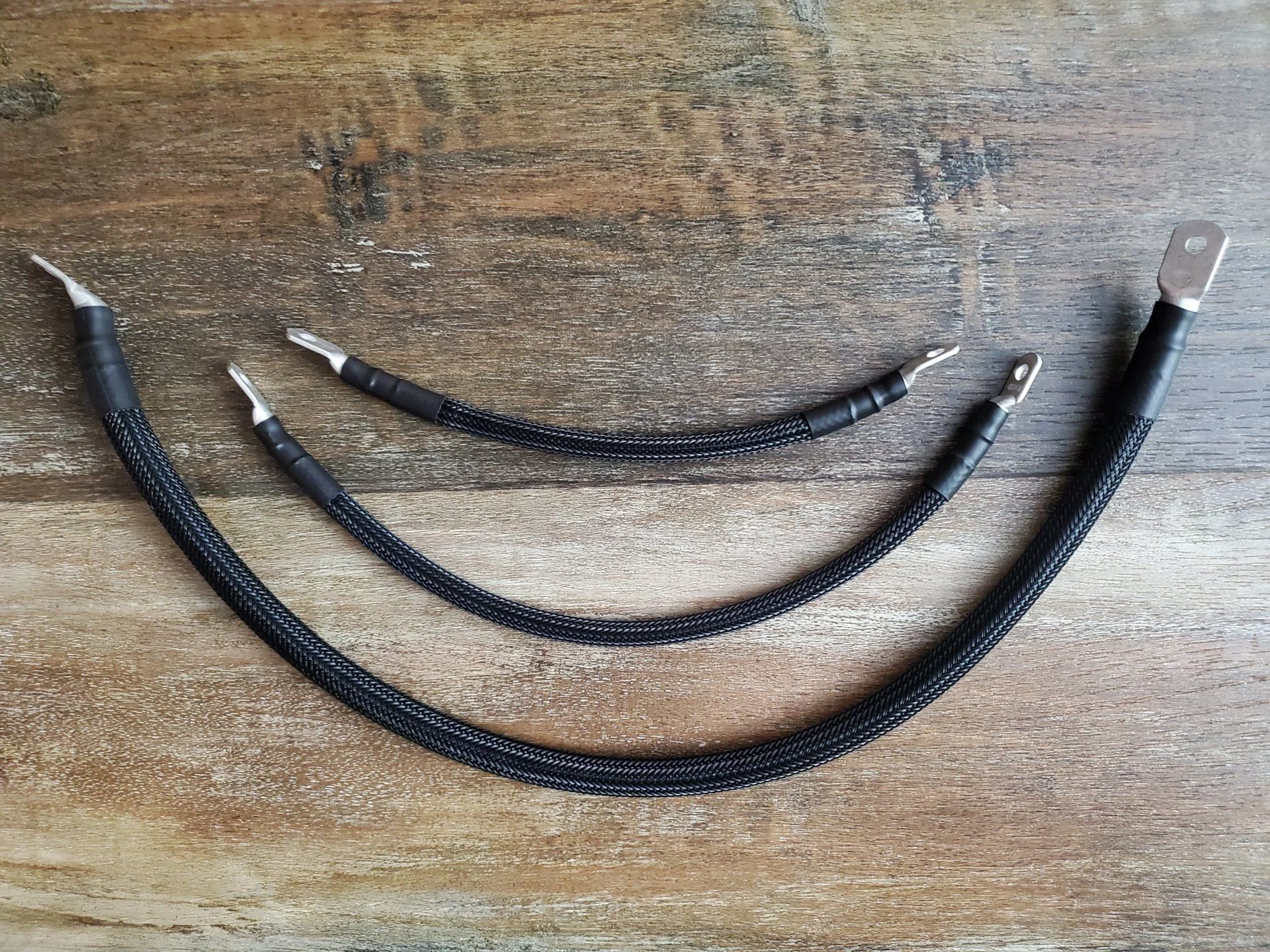

Big Three - $65 shipped
4 AWG cable from negative side of battery to inner fender
4 AWG cable from the firewall to the intake
1/0 cable from the engine hook to the fender apron
All cables will include abrasive resistant sleeve material

Big Three Plus - $TBD (waiting on finalizing the design of the terminal extension and length of cables)
Big Three Cable Kit
Mil Spec Battery Terminal Kit (plus and minus)
Battery Terminal Extensions with hardware (working on finalizing design at the moment)
1/0 cable from the Positive Battery Terminal Extension to the starter
1/0 cable from the Negative Battery Terminal Extension to the intake manifold
All cables will include abrasive resistant sleeve material

Big Three Plus Plus - $TBD (waiting on finalizing both the Big Three Plus kit and getting the length of cable needed for the alternator)
Big Three Plus Kit
1/0 cable from the Fuse/Relay block bolted to the battery extension to the Alternator
All cables will include abrasive resistant sleeve material

Email me at mguisinger@gmail.com with questions or to place an order.



I also offer cable kit for various other models. See the links below for those cable kits.

See this thread for FJ40 cables:
forum.ih8mud.com

FJ40 Heavy Duty Battery Cable Sets

The kit costs $105.00 shipped (within US). International shipping is available upon request (not included in the posted price). The kit includes three cables and battery terminal connectors. Kit includes: Battery positive to starter cable (with protective boot - not shown in the pictures...
forum.ih8mud.com forum.ih8mud.com

See this thread for FJ55 cables:

See this thread for FJ60/62 cables:
forum.ih8mud.com

FJ60/FJ62 Heavy Duty Battery Cable Sets

The kit costs $155.00 shipped (within US). International shipping is available. The kit includes 5 cables and battery terminal connectors. This kit fits FJ60's and FJ62's. See below for additional kits (FJ40, FJ80 and FZJ80) Kit includes: Battery positive to starter cable (with protective...
forum.ih8mud.com forum.ih8mud.com

See this thread for FZJ70/75 cables:

See this thread for FJ80 cables:
forum.ih8mud.com

FJ80 Heavy Duty Battery Cables

I have been offering this kit for FJ60/FJ62 and have put together a similar kit for the FJ80's. The kit costs $140.00 shipped (within US). International shipping is available (additional shipping costs will be added). The kit includes 4 cables and battery terminal connectors. This kit fits...
forum.ih8mud.com forum.ih8mud.com

See this thread for FZJ80 cables:
forum.ih8mud.com

FZJ80 Heavy Duty Battery Cable Sets

I have been offering this kit for FJ60/FJ62 and FJ80 and have put together a similar kit for the FZJ80's. The kit costs $145.00 shipped (within US). International shipping is available (please PM me). The kit includes 5 cables and battery terminal connectors. Kit includes: Battery to starter...
forum.ih8mud.com forum.ih8mud.com

See this thread for UZJ100 cables:
forum.ih8mud.com

UZJ100 Battery, Alternator and Ground Cable Kits - "Big Three Cable Kit"

All cables are constructed from either 1/0 or 4 AWG tinned wire (marine wire). Wire is very flexible and jacket is resistant to moisture, oil, chemicals, and excellent abrasion resistance. Joints are sealed using mil spec heavy duty adhesive lined heat shrink to prevent corrosion. Big Three -...
forum.ih8mud.com forum.ih8mud.com

Last edited:
Excellent. I should have the first out this weekend and hopefully some pictures of the install and some user feedback. Let me know if you are ready or if anyone else is ready to try them out.

I'm in for a plus plus kit. Any way we could get the initial kit now and then you can ship us the rest of the kit at a later date?

I've got two "test kits" en route to customers. Hope to get some feedback soon. As soon as that happens, we can certainly go that route. Will send you a message and we can discuss. If anyone else is interested in doing this, I am fine with this approach.

I need to replace my negative battery cable above all else. Which kit has that? The cable goes into a harness, where does it terminate? Is that the one you say terminates on the intake manifold?

That would be the big three plus. Yes, it terminates right next to the starter. I'm still trying to figure out the plus cable set. I hope to have something figured out by the weekend.

I've got a cable for the starter and ground to the engine block (from the negative terminal) from a parts truck. It is quite the harness. Trying to track down the parts that will make it work. Hope to get some time on it this week.

Fourrunner said:
I've got a cable for the starter and ground to the engine block (from the negative terminal) from a parts truck. It is quite the harness. Trying to track down the parts that will make it work. Hope to get some time on it this week.
Click to expand...

Thanx! I'm definitely in for the Plus Plus kit
