Heavy duty battery cable kits are made from tinned 1/0 or 4 AWG cable. Wire is very flexible and jacket is resistant to moisture, oil, chemicals, and excellent abrasion resistance. Crimped ring terminals are sealed using mil spec heavy duty adhesive lined heat shrink to prevent corrosion. Terminals are heavy duty mil spec terminals with plenty of room for additional connections for all your accessories. The starter cable includes a protective boot. Optional abrasion resistant sheathing, terminal covers, and in some cases OEM fusible links (FJ80/FZJ80 only) available.
I currently offer kits for the FJ40, FJ60, FJ62, FZJ70, FZJ75, FJ80, FZJ80, UZJ100. I have also done numerous custom cable kits. Email me with your custom application!
All pricing include shipping within the US. International shipping available.
Kit and Options Costs:
FJ40 - $105
FJ55 - $130
FJ60/FJ62 - $155
FZJ70/75 - $155
FJ80 - $140
FZJ80 - $145
UZJ100 Big Three - $65
UZJ100 Alternator Upgrade - $65/$165 (see details below)
Options:
Terminal cover set - $10
Abrasion Resistant Sheathing ("+" cable will have red sheathing, "-" cables will have black sheathing) - $10
OEM fusible link (FJ80 and FZJ80 only, modified to fit the Mil Spec terminal) - $22

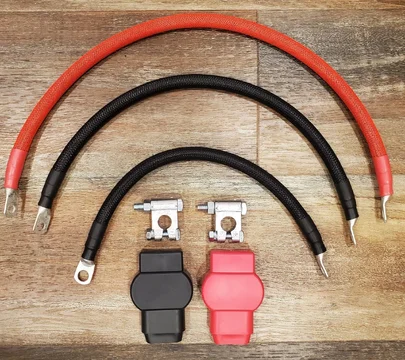

FJ40 Kit Includes ($105 shipped)
Battery positive to starter cable
Battery negative to frame
Battery negative to engine
1 Mil spec positive battery connector
1 Mil spec negative battery connector
(Kit shown with optional terminal covers and abrasion resistant sheathing)

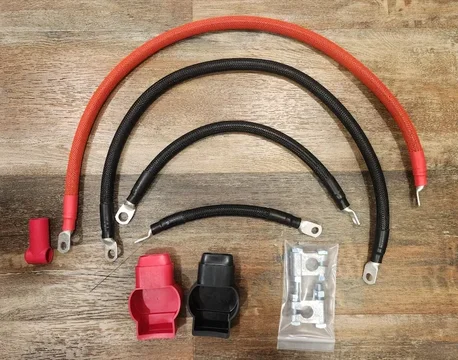

FJ55 Kit Includes ($130 shipped)
Battery positive to starter cable
Battery negative to fender and motor mount cables
Ground strap from starter to frame
1 Mil spec positive battery connector
1 Mil spec negative battery connector
(Kit shown with optional terminal covers and abrasion resistant sheathing)

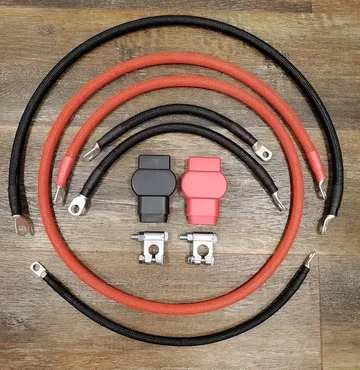

FJ60/62 Kit Includes ($155 shipped)
Battery positive to starter cable
Battery negative to fender and motor mount cables
Ground strap from head to firewall
Ground strap from starter to frame
1 Mil spec positive battery connector
1 Mil spec negative battery connector

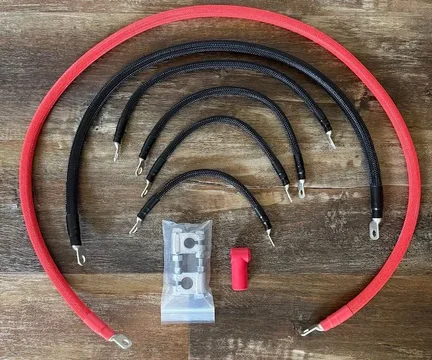

FZJ70/75 Kit Includes ($155 shipped)
Battery positive to starter cable
Battery negative to engine block cable
Battery negative to inner fender cable
Firewall to head cable
Transfer case to cross member cable
Block to frame cable
1 Mil spec positive battery connector
1 Mil spec negative battery connector
(Kit shown with optional abrasion resistant sheathing)

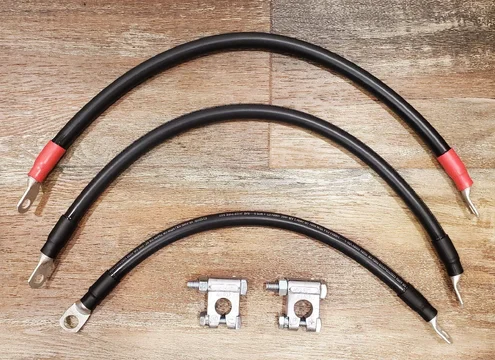

FJ80 Kit Includes ($140 shipped)
Battery positive to starter cable
Battery negative to motor mount cable
Ground strap from head to firewall
Ground strap from battery to fender
1 Mil spec positive battery connector
1 Mil spec negative battery connector

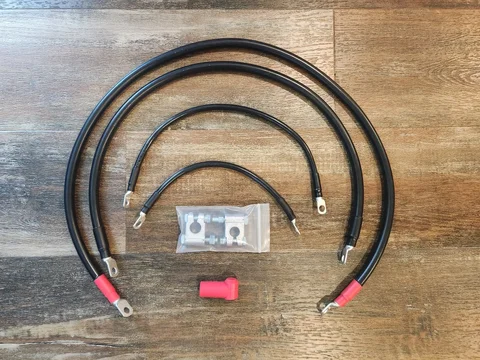

FZJ80 Kit Includes ($145 shipped)
Battery to starter cable
Negative to block (with 90 degree lug) cable
Negative to chassis cable
Ground strap from head to firewall
Ground strap from battery to fender
1 Mil spec positive battery connector
1 Mil spec negative battery connector
(Kit shown with optional terminal covers and abrasion resistant sheathing)

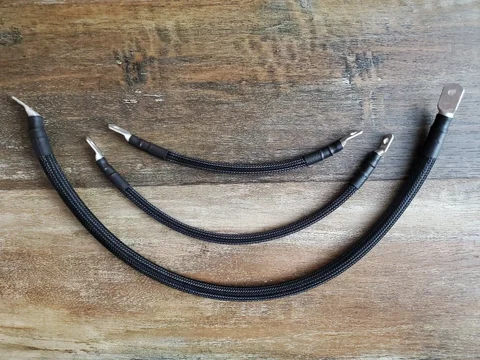

UZJ100 "Big Three" ($65 shipped)
4 AWG cable from negative side of battery to inner fender
4 AWG cable from the firewall to the intake
1/0 cable from the engine hook to the fender apron
UZJ100 Alternator Cable Upgrade ($165/$65 shipped)
This upgrade replaces the factory cable with #2 awg cable. There are two options: retrofit your cable harness with a #2 cable or provide only the #2 cable with terminals crimped on for $65. Pics available upon request.
