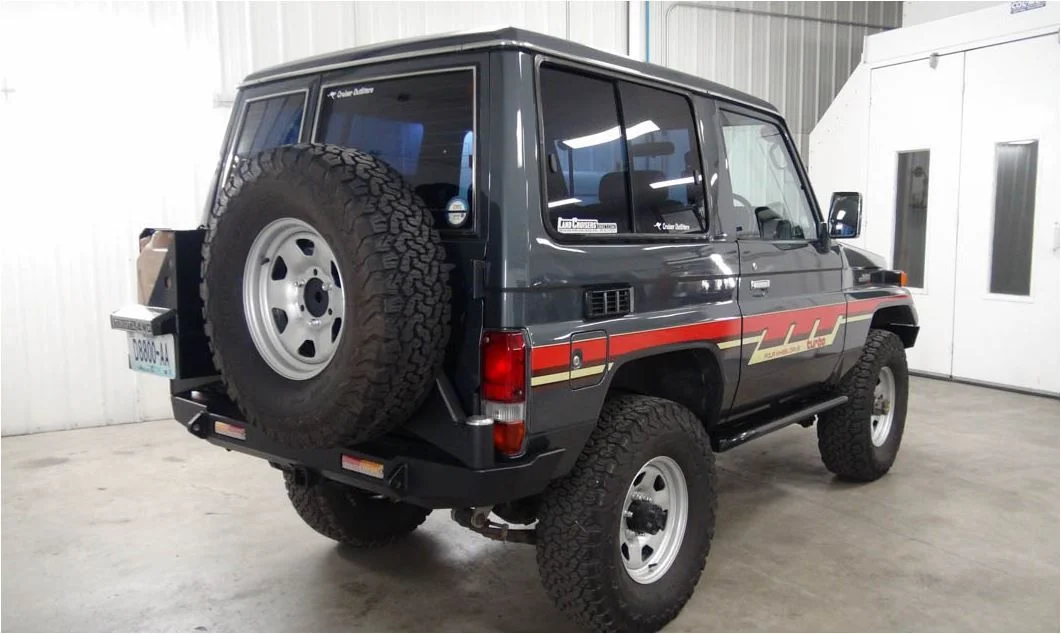

Updated rear bumper pics (was Project LXXIV)

Joined
Mar 8, 2018
Messages
60
Location
Nagoya, Japan
Curious about the hard points on the front and rear bumpers. I know many people say not to use the ones on (for example) the ARB bumpers as snatch points or for other heavy use, and instead get a chassis mounted tow point. What about the ones on these bumpers? Would chassis mounted tow points still be necessary?

Also, what exactly comes with the rear bumper's setup? As far as I can tell: the bumper, LED lights, the dual swings, and (maybe) a tow hitch? If it comes with the hitch, what's the hitch size/rating?

As for the front, what winch setups fit best? I'd need a 24v for my HZJ77. Any suggestions?

I'm interested in going ahead and ordering the rear (and probably front as well) for my 1995 HZJ77 when I get back stateside next year~ ^_^
What would shipping to a residential address in South Carolina run?


cruiseroutfit

Supporting Vendor
Moderator


Joined
Jan 9, 2003
Messages
9,537
Location
Utah
Curious about the hard points on the front and rear bumpers. I know many people say not to use the ones on (for example) the ARB bumpers as snatch points or for other heavy use, and instead get a chassis mounted tow point. What about the ones on these bumpers? Would chassis mounted tow points still be necessary?

Also, what exactly comes with the rear bumper's setup? As far as I can tell: the bumper, LED lights, the dual swings, and (maybe) a tow hitch? If it comes with the hitch, what's the hitch size/rating?

As for the front, what winch setups fit best? I'd need a 24v for my HZJ77. Any suggestions?

I'm interested in going ahead and ordering the rear (and probably front as well) for my 1995 HZJ77 when I get back stateside next year~ ^_^
What would shipping to a residential address in South Carolina run?
Recovery points on the bumpers don’t have a formal rating but are engineered for recovery. Hitch is 2”, no formal rating but suitable for Class I loads.

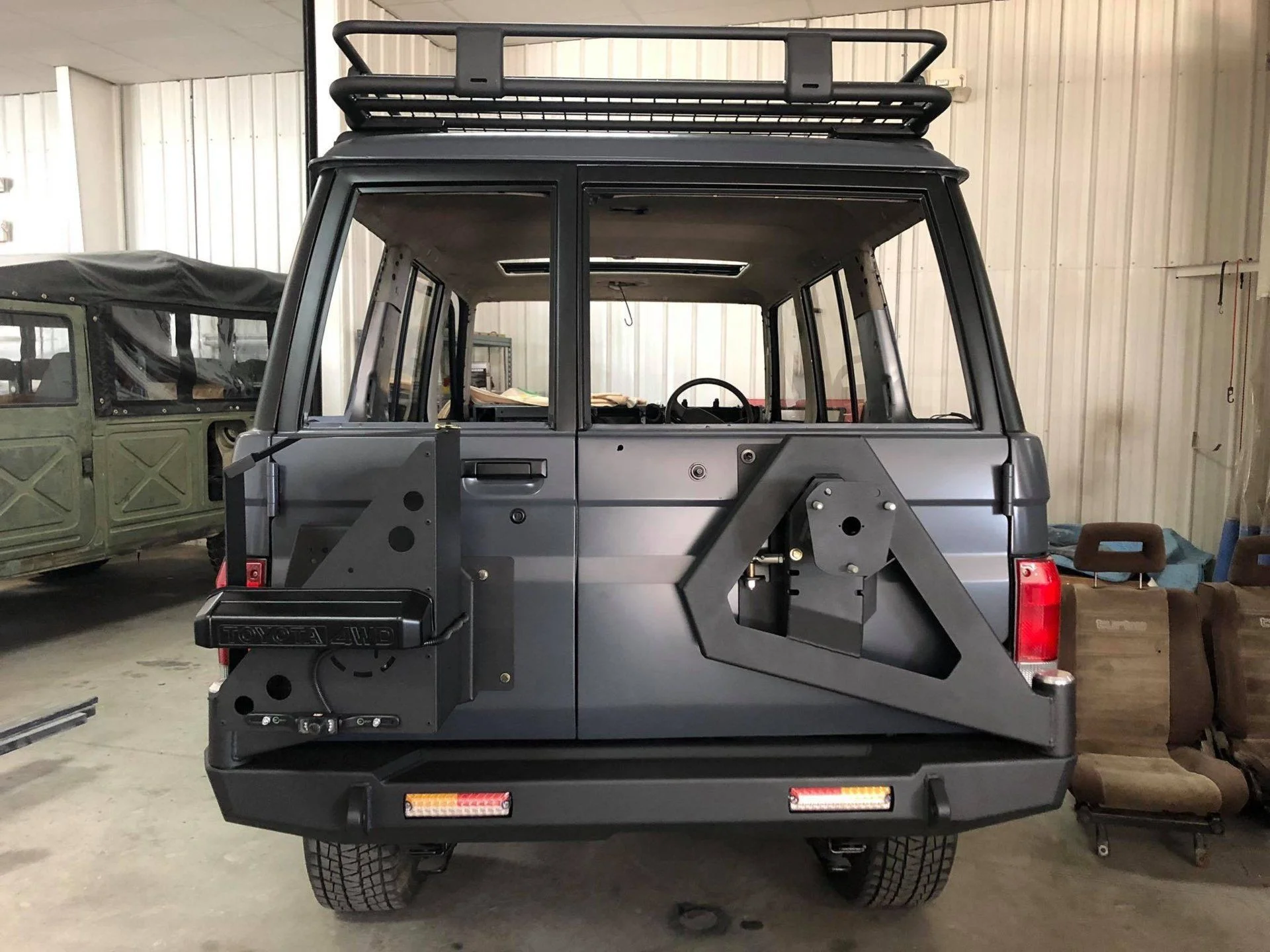

Rear bumper includes base bar, tire swing, lights, accessory swing and hardware.

We’ve been very happy with the ComeUp 24V variants, there are several to choose from based on your want/budget.

Shipping to SC would be ~$300 on a pair of bumpers.


cruiseroutfit

Supporting Vendor
Moderator


Joined
Jan 9, 2003
Messages
9,537
Location
Utah
Interested in one of these bumpers for my Troopy, will a scepter fuel can fit in the spare fuel can holder ?
The spare fuel can holders are sold separately, the bumper itself includes the accessory mount. You can setup for Scepter, NATO, Rotopax, etc.


cruiseroutfit

Supporting Vendor
Moderator


Joined
Jan 9, 2003
Messages
9,537
Location
Utah
For the first time in awhile we have the rear bumpers in stock and ready to ship :cool:



We are assembling the parts kits for another dozen bumpers today.

Front bumpers are still in process and will ship in sequence of order.

Give us a call at the shop (801-563-1277) if you're interested!

Joined
Apr 9, 2018
Messages
157
Location
Dubai, UAE
Would it be possible to send some more info on the rear bars? I can't find anything on your site.

Would be looking to ship it out to Dubai, including a carrier for two Scepter cans on the left.


cruiseroutfit

Supporting Vendor
Moderator


Joined
Jan 9, 2003
Messages
9,537
Location
Utah
Would it be possible to send some more info on the rear bars? I can't find anything on your site.

Would be looking to ship it out to Dubai, including a carrier for two Scepter cans on the left.
Give us a call at Cruiser Outfitters (801-563-1277) or email (info@cruiseroutfitters.com) if you would like to place an order or need additional information. Thanks


cruiseroutfit

Supporting Vendor
Moderator


Joined
Jan 9, 2003
Messages
9,537
Location
Utah
More goodness loaded on the truck today!



More rear bumpers in stock and ready to ship. Fronts are back-ordered, taking orders currently and they will ship as they arrive.

Joined
Apr 18, 2018
Messages
31
Location
Houston, TX

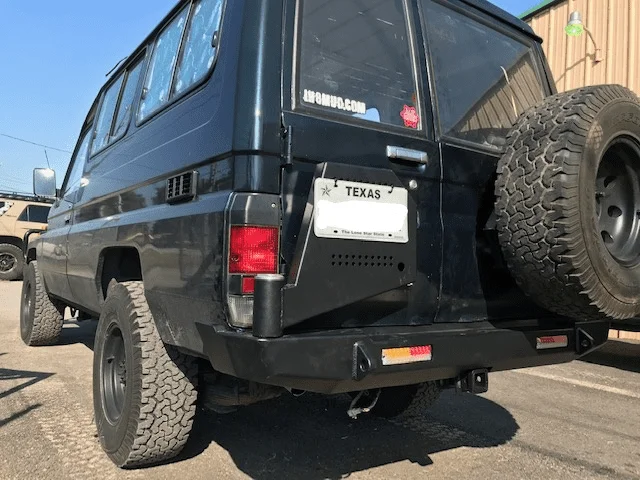

I will follow up with a question. After switching over to these LEDs in the bumper from the stock incandescent bulbs, I'm getting what I now understand to be "hyperflasing" where the turn signals flash faster because of the reduced resistance on the circuit. Has anybody found a LED flasher relay in 24V that's a direct replacement. I'm seeing a lot of options in 12V.

Also the red lights in the bumper come on as running lights but don't do anything when the brake pedal is depressed. Brake lights in the bumper were working before the new one. Is it at all possible this is related to the LEDs as well, or is it just another electrical gremlin manifesting itself? Haven't really had a chance to investigate yet.


coldtaco



Joined
Jul 3, 2004
Messages
2,693
Location
Anchorage, AK
I will follow up with a question. After switching over to these LEDs in the bumper from the stock incandescent bulbs, I'm getting what I now understand to be "hyperflasing" where the turn signals flash faster because of the reduced resistance on the circuit. Has anybody found a LED flasher relay in 24V that's a direct replacement. I'm seeing a lot of options in 12V.

Also the red lights in the bumper come on as running lights but don't do anything when the brake pedal is depressed. Brake lights in the bumper were working before the new one. Is it at all possible this is related to the LEDs as well, or is it just another electrical gremlin manifesting itself? Haven't really had a chance to investigate yet.
on Pirate4x4 or something like that there is a nice description on how to modify your factory flasher relay to work with LED's. Try a google search, don't know how to tell you what words to use. This mod was with a 12V flasher but if you open up your flasher relay and it looks the same then it probably will work. As to your brake lights I am guessing that the bumper lights are set up like trailer lights, the 3 pin/wire type, so you probably would need to get one of those trailer wiring harness kits that converts the 4 lights to 3 lights where the brake and running light are the same?

Joined
Apr 18, 2018
Messages
31
Location
Houston, TX
I know load resistors is the other option. A new relay just seems like a cleaner solution but I'm considering that as a backup plan.
