[soenke]

Moin Mark,
thanks for the reply and the hint. Markus has been afraid to weld so close to the knuckle ball, and all axels we have seen so far have been bend at the long tube...I´ll discuss the completion....have you ever had any problems with the high pinion diff. ? By the way the front is about 100kg lighter then an original HDJ 80...

My wife and me designed the car, first we wanted to stretch the frame and make a longer cabine with an upright back.
While making the first set up we noticed, that we might go without touching the frame...
here finding the design, this was no good

the metall work, stretching the J4 body and the fenders, the build up of the cabine, welding the tanks and most of the work getting 40 and 80 together was done by Markus...we did most of the planing and the design (sometimes contrary to Markus´concepts, sometimes fabrication ways forced us to build different to our plans) and we build the interior / furniture

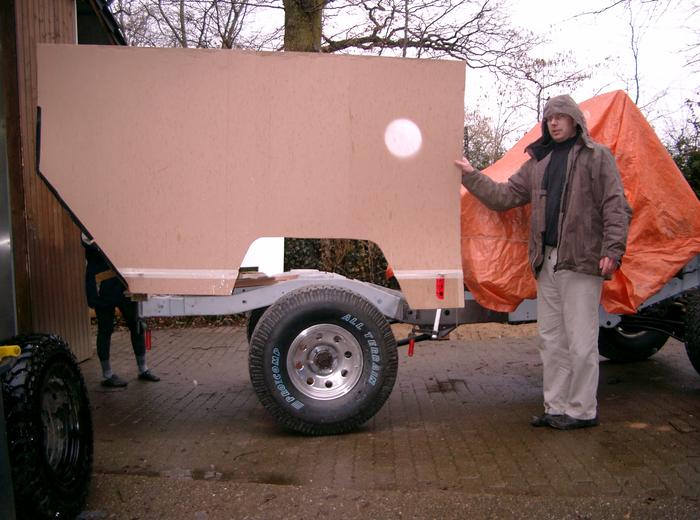

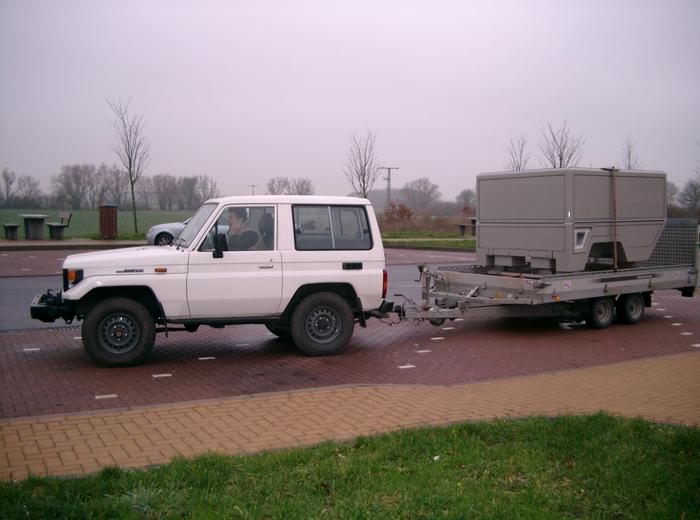

transporting the cabine to get started with the inside

we could use a well equipted carpenders garage in the neighborhood



[eleblanc]

How much that thing weight?



[soenke]

well, depends....2.9t up to 3.5t with all tanks filled up and expedition gear...



[lulo]

Hello, I allready introduced myself and our Toyo in the J80 forum because most of the technic is HDJ 80, but I think this forum fits better....so I will move it here and start a new thread:

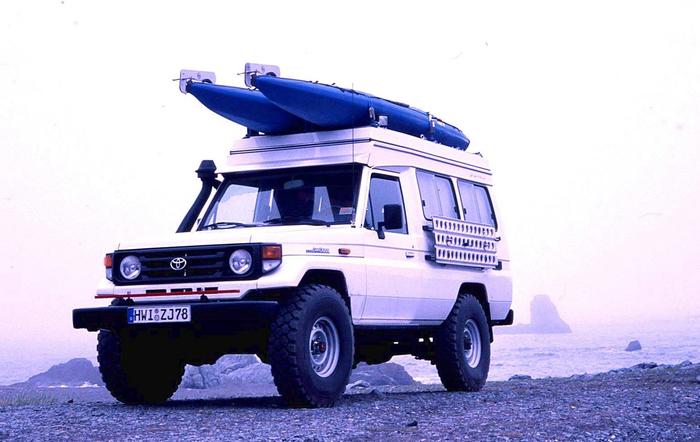

We have been travelling by LandCruiser for years now, first with a BJ45, than with modified HZJ78 with sleeping roof. But this set up was build for Afrika and not perfect for the North because of the canvas walls of the roof and the hight of the car with the roof and the Michelin XZL 255/100, we were often afraid of tipping over

Therefore here some pictures of our new home, we decided to use mainly 80 technic, but did not like the idea of living in the 80- body. We used as far as possible original Toyota parts. Exception ist the Vintage A/C (I already regret) and a volume sport air filter because there was no space for the original under the bonnet left.

it is a 1993 HDJ 80 with manual gearbox, changed to 12V alternator and starter from the HDJ 100, australian clutch (like the one from the later 24v 80), copper radiator from HZJ75, 4.5:1 Diffs from PZJ75, HT rallye Suspension, 325/80 R16 Cooper SST on Alcoa 8" rims, reinforced front axle, 2x about 200l diesel in alu tanks underfloor and 2x about 60l water in V4A tanks underneath the seats. Bonnet and doors are build of f/g with some kevlar layers, two 90ah AGM batterys are in underfloor stoarage boxes and 2 Solarpannels with 170W wait to be installed, 12V Kompressor wih tank for refilling tires.....
In the back is a small cabine with hydraulic elevatible top, and in the front we adapted the J4 body from a 1979 HJ47. The J4 body ist lengthend about 8cm, so I can sit comfortably. The cabine and most of the technics was build by Marcus www.offroad-schmiede.com
Inside we build our home (two people) for all seasons and conditions...Heating is provided for the engine and drivers cabine by a Webasto, in the back we have a Eberspächer air heater for us and the wardrobe for drying the jackets etc. Origo cooker for inside cooking, Engel fridgebox, 4.5bar waterpump with Katadyn-waterfilter, small sink, outside shower.....

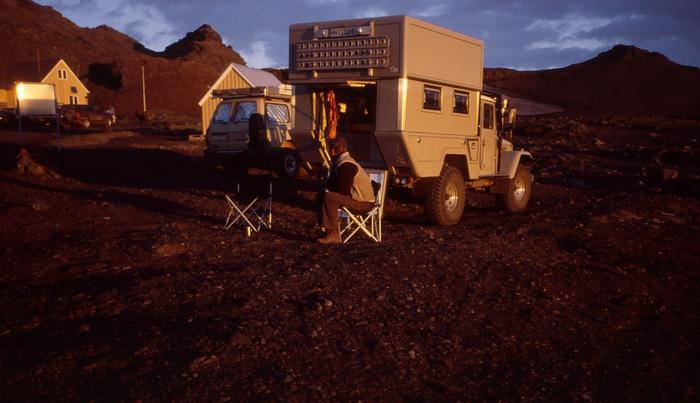

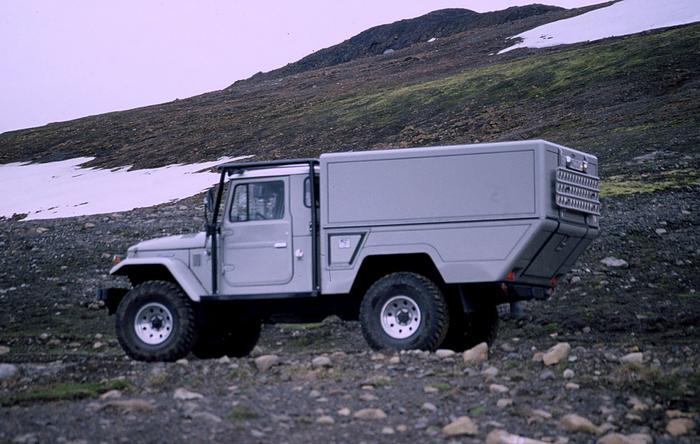

here a few pictures from our digitalised friends from Iceland this summer

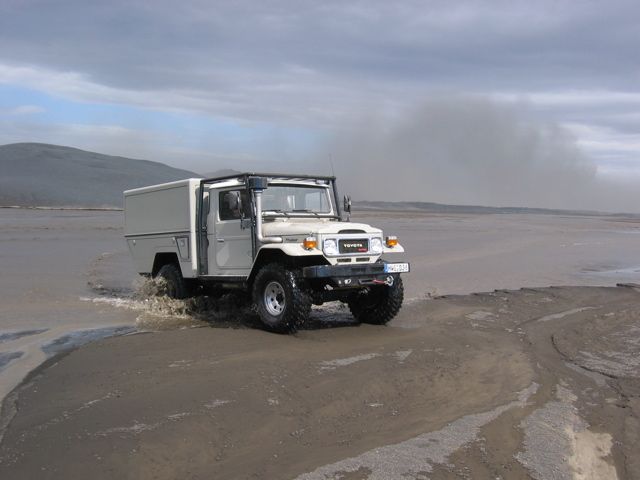

first picture is the same piste along the beach as shown above with the HZJ78. It was lot more comfortable with the wider track and less hight of the truck

Congratulation Soenke for your Travelling Cruiser...

Beautiful Pics

Vielen Dank!

Tschüss.



[MaddBaggins]

That is an absolutely beautiful machine. Thanks for all the great pictures.



[lostworldexpedition]

That is possibly the coolest expedition vehicle I have ever seen. I nearly short circuited my computer from all the drool that fell on it.

Congratulations, I hope to see you and your Landcruiser in person one day.

Cheers,



[spressomon]

That is possibly the coolest expedition vehicle I have ever seen. I nearly short circuited my computer from all the drool that fell on it.

Congratulations, I hope to see you and your Landcruiser in person one day.

Cheers,

A big DITTO! Lots of great rigs around but I have to admit I haven't jonesed for a rig like I am for this one!

Congratulations soenke on your most excellent design, execution and above all you are out there using it as it was designed to be used!!!

Dan



[AdventureBuddies]

That is truly brilliant. I have considered something similar for the future of my 80 so we can live "indoors" during rough weather. I would love to see it next time I'm in Germany...

Markus



[Mickldo]

Awesome build.

I am designing something similar for the back of my HZJ105 once I chop it into a dual cab ute. The layout is different to my design but I am really liking your layout. There are a heap of really good design ideas there.



[mot]

GREAT STUFF!!!!!

Thanks for posting the pics and the info!

Mot



[soenke]

Thanks guys,

I am ready to challange some constructive criticism...dont´be so nice...



Markus, where in Germany are you going to? Anyway you ´ll be welcome to visit ....


you probably know Willkommen bei Innovation Campers! ?

They convert the 80 /100 body to a mobil home

Marcus Haase from the www.offroad-schmiede.com starts a conversion of that kind in Janaury...I beliefe it will come out most excellent

One of the guys from innovation campers is now building for Tom´s Fahrzeugtechnik in the same manner..
Tom’s Fahrzeugtechnik Heckverlängerung (Camper)



[soenke]

another dia:

with less height travelling comfortably...

(at the same spot we have been quailing before with the HZJ78 and its pop-up roof with kayaks loaded on top.)



[nobrks]

No exaggerating

another dia:

with less height travelling comfortably...


(at the same spot we have been quailing before with the HZJ78 and its pop-up roof with kayaks loaded on top.)

I can verify that the camera has not been rotaded to make look more scary than it is!

...this slope gets preatty twisted, and tin the spring time this spot has got snow in it to make it more exciting



[soenke]

Hey Nobrks,

that is one of our favorit slopes....( are you lucky to be there more often? )
we love beeing in Icelands landscape...

got some more digital pictures from a friend today...maybe you like to see them..?

wanted to cross Tungnaá

waiting in vain for the waterlevel to drop

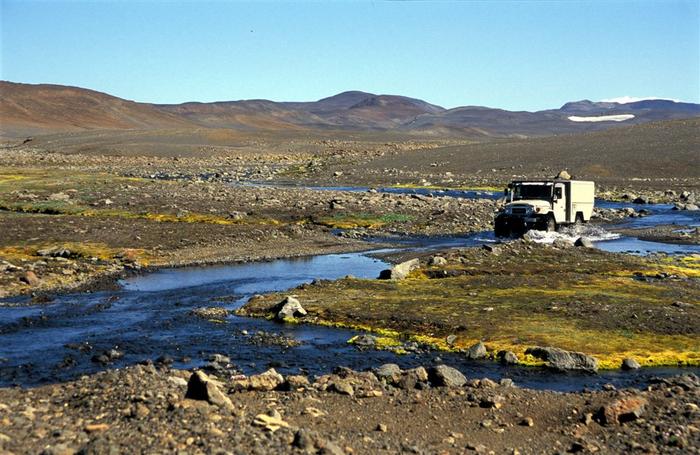

keep on going, this is an official dirt road through a lake! you have to stay close to the shore though...

watching the glacier form our back porch after a hike

geothermal area, building our own small hot pool

one river is hot the other one cold

Greetings Sönke



[Beowulf]

This has been a GREAT thread. Thank you very much for posting the pictures and the commentary.



-B-



[nobrks]

Icelandic slopes

Hey Nobrks,

that is one of our favorit slopes....( are you lucky to be there more often? )
we love beeing in Icelands landscape...

got some more digital pictures from a friend today...maybe you like to see them..?

wanted to cross Tungnaá


waiting in vain for the waterlevel to drop


keep on going, this is an official dirt road through a lake! you have to stay close to the shore though...






watching the glacier form our back porch after a hike


geothermal area, building our own small hot pool





one river is hot the other one cold



Greetings Sönke

Those are really nice pictures you have! You have been all over the country
I know where most of them are taken, and that twisting slope is on my favorite area.
I go there 1-3times each summer, mostly on my Enduro bike. And on my LC, both winter and summertime.

Maybee you reconise these signs :

Videos will be on youtube soon!

.. Soenke pleace keep more pics comming



[soenke]

Hey Nobrks

the links don´t work..?.

we planed a snow tour next april (just one week, the ferry isn´t so expensive that early the year) but our companion can´t go now...so we probably cancle the trip..

our car is just on 37" with a lot of weight, so glacier tours like you do would´t be possible anyway....love to do it though
what about a thread "driving on-road" in Iceland? And you could tell us about "reading the river" in fords and rivercrossing in the Expedition Forum..???
Would like to see more pics too!

greetings Sönke



[soenke]

..pleace keep more pics comming

some from the build up time:

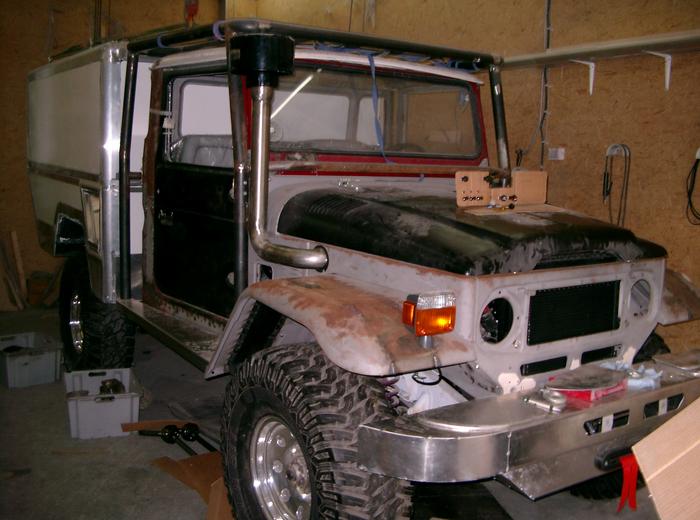

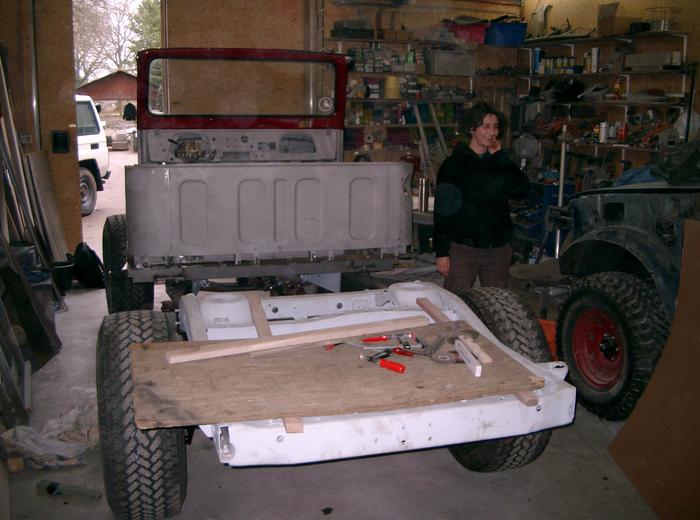

placing the J4 body on the 80 frame. It´s sitting further toward the front then original when the 1HD-T is keept in place. Still very little space is left when the visko-clutch fan is used. The Body has to be mounted higher to provide space for the tires underneath the fender.

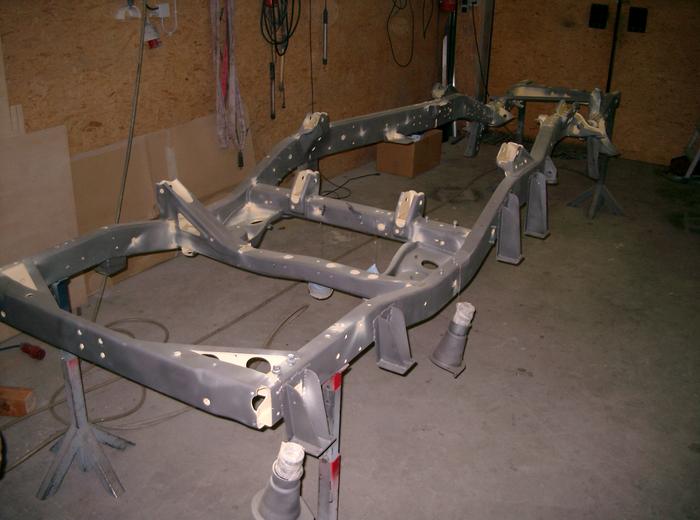

the frame goes in curves, wich helped to make it not to easy for Marcus to manufacture the cabin-mounts

The vintage A/C radiator fits perfectly in front of the radiator from a HZJ75. Adapted metal fenders and aluminium storage front bumper. You can see the 13cm body lift

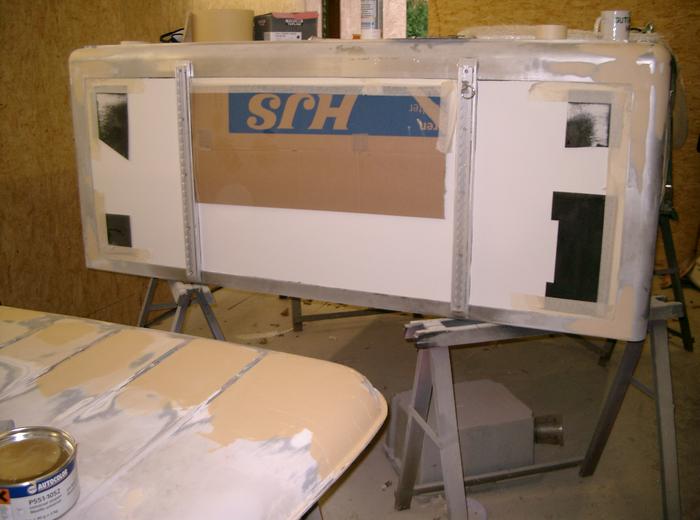

f/g sandwichplates glued to the aluminium frame of the cabine

the top, easy to lift with two persons
and the extended J45 roof

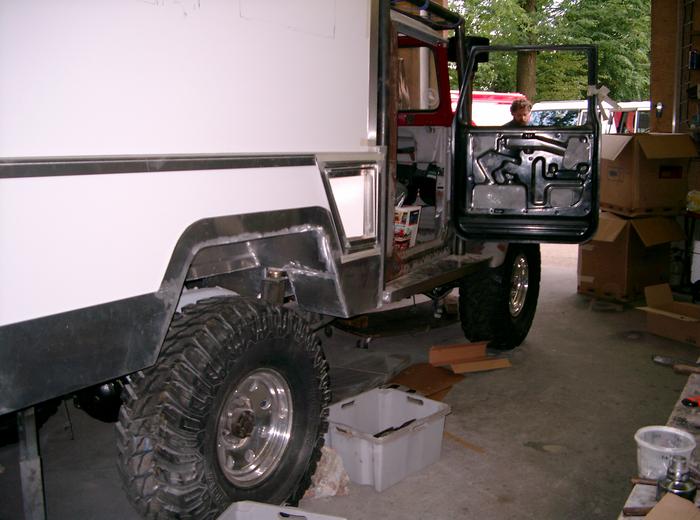

getting it together

just to take it apart again and again.... untill everything fits quite well.

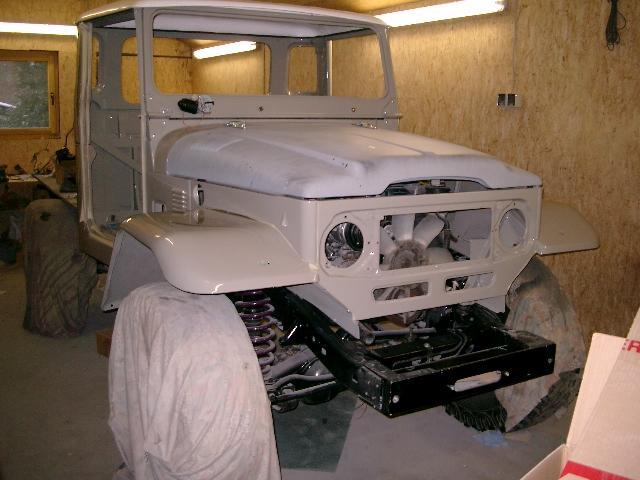

Time for some paint

stabilizers for the fenders



[mot]

This is as cruiser porn as it gets!!

Not to sound like a broken record/CD, but thanks for the pics and keep 'em coming!



[nobrks]

what about a thread "driving on-road" in Iceland? And you could tell us about "reading the river" in fords and rivercrossing in the Expedition Forum..???
Would like to see more pics too!

greetings Sönke

I've got it started
https://forum.ih8mud.com/trails-events-expeditions/253409-traveling-iceland.html#post3901311

Soenke, how are the cabine-top-corners made?

Videos
YouTube - grimsfjallabras.wmv
YouTube - grimsfjall1.wmv
you tube, the long one
