Toyocom OBD1 Bluetooth available again

[efjayatee]

Just to be clear. There were 2 versions of this. Toyocom (no longer available) and TOYOBD1 (current).

The Toyocom allows you to read codes.
The Toyobd1 does not.

Toyocom comes with the connector pre attached.
TOYOBD1 only the pigtail without the mating connector.

I ran the Toyocom (connector pre-attached) inside the engine bay and the heat caused the Toyocom to malfunction.

With the current TOYOBD1, you can extend the wires into your glove compartment and will not harm the module.



[Malleus]

Yep

I emailed them about it previously and it got resolved. Something to do with firmware updates.

Might have to do the same again

Inquiring minds want to know...



[CRK5540]

Just to be clear. There were 2 versions of this. Toyocom (no longer available) and TOYOBD1 (current).

The Toyocom allows you to read codes.
The Toyobd1 does not.

Toyocom comes with the connector pre attached.
TOYOBD1 only the pigtail without the mating connector.

I ran the Toyocom (connector pre-attached) inside the engine bay and the heat caused the Toyocom to malfunction.

With the current TOYOBD1, you can extend the wires into your glove compartment and will not harm the module.

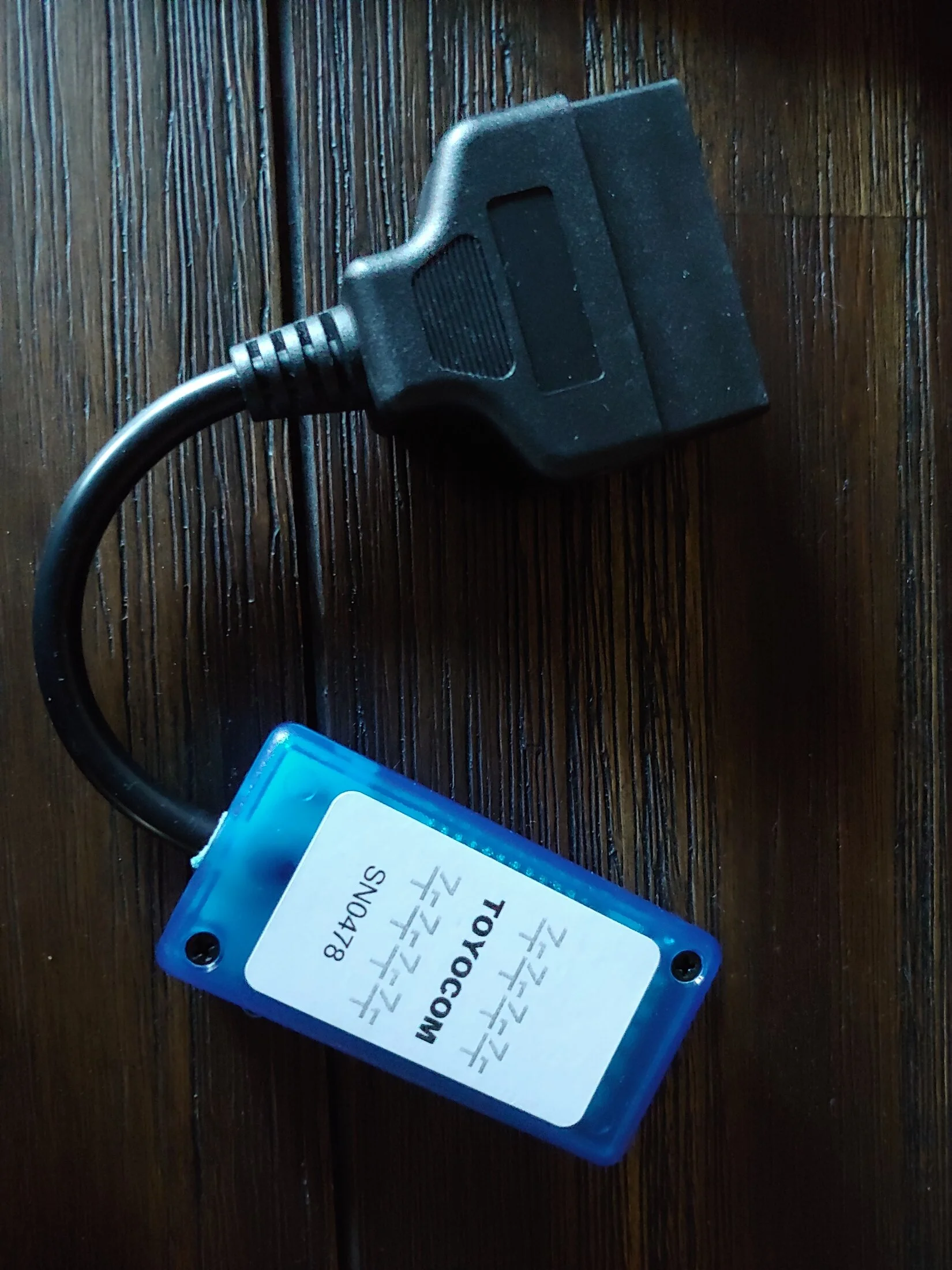

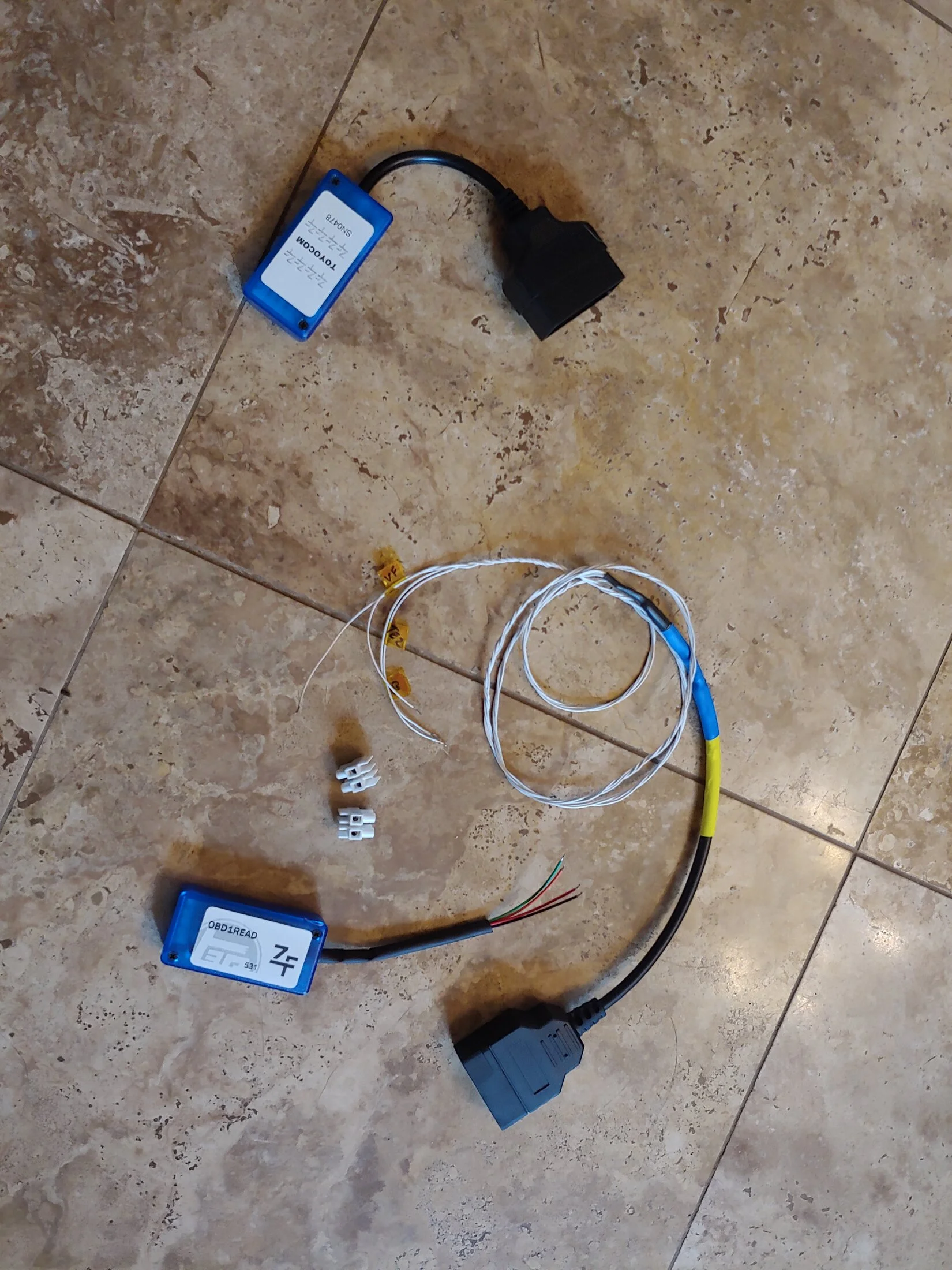

View attachment 3843336View attachment 3843337

Currently the OBD1READ is available and the TOYOCOM isn't.
Are you sure that the only thing missing in OBD1READ is the ability to read CEL codes?

Or is there additional functionality that we will have to give up?



[ppc]

Currently the OBD1READ is available and the TOYOCOM isn't.
Are you sure that the only thing missing in OBD1READ is the ability to read CEL codes?

Or is there additional functionality that we will have to give up?

The TOYOCOM units came with a plug that matches the diagnostic connector where OBD1READ has no connector. Each has their advantages. If you want a permanent installation that later allows for easier in-cab mounting to keep it away from the heat of the engine compartment. Just needed to order a connector and cable from Amazon.



[efjayatee]

Currently the OBD1READ is available and the TOYOCOM isn't.
Are you sure that the only thing missing in OBD1READ is the ability to read CEL codes?

Or is there additional functionality that we will have to give up?

The current model has the latest FW with upgraded data logging. Every thing else is the same minus the ability to read CEL codes.



[CRK5540]

The current model has the latest FW with upgraded data logging. Every thing else is the same minus the ability to read CEL codes.

Thank you this is exactly the answer I was looking for!



[CRK5540]

The TOYOCOM units came with a plug that matches the diagnostic connector where OBD1READ has no connector. Each has their advantages. If you want a permanent installation that later allows for easier in-cab mounting to keep it away from the heat of the engine compartment. Just needed to order a connector and cable from Amazon.

I noticed that. This is one of the reasons i prefer the OBD1READ with bare wires.
Thanks.



[SoCal80series]

There's like 60 available now

Who sells this?



[simple]

Who sells this?

zf-scantools

Web Store Meta Description

zf-scantools.com

OBD1READ with Bare wires

zf-scantools.com



[Kabanstva]

Anybody got a link where to get the correct extension cable and plug to place one of these units in the glove box?



[efjayatee]

Anybody got a link where to get the correct extension cable and plug to place one of these units in the glove bo

Wouldnt allow me to upload but this YouTube video instuction is what your looking for:



[ppc]

Who sells this?

This device is for 93-94 only. Won't work on your 96



[SoCal80series]

This device is for 93-94 only. Won't work on your 96

What I really want is just the 23 pin pigtail.



[Kabanstva]

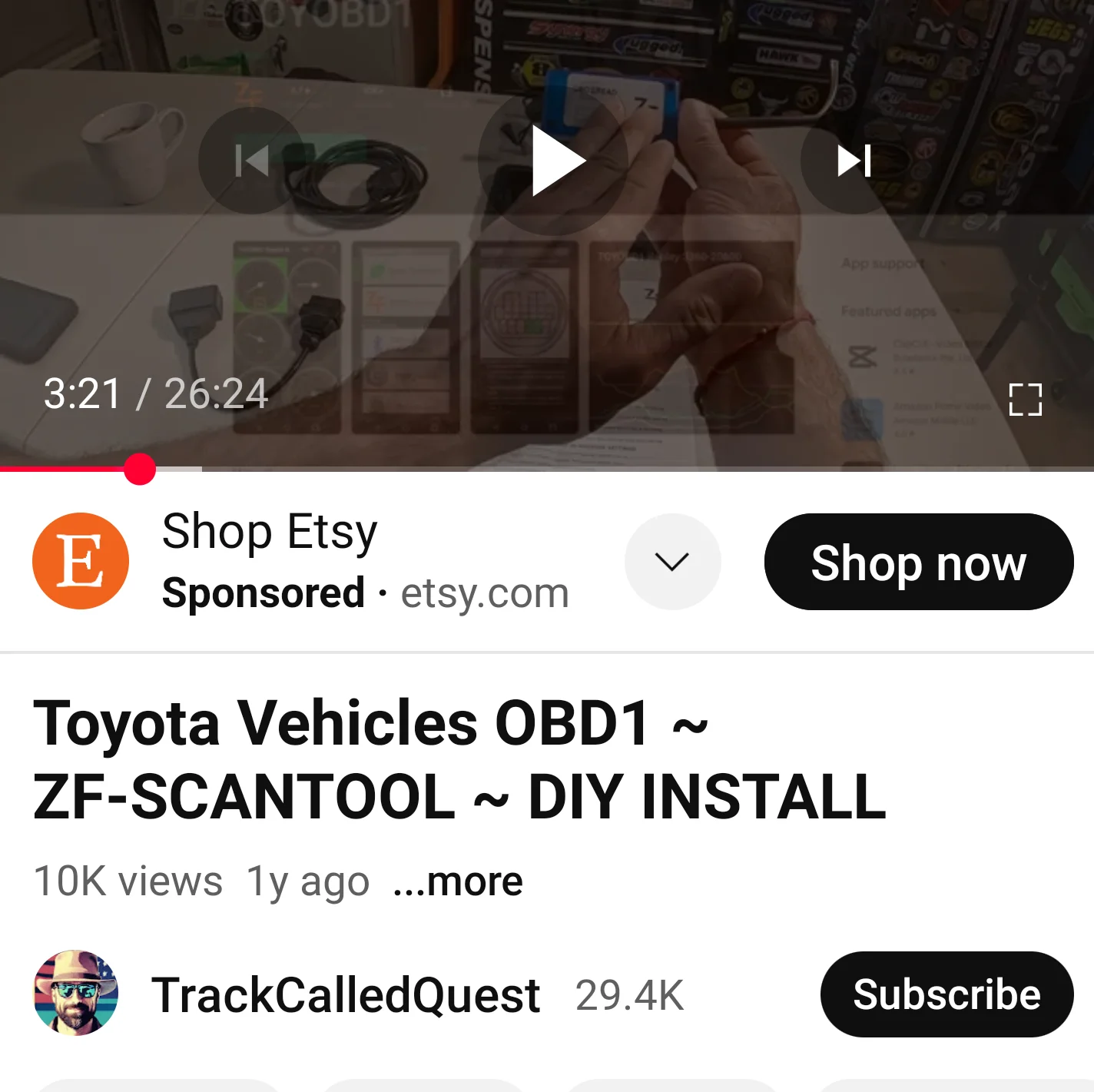

Wouldnt allow me to upload but this YouTube video instuction is what your looking for:

View attachment 3921115

Awesome! Thank you so much for posting this!



[Zantier]

Have an original TOYOCOM. Is there still a market for these? I no longer have the vehicle or an android.



[efjayatee]

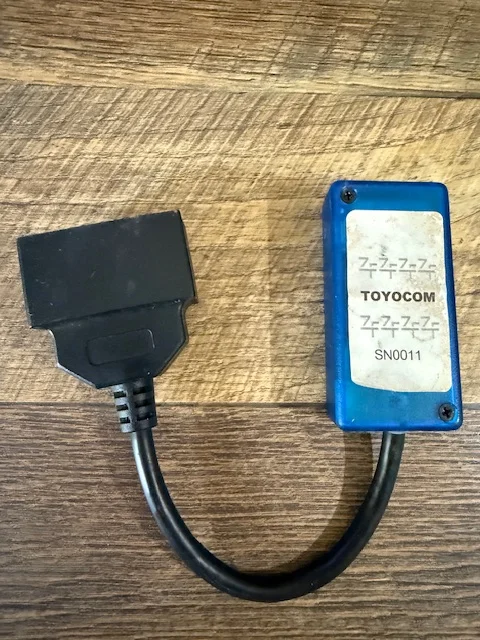

Have an original TOYOCOM. Is there still a market for these? I no longer have the vehicle or an android.
View attachment 3972197

How much?



[ThreeEyedBandit]

Any interest in something standalone? Just started back on a project and figure people might be interested once I get something rolling.

Currently polling and decoding data. Going to more UI, fuel milage/usage, and a simple webpage to configure and also display data. Along with a 3d printed case to mount it to the steering clamshell. Now that it works I am looking at other displays also.

Thoughts? Very beginning of this project currently.



[ThreeEyedBandit]

If there was a standalone device, what all do people want? I know coolant temps. I have been farting around and have a dedicated fuel usage screen along with basic diagnostics and user settable alarms.

Also a decent web ui which will allow decoding check engine codes along with up to four analog voltage measurement channels coming next.

Any wish list items? Going to work on PCB design this week and hopefully order a batch before a trip the following week.

Also, I'm sure this isn't the right place to post this. Will start something as I work through the UI



[cts]

It's less of a real-time use, but a OBD-1 CEL code reader was what originally caused me to click on this thread. And I really like where you're going with coolant temp and alarms that can be set for any key values that are out of range. AFR would be a nice option for the turbo crowd. And for the fuel screen, distance to empty would be a nice modern convenience if you're able to calculate it.



[TheBussman]

If there was a standalone device, what all do people want? I know coolant temps. I have been farting around and have a dedicated fuel usage screen along with basic diagnostics and user settable alarms.

Also a decent web ui which will allow decoding check engine codes along with up to four analog voltage measurement channels coming next.

Any wish list items? Going to work on PCB design this week and hopefully order a batch before a trip the following week.

Also, I'm sure this isn't the right place to post this. Will start something as I work through the UI

View attachment 4216534View attachment 4216535View attachment 4216536View attachment 4216537View attachment 4216538

nice work! there is another box under the dash? does it have like 30 wires going to it? I'm guessing its not possible to get fuel trim data. if not o2 voltage data would be useful. Would be kinda nice to see the idle switch on the TPS. I don't own a gas 80 but might be interested in having it just as a scan tool if its quick to connect inline with the ECU.
