so that pretty much sums it up.
only real tech to add.
heater core flows opposite direction, pay attention to the plumbing.
motor mounts and engine height. measure 97 times, fit EVERYTHING. then weld. we got lucky with the shroud fitting.

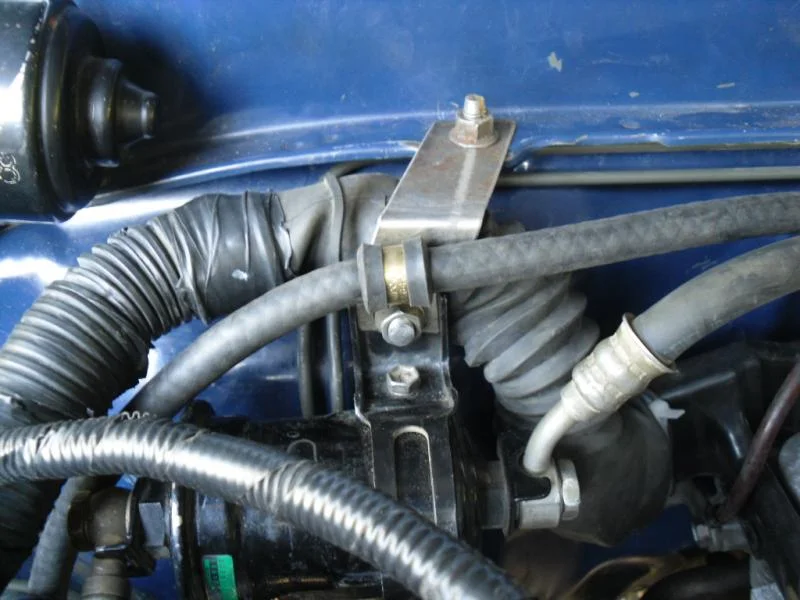

heater hoses. do them with the motor on the stand during fitting. its tight to the firewall.

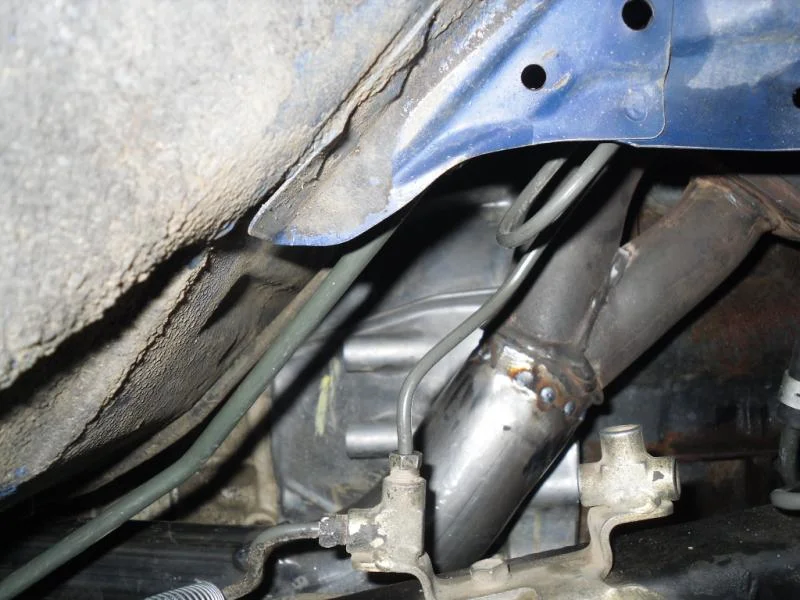

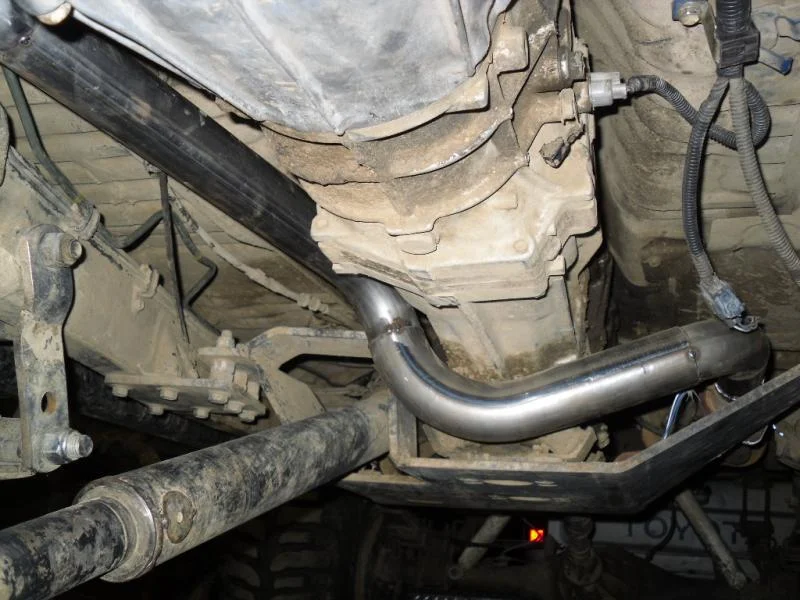

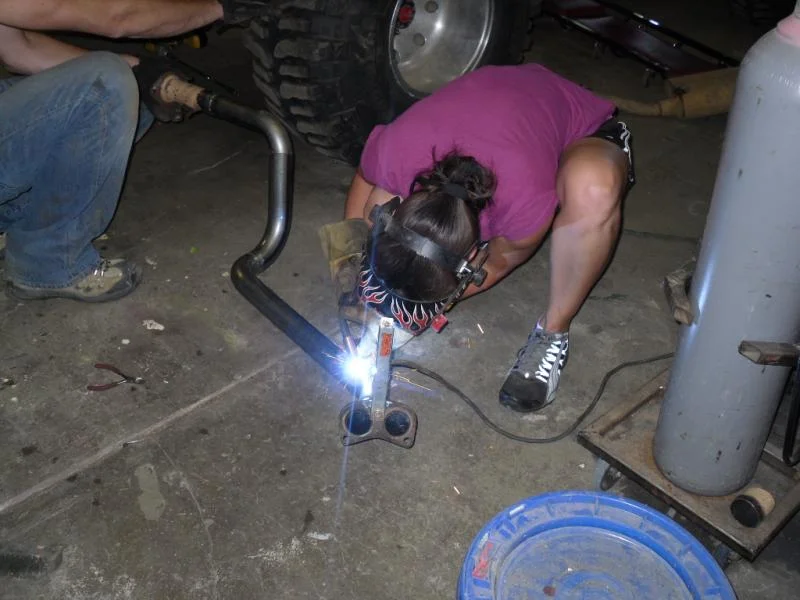

exhaust. we were lucky enough to pick up a couple mandrel 180* from Allin Specialties on Lars in medford.
tach is plug and play. (for distributer models) unpin old wire at dash, plug in the wire from new harness. it uses the same terminal.

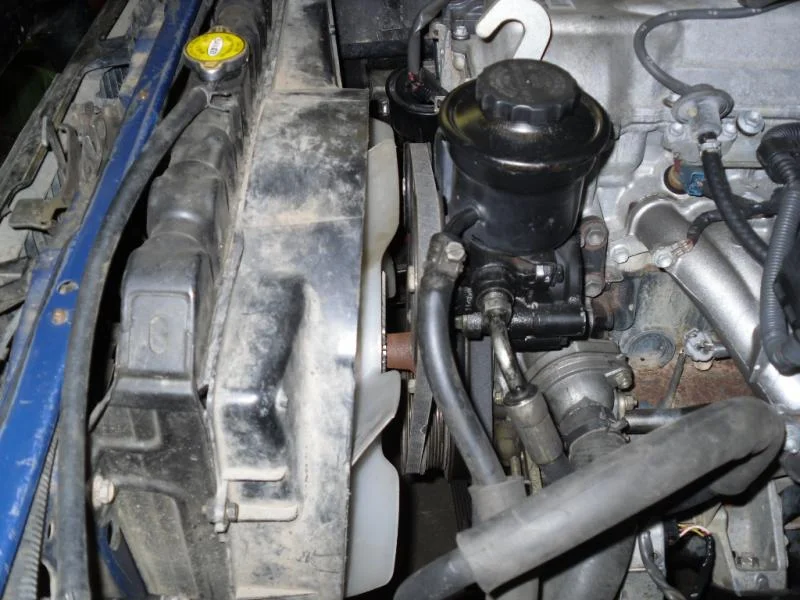

power steering. plug and play. the RE high pressure line bolts up to the RZ pump. this also deletes the idle pressure up valve.
alternator. swap the 3 wire plug. the wire colors are the same.
reverse lamp switch. we used the one from the W59. direct swap for the W56.
4wd light. we used a 2wd harness and just deleted it. it would be very simple to add.
oxygen sensor. we used the same bypass as on my build to trick the ECU to ignore the rear o2 sensor.
wiring. for this swap it was a total of 18 wires. 21 if you count the alternator splices. i know i said i was going to post a key, but have since decided against it. Trade Secrets. so you can: A: buy them or B: pay me to build yours.
also the chassis harness we started with was an 85-86 EFI 4runner.
the wiring nightmare would be totally different if you start with a carbed rig.
with the EFI harness, the EFI and COR relays are already there. as well has the CEL and HP fuel system.
only real tech to add.
heater core flows opposite direction, pay attention to the plumbing.
motor mounts and engine height. measure 97 times, fit EVERYTHING. then weld. we got lucky with the shroud fitting.
heater hoses. do them with the motor on the stand during fitting. its tight to the firewall.
exhaust. we were lucky enough to pick up a couple mandrel 180* from Allin Specialties on Lars in medford.
tach is plug and play. (for distributer models) unpin old wire at dash, plug in the wire from new harness. it uses the same terminal.
power steering. plug and play. the RE high pressure line bolts up to the RZ pump. this also deletes the idle pressure up valve.
alternator. swap the 3 wire plug. the wire colors are the same.
reverse lamp switch. we used the one from the W59. direct swap for the W56.
4wd light. we used a 2wd harness and just deleted it. it would be very simple to add.
oxygen sensor. we used the same bypass as on my build to trick the ECU to ignore the rear o2 sensor.
wiring. for this swap it was a total of 18 wires. 21 if you count the alternator splices. i know i said i was going to post a key, but have since decided against it. Trade Secrets. so you can: A: buy them or B: pay me to build yours.
also the chassis harness we started with was an 85-86 EFI 4runner.
the wiring nightmare would be totally different if you start with a carbed rig.
with the EFI harness, the EFI and COR relays are already there. as well has the CEL and HP fuel system.
Last edited:
dILzNAK
WORD
- Joined
- Jan 22, 2009
- Threads
- 35
- Messages
- 1,603
- Location
- Southern Oregon
- Website
- www.fjcruiserforums.com
Word!
hey when you get some new weld wire let me know, If you have a free 5 min I think I need my new batt box welded in, the bolts are Gay..... You know Ill hook you up for your time and wire!
hey when you get some new weld wire let me know, If you have a free 5 min I think I need my new batt box welded in, the bolts are Gay..... You know Ill hook you up for your time and wire!
- Thread starter
- #49
on a side note, todd asked to take my runner for a spin. he had never even ridden in it.
when he got back to the driveway he said, "fxxx, i shouldnt have done that!"
so now he has a new shopping list, and hopefully wont be too annoyed about not going to a 5V
when he got back to the driveway he said, "fxxx, i shouldnt have done that!"
so now he has a new shopping list, and hopefully wont be too annoyed about not going to a 5V
dILzNAK
WORD
- Joined
- Jan 22, 2009
- Threads
- 35
- Messages
- 1,603
- Location
- Southern Oregon
- Website
- www.fjcruiserforums.com
Thats funny.... and Word I'// ho//er at you
2ndGenToyotaFan
Moderator
- Joined
- Jan 8, 2006
- Threads
- 264
- Messages
- 9,806
- Location
- Ashland, OR
- Website
- www.jeffersonstatecruisers.com
Once you have power, you'll just want more... If you give a mouse a cookie.... etc.
- Thread starter
- #53

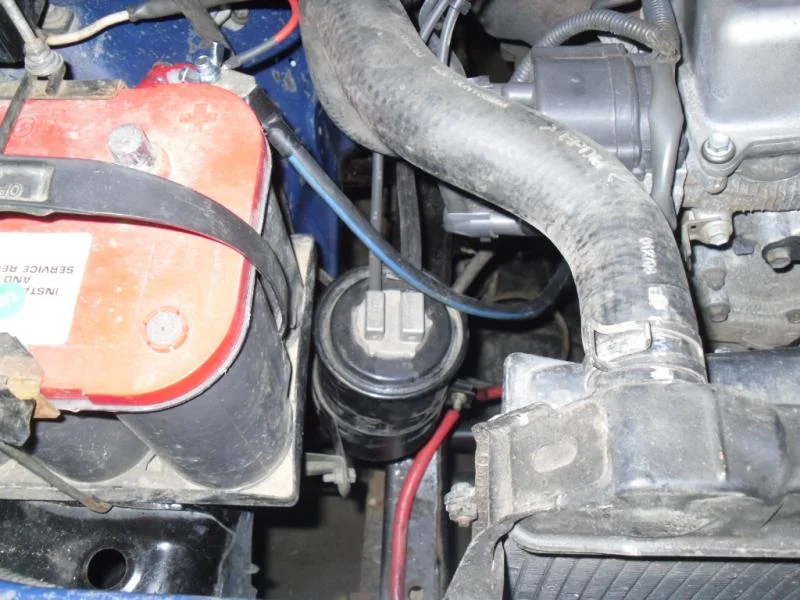

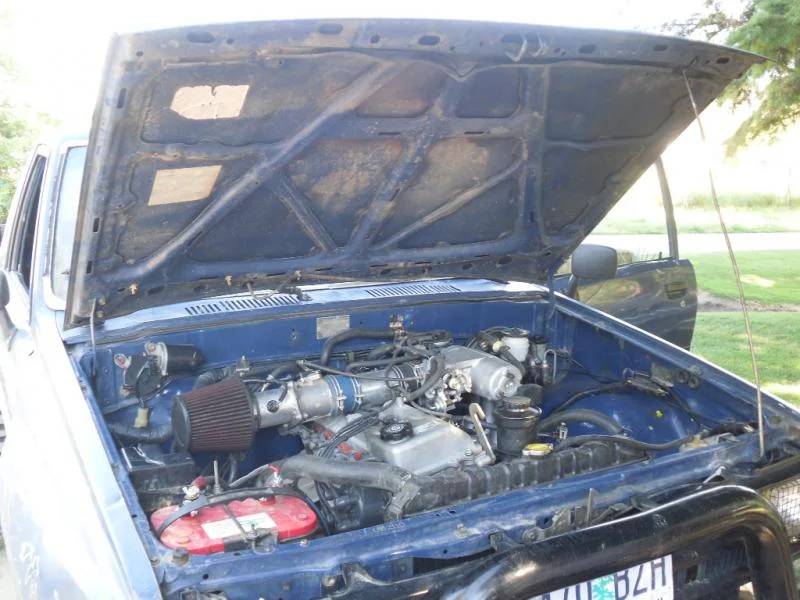

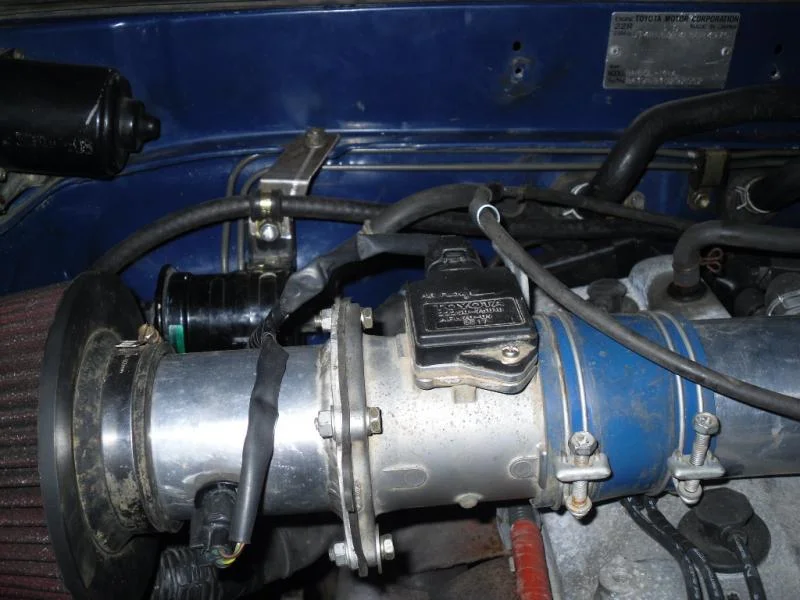

so we went ahead an buttoned it up today. last thing left is to mount the EVAP solenoid. i keep forgetting to take it to the truck. (at my dads)

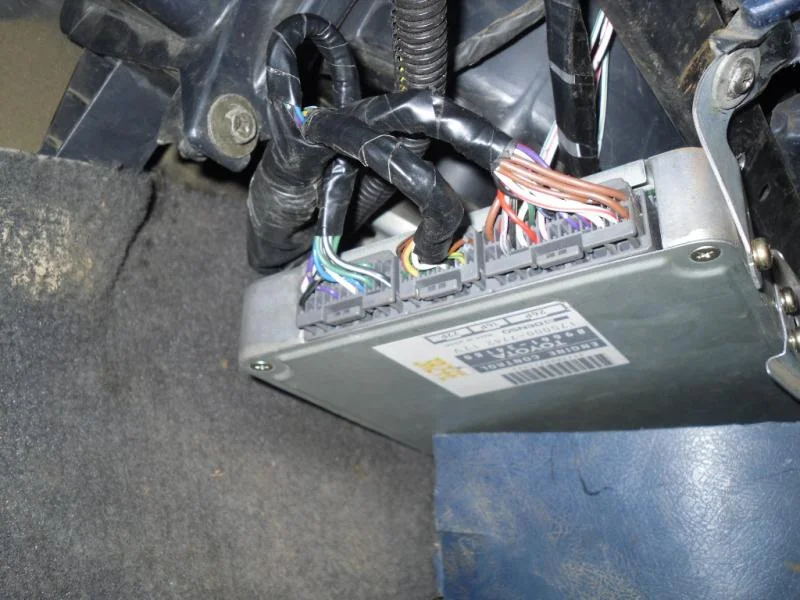

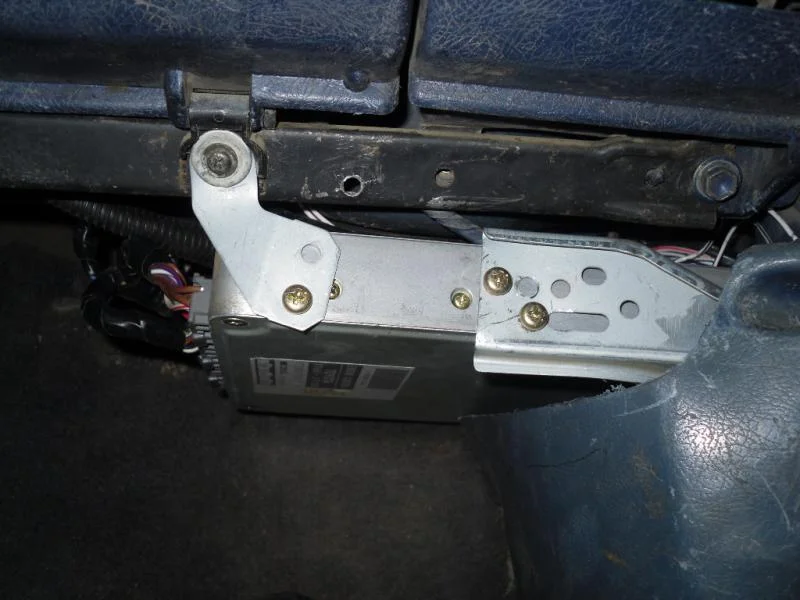

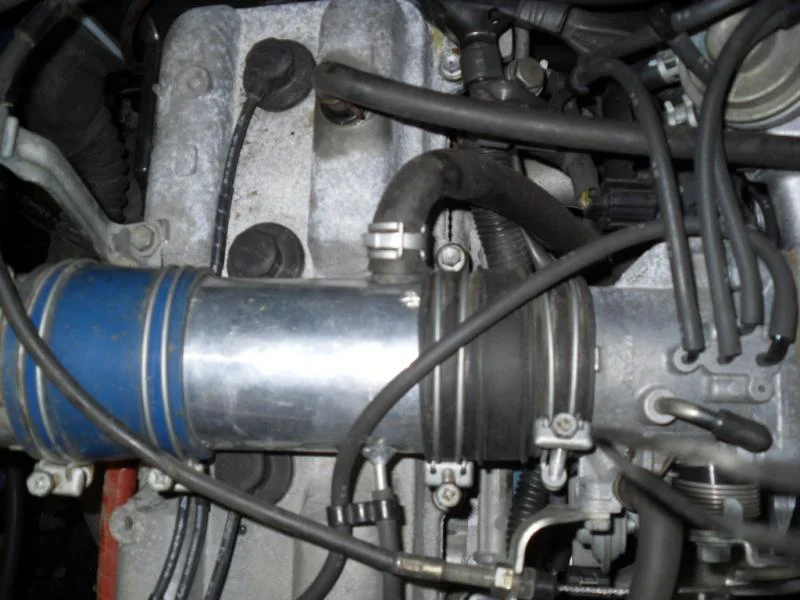

pic of ECM mounting

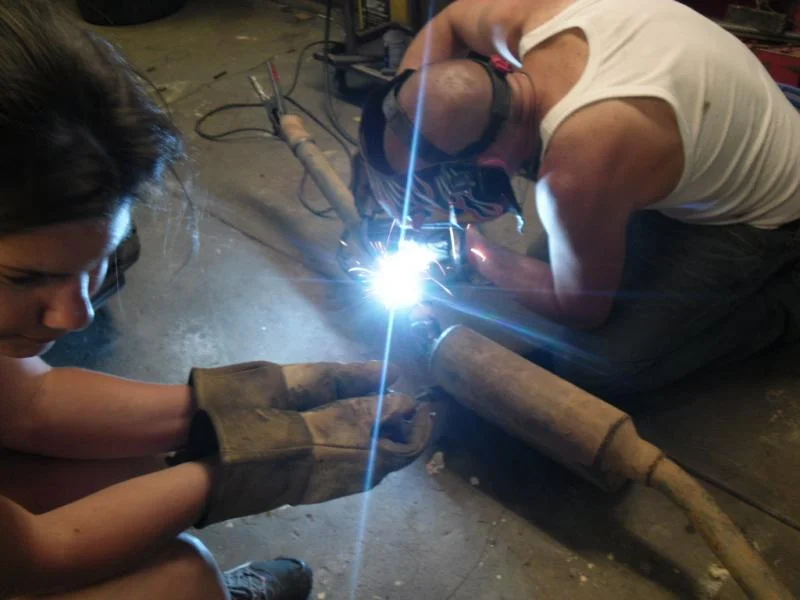

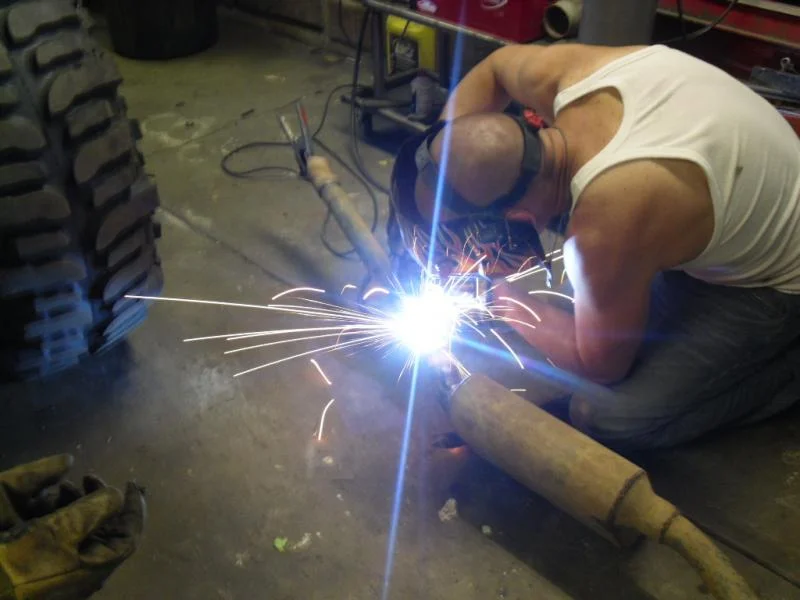

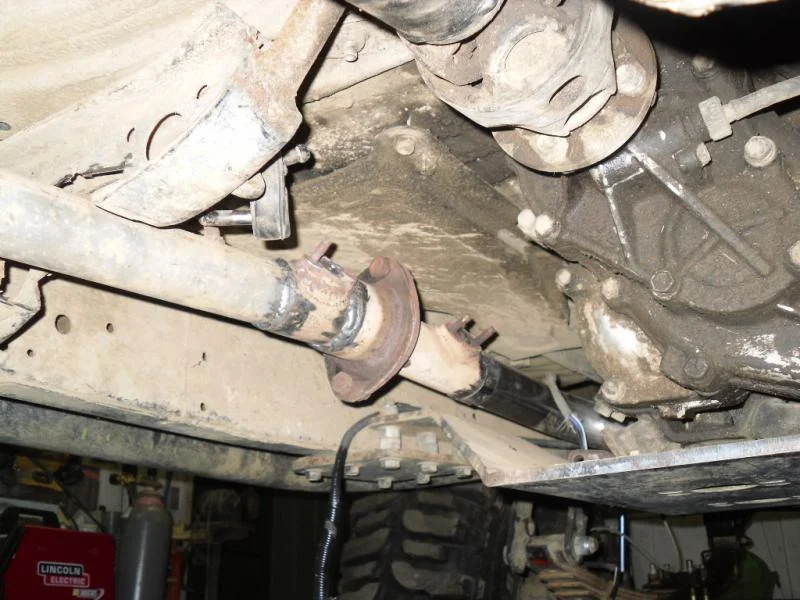

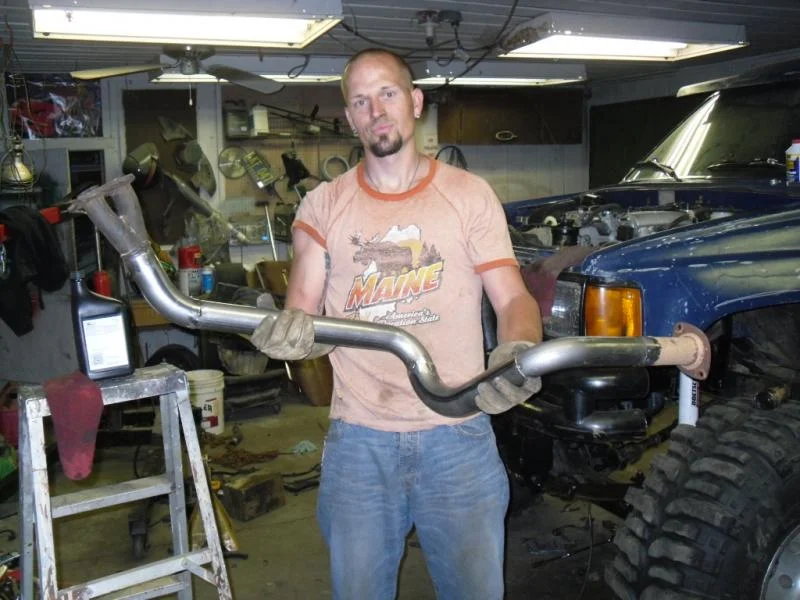

crossover pipe welded out
