The official part number request thread

[PhuckItImDone]

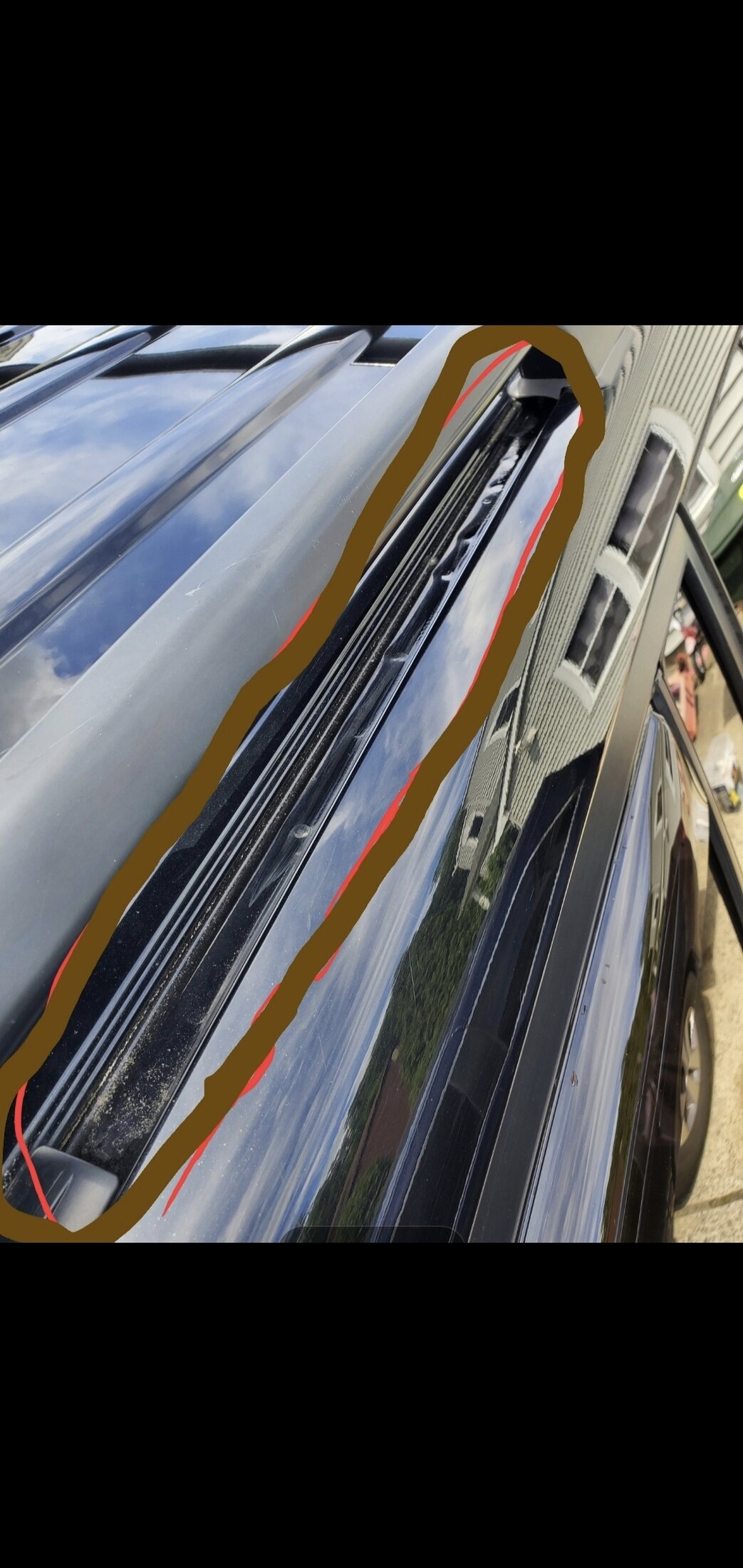

Hoping for a part number on this trim piece: 2018 LC, driver side, between the 1st and 2nd foot of roof rack. TIA.



[bloc]

Hoping for a part number on this trim piece: 2018 LC, driver side, between the 1st and 2nd foot of roof rack. TIA.

View attachment 3653643

there are two trim parts between the first and second foot on a landcruiser roof rack (note LX is different)

The shorter one should be in the front, with the small plastic clip holding one end down: 75551-60110
The longer rearward one: 75555-60020



[n55luvr]

Going crazy trying to find the part number for the rain sensor gel pad / tape that would fit a 2019 land cruiser.

Any ideas?

I keep coming back to this one but says it only fits up to 2015.

Rain Sensor Tape - Toyota (89944-50021)​

2010-2015 Toyota Land Cruiser



[cruiserdan]

89944-42010



[n55luvr]

Thank you sir!

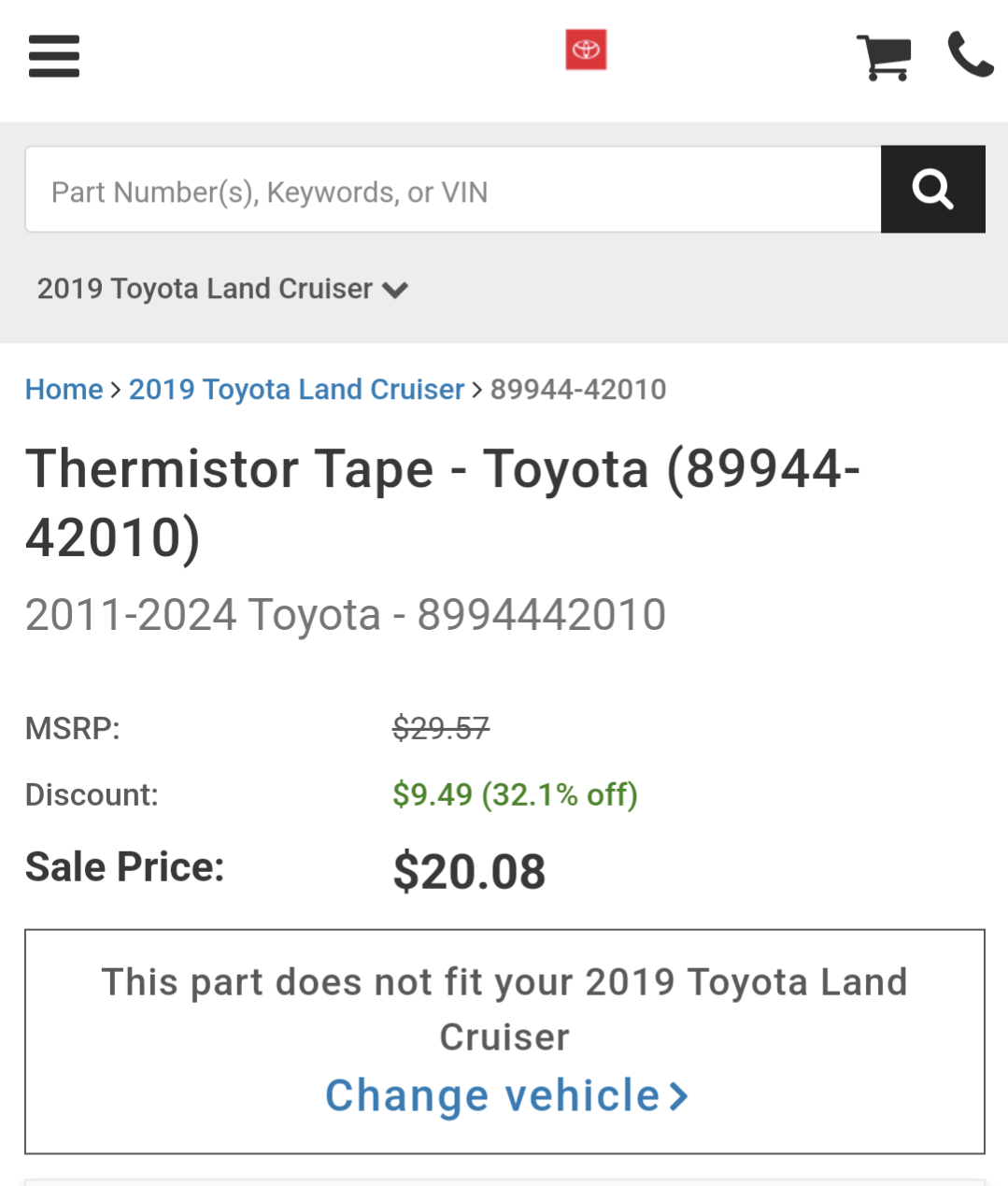

I did come across that one but the model lookup always said part doesn't fit 2019 lc. Probably not the first time they aren't accurate.

Will give it a shot and report back. The real pictures of the actual part do look like they are same size as the sensor.



[n55luvr]

Confirmed, part was exact fit for my 2019. Rain sensor works now. Easy install.

89944-42010

Thanks again!!



[taco2001]

Looking for the part numbers for these two splash guards on drivers side frame rail for 2021 LC. These pictures are from the Bud Built slider install instructions. I bought the LC used with the sliders installed already and noticed some issues including these missing parts.



[taco2001]

Looking for the part numbers for these two splash guards on drivers side frame rail for 2021 LC. These pictures are from the Bud Built slider install instructions. I bought the LC used with the sliders installed already and noticed some issues including these missing parts.

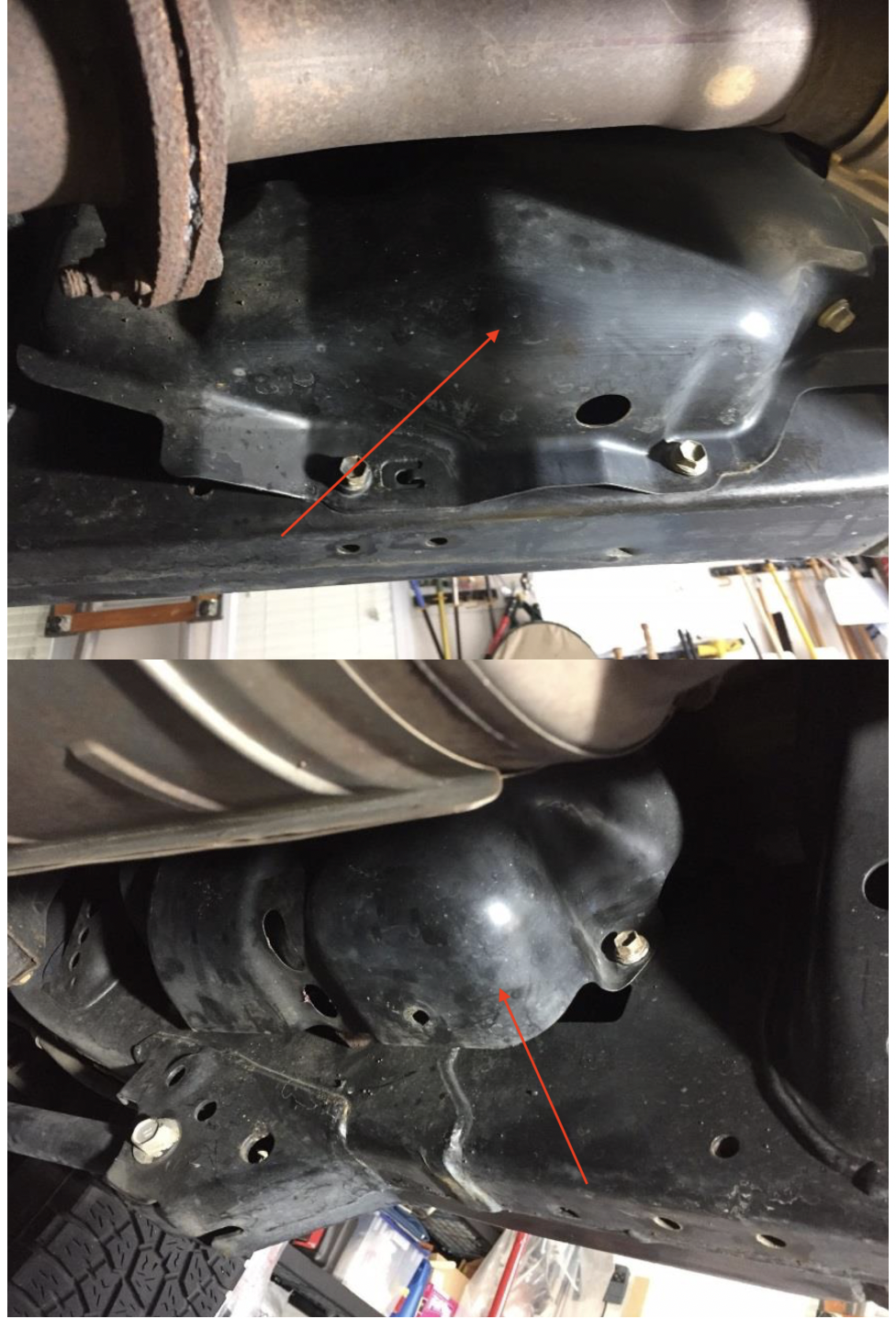

I'm realizing that it might not be clear what I'm talking about in the pictures it posted, so I'm adding arrows to show the shields that I am looking for



[taco2001]

I'm realizing that it might not be clear what I'm talking about in the pictures it posted, so I'm adding arrows to show the shields that I am looking for

...and I forgot the picture, sorry.



[bloc]

...and I forgot the picture, sorry.

View attachment 3674811

The tough thing to deal with is my attention span. I saw your post this morning but spaced out.


The cover over the KDSS valve is 48826-60021 plus 3x 91674-80818 for the bolts
The other one is a little harder to nail down. I think it's 77266-60070 but not totally sure.. maybe do an image search for that number and see if it compares to what you are after. Does yours have a small bracket attached to the frame that one of the mounting bolts runs into?

If you need the bracket it is 77281-60400

91674-80822 holds the bracket to the frame
and you need 3x 91674-80818 to hold the cover to the frame and bracket

This is all assuming that cover just protects the fuel lines... which from my memory is the primary job. In other markets I believe there is a fuel filter under there, as for why it's so big for such a simple job.



[taco2001]

Thank you!
These look like what I am looking for.



[turbo8]

@bloc do you have the capability to look up 2024 Tacoma part numbers?



[bloc]

@bloc do you have the capability to look up 2024 Tacoma part numbers?

Too new for the system I have access to, unfortunately.



[LvCruiserNewb]

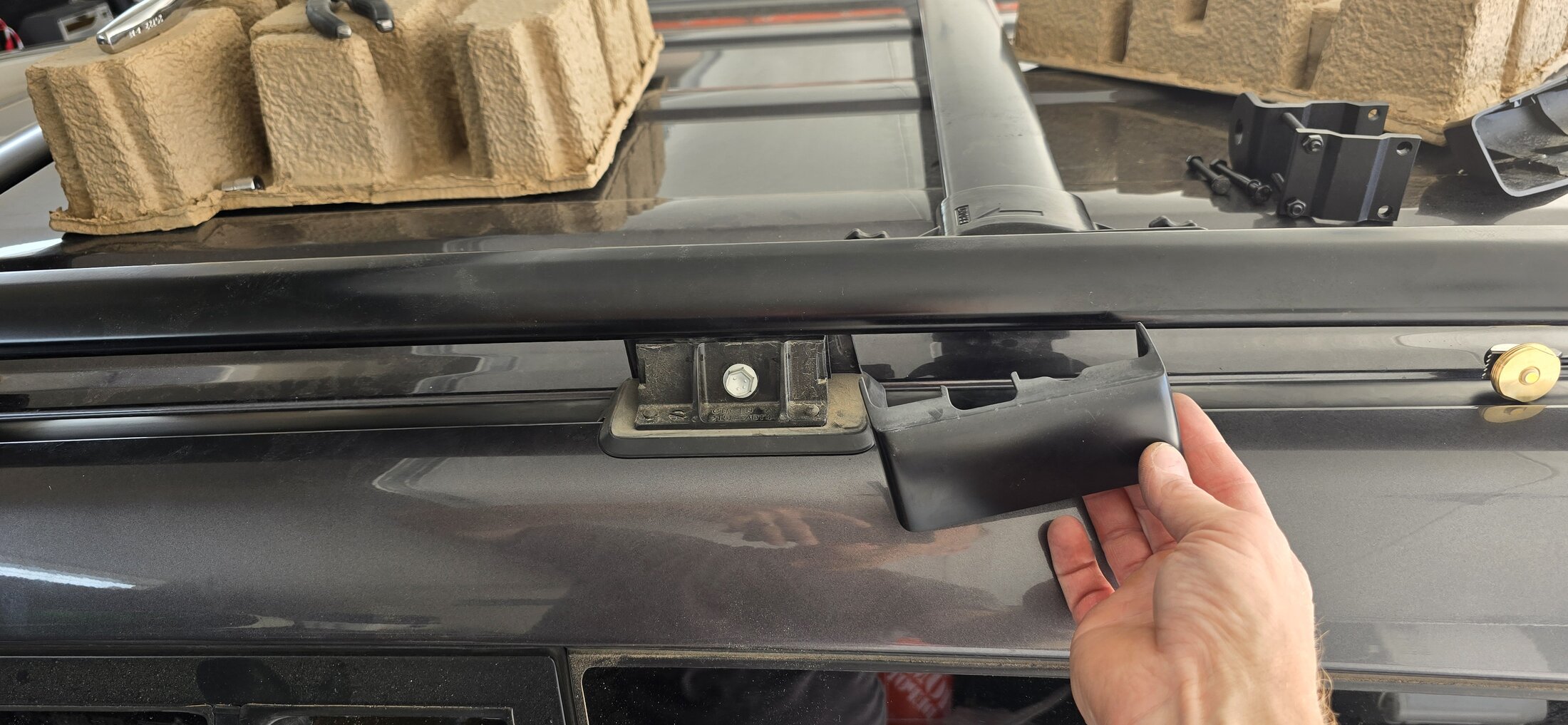

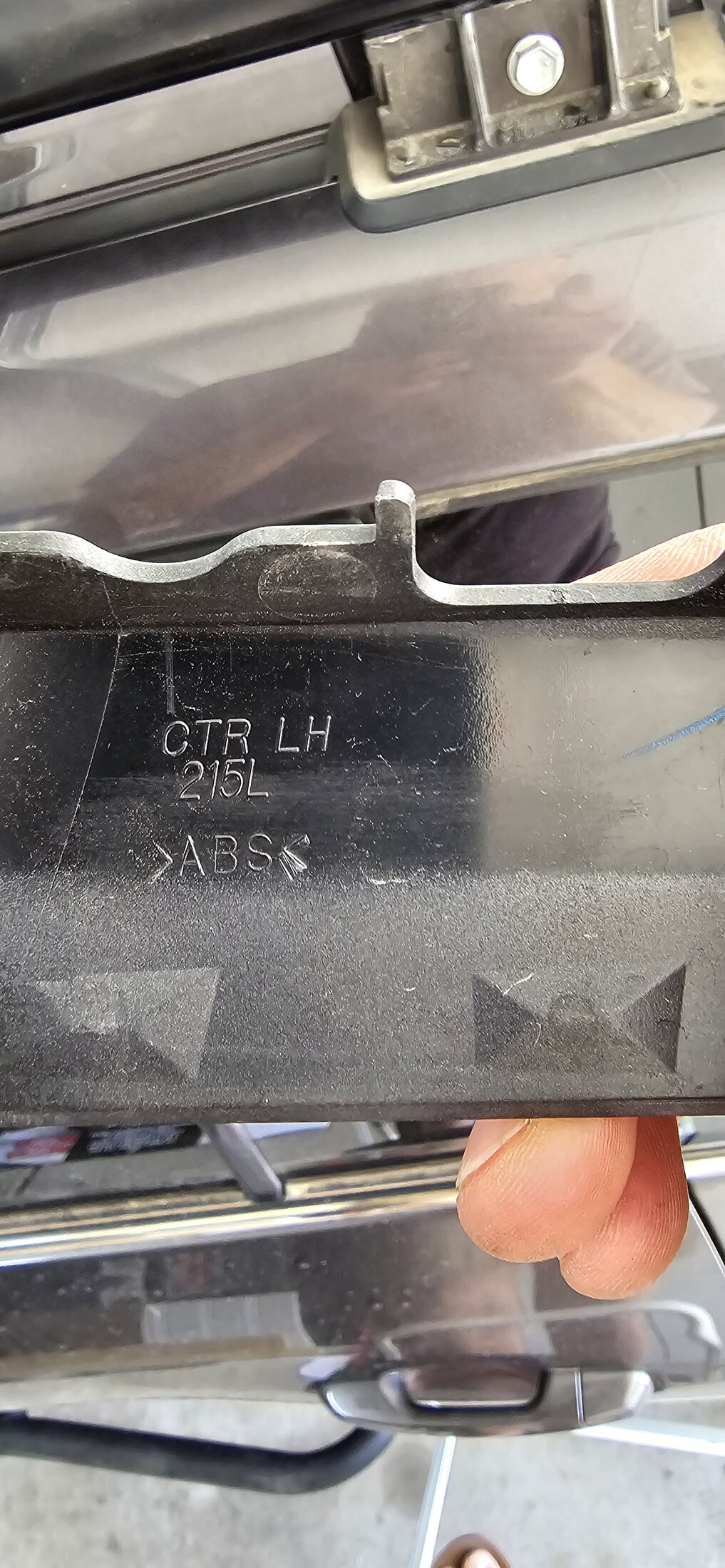

2018 LC left side center roof rack riser cover. The clip snapped putting it back on after installing GMRS antenna cable. Thanks for the help. It will be electrical taped back on until replaced lol.



[bloc]

View attachment 3682200View attachment 3682201

2018 LC left side center roof rack riser cover. The clip snapped putting it back on after installing GMRS antenna cable. Thanks for the help. It will be electrical taped back on until replaced lol.

Looks like it should be 63496-60080-C0 for the left side, 63495-60080-C0 for the right.



[BoomerUZ]

@bloc do you have the capability to look up 2024 Tacoma part numbers?

I do - what are you looking for?



[Mrtwooooo]

2016 LX570 nebula grey pearl shark fin antenna cover. I think the part number is 86077-48020-B0. Can you confirm that they come color matched so I can just snap it on.



[bloc]

2016 LX570 nebula grey pearl shark fin antenna cover. I think the part number is 86077-48020-B0. Can you confirm that they come color matched so I can just snap it on.

They call the gray something else.. but yes they do come color specific.



[HoffCruiser]

Does anyone have any extra of these? I'm looking for one set on each side of a 2015. $125 on ebay seems pretty steep for 8 sets.



[thefourthdoctor]

Part number of this missing bolt? Thanks
