The official part number request thread

[turbo8]

Pretty sure it’s 77266-60070

If you want fresh bolts they are 91674-80818

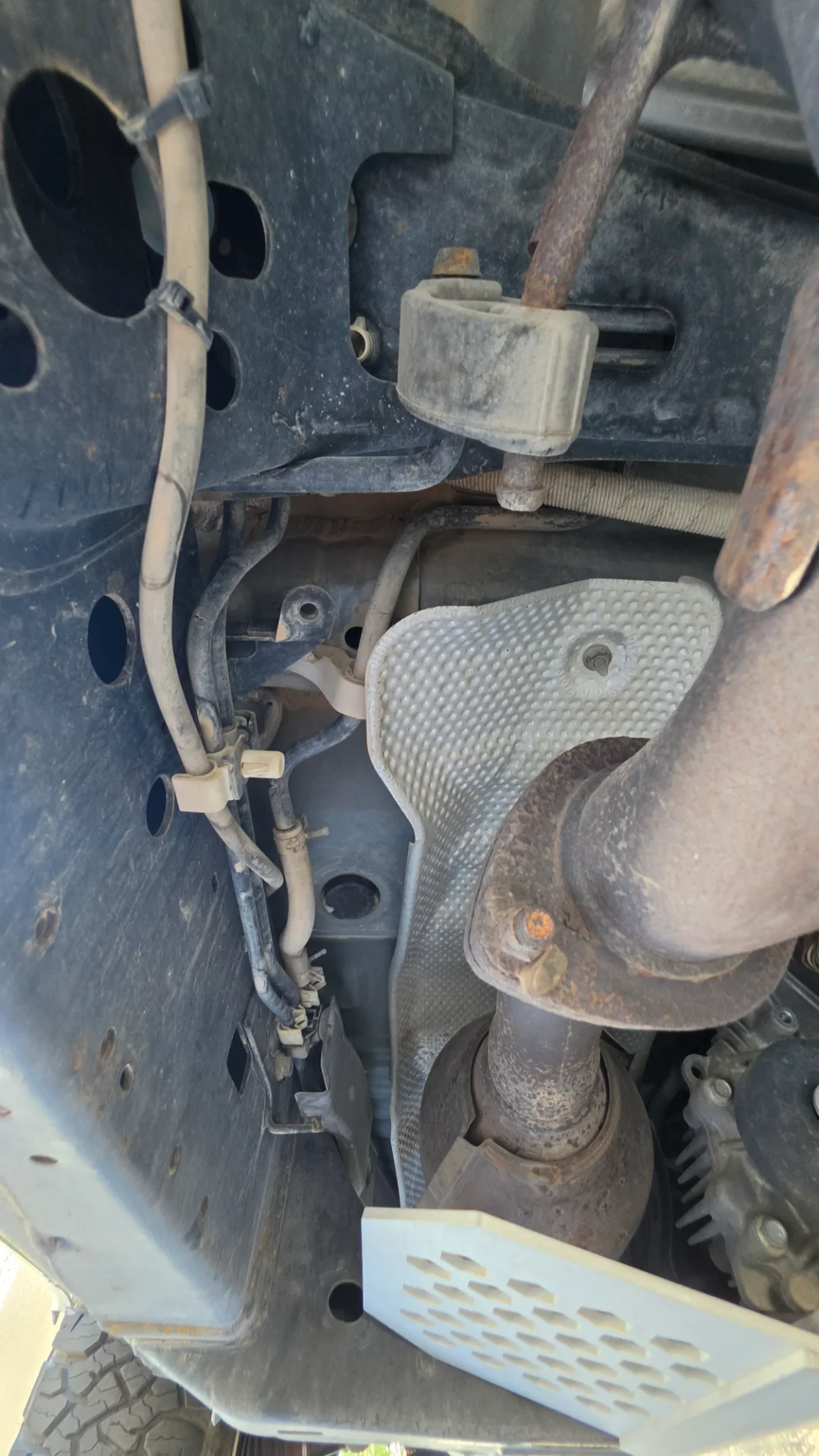

It protects the fuel lines from radiant heat so it’s in that section of the diagrams..

Doh, I'm missing mine.



[gasman4u]

Doh, I'm missing mine.View attachment 4169468

Maybe that’s why your fuel kept boiling….

Jk



[turbo8]

Maybe that’s why your fuel kept boiling….

Jk

Ha! Fortunately, I don't have that issue.



[Ratchey]

Doh, I'm missing mine.View attachment 4169468

Which desert jump did it fall off?



[Sajan]

anyone have experience with these ebay emblems? i looked everywhere for an OEM version and couldn't find it.
even the black inscription model ...

https://www.ebay.com/itm/178098365746?mkcid=1&mkrid=711-53200-19255-0&siteid=0&campid=5337589904&customid=&toolid=10001&mkevt=1



[Daddy Rabbit]

(Edit: PLEASE include model year, whether it’s a LC or LX, and if possible the build date listed on the VIN tag in the driver’s door jamb.)

Hello all,

I’m fortunate enough to have access to a system to look up part numbers, and figure having a single place to put all the obscure requests would be a good idea.

So here it is. Please post what you need, whether it’s LX or LC, model year AND build date, and if possible a picture.. and I’ll see if I can dig up useful numbers.

Btw if it’s inappropriate for me to call my own thread “official” let me know and I’ll adjust.



[avrguser]

Hello, looking for a part number for 2011 LX570 left passenger door's sound proof material, that looks like a plastic bag.
Like on this video:



[bloc]

Hello, looking for a part number for 2011 LX570 left passenger door's sound proof material, that looks like a plastic bag.
Like on this video:

If you mean the clear/pink plastic sheet: Left rear door for a 2011 LX should be 67842-60060

In the past these didn't come with the butyl tape to stick it to the door though.. not sure if they do now. Might be a question for a tech like @GrouchyTech

Just to be clear though.. it is more for keeping water and dust out of the passenger compartment than it is for sound deadening.



[GrouchyTech]

If you mean the clear/pink plastic sheet: Left rear door for a 2011 LX should be 67842-60060

In the past these didn't come with the butyl tape to stick it to the door though.. not sure if they do now. Might be a question for a tech like @GrouchyTech

Just to be clear though.. it is more for keeping water and dust out of the passenger compartment than it is for sound deadening.

I don’t think the vapor barrier comes with the butyl tape.

They don’t do much for noise attenuation, they’re mainly for water and dust like you said.



[doru]

I used 3M weatherstrip glue from local parts store where the butil was damaged when removing/reinstalling.
If yours is just damaged, use tape to fix it and glue to reattach it.
You can also go to hardware store and get some thick plastic foil (painters supply aisle) and make one from scratch/mirror the right door one.



[bloc]

The tape is available online for a reasonable price too.



[Sajan]

alright, got a tough one for yall..

I am trying to find the connector for the harness (male) that's on the 2018 LX 570 steps.
The TIS connector list errors out for me.

I found the 2015 one
90980-11162 female
90980-11168 male



[bloc]

alright, got a tough one for yall..

I am trying to find the connector for the harness (male) that's on the 2018 LX 570 steps.

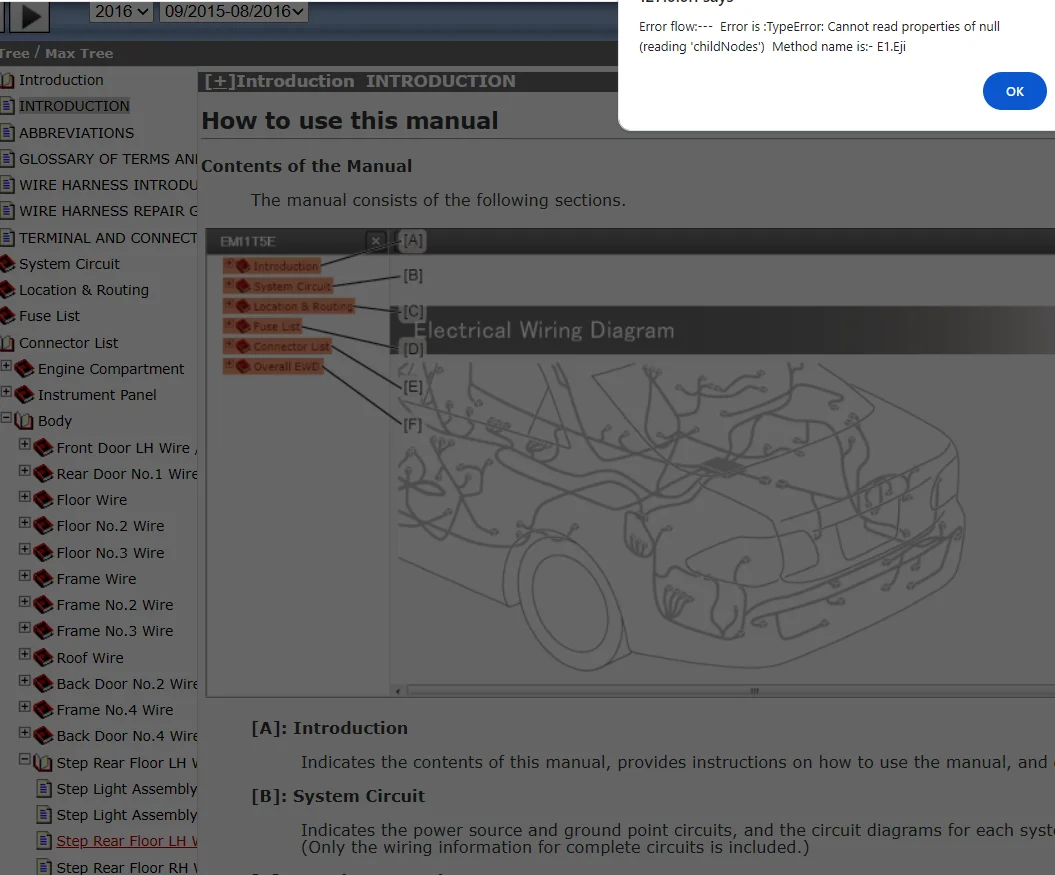

The TIS connector list errors out for me.
View attachment 4178344


I found the 2015 one
90980-11162 female
90980-11168 male

View attachment 4178343

View attachment 4178346

View attachment 4178347

TIS is erroring out for me on that too. I wonder if @linuxgod is aware of this glitch..

Have you pulled the 5-digit number off your existing plug to see if it possibly matches the 08-15 part?



[Sajan]

TIS is erroring out for me on that too. I wonder if @linuxgod is aware of this glitch..

Have you pulled the 5-digit number off your existing plug to see if it possibly matches the 08-15 part?

seems like all the connector list pages are erroring for the 2016 LX. dang it.

so the 5 digit number on the connector is: 11466.
90980-11466 ...cannot find on the toyo parts website.

the female connector however I can.. 90980-11467

90980-11467 Genuine Toyota Female Connector Housing

ToyotaPartsDeal.com offers the great deal for genuine Toyota parts 90980-11467 (9098011467) Female Connector Housing for $9.98. All parts are backed by the Toyota's warranty.

www.toyotapartsdeal.com

it's like...it doesn't exist lol.



[bloc]

seems like all the connector list pages are erroring for the 2016 LX. dang it.

so the 5 digit number on the connector is: 11466.
90980-11466 ...cannot find on the toyo parts website.
View attachment 4178523

the female connector however I can.. 90980-11467

90980-11467 Genuine Toyota Female Connector Housing

ToyotaPartsDeal.com offers the great deal for genuine Toyota parts 90980-11467 (9098011467) Female Connector Housing for $9.98. All parts are backed by the Toyota's warranty.

www.toyotapartsdeal.com

it's like...it doesn't exist lol.

90980-11466 does come up for me on toyota parts deal... But not some other toyota sites.



[Sajan]

90980-11466 does come up for me on toyota parts deal... But not some other toyota sites.

ya.. so odd

I am gonna try my luck with the previous gen's connector 11168 and also order the female 11162 and swap the pins out in case it doesn't fit the 11162.
goal is to have a OEM connector pigtail for the 2 slee lights.
i want to preserve the factory step harness and LED.

7282-8120-40 - Yazaki | 090II-2P-5 - Corsa Technic | 2-Way Kit

Motorsport electrical products: OEM and hard to find terminals and connector kits, wiring, harness supplies, tooling, and sensors for modern and vintage motorcycle, automotive applications. Easy online shopping, low cost shipping options, to expedited around the world. We accept Paypal and...

www.corsa-technic.com

90980-11168​



[gaijin]

I never had one on my 2013 LC200, but I am intrigued by the rubber/plastic cover that installs between the spare tire and the body. It looks like it is designed to protect the upper side of the wheel.

I can't find the part number for this (maybe useless) spare tire cover piece - any help?

TIA



[bloc]

I never had one on my 2013 LC200, but I am intrigued by the rubber/plastic cover that installs between the spare tire and the body. It looks like it is designed to protect the upper side of the wheel.

I can't find the part number for this (maybe useless) spare tire cover piece - any help?

TIA

Referring to 4260B-60410 that protects the wheel surface from the hoist chain? Or something else?

If the above number, it's actually designed for the 16+ wheels with their much smaller inner hub bore. The 08-15 wheels have a larger hub cap that effectively removes the impacted parts of the wheel face when it's in the spare location.



[gaijin]

Referring to 4260B-60410 that protects the wheel surface from the hoist chain? Or something else?

If the above number, it's actually designed for the 16+ wheels with their much smaller inner hub bore. The 08-15 wheels have a larger hub cap that effectively removes the impacted parts of the wheel face when it's in the spare location.

That's it. Thank you very much.



[cruiserdan]

Not all connector bodies are serviced separately. In fact it is more common to find them not serviced. The workaround (from the factory wire repair manual by the way) is to use two avaliable mating connectors that fit the same terminals and have the same number or greater cavities.
