Hey brains trust.
Taken delivery of my latest headache yesterday afternoon, heaps of work to get through and I’m looking forward to it.

I haven’t put a battery in yet, wondering if anyone knows how the rear window is operated? Any help would be appreciated


Sort by date Sort by votes
charliemeyer007 said:
I think there is a switch on the dash and the key on the back door. Wiring diagram for rig would help.
Click to expand...
Yes. There is also a relay in the circuit.

You might start here:

forum.ih8mud.com

Rear window article available from Gary S

I was digging through the computer at work yesterday and came across the file with all the stuff from my article years ago In Toyota Trails about rear window operation and stuff on the FJ55. I'd be glad to send it in to Mud to have listed in the tech section but don't know how to go about it...
forum.ih8mud.com forum.ih8mud.com

That thread is in the "Iron Pig Preservation Society" section at the bottom of the main forum page.

Upvote 0 Downvote
cjr60 said:
I haven’t put a battery in yet, wondering if anyone knows how the rear window is operated? Any help would be appreciated
Click to expand...
I know how mine works, yours looks different. Yours looks like an Aussie tailgate, some in Oz used a hand-crank. Take off the inner panel of the tailgate and see what's inside.

Upvote 0 Downvote

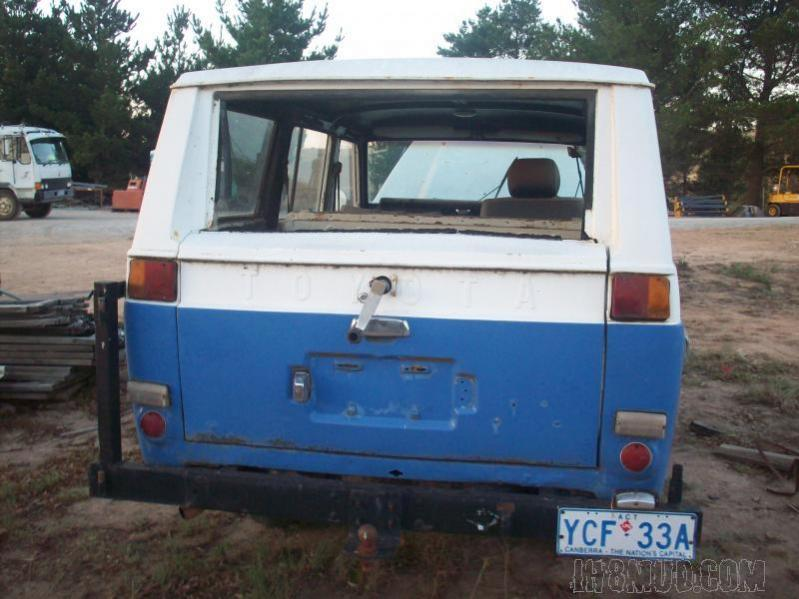

Here's a US tailgate, the key switch runs an electric motor that usually moves the window up and down. Toggle switch on the dash does the same.
Your key is offset and you have a cover, or panel in the center of the door. Does that move? Is that hiding where the crank handle fits?


Upvote 0 Downvote
Pighead said:
I know how mine works, yours looks different. Yours looks like an Aussie tailgate, some in Oz used a hand-crank. Take off the inner panel of the tailgate and see what's inside.
Click to expand...
Good catch. I didn't even notice.

Here's the part's diagram for an Aussie mechanical window. Not sure what that crank handle looks like but guessing you can probably use a socket to operate it. Just have to open the cover and take a look. Apologies, I had to copy this diagram in two parts.



Upvote 0 Downvote
Here's the parts list that goes with the diagram. Ignore the pricing shown......it's meaningless.

66610LOCK ASSY, TAIL GATE
69350-91145RH.1$119.01
69380-91145LH.1$119.01
66616STRIKER, TAIL GATE LOCK
69428-90351RH.1
69429-90351LH.1
66622LINER, TAIL GATE LOCK STRIKER
69463-90351RH.1
69464-90351LH.1
66710STAY ASSY, TAIL GATE, RH
72730-903511$98.41
66720STAY ASSY, TAIL GATE, LH
72740-903511
67281APLATE, TAIL GATE SWITCH
65677-903511
67282STOPPER, BACK DOOR, NO.1
Not applicable
68326CLIP(FOR TAIL GATE REMOTE CONTROL LINK)
68326-912075$3.68
68803HINGE ASSY, BACK DOOR, LOWER RH
72405-90351(03/1976 - 06/1980)1$121.81
72413-91133(03/1969 - 02/1976)1$73.70
68804HINGE ASSY, BACK DOOR, LOWER LH
72406-90351(03/1976 - 06/1980)1$126.32
72414-91133(03/1969 - 02/1976)1$62.55
68830HINGE ASSY, BACK DOOR, RH
72402-90351(03/1976 - 11/1977)1$190.53
72402-90352(12/1977 - 06/1980)1
72411-91133(03/1969 - 02/1976)1$73.70
68840HINGE ASSY, BACK DOOR, LH
72412-91133(03/1969 - 02/1976)1$73.70
72418-90351(03/1976 - 11/1977)1$138.54
72418-90352(12/1977 - 06/1980)1
68841COVER, TORSION BAR, RH
72411-903521
68883BUSH, TAIL GATE HINGE SHAFT
72415-91133(03/1969 - 02/1976)2$3.68
90386-12002(03/1976 - 06/1980)2$2.69
68884SHAFT, TAIL GATE HINGE
68884-911332$11.47
68888PLATE, TAIL GATE TORSION SPRING CONNECT
72402-911331$5.34
68896SPRING, TAIL GATE TORSION
72422-903521
68898SHEET, TAIL GATE HINGE PILLAR SIDE, RH
72416-90351(03/1976 - 12/1977)1$4.07
72416-91133(03/1969 - 02/1976)1$3.36
68899SHEET, TAIL GATE HINGE PILLAR SIDE, LH
72416-90351(03/1976 - 12/1977)1$4.07
72416-91133(03/1969 - 02/1976)1$3.36
69112RETAINER, GEAR BOX
73112-911332$20.80
69114SUPPORT, TAIL GATE REGULATOR MOTOR, OUTER
73114-911331
69117CUSHION, TAIL GATE REGULATOR MOTOR, OUTER
73117-911331
69120BOX ASSY, TAIL GATE REGULATOR GEAR
73105-90352MECHANICAL TYPE1
73120-903511$104.50
69124AHOLDER, TAIL GATE SUPPORT STAY
61571-903512$34.75
69250HANDLE ASSY, TAIL GATE LOCK
69230-903511$169.38
69255PAD, BACK DOOR HANDLE
69236-903511$5.34
69288PAD, FRONT BACK DOOR HANDLE
72793-911761$37.56
69313WIRE, TAIL GATE LOCK, NO.1
72611-909033$30.01
69314WIRE, TAIL GATE LOCK, NO.2
72612-909031$38.55
69315WIRE, TAIL GATE LOCK, NO.3
72613-903511$8.42
69315ASPRING, NO.3 TAIL GATE LOCK WIRE
90506-090431$3.68
69353APLATE, BACK DOOR LOCK CONTROL
Not applicable
69360LINK ASSY, TAIL GATE REMOTE CONTROL
72604-903511$204.13
69388SNAP, ROD(FOR DOOR LOCK)
69361-20020(01/1977 - 06/1980)1$2.13
69388-12010(03/1969 - 12/1976)1$2.29
69465CUSHION, TAIL GATE LOCK STRIKER, A
69465-911452
69678PLATE, CONNECT
69678-912072
69679BOLT SUB-ASSY, CONNECT
69679-912072
69750AGROMMET(FOR BACK DOOR REMOTE CONTROL)
73104-911331$59.35
69850COVER ASSY, TAIL GATE HOLE
73107-90352MECHANICAL TYPE1$75.56
69850APACKING, TAIL GATE HOLE
73175-90351MECHANICAL TYPE1$38.23
69850BLOCK, TAIL GATE HOLE COVER
73180-90351MECHANICAL TYPE1
69860REGULATOR ASSY, TAIL GATE
73110-903511$359.39
73150-90352MECHANICAL TYPE (11/1975 - 11/1976)1$979.41
73150-90353MECHANICAL TYPE (12/1976 - 12/1978)1$979.41
69860AHANDLE ASSY, TAIL GATE REGULATOR
73160-90351MECHANICAL TYPE (12/1971 - 11/1976)1$317.68
73160-90352MECHANICAL TYPE (12/1976 - 08/1977)1
73160-90353MECHANICAL TYPE (09/1977 - 12/1978)1
69909HOLDER SUB-ASSY, TAIL GATE GLASS
73130-911331$23.63
69915SUPPORT, TAIL GATE REGULATOR MOTOR, INNER
73115-911331$4.74
69916CUSHION, TAIL GATE REGULATOR MOTOR, INNER
73116-91133

Upvote 0 Downvote
WarDamnEagle said:

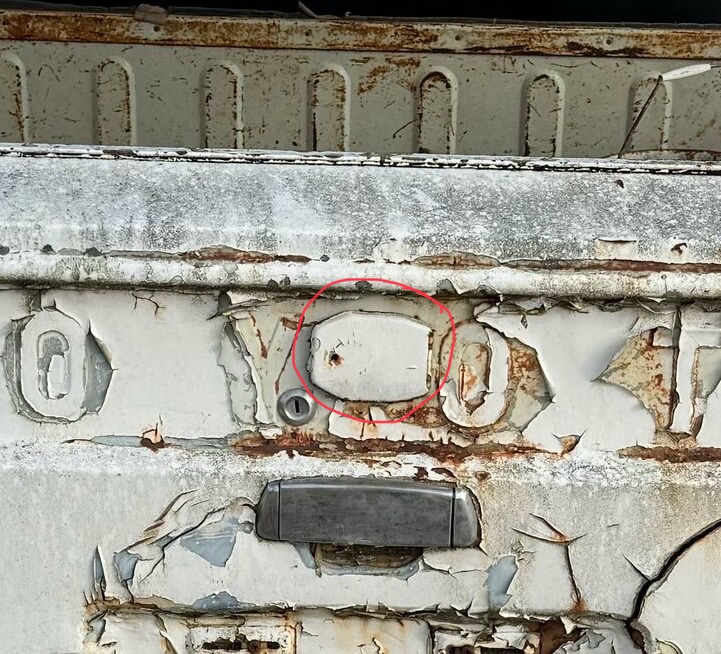

I would start by seeing if this cover opens. It appears to be hinged on the right. I assume it just flips open.

View attachment 3691255
Click to expand...
yep it opens up, cannot see a mechanical winder or motor setup, ill see what happens when I open pandoras box inside. assume it will be controlled by one of the three unaccounted for switches on the dash!

Upvote 0 Downvote
cjr60 said:
yep it opens up, cannot see a mechanical winder or motor setup, ill see what happens when I open pandoras box inside. assume it will be controlled by one of the three unaccounted for switches on the dash!
Click to expand...
It was definitely mechanical when it left the factory. Otherwise it would not have had that cover. Is there not an obvious male or female something that could connect to a handle?

Upvote 0 Downvote
