So lets see some THC carb install pictures.

krzyabncanuck

USFS HOTSHOT
Joined
Apr 5, 2005
Messages
8,693
Location
NC

Wish i could butthe 60 is nonop right now. You know why. It did run great though. Thinking about it though i got one on the 40 also. Try and get a pic up for you soon on it.


John Smith

In the garage
SILVER Star
Joined
Jun 7, 2004
Messages
4,225
Location
Maryland

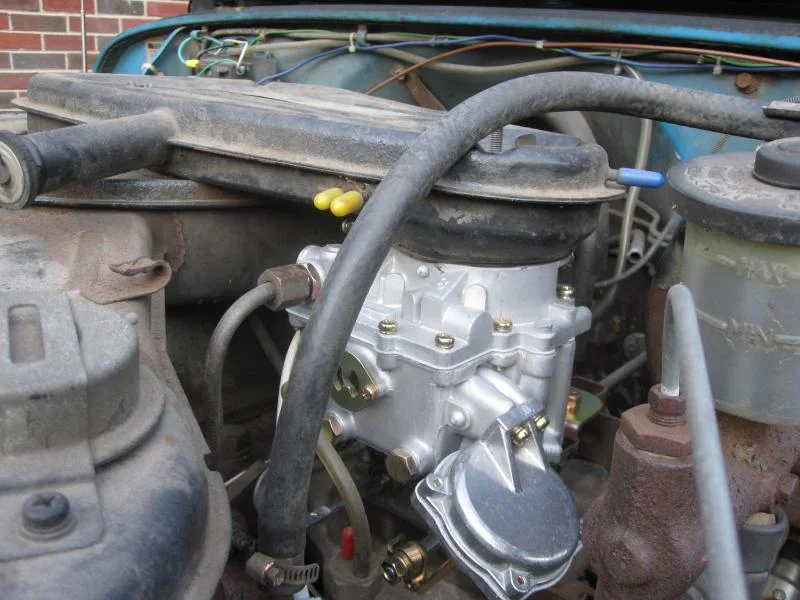

It looks so strange being the only clean new thing under the hood. This was from your first batch. I have been sitting on it forever waiting to install it. I finally did it when I was down at GSMTR a few weeks ago. Took me about 5 minutes to get the idle dialed in and I was testing it on the trails. Very happy with it. :beer:

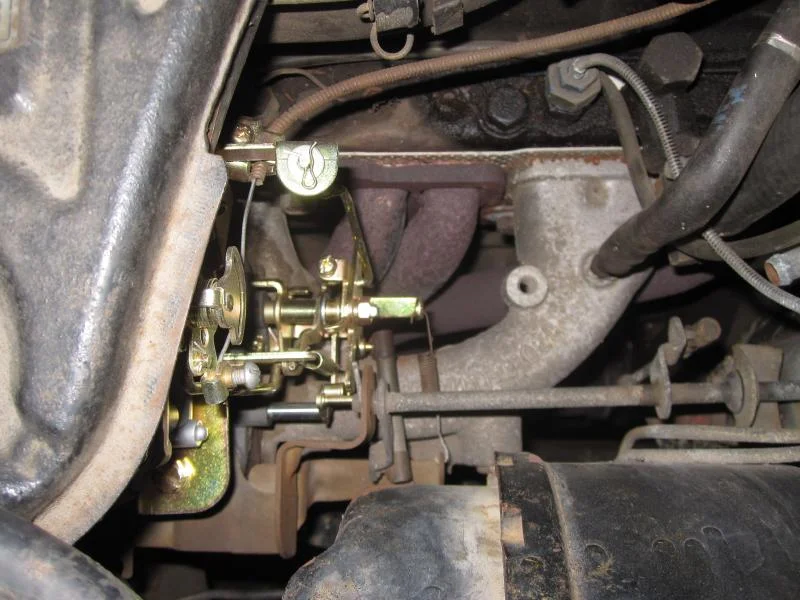

summer 023.jpg
multi 021.jpg

Last edited:

imyahucklbrry

"En cervisia veritas"
SILVER Star
Joined
Jan 29, 2014
Messages
1,351
Location
GA - As close to the lake as I can afford...

I was going to post this in the "What have you done to your cruiser this week" thread but since it took more like a month....

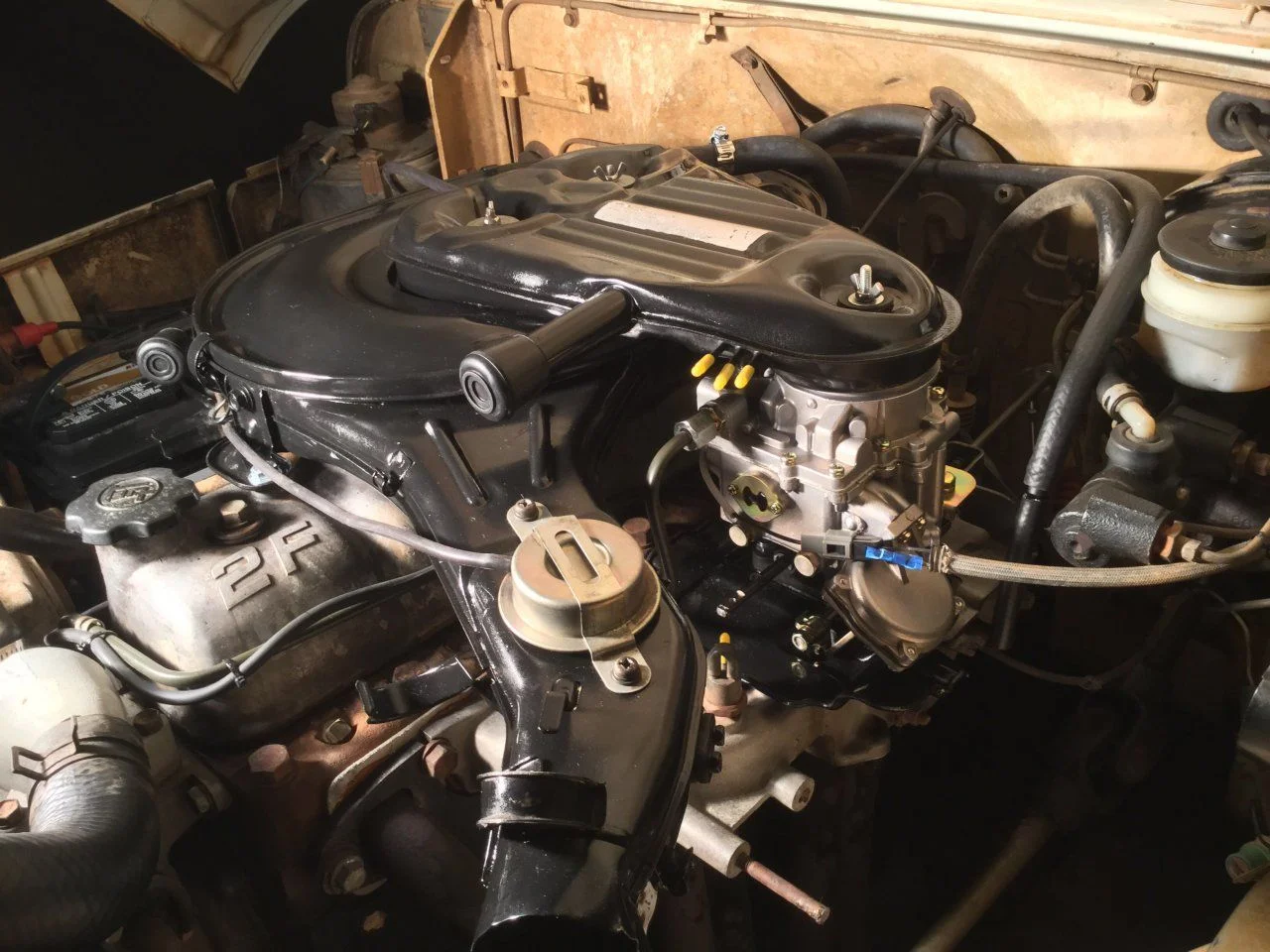

Before:

After:

Dang bunch of searching for needed parts (much thanks to GA Architect/Offkilter) to put this back together more like original... even surprised myself going beyond my intelligence and ability level by creating my own metal fuel line.


Trollhole

THC
Supporting Vendor
Moderator
Joined
Mar 6, 2005
Messages
20,955
Location
Mauldin, SC



Very nice. If that is the vac line for the dizzy attached to the fuel line you can just route it under the air cleaner straight down to the dizzy.


imyahucklbrry

"En cervisia veritas"
SILVER Star
Joined
Jan 29, 2014
Messages
1,351
Location
GA - As close to the lake as I can afford...

Very nice. If that is the vac line for the dizzy attached to the fuel line you can just route it under the air cleaner straight down to the dizzy.
Copy that... it is the vac line - speaking of vac lines: I was on the edge of calling you because although truck was idling perfect, I had a heck of a time getting back up my steep driveway on test run... tightened up all the vacuum lines with clamps - problem solved!

Thanks...

Joined
Jan 25, 2007
Messages
3,945
Location
Lincoln, CA


so nice. unfortunately it needs to come off because I need to replace the headers with a stock exhaust manifold...






FishTown

Proverbs 27:17
Joined
Jul 20, 2010
Messages
1,326
Location
San Antonio, TX


@Trollhole

I'm not sure I've got my vac lines correct on the new carb on my FJ60. I'll send you some pictures later, but could you enlighten me on how it should be routed? I'm pretty new to this, so dumb it down for me.

Here's some info on my truck:
  • running headers
  • no HAC (obviously)
  • EVAP system gone (obviously)
  • I have one (untested) VCV coming in the mail - need for dizzy vent?
  • no VTV's
  • A/C idle up from OEM carb now on THC carb
I don't remember how my brake booster and A/C idle up are routed. I'll get pictures. The lower port is routed to the vacuum advance closest to the dizzy. The outer one is plugged.

Edit: Sending this as a PM just in case you miss it here.

Last edited:

HemiAlex

TLCA #24987
GOLD Star
Joined
Sep 28, 2015
Messages
2,428
Location
Houston
On my 87 60 series. The day after I messed up my install by taking too many lines off you helped me talk it through and provided excellent customer service.

A very happy customer and the truck runs great with it.
