I might have mixed up 05/06 and 11/12, the point being a brighter bulb with more lumens doesn’t mean better performance if the bulb isn’t matched correctly for the reflector.
SLEE headlight wiring harness install holy cow
- Thread starter landcruiser3DP
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
I might have mixed up 05/06 and 11/12, the point being a brighter bulb with more lumens doesn’t mean better performance if the bulb isn’t matched correctly for the reflector.
- Thread starter
- #22
just an update here that i saw massive improvements on my high beams with 9011's already in there but low beams were still not sufficient.
so i modified (slightly cut the top tab on each bulb) from a pair of 9012's and ow see massive improvements on low beams.
initially last weekend with high beams on (old 9011's) some guy on an undivided two lane at night flashed me for having them on from what seemed like half a mile away. that would have never happened without the harness.
now with 9012 instead of 9006 in the low beam slot low beams light up a sign two blocks away. also no where as bright previously without the upgraded bulbs even with the harness.
anyway i see i have some more good info to go through here and also want to link to the couple of pictures i took showing altering the tab here: quick one on headlight bulbs - https://forum.ih8mud.com/threads/quick-one-on-headlight-bulbs.1116380/page-2
no headlights, low beams and high beams for reference below. i think the forum uploads very low res images so its hard to see but with 9911/9012 and slee harness i think it is what i needed.
again thanks to all for helping me parse the topic. bulbs in particular i find tricky.
so i modified (slightly cut the top tab on each bulb) from a pair of 9012's and ow see massive improvements on low beams.
initially last weekend with high beams on (old 9011's) some guy on an undivided two lane at night flashed me for having them on from what seemed like half a mile away. that would have never happened without the harness.
now with 9012 instead of 9006 in the low beam slot low beams light up a sign two blocks away. also no where as bright previously without the upgraded bulbs even with the harness.
anyway i see i have some more good info to go through here and also want to link to the couple of pictures i took showing altering the tab here: quick one on headlight bulbs - https://forum.ih8mud.com/threads/quick-one-on-headlight-bulbs.1116380/page-2
no headlights, low beams and high beams for reference below. i think the forum uploads very low res images so its hard to see but with 9911/9012 and slee harness i think it is what i needed.
again thanks to all for helping me parse the topic. bulbs in particular i find tricky.
- Thread starter
- #23
pics. resolution is very low so it's a bit hard to make out honestly.
Is there a wiring diagram anywhere to do this?
I recently asked Slee this question. They said its not discontinued, but are working w/ a new harness supplier and it could be Q3 or Q4 2026 before they have a supply.
I've been waiting for them to restock for awhile. I could build by own, or buy a generic harness, but I like the custom aspect of Slee and i don't have to figure out wire lengths, etc.
- Thread starter
- #26
slee has very detailed instructions and JH posted a link to his very detailed explanation of how to get auxiliary lighting to a heater switch inter cab i think.
i could send you the former info can find it but might be on slees site.
maybe JH can post his thread and what it covers. if not i can find it so bug me if you don't see it posted.
- Thread starter
- #27
jon posted this for auxiliary lighting.
for the slee harness it is pretty much connect to hot pole and a ground, connect sockets to bulbs (or to harness) and another ground at the passenger side.
did you need the slee instructions? or dimensions for making your own harness?
Sorry, my question was a little vague. I was looking for a wiring diagram for the slee harness itself, I do have the instructions.
Or better yet, since I have Depo headlights, a wiring diagram to make the low beam bulb switch to high beam when the high beams are on and have the headlights powered directly like the slee harness. I have seen a couple people add a harness to the slee harness to make this happen, but no actual wire diagrams.
I got a notice that the new and improved Slee headlight harness is back in stock, just wanted to let everyone know. Looks really nicely done, I've ordered and will report back.
sleeoffroad.com

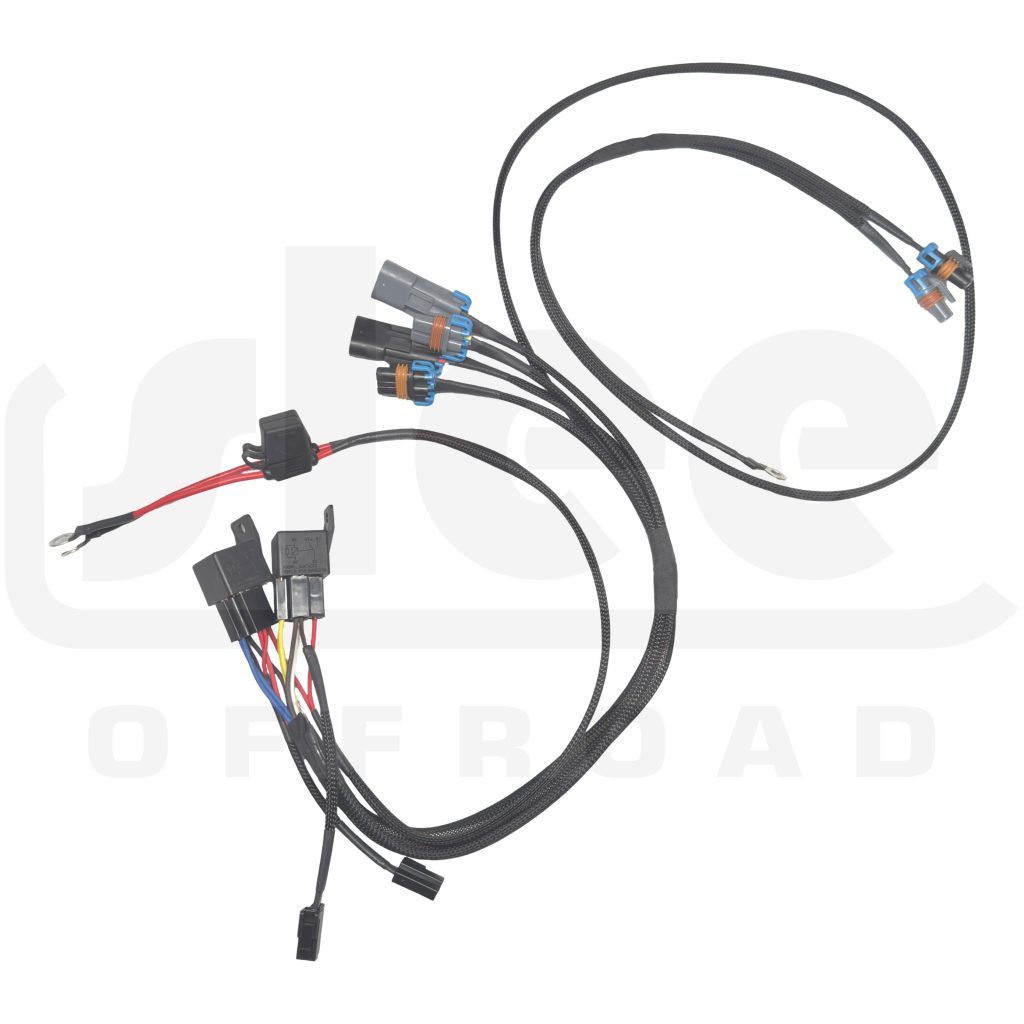

SLEE - 9005/9006 Headlight Upgrade Harness - New and Improved! - Slee Off Road
Made in the USA TXL wire – high heat resistance, abrasion resistant, chemical resistant, highly flexible Genuine Delphi sealed headlamp connectors Techflex abrasion resistant braided sleeving with ends terminated with shrink tube Beuler 40 amp (60 peak) relays – US sourced Sealed blade fuses...
sleeoffroad.com
@JSX This might be what you are looking for. I did this mod and WOW the light output is impressive.
