Shackle Install (1 Viewer)

[JL2167]

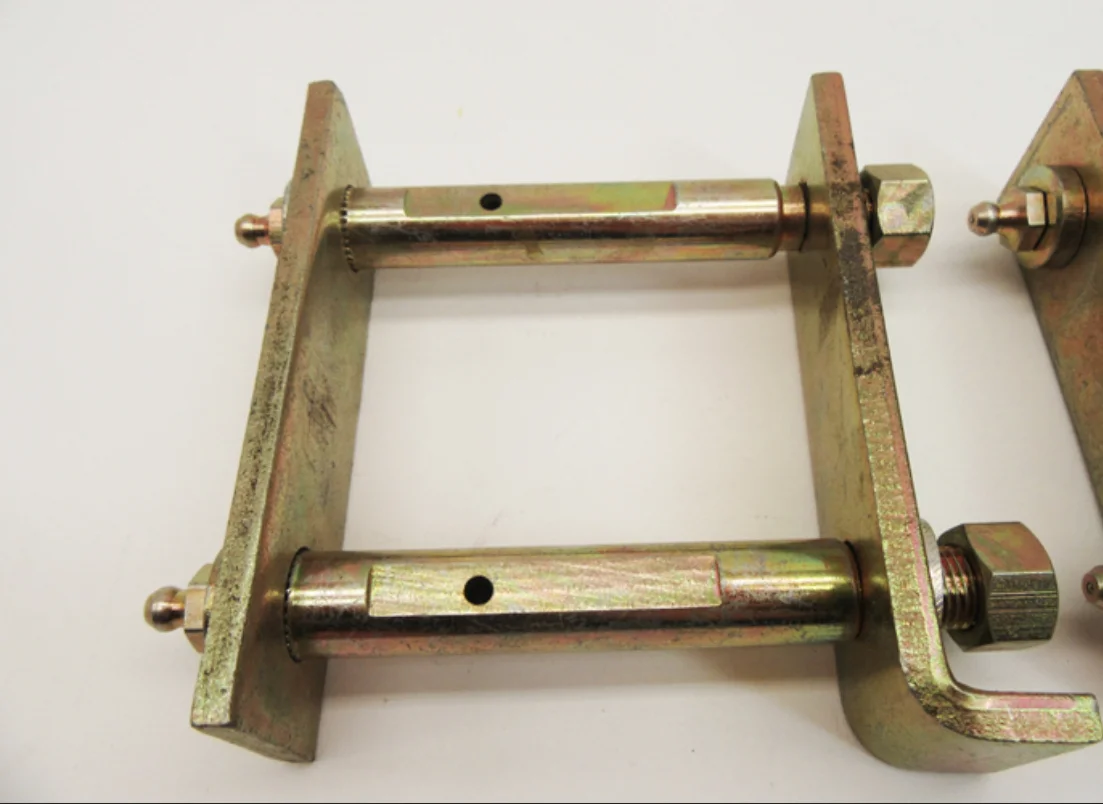

Just bought these from Manafre and looking for advice/instruction on install. Grease zerk on inside or outside? Flared end on top or bottom? Thanks in advance!



[B y r o n]

If they are to mirror the factory shackles then jerks to the outside and flared end down.



[Rocky_LC]

Is the flared (bent) end for anti-inversion?



[wngrog]

Is the flared (bent) end for anti-inversion?

No it’s to protect the bolt from a rock



[JL2167]

If they are to mirror the factory shackles then jerks to the outside and flared end down.

Thanks!
