Build rocks and rolls

[mrqtipp]

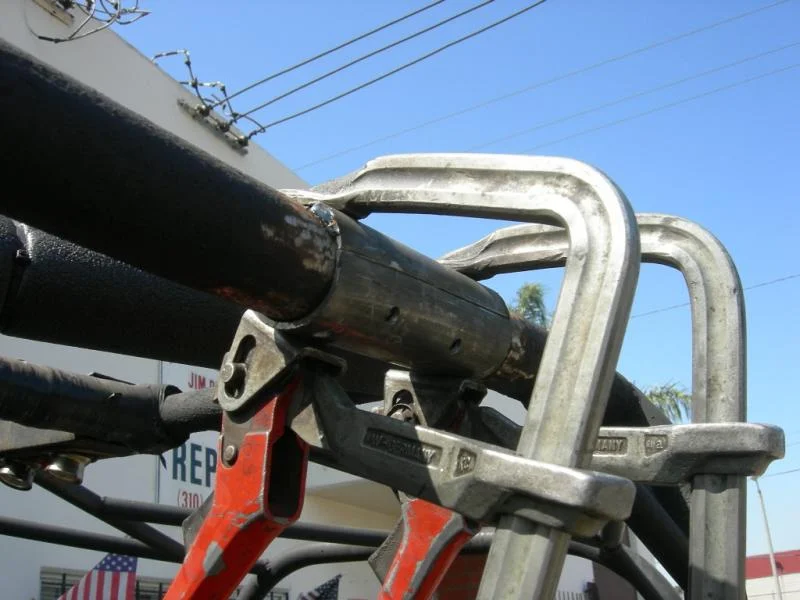

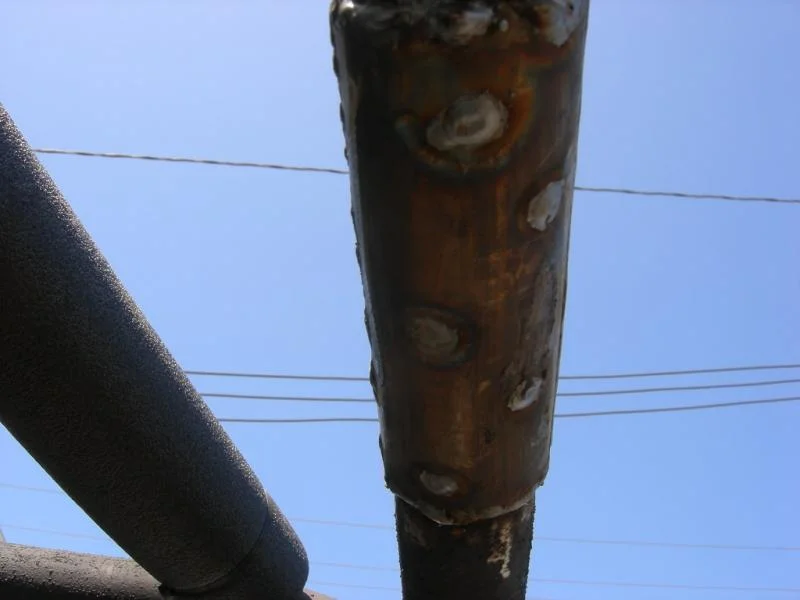

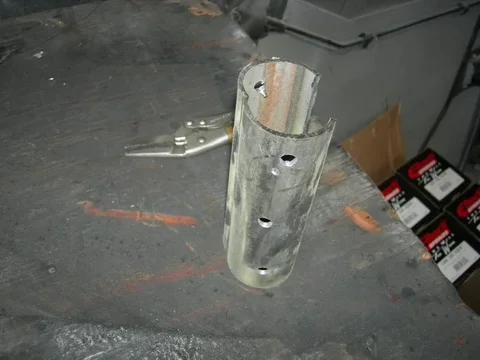

add on tube and sleeved inside





another sleeve



[mrqtipp]

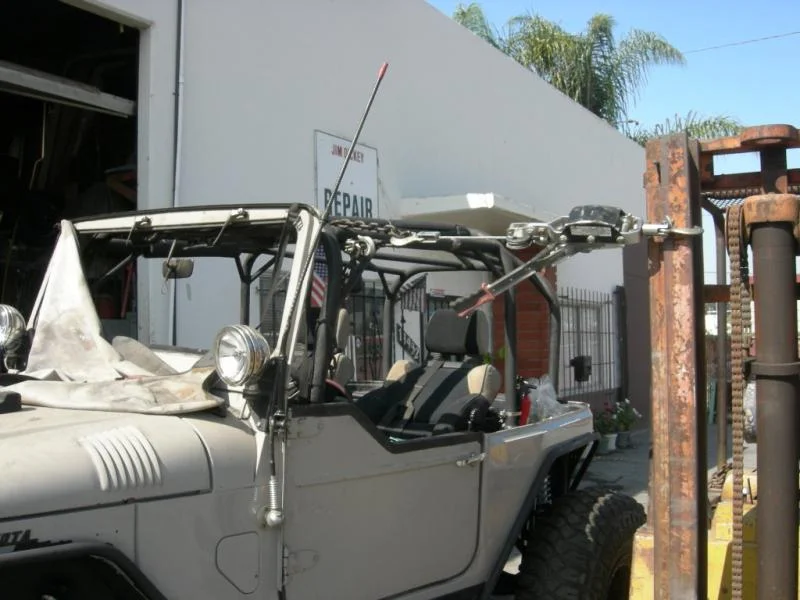

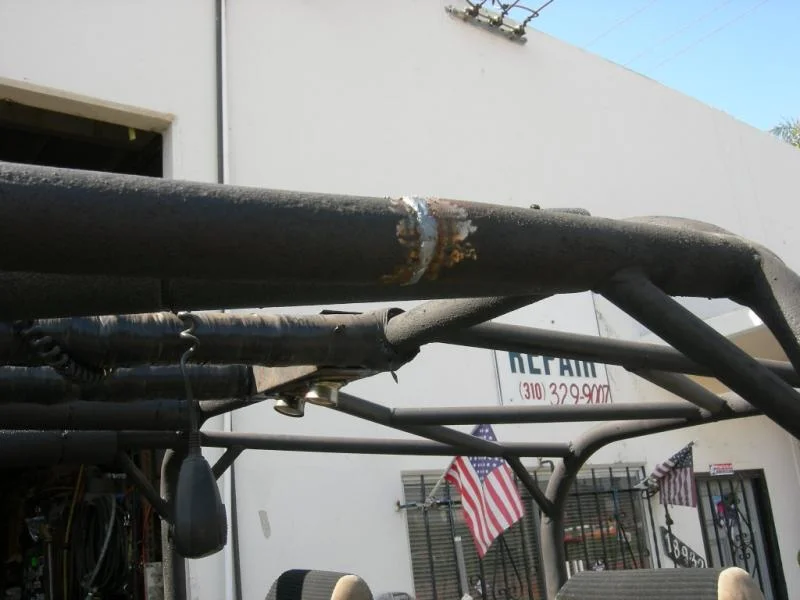

tie in welded up and soon to be sleeved

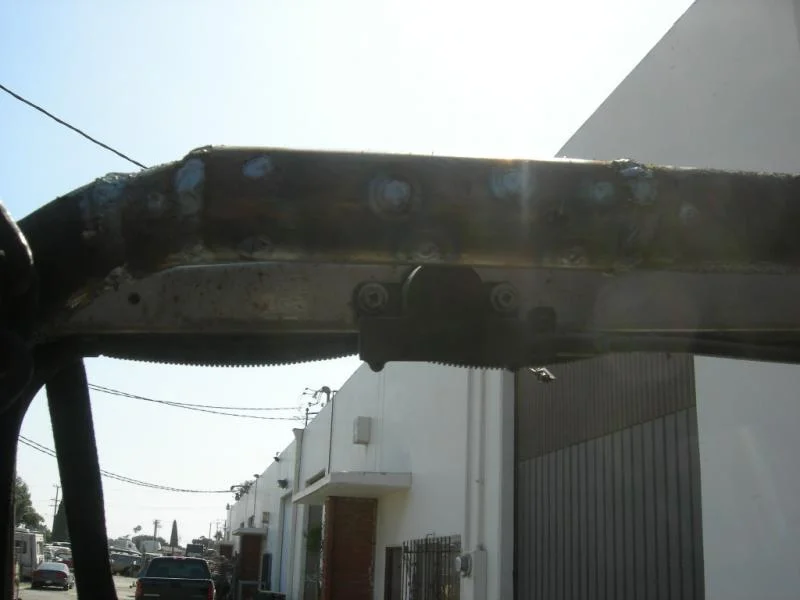

front welded up

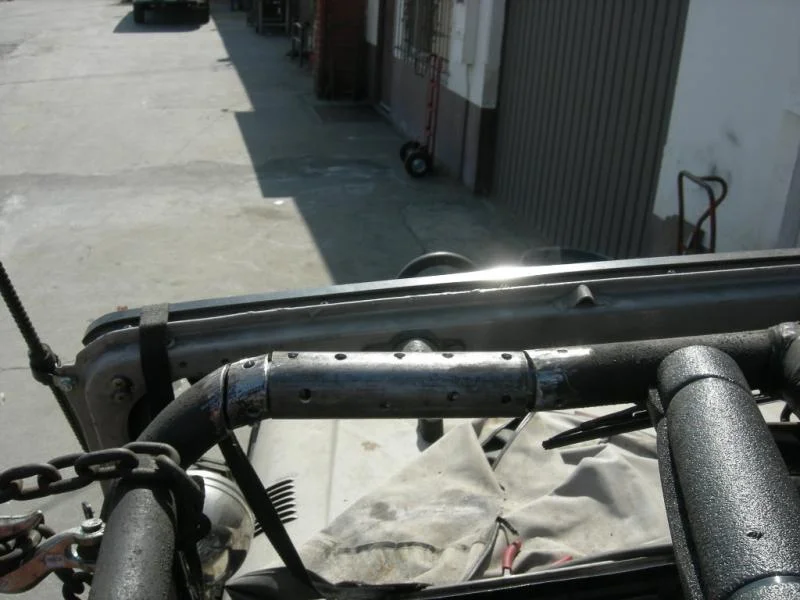

top view



[mrqtipp]

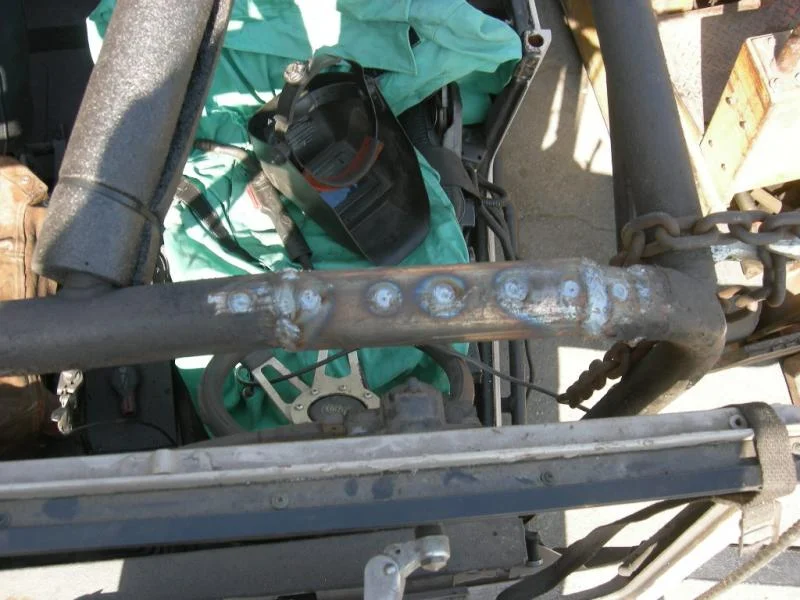

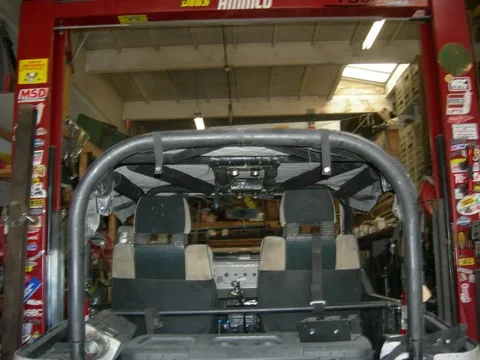

side bar sleeved



welded up



.



[D'Animal]

Looking very good.



[Tapage]

which it's your new spring rate .. or of those new coils that you choose ?



[murphy325]

that is some bad ass tube work looks exellent bro!!!!!!!!!!



[mrqtipp]

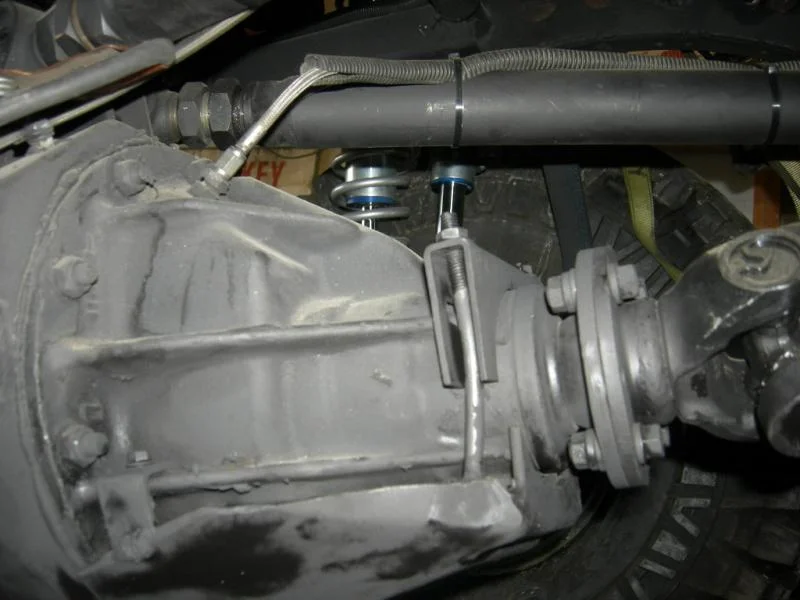

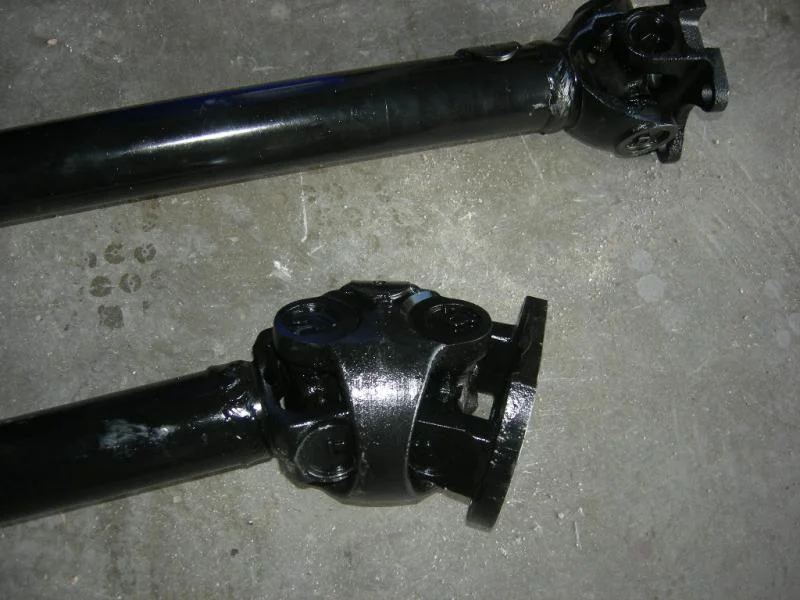

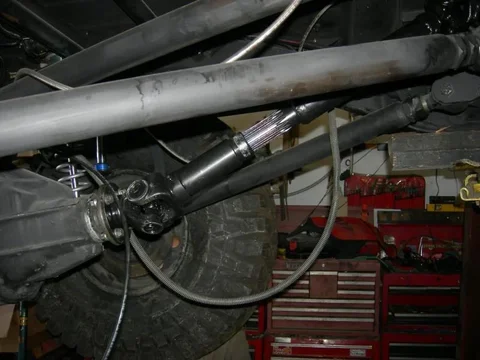

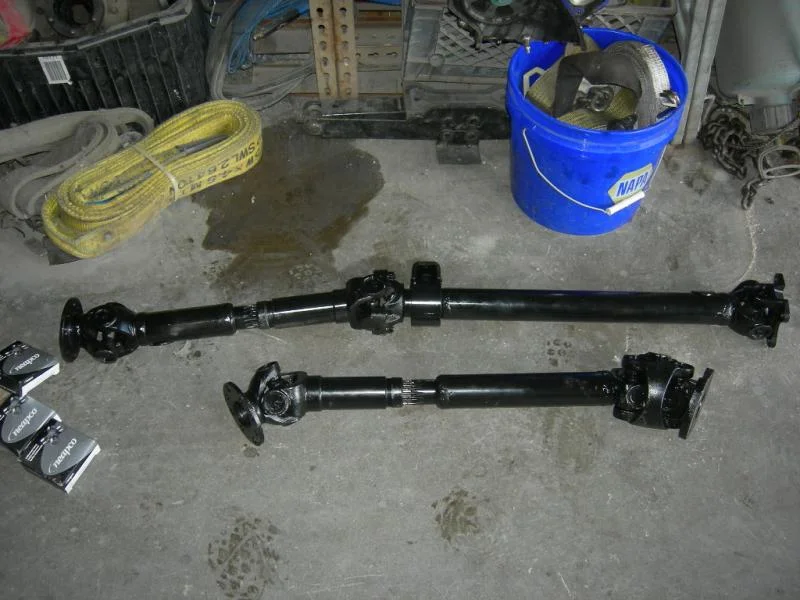

got the drive lines back

1350's

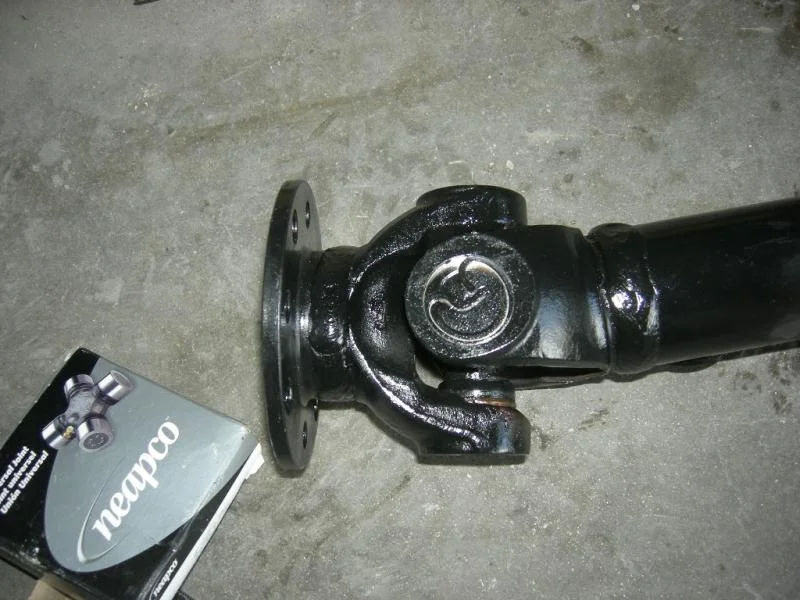

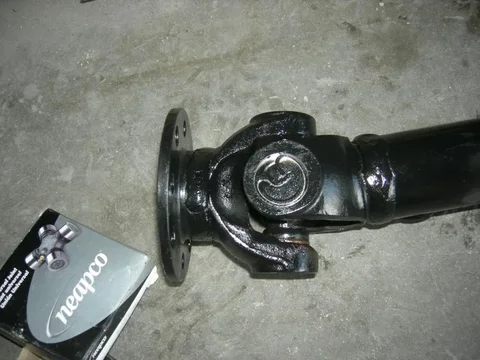

since no one makes 1350 pinion yoke for 27 spline pinion the driveline shop welded a toyota flange to the drive line



.



.



[mrqtipp]

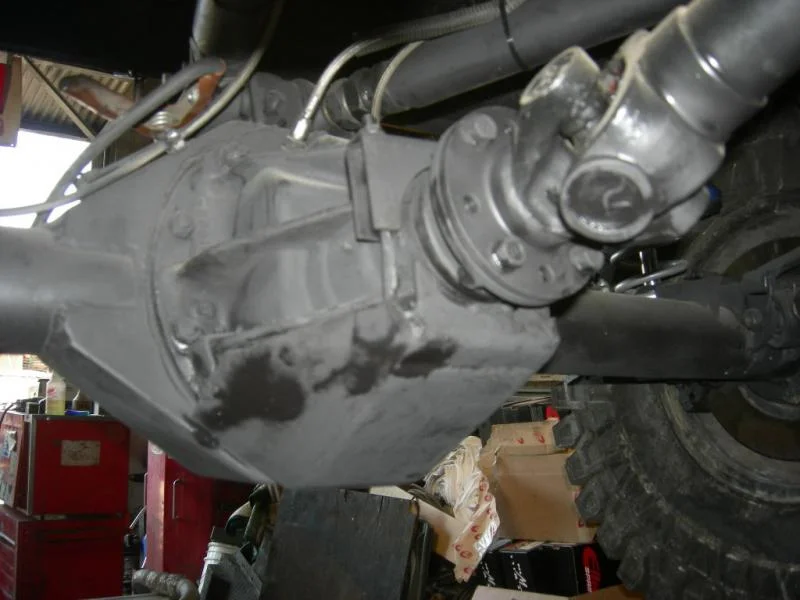

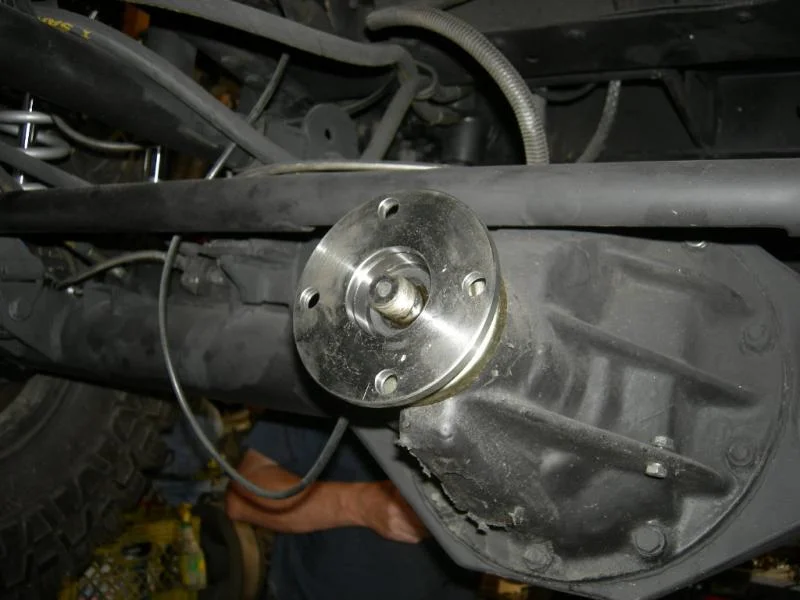

new pinion flange



[mrqtipp]

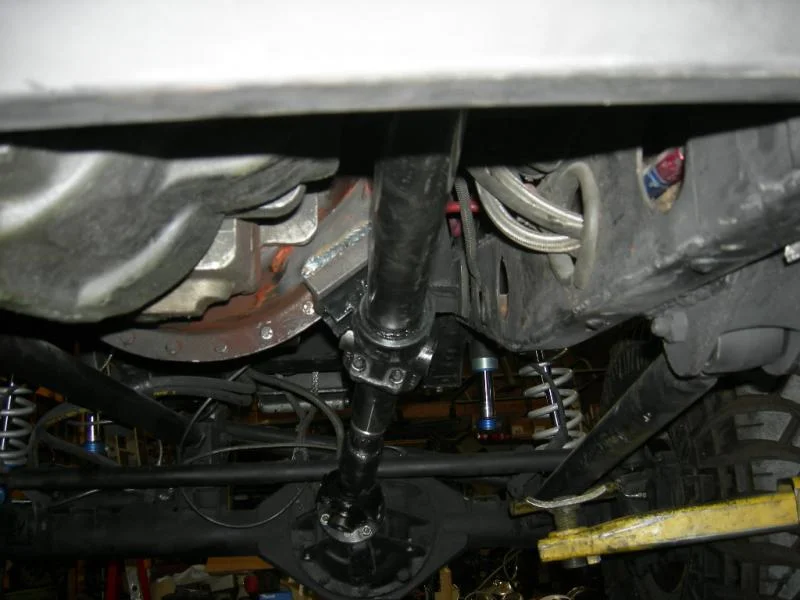

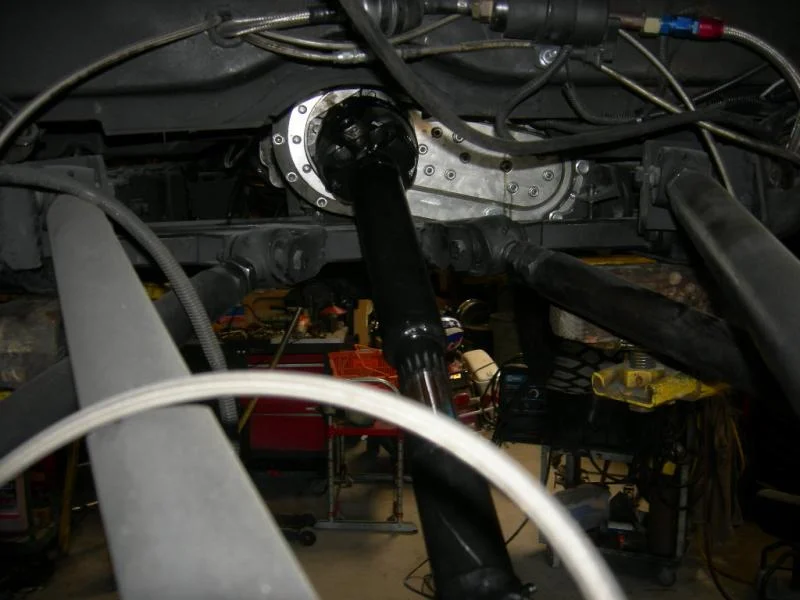

I was going to mount the carrier bearing to the frame

but

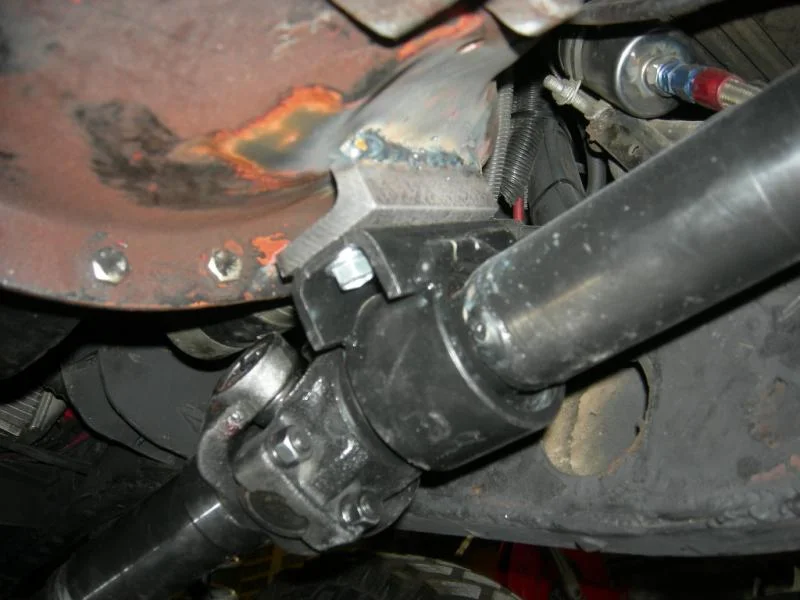

Mounted the carrier bearing on the lakewood bell housing instead.



[mrqtipp]

I was able to drop the frame down in inch or two

The frame was getting close to the ram

Decided to lower it several inches



cut bracket off



Forgot to take picture of the new location



[mrqtipp]

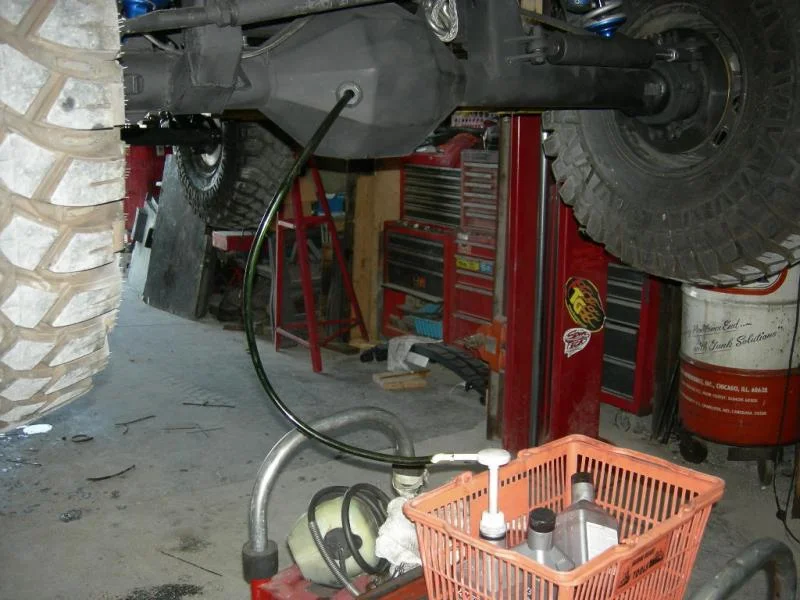

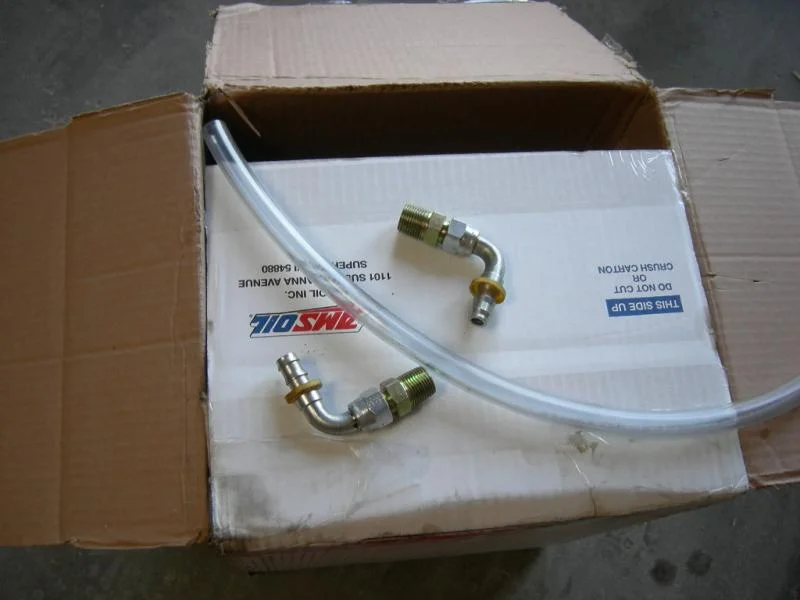

new fluid



t case site tube

after I clocked the tcase down it doesnt fit



pump



[mrqtipp]

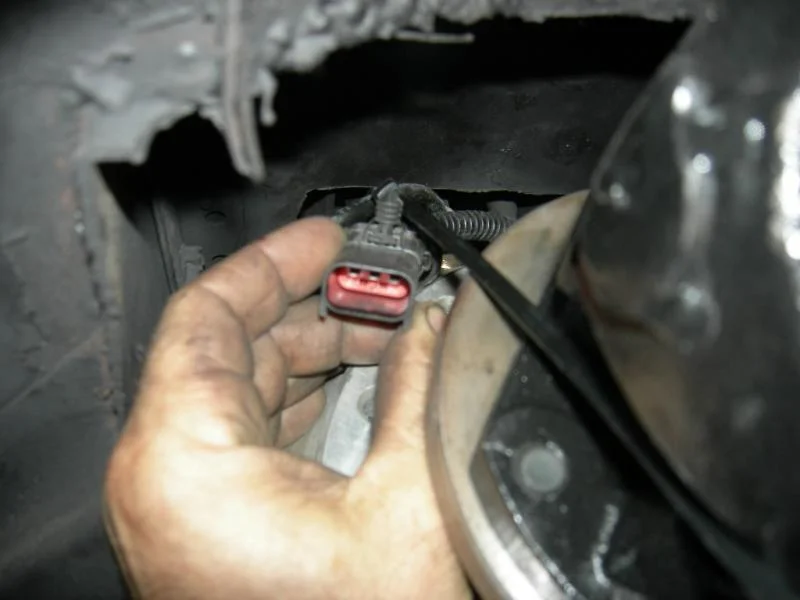

tcase speedo

turns out the male plug I needed was out of a jeep

went to the jeep junk yard and got this plug

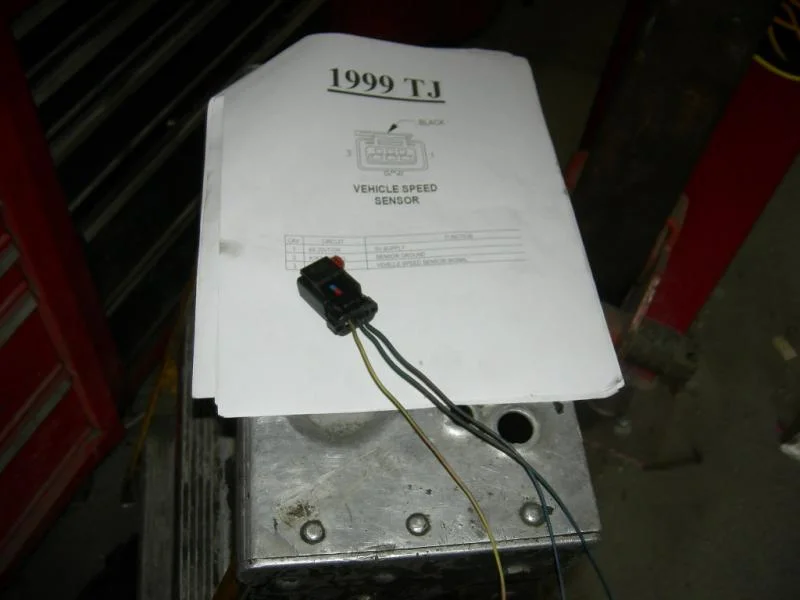

female plug

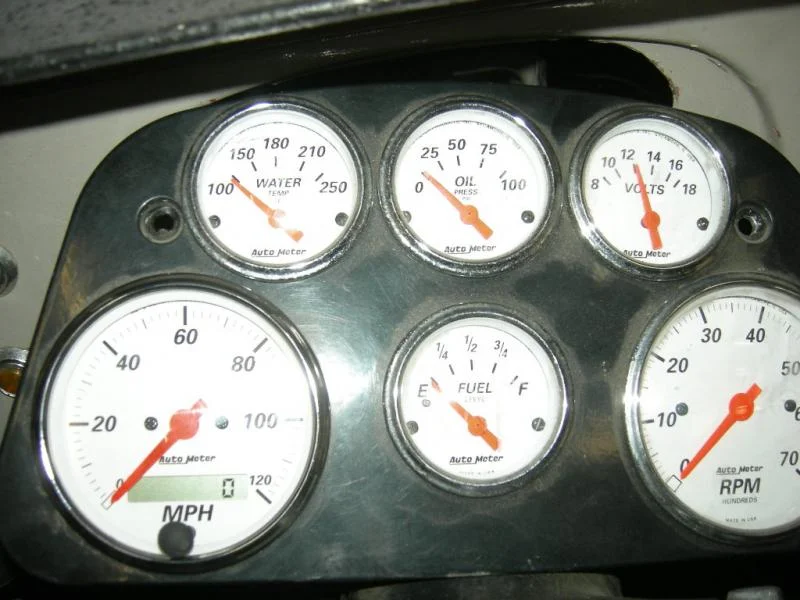

speedo wired up

zero miles

still need to calibrate



[mrqtipp]

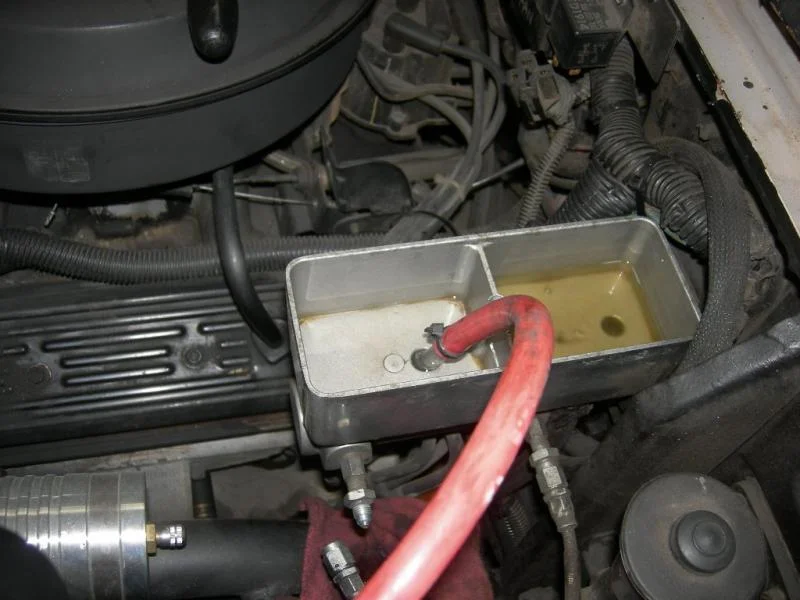

brake problems

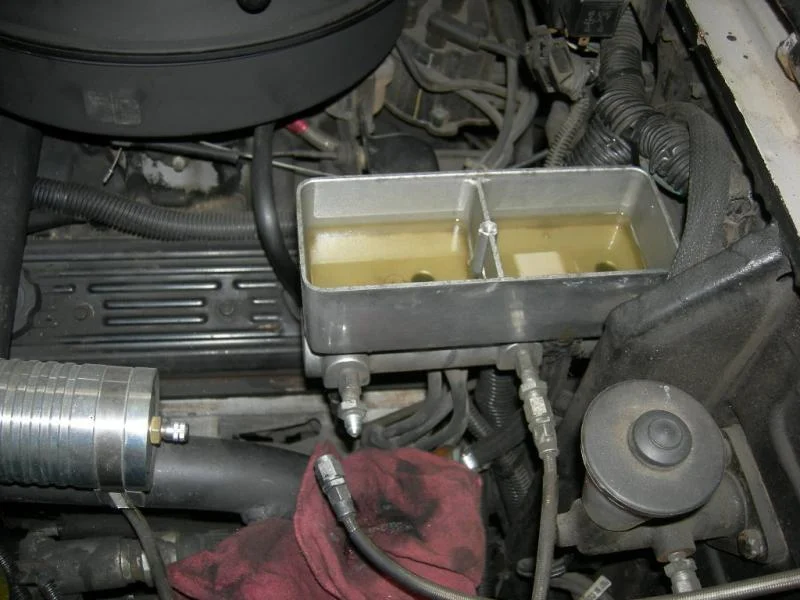

master cyl started to leak in the cab



electric pump



sucked the fluid out



[mrqtipp]

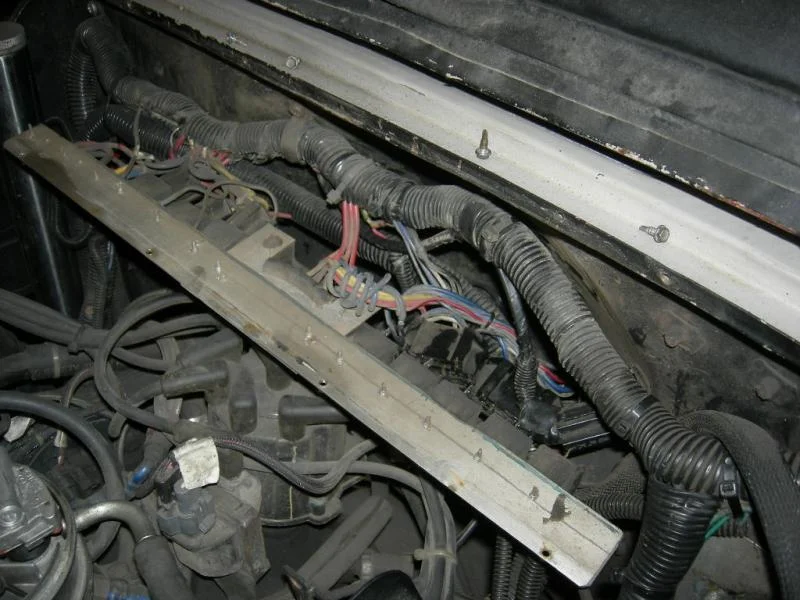

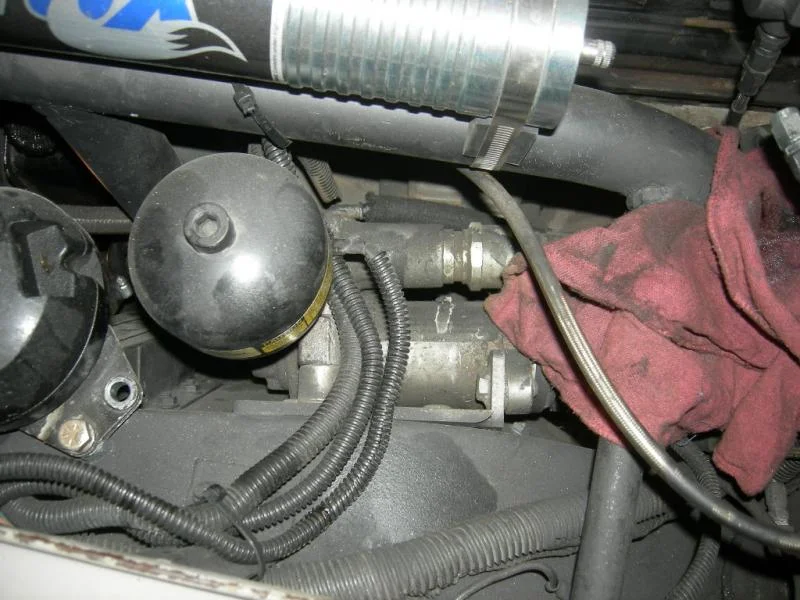

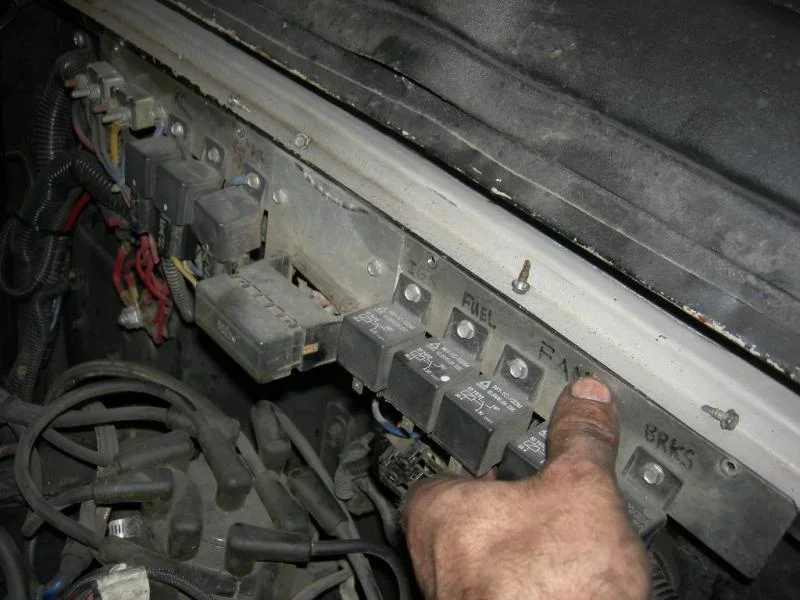

had to pull the brake accumalator pump wires



behind panel

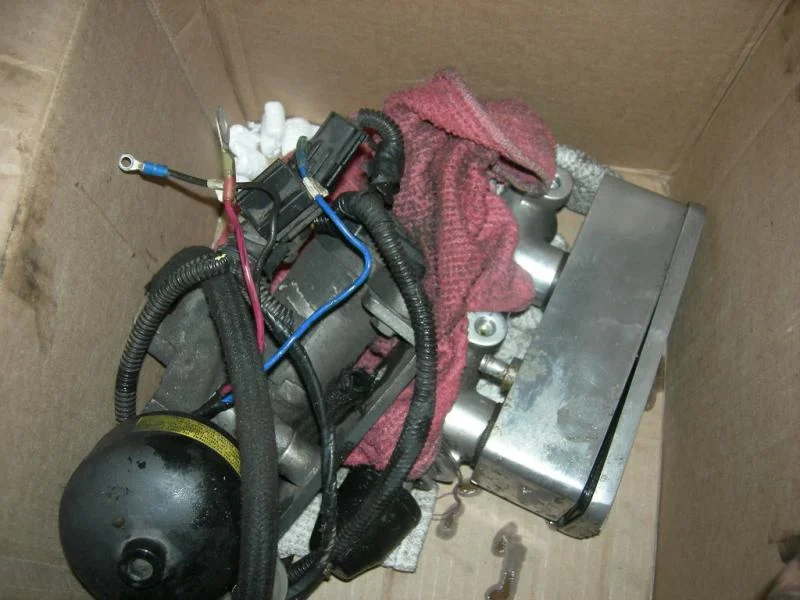

in the box and off to the rebuilder



[mrqtipp]

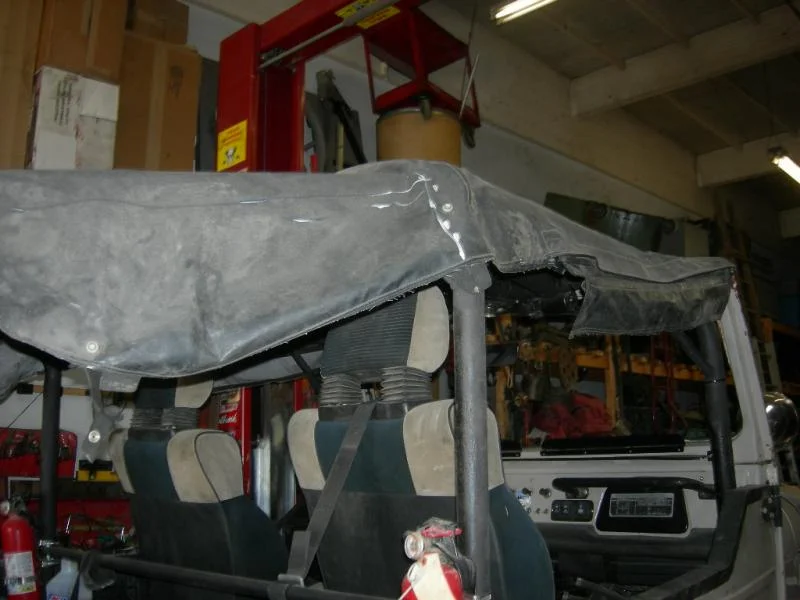

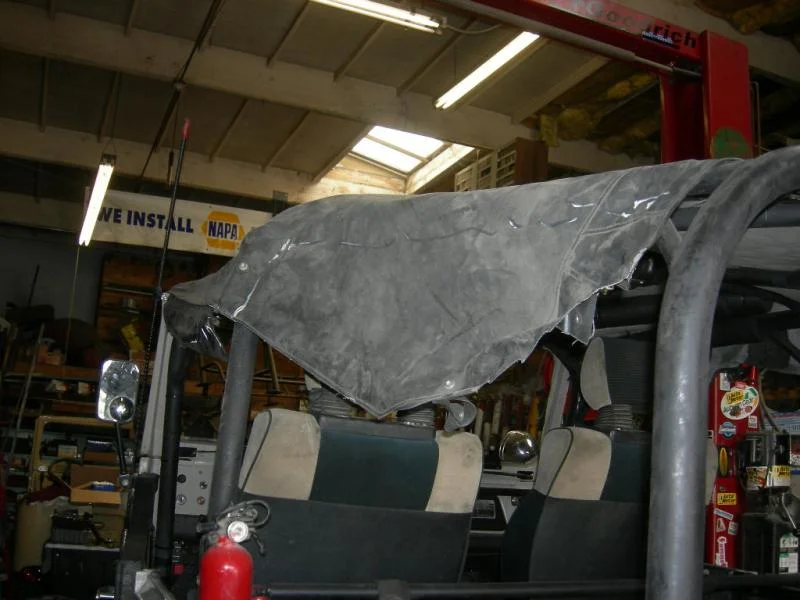

took my weathered/ruined soft top

yellow windows

cut it up and soon it will be the new soft top



[mrqtipp]

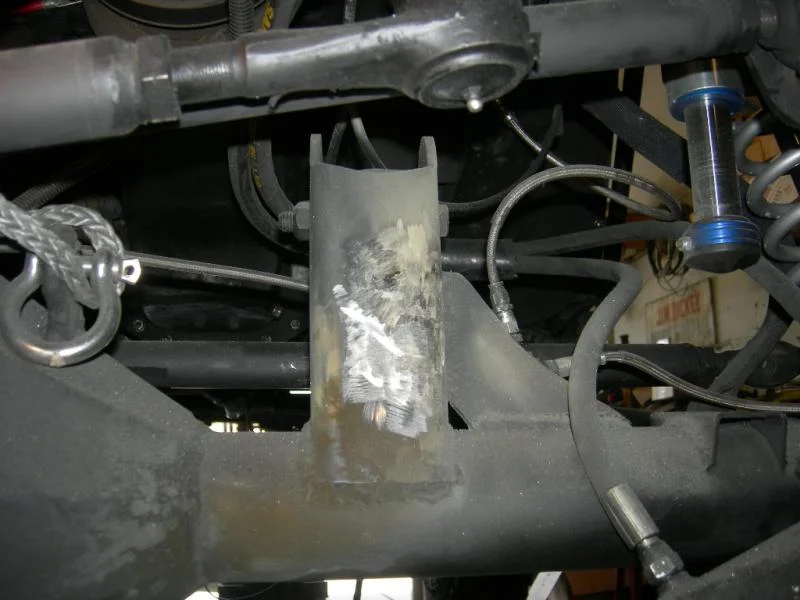

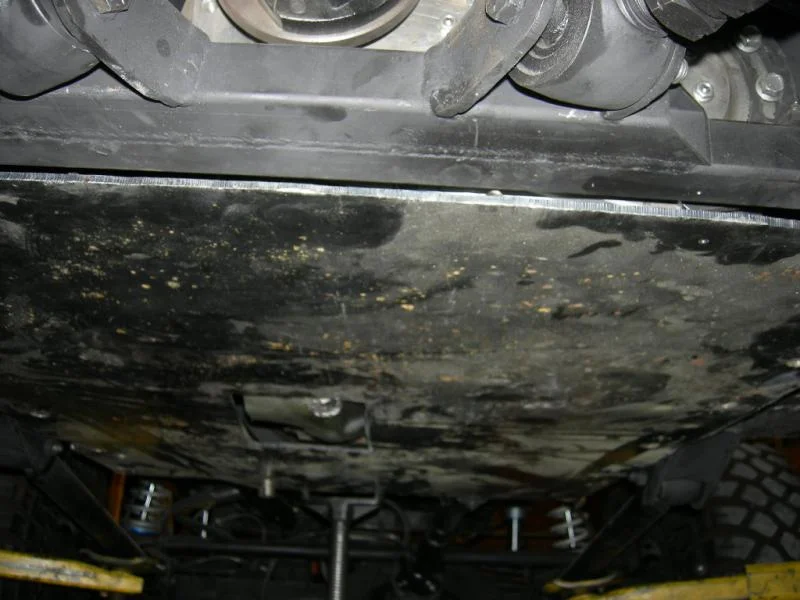

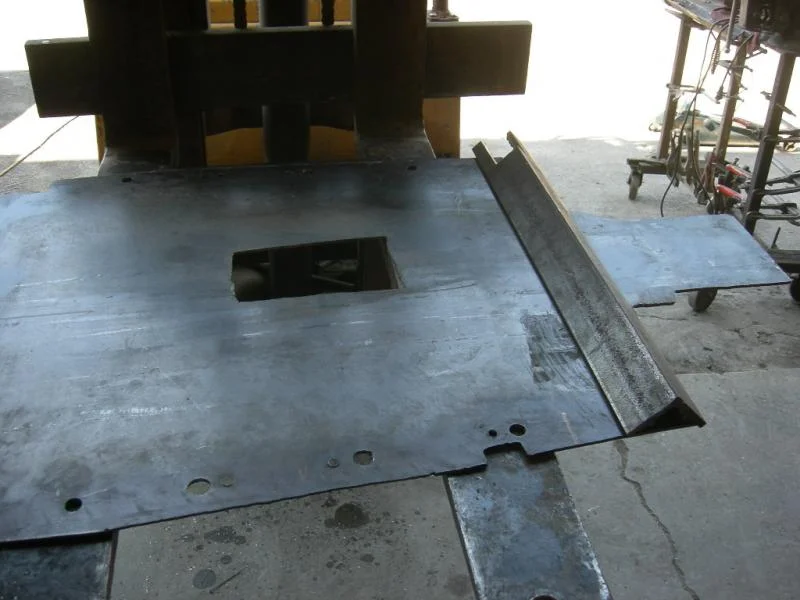

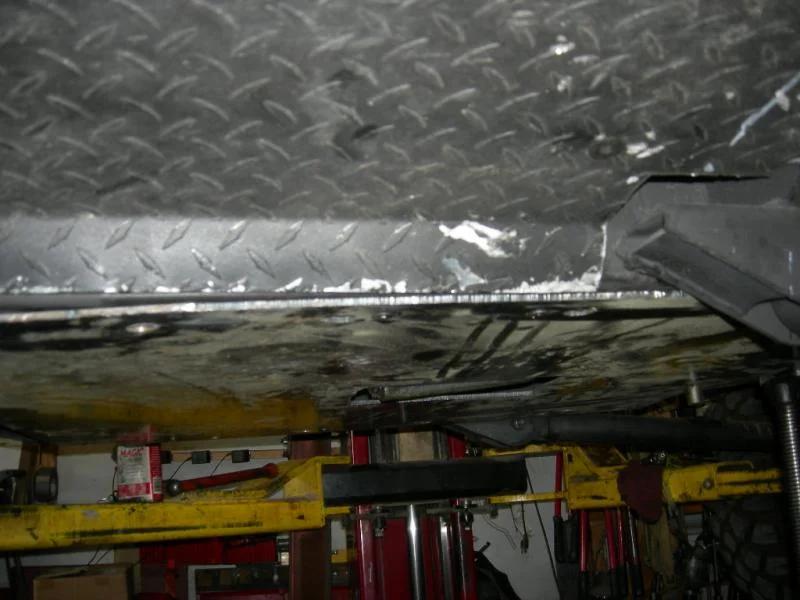

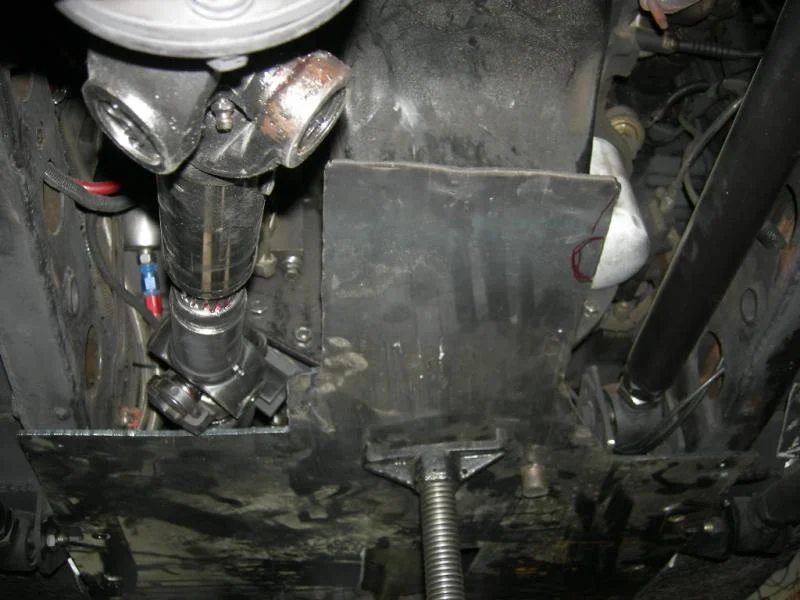

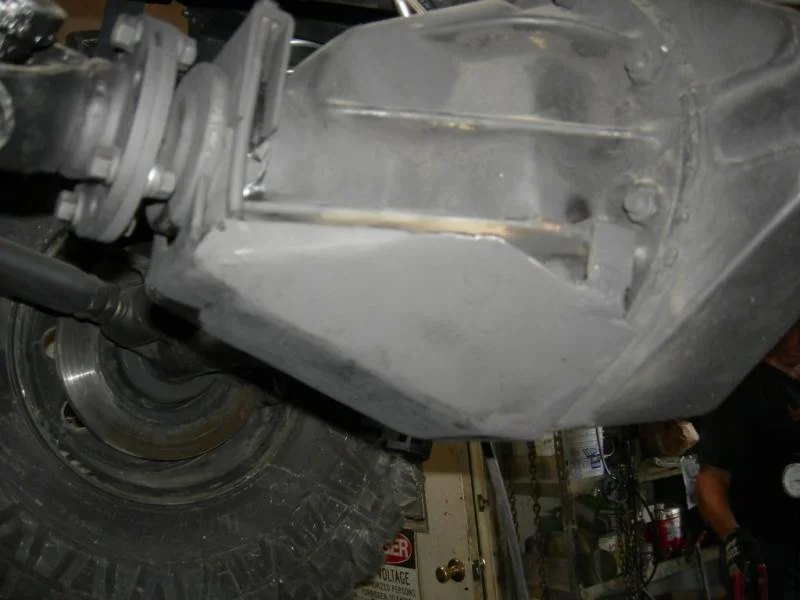

diff skid plates installed

front



[mrqtipp]

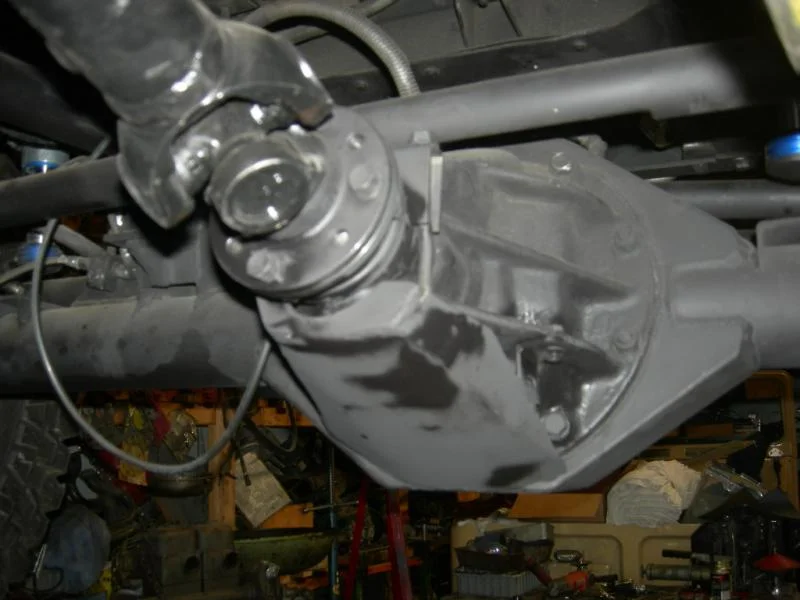

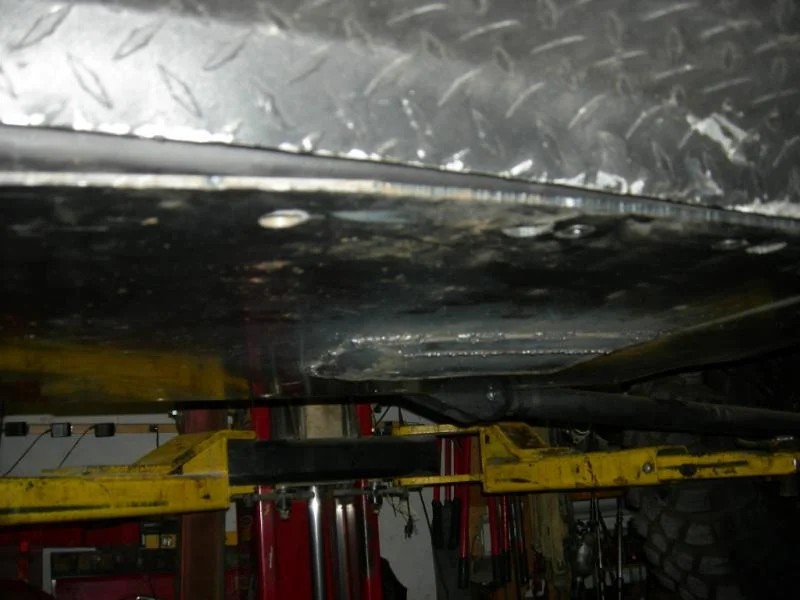

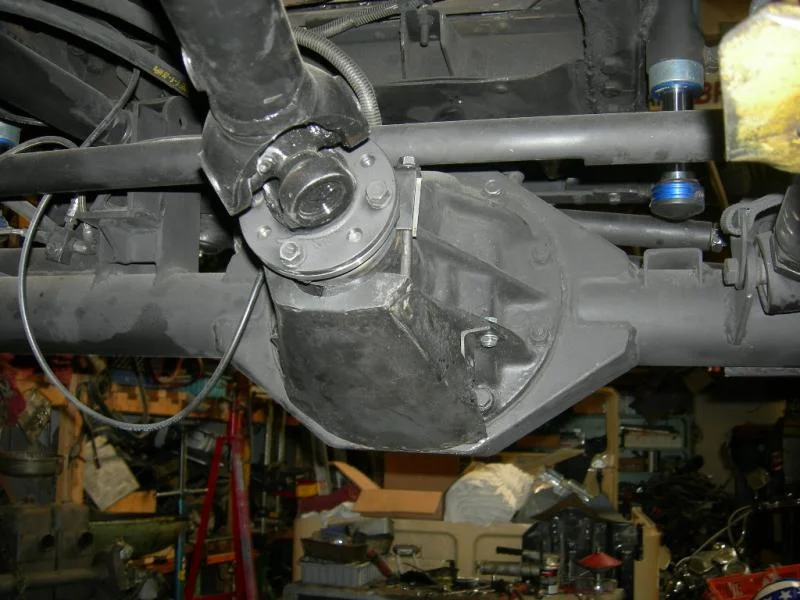

Rear diff skid plate



[mrqtipp]

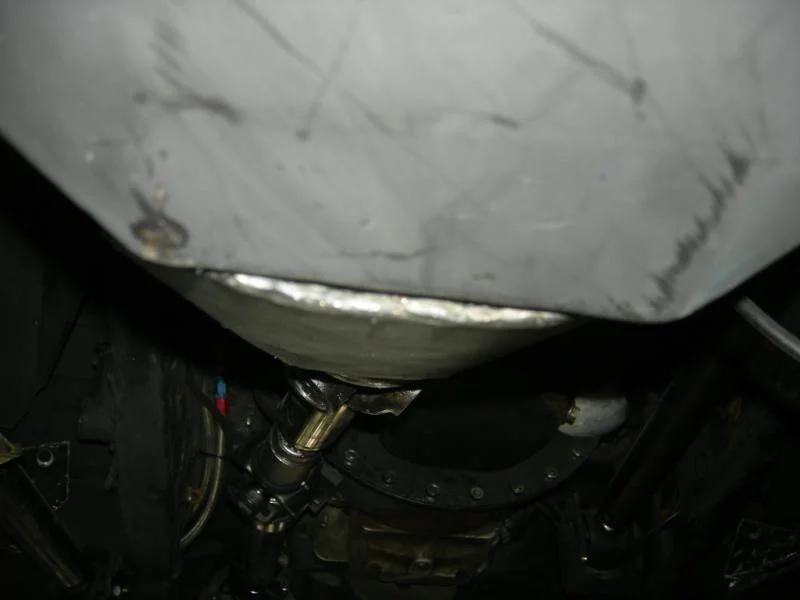

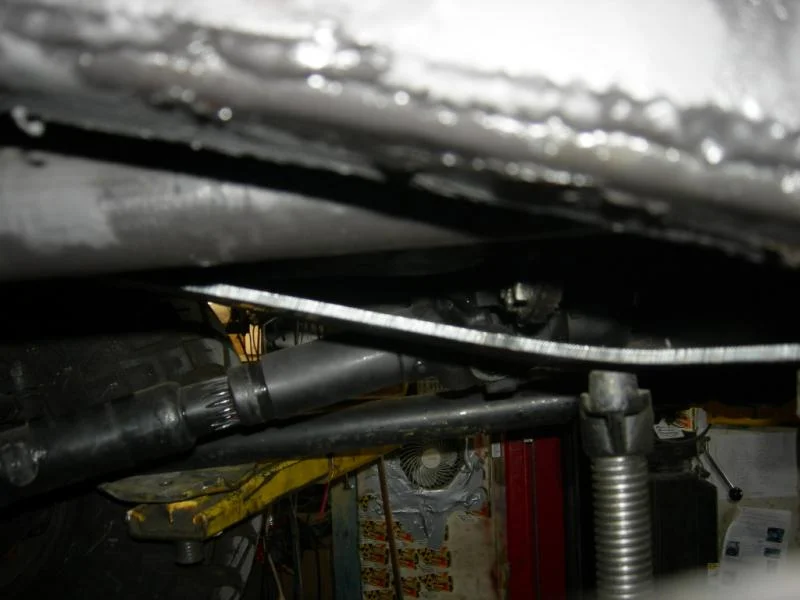

needed to bend the front of the skid plate



I wish i could raise the tcase up a bit but portions of the hump hits the tcase.

Another mistake



pretty flate



[mrqtipp]

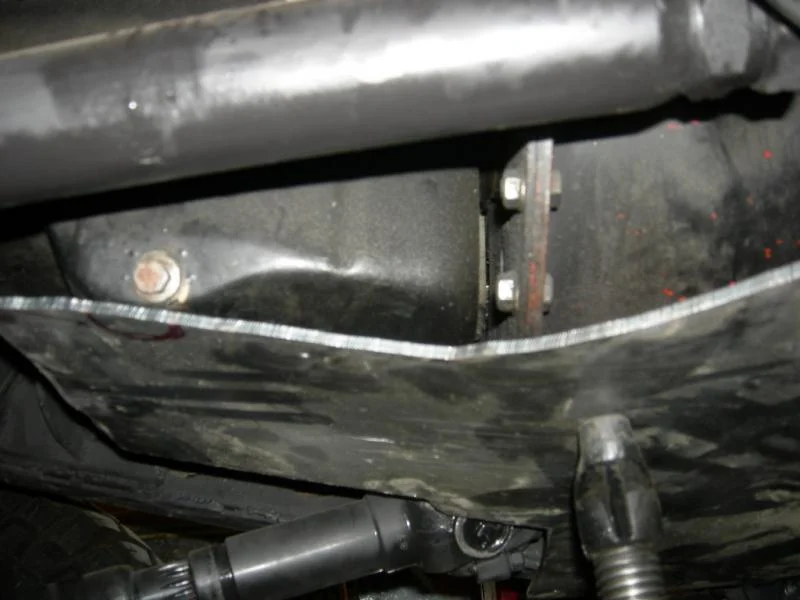

bent up the front of the skid plate to protect the oil pan



need to cut out a small notch to clear oil pan drain plug



[mrqtipp]
