Builds Rebuild of Trusty (4 Viewers)

[POPO AGIE]

Panted the knuckles, brake lever and the brake bracket. The bracket paint was already chipping off so I just hit what I could reach with the wire wheel and painted again.


Set up for paint of the knuckles

First coat on the knuckles

Removed the paint on the bracket to repaint

Second coat on the knuckles and first on the brake lever and bracket

Installed the brake drum on the parking brake with the nut loose. Put oil on the machined surface where it rides on the seal, and put RTV on the splines before inserting. Also backed off the adjuster to get the drum and then turned to the first notch.



[POPO AGIE]

Finished the second coat on the brake lever and bracket. Then started pulling the front axle out.

When removing the front shocks, both nuts sheared off
Passenger side

Driver side

Then removed the center pivot and the tie rod and relay rod to never be put back in. I got a tie rod end separator, but it was slightly to big and only separated one TRE and had to get a pickle fork to finish.

Then removed the shackles and the pins from the springs which came out much easier then they did on the rear



[POPO AGIE]

Got the axle out from under the frame, but fell off of the jack stands and of course the oil had to run out of the knuckle

Got the jack stands back under the axle and on the wheel dollies and pulled the drain plug to drain what was left. I will get it moved around so that I can move it will the tractor and forks and get the other axle off of the axle dolly and put this one on the dolly for the tear down.



[POPO AGIE]

Moved the axle outside with the tractor and power washed and started stripping down.

Stripping out the brake line

Removed the springs

Springs removed



[POPO AGIE]

Unbolted and removed the knuckle seals, then removed the steering arms, knuckles and bearing races, pulled the inner axle seals

There was contact inside with the Birfields

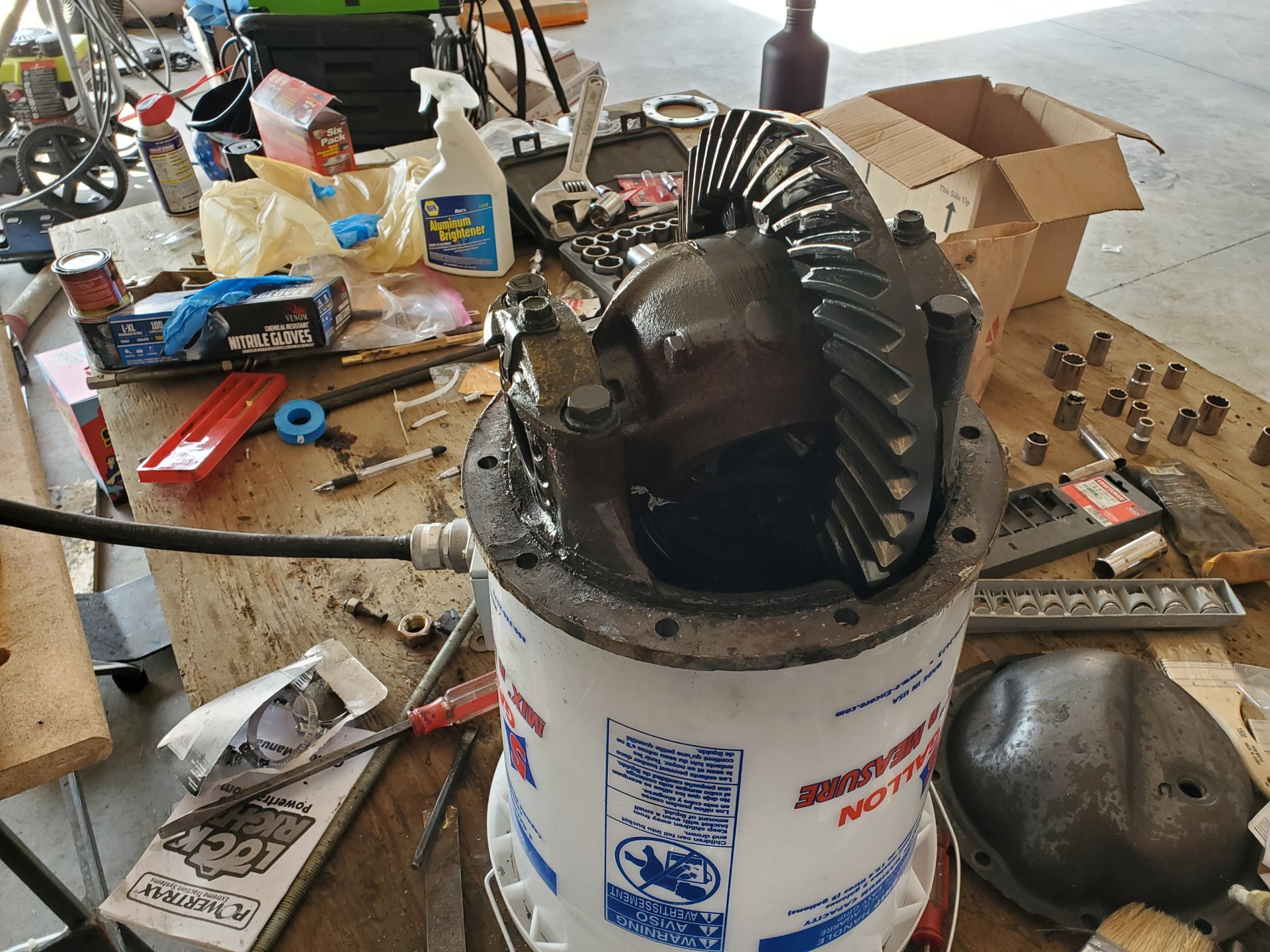

Took the axle back into the barn and pulled the differential



[POPO AGIE]

Found rust in the differential from water crossing and it must have gotten in from the hubs.

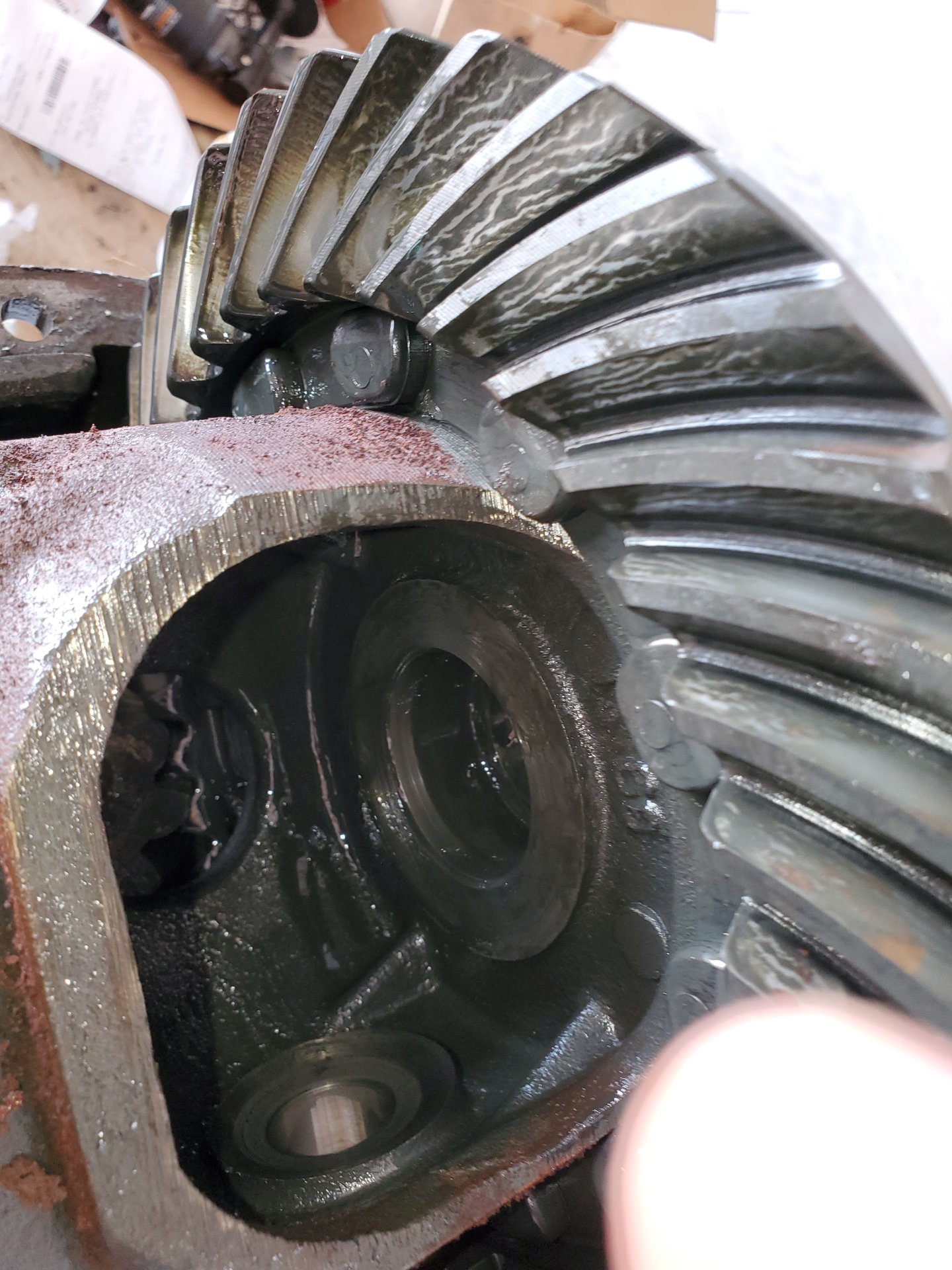

Removed the center pin and spider and side gears



[B y r o n]

Water usually gets in via the air vent on the axle housing.



[POPO AGIE]

Strange how the rear axle did not have rust when I took it apart.



[pb4ugo]

You can see the rust line where the rusty part was exposed to the atmosphere(humidity and condensation)for quite sometime. The owners manual recommends engaging the hubs periodically to lubricate the diff and frt end components. The non rusted area was submerged in 90wt. Water intrusion would have blended with the 90wt., then after a while of non use the water would've separated from the lube and settled in the bottom of the housing.



[POPO AGIE]

It has spent most of the time in the high deserts of Wyoming. It has not been driven since 1991 so locking the hubs would not have done any good.

When I was still driving it the hubs were locked 9 months of the year.



[POPO AGIE]

I was just surprised the rear differential that sat as long as the front did was not rusted. When the oil was changed last they commented there was a lot of water in the gearboxes. I had been in water up to the turn signals on the front fenders.



[POPO AGIE]

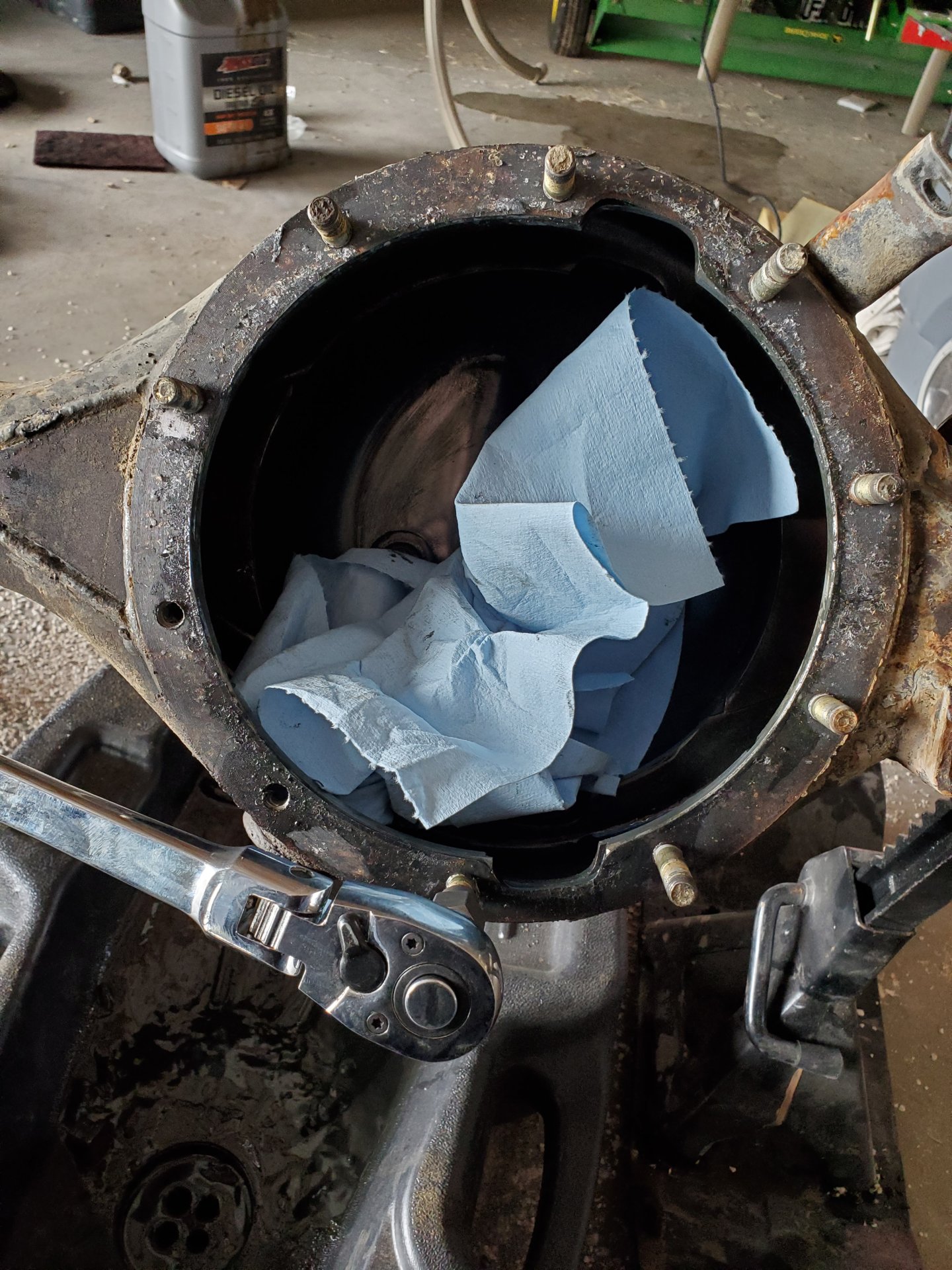

Removed the differential studs

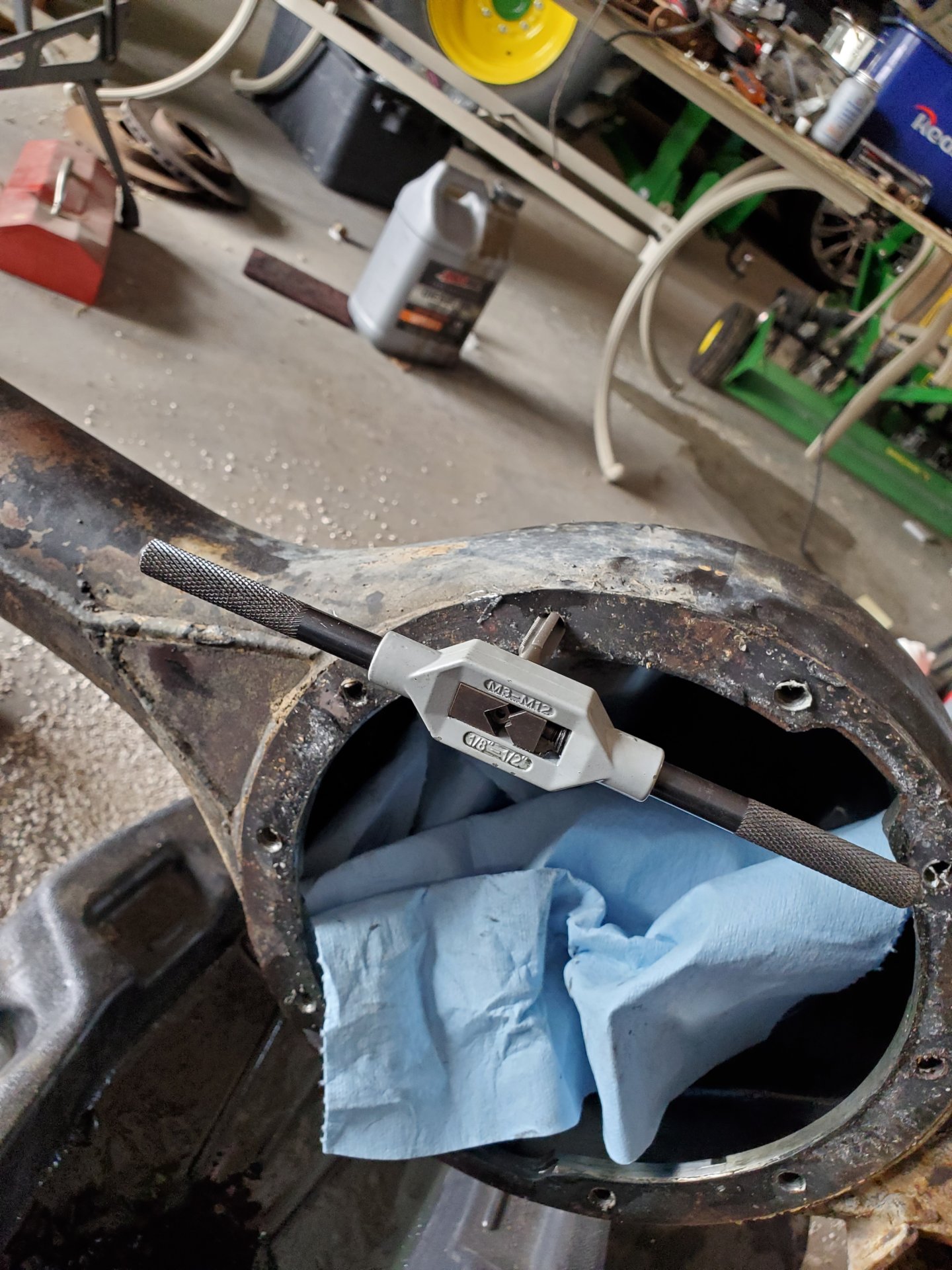

Chased the threads once the studs were removed

Cleaned the rust where I could get the wire wheels could reach



[POPO AGIE]

Yesterday the truss showed up along with FJ70 TREs.

Today I replaced the original vent with a hose barb like in the rear axle and attached a 5/16" fuel hose to vent later at the firewall.

Attached the hose

I used a step drill to get a hole in the truss to 3/4" and then used a die grinder and a burr bit to open it 1" for the vent hose and laid out cut lines.

Got the truss tacked in place, then seal welded to the tube



[POPO AGIE]

Worked on fitting NAPA tie rod clamps that can be opened up enough to fit FJ70 tie and relay rods. The Toyota clamps did not have enough material to open up to 1.083" ID because they only had 1.023" ID and the wall thickness was too thin.

NAPA part number. But they came with sleeves that are useless.

Opening the clamps with a die grinder until they fit the relay rod with tie rod ends

Fitted to the relay rod with tie rod ends

NAPA only had one set and will get the second set on Wed.

The shock mounts showed up from Ruff Stuff today, so I ground the shock mounts that were broken from removing the nut to remove the shocks.

Cleaned up the old welds and the welded on the new mounts



[POPO AGIE]

Got the bushing for the axle vent to seat with a small screw driver and a hammer

Then worked on cleaning the knuckle balls



[POPO AGIE]

Took the front differential to the shop to soak in the solvent tank and minor inspection.

Picked up the other 2 tie rod clamps from NAPA.

Went to the Powder Coat place to check on the status of the 3F bell housing. It was blasted and will be power coated today or tomorrow.

Fitted the clamps on the tie rod



[firemanj92]

Don't forget to clear coat/paint the TREs. They seem to rust quickly.



[POPO AGIE]

I was thinking of stripping all the paint off and using POR-15 like I did the rear axle and parts of the knuckles.



[POPO AGIE]

The bell housing was finished so I went out and picked it up.

Mounted the bell housing with the new bolts



[POPO AGIE]

Did some cleaning today. Power washed the front and rear axles. Then did a metal prep on the front axle to get it ready to paint.

Put a metal prep on the front axle before paining

Cleaned the clutch inspection cover before shipping to another member.
