Rear lower control arm brace\skid

turbo8

Supporting Vendor
Joined
Jun 3, 2013
Messages
923
Location
Las Vegas, NV
Hey,

I made 10 more sets of these braces\skids. They increase the stiffness of the rear lower control arm and decrease the chance of the arms getting bent from impacts. They come with all mounting hardware, can be installed in under an hour and the only tools really required are an Allen wrench set.

Four other MUD members have been testing these, without issues. Please chime in now if you have had issues. Thanks for testing them out!
@teejnut @kcjaz @TeCKis300 @TLC2013

I am selling these for $250 shipped as long as you're in the lower 48 states.

If you're interested, please reply to this thread.

Thanks!
20211212_125219-jpg.2863356

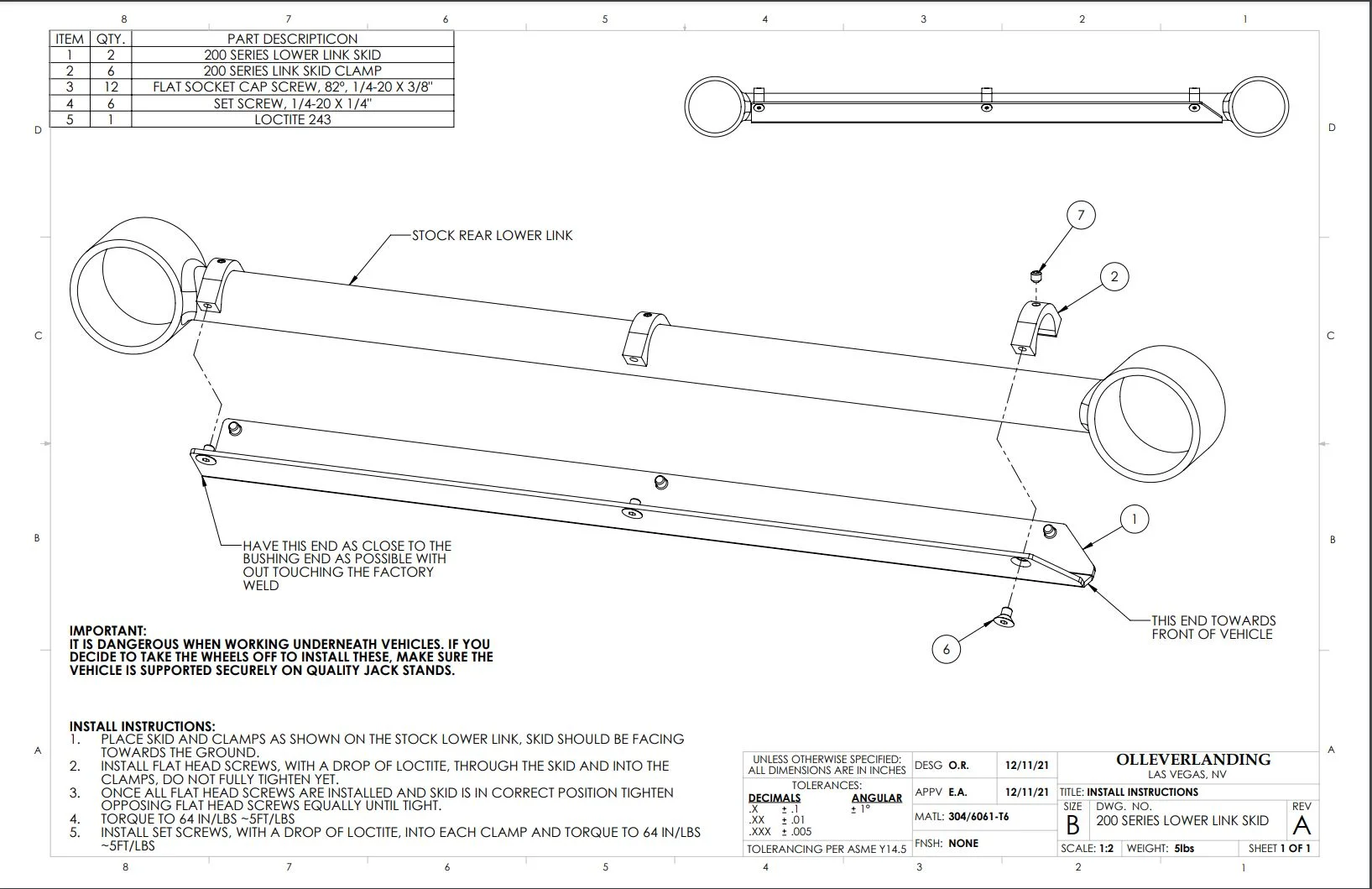

lower link skid.JPG


TeCKis300

GOLD Star
Joined
Apr 27, 2011
Messages
8,115
Location
San Diego
These have been working out great. Lightweight, easy to install, and quietly go about doing its thing without any perceptible compromise. My kind of mod.

This will take the point loads from the middle of the trailing arm beam and spread it out. Make for a robust trailing arm and I would impressed if anyone could bend the arm after installing this brace.



TLC2013

SILVER Star
Joined
Dec 10, 2019
Messages
999
Location
Bay Area, CA
Install went well with all hardware except one clamp did not line up with the holes on the skid. Only encountered this with one skid and it was the holes closest to the front of the skid. Forced it a bit and ended up going in at a slight angle and stripped one side of the clamp. Used some loctite and it’s holding. I haven’t had a chance to beat on them yet, looking forward to this added protection as my LCAs are gauged and marked up taking one too many bad lines lol.

Last edited:

turbo8

Supporting Vendor
Joined
Jun 3, 2013
Messages
923
Location
Las Vegas, NV
Thanks for the review @TLC2013. Let me know if you need a new clamp/hardware.


TLC2013

SILVER Star
Joined
Dec 10, 2019
Messages
999
Location
Bay Area, CA
Thanks for the review @TLC2013. Let me know if you need a new clamp/hardware.

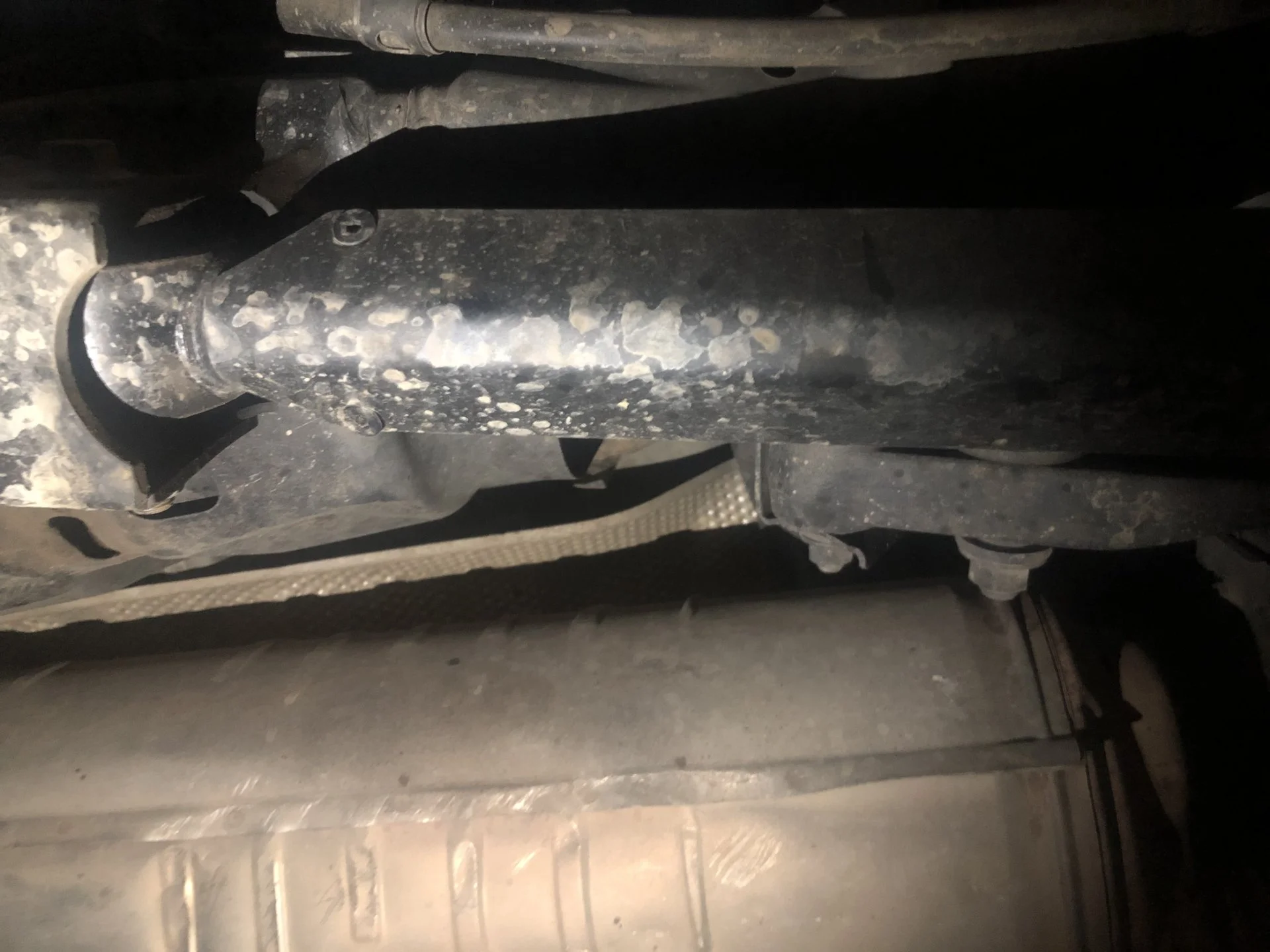

Thanks, appreciate it, ill provide another update once I get them in the rocks. I think it should hold just fine. If another clamp is needed I'll be in touch. Here’s a picture from tonight so lighting is a bit poor but shows the screws at a slight angle.



FerrisBueller

SILVER Star
Joined
Apr 20, 2020
Messages
620
Location
Austin, TX
I'll take a set


CharlieS

GOLD Star
Joined
Feb 4, 2005
Messages
6,633
Looking forward to trying these out! I'll find out soon enough, but just wondering if the v shaped skid portion is made of aluminum or steel?


turbo8

Supporting Vendor
Joined
Jun 3, 2013
Messages
923
Location
Las Vegas, NV
Looking forward to trying these out! I'll find out soon enough, but just wondering if the v shaped skid portion is made of aluminum or steel?
It is stainless steel.
